Topton N21 11-Bay Gaming NAS Motherboard AMD Ryzen 9 5900H 5900HX 7 5825U 8*SATA 3*NVMe 2*2.5G LAN 2*DDR4 Firewall ITX Mainboard
価格:
$225.12
/Pc
払い戻し:
シェア:
売れ筋商品
This link bundle: No Ram No Storage No OS, please choose CPU Fan bundle carefully.
Specification:
CPU:
1. AMD Ryzen 5 5600U 6 Core 12 thread 2.3GHz up to 4.2GHz, 16M Cache, TDP 15W
2. AMD Ryzen 7 5825U 8 Core 16 thread 2.0GHz up to 4.5GHz, 16M Cache, TDP 15W
3. AMD Ryzen 7 5800H 8 Core 16 thread 3.2GHz up to 4.4GHz, 16M Cache, TDP 45W
4. AMD Ryzen 9 5900H(or 5900HX) 8 Core 16 thread 3.3GHz up to 4.6GHz, 16M Cache, TDP 45W
GPU: AMD Radeon Graphic
RAM: 2*DDR4 non-ECC SODIMM Slots，Max up to 64GB 3200MHz
Network: 2*Intel i226- 2.5G RJ45 LANs
Display: 2*HDMI2.0，support dual 4K@60Hz display
Storage: 8*SATA3.0，3*M.2 2280 NVMe(1*PCIE3.0x4+2*PCIE3.0x1, one on back side)
Powe supply: 24pins+4pins ATX 12V power suppply, must connect at same time to power on
Expansion: 1*PCIE3.0 8X slot, support to expand graphic card, network card etc
Radiator fan: support LGA115X standard fan(75x75mm) with screw hole positions in square layout, optional to buy
Function: Support auto power on, wake on lan, RTC, watchdog etc (DELETE key to enter BIOS, F7 key to select boot drive, F3 key to restore BIOS default values)

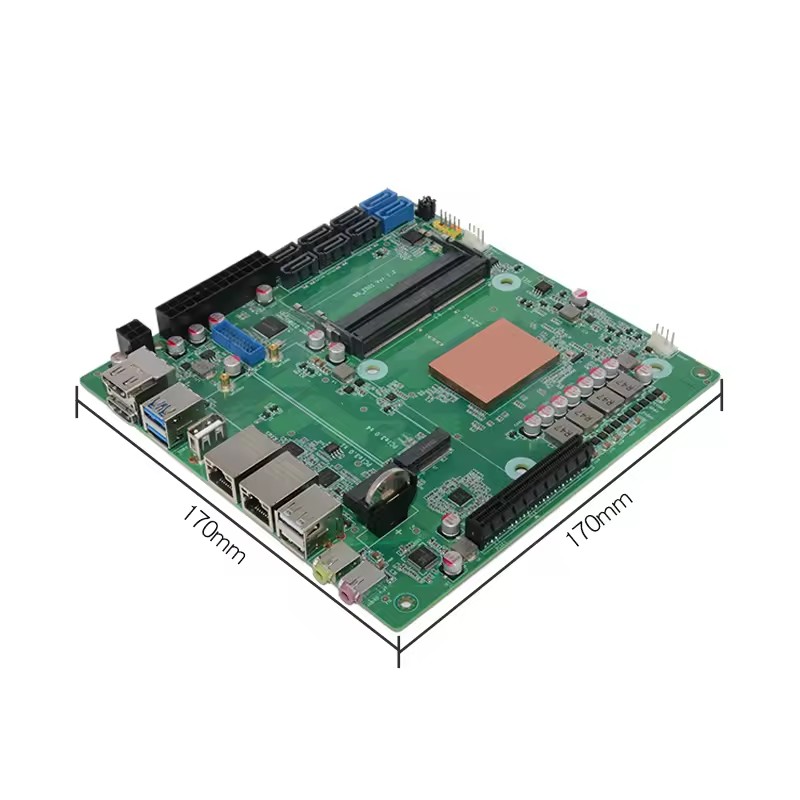

Form: 17x17CM, mini ITX

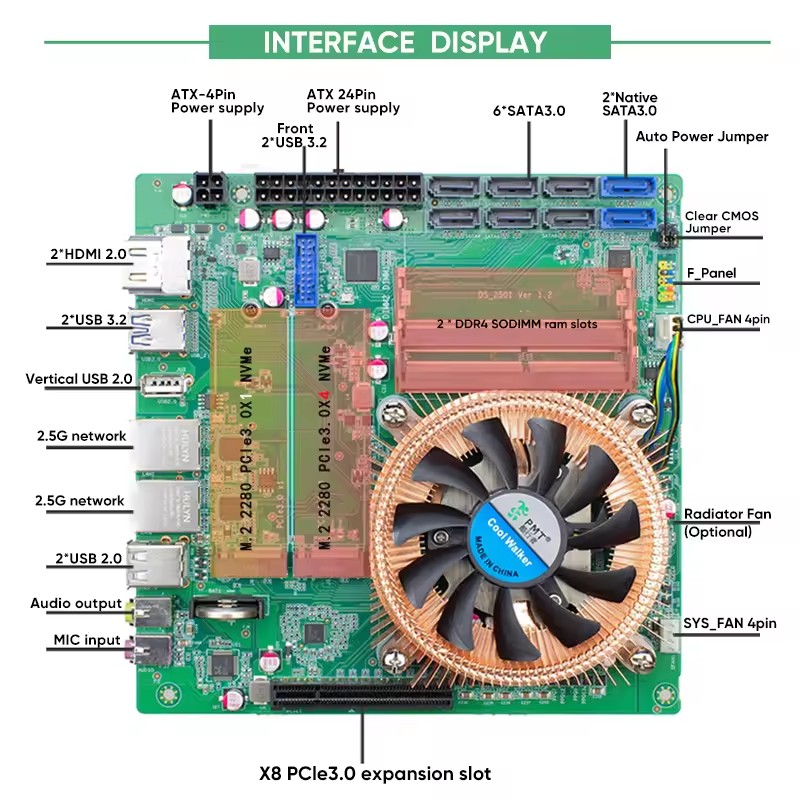

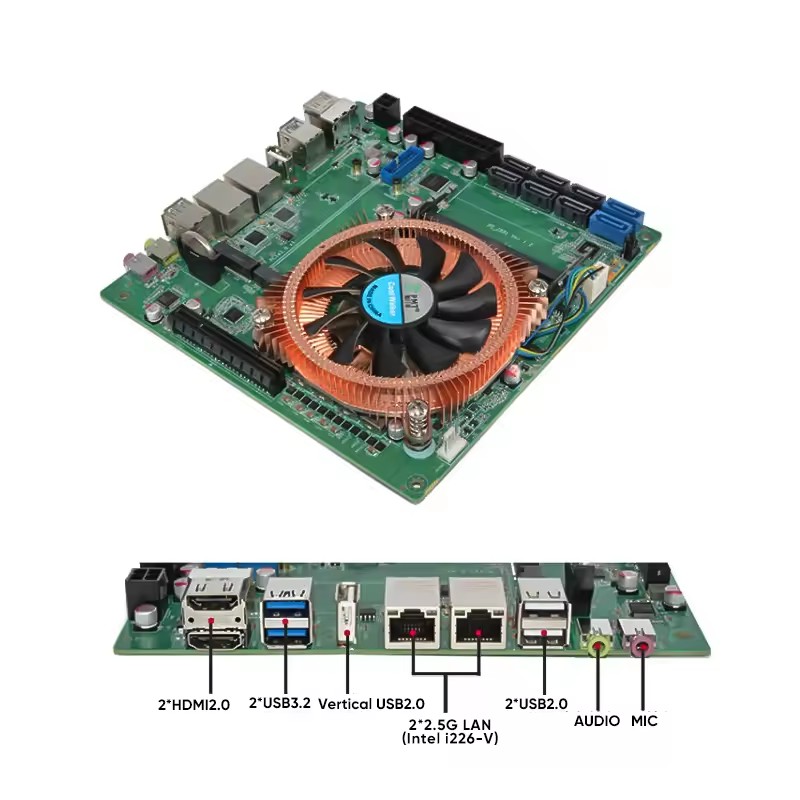

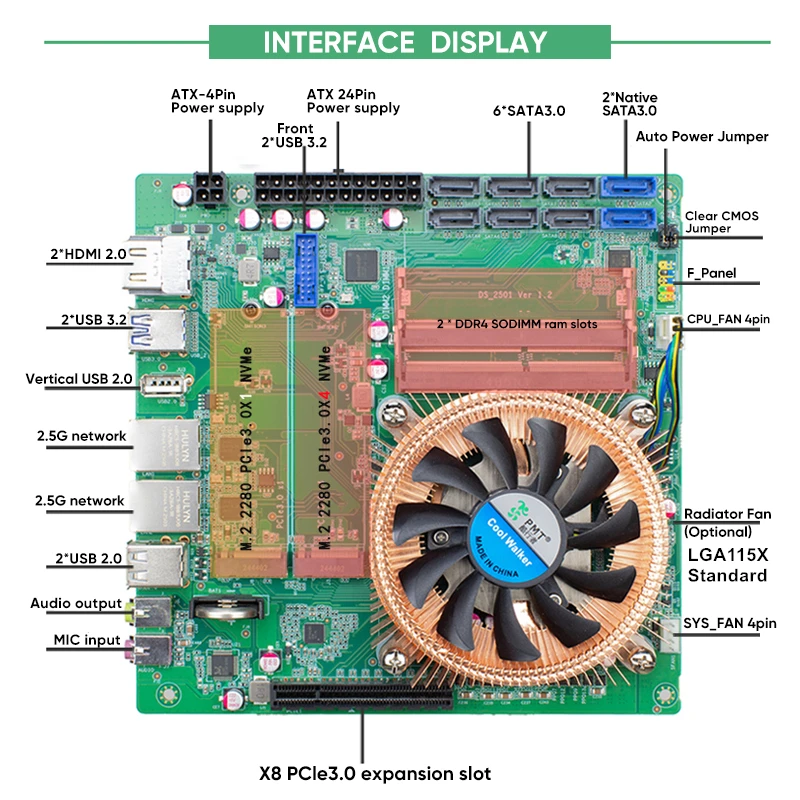

I/O port:
2*RJ45 LAN ( 2*Intel i226-V 2.5G）
2*HDMI2.0
2*USB3.2
3*USB2.0
1*Audio
1*MIC
Inner I/O Port:
8*SATA3.0
3*M.2(NVME)
2*DDR4 SODIMM
1*PCIE3.0 8X
Front 2*USB3.2 pins
1*F_Panel
1*Auto power jumper
1*Clear CMOS jumper
1*CPU_FAN 4pin
1*SYS_FAN 4pin
