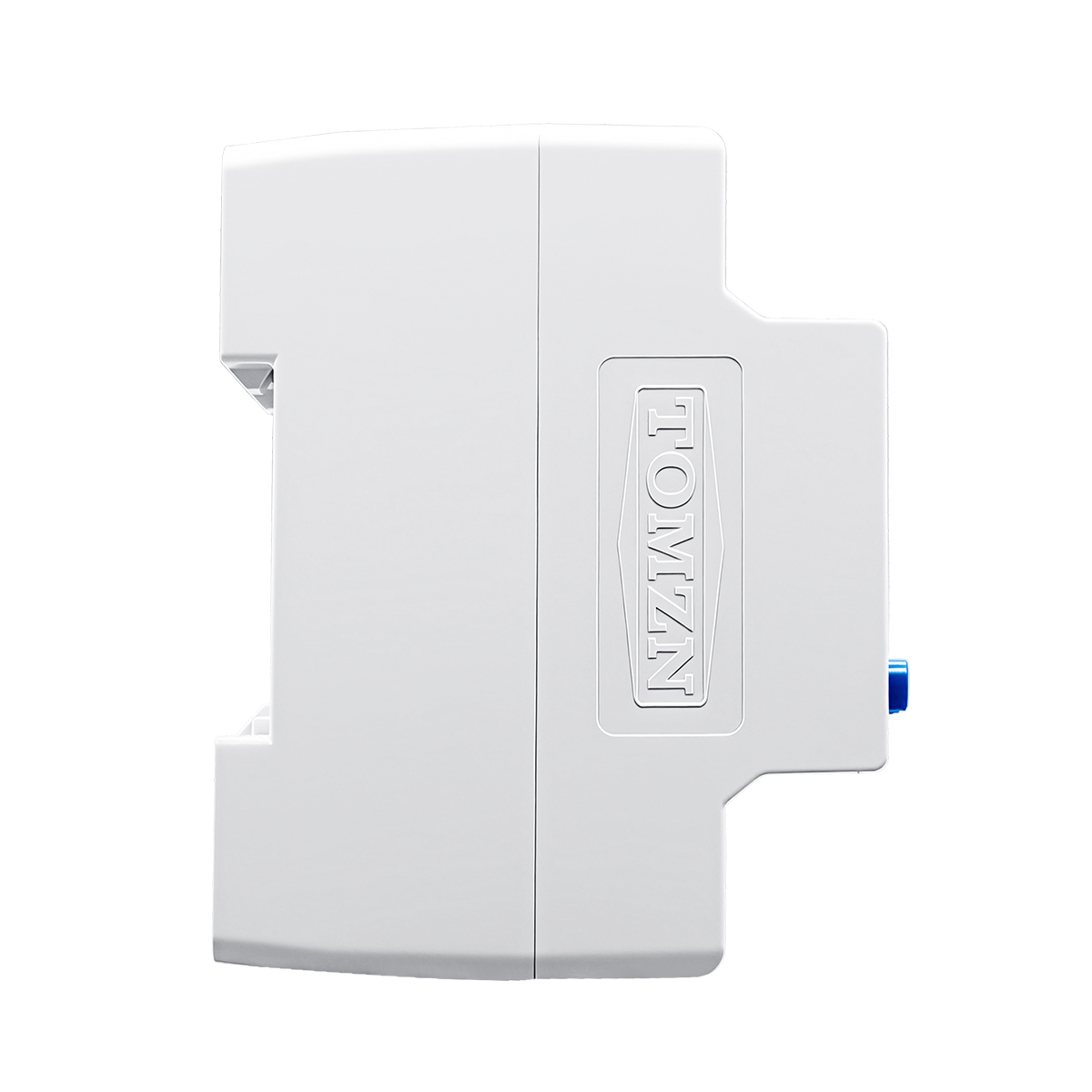

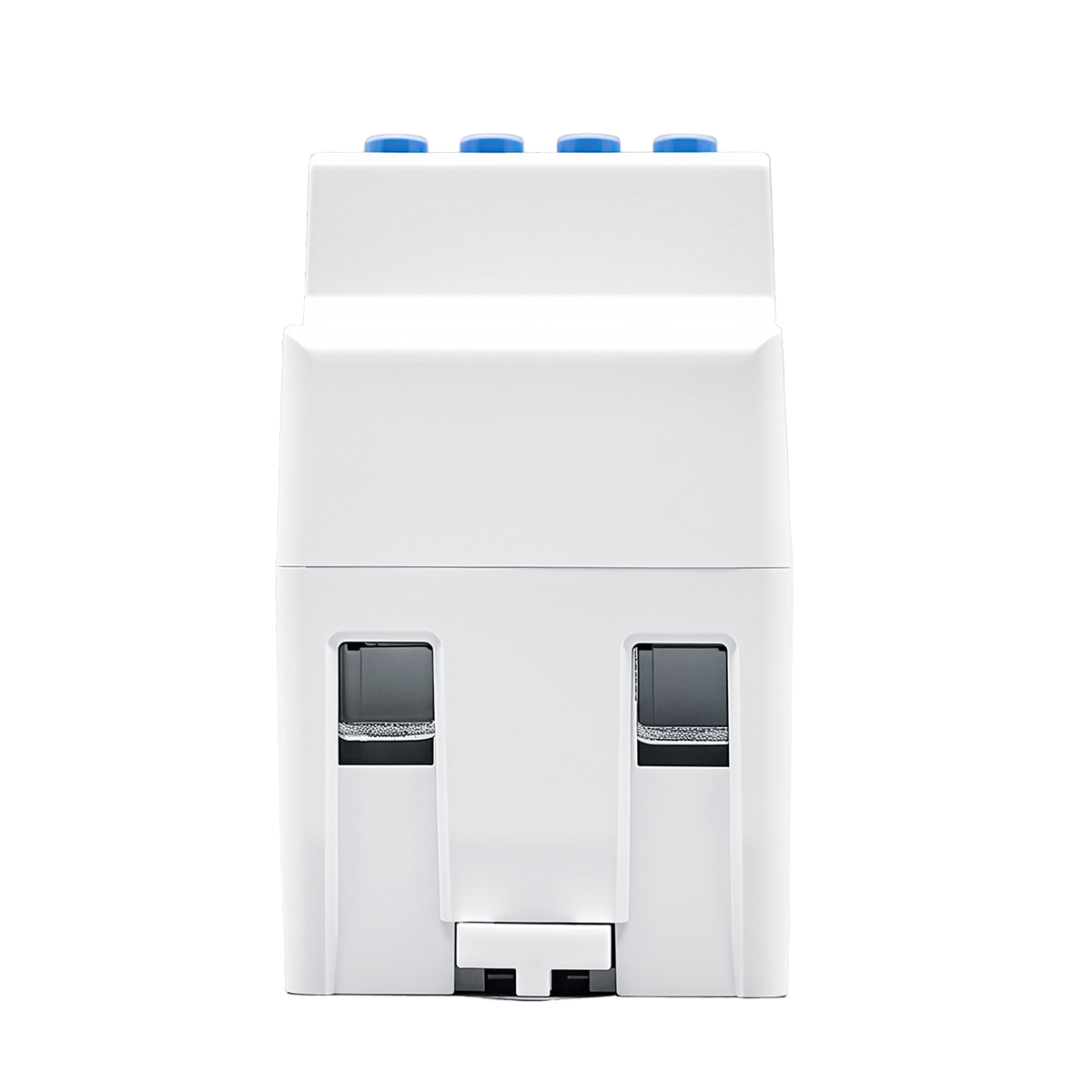

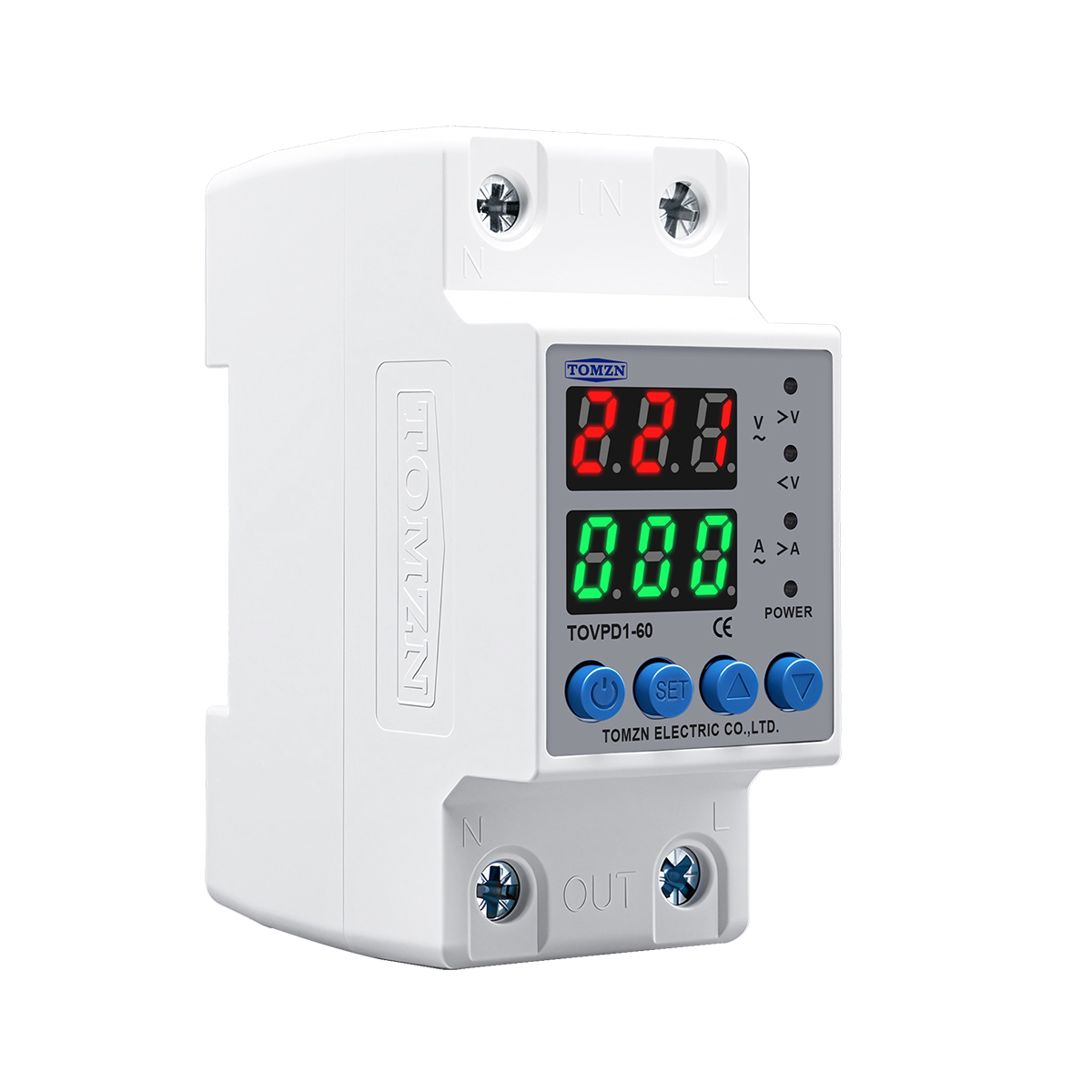

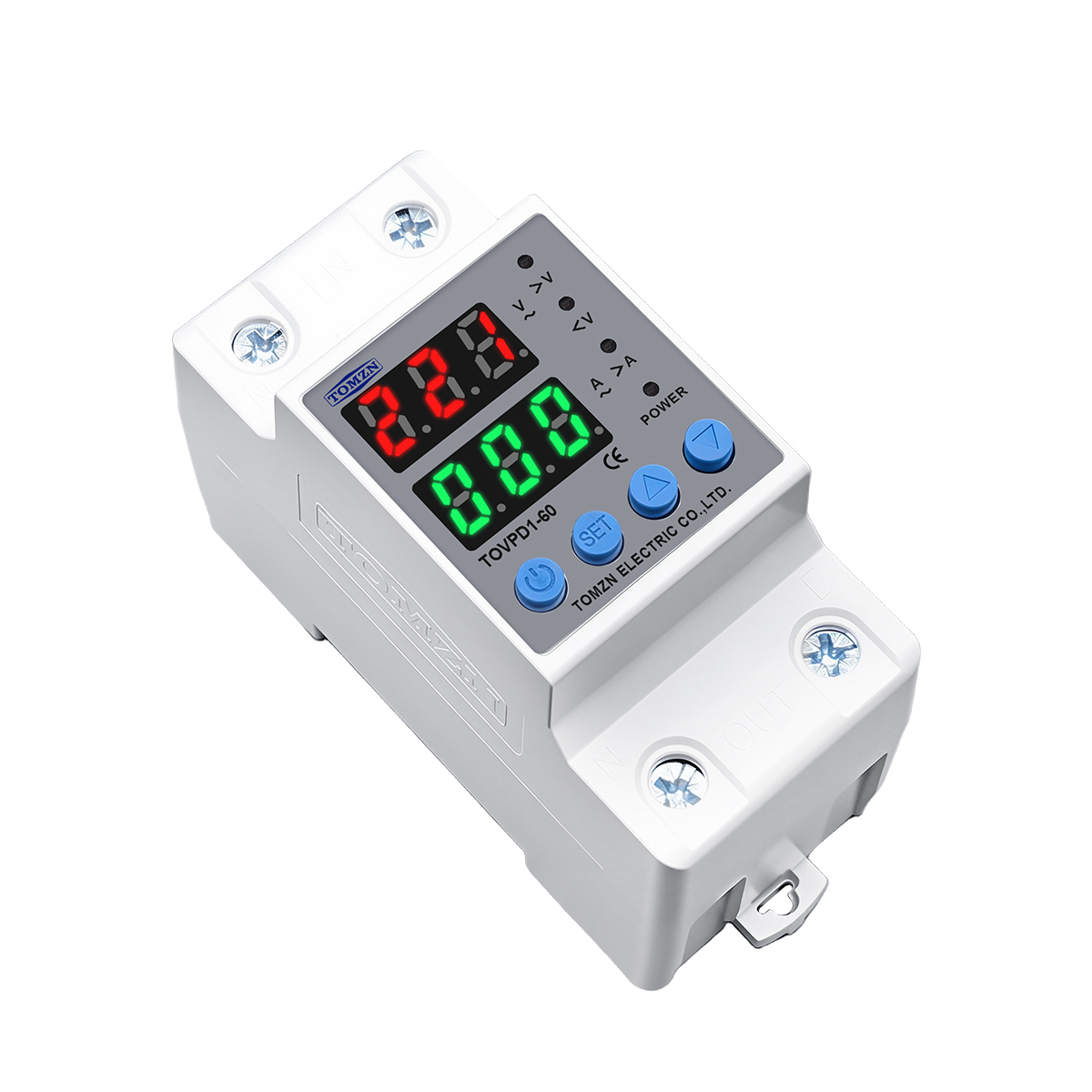

TOMZN Din Rail 110V 230V AC Adjustable Over Under Voltage Protective Device Protector Relay Monitor Current Limit 40A 63A 80A

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

6.Current display (current measurement)

7. Voltage calibration: Voltage 10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9.Fault inquiry: Press the UP button from more than 12S

Product Parameters:

1.Model number:TOVPD1-40EC/60EC/80EC

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A  Adjustable(default:40A)

                                    1~63A  Adjustable(default:63A)

4.Over-voltage protection value range:230V-300V-OFF(default:270V)

 Over-voltage recovery voltage range:225V-295V(default:250V)

   Over-voltage protection action time:0.1s-30s(default value:0.5s)

Over-voltage recovery delay time:1s-500s(default:30s)

5.Under-voltage protection value range:140V-210V-OFF(default:170V)

 Under-voltage recovery voltage range:145V-215V (default:190V)

   Under-voltage protection action time:0.1s-30s(default:0.5s)

   Under-voltage recovery delay time:1s-500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)

   Over-current action range:0.1-30 second (default:0.5s)

Over-current recovery delay time:1s-500s(default:30s)

7.Power-on delay time:1s-500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

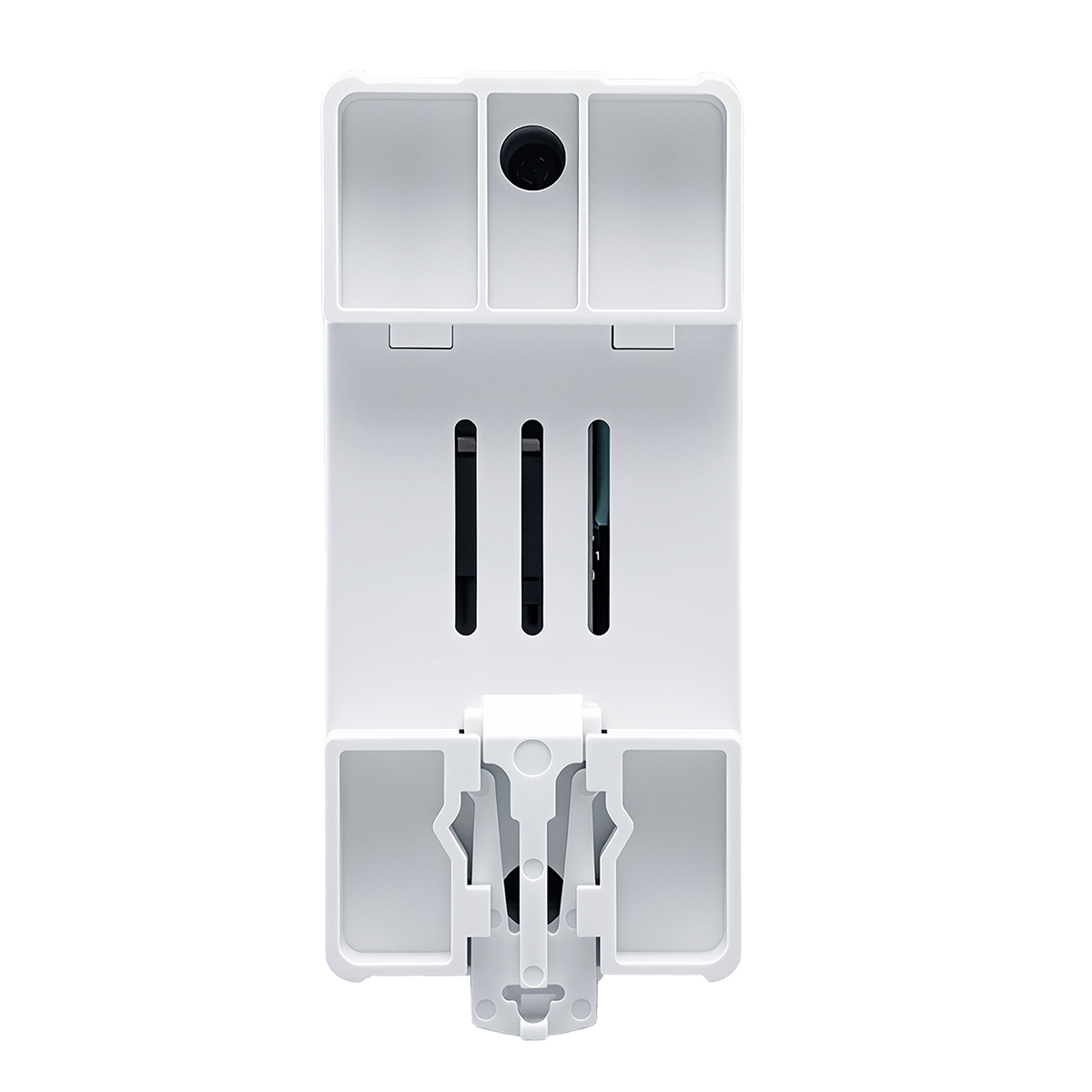

11.Installation:35mm DIN rail

110V Version

2.Power supply:110VAC 50/60Hz
3.Max.Loading power:1~63A Adjustable(default:63A)
4.Over-voltage protection value range:80V~300~OFF(default:145V)
Over-voltage recovery voltage range:75V--295V(default:140V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V--300V --OFF(default:90V)
Under-voltage recovery voltage range:85V--305V (default:95V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
10.Installation:35mm DIN rail
