B-CUBE PRO V5 5inch FPV Drone Frame Kit Carbon Fiber Racing Quadcopter Freestyle INAV Beatflight F722 Ardupilot Flight Control
B-CUBE PRO V5 5-inch Rack
Product parameters:
Wheelbase: 260mm (5inch)
Weight: Approximately 163g (including printed copies)
Thickness: Bottom plate 2.5mm, upper plate 2.0mm, arm 5.0mm
Paddle: 5-inch paddle
Flight control hole spacing: 30.6 * 30.6mm (M3)，20 * 20mm (M2)
Hole spacing for image transmission: 30.6 * 30.6mm (M3),20 * 20mm (M2)
Camera installation width: 19mm
Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)
Battery: 3S/4S 5200mAh
3D print:
1 camera brackets,
1 antenna pedestal,
Print color: Black TPU
Recommended configuration:
Motor: 2205 2300KV motor
ESC: B-CUBE 4IN1-30MM or 20MM 45A
Battery: 3S-4S
Paddle: 5045
Image transfer: B-CUBE VTX800 VTX1000 VTX1600 VTX2500
F4V3S PLUS Flight Controller
Use UART6 for remote control receiver (PPMor SBUS)

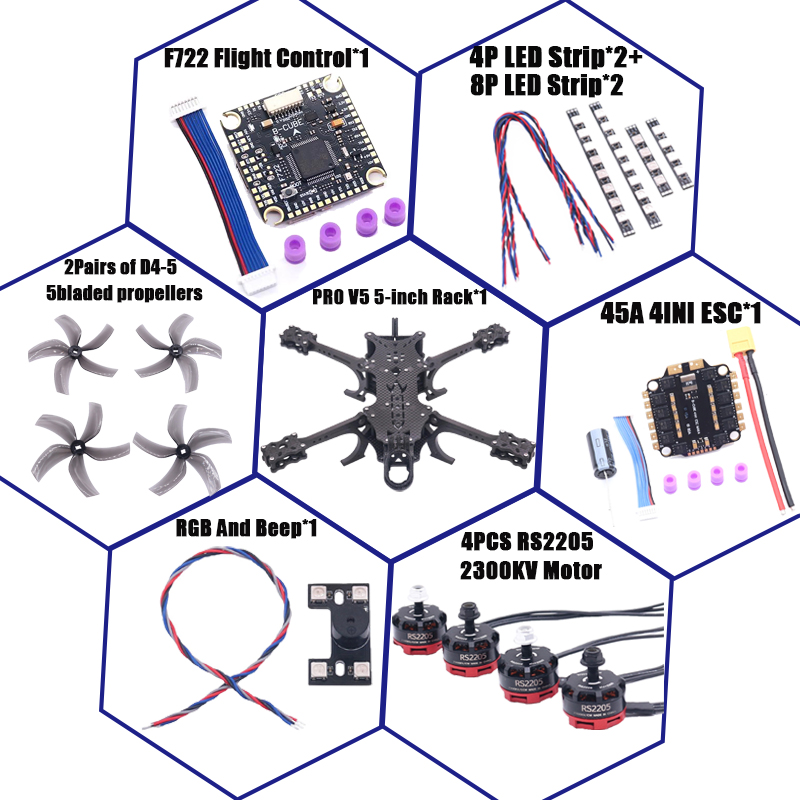

B-CUBE F722 Flight Controller
B-CUBE F745 V2 Flight Controller
B-CUBE H743 Flight Controller
Specifications:
l Chip:STM32H743VIT6(480MHZ)
l Gyro:ICM-42688-P*2
l Barometer:SPL06-001
l OSD Chip:AT7456E
l Black box:128MM
l LED Program:Support
l BB buzzer:Support
l Input voltage:3-6S
l I2C Connector:Support
l BEC:5V/2.5A
l BEC:10V/2.0A
l Cam Input:Support
l USART:UART1,UART2.UART3.UART4.UART6.UART7
l Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
l GPS:YES
l COMPASS:YES
l HD O3:YES
l ESC Signal:Dshoot150.Dshot300,Dshot600
l USB:TYPE-C
l Current Port:Yes.
l Voltage Sensor:Yes
l Firmware: cleanflight/betaflight/inav/ardupilot
l FC firmware:betaflight_4.5.2_STM32H743_JHEH743_HD.hex/ inav_8.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hex
l Install hole:30.5*30.5*4MM
l Board size:36*36MM
l Weight:7.9g
