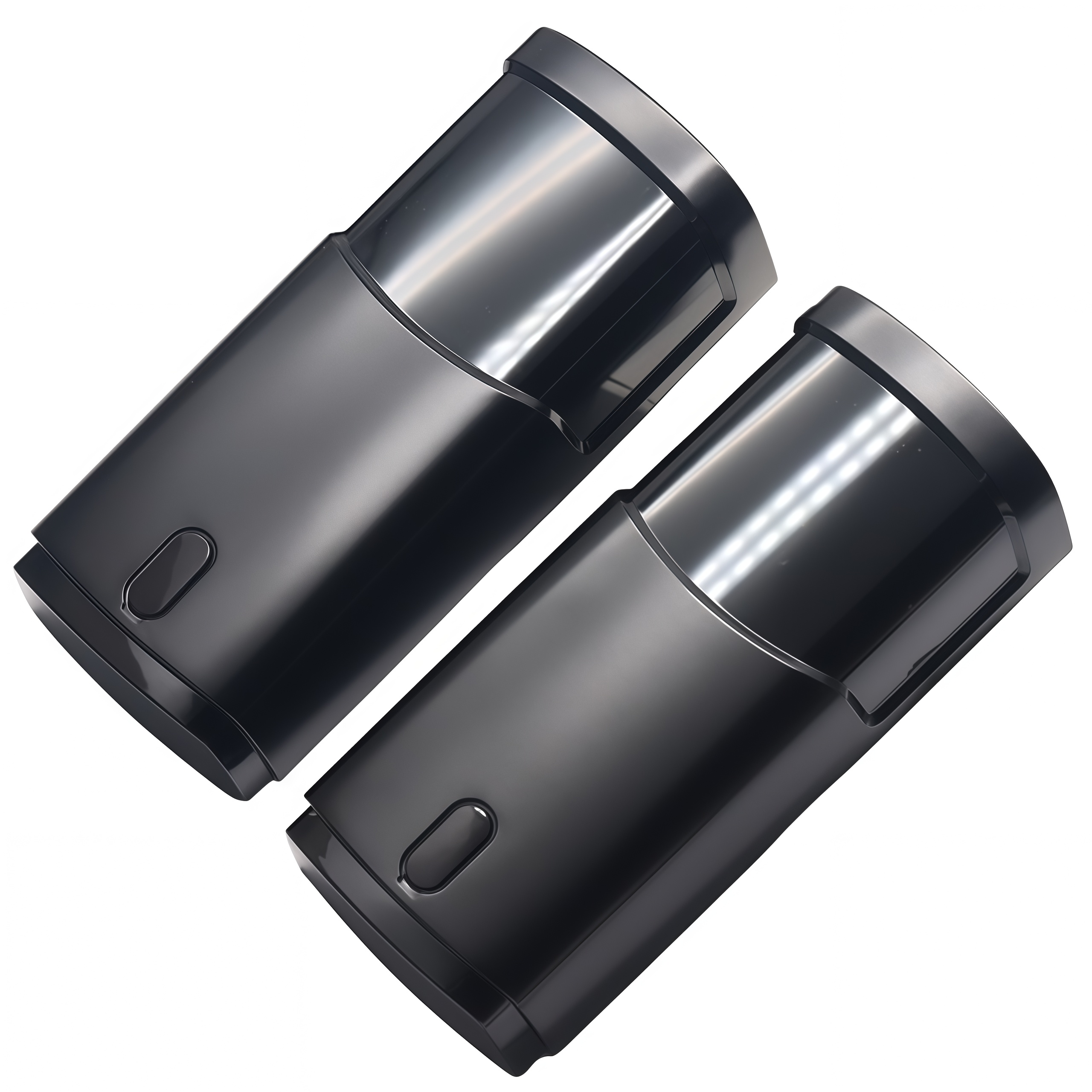

180 Degree Rotation of Optical Lens Outdoor 15m Photocell Sensor 36v 24v Automatic Door Photocell
価格:
$14.48
/Pc
払い戻し:
シェア:
売れ筋商品
180 Degree Rotation of Optical Lens Outdoor 15m Photocell Sensor 36v 24v Automatic Door Photocell
Advantages:
1: The product is outdoor waterproof and features a 180-degree adjustable sensor probe.

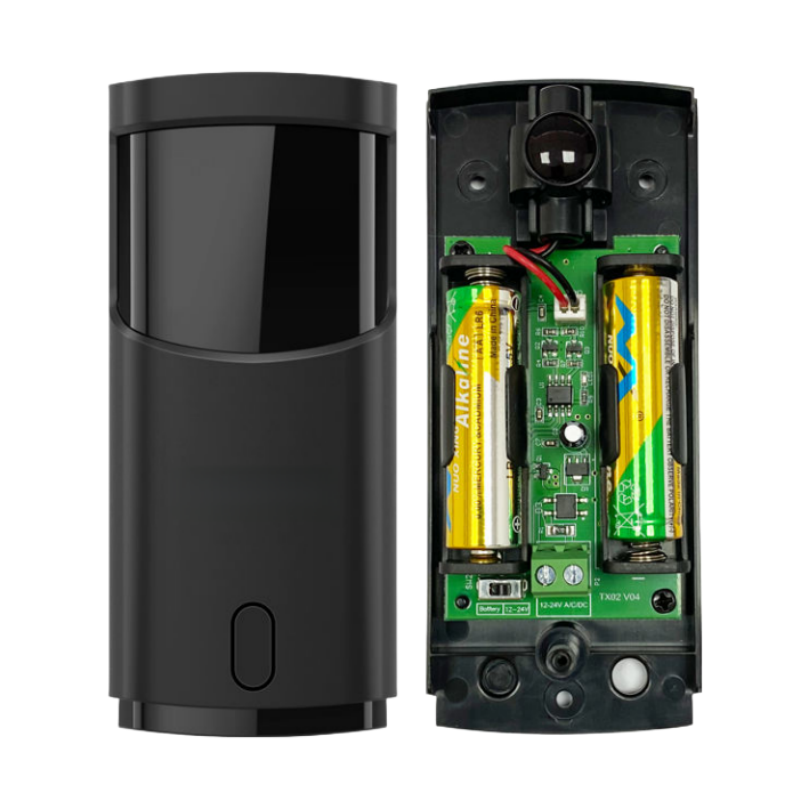

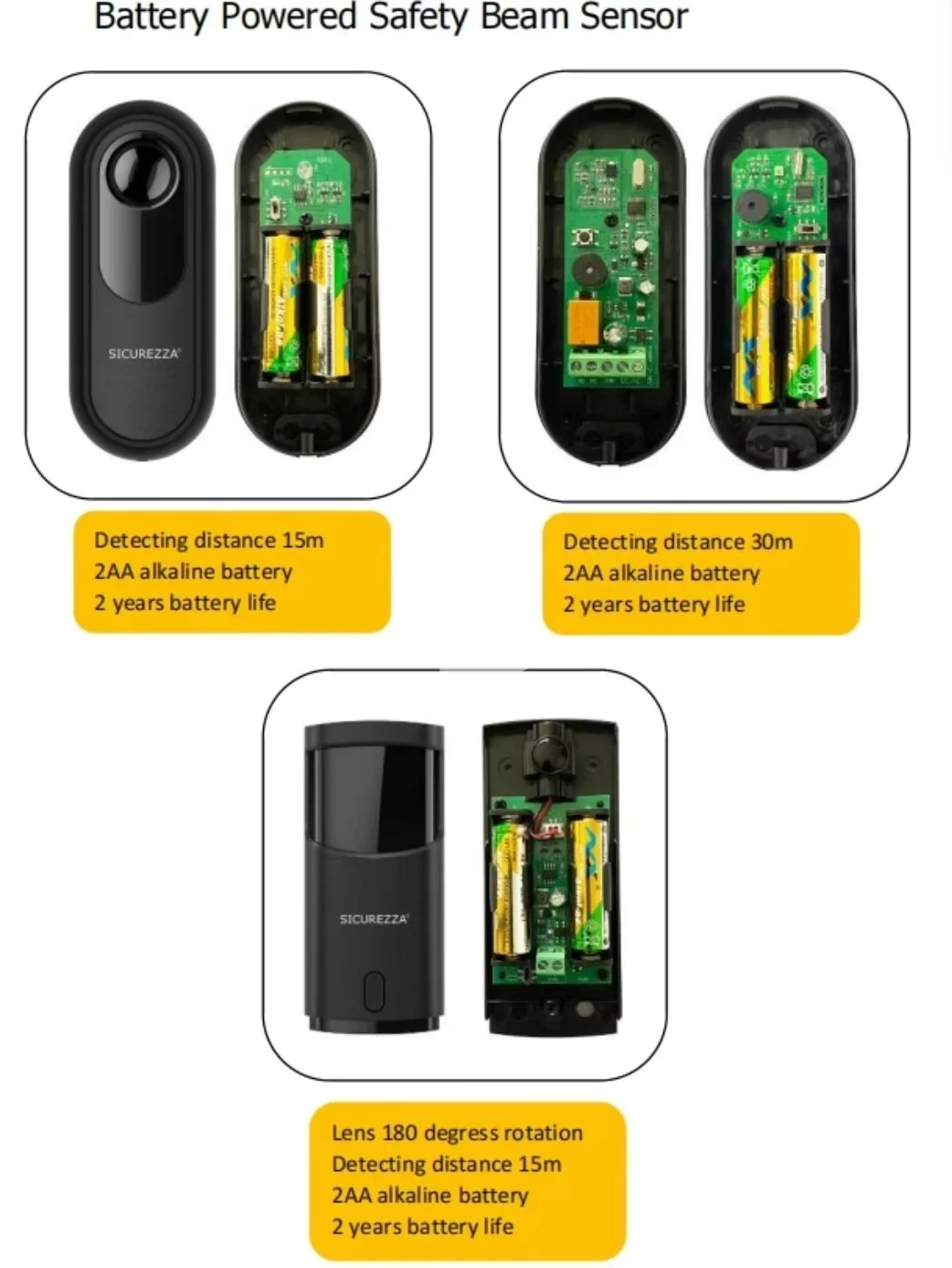

2: It supports both DC12-36V and a backup 1.5V AAA battery.
3: It can be set to a 3s, 5s, or 10s delay.
4: A buzzer sounds when the sensor's beam is detected.
Product Paramenters
180 Degree Rotation of Optical Lens Outdoor 15m Photocell Sensor 36v 24v Automatic Door Photocell
SPECIFICATIONS:
Power Source: 12v - 36v AC/DC
Maximum Range: 15m
Wavelength: 940nm
Modulation Frequency: Pulsed
Internal rotation system adjusted angle: 0-180 degree
Relay Contact: Potential Free 1 AMP C/O
Physical Size: 132*57*35mm

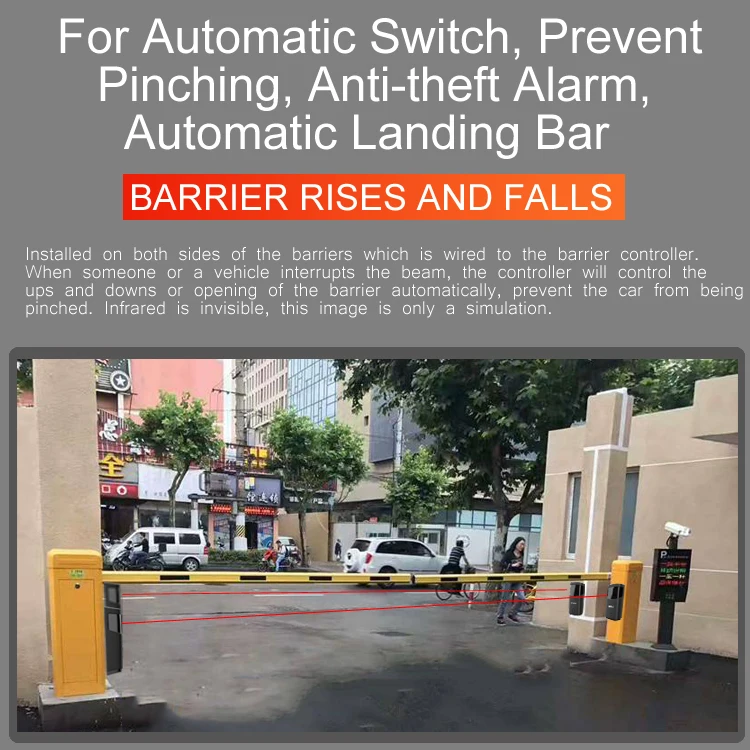

The Ggarage Door Photocell Beam Sensor is used in automatic doors, garages, barriers, and indoor and outdoor security protection. Designed for outdoor scene applications, it has the ability to resist rain erosion and at the same time has a good ability to resist sunlight interference to avoid product failures caused by sunlight interference.
Power Source: 12v - 36v AC/DC
Maximum Range: 15m
Wavelength: 940nm
Modulation Frequency: Pulsed
Internal rotation system adjusted angle: 0-180 degree
Relay Contact: Potential Free 1 AMP C/O
Physical Size: 132*57*35mm
The Ggarage Door Photocell Beam Sensor is used in automatic doors, garages, barriers, and indoor and outdoor security protection. Designed for outdoor scene applications, it has the ability to resist rain erosion and at the same time has a good ability to resist sunlight interference to avoid product failures caused by sunlight interference.
Specification for Ggarage Door Photocell Beam Sensor | |
Model | HS-A003 |
Receiver Power Source | AC/DC 12v To 36v |
Detecting distance | 15m |
Modulation Frequency | Pulsed |
Wave length | 940nm |
internal rotation system adjusted angle | 180 degree |
Usage | Gate Open/Garage Door/Automatic Door/Barrier Gate/Access Control System |
Installation | Outdoor/Indoor |
Certificate | CE certificated |
Working temperature | -25℃~+55℃ |
Alarm Output | Relay output NC NO; 1A/36V Max |
Waterproof grade | IP55 |
Dimension | 132*57*35mm |
Packing & Delivery
Packing Details for Ggarage Door Photocell Beam Sensor | |
PACKING | Neutral color box or customer's packing |
PCS/CARTON | 50PCS |
GW/CARTON | 9.8KG |
CARTON SIZE | 40*35*30 cm |
Products Description
Automatic Door Safety Photocell Beam Sensor
Waterproof IP55 / 15 Meters Detecting Distance / Relay Output NC/NO / Good Ability To Resist Sunlight Interference / DC 12v to 36v Powered / 180 Degree Rotation of Optical Lens

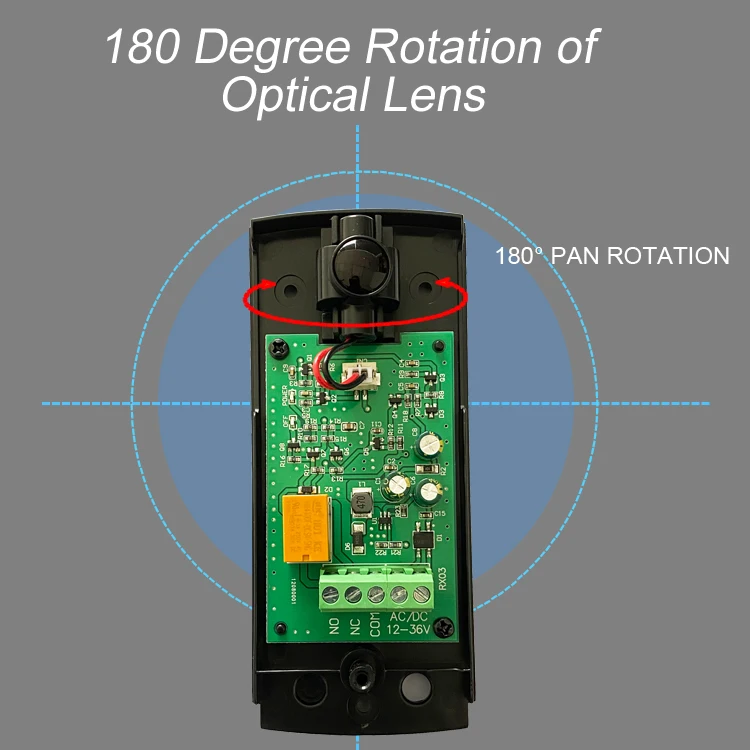

180 Degree Rotation of Optical Lens
The lens can be rotated 180 degrees left and right

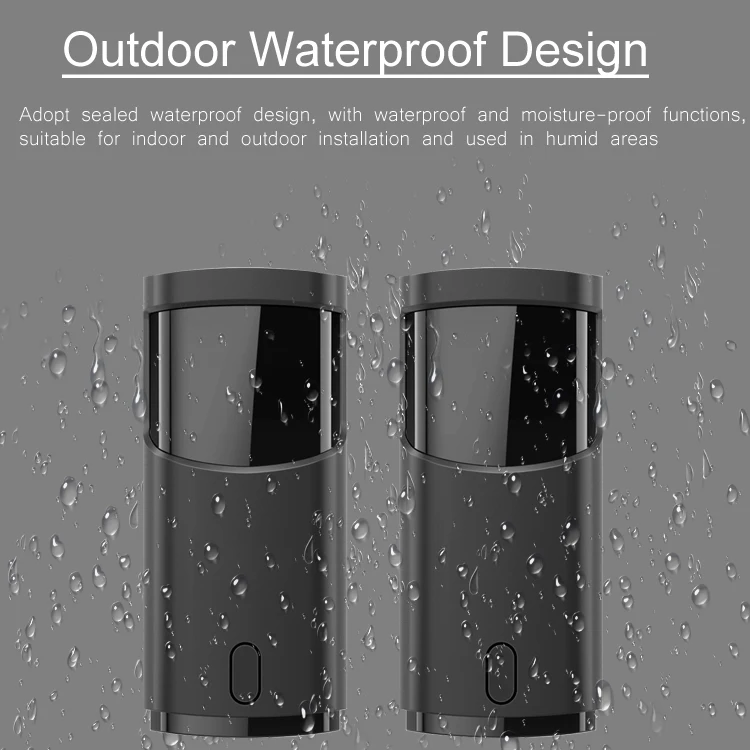

Outdoor Waterproof Design
Adopt sealed waterproof design, with waterproof and moisture-proof functions suitable for indoor and outdoor installation and used in humid areas

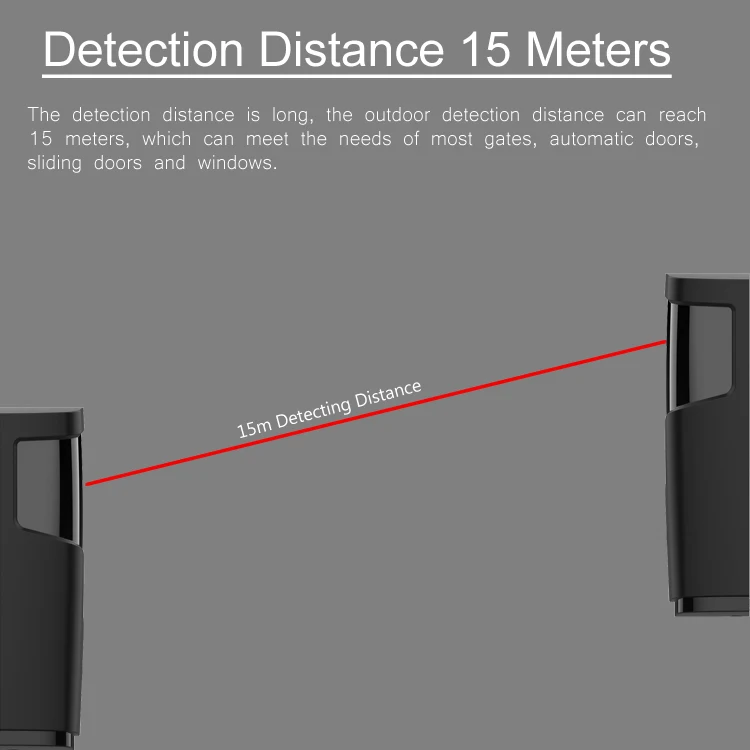

Detection Distance 15 Meters
The detection distance is long,the outdoor detection distance can reach 15 meters,which can meet the needs of most gates,automatic doors,sliding doors and windows
