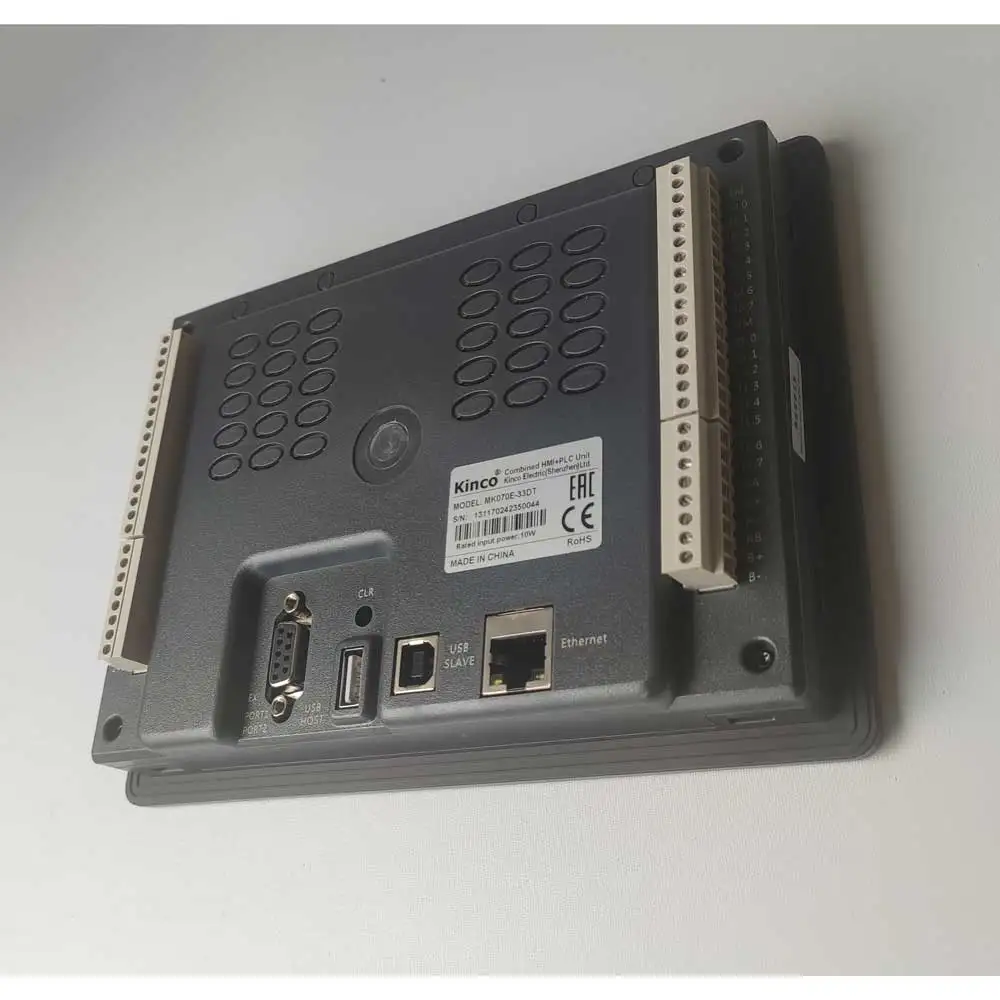

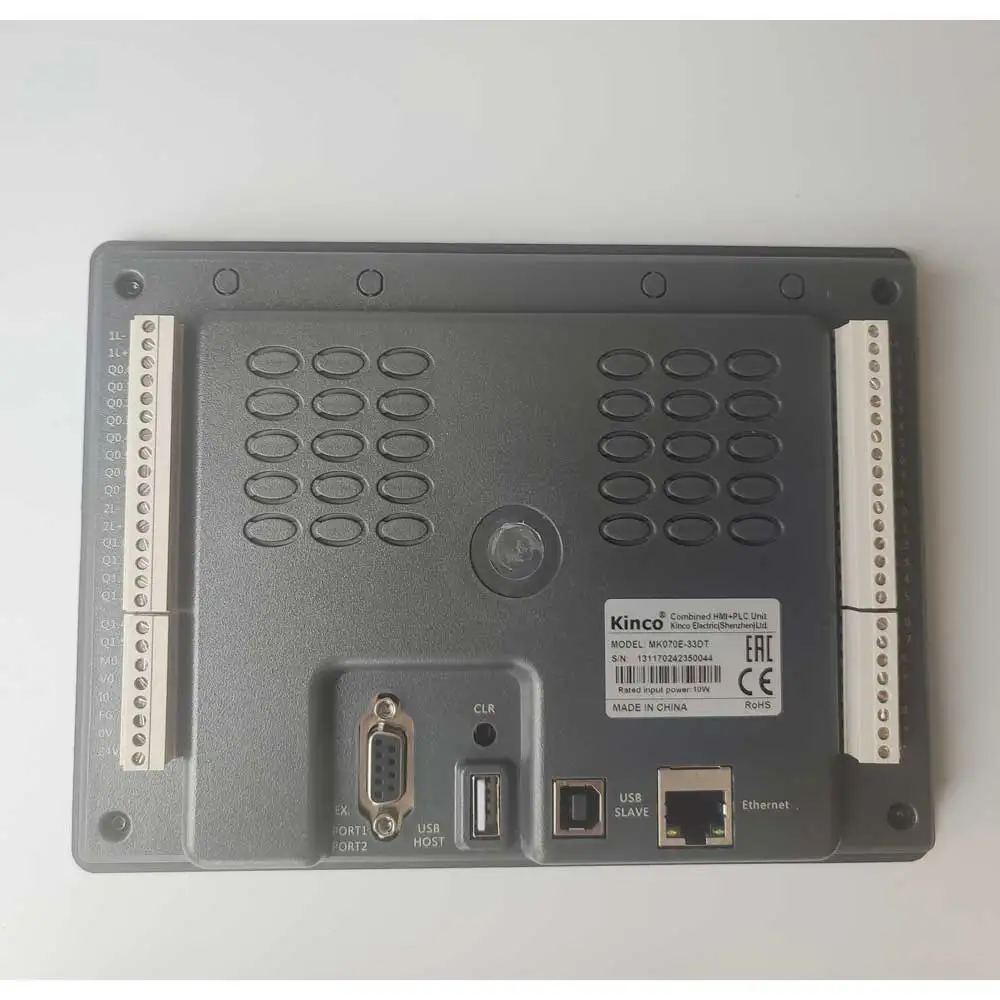

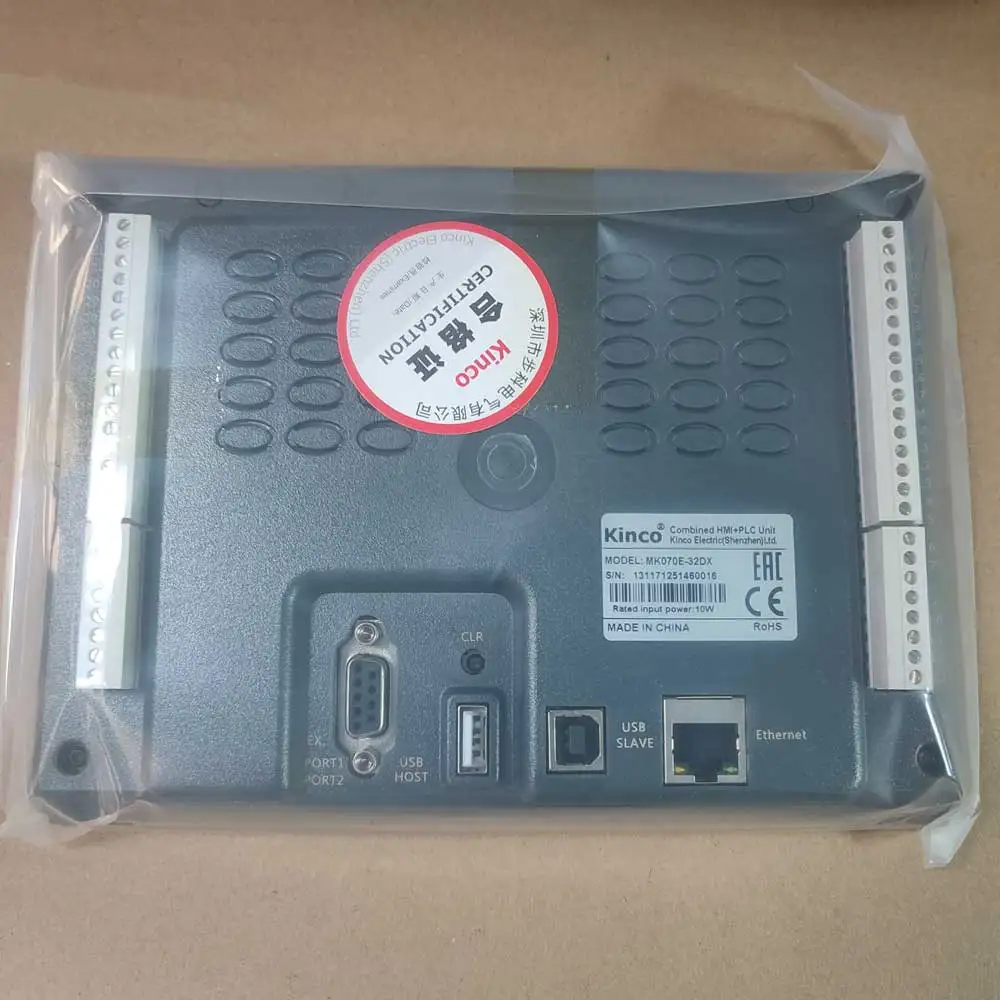

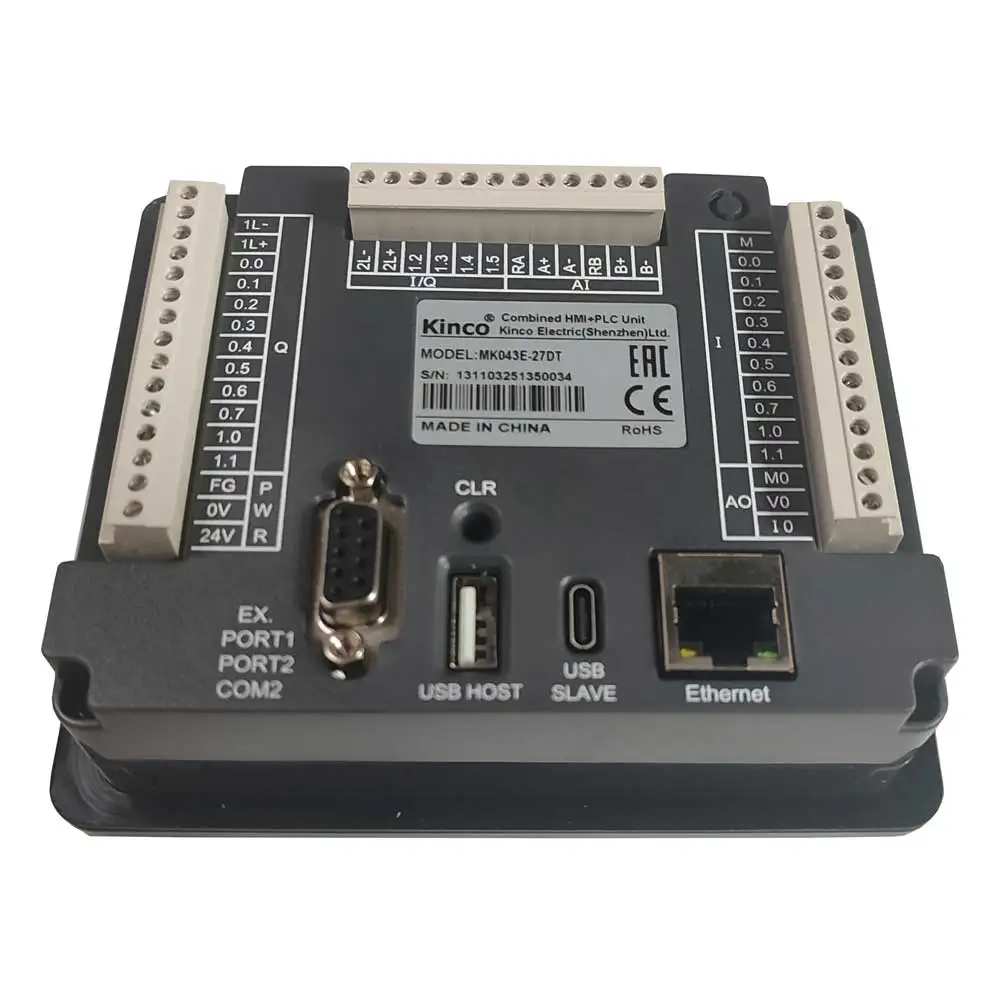

Kinco MK070 MK070E 33DT 32DX 7 インチ PLC HMI オールインワン MK043 MK43E MK043E 20DT プログラマブルコントローラー統合パネル

●

● 主な機能：

1

(1)性能向上

(2)拡張機能

(3)高速パルスカウンタ

(4)高速パルス出力

(5)シリアル通信ポート

2 M-IoT機能

   Built-in Internet of Things functions, support program upload and download, pass through PLC communication through network, VNC remote monitoring, equipment management and other rich remote operation and maintenance functions, easy to use and powerful, to facilitate the application needs of customers in various applications.

3 パフォーマンスのアップグレード

   The HMI part adopts an industrial CPU, 700MHz main frequency, 128MB Flash + 64MB DDR2 large capacity storage and supports the new generation of touch screen DTools programming software, to further improve the performance of the product.

4 拡張機能

  The PLC supports a rich variety of extension modules, it can be extended with a maximum of 8 KS extension modules. It can meet the needs of a variety of applications of users, with a better cost performance.

5 高速パルスカウンタ

   high speed pulse counters are provided. Each high-speed counter allows a maximum of 32 PV values and supports 32 "CV=PV" interrupts. High speed counter supports a variety of modes, it can be single-phase, dual-phase (Up/Down), AB phase (1-fold and 4-fold frequency).The maximum counting frequency of the four pulse counters is 50KHz.

6 ユーザーは、プログラミング ソフトウェアの HSC 構成ウィザードを使用して、HSC を直接構成できます。

7 高速パルス出力

   high-speed pulse outputs are provided, all support PTO (pulse string) and PWM (pulse width modulation) output signals.The software provides PLS (PWM or PTO), positioning control command group, PFLO_F (follow instruction) and other functions to facilitate users implementing simple motion control applications.

8 シリアル通信ポート

   The PLC part contains 2 RS485 interfaces, PORT1, PORT2, with communication rates of up to 115.2kbps. PORT1 supports Kinco programming protocols, Modbus RTU master and slave stations, and free serial protocol. PORT2 supports Modbus RTU master and slave stations and free serial protocol.
