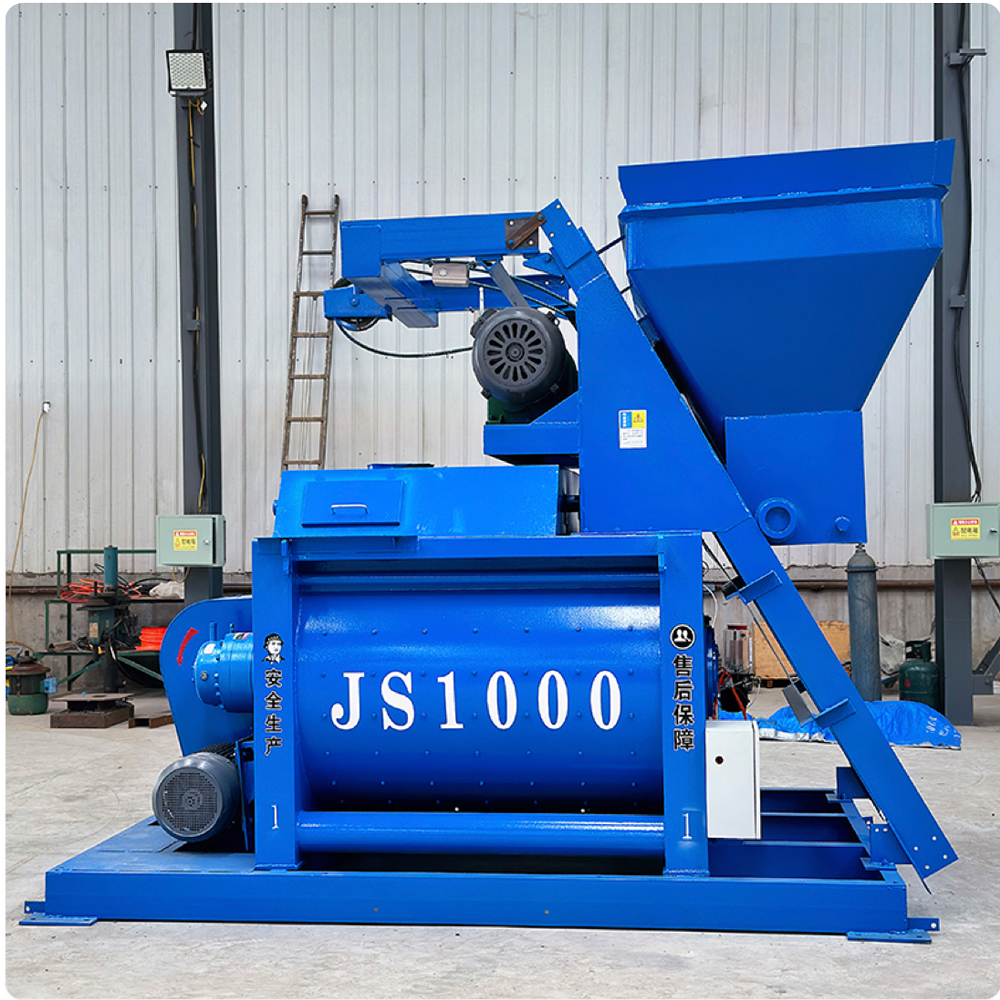

Factory Price 0.5-2 m³ Concrete Mixer with Lifting Hopper 1000L/1500L JS Concrete Machinery Price

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$4,313.60 /Pc

量:

(1757 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:

Product Overview

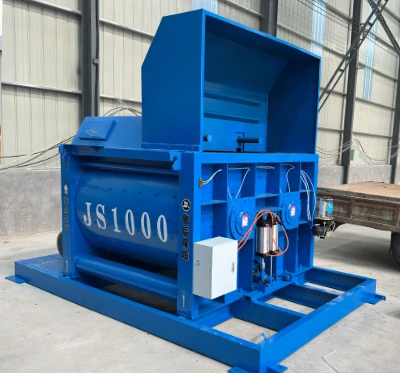

Introduction to JS Series Concrete Mixers

The JS series concrete mixer adopts twin-shaft forced-type technology, designed for small and medium-sized precast component plants, as well as industrial and civil construction projects such as highways, bridges, water conservancy, ports, and docks. It is suitable for mixing dry-hard, plastic, fluid, and lightweight aggregate concrete, as well as mortar. In addition to standalone operation, it can be combined with PLD600, PLD800, PLD1200, PLD1600, or PLD2400 concrete batching machines to form a compact Concrete batching plant.

Direct Supply from Factory, Customization Supported

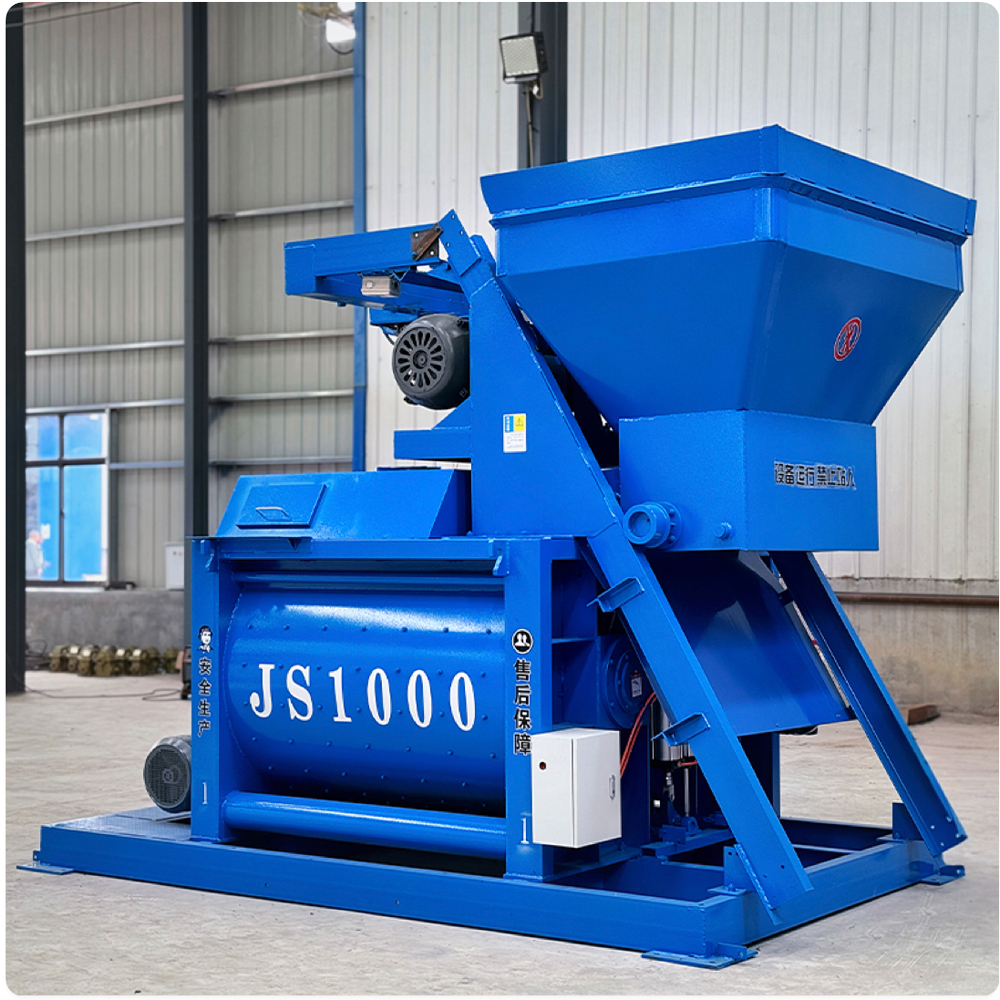

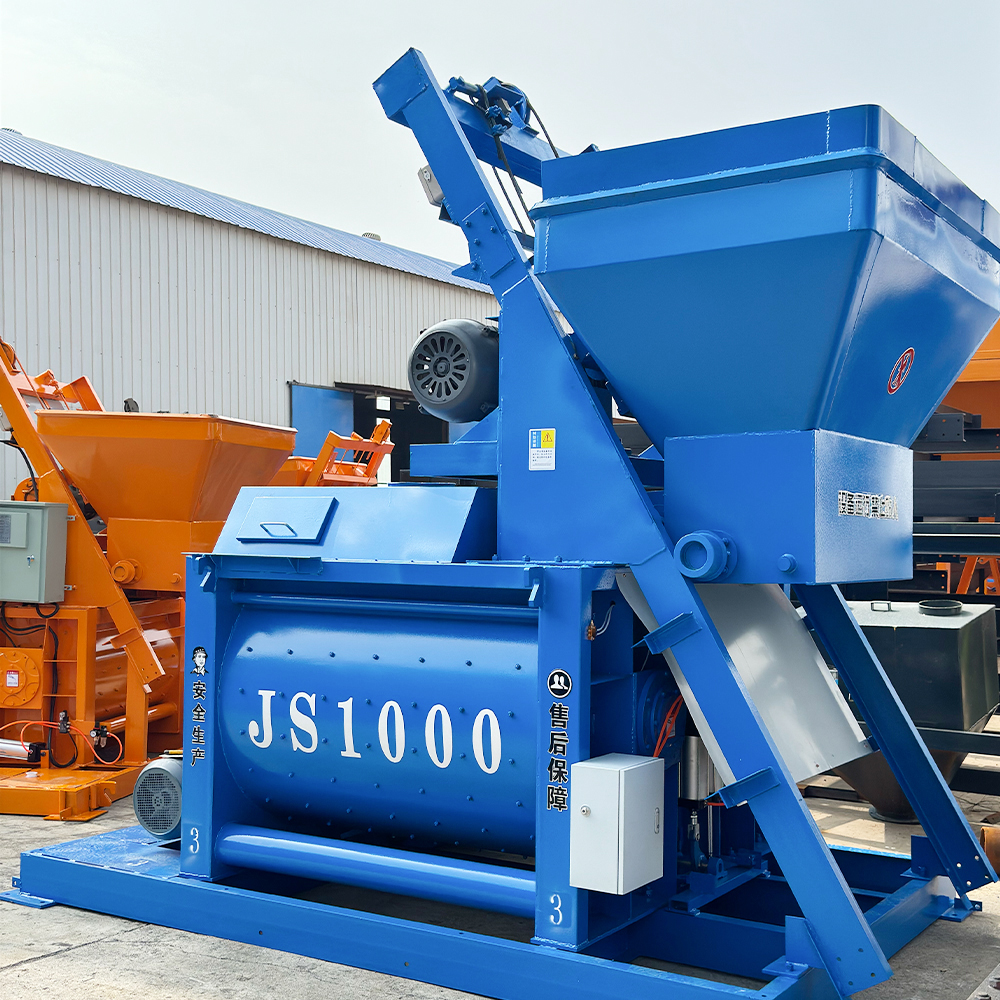

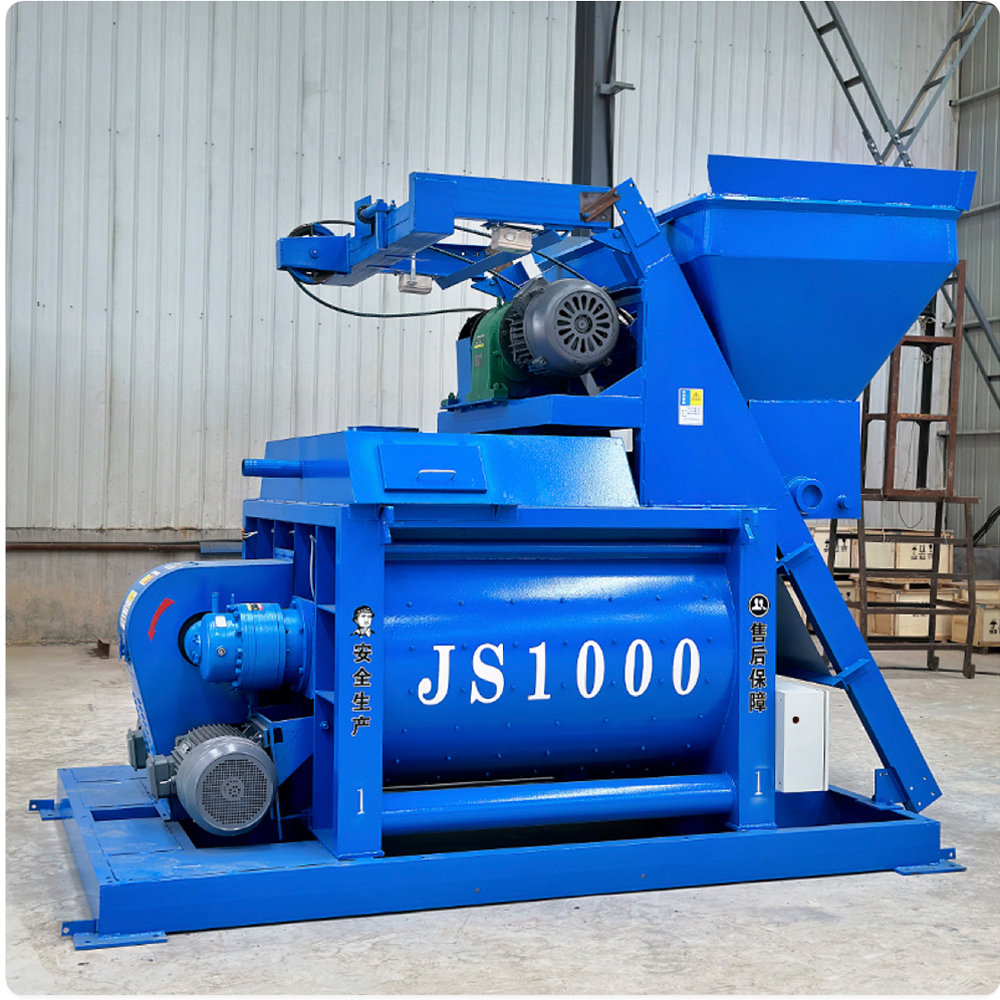

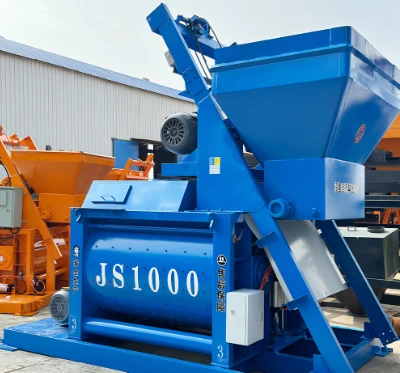

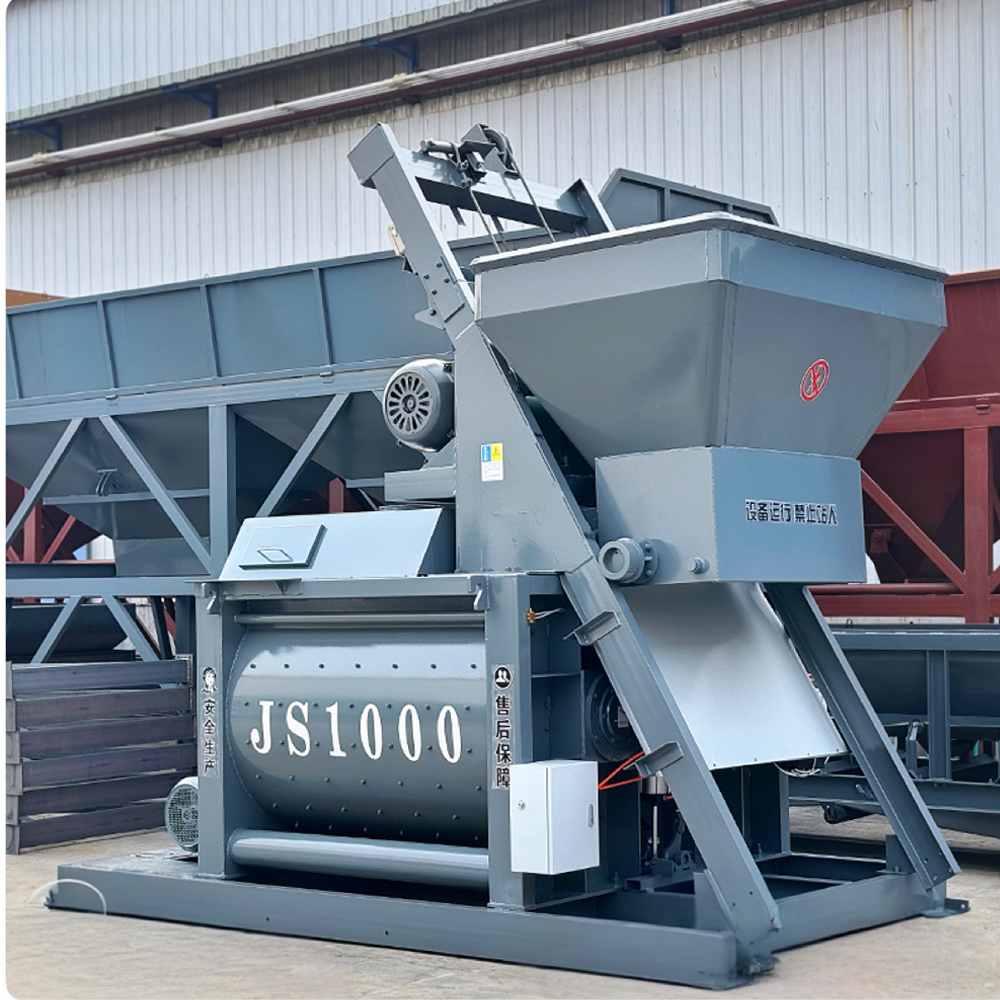

Lifting hopper host

1. Suitable for small and medium-sized concrete mixing stations. 2. Small footprint, low price, and low maintenance costs. 3. Average conveying efficiency and limited lifting height.

Inclined Belt host

1. Suitable for medium and large-sized concrete mixing stations. 2. Stable operation, low noise, high production efficiency, and suitable for large-scale continuous production. 3. Requires a large footprint, high site requirements, and the belt is prone to wear.

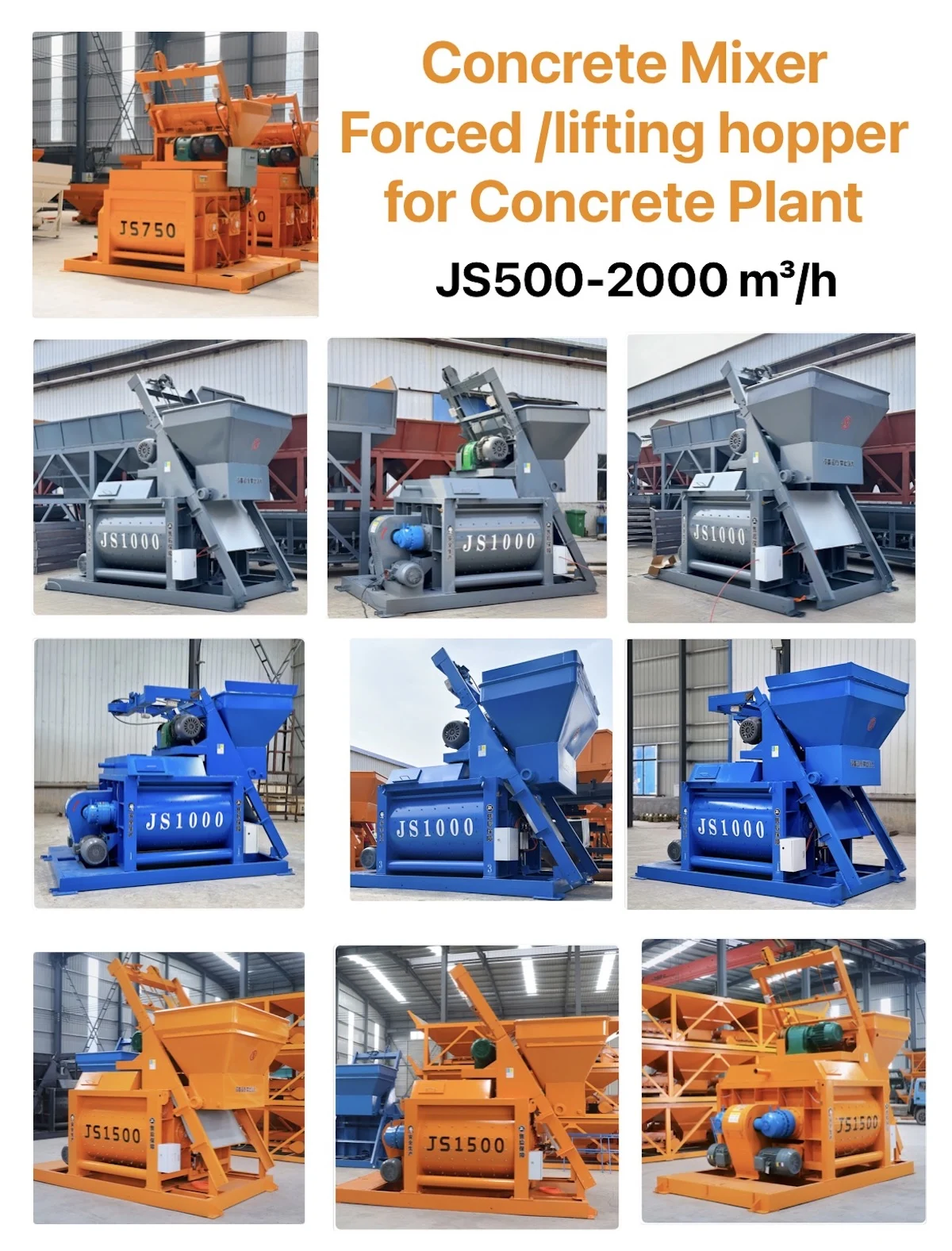

Detail Presentation

Model	JS500	JS750	JS1000	JS1500	JS2000
Discharge Capacity	500 L	750 L	1000 L	1500 L	2000 L
Feed Capacity	800 L	1200 L	1600 L	2400 L	3200 L
Theoretical Productivity	25 m³/h	35 m³/h	50 m³/h	75 m³/h	100 m³/h
Discharge Height	3.8 m	3.8 m	4.1 m	4.2 m	4.2 m
Aggregate Particle Size (Pebble/Crushed Stone)	80/60 mm	80/60 mm	80/60 mm	80/60 mm	80/60 mm
Mixing Motor Speed	35 r/min	31 r/min	25.5 r/min	25.5 r/min	23 r/min
Mixing Motor Power	18.5 kw	30 kw	18.5 kw*2	30kw *2	37.5 kw*2
Working Cycle Time	72 s	72 s	72 s	72 s	72 s
Total Machine Weight	4000 kg	5500 kg	8700 kg	11130 kg	13500 kg
Transportation Dimensions（LWH）	305023002680 mm	365021502890 mm	464022502250 mm	506822502440 mm	568022502735 mm

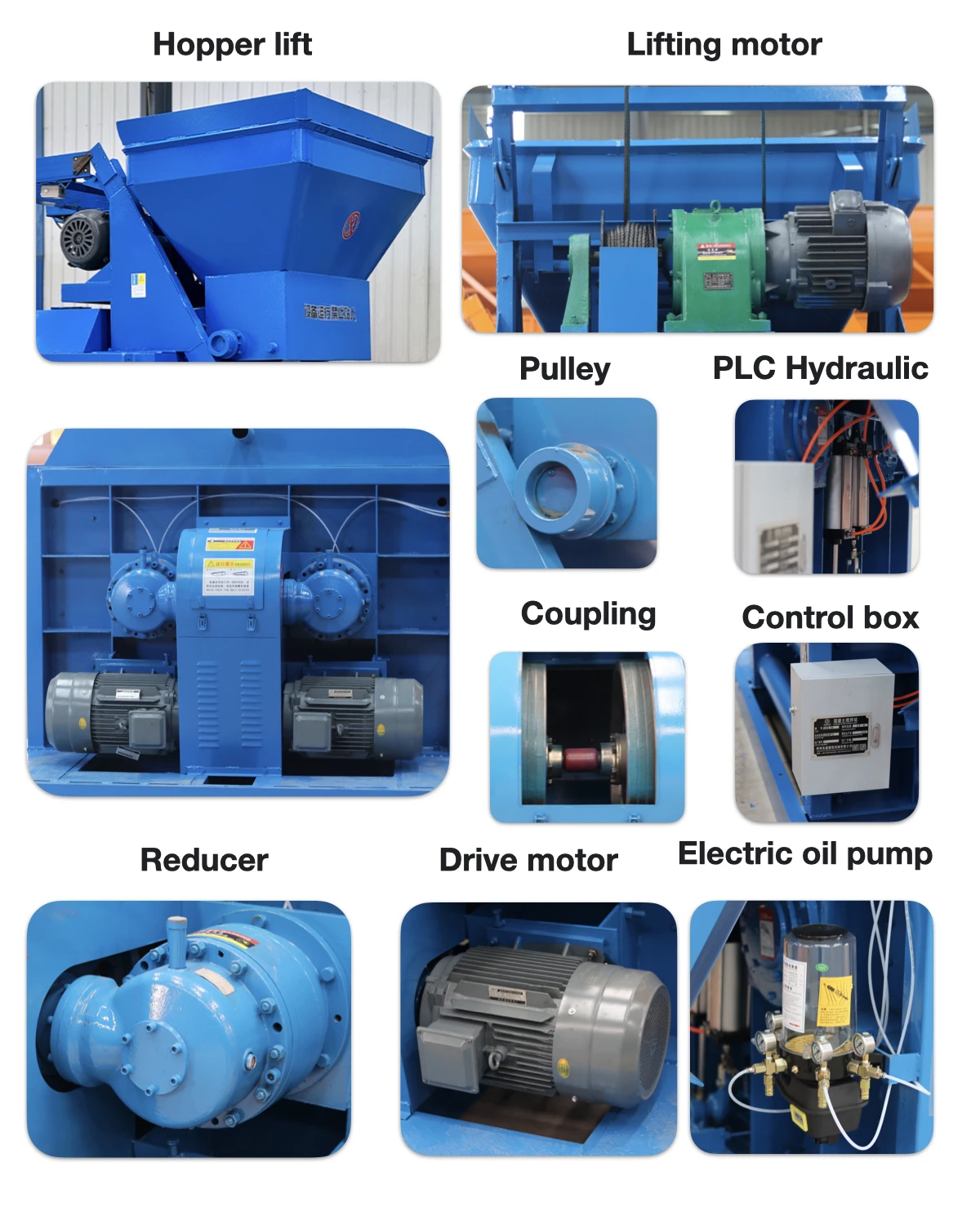

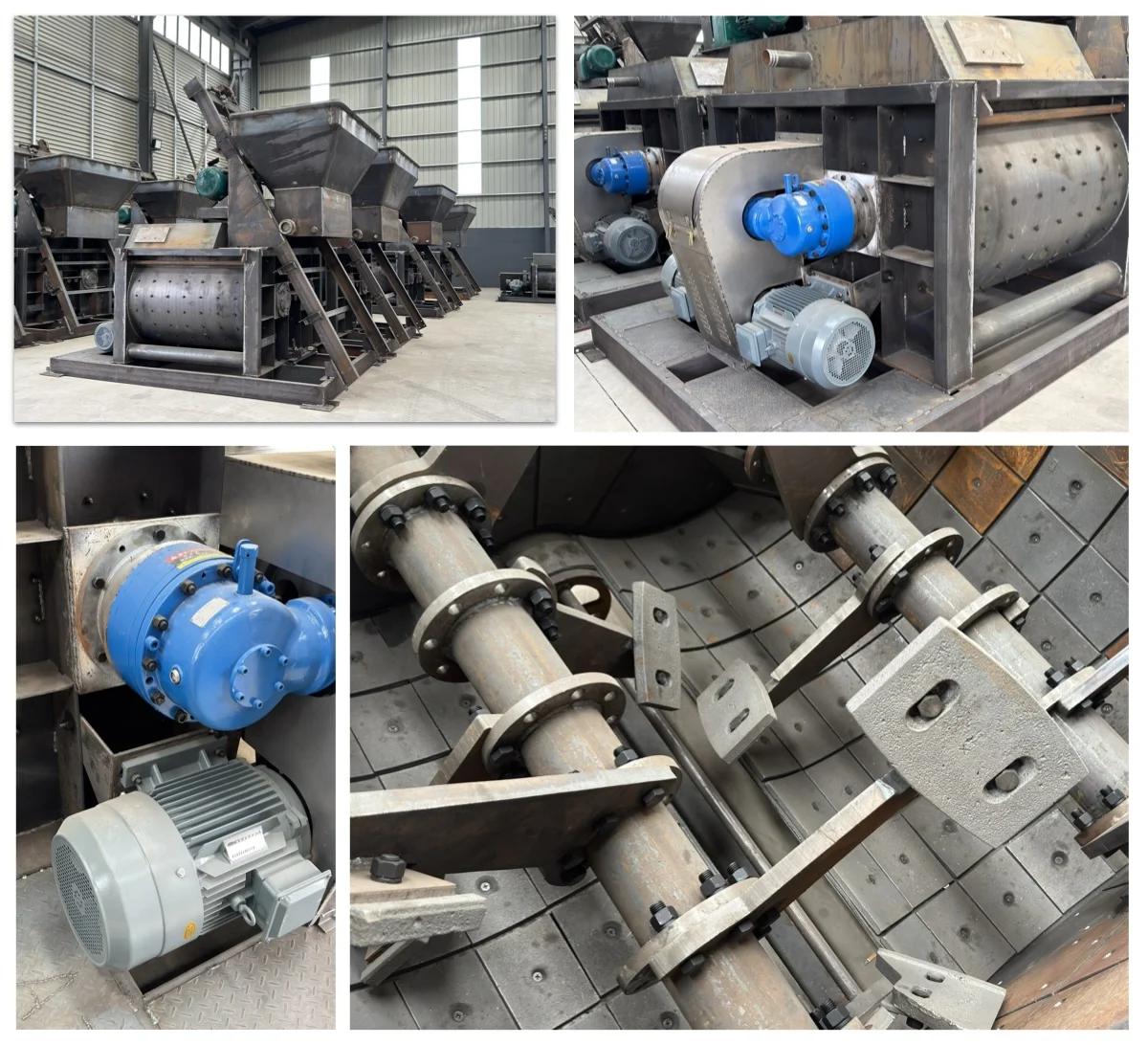

Detail display

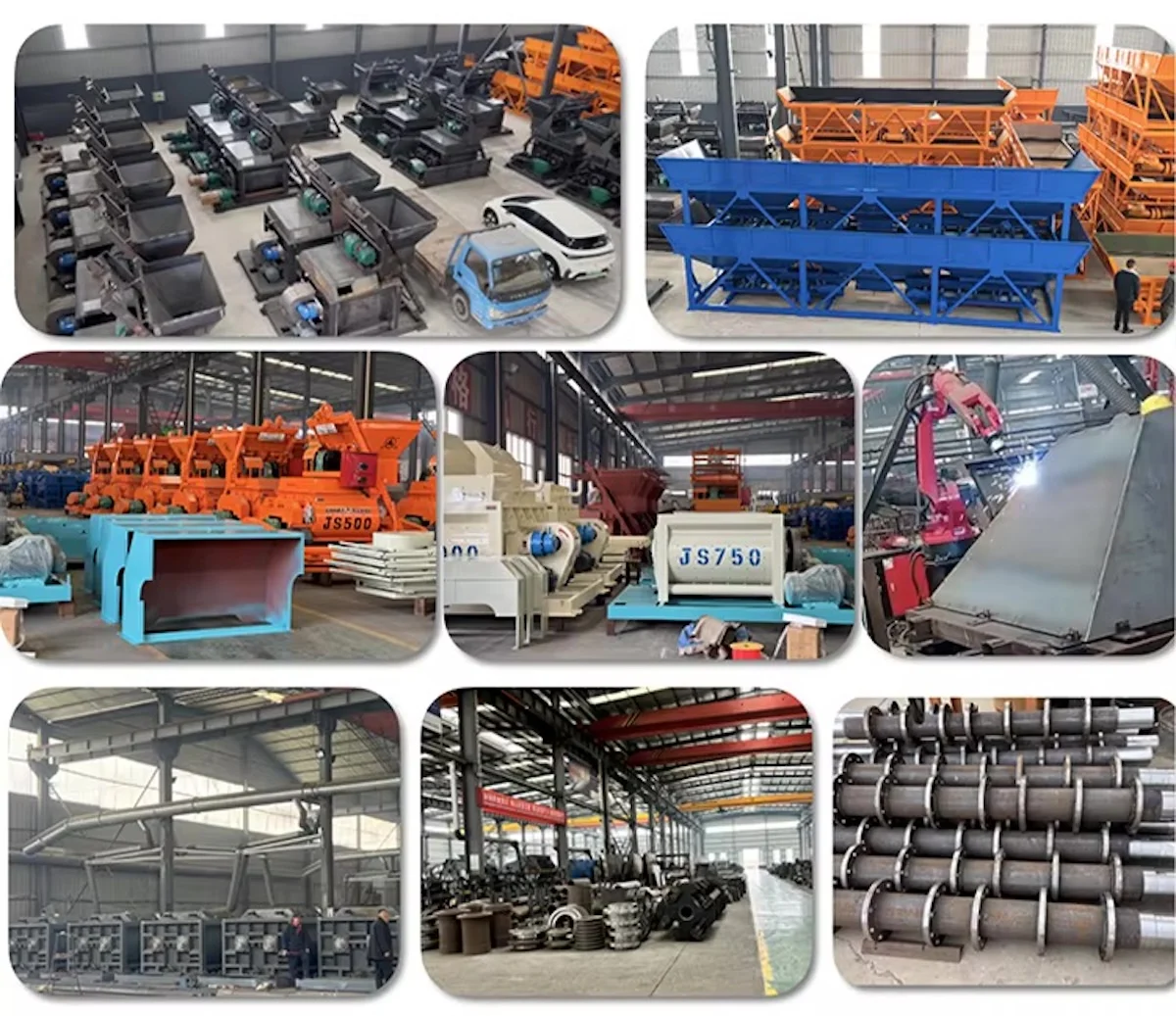

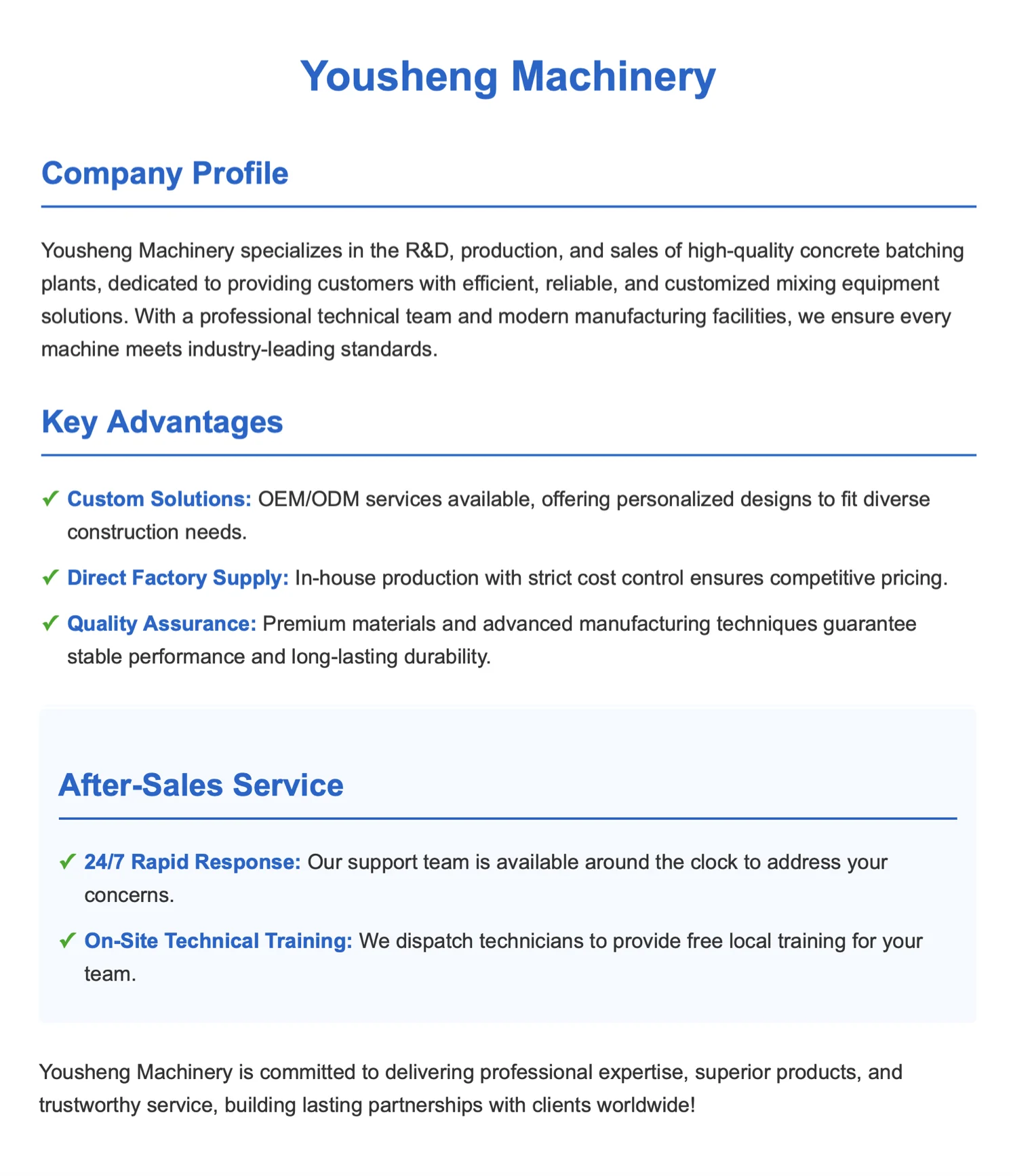

Company Profile

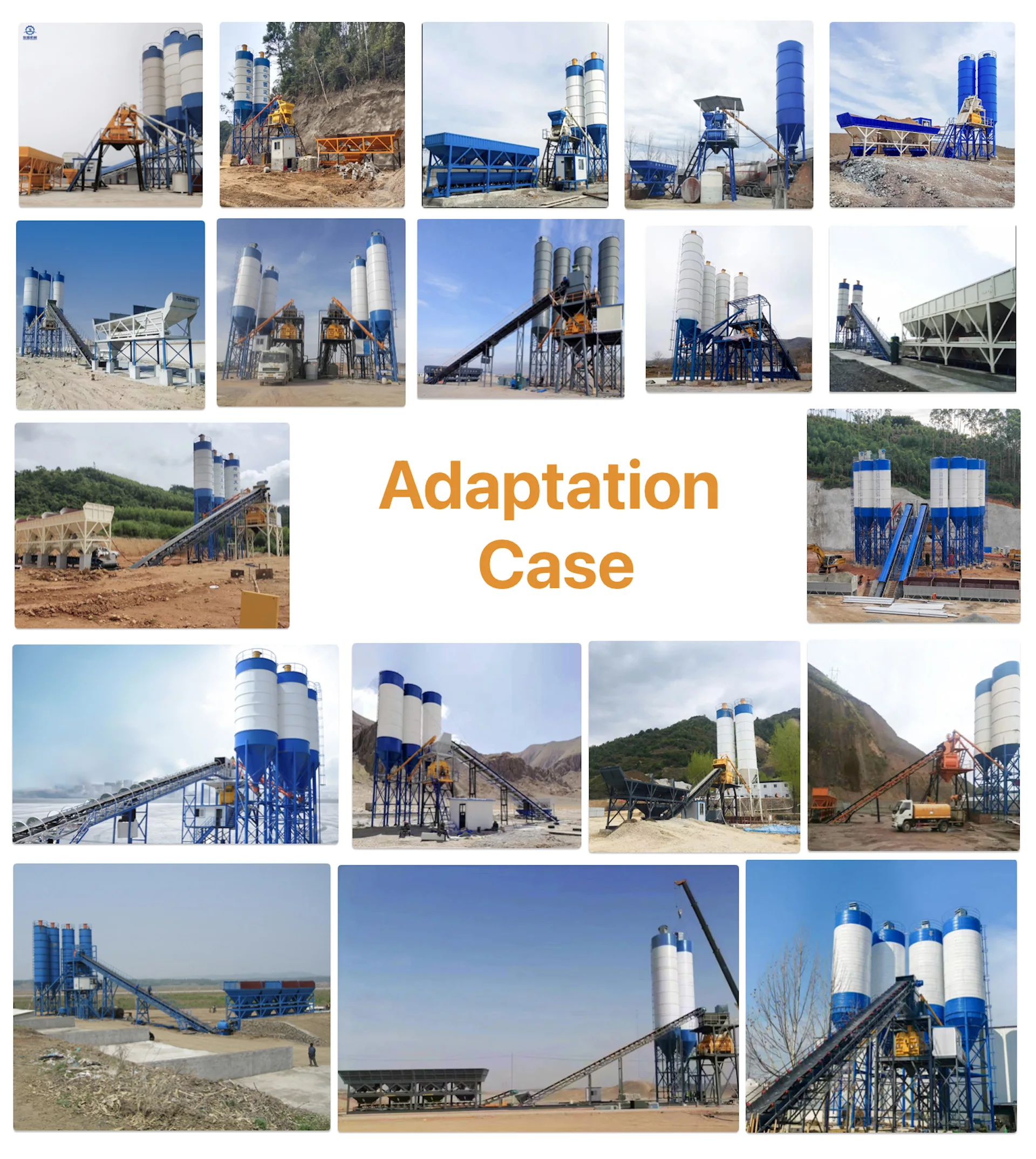

Successful Project

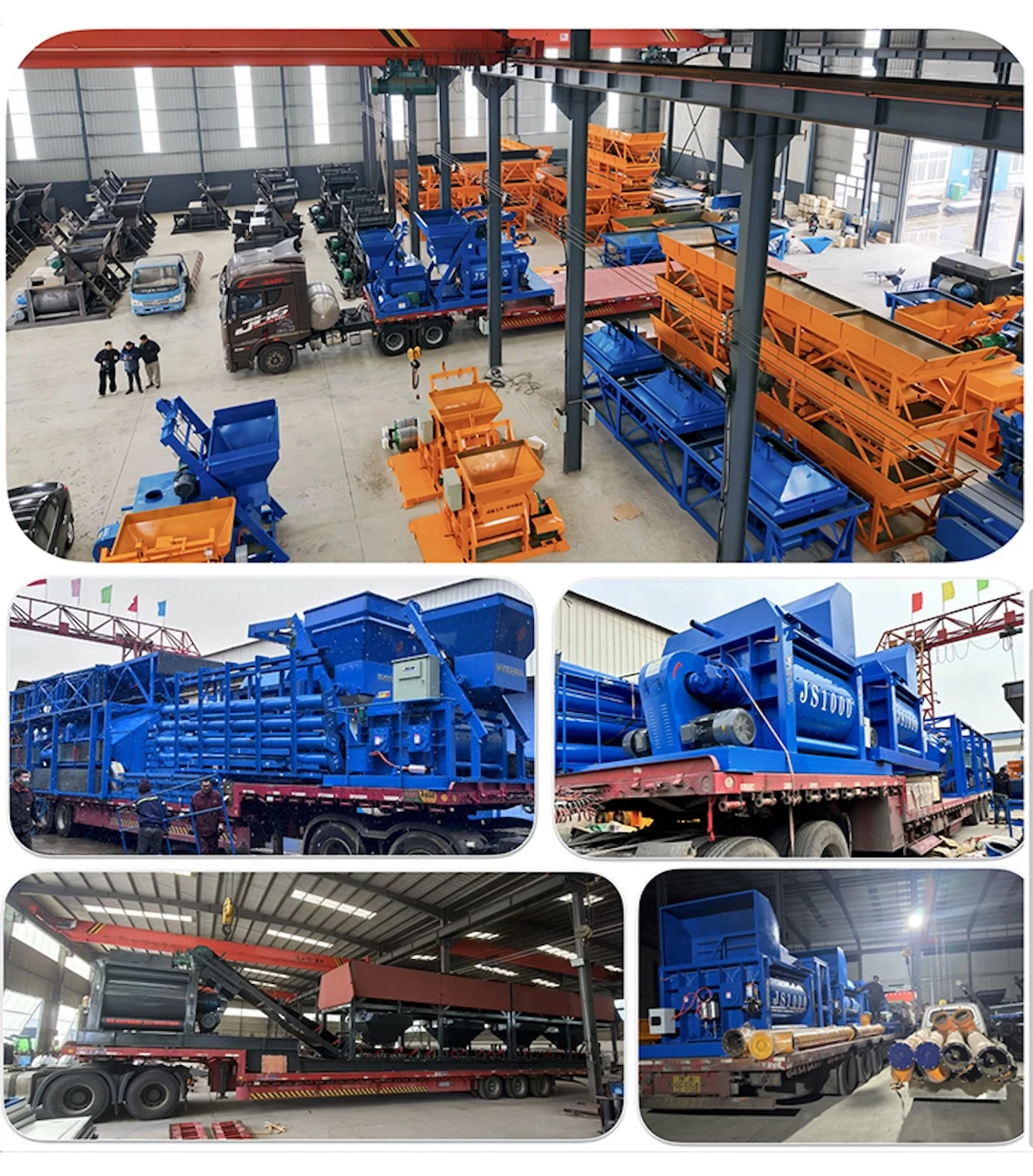

Packaging and Shipping

FAQ

Q1: How should I choose the model?
A1: You can provide your production requirements and site conditions, and our factory will recommend the most suitable option based on your needs.
Q2: Which type of host machine should I choose?
A2: Generally, small and medium-sized stations should choose a hopper lift host machine, while medium and large-sized stations
should opt for a belt conveyor concrete host machine.
Q3: How long does it take to ship?
A3: From contract confirmation to shipment, it usually takes around 10 days. For items in stock, shipment can be completed within
about a week.
Q4: What is the after-sales service period?
A4: We provide a one-year warranty from the date of shipment, along with free remote installation and technical support.
