TrackNPClip Active Infrared Head Sight Tracker/head aiming/flight simulation for TrackIR5/TrackNP5

TrackNPClip Active Infrared Head Tracking Bracket & Head Sight Tracker/head aiming/flight simulation for TrackIR5/TrackNP5

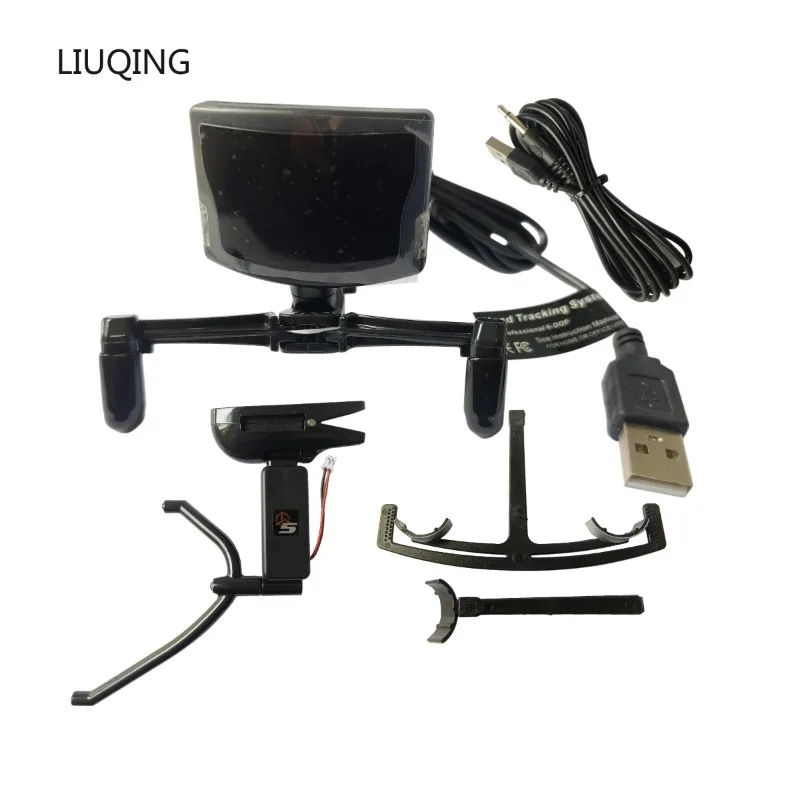

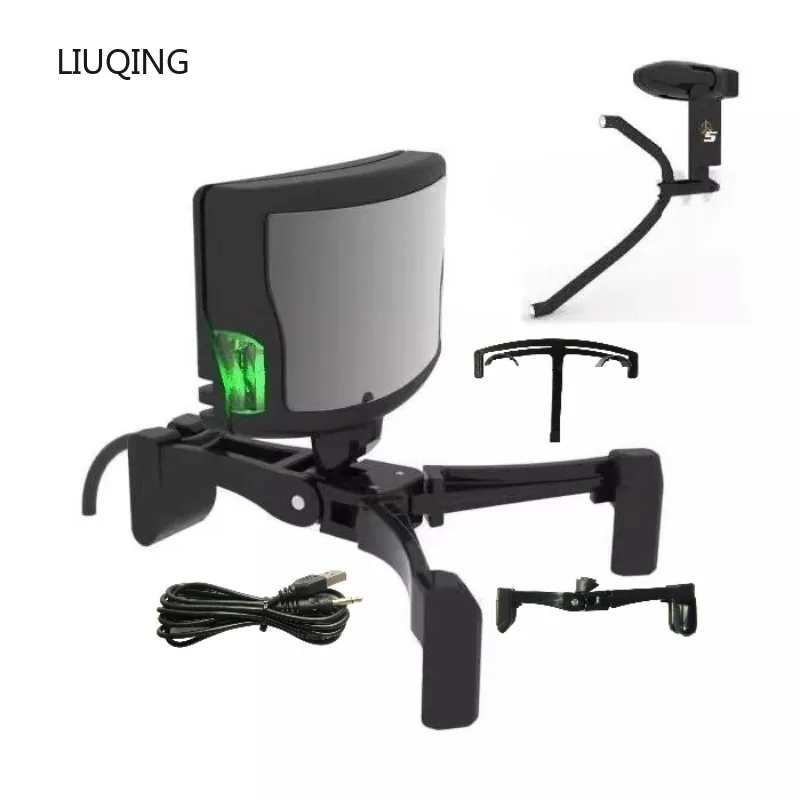

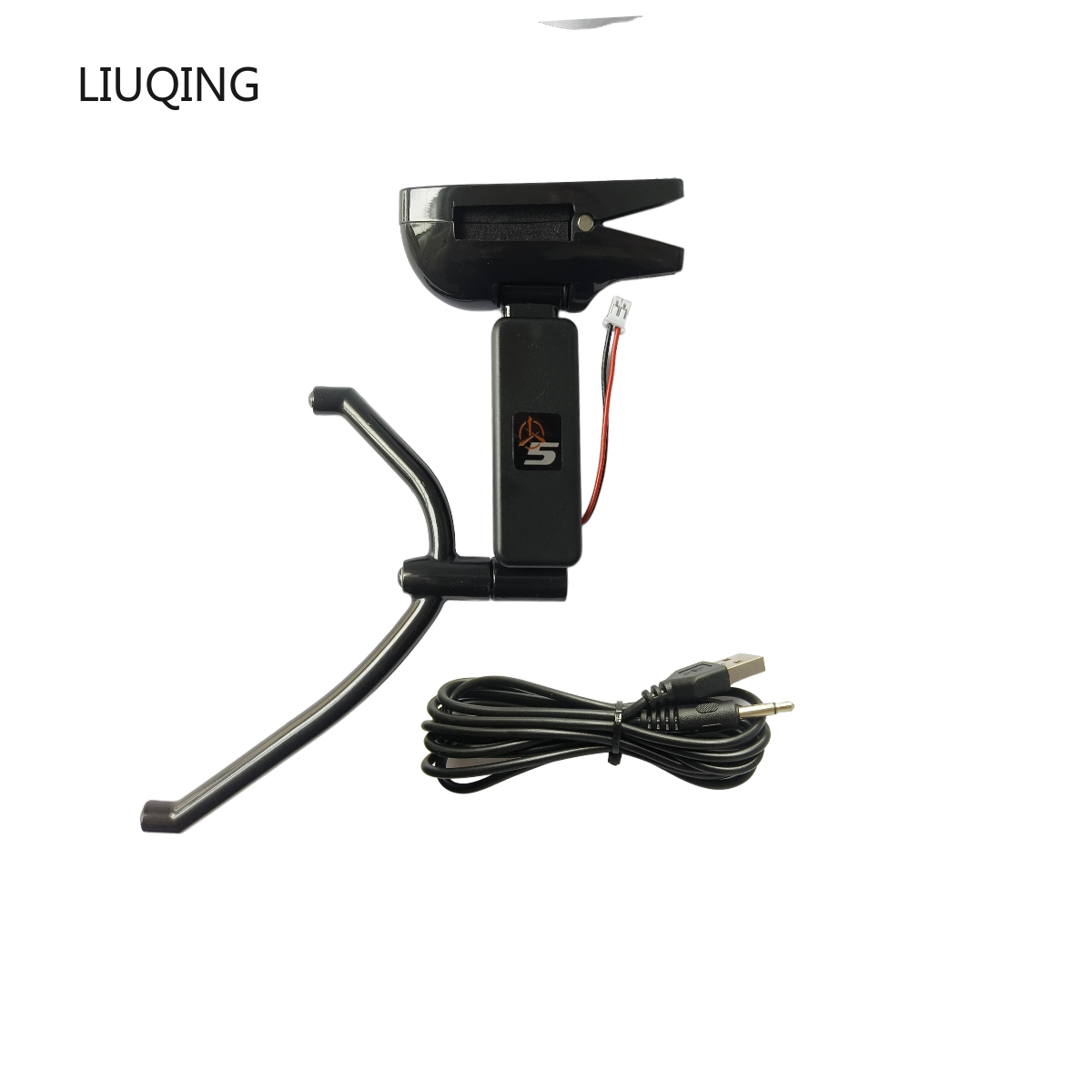

1. TrackNpClip
Description:
TrackNpClip active infrared tracking bracket is specially designed for professional head sights. It is a high-end optional accessory of TrackNP professional infrared optical head tracking system (not included in the standard head sight kit). It uses bright wide-angle infrared LED as the active Signal transmitting element, customized with high-strength, high-elasticity engineering plastics and all-metal bearings. Just clip the active bracket to the headset.

Advantages:
- Imported wide-angle infrared LED light-emitting tube with high luminous intensity and large angle. Ensure that the head movement is always effectively tracked when the head is in a wide range of motion, expand the range of viewing angle, and support longer distance tracking.
- Using high-strength, high-elastic engineering plastic, removable design. More comfortable to wear. If you don't need to take it out, you can divide the active lamp holder and the fixing clip into two to ensure the equipment's safety and anti-fracture during transportation.
- High-strength all-metal lamp holder bearings will not break. It is designed to be powered directly through the bearings. It can realize 360° rotation of the lamp holder without worrying about the internal wiring being broken.
- Ergonomic design: the light frame adopts a special 3D three-dimensional curve shape, which perfectly fits the human face. It has a professional texture when worn and has a large positioning accuracy angle.
- It also comes with a power-supply booster circuit, the power supply voltage to the LED is stable at 5V, and the brightness is unchanged.
- The fixing clip with earphone anti-slip pad can adapt to most headphones on the market, and it is installed by gently clipping it on the left side of the earphone.

Features:
- Active LED's for more precise tracking
- USB powered
- 2 Position headset clip (fits over-the-ear style headsets )
- For Home or Office use
- Compatible with TrackIR5 TrackNP5 Headphones

Parameters:
- Fixing Method: Fixed in Earphones Left Side
- LED Spectrum: 850nm
- Detection Range: 0.4m~2m/1.3-6.6ft
- Tracking Frame Type: Active Infrared
- Size: Fixing Clip: 76 x 84 x 28mm/3 x 3.3 x 1.1"; Lamp Bracket: 105 x 45 x 23mm/4.1 x 1.8 x 0.9"

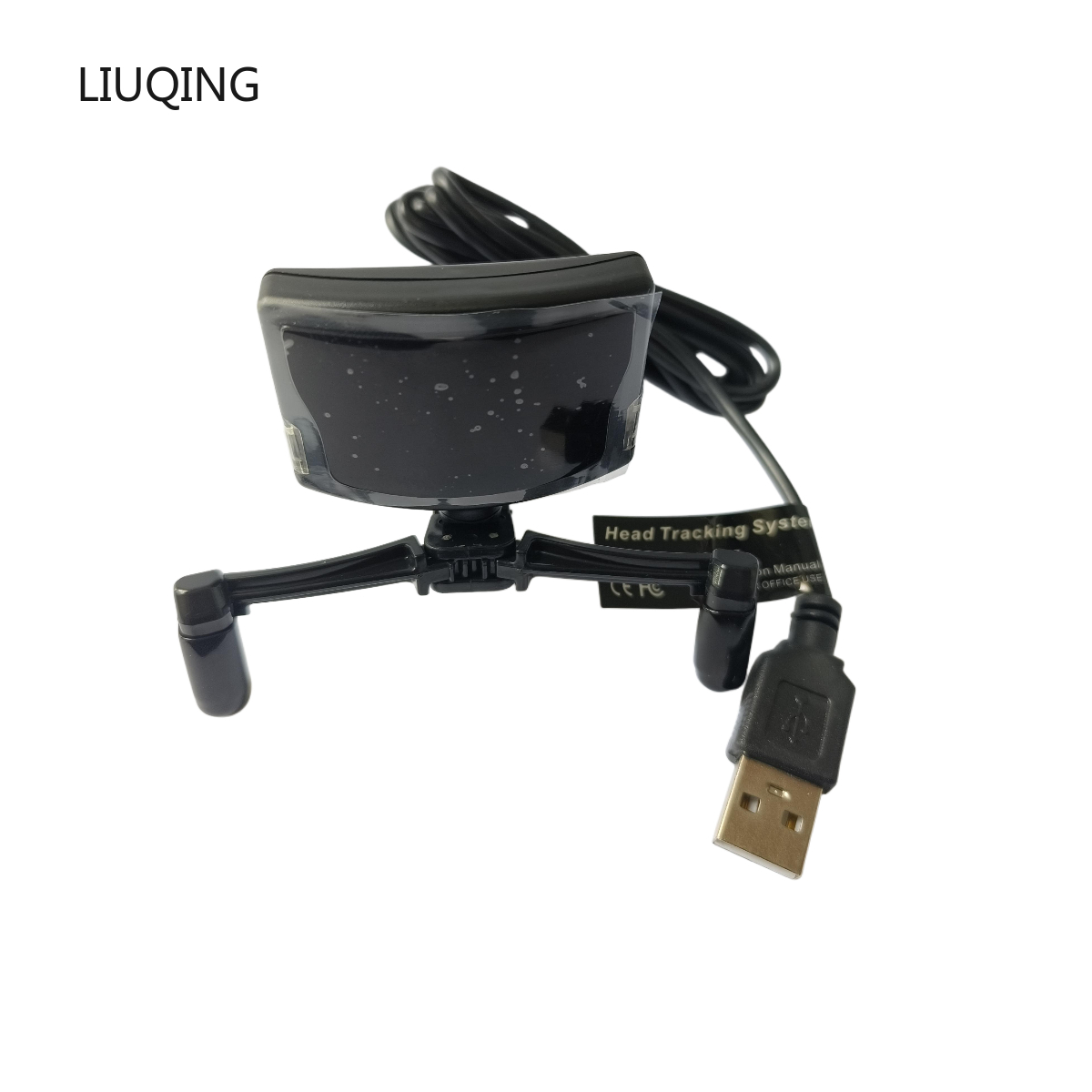

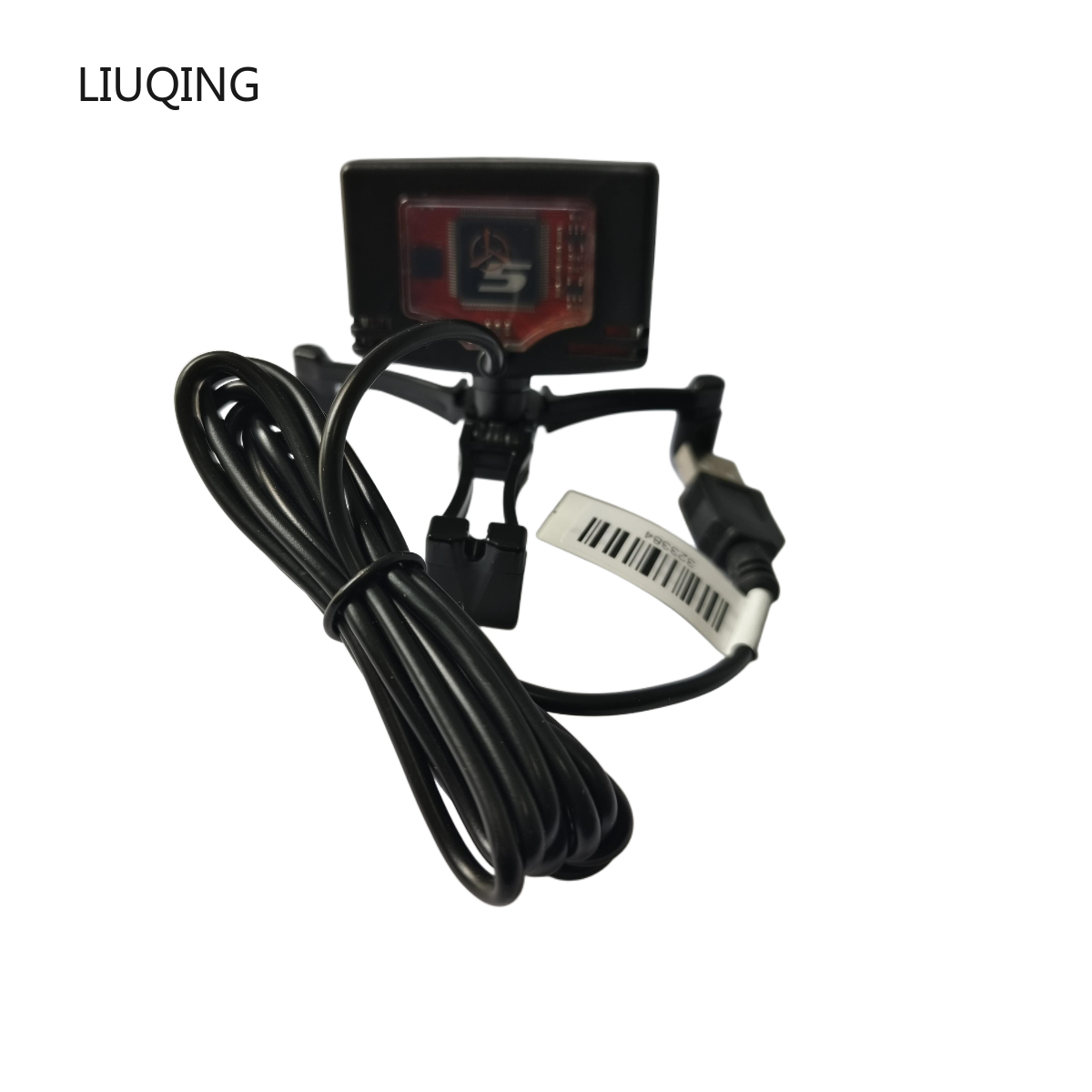

2. Head Sight Tracker
Description:
This is a high-precision professional head posture infrared tracking system, which has the highest performance index among all similar products. It is a professional, stable and convenient to use product, without cumbersome hardware connection. Just plug and play. There is also no need for cumbersome software settings. There are many built-in control curves. Beginners hardly need to read the manual. Just adjust the head posture and start the game. The built-in support game list is updated synchronously with the official website, eliminating any trouble of finding patches everywhere.

The professional equipment is tailored for three types of games: flight simulation, racing car, and first-person shooter. Let you no longer be bound by the PoV Hat on the joystick and the buttons on the keyboard to control the viewing angle in the game, let you feel the great improvement of the simulation degree it brings to the game, and truly bring your head to the in the game!

Advantages:
1. High cost-effectiveness.
2. Professional styling design: Adopting a fully protective design similar to a pilot's helmet.
3. Adjustable fixed base: The front foot has gears, and the base can be installed on laptops, LCD monitors, all-in-one machines, living room LCD TVs, projection screens, old CRT monitors, desktop computers, and even wall hooks.
4. High hardware specifications: Equipped with a built-in dedicated high-speed graphics processing chip. The original pixel resolution is 640X480 pixels, with a sampling frequency of 120FPS, resulting in a delay of only 8.3ms. The 51.7 ° horizontal wide viewing angle has been expanded
Tracking range, supporting up to 6DOF.
5. Accurate tracking experience: In conjunction with software running on the computer, it provides a high-precision, high stability, and smooth tracking experience.
6. The degree of freedom algorithm allows devices to accurately track targets using only 3 lights, and each axis is independent of each other. At the same time, a precise control mode has been introduced, which can operate smoothly even in the presence of interference from other light sources. Of course, direct sunlight should not be allowed.
7. Improved thermal cooling system: New low-power image processing chips, improved high-efficiency infrared system, and heat dissipation treatment of internal circuits have been adopted, greatly reducing the temperature of the equipment.
8. Official website synchronizes game list updates: Currently supports over 180 major games, and the official game list is constantly updated. Open the control software, and if you find a red game update icon in the upper right corner, it means there is a new game.
9. Adjustable image acquisition parameters: Through image control in the software, the working parameters of the image processor can be modified to ensure stable image quality and accurate operation in various interference environments.
10. Support for realistic perspective: Currently, only professional software for head aiming devices can support it.

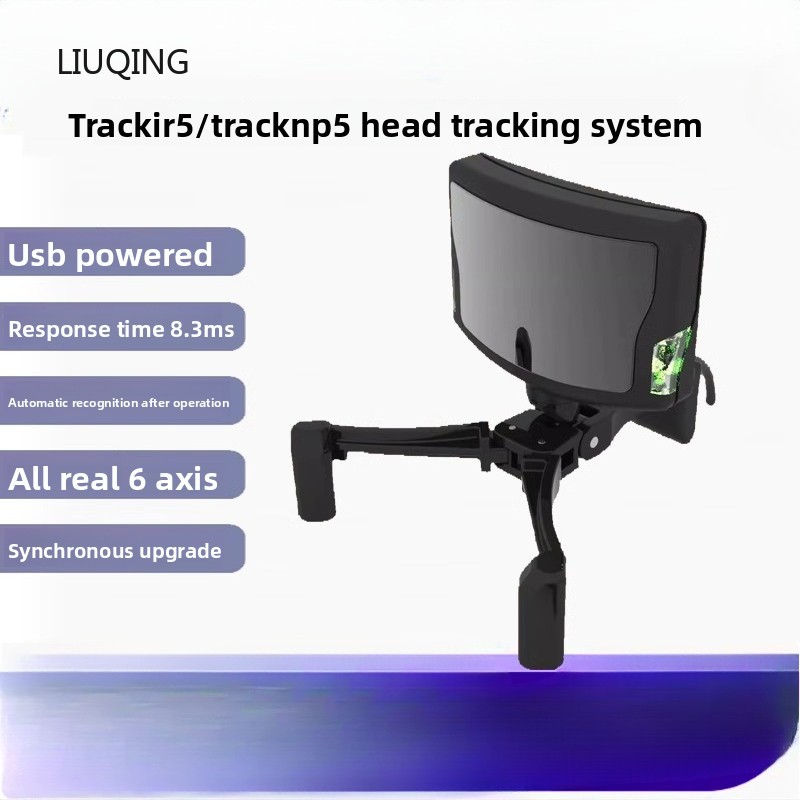

Features:
1. Simple to use: Only one sensor on the head can realize full-scale true 6-axis (6DOF) tracking, without wearing any attached sensors.
2. True 6-axis (6DOF): The 6-axis data is calculated by a single algorithm using a special algorithm. The transition is smooth and natural, and the false 6-axis is converted into translation without using the body inclination.
3. Simple setting: After installing the software, inserting the head sight, and wearing the sensor, you only need to set it up in three simple
steps.
4. One-button calibration: sit the head sensor at the receiver, press F12 to center it, without complicated settings and calibration.
5. Electromagnetic safety: The bracket worn on the head does not have a high-frequency wireless transmitter, which does not generate electromagnetic radiation to affect brain health, and avoids brain fever when using a mobile phone for a long time.
6. Synchronous upgrade: once there is support for new games, the first time to notify, eliminating the hassle of finding patches everywhere.
7.Ultra-high indicators: resolution 1/150th pixel, response time 8.3ms, sampling frequency 120FPS.
8. No need for charging: USB power supply and no need to charge. It can be used after booting.
9. Hotkey settings: Precise mode, return to center, pause, and configuration switching can be set to a remote stick, joystick, mouse,
and keyboard.
10. True angle of view: the direction of the Z-axis movement (body leaning forward, leaning back) based on the current
visual direction.
11. Automatic recognition: no need to select the corresponding game configuration, the software automatically recognizes
after running the game.
12. High customization: advanced functions (curve, configuration, parameter fine-tuning) are set for players to dig deeper. Different games may require different configurations. After setting, launch the corresponding game to load the corresponding configuration.

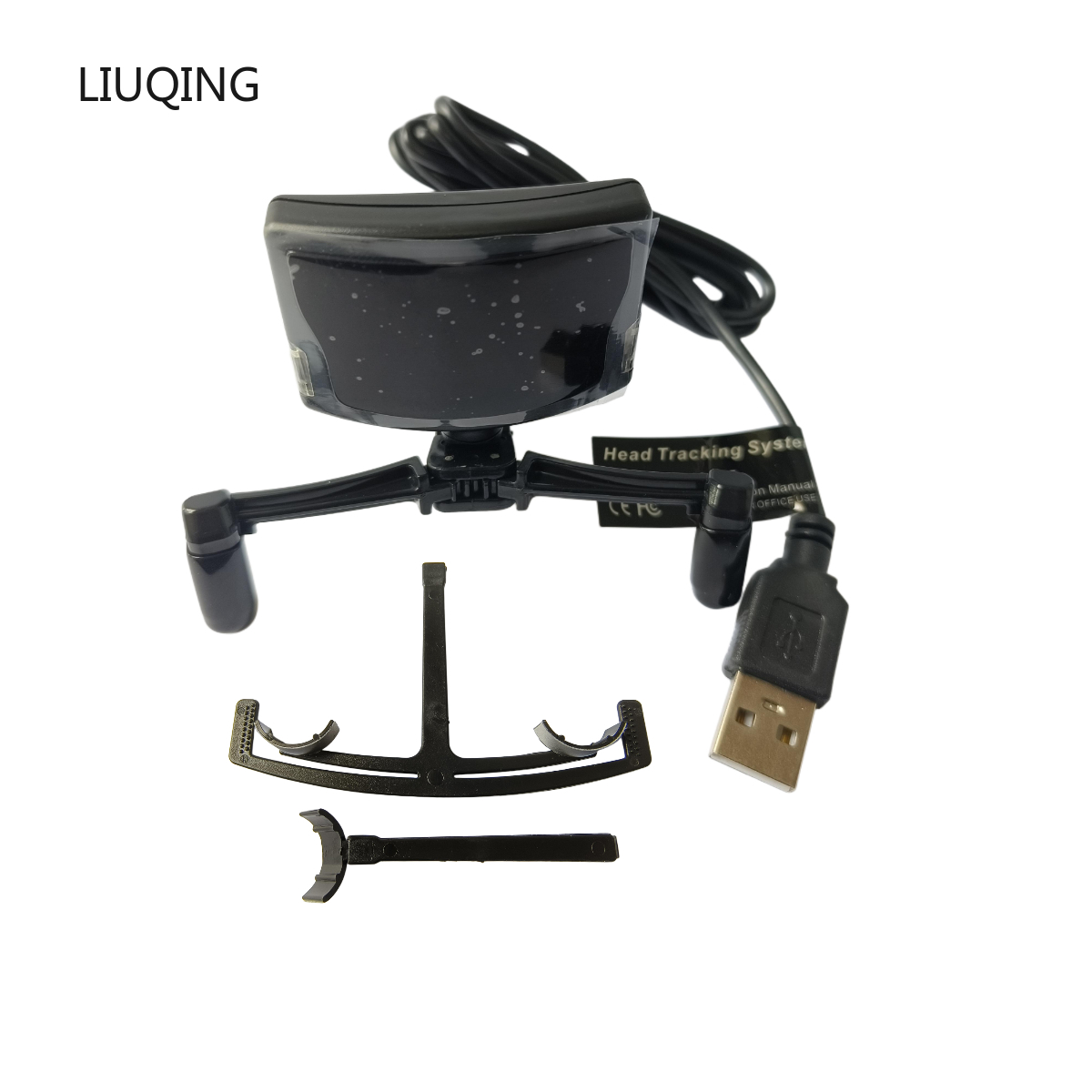

Infrared Tracking Bracket:
The professional infrared passive tracking bracket is made of directional high-infrared reflective material and high-strength, high-elasticity engineering plastics. Simply assemble the reflector and clip it to the brim of a baseball cap. No setup, power control, etc. required.
1. Directional high-infrared reflective material, the reflective property can reach 500LUX, just like a self-luminous object and no need to pull a power supply line;
2. Detachable design: High-strength, high-elasticity engineering plastics. More comfortable to wear. If you don't need to take it out, you can disassemble the bracket into two parts, reduce the size and facilitate portability, and avoid the deformation problem caused by the pressure of the large external force;
3. Anti-slip bumps are thoughtfully designed at the buckle position of the brim. When the baseball cap is buckled, these bumps play a role of anti-slip and tightening, preventing the tracking bracket from falling off during use;
4. Reasonable size design can match it with all baseball caps on the market, without any adaptation problems;
5. It can also be fixed on the earphone: first fix the reflective bracket directly on the beam above the earphone with a rubber band (both up and down), and then assemble the bracket, which is simple and effective, and cooperates well.

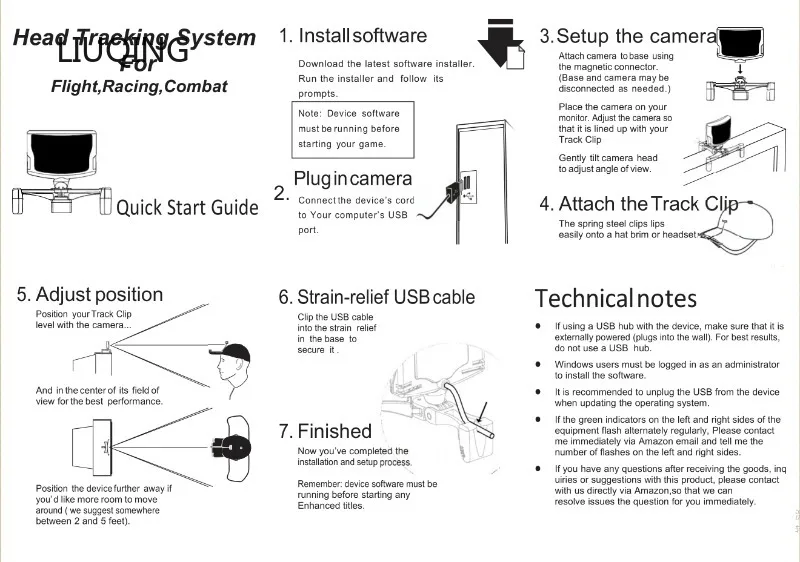

Fast Installation Guide:
1. The left green light is on: it indicates that the device has tracked the head movement.
2. The green light on the right side is on: Indicates that the device detects that a supported game is already running.
3. All red and orange lights are on: Indicates that the device is suspended by the user (by default, press F9).

Attention:
- Buyers of the control software on the computer can download and install it on the official website (the latest version V5.42)
- After the installation is complete, please keep the computer connected to the Internet, so that once the official website has game updates, the game can be updated immediately, saving any troublesome upgrade support issues, and currently supports hundreds of games. The variety of games is still growing.

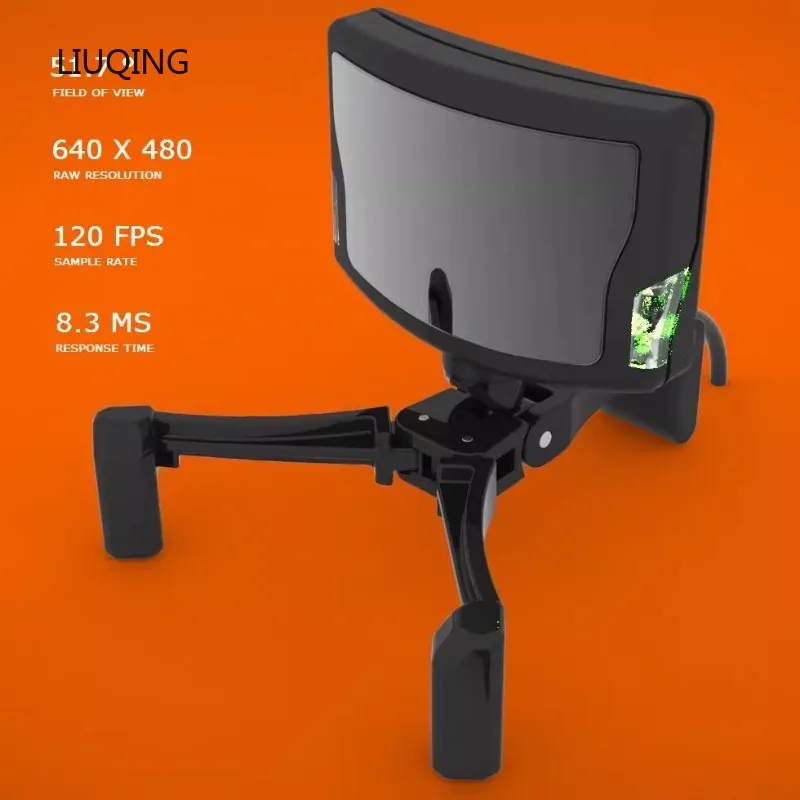

Specifications:
- Head tracking position: 6 axes (6DOF)
- Horizontal viewing angle: 51.7°
- Sampling rate: 120FPS
- Response time: 8.3ms
- Photosensitive chip native resolution: 640 x 480
- Sub-pixel resolution: 1/150th pixel
- Sensing Range: 96,000 x 72,000
- Resolution Ice Flat Viewing Angle: 1850 sub-pixels/degree
- Dimensions (without base): Thickness: 0.57"; Width: 2"; Height: 1.5"
- Connection method: USB 2.0
- Operating System: for Windows XP/Vista/7/8/8.1/10, 32-bit, 64-bit
- USB cable outer diameter: 2.8mm
- USB cable length: 1.5m/4.9ft
- Tracking frame type: active, passive
- Supported game types: flight simulation, racing car, first-person shooter
