? Product Overview

We supply 3 models of outdoor point-to-point wireless bridges, engineered for long-distance outdoor networking, elevator monitoring, remote WiFi extension and engineering projects. All units adopt IP weatherproof casing, POE power supply & high-gain directional antenna, plug-and-play for field deployment.

? CF-E113A V2 (2PCS Kit)

⭐ Core Selling Points

✅ 5.8GHz ultra strong anti-interference | Max 3KM stable point-to-point transmission

✅ Dedicated for elevator monitoring & high-interference complex scenarios

✅ 300Mbps stable transmission signal, industrial-grade chip for long-time stable running

? Full Specifications

▪ 5.8GHz frequency band, effectively isolate surrounding co-channel WiFi interference

▪ Up to 3km long-distance stable point-to-point data transmission

▪ Qualcomm 560MHz industrial CPU, stable continuous operation

▪ 300Mbps high wireless transmission rate

▪ Built-in PA amplifier, stronger transmit & receive signal

▪ Compliant with IEEE802.11a/n standard

▪ Integrated 11dBi high-gain antenna, larger signal receiving range

▪ Auto adjust transmit power to avoid adjacent channel interference

▪ Signal indicator supports quick angle alignment & signal optimization

▪ 48V POE power supply, single cable carries power & data, easy wiring

? Package Contents

▪ CF-E113A V2 CPE × 2

▪ POE Power Adapter × 2

▪ Quick Installation Guide × 2

▪ Power Cable × 2

▪ Cable Ties × 4

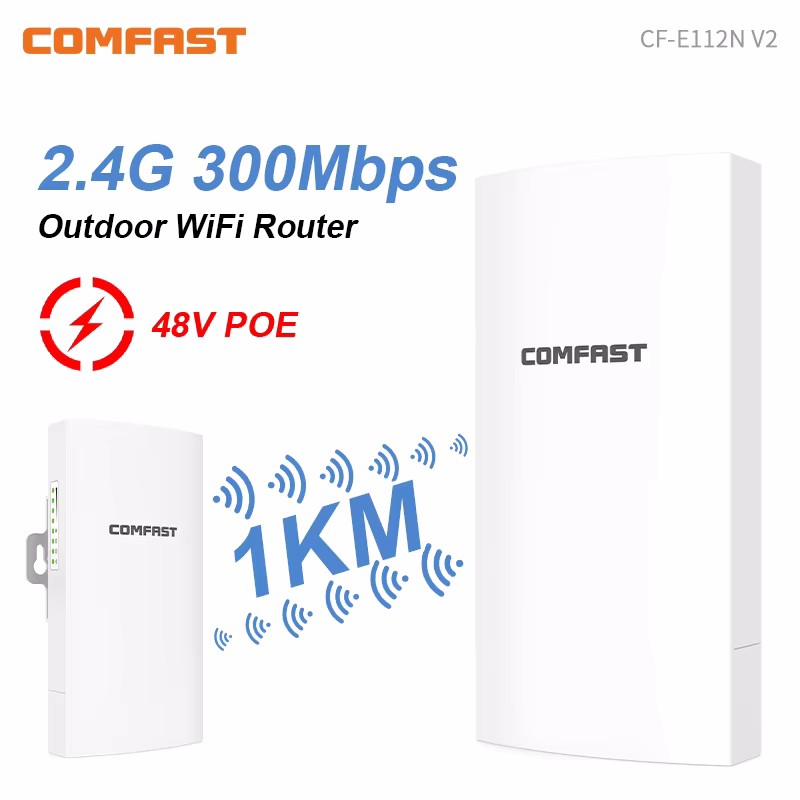

? CF-E112N V2 (2PCS Kit)

⭐ Core Selling Points

✅ 2.4GHz strong obstacle diffraction | Cost-effective universal outdoor bridge

✅ Multi-country plugs available for global shipment

✅ IP waterproof, dustproof & lightning protection, wide working temperature range

? Full Specifications

▪ 300Mbps wireless rate, compliant with IEEE802.11b/g/n standard

▪ 9dBi directional antenna + Qualcomm QCA9533 650MHz industrial CPU

▪ 1×10/100Mbps adaptive RJ45 WAN/LAN port + independent Reset button

▪ 2.4GHz band, good penetration for mild obstacles

▪ 48V POE power supply, flexible on-site installation

▪ Outdoor protection design

Working Temp: -30℃~+55℃

Storage Temp: -40℃~+70℃

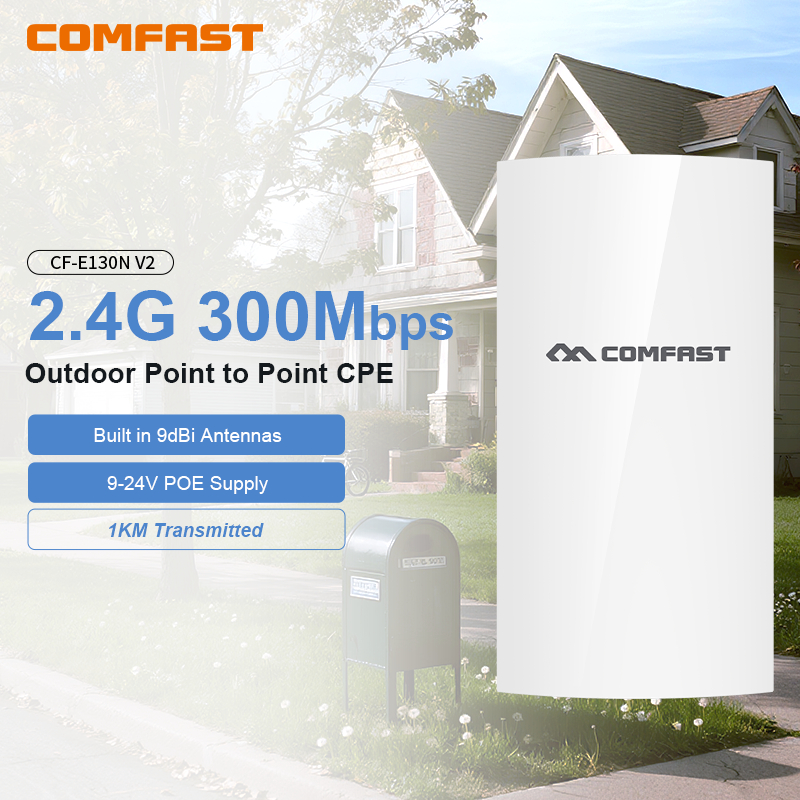

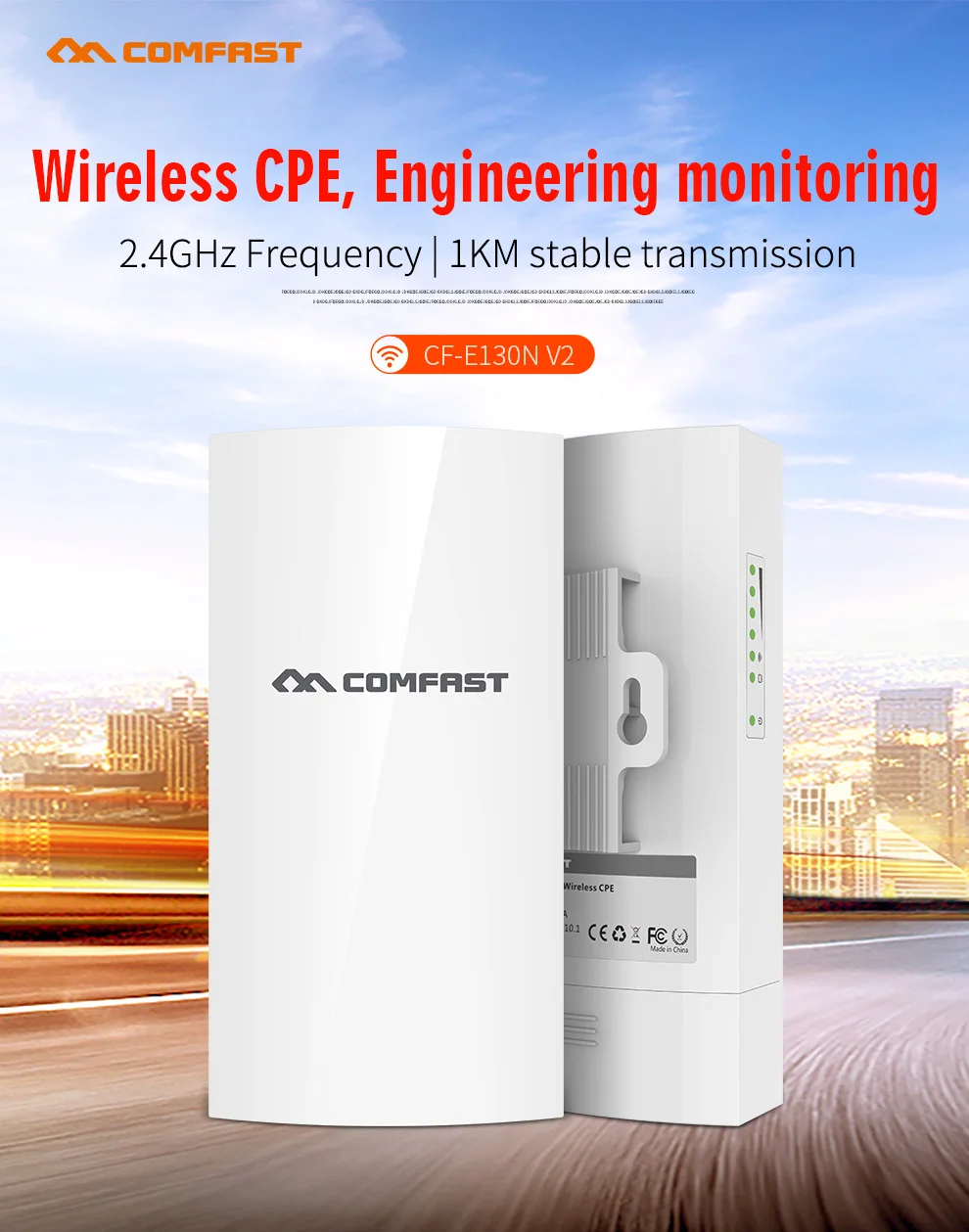

? CF-E130N (1PCS/2PCS Optional)

⭐ Core Selling Points

✅ 9-24V wide voltage POE, high power compatibility

✅ Dual working mode: WiFi extender + point-to-point bridge

▪ Flexible single/pair packaging to meet different demands

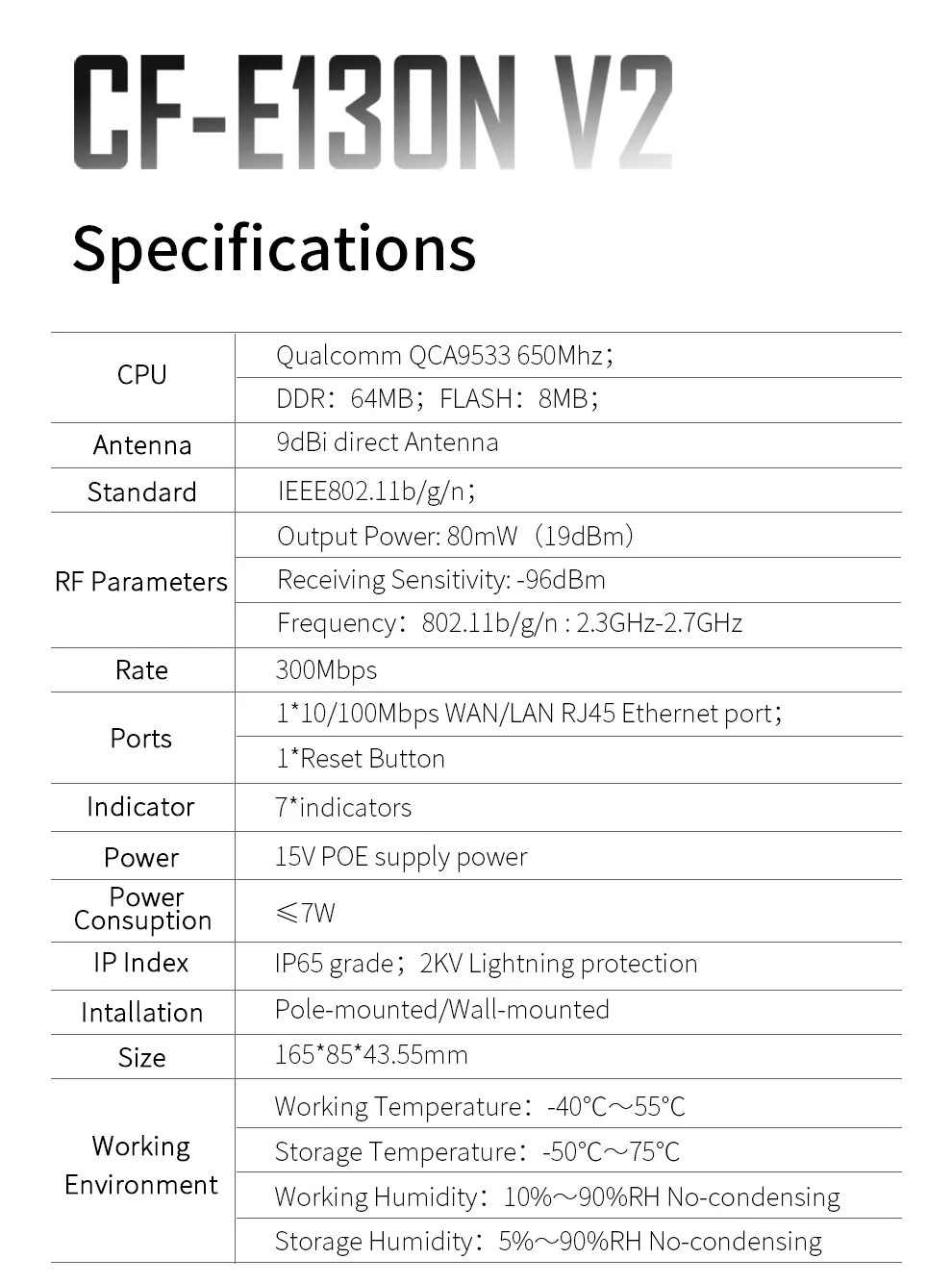

? Full Specifications

▪ 300Mbps 2.4GHz band, built-in 9dBi MIMO panel antenna

▪ Up to 1km stable bridge transmission distance

▪ Support outdoor signal coverage expansion & point-to-point networking

▪ Wide 9-24V POE power input, compatible with most old engineering circuits

▪ 10/100Mbps RJ45 port, compatible with cameras, NVR, routers

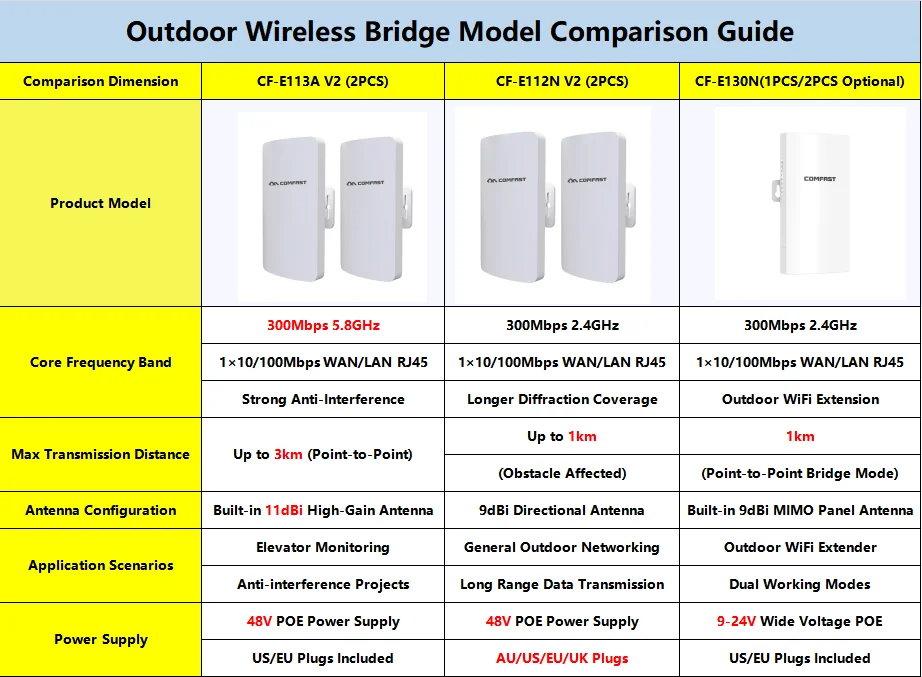

? How To Choose The Right Model

? Pick CF-E113A V2

Elevator monitoring, high signal interference environment, long-distance transmission up to 3km

? Pick CF-E112N V2

General outdoor networking, obstacle penetration needed, global bulk engineering projects

? Pick CF-E130N

Outdoor WiFi coverage extension, limited power supply, flexible single-device usage

? General Universal Advantages For All Models

▫ IP outdoor waterproof & lightning-proof housing, fit factory, scenic spot, village, plaza

▫ POE one-cable power & data transmission, greatly reduce construction cost

▫ Industrial chip solution, low failure rate for long-term engineering use

▫ Signal indicator aided alignment, no professional technicians required

▫ Standard RJ45 port, perfectly match IP cameras, switches, NVR and routers

5-Star Verified Purchase! Fast Delivery & Secure Packaging

CF-E113A V2

High-speed stability

Project worry-free

5.8G 300Mbps Wireless Bridge pairing kit |No wiring and easy constructionFour reasons to choose

wireless bridge

Help securityindustryfour major advantages,

can meet different scenarios network needsOne-click pairing

Easy transmission

One-click pairing,easy transmission, Say goodbye to complex Settings,

novices can also operate, flip the switch can be paired successfully

Video data is clearly transmitted back, no delay and no switching

Whether it is a construction site or remote monitoring transmission,

it can provide stable transmissionPerformance upgrade,

advantages immediatelyIndustrial configuration

More stable transmission

CF-E113AV2 uses high-performance Qualcomm chips.

External high power FEM amplifier, wireless transmission more stable3km stable transmission

Full engineering grade hardware technology, high power PA RF amplifier

and 1ldBi high gain antenna. Realize 3km point-to-point and

point-to-multipoint wireless transmission.5.8G effective anti-interference

More stable data transmission

The bridge supports 5.8G mainstream frequency band, and the

anti-interference abilityof multiple channels is improved

Wireless speed up to 300Mbps, to ensure stable data transmission,

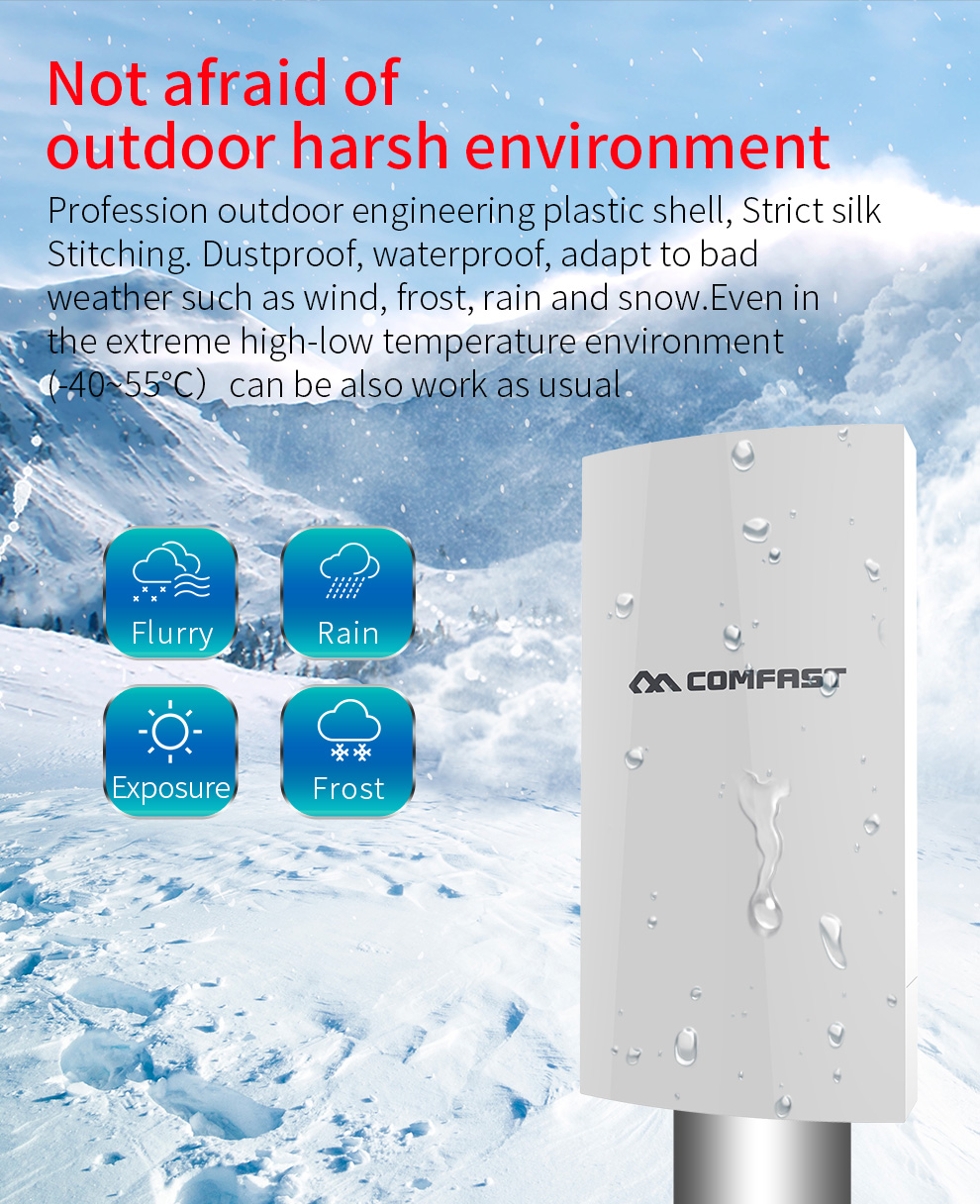

clear, no stallingComprehensive protection,

Worry free outdoors

Adopt integrated molding shell design,

adapt to the harsh outdoor environment.

Even if the wind, sun, rain and snow, it can be stable as beforeMultiple Working Modes

According to different projects requirements, choose the appropriate

working mode to apply to different working scenariosHidden SSlD Safety WiFi

Support SSlD hiding,solve network problems.

and ensure project stabilitySmart SignalIndicator LED

Four signal LED Lights represent the currently signal strength that

CF-E113A V2 receives from peer device.lt is helpful to find the right

location to deploy the device and achieve a better performance.48V POE Power supply

CF-E113A V2 is powered by 48V POE POE Adapter or POE

switch via Ethernet cable, which is very convenient.Rich software features

The wireless bridge software has a scientific and user-friendlyinterface,

Both mobile phones and computers can be set up forinternet access,

allowing for real-time monitoring of device statusWireless Monitoring ScenariosElevator Monitoring ApplicationConnect Application Diagram

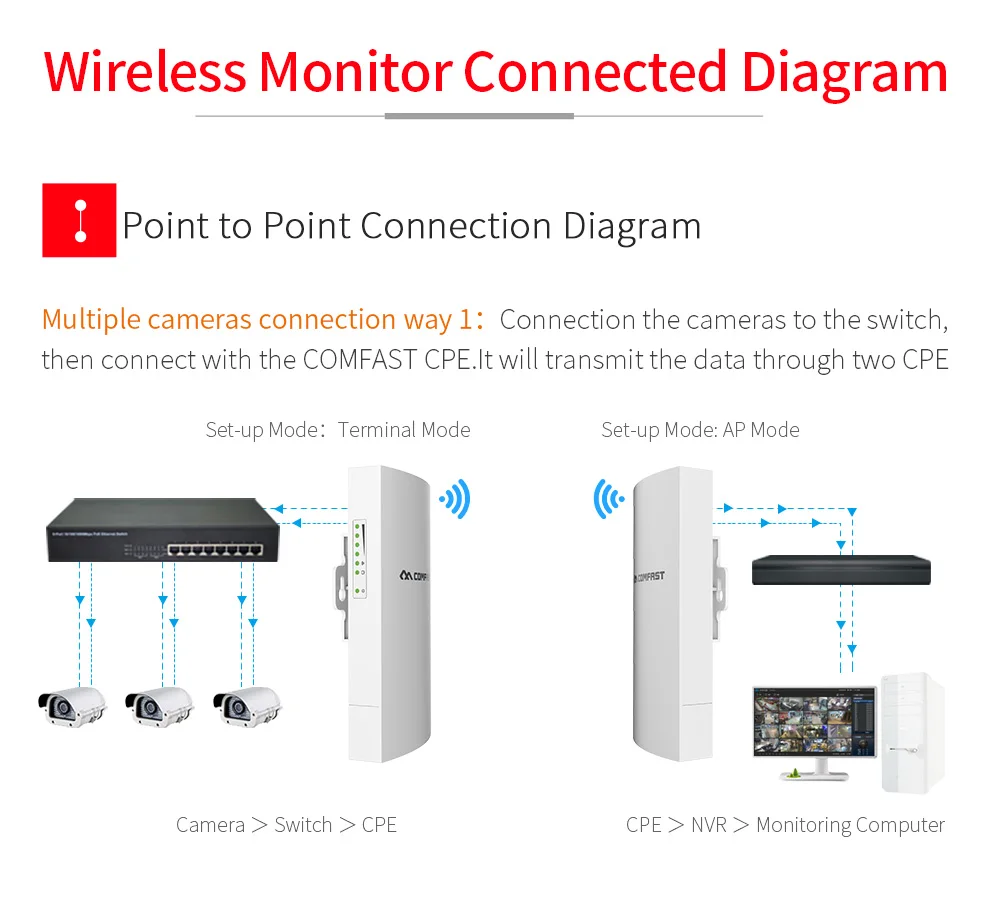

01/ Point to Point Connection Diagram

Multiple cameras connecting way 1: Connect the camera to the switch,

then connect with COMFAST CPE. lt will transmit the data through two CPE

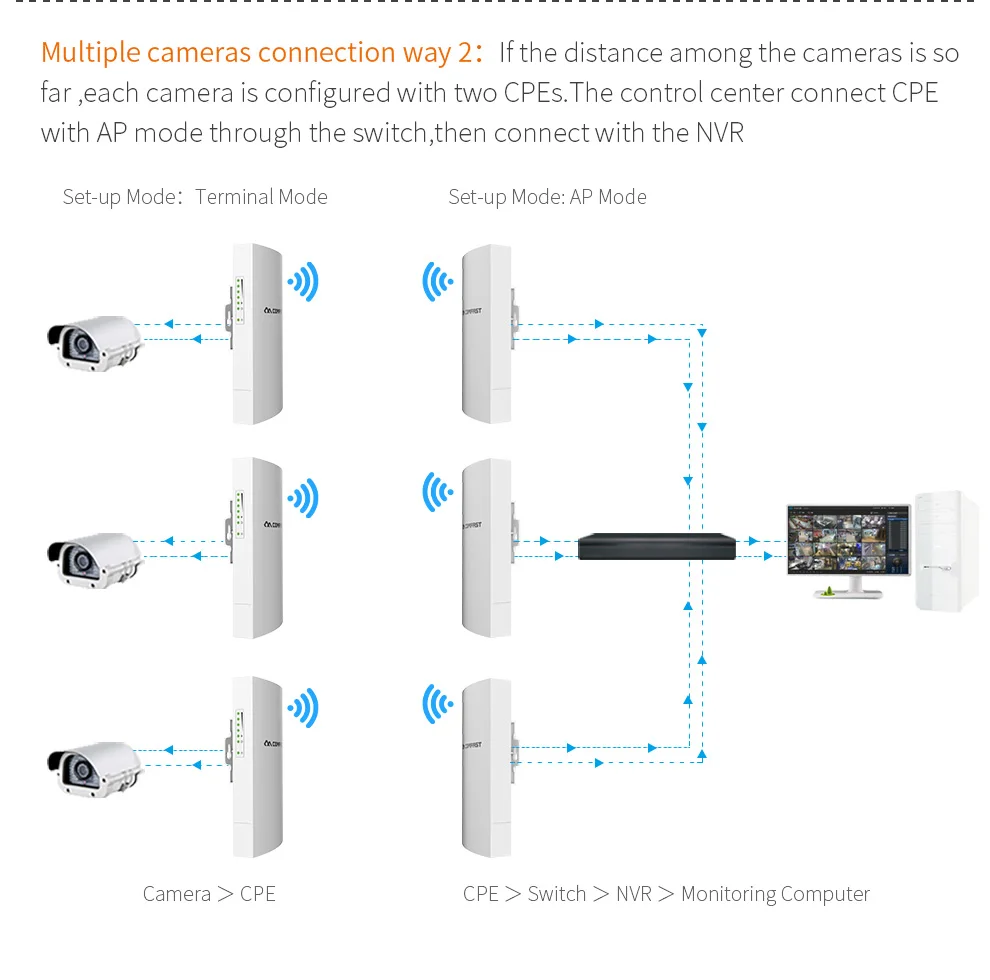

02/Multipoint to multipoint connection

Multiple cameras connecting way 2: lf the distance among the cameras is so far,

each camera is configured with double CPE. The control center connect CPE with

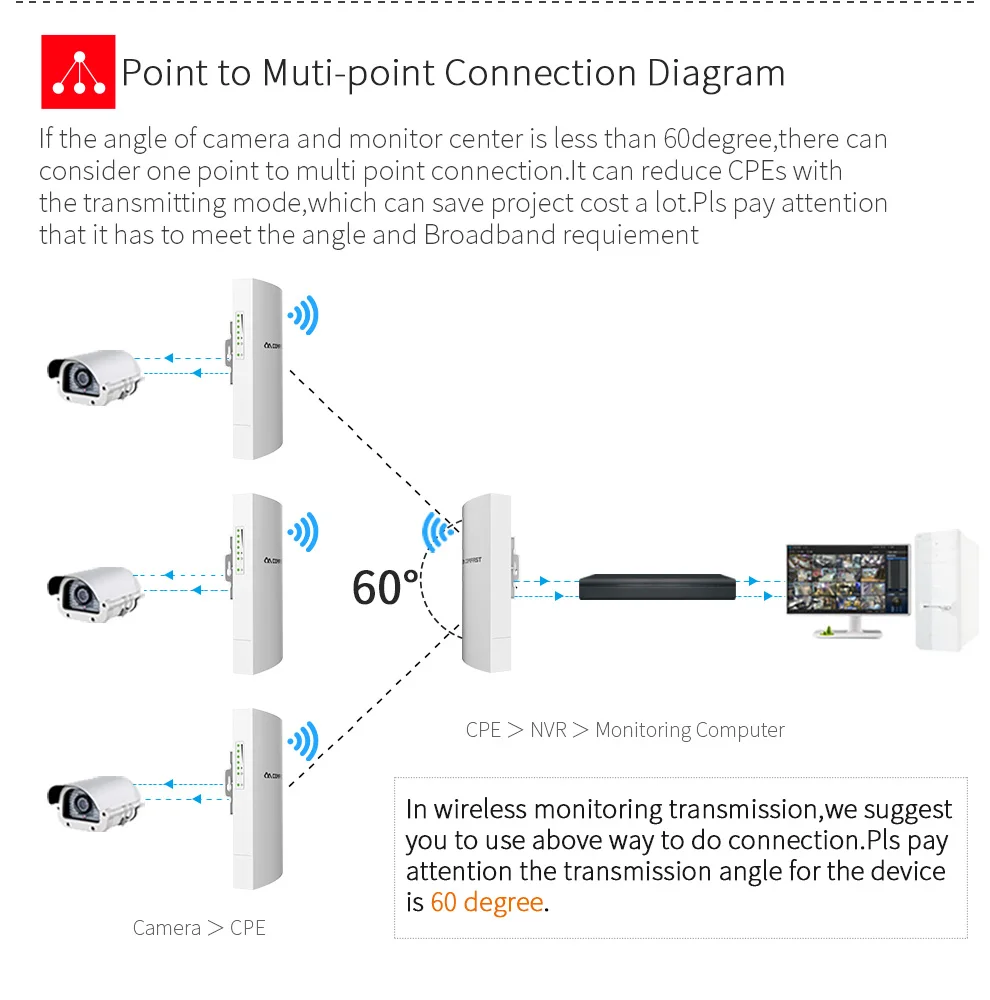

AP mode through the switch,then connect with the DVR.03/ Point to Multi-point Connection Diagram

If the angle between camera and control center is within 60 , there can consider one

point to multi point connection. lt can reduce CPEs with the transimitting mode,

which can save project cost a lot. Pls pay attention that it has to be meet the angle

and brandwith requirements.EasyInstallation Method

Pole mountingwithout tools required

(Can be mounted on a pole, suspended, or mounted on a bracket.

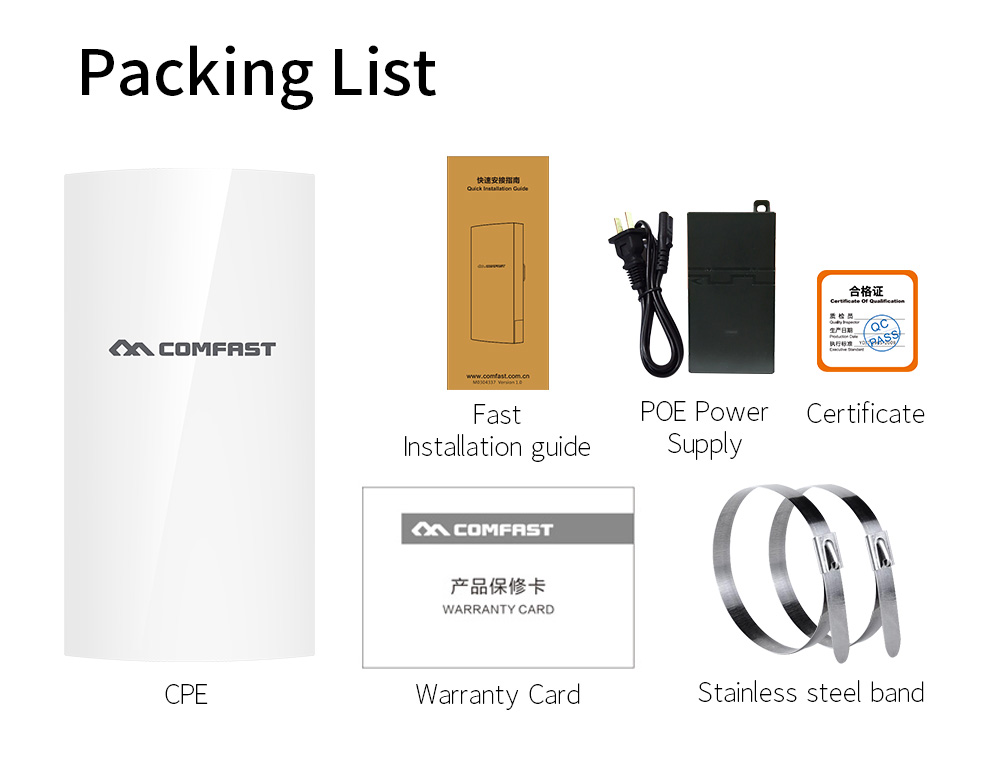

Please purchase the bracket yourself.)Packing List

*Please refer to the actual product received for the packaging.

The packaging may be updated without prior notice.

FAQ | Frequently Asked Questions

Q1: Do I need to buy 2 units to set up the point-to-point bridge connection?

A: ✅ Yes. Point-to-point transmission requires one transmitter and one receiver.

CF-E113A V2 & CF-E112N V2 are sold as 2PCS kits, ready for direct pairing;
CF-E130N supports 1PCS WiFi extender mode or 2PCS bridge mode as needed.

Q2: What is the actual effective transmission distance?

CF-E113A V2: Max 3km line-of-sight transmission (no obstacles);
CF-E112N V2: Up to 1km, signal will be weakened if blocked by walls/trees;
CF-E130N: Stable 1km point-to-point bridge distance under open view.

Q3: What’s the difference between 2.4GHz and 5.8GHz models?

▪ 5.8GHz (CF-E113A V2): Ultra strong anti-interference, less crowded channel, best for elevator monitoring & dense WiFi areas;

▪ 2.4GHz (CF-E112N V2 / E130N): Better diffraction ability, penetrates mild obstacles, wider coverage for ordinary outdoor networking.

Q4: Does this bridge support POE power supply?

A: All models support POE power supply (one cable carries data + power):

CF-E113A V2 / E112N V2: 48V standard POE;
CF-E130N: Wide voltage 9–24V POE, compatible with most old engineering wiring systems.

Q5: Is it waterproof for outdoor installation?

A: Yes. All devices adopt integrated outdoor waterproof, dustproof and lightning-proof casing, works stably at -30℃~+55℃, suitable for scenic spots, farms, factories, plaza outdoor long-distance networking.

Q6: Can it connect IP cameras / NVR / routers directly?

A: Absolutely. Standard 10/100Mbps RJ45 WAN/LAN port is compatible with IP surveillance cameras, NVR, switches, routers and other common network devices, plug and play.

Q7: Can I use CF-E113A V2 and CF-E112N V2 paired together?

A: ❌ Not recommended. Different frequency bands cannot be matched normally. Please use two identical models to complete bridge pairing.

Q8: Does the package come with all installation accessories?

A: Complete accessories are included in the package: POE adapter, network cables, cable ties, installation guide, no extra parts need to be purchased separately.
