CE FCC ROHS 100g/h adjustable water cooled ozone generator kit portable commercial industrial ozone for swimming pool
価格:
$477.48
/Pc
払い戻し:
シェア:
売れ筋商品
Our test equipment:
AC voltage regulator, DC voltage regulator, voltage stabilizer, LCR digital bridge tester, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...
AC200V-AC240V, we will set: AC240V 50HZ for you.
AC100V-AC130V, we will set: AC130V 60HZ for you.
If the local voltage or frequency is special, when you order our products, you can leave a message to us.
When you get this product, please read the installation and operation instructions carefully, it is very important.
.
.
.
Water cooling, inner and outer electrodes are 316L stainless steel, high ozone concentration, smaller size, lower temperature rise, high efficiency, longer service life
(The ozone PSU cannot work alone, you need to correctly install the ozone tube and the ozone PSU, connect them together, this ozone tube needs water to cool it, turn on the air/oxygen source, and then you can turn on the power.)
.
.
.
High-end water cooling ozone generator kit:
Product model: PL-100QSWO
Ozone output: 100g/h
Maximum power: 1000w
Optimal power: 800w
Air flow: ≤200L/min
Oxygen flow: ≤30L/min
Cooling mode: water cooling
.
Gas source: air source, oxygen source
Gas source temperature: ≤35℃
Gas pressure: ≤100kpa (1bar/0.1mpa)
.
Cooling water temperature: ≤35℃
Water pressure: ≤300kpa (3bar/0.3mpa)
Water flow: ≥500L/h
.
Ambient temperature: -10~45℃
Optimal ambient temperature: 1-20℃
Environmental humidity: ≤85%RH
.
Shell: 304 stainless steel
External electrode: 316L stainless steel
Dielectric material: high-purity quartz glass tube
Inner electrode: 316L stainless steel
Discharge gap: 0.5mm
.
Brand: Pinus longaeva (we can print your logo and paste it on the ozone tube)
Product certification: CE FCC ROHS
Product application: air purification and water sterilization
Service life / Warranty: more than 20000 hours / 2 years
Customized: can be customized
.

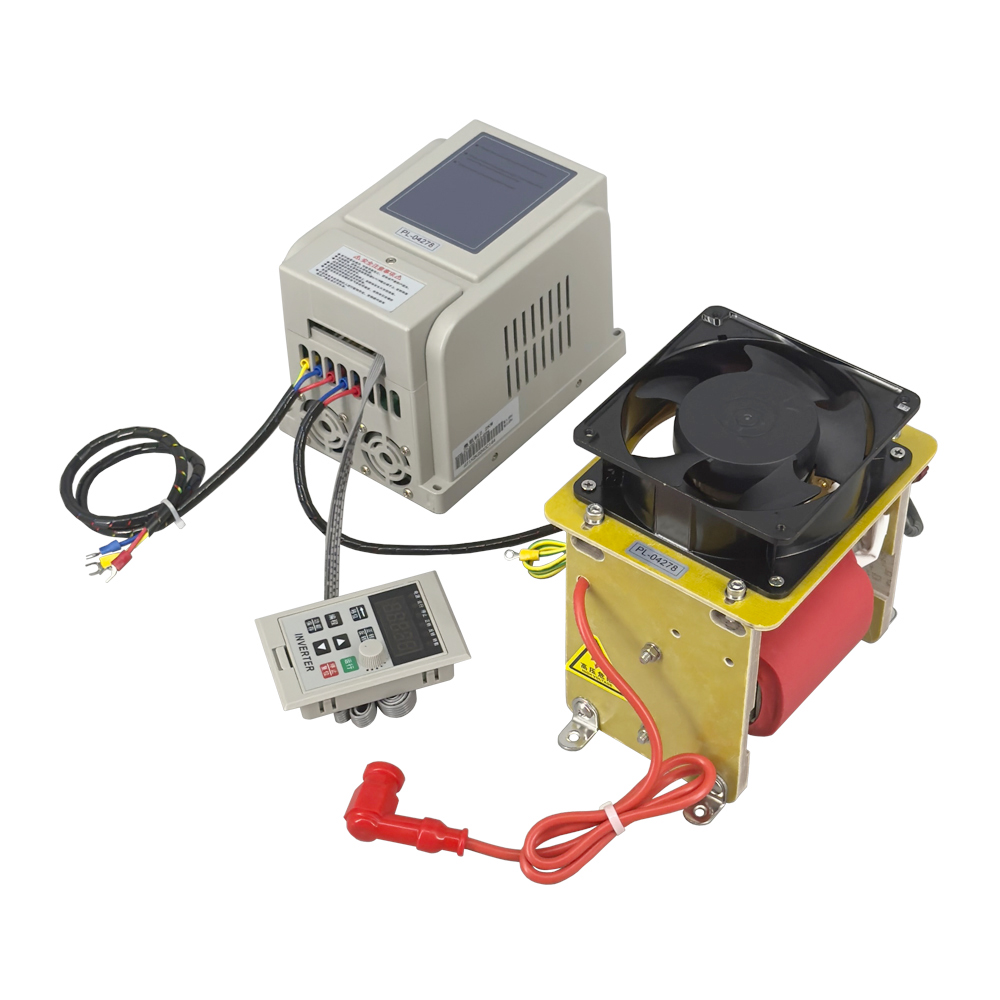

We upgraded this control circuit board and high voltage coil.
Free upgrade to the latest control board with better linearity and multi-function display.

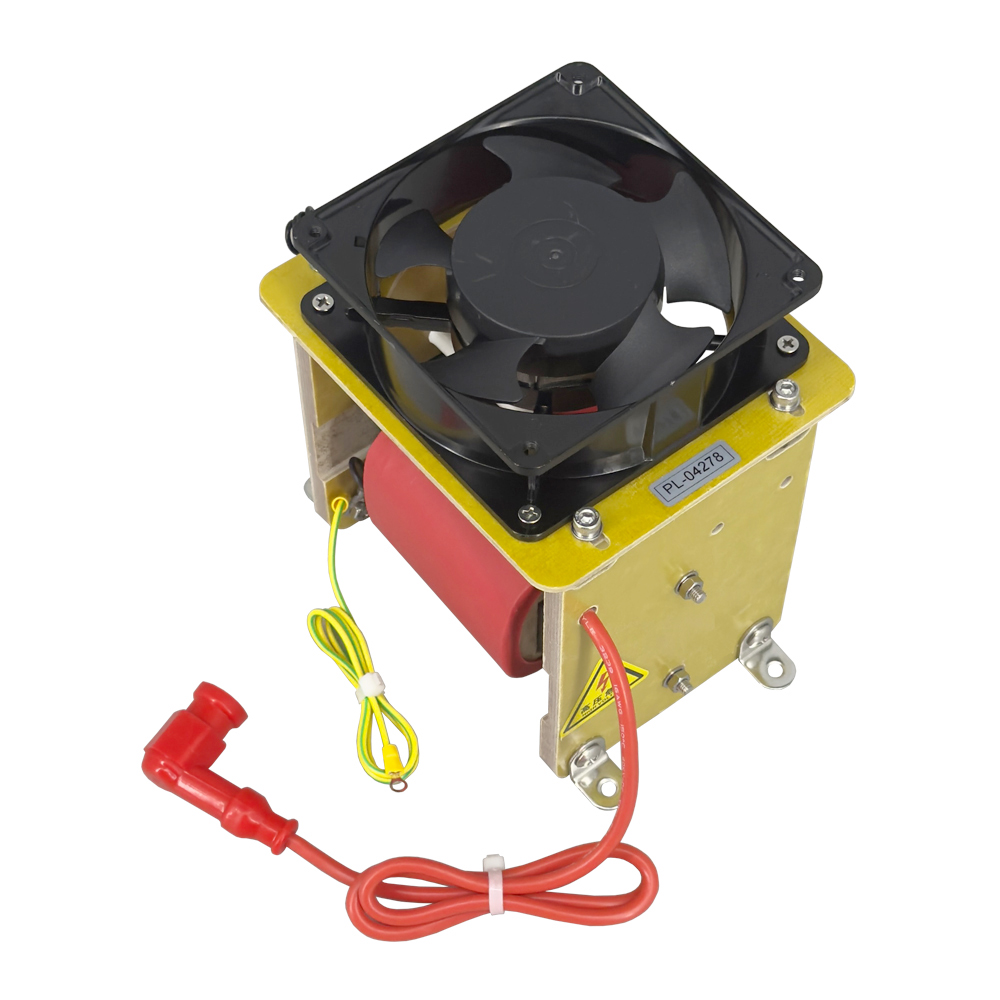

Free upgrade to larger size high voltage coil, lower heat, more stable.
You can open a hole on your ozone machine shell, and fixed the multi-function display on your shell.
.
Size:
Ozone tube: 740*170*180mm 7.5kg
Controller: 183*125*126mm 1.4kg
High voltage coil: 185*130*182mm 3.1kg
.
Joint:
Air / oxygen input: 1/2 inch, DN15, 20mm external thread.
Ozone output: 1/2 inch, DN15, 20mm external thread.
Cooling water input and output: 1/2 inch, DN15, 20mm external thread.
Water cooling system, please click here >>>
.

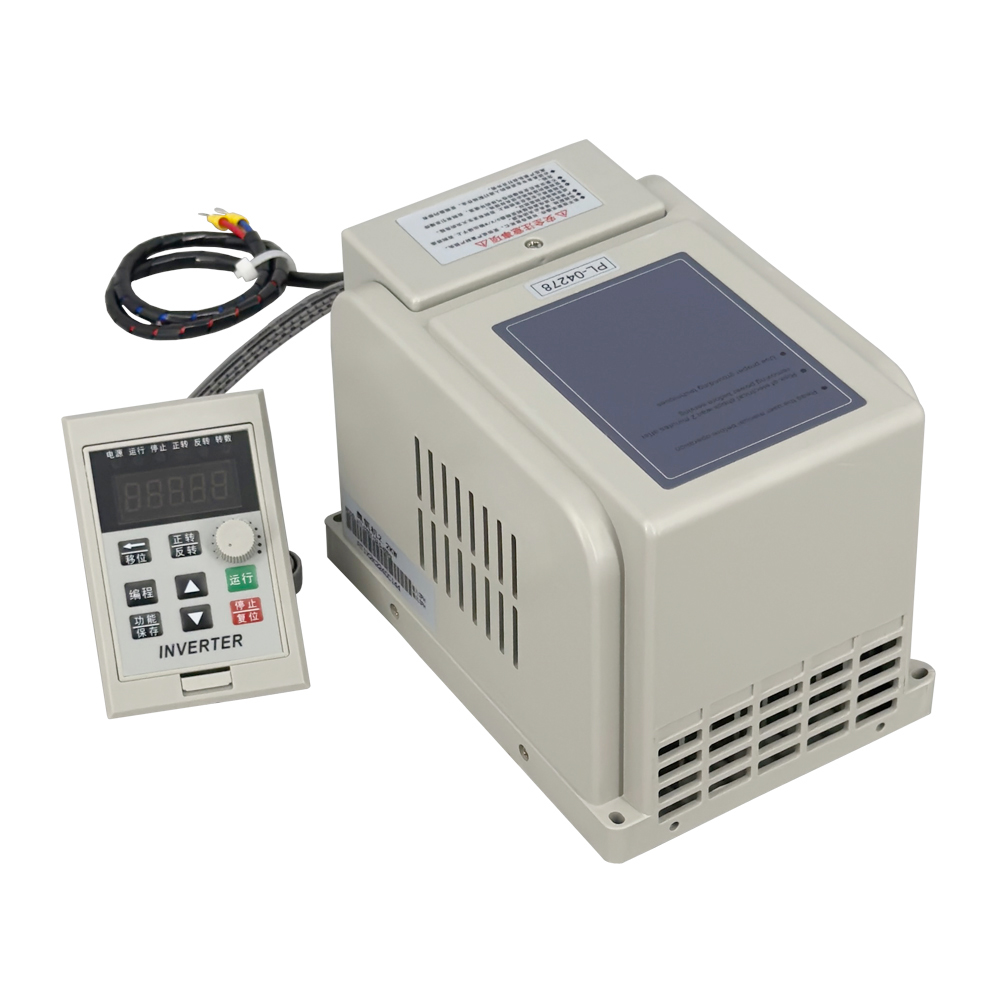

Control panel:
Red button: power off button.
Green button: power on button.
Knob: ozone output adjustment knob, turn right to increase ozone output.
Other buttons: it is locked and cannot be modified.
Display: it can display input voltage, current, output frequency, control voltage.
.
.
.
Product picture: (when the product works, there is no electricity on the black radiator, which is very safe)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Installation requirements:
1. Ozone tube: you can install it on the metal shell, we recommend that you connect an additional ground wire to the ozone tube shell.
Please install the ozone tube vertically according to the prompts, the cooling water inlet at the bottom and the water outlet at the top.
Air inlet on top, ozone outlet on bottom.
2. The closest distance between the high voltage coil and the ozone tube is 15cm.
3. The closest distance between the high voltage coil and the metal shell or other electrical appliances is 15cm.
4. The closest distance between 2pcs high voltage coil is 30cm.
5. Red high voltage wire: away from the metal shell and other wires for more than 2cm.
6. You need a dry and clean air source or oxygen source.
7. Please connect the red high voltage line and the ozone tube electrode socket, the yellow line and the ozone tube shell, according to the picture.
8. If you need to disinfect water, you can connect ozone output to air stone or venturi through the teflon tube.
.
Ozone PSU away from ozone tube / metal plate / metal shell / other electrical appliances (A B C D), more than 15cm.
When you get our products, you will get installation instructions, operation instructions and wiring diagrams.
If you still have any questions, you can contact us at any time.
.
.
Dehydroxylation high purity silica quartz tube ozone generator kit:
#1: Quartz tube:
99.9% silica, with strong hardness, high temperature resistance, low coefficient of thermal expansion (CTE), thermal shock resistance, good chemical stability & electrical insulation properties.
#2: High efficiency:
Narrow- gap discharge of 0.5mm, with high ozone conversion rate and low noise.
#3: Low power consumption:
High-voltage high-frequency corona discharge, with a power consumption rate of 8KW.h/kg O3.
#4: High voltage resistance:
The operating voltage of the tube is only 1/6 of its breakdown voltage, with a high dielectric constant.
#5: High quality:
The dielectric material is made of high-purity silica quartz, sintered at the high temperature, with high precision and uniform discharge. It is equipped with the 316L stainless steel internal and external electrode, PTFE flange gas nozzle and anti-corrosion high-purity fluorine rubber ring seals.
99.9% silica, with strong hardness, high temperature resistance, low coefficient of thermal expansion (CTE), thermal shock resistance, good chemical stability & electrical insulation properties.
#2: High efficiency:
Narrow- gap discharge of 0.5mm, with high ozone conversion rate and low noise.
#3: Low power consumption:
High-voltage high-frequency corona discharge, with a power consumption rate of 8KW.h/kg O3.
#4: High voltage resistance:
The operating voltage of the tube is only 1/6 of its breakdown voltage, with a high dielectric constant.
#5: High quality:
The dielectric material is made of high-purity silica quartz, sintered at the high temperature, with high precision and uniform discharge. It is equipped with the 316L stainless steel internal and external electrode, PTFE flange gas nozzle and anti-corrosion high-purity fluorine rubber ring seals.
With internal electrode cooling fan, which can achieve more efficient heat dissipation, and the long time ozone decay is very low, <1/10.
#6: Service life:
More than 20,000 hours.
#7: Ozone PSU:
With over-current and over-voltage protection, short-circuit protection, open-circuit protection.
If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.
#6: Service life:
More than 20,000 hours.
#7: Ozone PSU:
With over-current and over-voltage protection, short-circuit protection, open-circuit protection.
If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.
.
.
.
