CE FCC ROHS 60G/H 60grams adjustable corona discharge ozone generator home medical High concentration double air cooling
価格:
$220.50
/Pc
払い戻し:
シェア:
売れ筋商品
Our test equipment:
AC voltage regulator, DC voltage regulator, voltage stabilizer, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...
AC200V-AC240V, we will set: AC240V 50HZ for you.
AC100V-AC130V, we will set: AC130V 60HZ for you.
If the local voltage or frequency is special, when you order our products, you can leave a message to us.
.
If you don’t have a PLC or ORP controller, please choose: 60G adjustable.
.
.
.

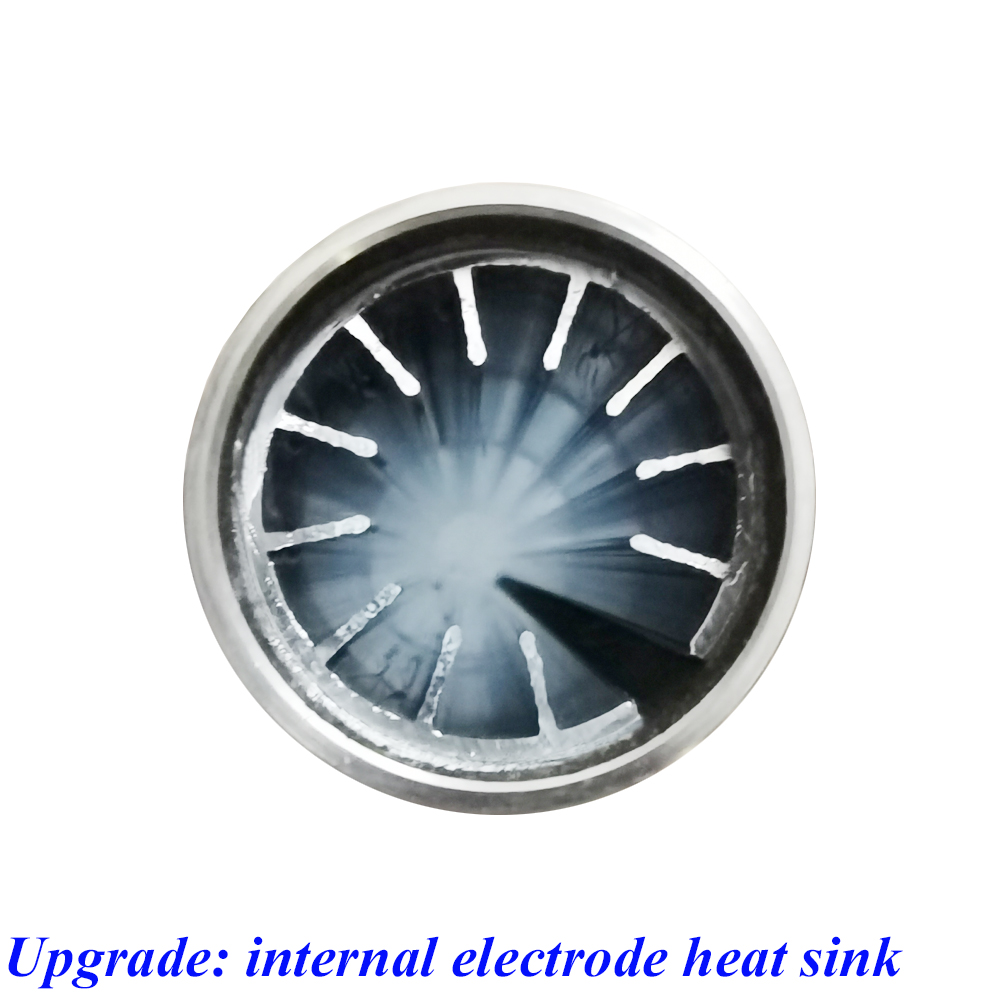

Patented product, high ozone concentration, smaller size, larger heat dissipation area, lower temperature rise, high efficiency, longer service life, built-in 316L stainless steel tube, add internal electrode heat sink for free.
.
.
.

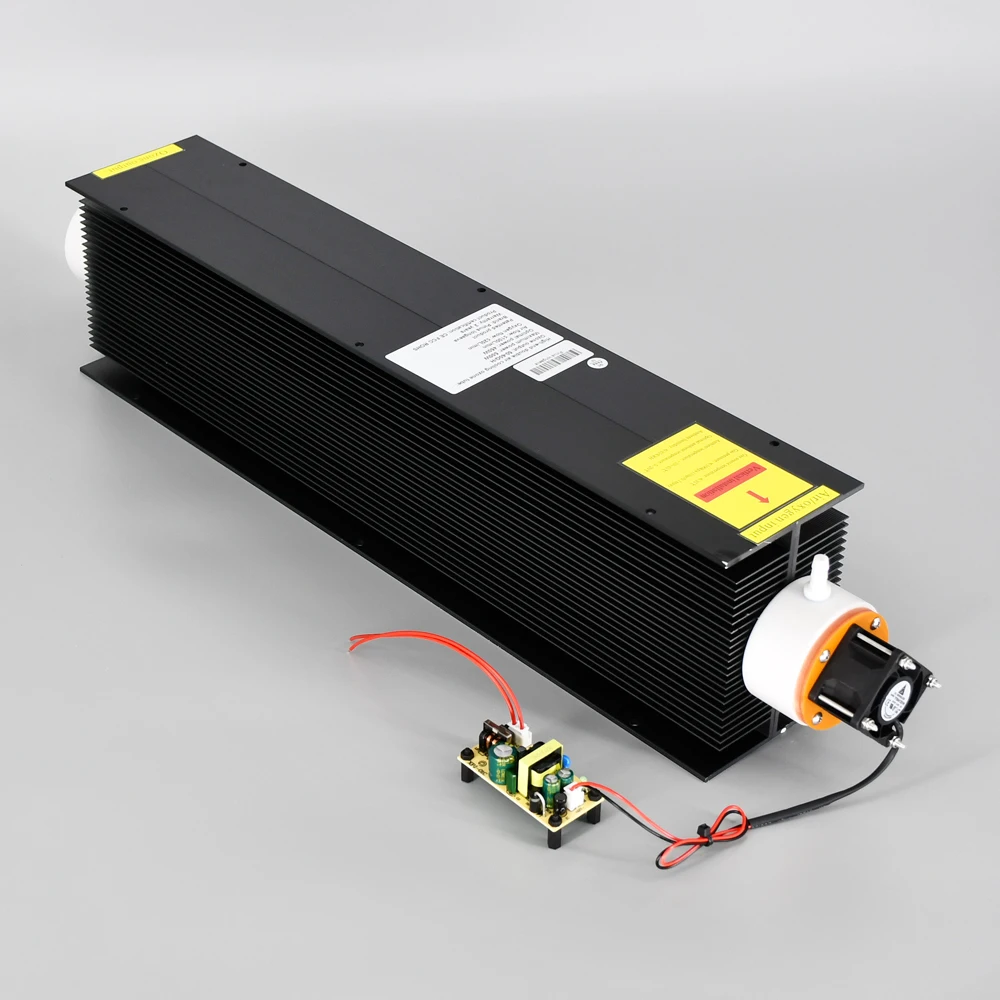

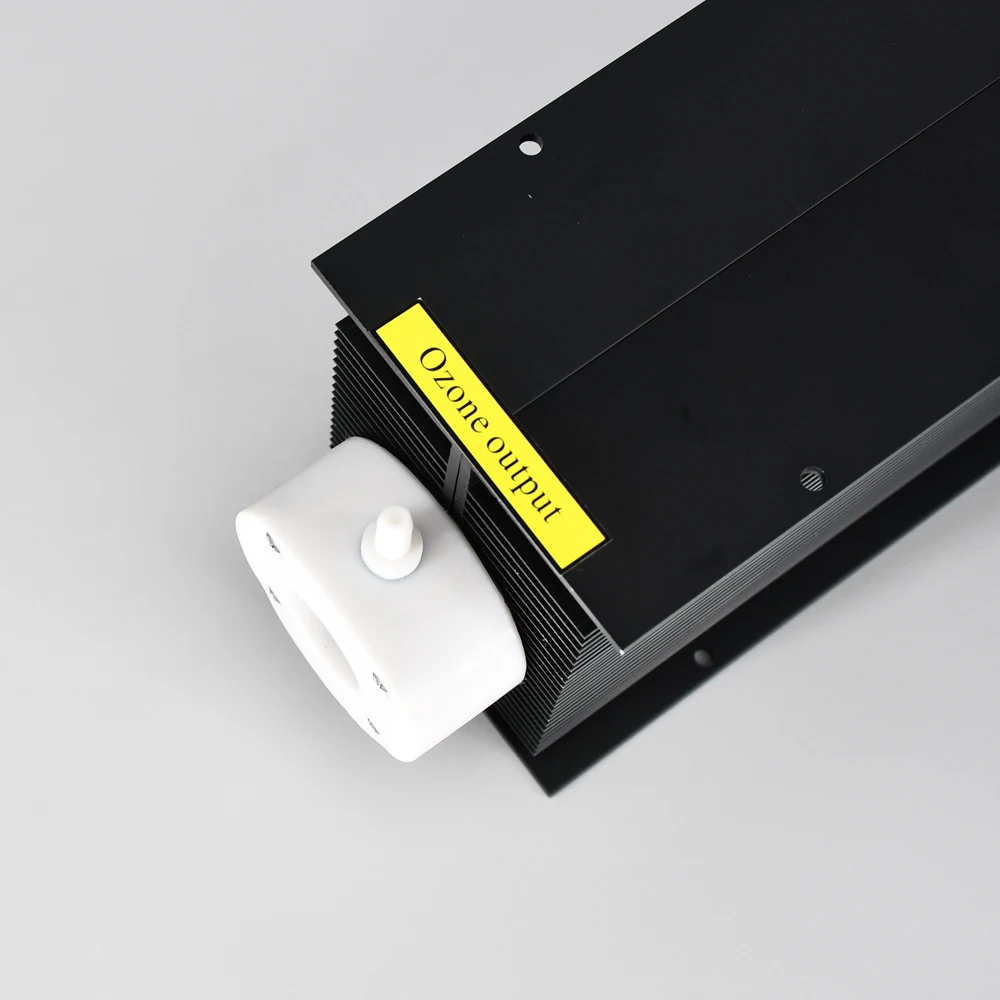

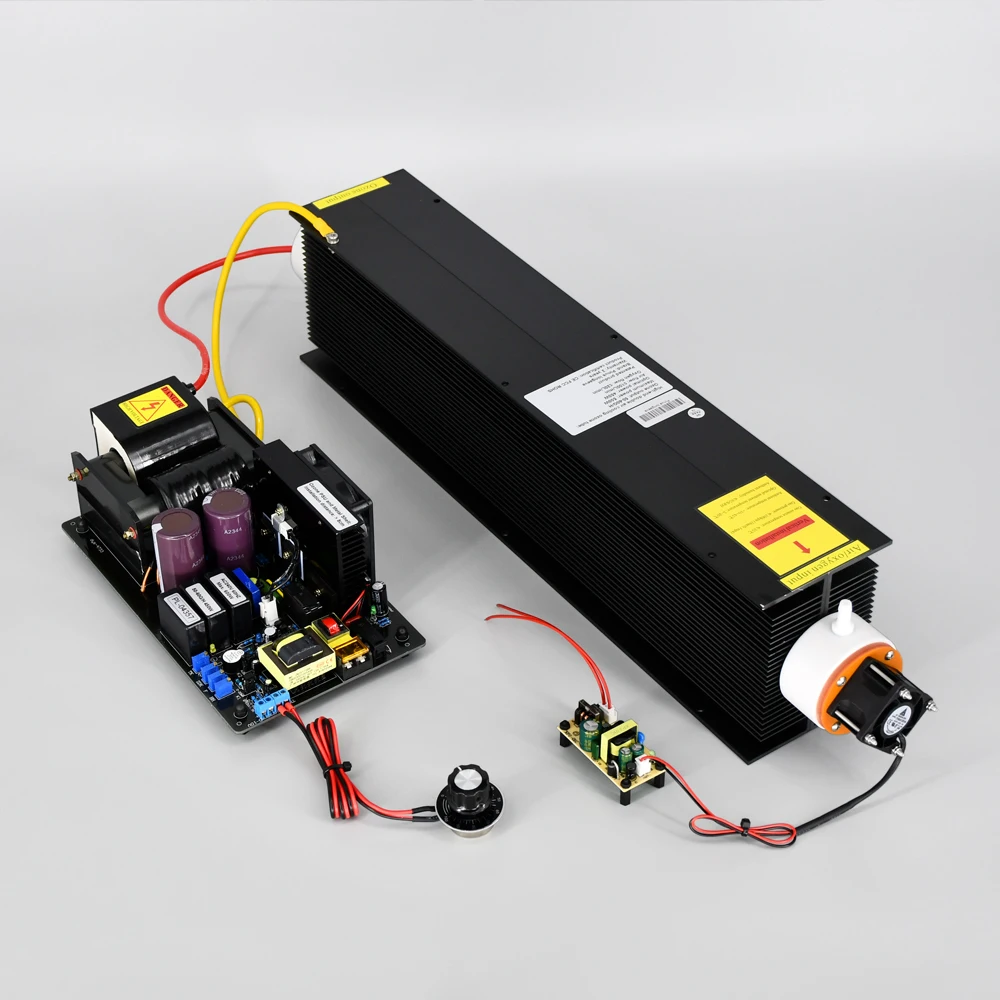

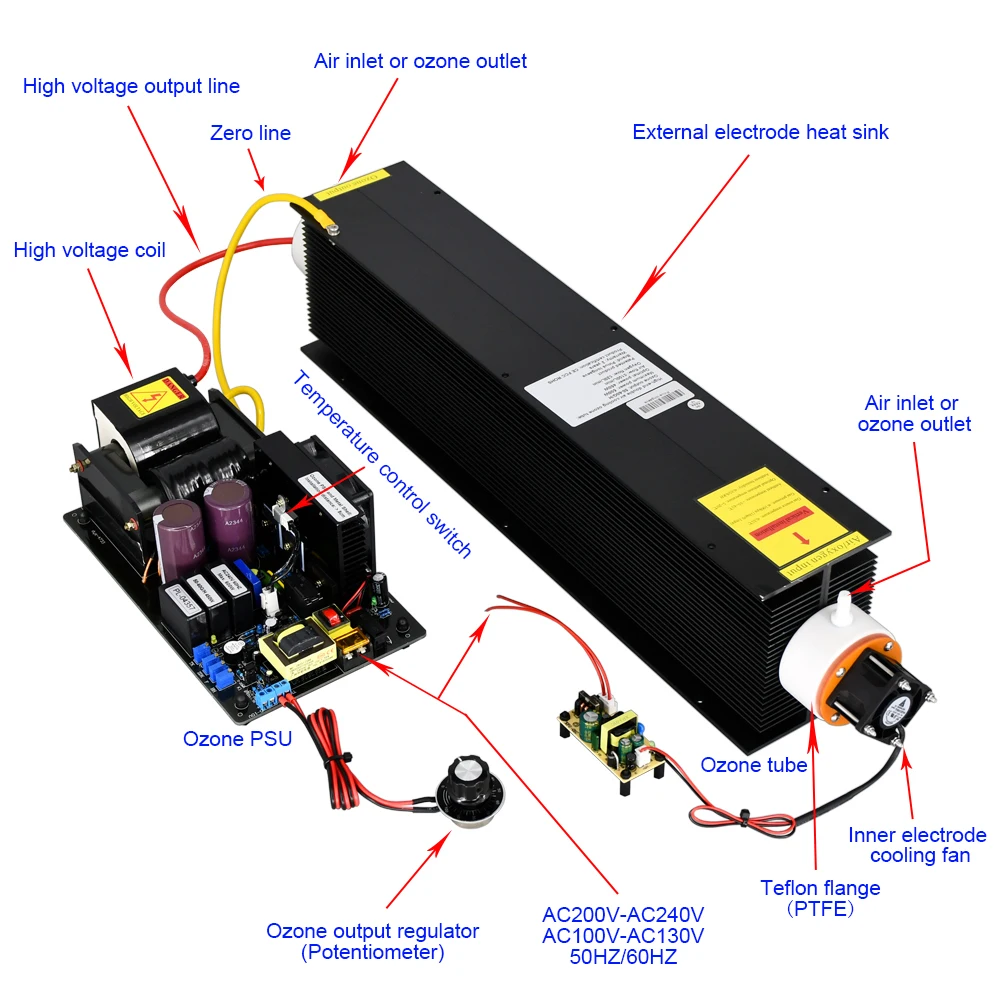

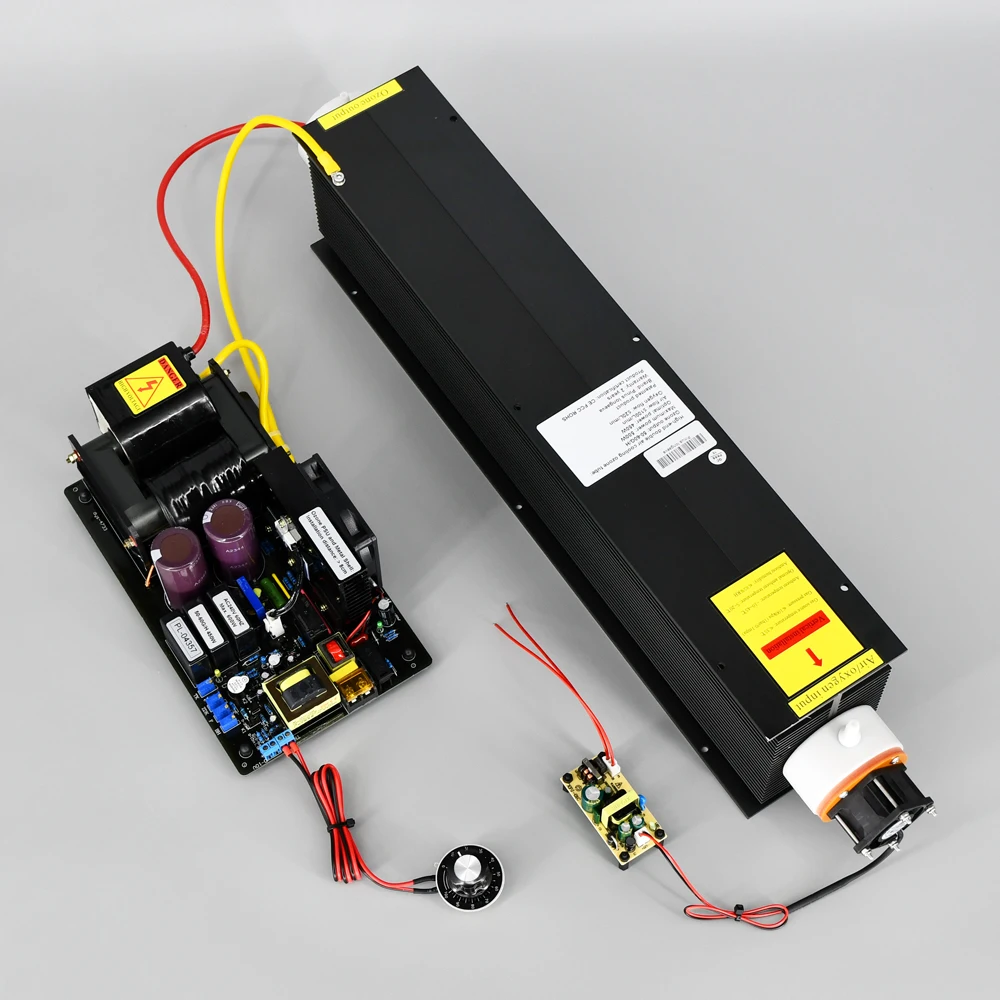

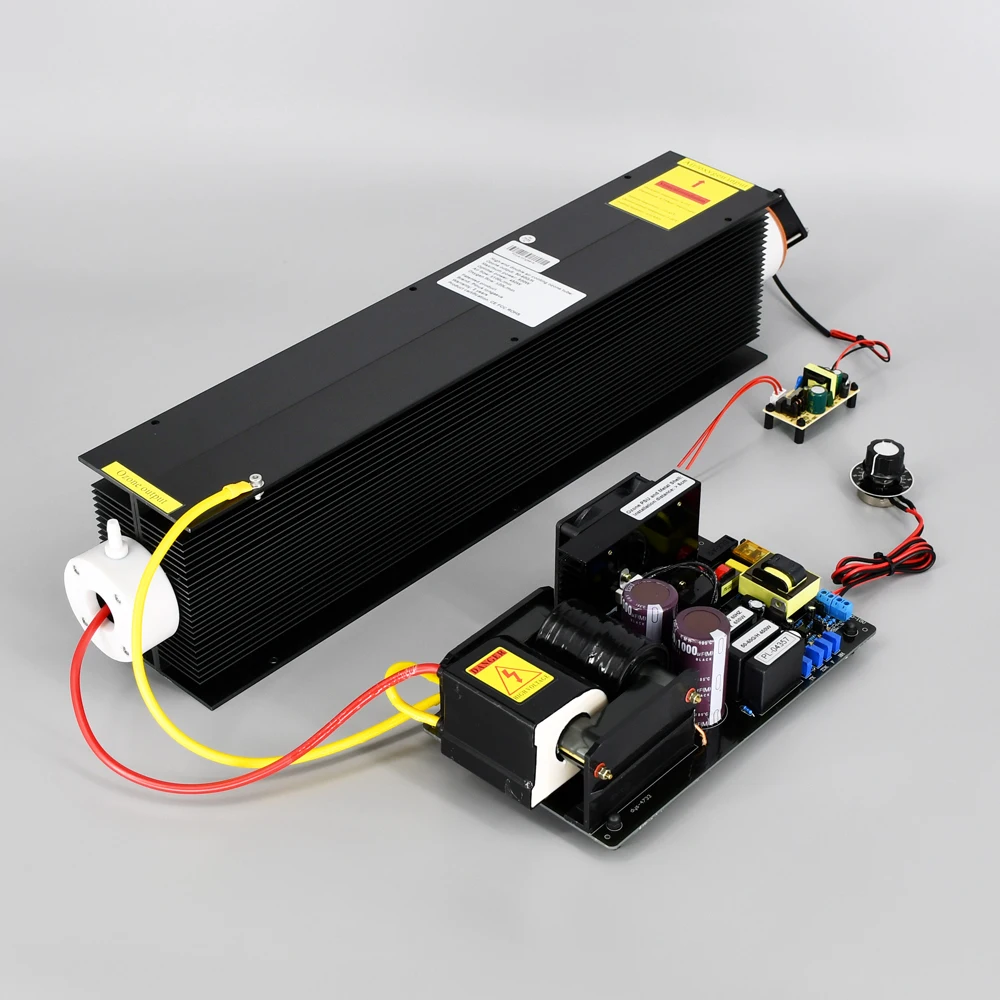

Product picture: (When the product works, there is no electricity on the black radiator, which is very safe)
Product picture: (When the product works, there is no electricity on the black radiator, which is very safe)
.
.
.
.
.
.
.
.
.
.
.
.
.

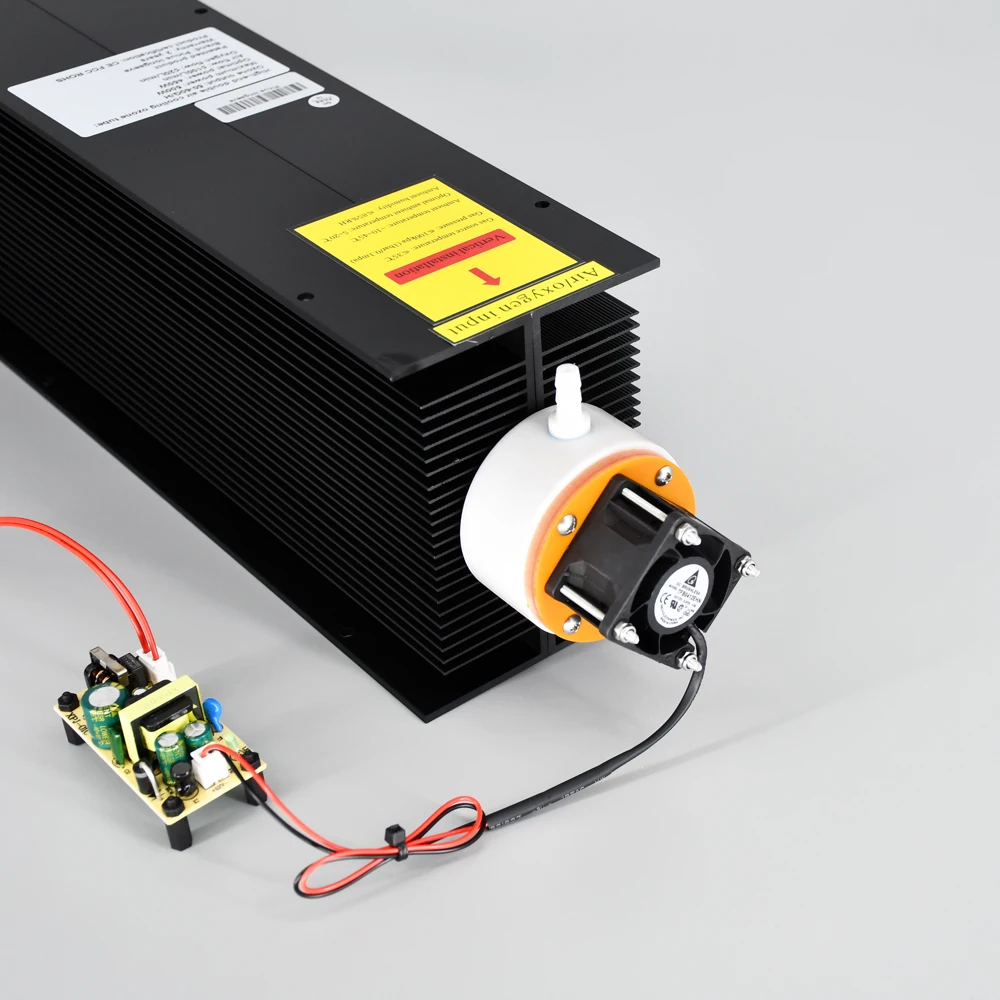

Cooling fan:
Inner electrode cooling fan: DC12V 4cm 4028 high-speed cooling fan + 1A switching power supply (transformer), input voltage: AC100V-AC240V.
You can use M4 screw length 14cm to install and fix 4pcs 12cm cooling fan on the ozone tube heat sink. There are reserved mounting holes on the ozone tube. If you need the ozone tube with the cooling fan, please click here >>>
.
.

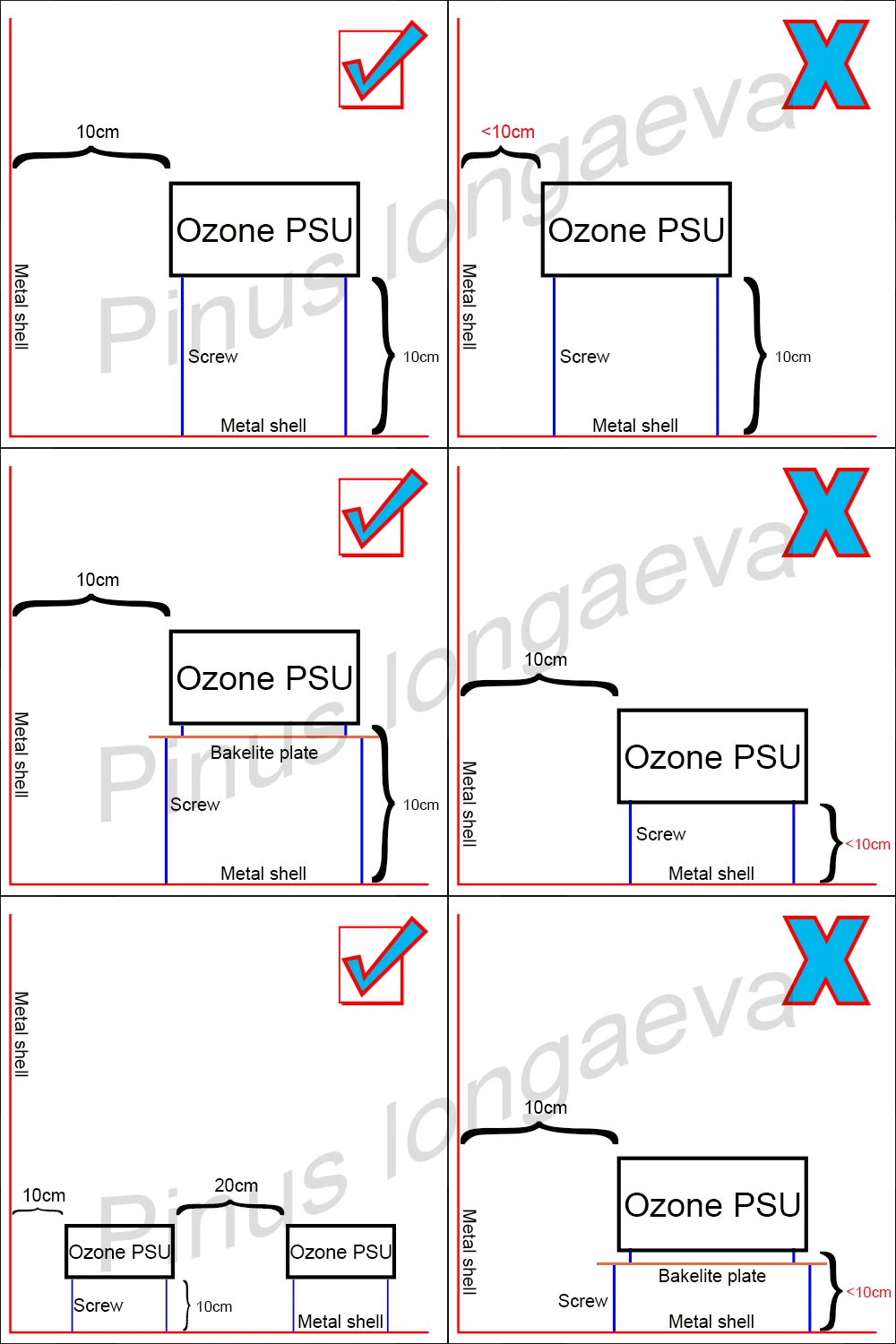

Installation requirements:
1. Ozone tube: You need to install it on the insulating board, away from the metal shell for more than 2cm. (If you install it on a metal shell, please connect an additional ground wire.)

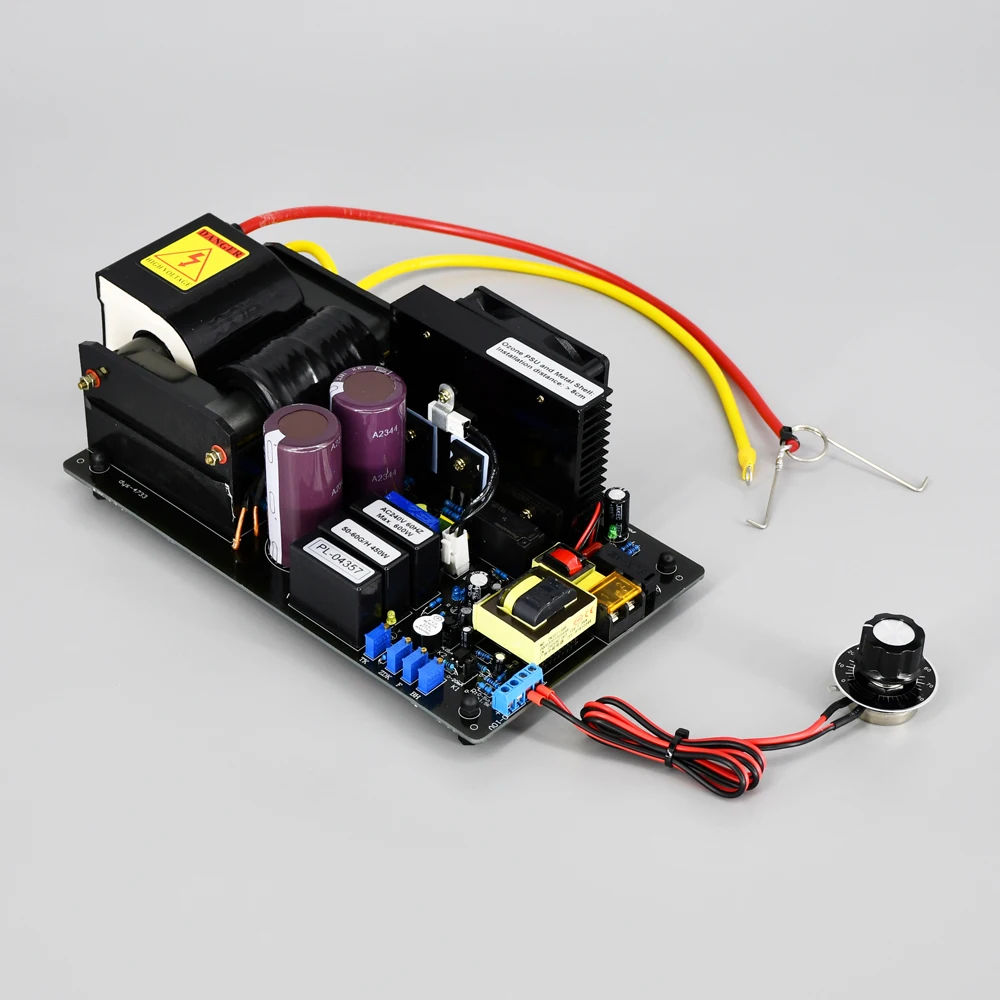

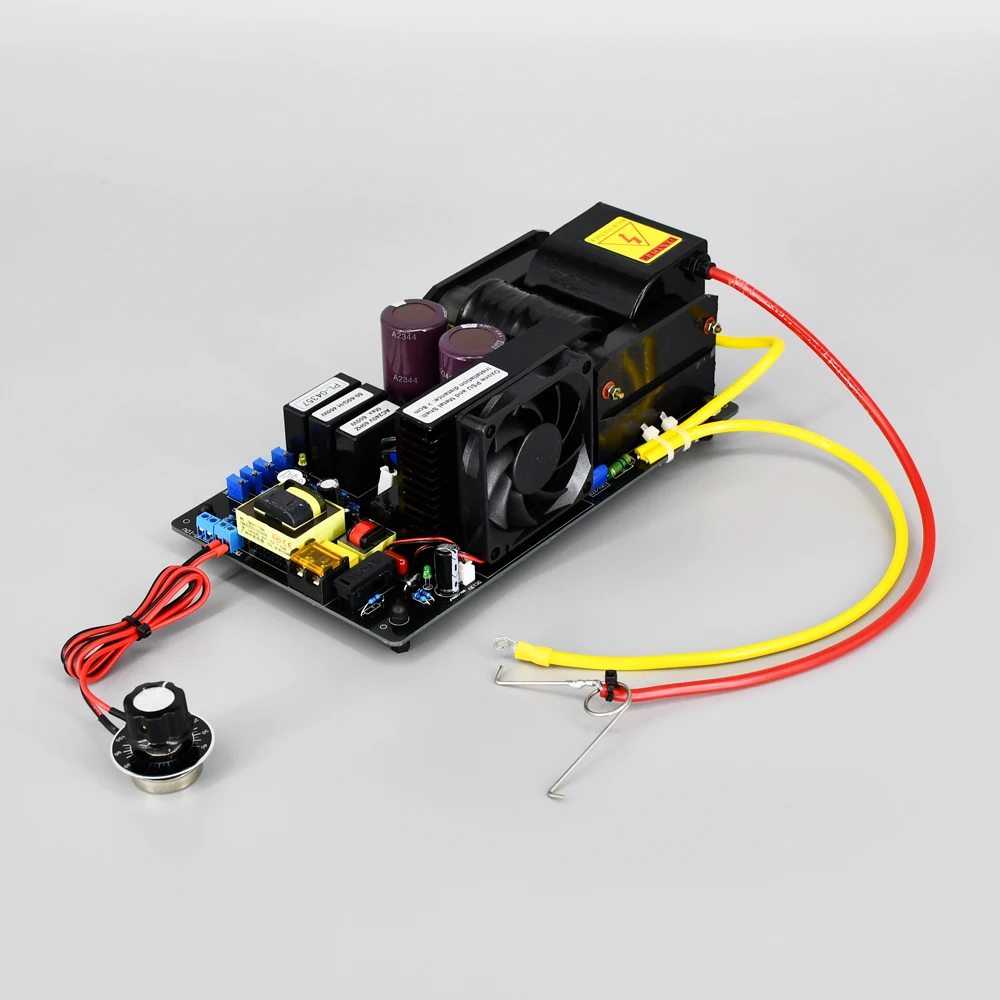

2. Ozone PSU: You can use 11cm long screws to install the ozone PSU (ozone power supply) away from the ozone tube (metal shell or other electrical appliances) more than 10cm.
2. Ozone PSU: You can use 11cm long screws to install the ozone PSU (ozone power supply) away from the ozone tube (metal shell or other electrical appliances) more than 10cm.
3. The closest distance between the ozone PSU and the metal shell or other electrical appliances is 10cm.
4. The closest distance between 2pcs ozone PSU is 20cm.
5. Red high voltage wire: Away from the metal shell and other wires for more than 2cm.
5. Red high voltage wire: Away from the metal shell and other wires for more than 2cm.
6. You need a dry and clean air source or oxygen source.

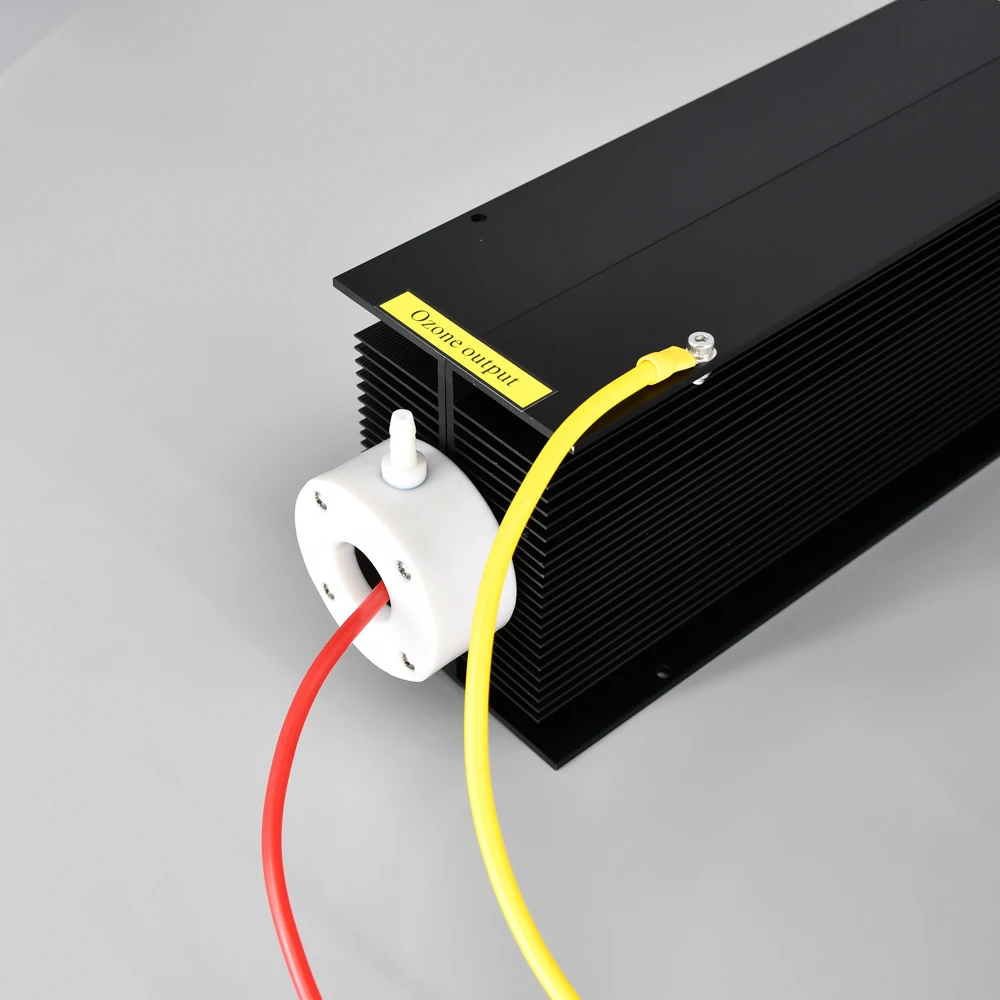

7. You should push the thick red wire at the middle of the ozone tube and fix another wire on the radiator.
8. You need cooling fan to cool the ozone tube and the ozone PSU.
9. If you need to disinfect water, you can connect ozone output to air stone or venturi through the teflon tube.
8. You need cooling fan to cool the ozone tube and the ozone PSU.
9. If you need to disinfect water, you can connect ozone output to air stone or venturi through the teflon tube.
.
There is no need to distinguish between inlet and outlet.
Inlet: We recommend that you use 4*7mm silicone tube or 5*8mm PU tube.
Outlet: We recommend that you use 6*8mm Teflon tube.
If you need to change the connector, please contact us.
Inlet: We recommend that you use 4*7mm silicone tube or 5*8mm PU tube.
Outlet: We recommend that you use 6*8mm Teflon tube.
If you need to change the connector, please contact us.
When you get our products, you will get installation instructions, operation instructions and wiring diagrams.
If you still have any questions, you can contact us at any time.
If you still have any questions, you can contact us at any time.
.
.

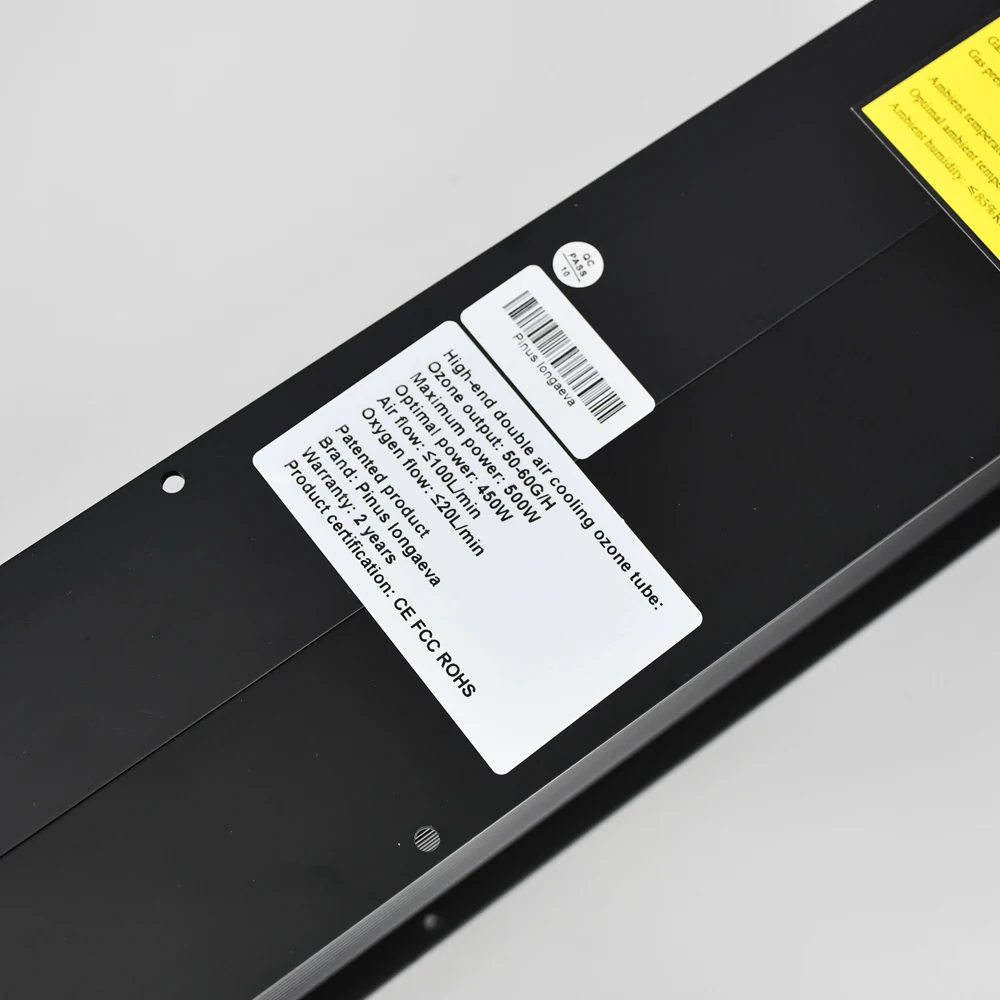

High-end double air cooling ozone generator kit:
Ozone output: 50-60G/H
Maximum power: 500W
Optimal power: 450W
Air flow: ≤100L/min
Oxygen flow: ≤20L/min
.

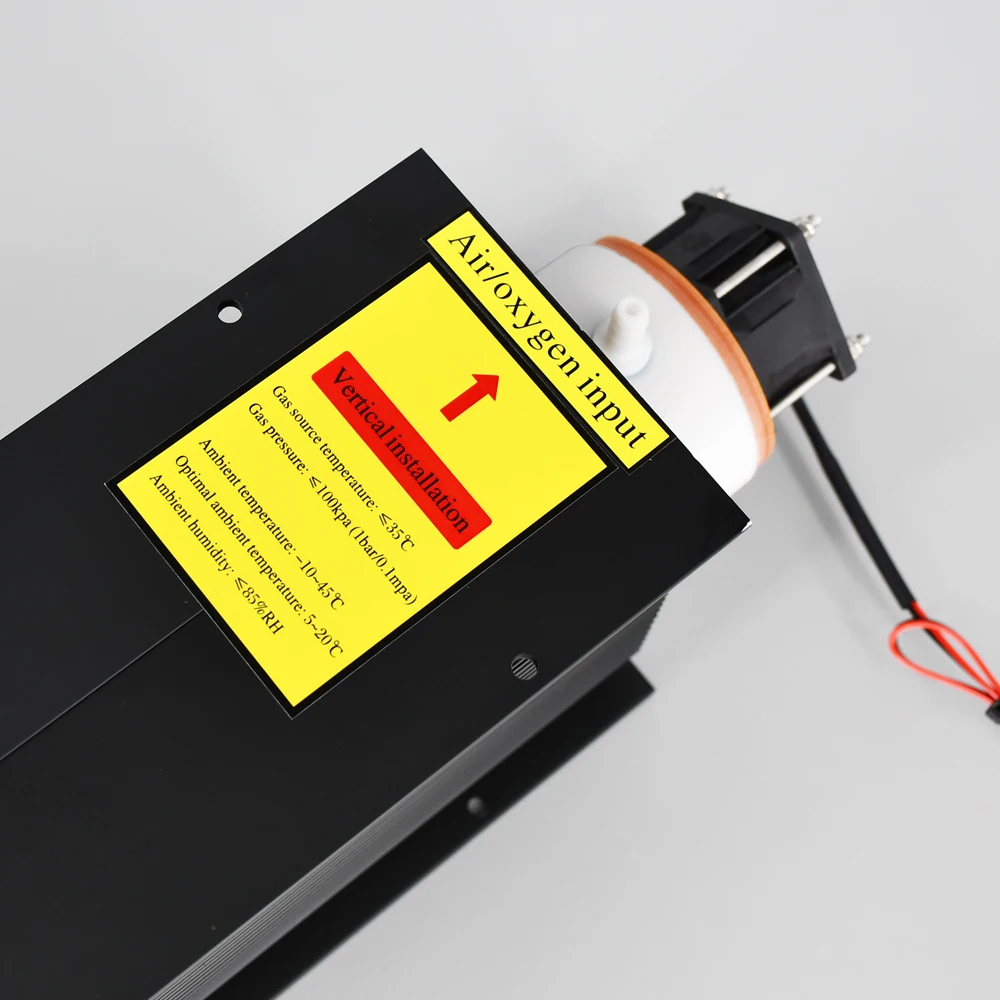

Gas source temperature: ≤35℃
Gas pressure: ≤100kpa (1bar/0.1mpa)
Ambient temperature: -10~45℃
Optimal ambient temperature: 5-20℃
Environmental humidity: ≤85%RH
.
Gas source: Air source, oxygen source
External electrode: pure aluminum foil
Dielectric material: high-purity quartz glass tube
Inner electrode: 316L stainless steel tube
Discharge gap: 0.5mm
.
Patented product
Brand: Pinus longaeva (We can print your logo and paste it on the ozone tube)
Product certification: CE FCC ROHS
Product application: Air purification and water sterilization
Service life / Warranty: More than 20000 hours / 2 years
Customized: Can be customized
.
Size:
Ozone tube: 600*96*126mm 5.5kg
Ozone PSU: 254*135*85mm 1.95kg
Ozone tube: 600*96*126mm 5.5kg
Ozone PSU: 254*135*85mm 1.95kg
.
.
Dehydroxylation high purity silica quartz tube ozone generator kit:

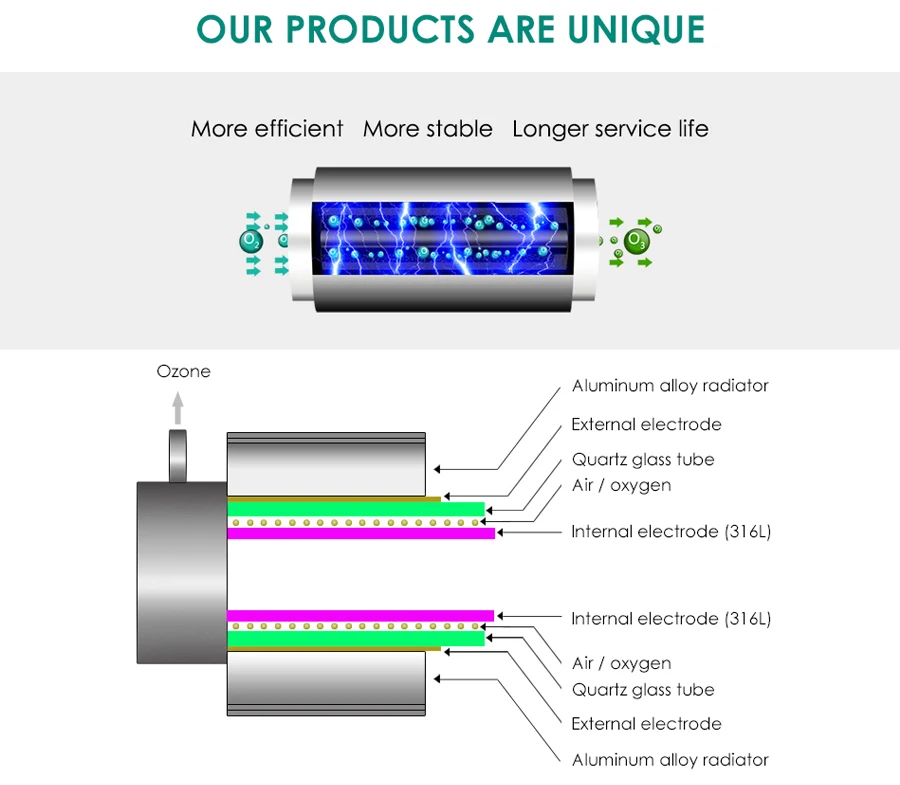

#1: Quartz tube composition:
99.9% silica, with strong hardness, high temperature resistance, low coefficient of thermal expansion (CTE), thermal shock resistance, good chemical stability & electrical insulation properties.
#2: High efficiency:
Narrow- gap discharge of 0.5mm, with high ozone conversion rate and low noise.
#3: Low power consumption:
High-voltage high-frequency corona discharge, with a power consumption rate of 8KW.h/kg O3.
#4: High voltage resistance:
The operating voltage of the tube is only 1/6 of its breakdown voltage, with a high dielectric constant.
#5: High quality:
The dielectric material is made of high-purity silica quartz, sintered at the high temperature, with high precision and uniform discharge. It is equipped with the 316L stainless steel inner electrode, PTFE flange gas nozzle and anti-corrosion high-purity fluorine rubber ring seals.
#1: Quartz tube composition:
99.9% silica, with strong hardness, high temperature resistance, low coefficient of thermal expansion (CTE), thermal shock resistance, good chemical stability & electrical insulation properties.
#2: High efficiency:
Narrow- gap discharge of 0.5mm, with high ozone conversion rate and low noise.
#3: Low power consumption:
High-voltage high-frequency corona discharge, with a power consumption rate of 8KW.h/kg O3.
#4: High voltage resistance:
The operating voltage of the tube is only 1/6 of its breakdown voltage, with a high dielectric constant.
#5: High quality:
The dielectric material is made of high-purity silica quartz, sintered at the high temperature, with high precision and uniform discharge. It is equipped with the 316L stainless steel inner electrode, PTFE flange gas nozzle and anti-corrosion high-purity fluorine rubber ring seals.
Using the latest patented high-density aluminum alloy heat sink technology is applied for external air cooling of heat dissipation, which can achieve more efficient heat dissipation. And the long time ozone decay is very low, <1/10.
#6: Service life:
More than 20,000 hours.

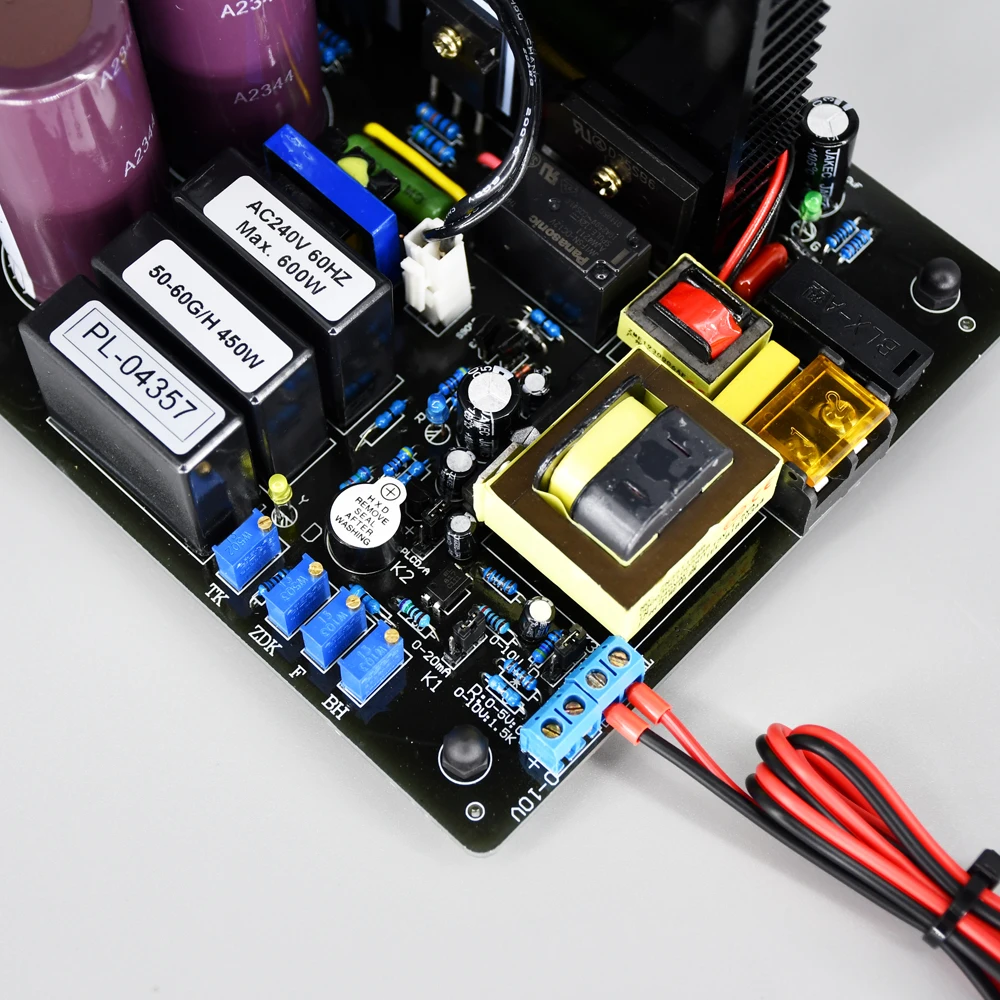

#7: Ozone PSU:
With over-current and over-voltage protection, short-circuit protection, open-circuit protection.
If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.
#6: Service life:
More than 20,000 hours.
#7: Ozone PSU:
With over-current and over-voltage protection, short-circuit protection, open-circuit protection.
If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.
.
.
.
.
.
.
.
.
