Universal Under Dash 24v Cooler Electric Conditioning 12v Car Parking air Conditioner for Trucks Trailer
価格:
$627.94
/Pc
払い戻し:
シェア:
売れ筋商品
Products Description
|
Rated voltage
|
12V
|
24V
|
|
|
Cooling capacity
|
7500-8500 BTU
|
8500-9500 BTU
|
|
|
Current
|
50-80A
|
35-50A
|
|
|
Rated Power
|
400-800W
|
400-800W
|
|
|
Noise level
|
35-50dB
|
||
|
Air flow
|
150-350 m³/h
|
||
|
Refrigerant
|
R134a, 600g±10g is needed
|
||
|

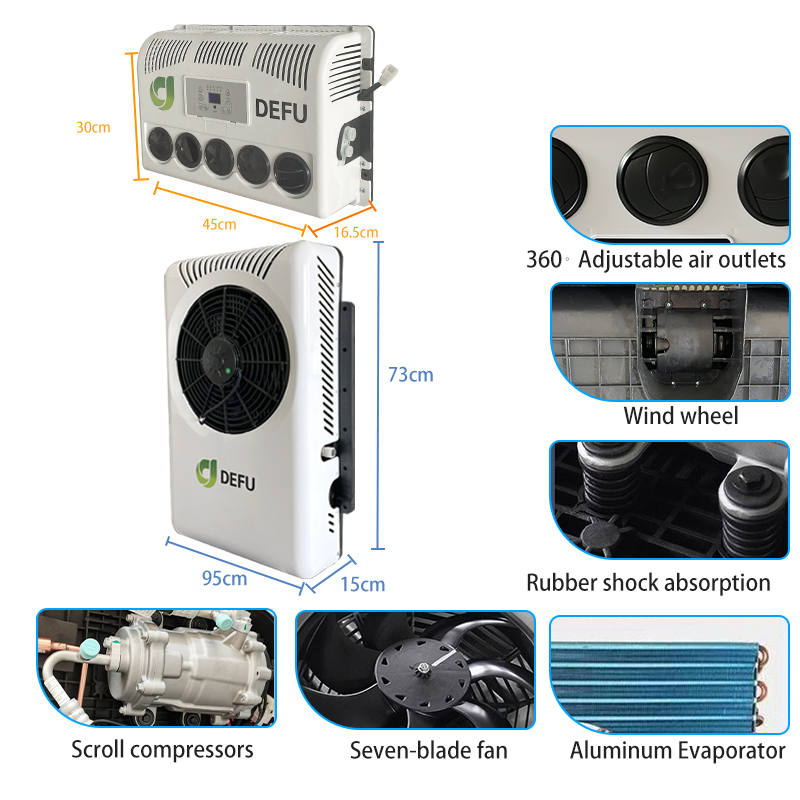

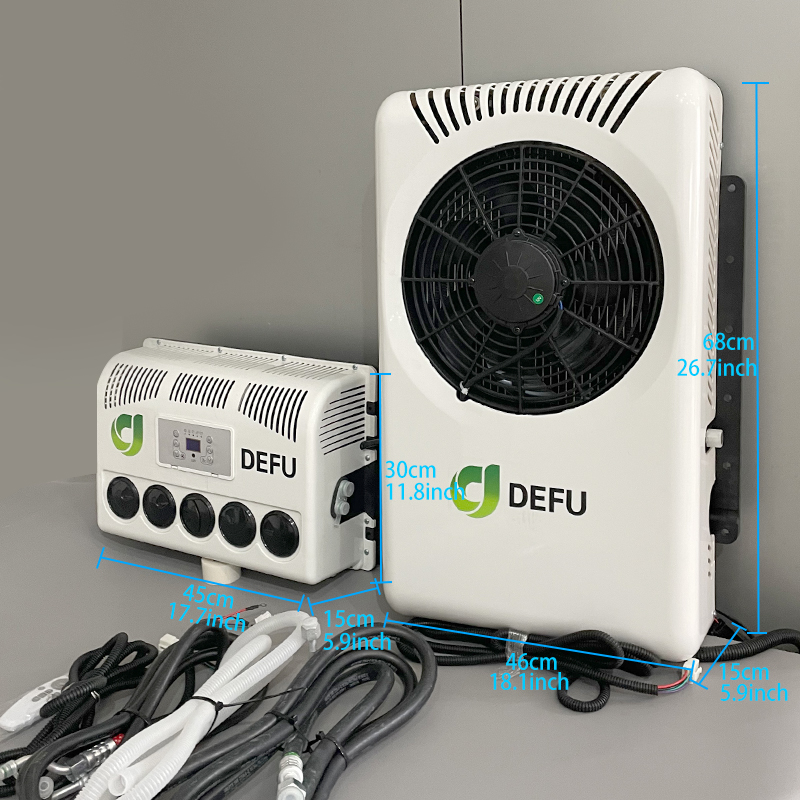

Outdoor/ Indoor size
|
460*680*150mm / 455*165*335mm
|
||
|

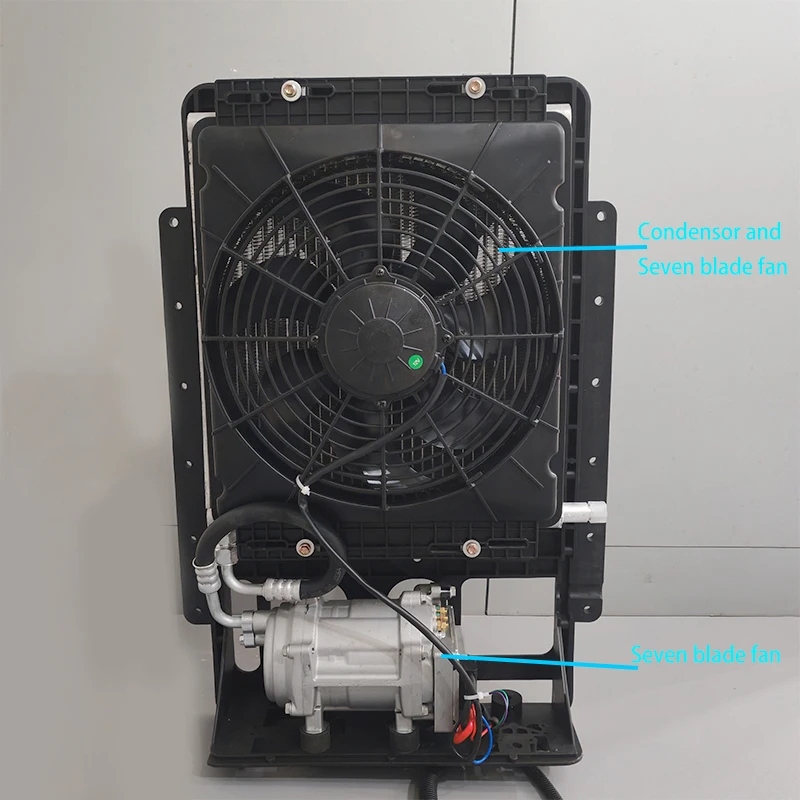

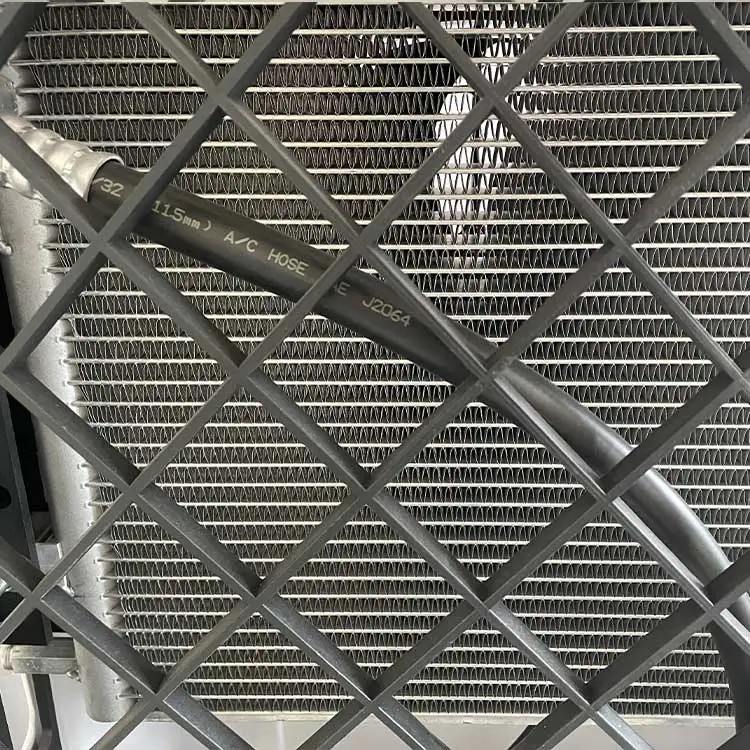

Condenser
|
Aluminum, 400*350mm
|
||
|
Evaporator
|
Aluminum, 455*165*335mm
|
||
|
Cold air outlets
|
5 vents
|
||
|
Package
|
Outdoor: 56*27*73cm,19.5kg
Indoor: 50*37*20cm; 7KG
|
||

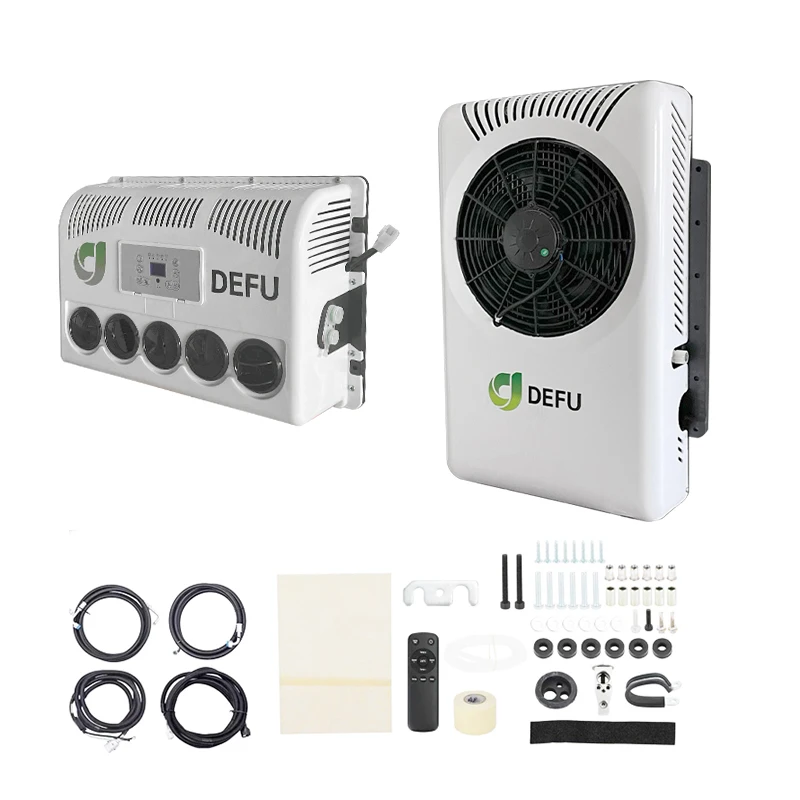

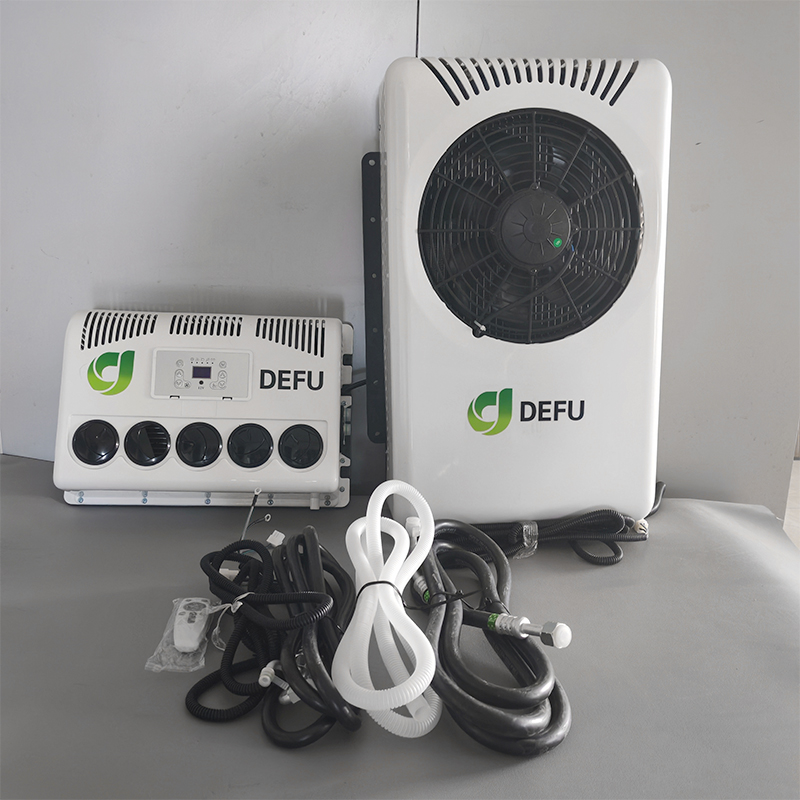

Split type car air conditioner

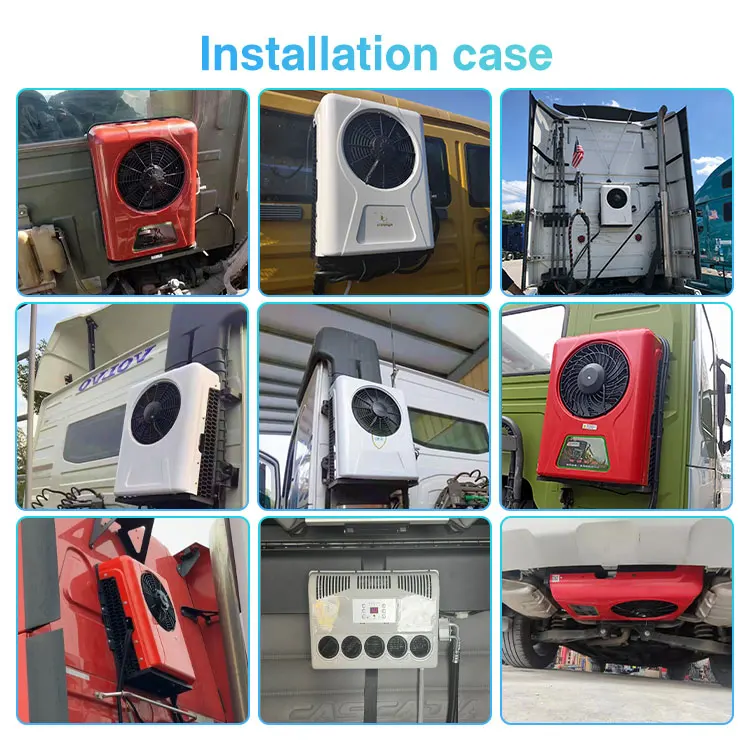

Split backpack parking air conditioner is an independent air conditioning system designed for large vehicles such as trucks and RVs 1. Energy-saving, long-lasting battery life Low-power design: With high-efficiency DC inverter technology, the power consumption is only 0.5-1.2kW/h Adaptation to the on-board power supply: It can be directly connected to the vehicle battery (24V/48V) or added to the auxiliary battery, without starting the engine 2. Quiet and comfortable, enhance the experience External unit separation design: Uniform air supply:The split evaporator can be installed flexibly, avoiding direct blowing, and the temperature distribution is more uniform. 3. Flexible installation and strong adaptability Does not take up space in the car:The outer unit is mounted on the rear or side or bottom of the vehicle, and the inner unit can be hidden under the roof or seat, which is suitable for narrow-body trucks, RVs and other space-constrained models. Modification-free original car circuit:Independent power supply system, do not damage the original car line, avoid warranty risk. Suitable for a variety of vehicle types:It can be installed in light trucks, heavy trucks, trailers, etc. through bracket adjustment.

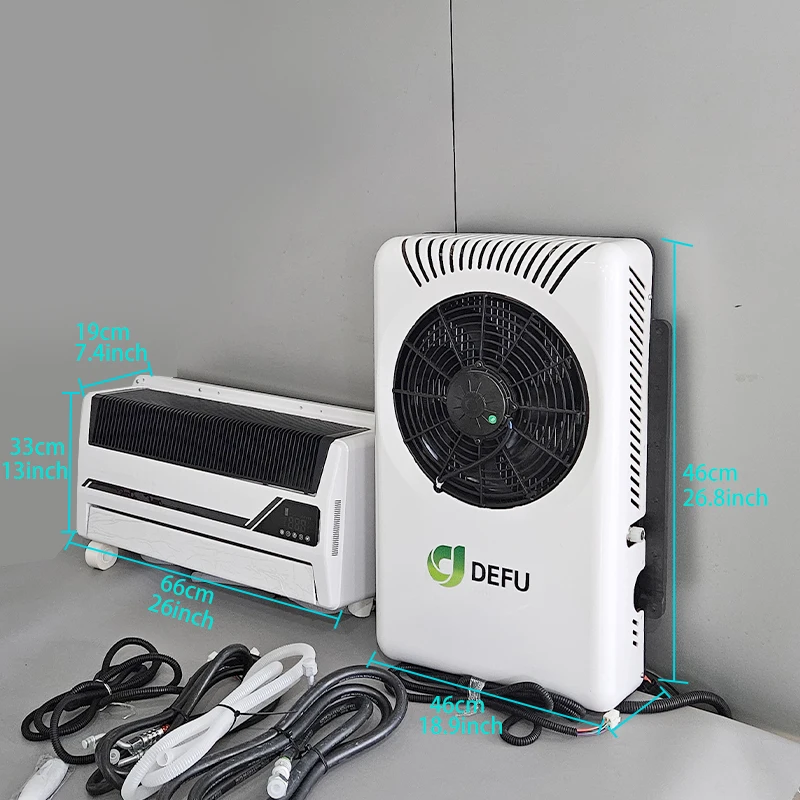

Outdoor/ Indoor size
460*680*150mm / 450*150*300mm
460*680*150mm / 450*150*300mm
Condenser :Aluminum, 400*350mm
Evaporator :Aluminum 450*150*300mm
Package :Outdoor: 78*26*50cm, 17.5KG;
Indoor: 57*35*17cm; 5.5KG
Indoor: 57*35*17cm; 5.5KG
Details Images

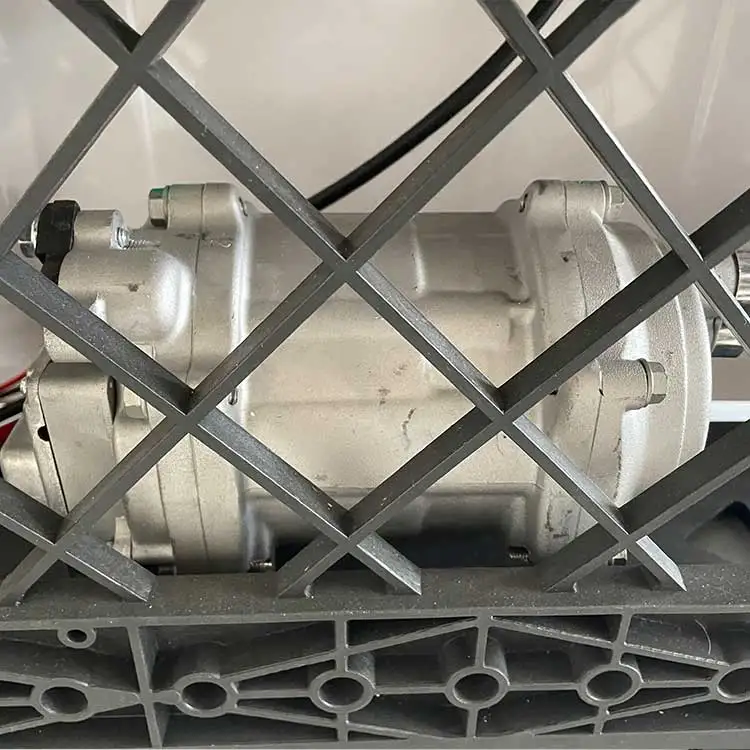

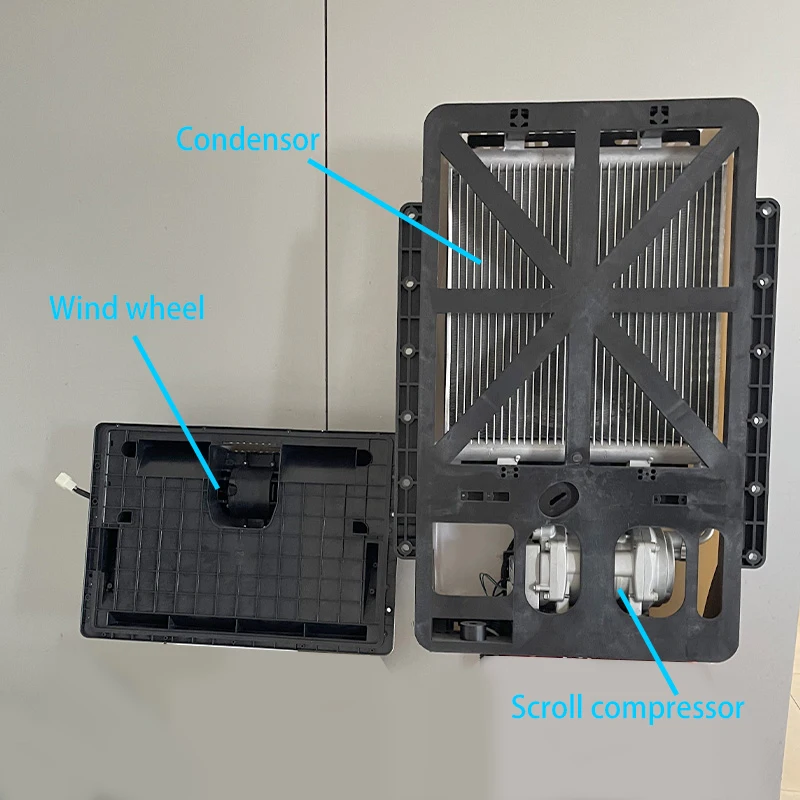

Scroll compressor
High efficiency and low energy consumption High mechanical efficiency: the volumetric efficiency can reach more than 95%. High isentropic efficiency: the compression process is close to isentropic process, which saves energy by 10%~15% compared with reciprocating compressor. Low start-stop loss: frequent start-stop is not required, reducing energy waste. Smooth operation, low noise and vibration.High reliability and long service life Simple structure and less wear.

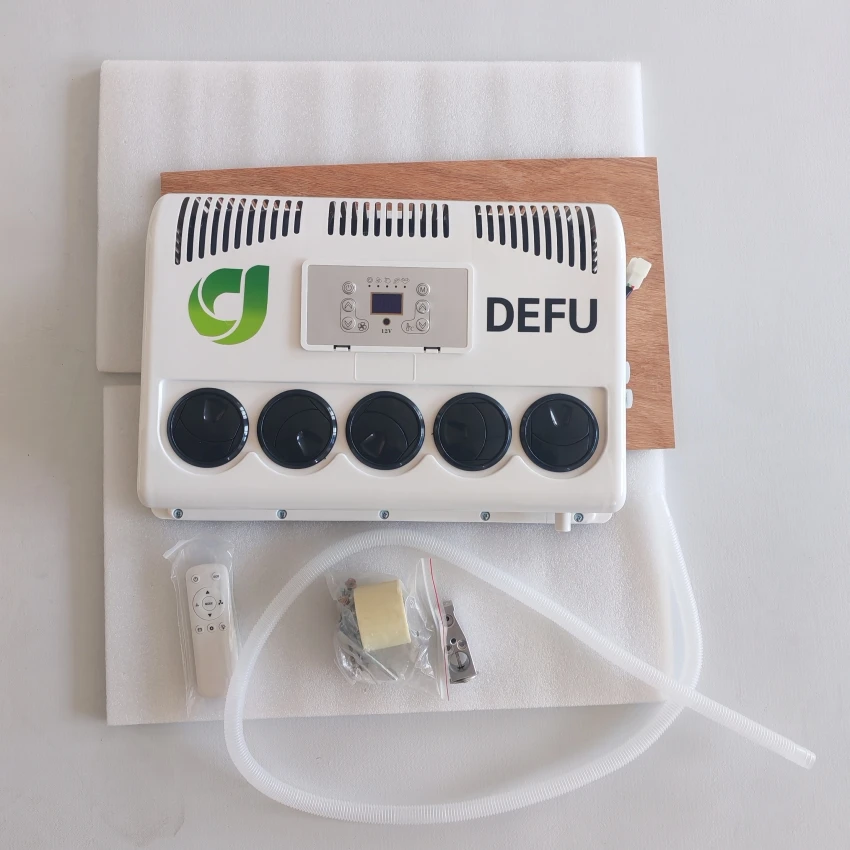

Aluminum evaporator:
Lightweight: 65% lighter than copper, suitable for vehicle-mounted and portable air conditioners. Efficient heat exchange: optimize design (such as microchannel) to improve thermal conductivity. Corrosion resistance: surface treatment is corrosion resistant and has long service life. Low cost: materials and processing costs are lower than copper. Environmental protection: 100% recyclable, in line with green standards. Compact design: thinner structure, saving space.
Remote/mannual control
Control the air volume, wind speed and working mode

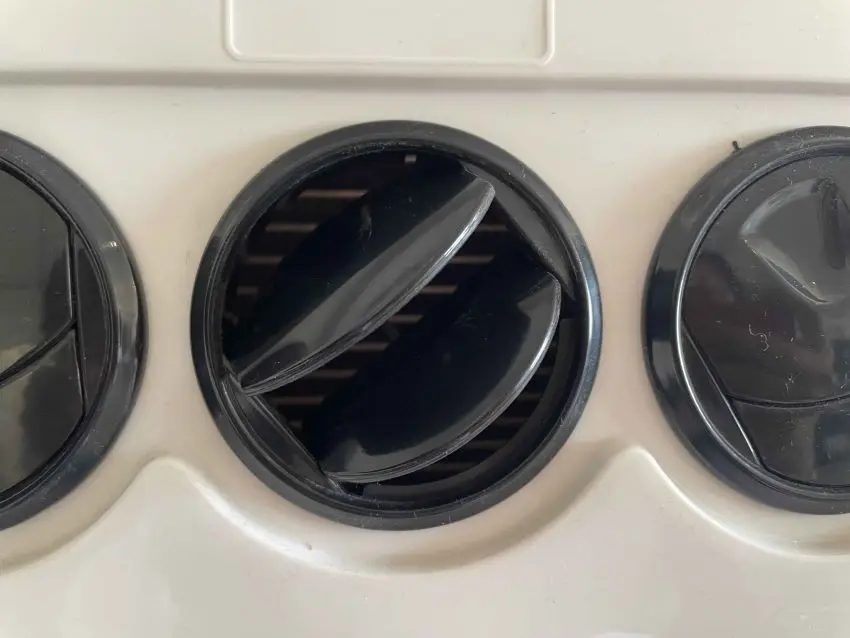

Manual control, the wind direction can be manually adjusted 360°
The structure is simple, the cost is low, and the failure rate is extremely low.
No power supply is required, making it suitable for base models or low-power needs.
No power supply is required, making it suitable for base models or low-power needs.
Company Profile

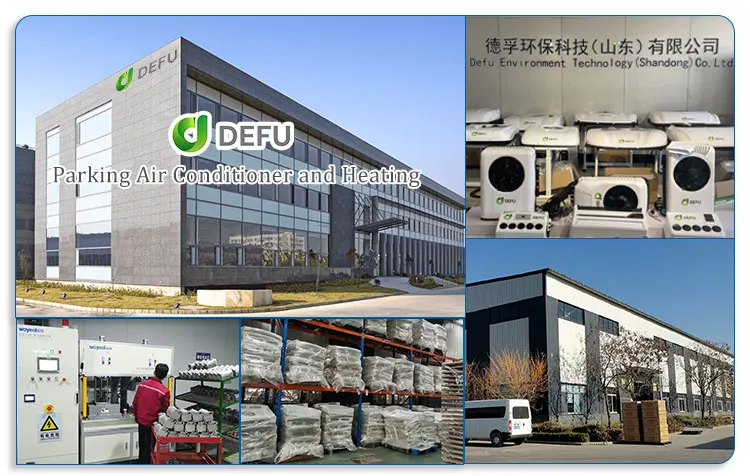

Dezhou Sino Air Conditioner Equipment Co., LTD. With standard workshops over 35,000 square meters, our factory covers an area of 80 acres. Concentrating on automotive air treatment, we manufacture air conditioners, heaters, filters, generators and so on, more than 50 types. including Swiss CNC machining equipment, Japanese turning-milling composite processing equipment, German CNC grinder, Japanese three-coordinate measuring machine, ect. Being responsible is a basic requirement for every member in Sino Air.We are dedicated to customers' satisfaction and our business. From first time consulting, placing order, production management, shipment to after sale service, all details will be seriously taken by our team members.
FAQ
1. How many hours can the unit work?
For 400Ah battery, it can work around 8-10 hours at night, around 6-8 hours in the day because it’s hotter during the day and you may adopt the strong wind mode.
For 400Ah battery, it can work around 8-10 hours at night, around 6-8 hours in the day because it’s hotter during the day and you may adopt the strong wind mode.
2. How loud is it?
It is under 50dB, it won't create loud noise.

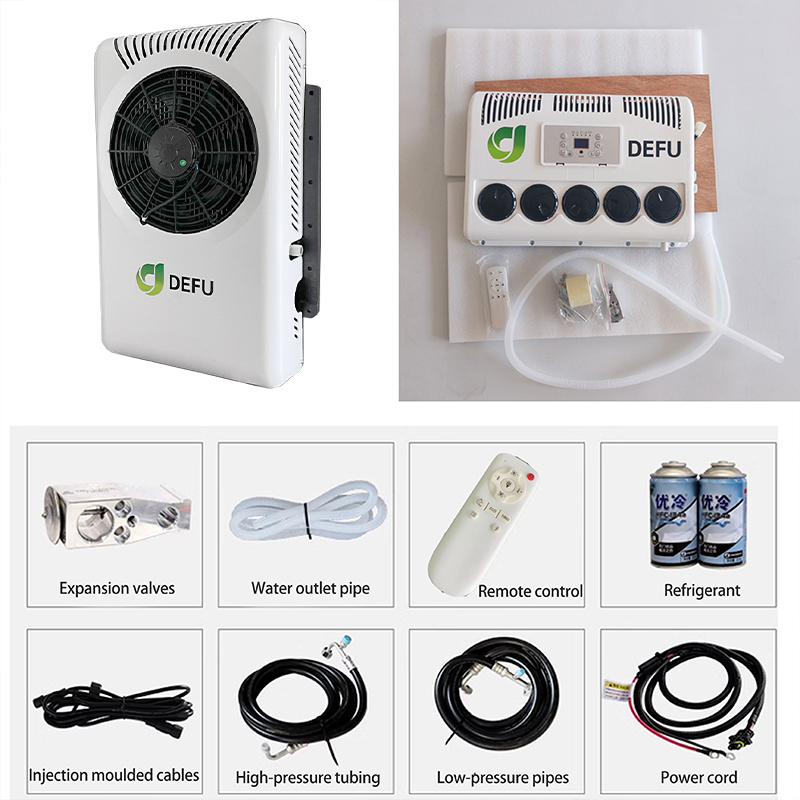

3. Does this unit comes with interior control panel and remote? Is this a complete unit?
Yes, it is a complete unit with control panel and remote.
4. Is the unit fully self-contained? Or does it require compressor connecting as well?
The unit is fully self-contained.
5. What all else besides unit would i need to purchase in order for unit to function properly?
Nothing else. You will need a minimum of 100amps battery to run the unit.
6. Do you have installation video?
Yes. It takes around 1 hour to install a unit.
It is under 50dB, it won't create loud noise.
3. Does this unit comes with interior control panel and remote? Is this a complete unit?
Yes, it is a complete unit with control panel and remote.
4. Is the unit fully self-contained? Or does it require compressor connecting as well?
The unit is fully self-contained.
5. What all else besides unit would i need to purchase in order for unit to function properly?
Nothing else. You will need a minimum of 100amps battery to run the unit.
6. Do you have installation video?
Yes. It takes around 1 hour to install a unit.
