High-end 5g/h 45w Adjustable Ozone Generator air Water Oil aquarium ozone generators drinking water treatment
価格:
$28.80
/Pc
払い戻し:
シェア:
売れ筋商品
Our test equipment:
AC voltage regulator, DC voltage regulator, voltage stabilizer, LCR digital bridge tester, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...
AC200V-AC240V, we will set: AC240V 50HZ for you.
AC100V-AC130V, we will set: AC130V 60HZ for you.
South Korea, Brazil, Peru, Philippines, Saudi Arabia: AC240V 60HZ.
Japan: AC110V 60HZ.
If the local voltage or frequency is special, when you order our products, you can leave a message to us.
.
When you get this product, please read the installation and operation instructions carefully, it is very important.
.
.
.
Patented product, high ozone concentration, smaller size, larger heat dissipation area, lower temperature rise, high efficiency, longer service life, built-in 316L stainless steel tube.
(The ozone PSU cannot work alone, you need to correctly install the ozone tube and the ozone PSU, connect them together, install a cooling fan to cool the ozone tube, turn on the air/oxygen source, and then you can turn on the power)
.
.
.
High-end 5g/h adjustable air cooling ozone generator kit:
Product model: PL-5QBAOS
Ozone output: 5g/h (adjustable)
Power: 45w
Air flow: ≤30L/min
Oxygen flow: ≤3L/min
Cooling mode: air cooling
.
Gas source: air source, oxygen source
Gas source temperature: ≤35℃
Gas pressure: ≤100kpa (1bar/0.1mpa)
Ambient temperature: -10~45℃
Optimal ambient temperature: 1-20℃
Environmental humidity: ≤85%RH
.
Heat sink: aluminum alloy (appearance can be customized)
Color: black (other colors can be customized)
White flange: teflon (PTFE)
Dielectric material: high-purity quartz glass tube
Thickness of the glass tube: 1.5mm
Inner electrode: 316L stainless steel
Discharge gap: 0.5mm
Screws and nuts: 304 stainless steel
.
Patented product
Brand: Pinus longaeva (we can print your logo and paste it on the ozone tube)
Product certification: CE FCC ROHS
Product application: air purification and water sterilization
Service life / Warranty: more than 20000 hours / 2 years
Customized: can be customized
.
We have set the correct parameters for this ozone PSU, so please do not adjust the knob on the ozone PSU.
TK: set the maximum power of the ozone PSU (rotate to the right to increase the power).
.
Size:
Ozone tube: 173*56*63mm 0.45kg
Ozone PSU: 125*48*50mm 0.2kg
Ozone PSU: 125*48*50mm 0.2kg
.
Joint:
Air / oxygen input: we recommend that you use 4*7mm silicone tube or 5*8mm PU tube.
Ozone output: we recommend that you use 6*8mm teflon tube.
If you need 8mm small air nozzle, please contact us.
.
Product features:
Ozone tube:
Patented product, smaller size, larger heat dissipation area, lower temperature rise, higher ozone concentration, more efficient, built-in 316L stainless steel tube, longer service life.
.
Ozone PSU:
1. lower temperature rise, more stable, longer service life.
2. ozone tube short circuit/open circuit, the ozone PSU will automatically reduce output power.
3. the output power of the ozone PSU is very stable.
4. the maximum power of this ozone PSU is 50w, and the optimal output power ≤50w, this 5G ozone tube only needs 45w, this ozone PSU can easily start this ozone tube.
5. we have added the function of switching input voltage (AC240V/AC130V), please let us know if you need to switch the input voltage.
.
Please let us know:
If you need us to remove the stickers on the ozone tube,
If you need us to change the length of the red high voltage line or the black line,
If you need us to change the length of the potentiometer wire,
If you need us to change the nozzle size,
If you need us to change the direction of the nozzle,
and so on,
please let us know.
If you need us to remove the stickers on the ozone tube,
If you need us to change the length of the red high voltage line or the black line,
If you need us to change the length of the potentiometer wire,
If you need us to change the nozzle size,
If you need us to change the direction of the nozzle,
and so on,
please let us know.
.
Due to system reasons, maybe some countries can not see all the products on our website, if you need a product list, please leave a message to us.
We are the manufacturer, we produce ozone generator kits, ozone machines, oxygen machines.
Due to system reasons, maybe some countries can not see all the products on our website, if you need a product list, please leave a message to us.
We are the manufacturer, we produce ozone generator kits, ozone machines, oxygen machines.
.
.

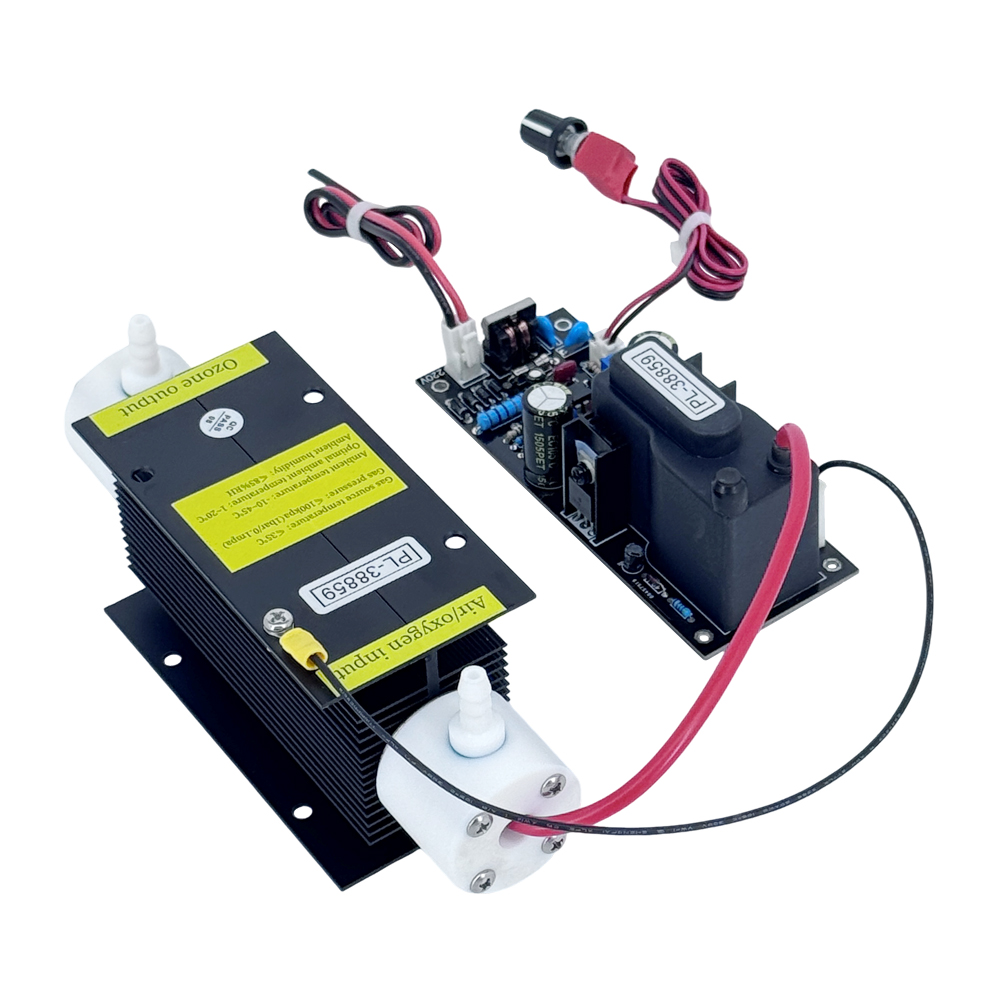

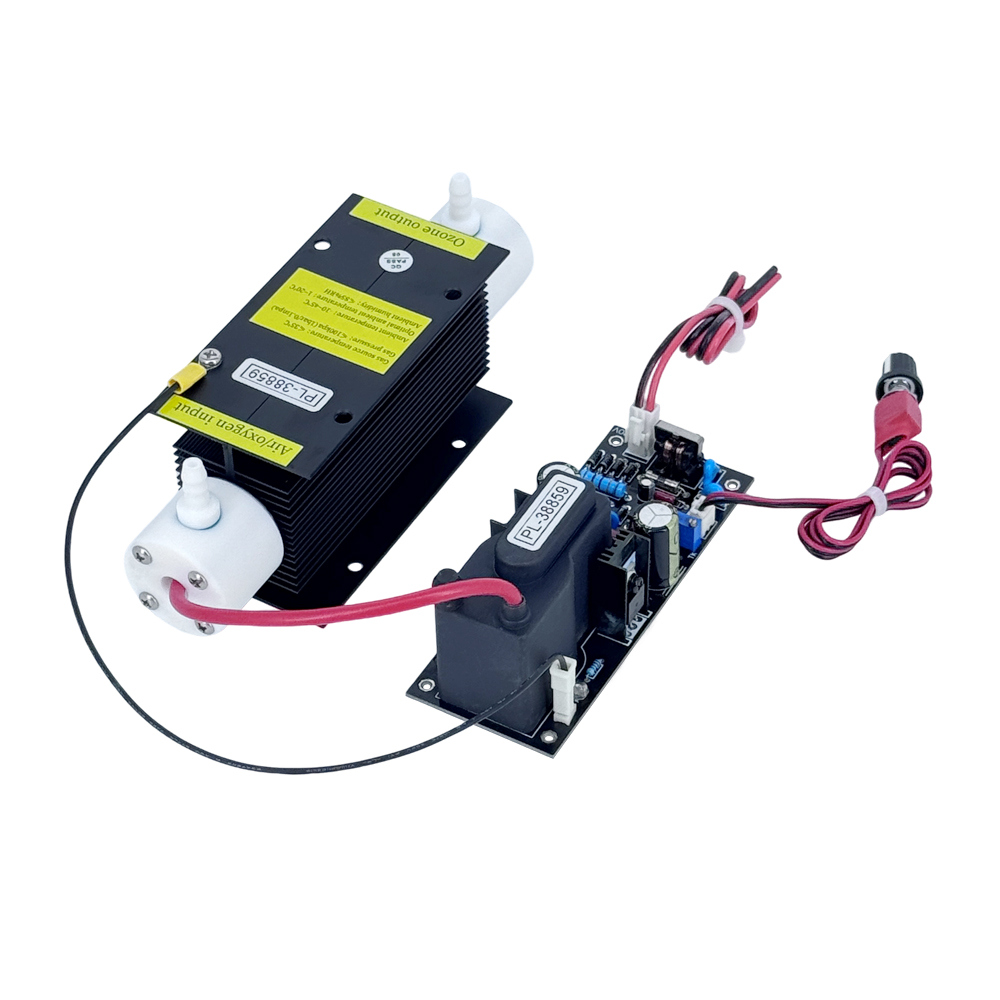

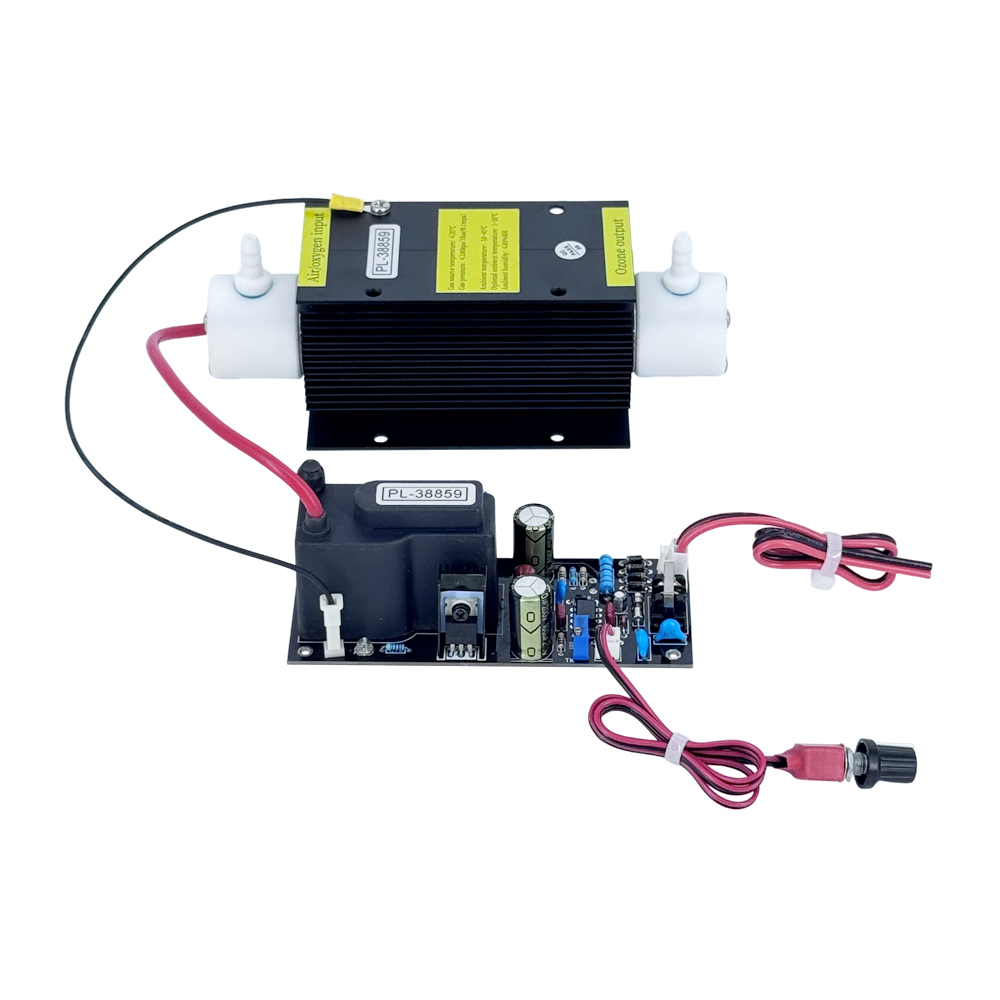

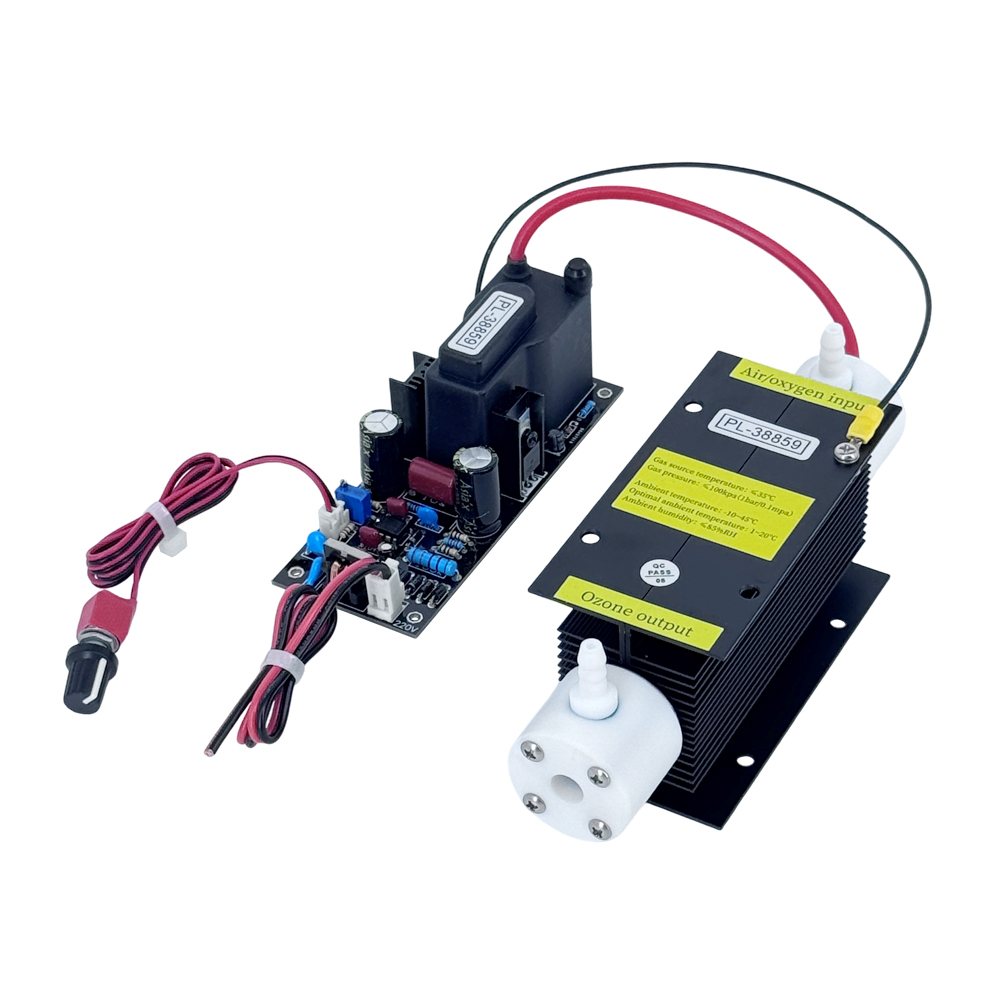

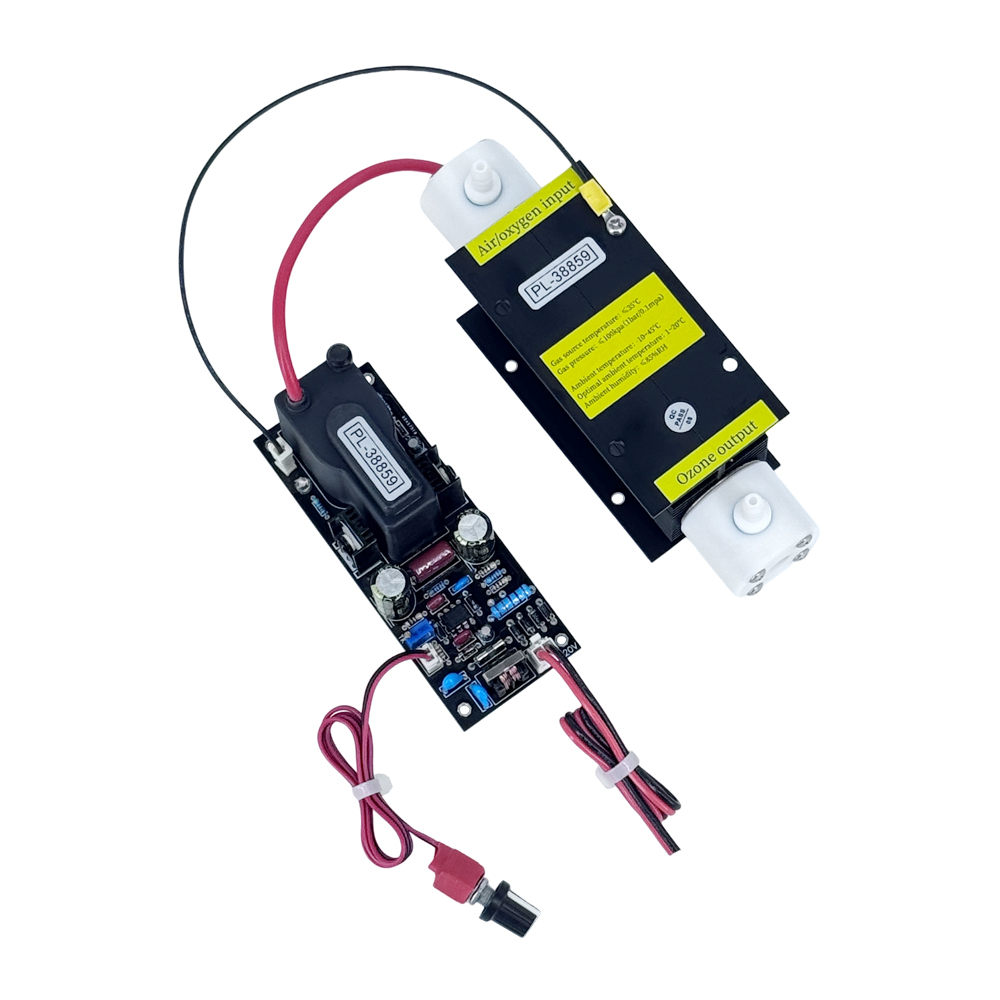

Product picture: (when the product works, there is no electricity on the black radiator, which is very safe)
.
.
.
.
.
.
.
......
.
Installation requirements:
1. Ozone tube: you need to install it on the insulating board, away from the metal shell for more than 2cm. (If you install it on a metal shell, please connect an additional ground wire.)
2. Ozone PSU: you can use 4cm long screws to install the ozone PSU (ozone power supply) away from the ozone tube (metal shell or other electrical appliances) more than 3cm.
3. The closest distance between the ozone PSU and the metal shell or other electrical appliances is 3cm.
4. The closest distance between 2pcs ozone PSU is 6cm.
5. Red high voltage wire: away from the metal shell and other wires for more than 2cm.
6. You need a dry and clean air source or oxygen source.
7. You should push the thick red wire at the middle of the ozone tube and fix another wire on the radiator.
8. You need cooling fan to cool the ozone tube and the ozone PSU.
9. If you need to disinfect water, you can connect ozone output to air stone or venturi through the teflon tube.
.
Ozone PSU away from ozone tube / metal plate / metal shell / other electrical appliances (A B C D), more than 3cm.
.
The left side is correct and the right side is wrong:
When you get our products, you will get installation instructions, operation instructions and wiring diagrams.
If you still have any questions, you can contact us at any time.
.
.
Dehydroxylation high purity silica quartz tube ozone generator kit:
#1: Quartz tube composition: 99.9% silica, with strong hardness, high temperature resistance, low coefficient of thermal expansion (CTE), thermal shock resistance, good chemical stability & electrical insulation properties.
#2: High efficiency: narrow- gap discharge of 0.5mm, with high ozone conversion rate and low noise.
#3: Low power consumption: high-voltage high-frequency corona discharge, with a power consumption rate of 8KW.h/kg O3.
#4: High voltage resistance: the operating voltage of the tube is only 1/6 of its breakdown voltage, with a high dielectric constant.
#5: High quality: the dielectric material is made of high-purity silica quartz, sintered at the high temperature, with high precision and uniform discharge. It is equipped with the 316L stainless steel inner electrode, PTFE flange gas nozzle and anti-corrosion high-purity fluorine rubber ring seals. Using the latest patented high-density aluminum alloy heat sink technology is applied for external air cooling of heat dissipation, which can achieve more efficient heat dissipation. And the long time ozone decay is very low, <1/10.
#6: Service life: more than 20,000 hours.
#7: Ozone PSU: with over-current and over-voltage protection, short-circuit protection, open-circuit protection. If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.
.
.
.
.
.
.
.
.
