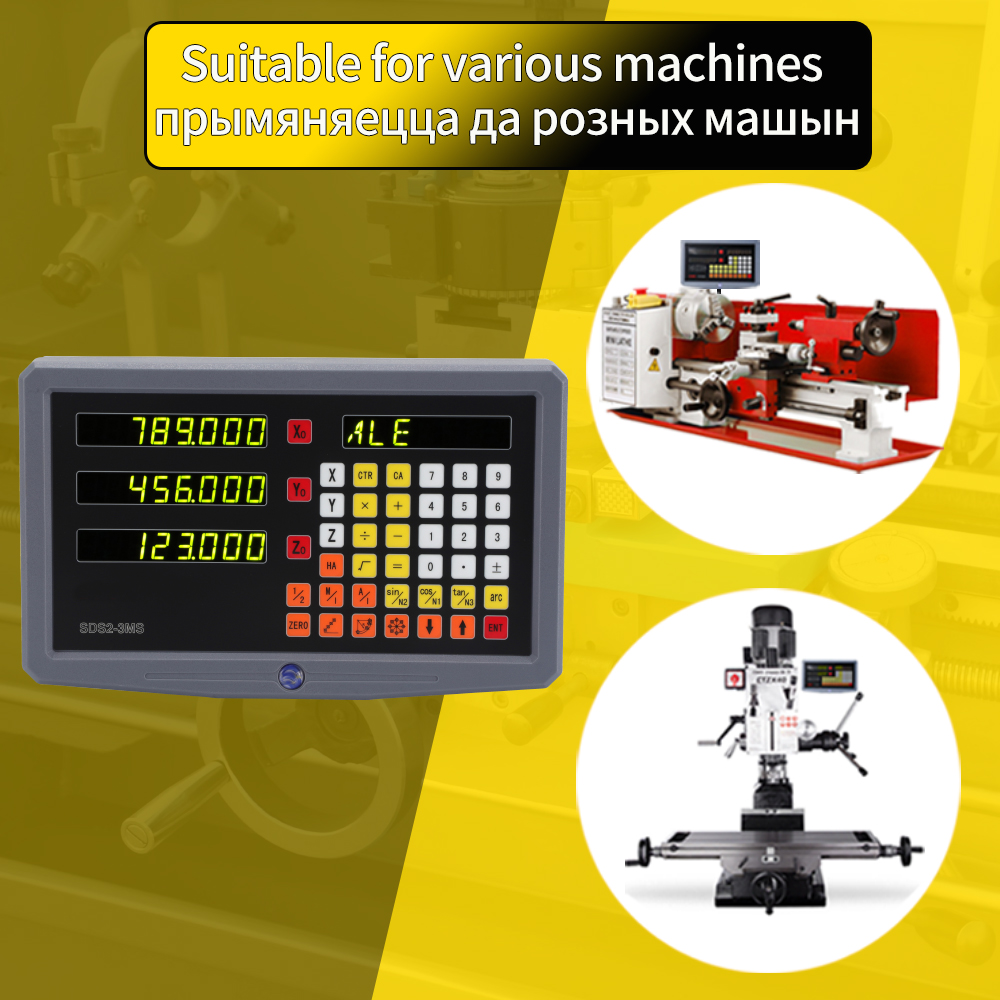

SDS3MS 3 Axis DRO KIt Digital Readout Display And 3PCS 5μm/1μm Linear Scales Encoder Grating Ruler 70-1000mm For Lathe Milling

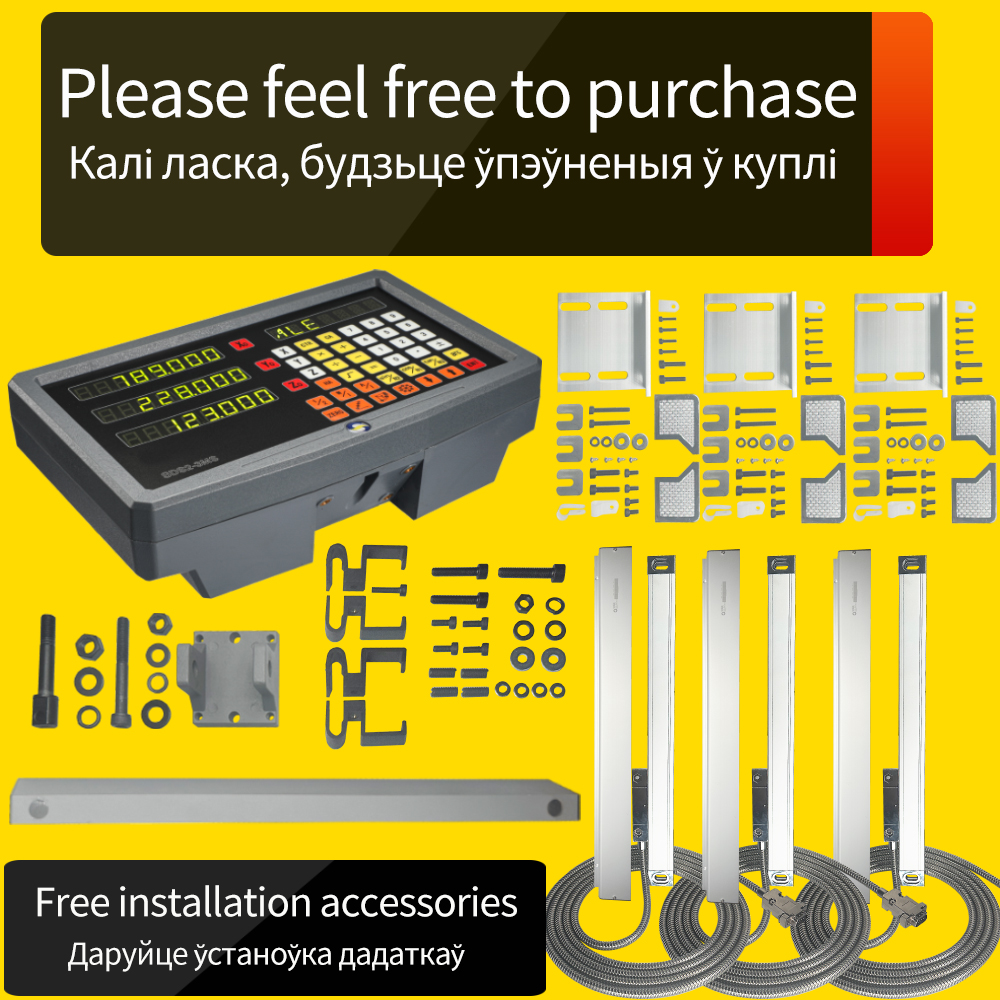

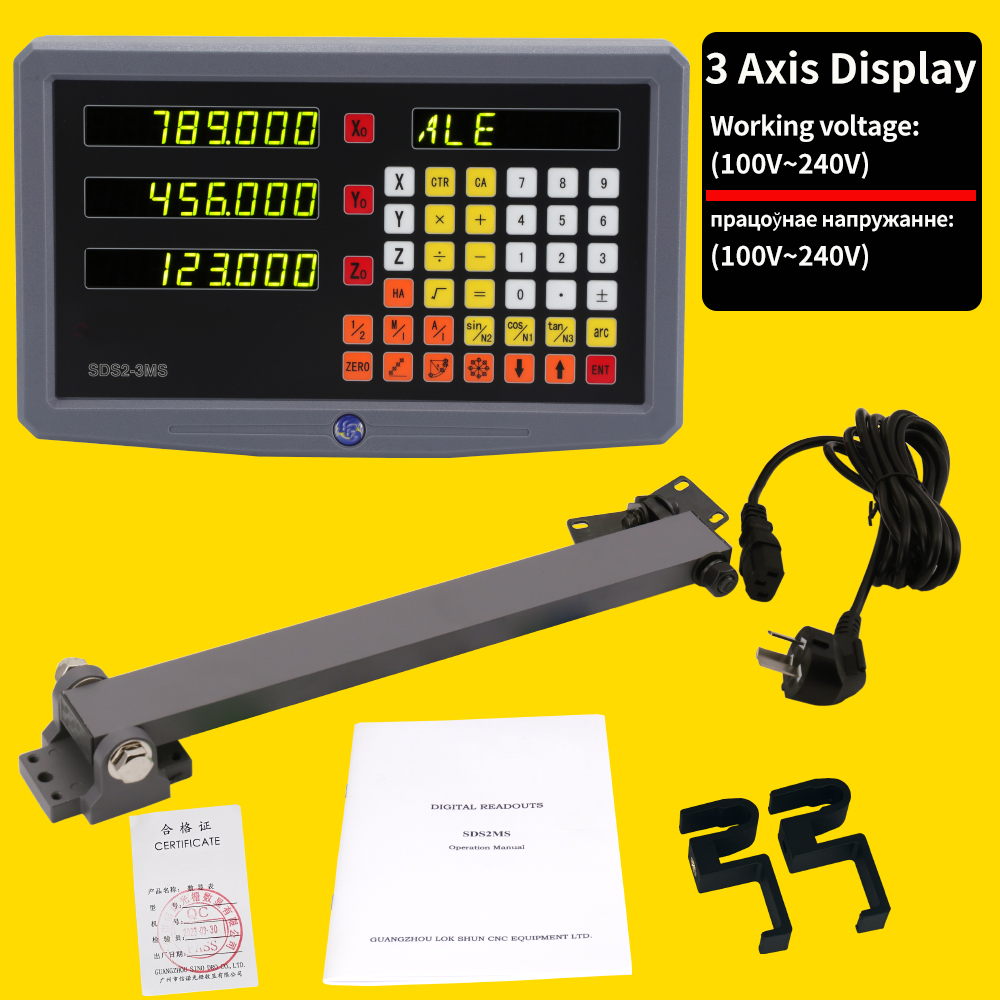

SDS3MS DRO 1PCS contain：

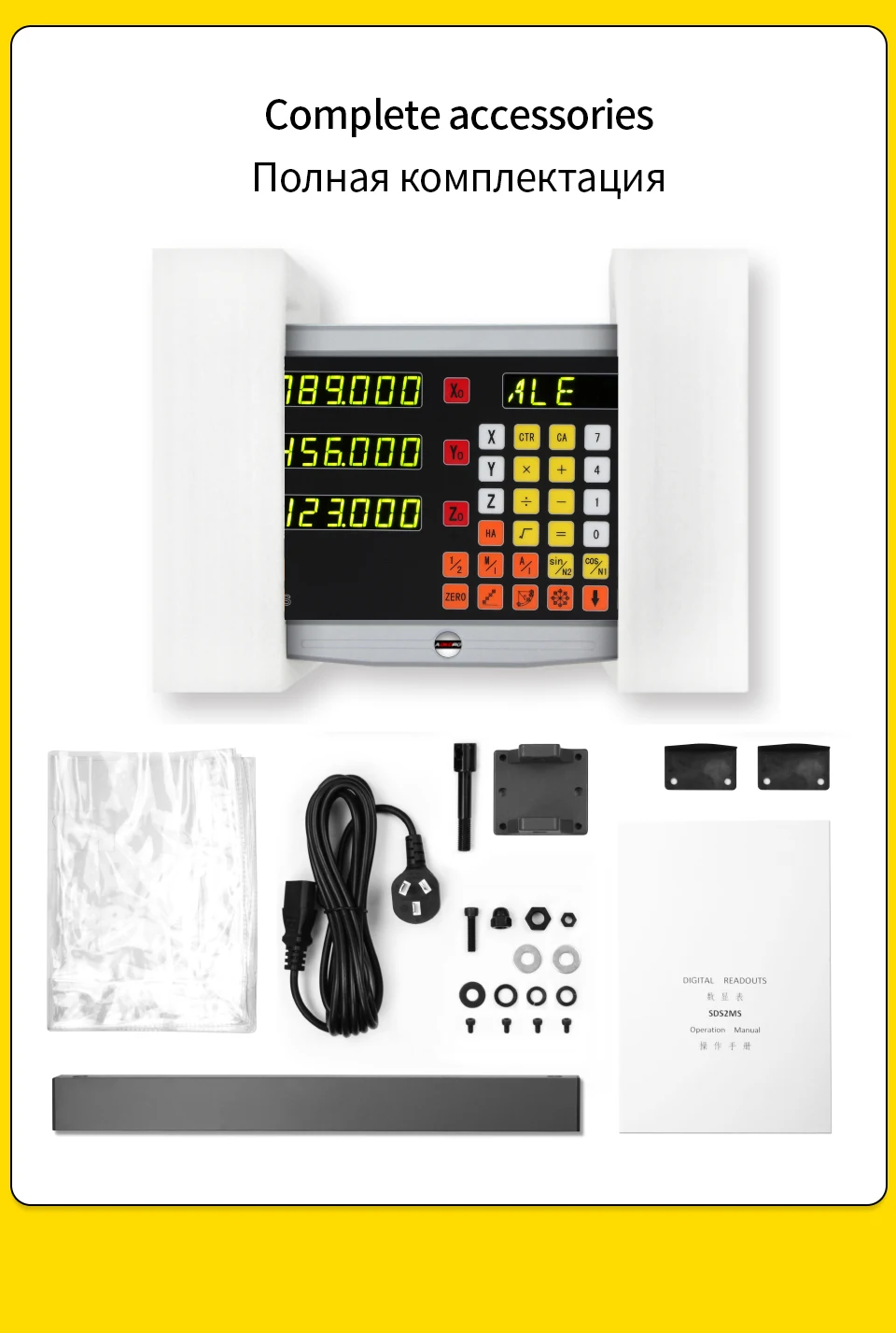

1 piece SDS3MS LED display, user manual, mounting bracket, power cable, screw bag
DRO Set 0.005mm contain :
1 piece SDS3MS LED display, user manual, mounting bracket, power cable, screw bag
3 pieces 0.005mm KA35 scales, scale covers, mounting brackets & screw bags【Travel length can be freely selected within 50mm~1000mm】
DRO Set 0.001mm contain :
1 piece SDS3MS LED display, user manual, mounting bracket, power cable, screw bag
3 pieces 0.001mm KA300 scales, scale covers, mounting brackets & screw bags【Travel length can be freely selected within 70mm~1020mm】
1.How to select scales length?
For model: KA35, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm for choose.
For model: KA300, 70mm, 120mm, 170mm, 220mm, 270mm,320mm, 370mm, 420mm, 470mm, 520mm, 570mm, 620mm, 670mm, 720mm, 770mm, 820mm,870mm, 920mm, 970mm, 1020mm for choose.
If there is no message left, DRO Kit 0.005mm we will deliver the goods according to the travel lengths of 250mm and 300mm 700mm.
If there is no message left, DRO Kit 0.001mm we will deliver the goods according to the travel lengths of 270mm 320mm and 720mm.

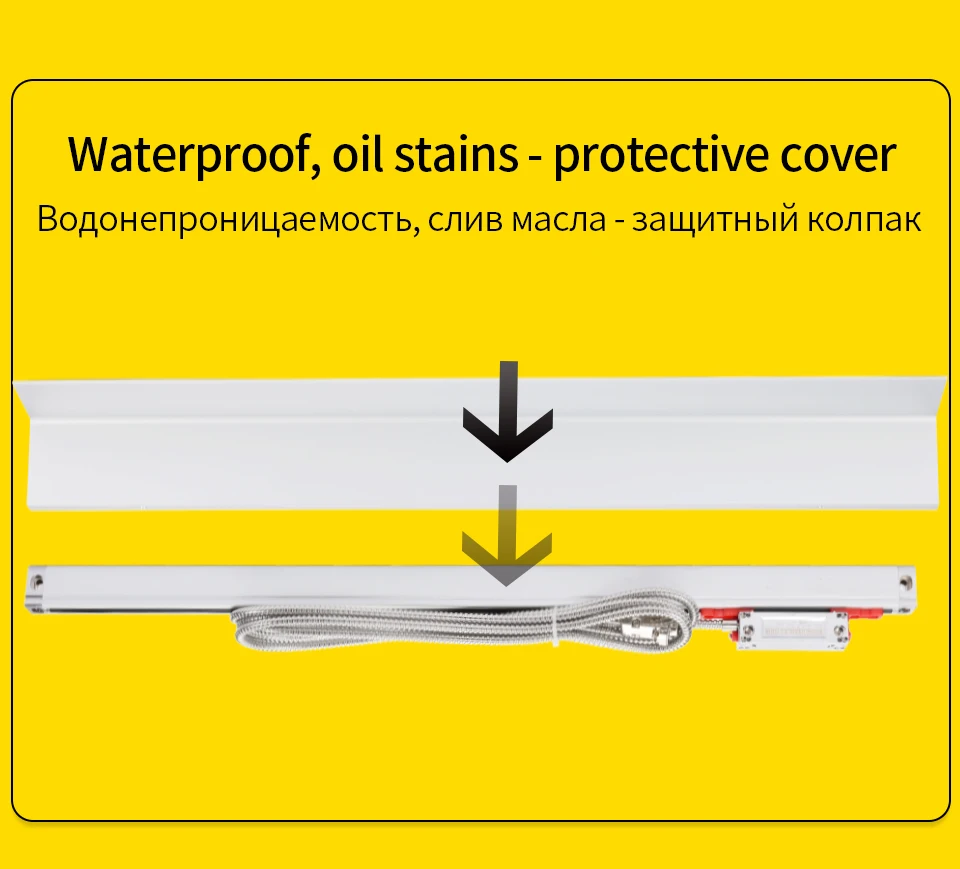

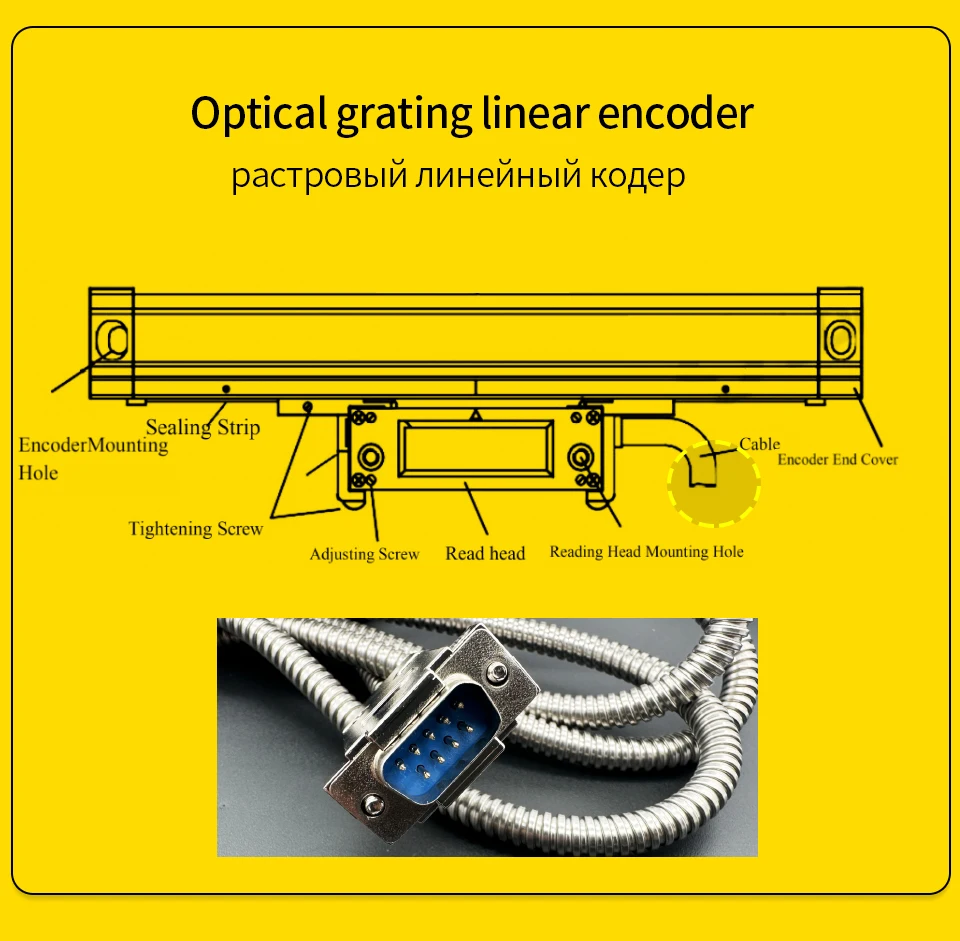

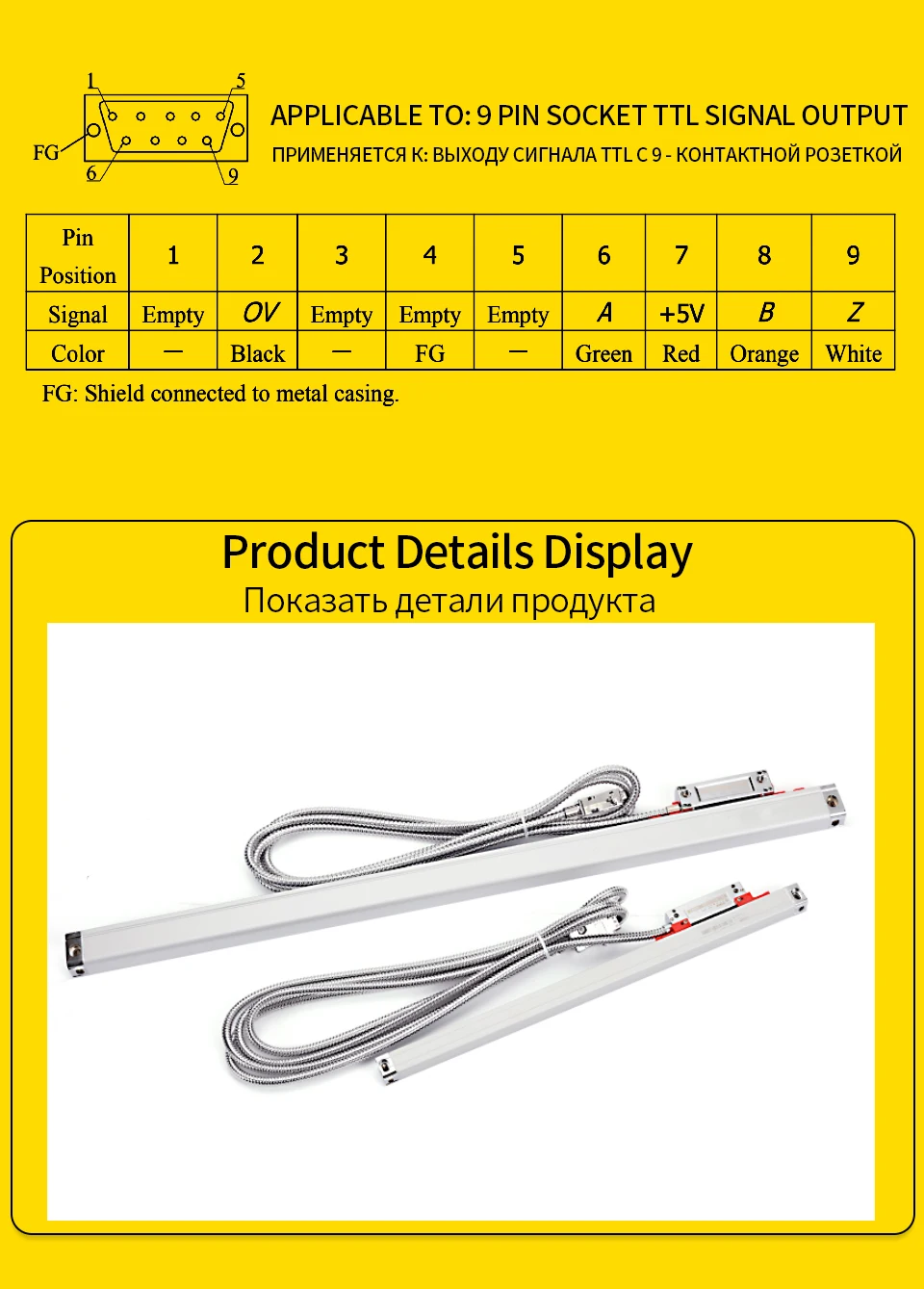

Linear scale parameter
Model: KA35
Available measurement: 100mm to 1000mm
Total length: measurement +140mm
Dimensions Cross section dimensions: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3 meters

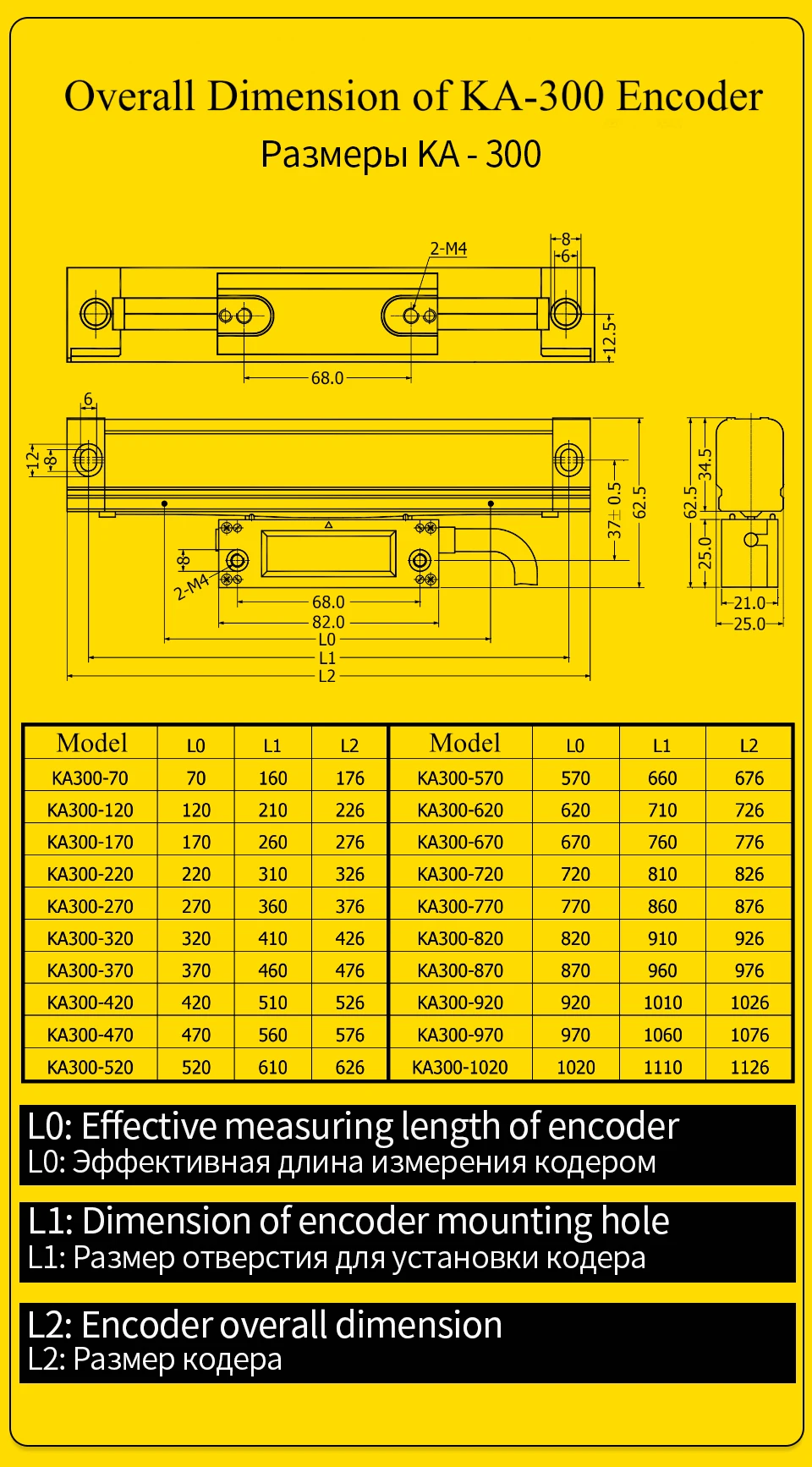

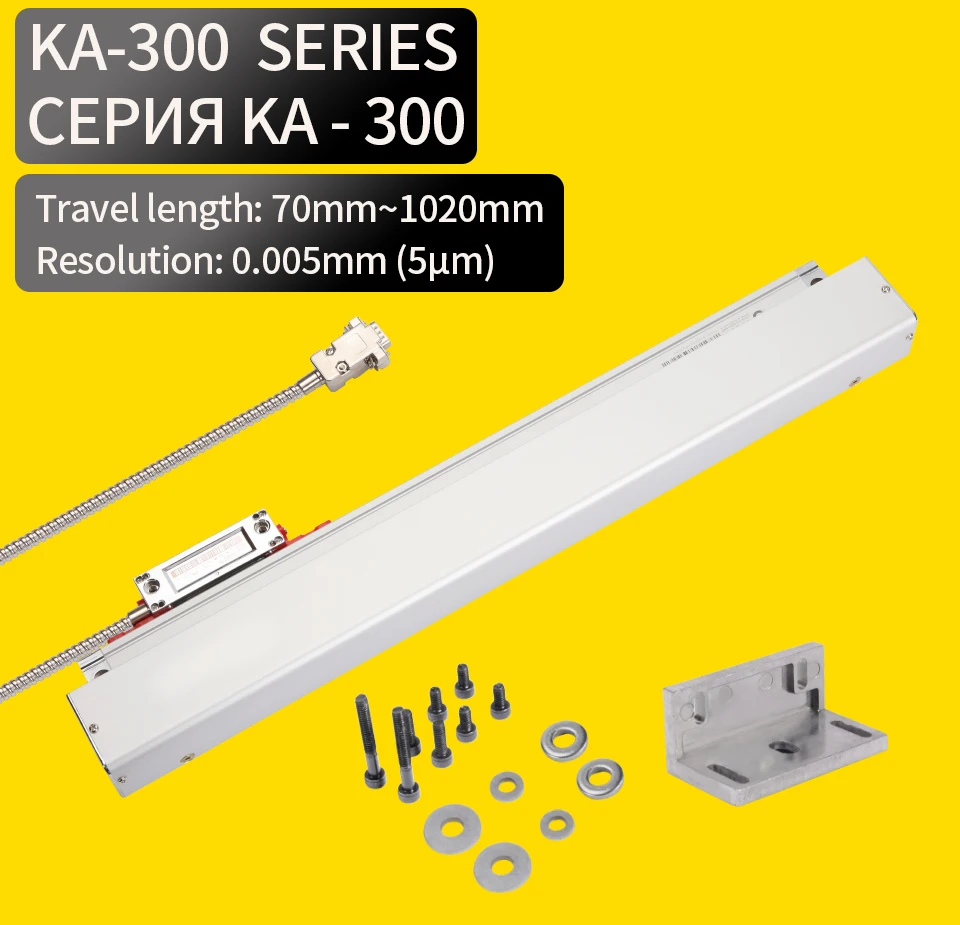

Model: KA300
Available
measurement: 70mm to 1020mm
Total length: measurement
+106mm
Dimensions Cross section
dimensions: 25mmx34.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 1um/0.001mm
Cable length: 3 meters

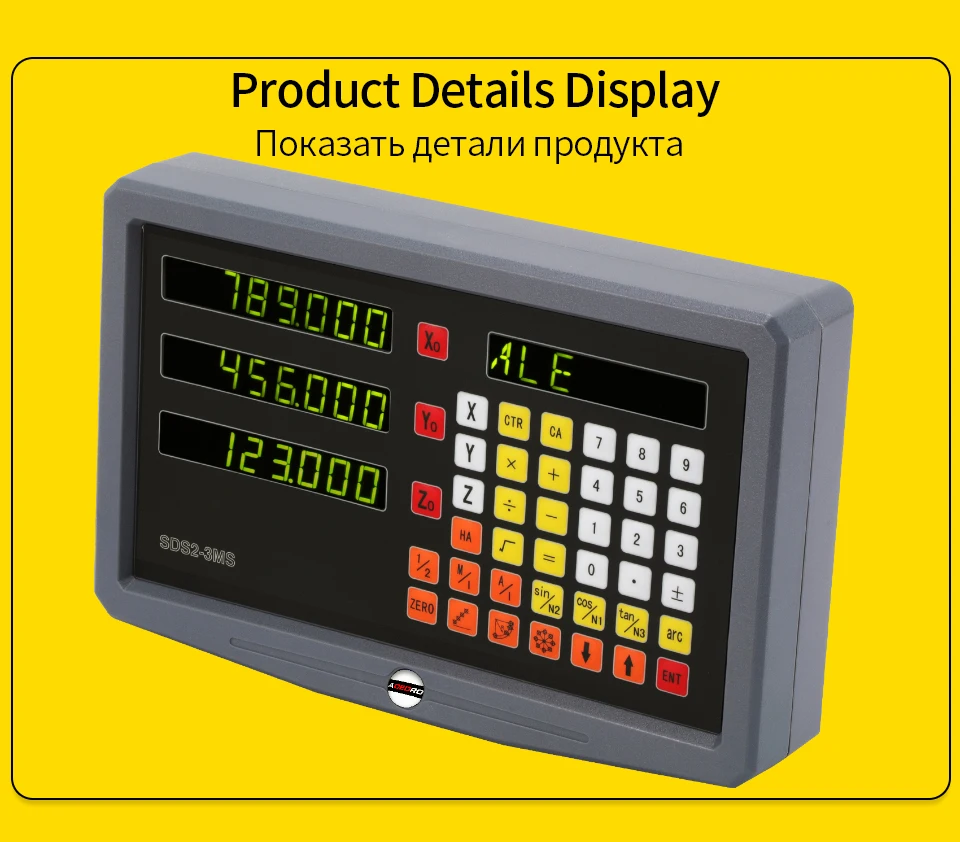

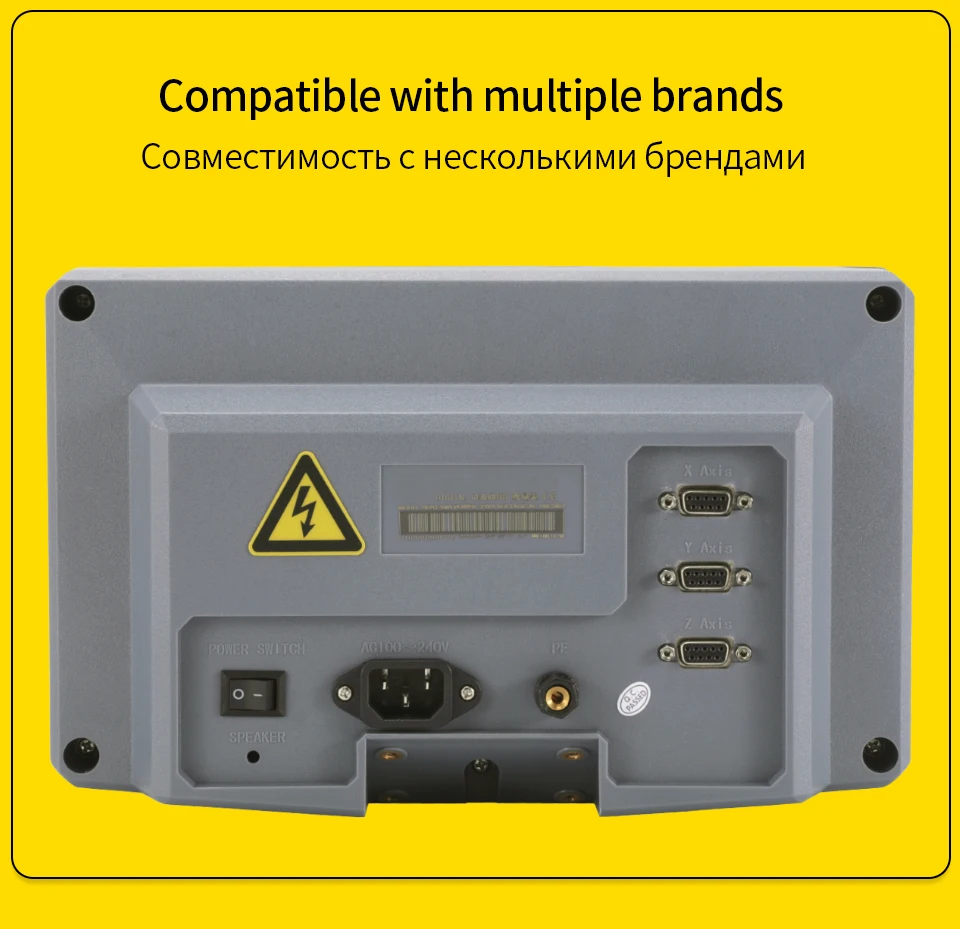

1. The voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz
2. 15 w power consumption: 25 va
3. Coordinate the number: a coordinates, two coordinates, three coordinates
4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols
5. Weight: 2 kg

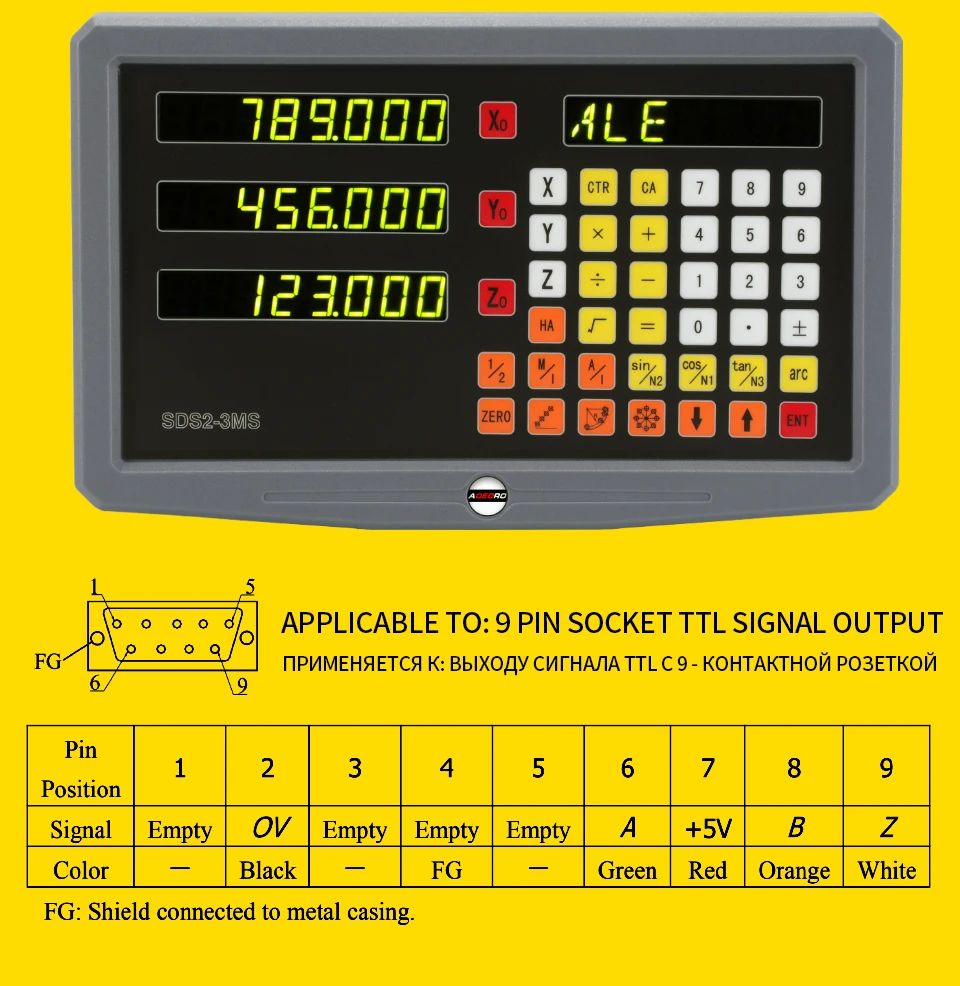

6. The input signal: TTL,open collector, output signal, convenient interface with a programmable controller.
7. Allow the input signal frequency: > 100KHZ
8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 microns, 0.5 microns
DRO Advantages
1) Professional design, beautiful appearance generous, counts the frequency response is fast and powerful.
2) Good quality shell, the surface electric pensu processing, dustproof wear-resisting, good shielding
3) Independent power supply, to adapt to the range, high stability, strong anti-jamming capability.
4) Power supply and signal anti-interference ability, high quality and durable panel of buttons, change is simple and convenient.
5) It can directly on the digital display, table for functional operation functions such as sine, cosine, tangent function, convenient processing.
6) It can be in the X and Y direction for automatic tool compensation
DRO Basic Functions
- mm/inch Transformation
- Absolute/Relative Transformation
- Mid-split Function
- Simple "R" Function
- Smooth "R" Function
- Divide the perimeter of circle
- Save 200 workpiece zero points
- Divide holes on an oblique line
- Mathematics calculation
- Tool diameter compensation
- Bevel process
