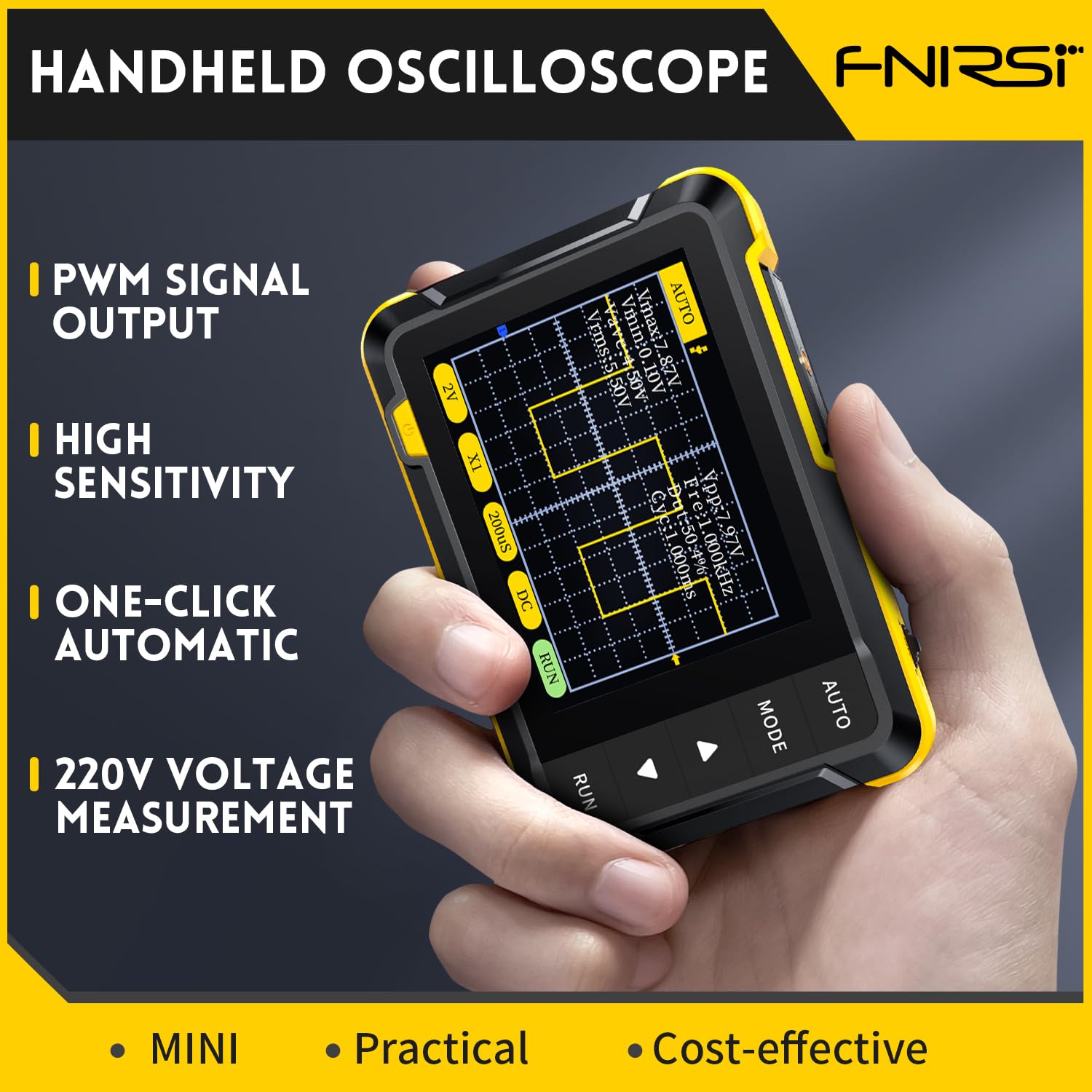

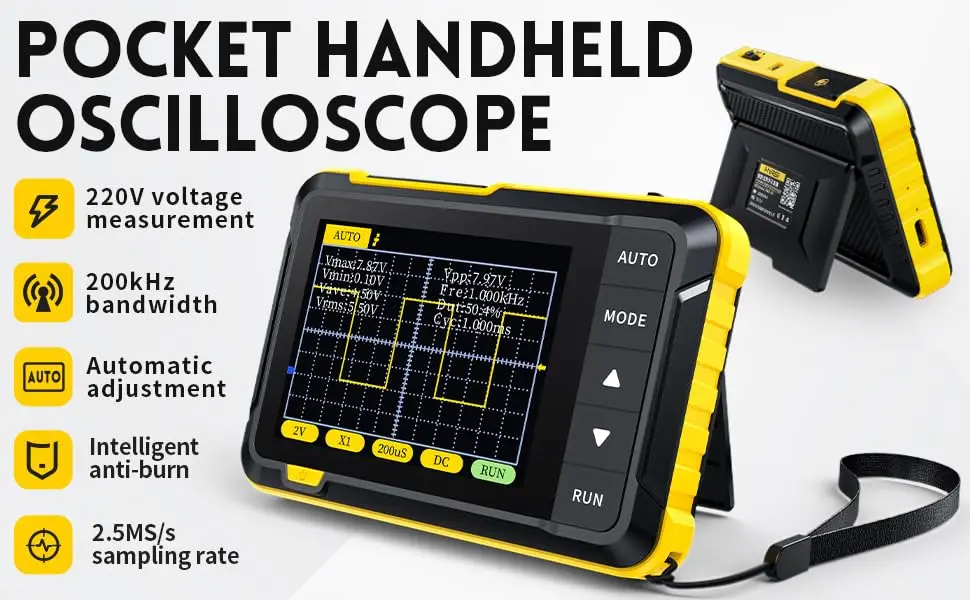

2.8" TFT Handheld Digital Oscilloscope Kit Portable Automotive Oscilloscope, 2.5MS/s High Sampling Rate, 200KHz Bandwidth, Trigger Function Auto/Nomal/Single

This digital oscilloscope is compact in size, with 2.8inch color display, with the real-time sampling rate of 2.5MS/s, 200kHz bandwidth, with complete trigger functions (single, normal, automatic), both for periodic analog signals or non-periodic digital signals can be freely used, support switching between rising-edge trigger mode and falling-edge trigger mode, support up to ±400V voltage signal measurement. With waveform measurement display, a variety of waveform measurements to meet your daily needs. With a 1KHz calibration squarewave, one-button automatic adjustment, and with Type-C port supports firmware upgrade and charging. Suitable for utility measurements, DIY learning, automobile repairing, home appliance repairing, research and teaching, outdoor maintenance, etc.

Features:
【Compact Size】: Lightweight and portable, space-saving design makes it can be carried out to work. It is a utility maintenance and DIY tools for on-site debugging.

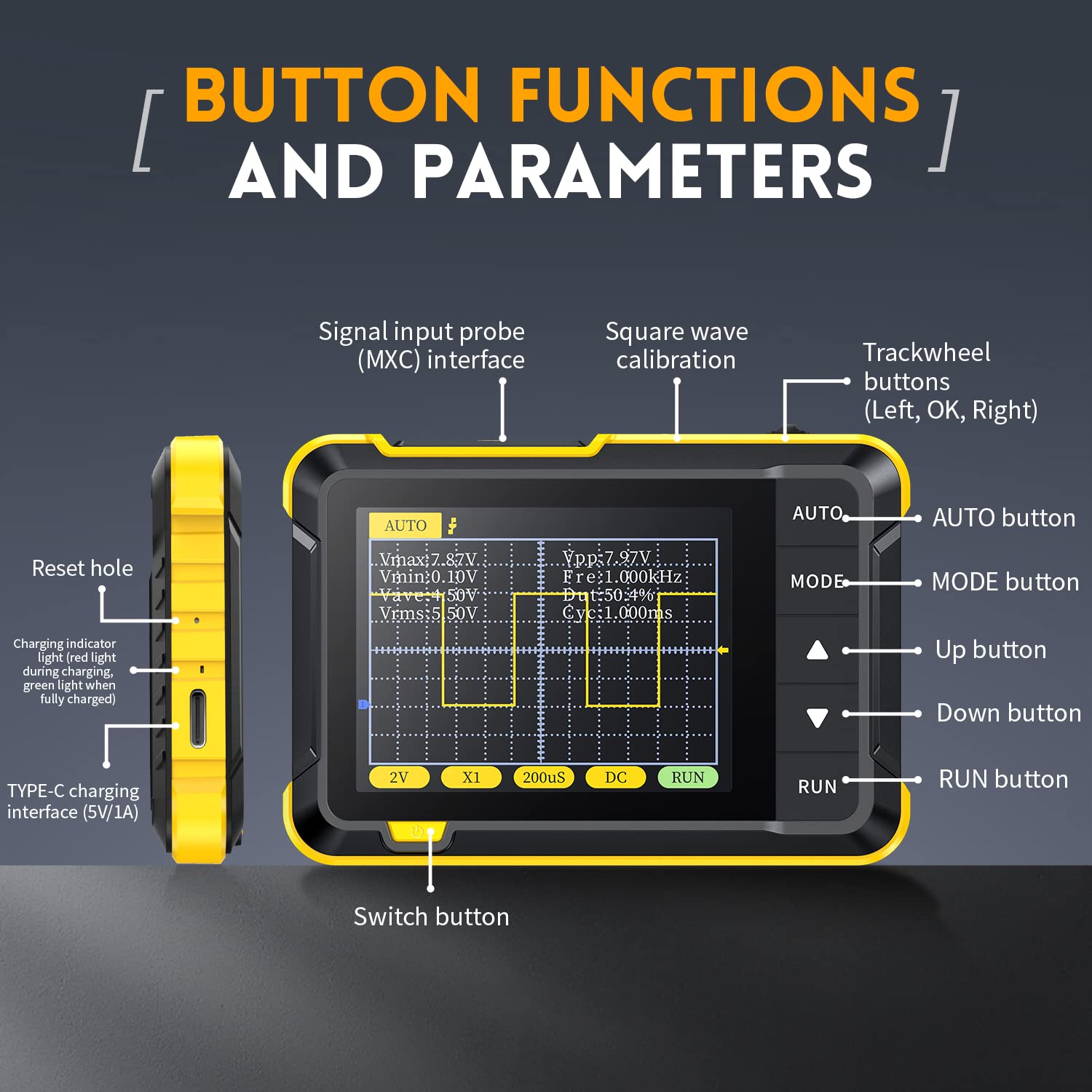

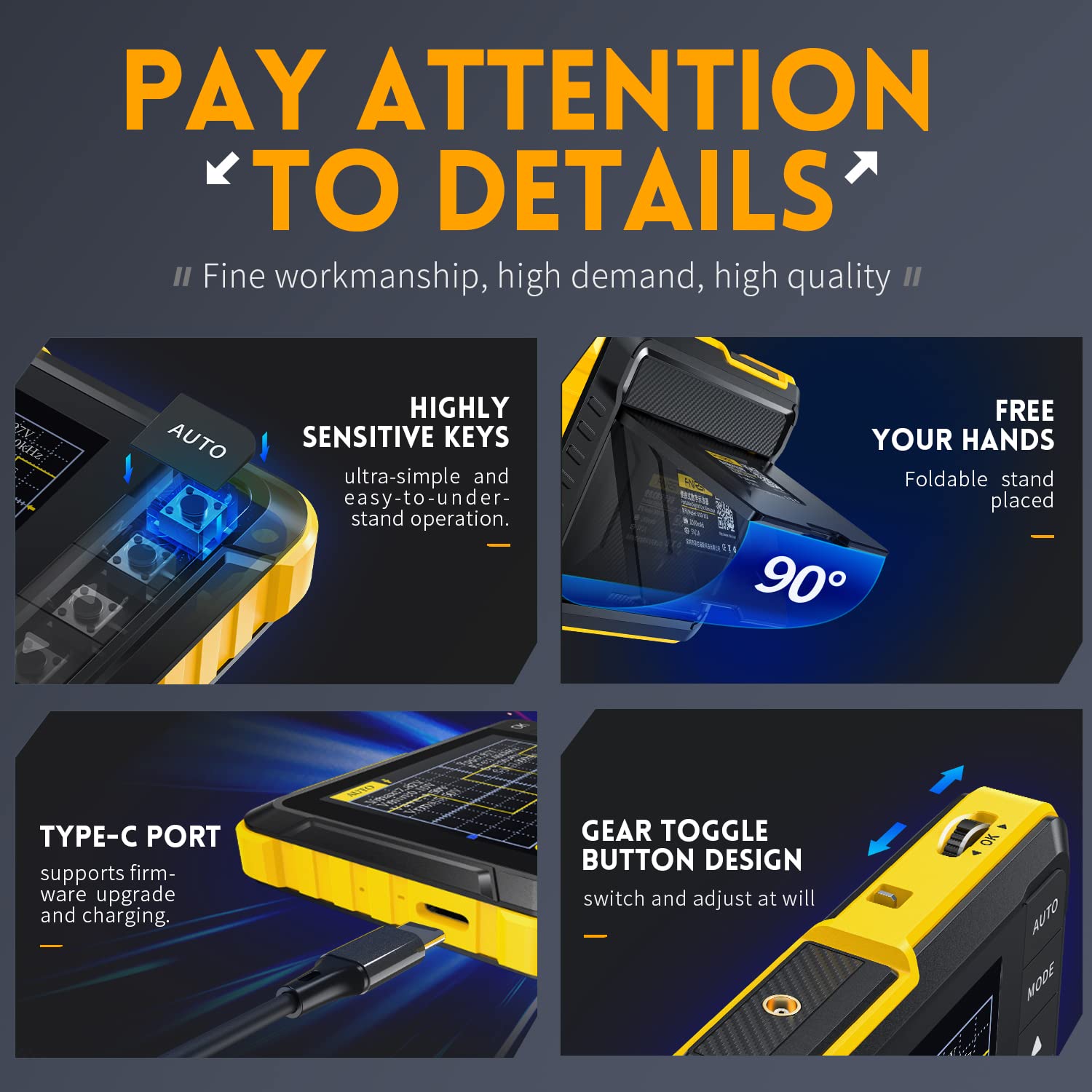

【Fine Workmanship】: High-sensitivity buttons are easy to use, Type-C port supports firmware upgrade and charging, folding bracket for convenient placement, gear toggle buttons to switch settings as needed.
【2.8inch Digital Display】: Equipped with 320*240 resolution color display, with bright colors and high contrast, you can see the data clearly.
【Efficient and Accurate】: Multiple parameters measurement, the oscilloscope has a real-time sampling rate of 2.5MS/s, 200kHz bandwidth, with complete trigger functions (single, normal, automatic), both for periodic analog signals or non-periodic digital signals can be freely used, support switch between rising-edge trigger mode and falling-edge trigger mode, support up to ± 400V voltage signal measurement.
【1KHz Calibration Squarewave】: Supplied with a 1KHz calibration squarewave, easy and convenient probe calibration.

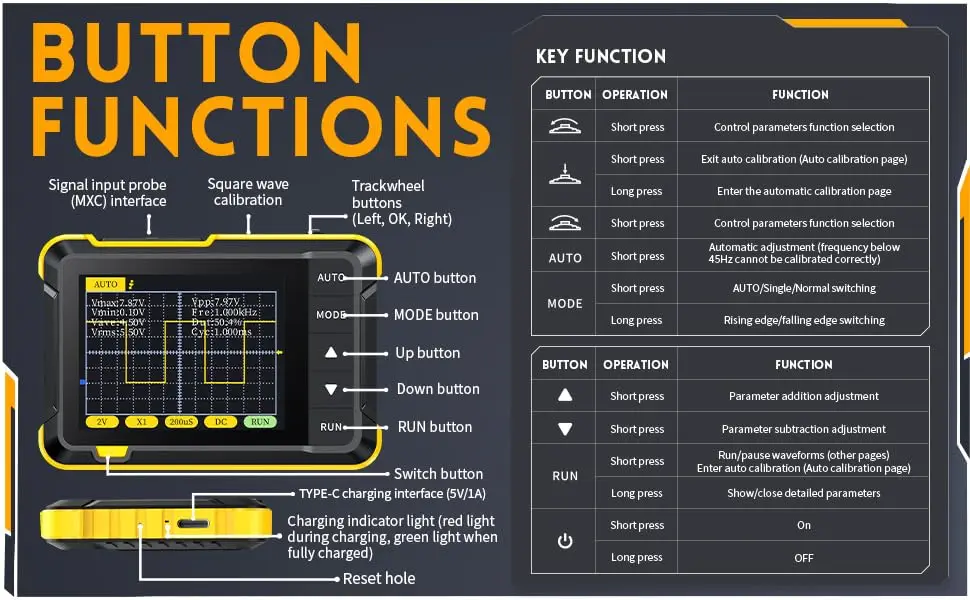

【One-button Automatic Adjustment】: Equipped with efficient one-button AUTO that displays the measured waveform without tedious adjustment. With waveform measurement display, a variety of waveform measurements to meet your daily needs.

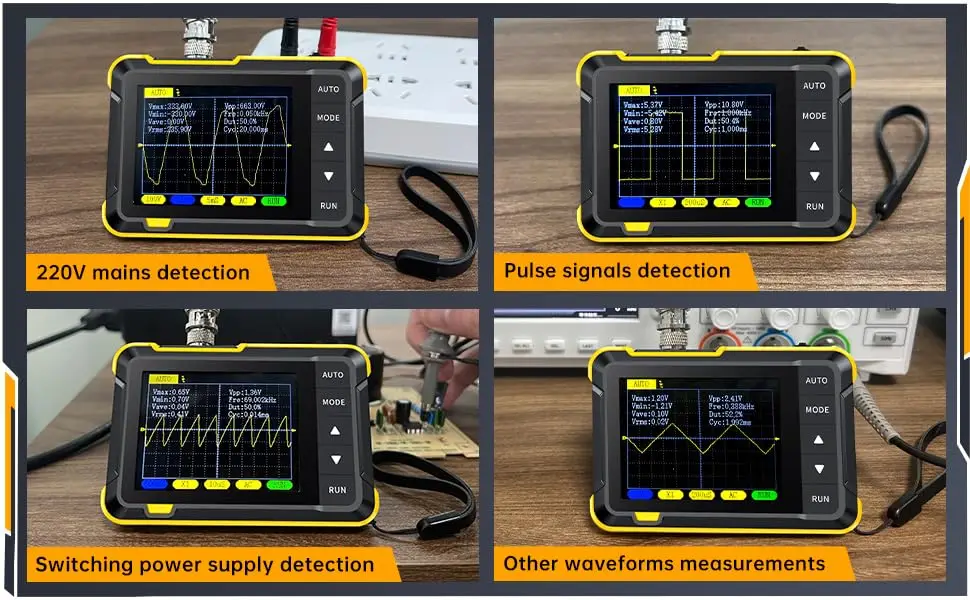

【Wide Applications】: Intelligent anti-burning, applicable to a variety of occasions, suitable for utility measurements, DIY learning, automobile repairing, home appliance repairing, research and teaching, outdoor maintenance, etc.

Specifications:
Name: Digital Oscilloscope
Material: plastics
Type: standard configuration, high configuration (optional)

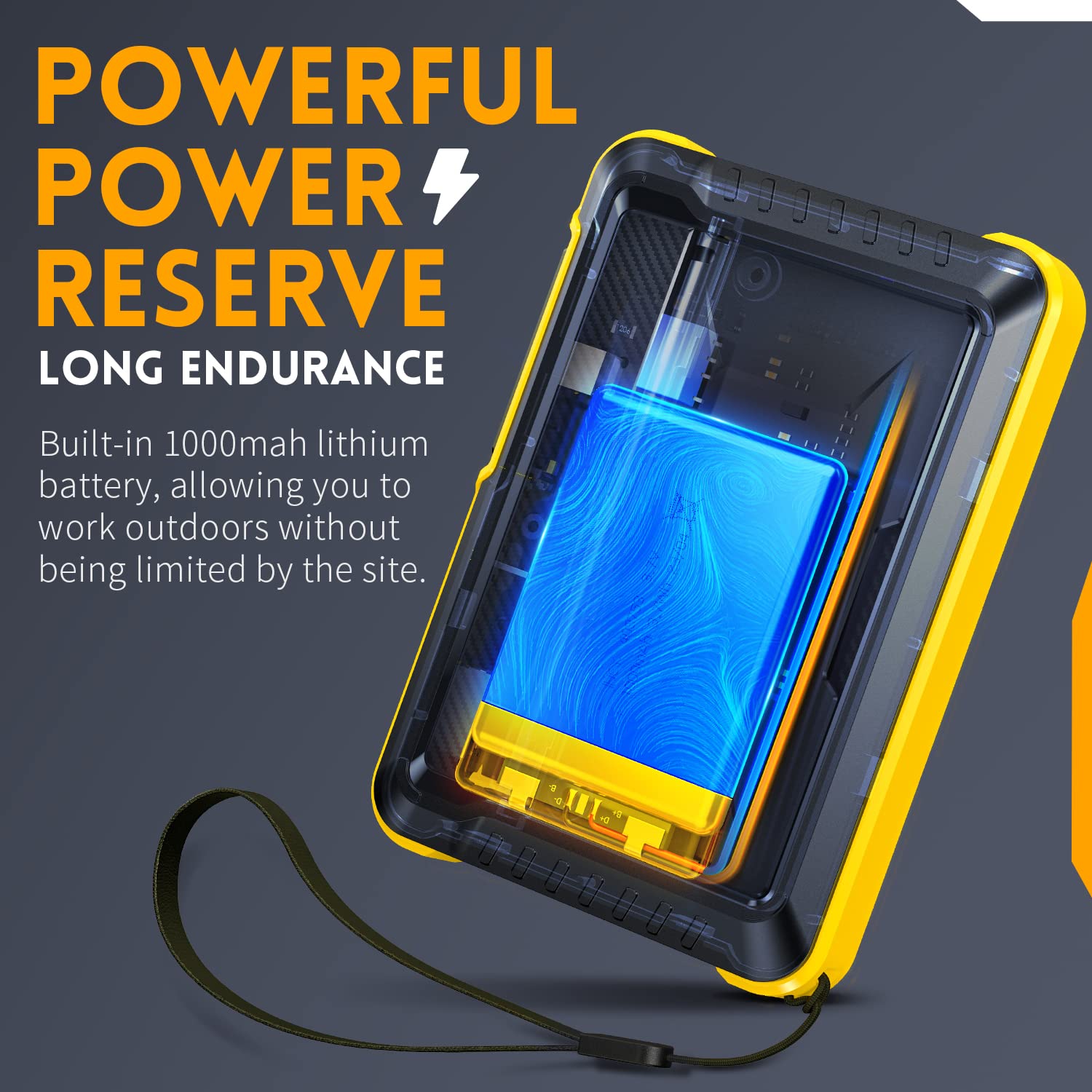

Battery: 1 * rechargeable 1000mAh lithium battery (included)
USB charging: 5V/1A
Display: 2.8inch/PPI:320*240
Bandwidth: 200KHz
Realtime sampling rate: 2.5MS/s
Vertical sensitivity: 10mV/Div-20V/Div (in 1-2-5 increments)
Time base ranges: 10μs/Div-50s/Div (in 1-2-5 increments)
Calibration squarewave frequency: 1K
Duty cycle: 50%
Voltage ranges: X1:±40V (Vpp:80V); X10: ±400V (Vpp:800V)
Trigger mode: automatic/regular/single
Item size: 99 * 68 * 20mm / 3.90 * 2.68 * 0.79in
Item weight: 100g / 3.53ounce

Packing List (Standard Configuration):
1 * Digital Oscilloscope
1 * Type-C Cable
1 * General Probe
1 * Guideline

OR

Packing List (High Configuration):
1 * Digital Oscilloscope
1 * Type-C Cable
1 * General Probe
1 * P6100 High Pressure Probe
1 * Adapter
1 * Guideline

DSO152 Oscilloscope Wave Measurement Display
