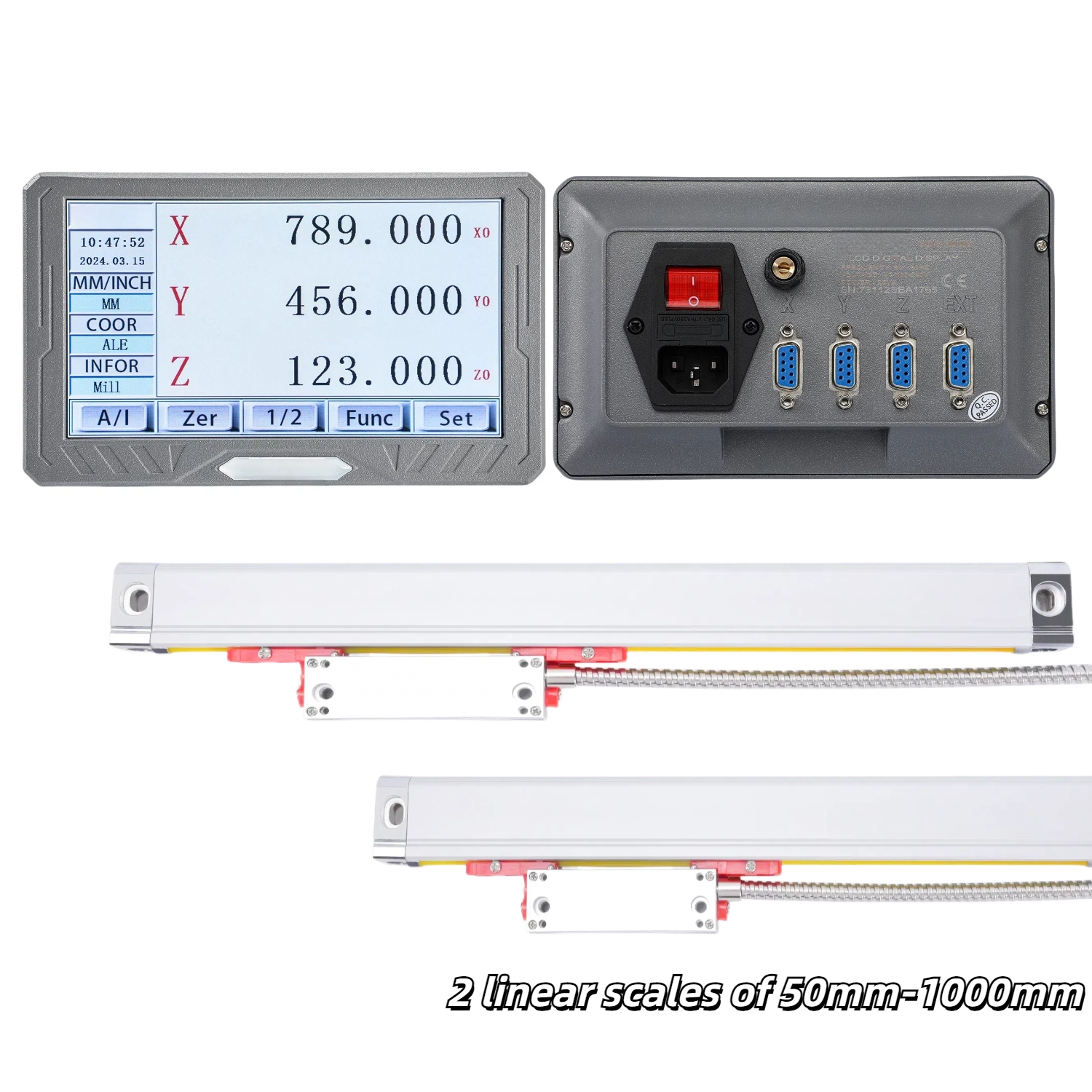

Multilingual 3 Axis LCD Full Touch Screen Digital DRO Kit SDS200S Readout Display & 2PCS 5um Linear Glass Scale Ruler

Package includes:

Only 3 Axis LCD DRO

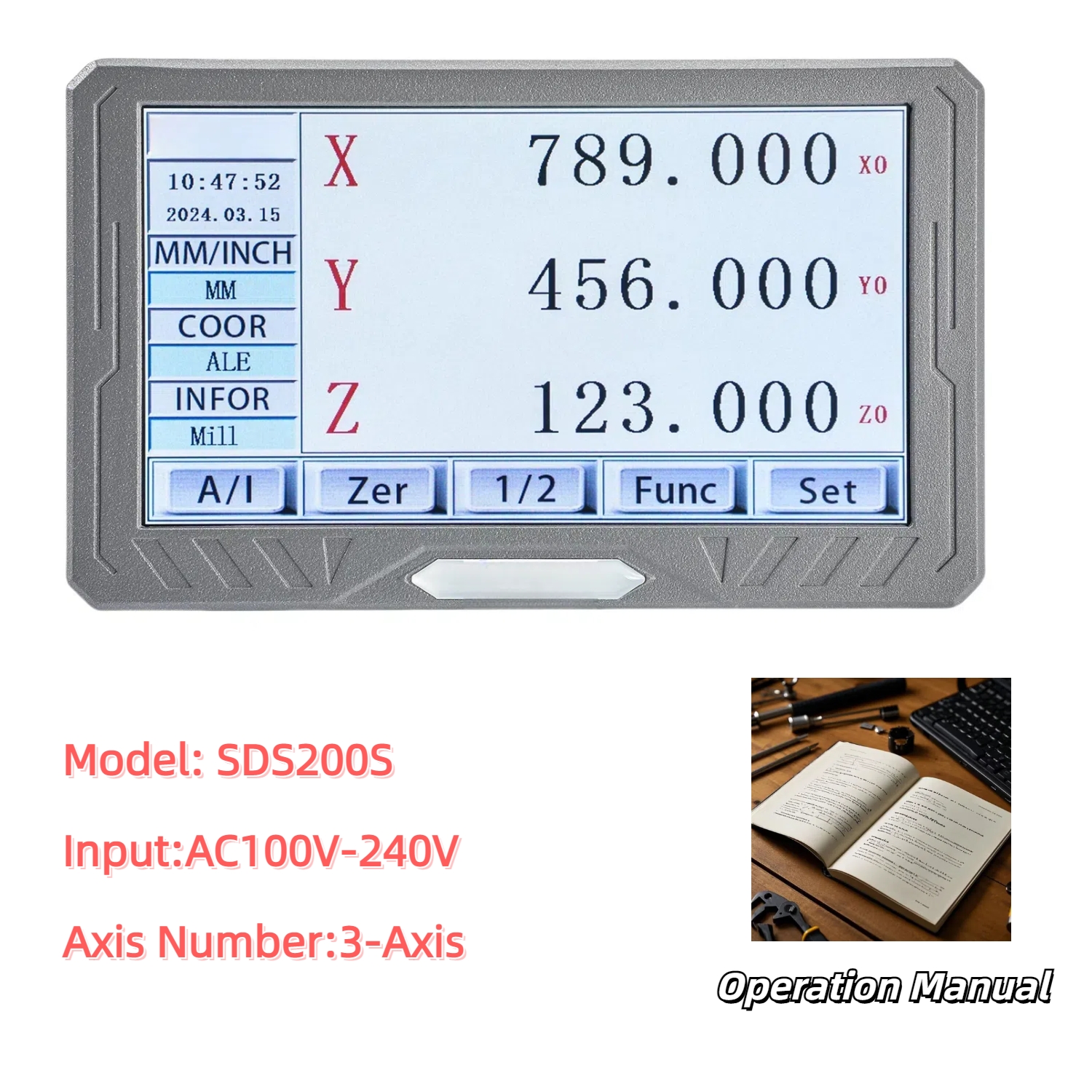

1 piece SDS200S 3 axis display(with user manual, mounting arm, screw bag)

5um DRO kit

1 piece SDS200S 3 axis display(with user manual, mounting arm, screw bag)

2 pieces(KA35+KA35) 0.005mm linear scales (with covers, mounting bracket, screw bag)

How to select scales length?

For model: KA35, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm for choose.

Scale length means scales working travel length.

After making order, please leave a message to seller with you needed scales travel length.

If there is no message left, we will deliver the goods according to the travel lengths of 250mm and 700mm.

Linear scale parameter

Model: KA35

Available measurement: 100mm to 1000mm

Total length: measurement +140mm

Dimensions Cross section dimensions: 21.5mmx33.5mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um/0.005mm

Cable length: 3 meters

DRO parameter

Voltage Range: AC 100V~240V/50HZ~60HZ

Acceptable Signal: TTL square wave/ EIA-442

Acceptable resolution: 50um ,10um ,5um ,2um ,1um , 0.5um ,0.1um

Basic Functions

"mm/inch" Conversion Display

200 Points Auxiliary Zero Position Function

Mid-split Function

Segmented Error Compensation

Linear Error Compensation

Power Interruption Memory

Sleep Switch

Mathematics calculation

Smooth R

Simple R

Hole Drilling Along An Oblique Line

The Function For 200 Point

PCD Circle Equally Dividing Holes

Angular Surface Processing

The Progressive Progressing

The Function Calculator Function

N3 Function

Scale fufures
