4G Fixed Wireless Terminal UMTS GSM GPRS/EDGE SIMCard PhoneLine Desktop Caller Dialer Standard DTMF for M2M IOT Application LTE
価格:
$64.40
/Pc
払い戻し:
シェア:
売れ筋商品

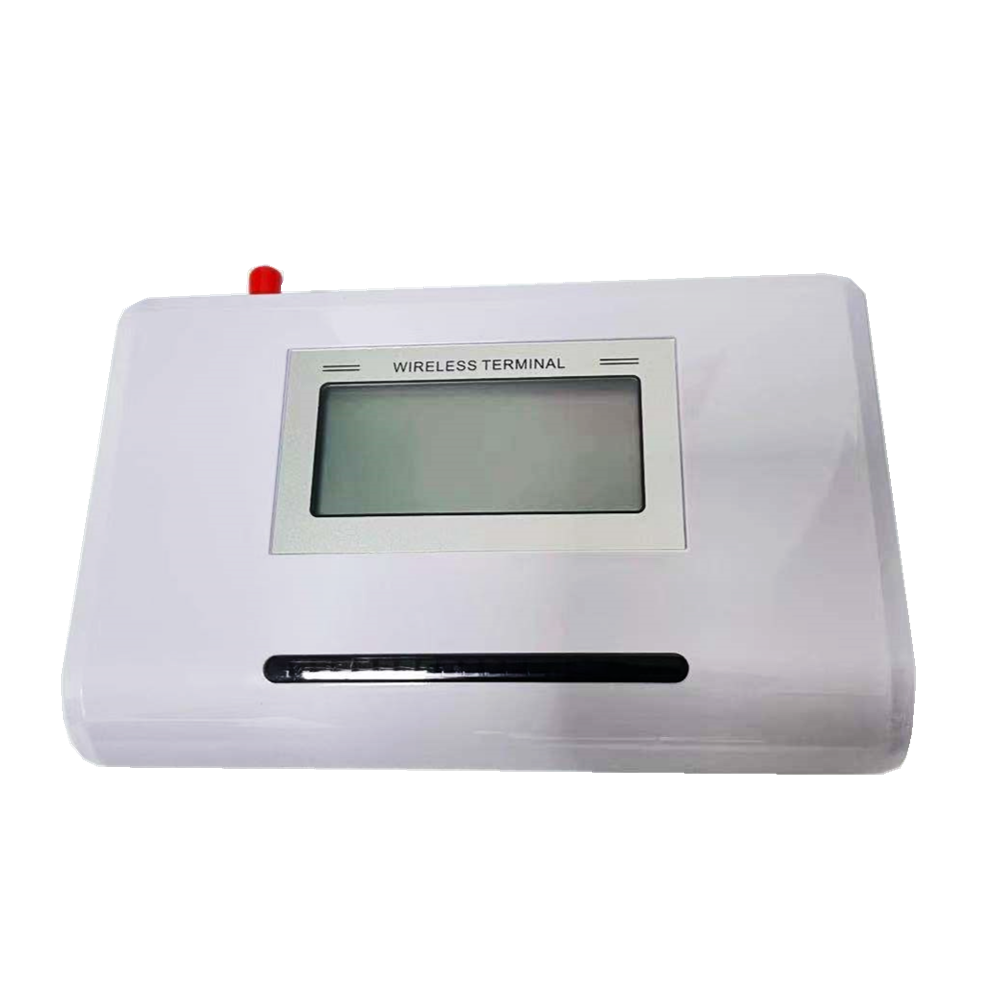

4G LTE Wireless Terminal/Phone With LCD Display
You can dial the local calls, domestic and international calls with this terminal connecting with a desktop phone and a 4G Mobile phone card
Sultable for Alarm System! Compatible with LTE FDD: B3/B7/B28 widely used with many providers
Simple to install and easy to maintain, A directional higher gain antenna can be connected to solve the poor coverage problem.
How to use this device?

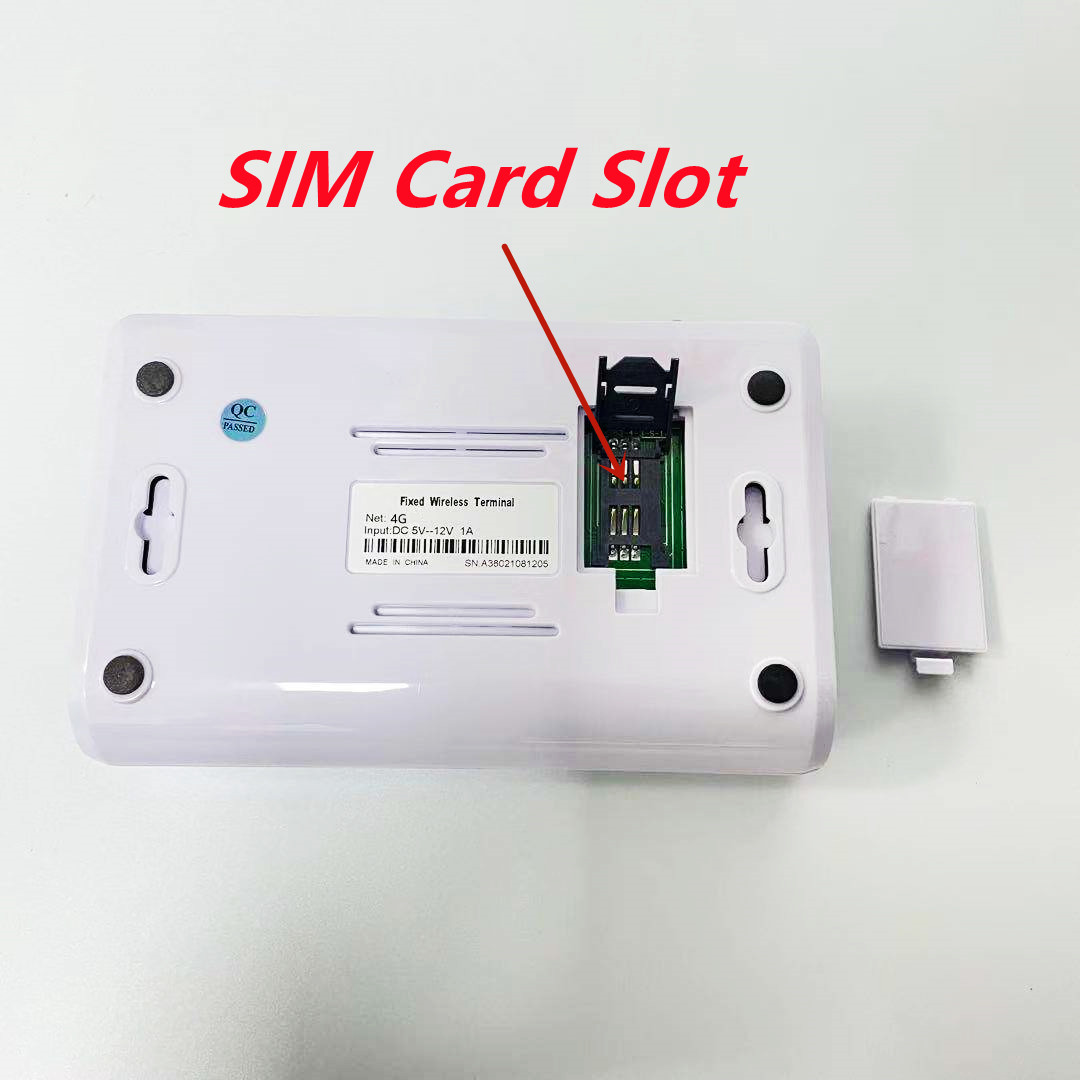

Step 1: Install a 4G Mobile phone Card
Insert the phone card only when the terminal is switched off and the AC adapter is unplugged
Step 2: Connect the 4g Antenna
For antenna connection, you can use your mobile phone to search for the place where the strongest signal is, then put the antenna there. Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal. Please do not make the antenna and the terminal too close to the TV set, computer, and radiogram etc. It will disturb the signal of the terminal.
Step 3:Connecting your terminal with desktop phone
To make calls, you should connect the telephone line with RJ11 phone port of 4G LTE terminal and telephone set

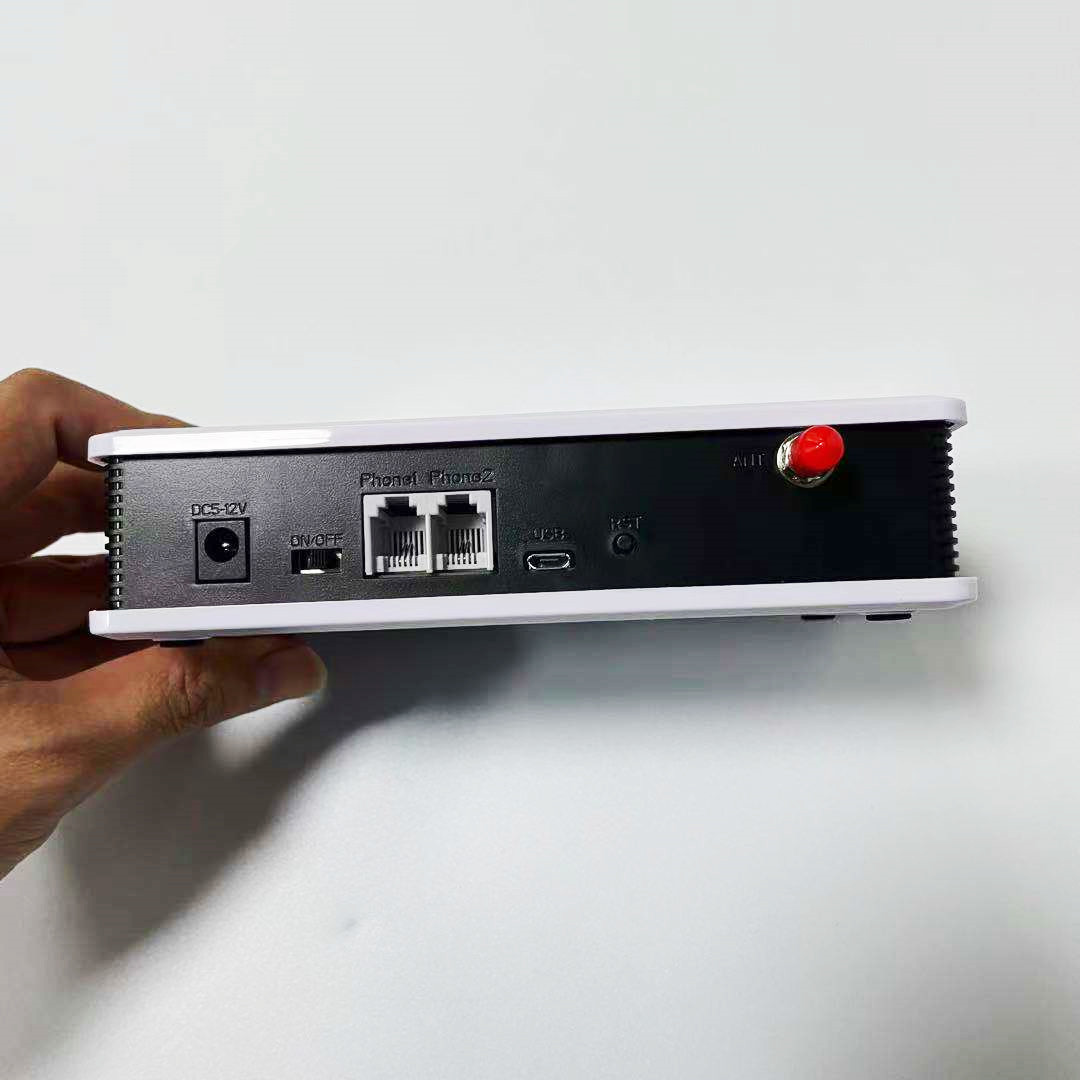

There is one communication portal at the side of the terminal .You can connect one desktop phones with terminal. (Please use the telephone line in the package)
Step 4: Connect power adapter and switch on the power.
Step 5: For a while, the device get signal and enter normal working status.
Step 6: Make phone call (dial in and dial out) with your telephone set that connected with terminal.
The phone number of desktop phone is the 4G mobile phone card number inside terminal.
Specifications
Compatible to PABX, alarm system, the recording system, etc.
1.Networks support:
LTE FDD
2. Frequency range:
LTE FDD: B3/B7/B28
3. Voltage DC 5V-12V
4. Power consumption:
Statics≤25mA emission≤300mA
5. Peak power consumption: 0.5W
6. Receive sensitivity: -104db
7. Antenna increment: All directions: 3.0db; Certain/Selection: 12db
8. RJ11 Port
9. Operation environment temperature: -10~+40℃
10. Dimensions: 160*105*30mm
11.Telephone line length: 150cm / 59 inch
EU, US, UK, AU power plug for choice, will send corresponding plug to fit your country.

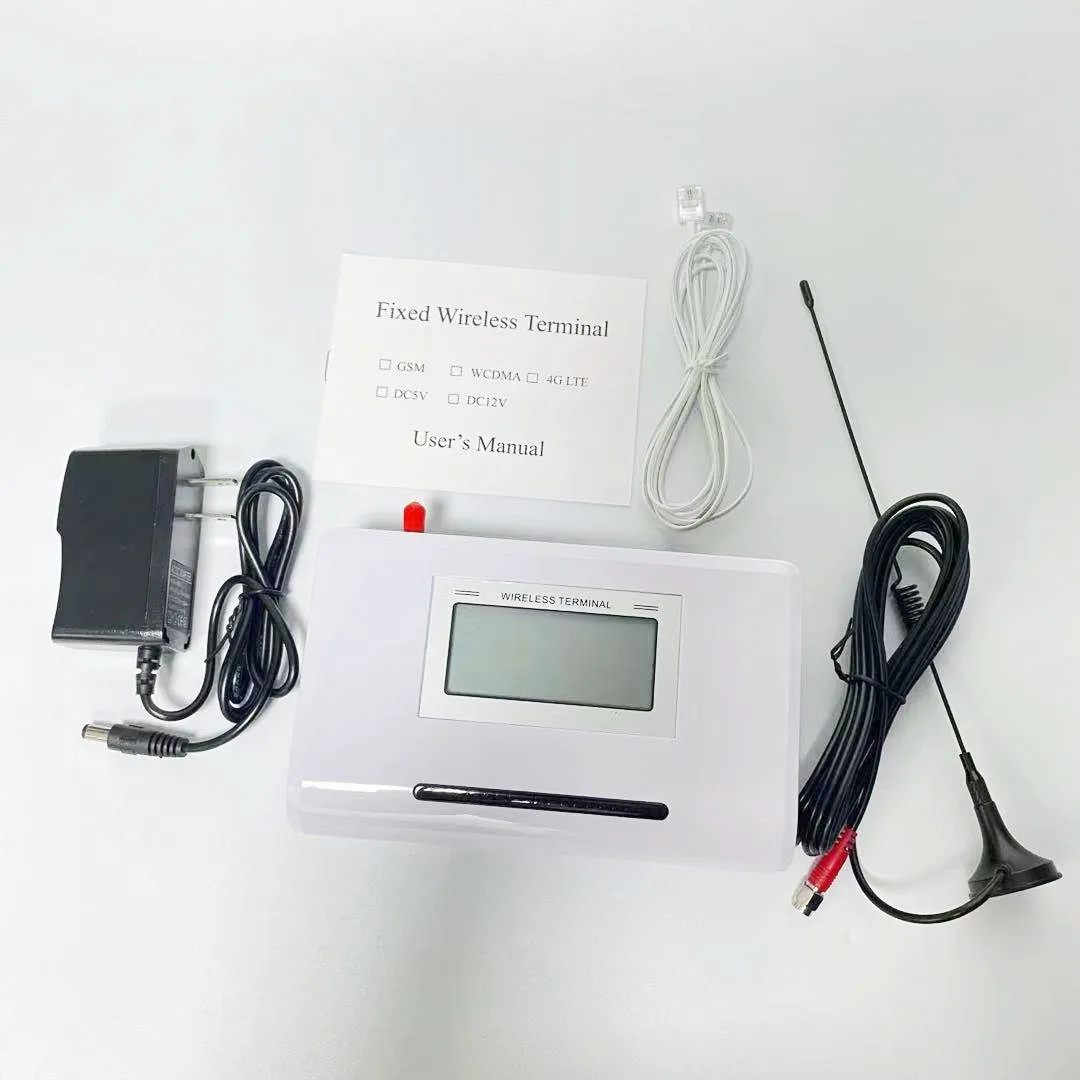

Package include:
1*Wireless terminal
1*Antenna
1*Power Adapter
1*Telephone Line
1*English Manual
