Magnetic Powder Brake Tension Controller 1500rpm Hollow Shaft DC24V 3/6/12/25/50/100Nm 0.3-10kg For Unwinding Speed Adjustment

Only Brake

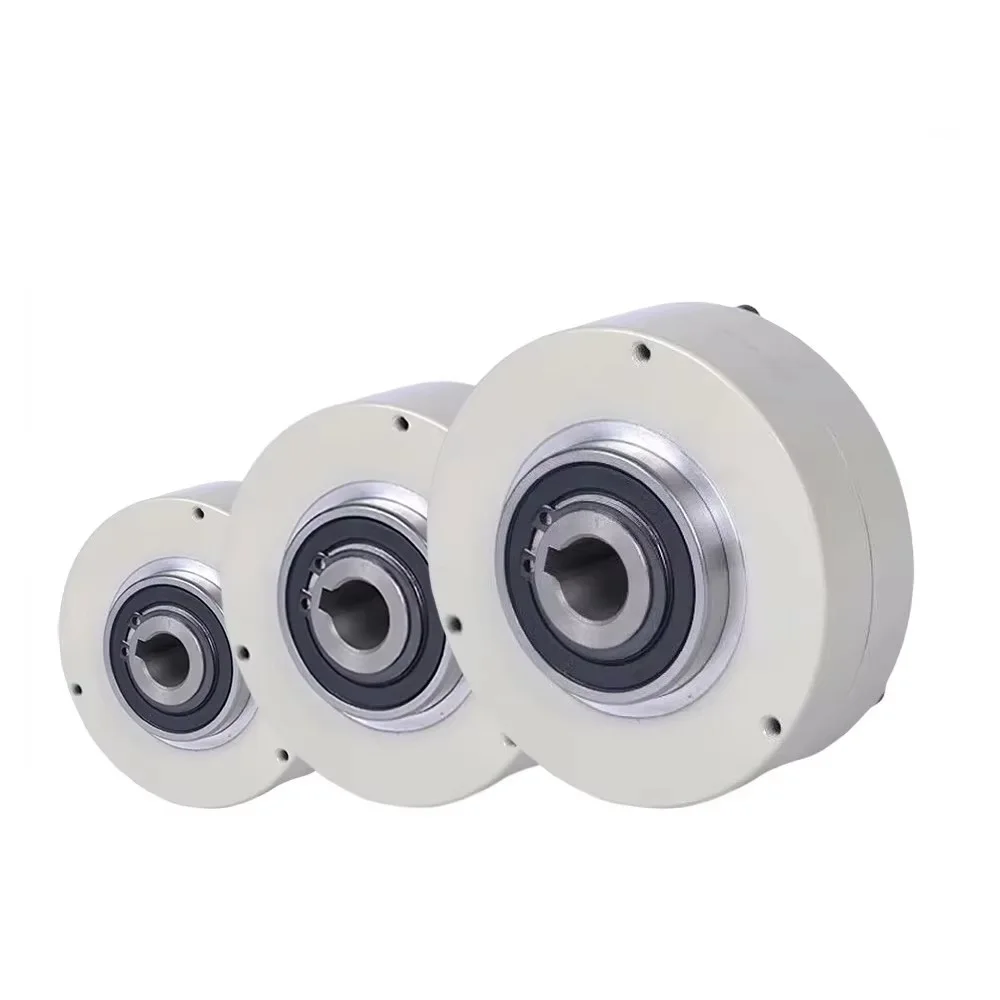

1* Hollow Shaft Magnetic Powder Brake

Brake with SJ-180A / TB-200S
1* Hollow Shaft Magnetic Powder Brake
1* Manual Tension Controller

Brake with KTC-812
1* Hollow Shaft Magnetic Powder Brake
1* Manual/Automatic Tension Controller
1* Hall Sensor

Brake with KDT-B-1000
1* Hollow Shaft Magnetic Powder Brake
1* Automatic Tension Controller
1* Hall switch
2* Pressure Sensor

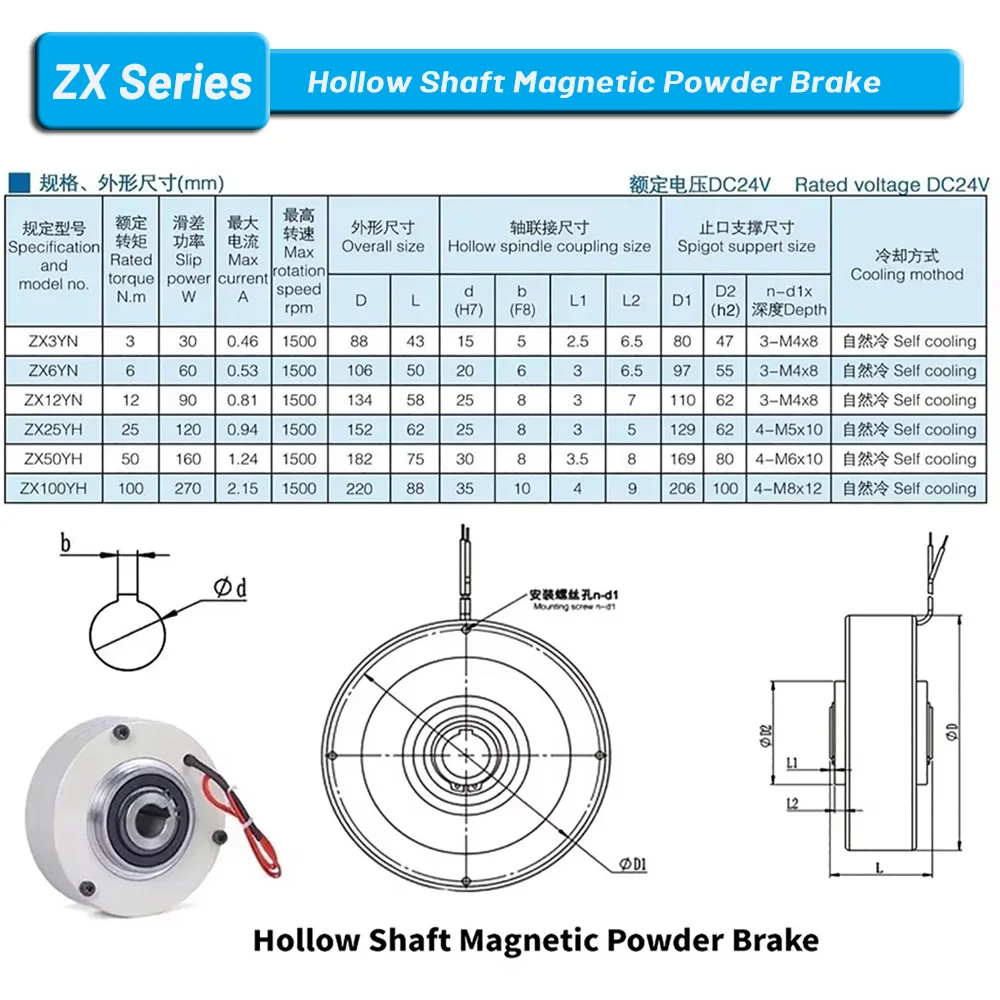

The maximum load that the product can withstand

3N.m (0.3kg): maximum load 12kg

6N.m (0.6kg): maximum load 25kg

12N.m(1.2kg): maximum load 45kg

25N.m(2.5kg): maximum load 80kg

50N.m(5kg): maximum load 15kg

100N.m(10kg): maximum load 300kg

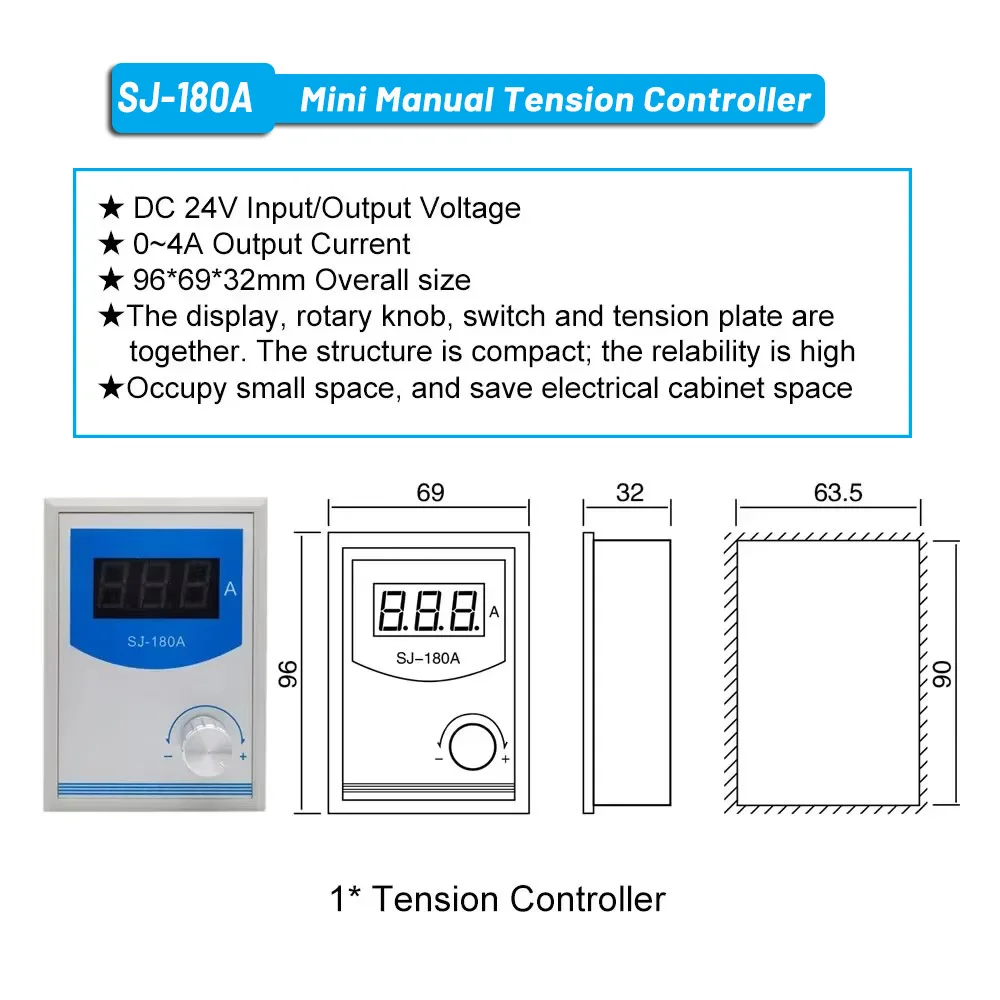

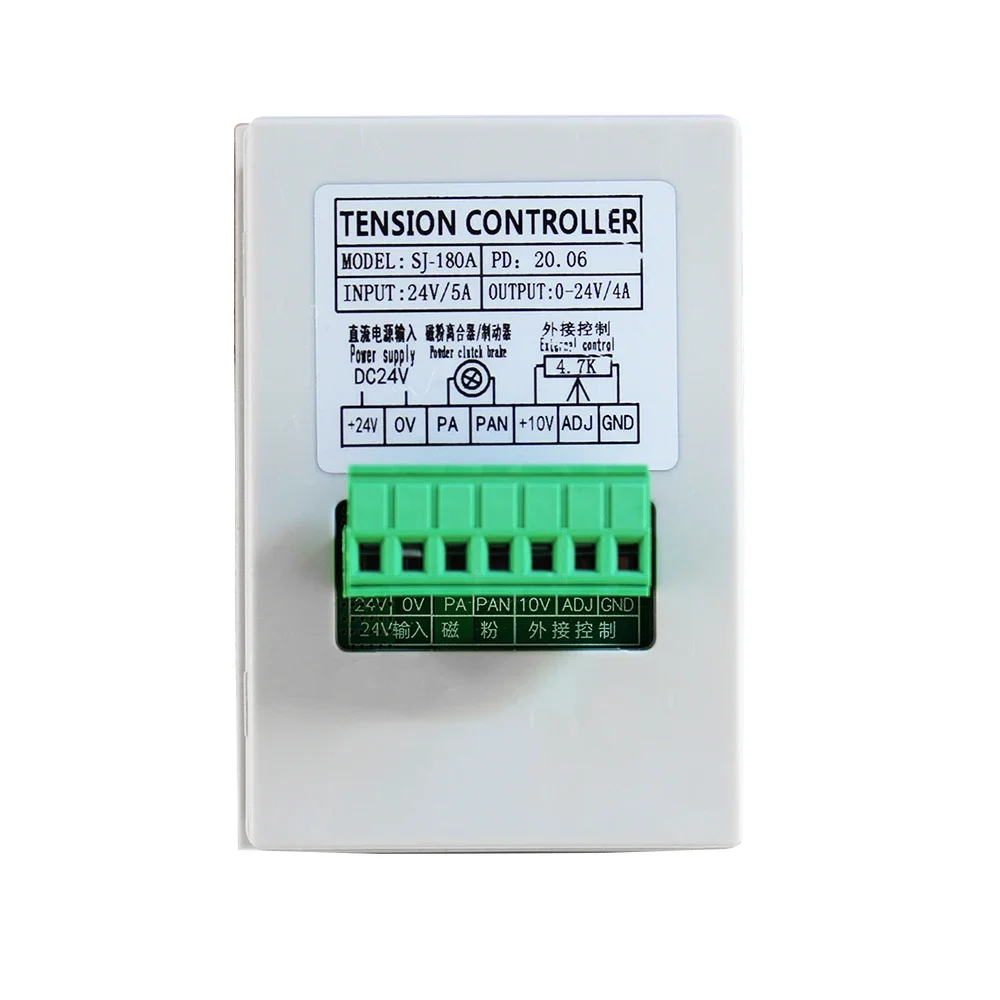

SJ-180A---Mini Manual Tension Controller
Input Voltage: DC 24V

Output Voltage: DC 24V

Output Current: 0~4A
Overall size: 96*69*32MM
Type: Manual controller / PLC / Potentiometer

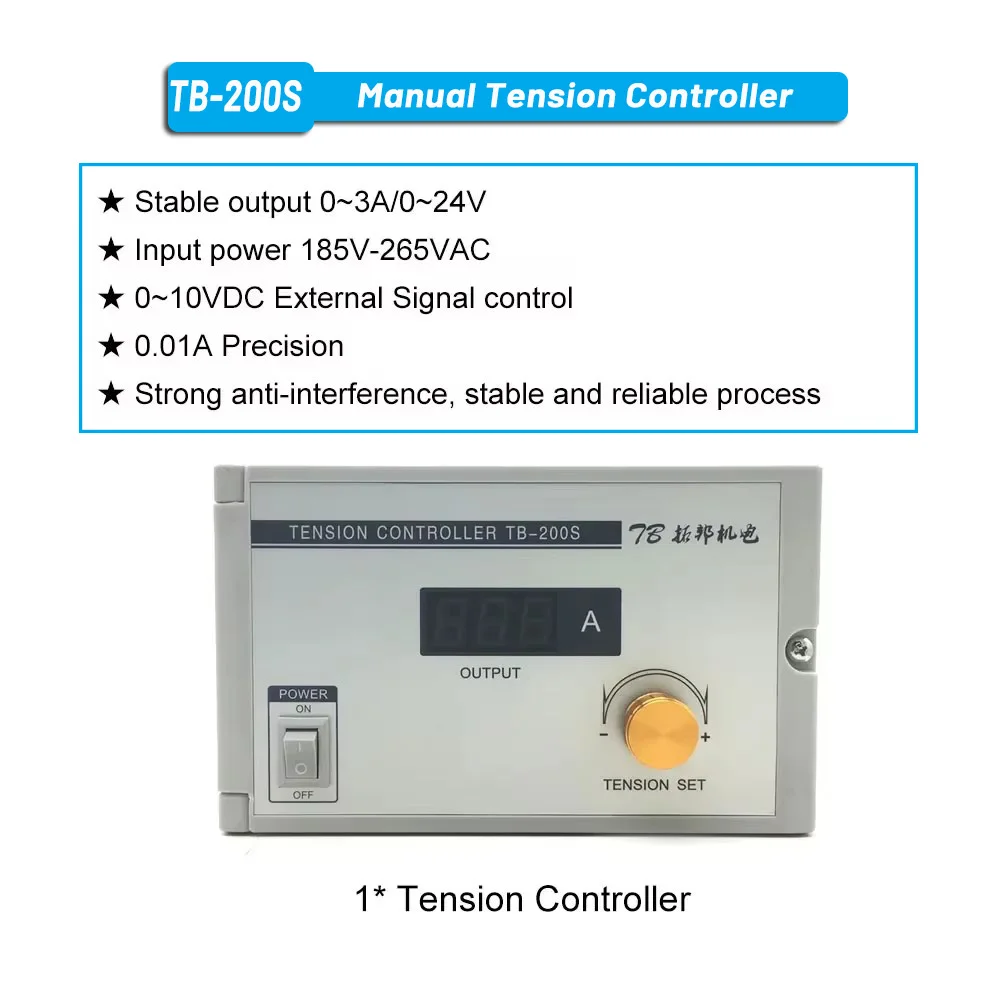

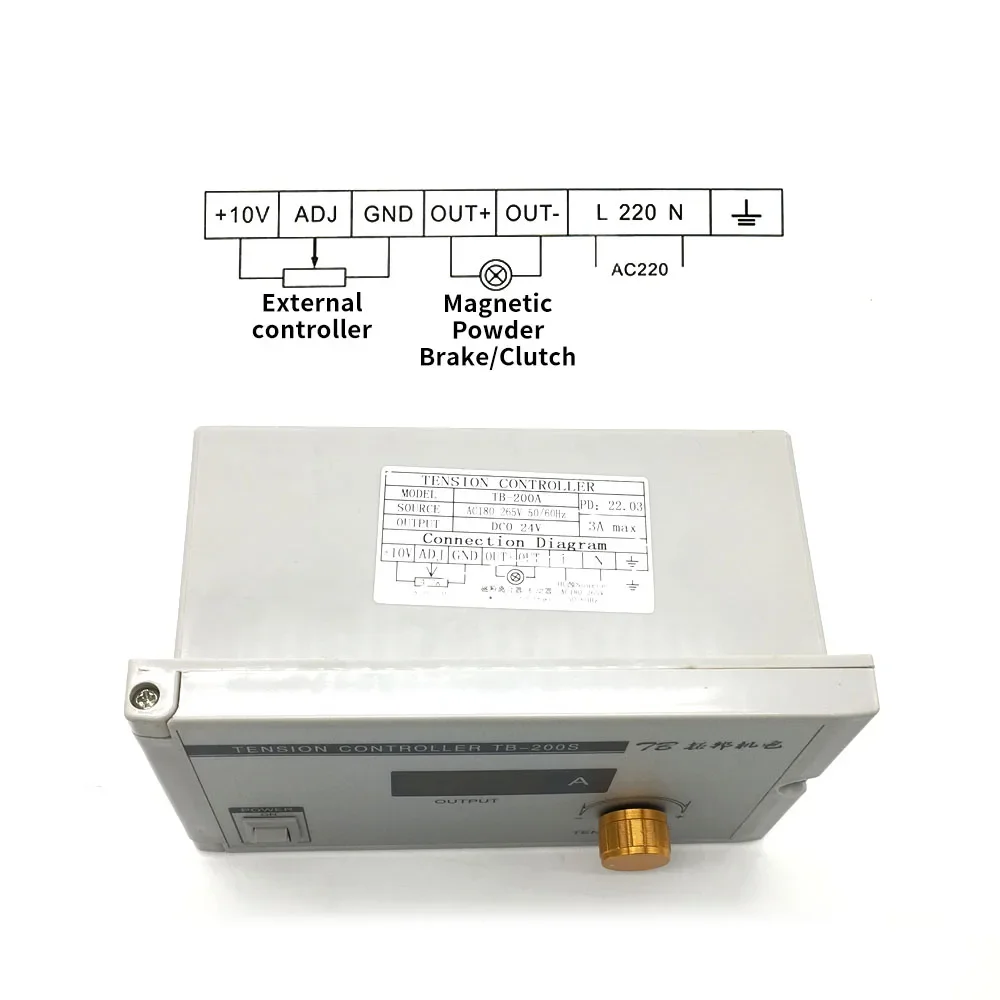

TB-200S---Manual Tension Controller


Power Supply: 185V-265VAC 50/60Hz
Output Voltage:0~24VDC(0-3A)

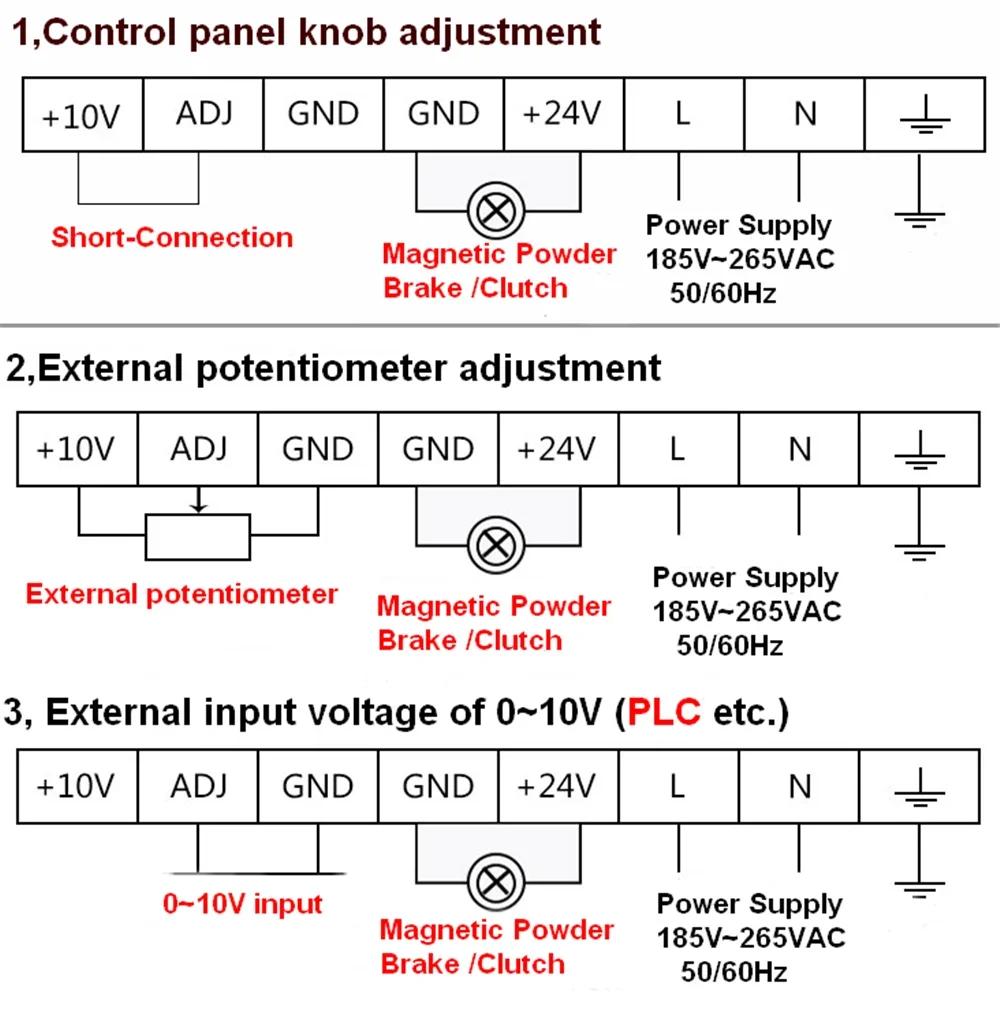

External Signal control: 0~10VDC

Precision: 0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
Overall size: 160*100*70MM
Mounting size: 163*103*70MM

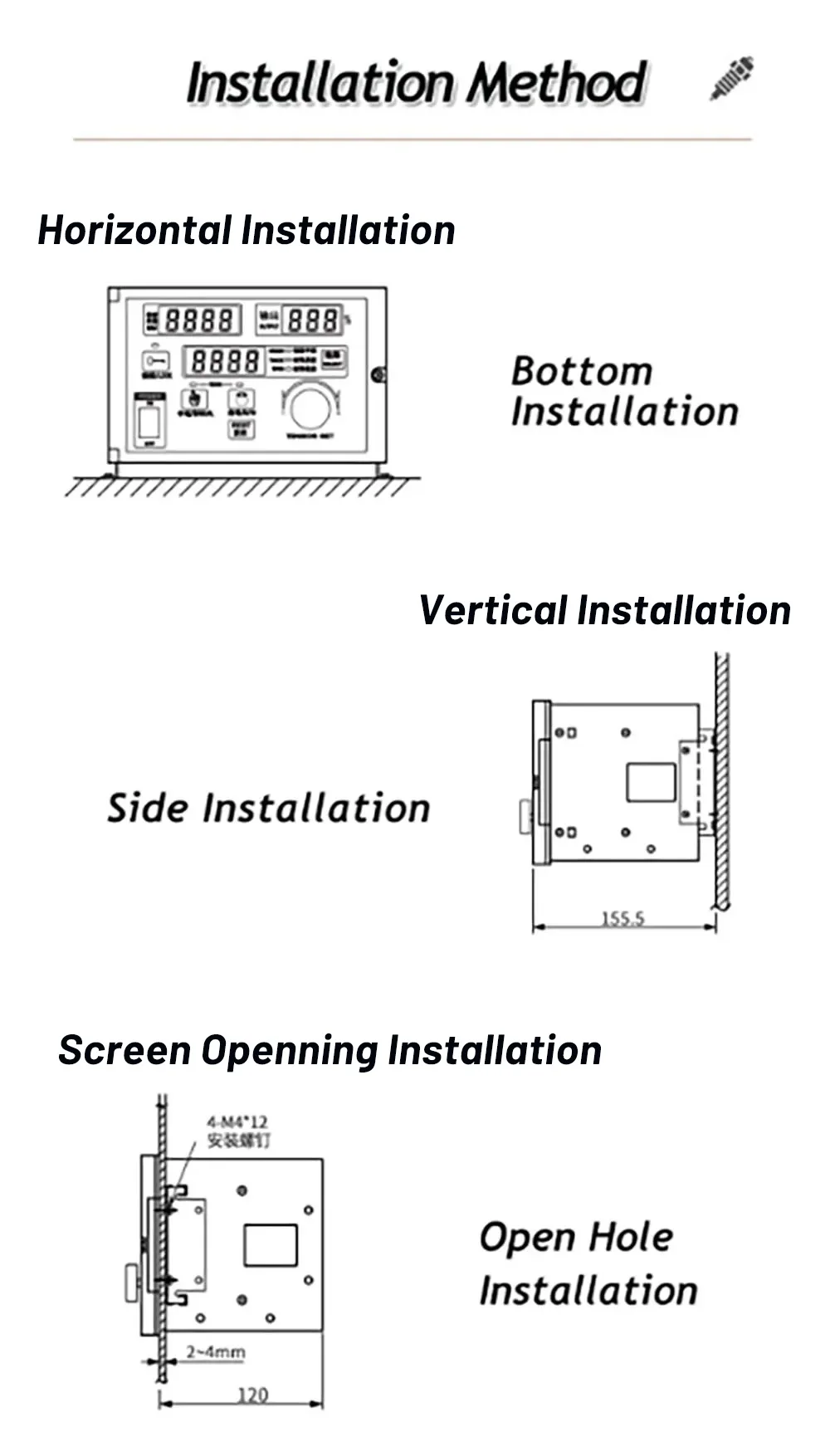

Installation: wall-mounted, floor-mounted, embedded

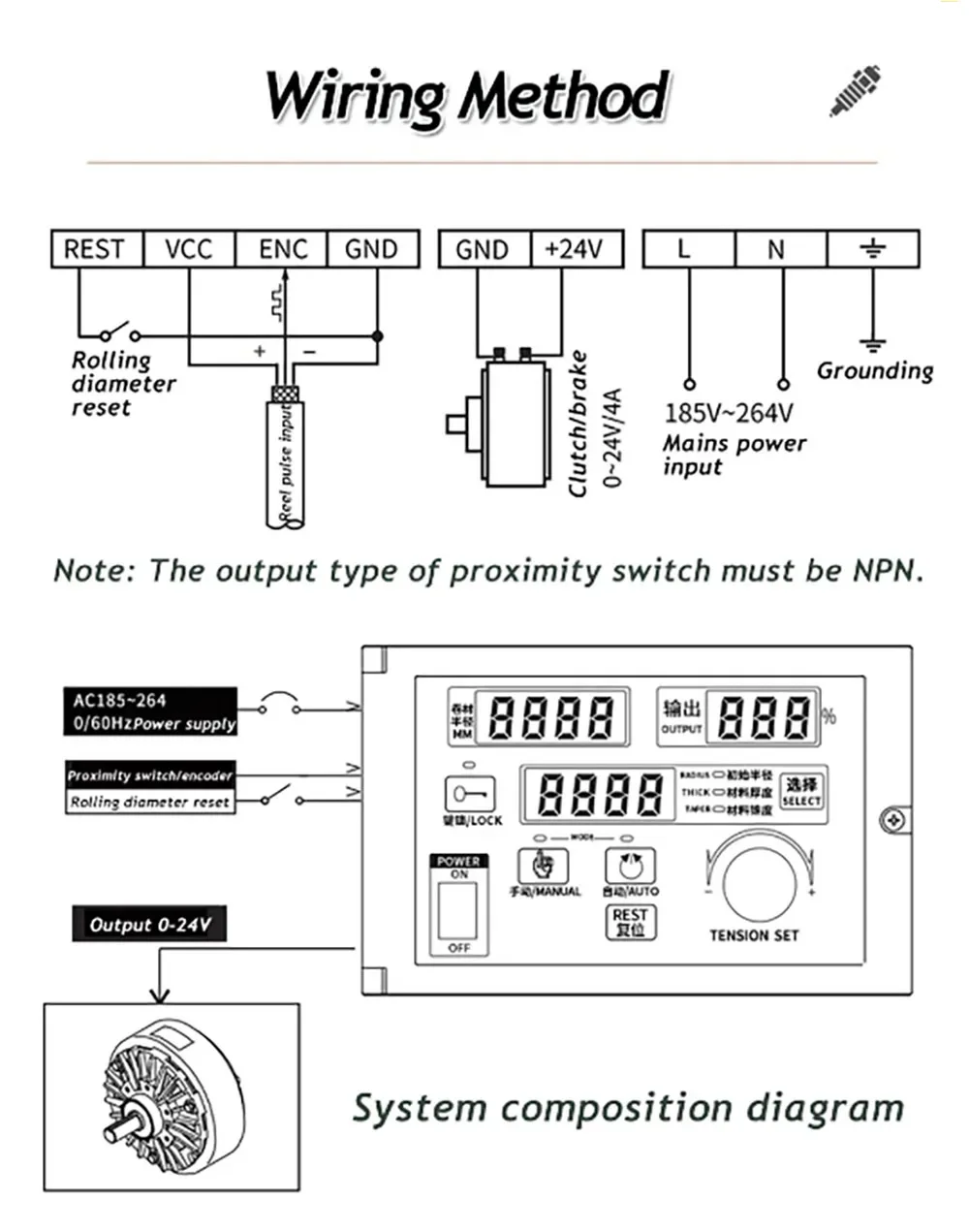

KTC-812---Semi-automaticTension Controller
Features:
★ Manual/automatic operation
★ Encoder or Hall switch can be connected
★ Automatic calculation of coil radius
★ It can store the parameters of 9 different materials
★ Constant tension/taper tension control
★ Output 0 - 2 4 V/4 A, automatic overcurrent protection
★ All parameters and states of the automatic memory system
★ Adjustable magnetic powder brake/clutch torque compensation


Power Supply: 185V-265VAC 50/60Hz

Output Voltage: 0~24VDC

Output current: 0-4A
External Signal control:0~10VDC

Precision: 0.01A
Overall size: 181*110*120MM
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade

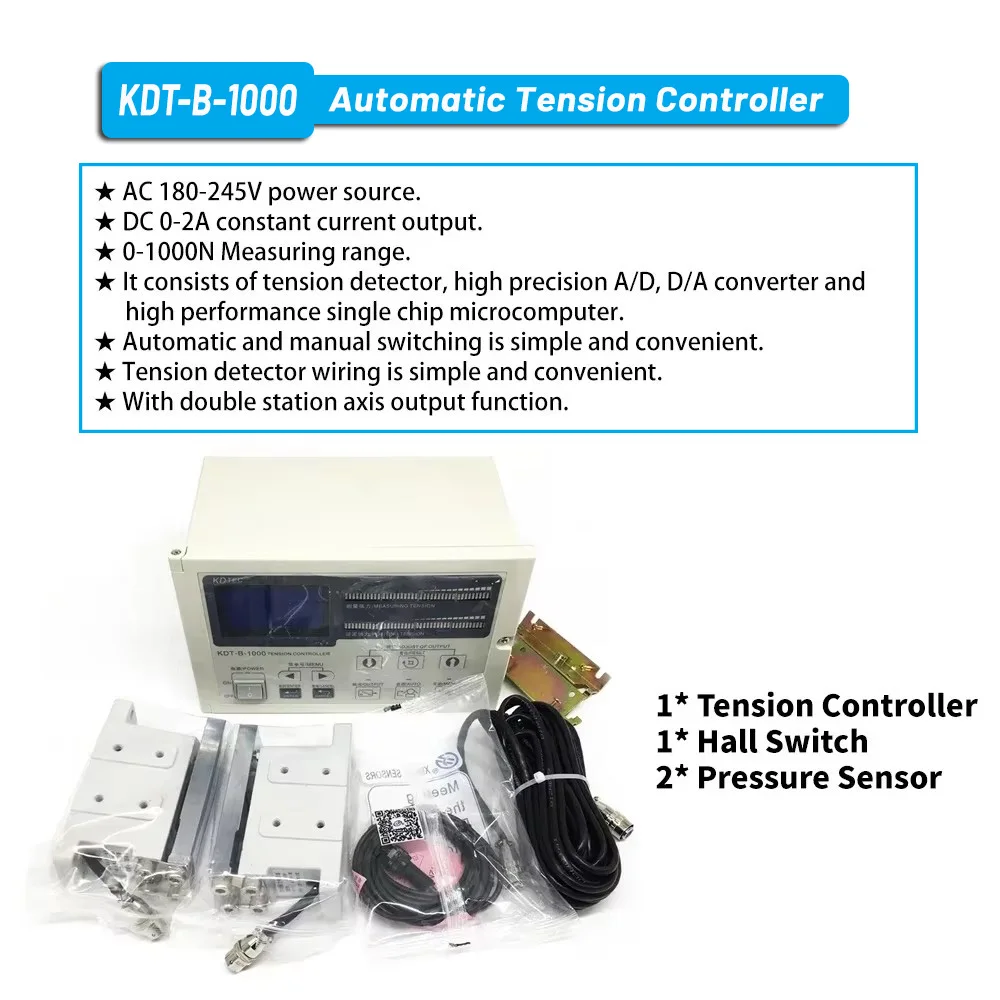

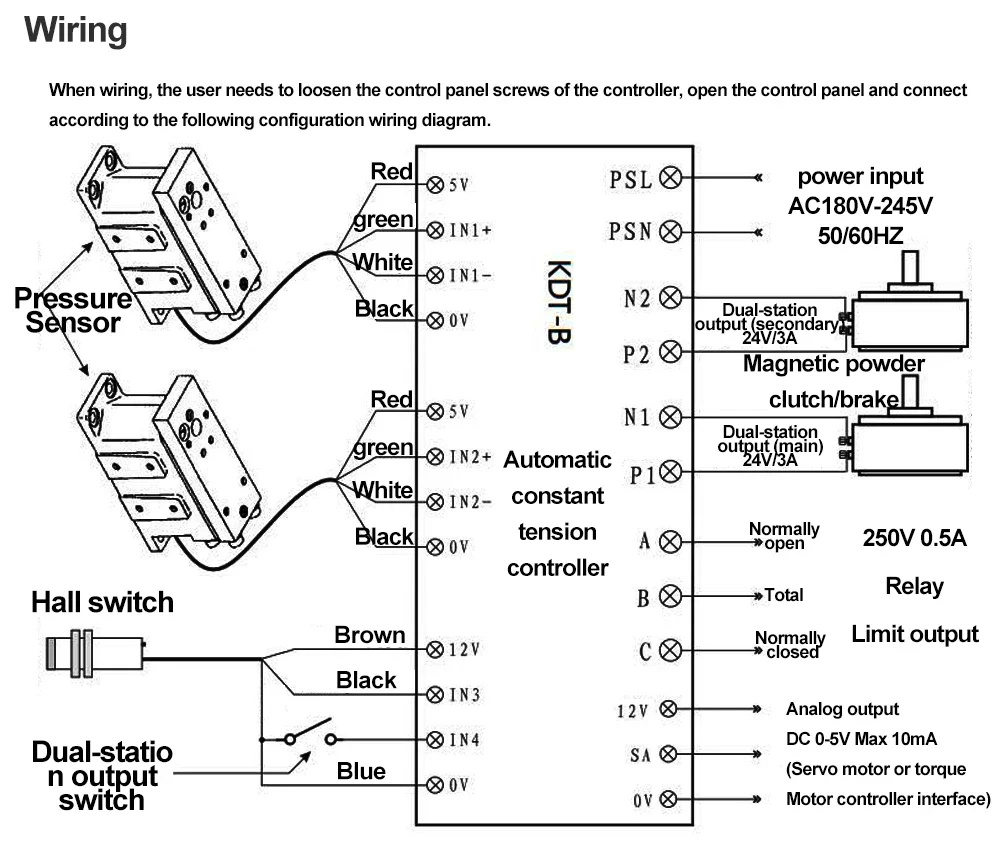

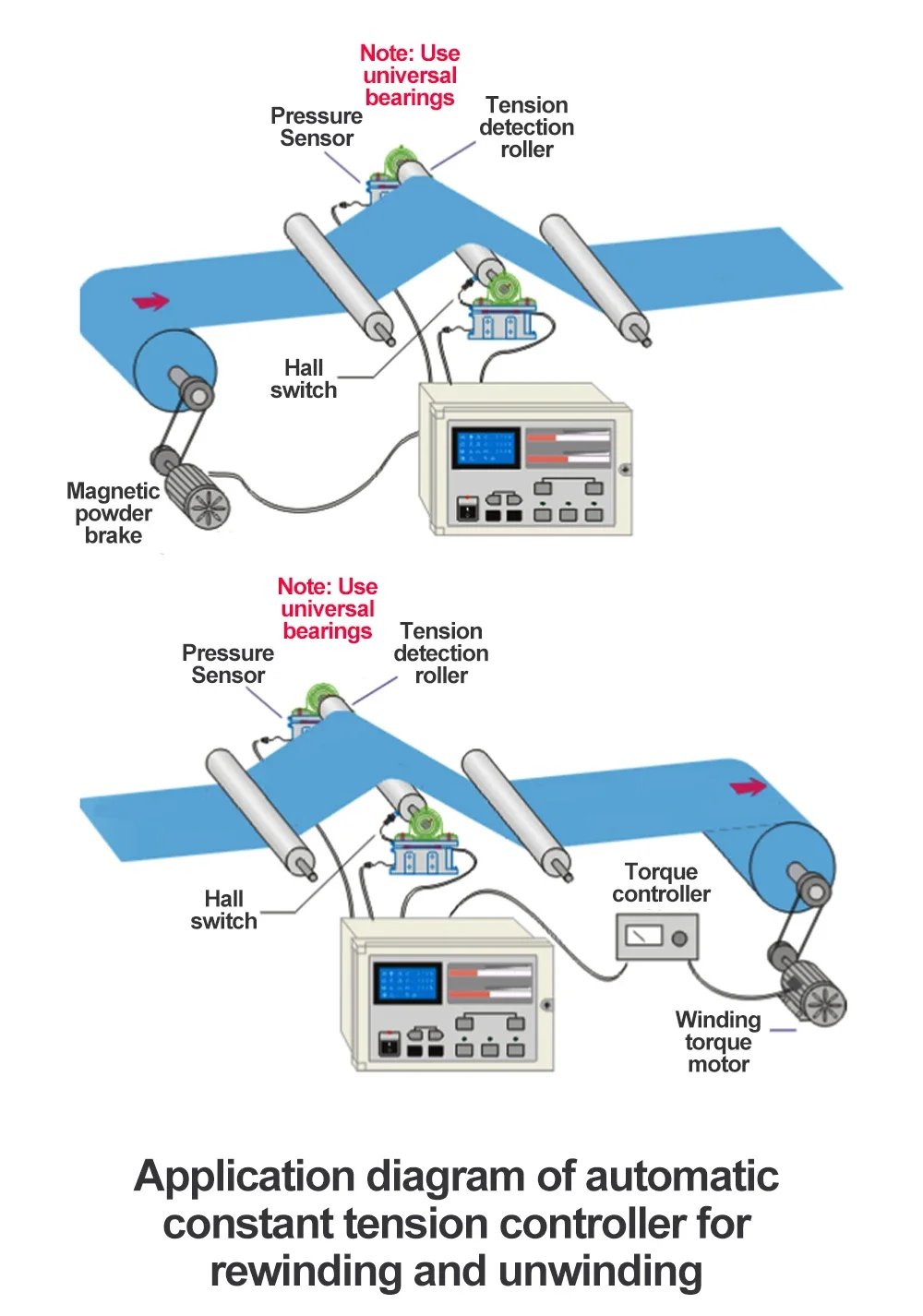

KDT-B-1000---Semi-automaticTension Controller
Features:
★ It consists of tension detector, high precision A/D, D/A converter and high performance single chip microcomputer.
★ It can be widely used in various occasions where precision measurement and control is required. It has flexible use and wide applicability.
★ LCD display can be displayed in Chinese or English.
★ Automatic and manual switching is simple and convenient.
★ Tension detector wiring is simple and convenient.

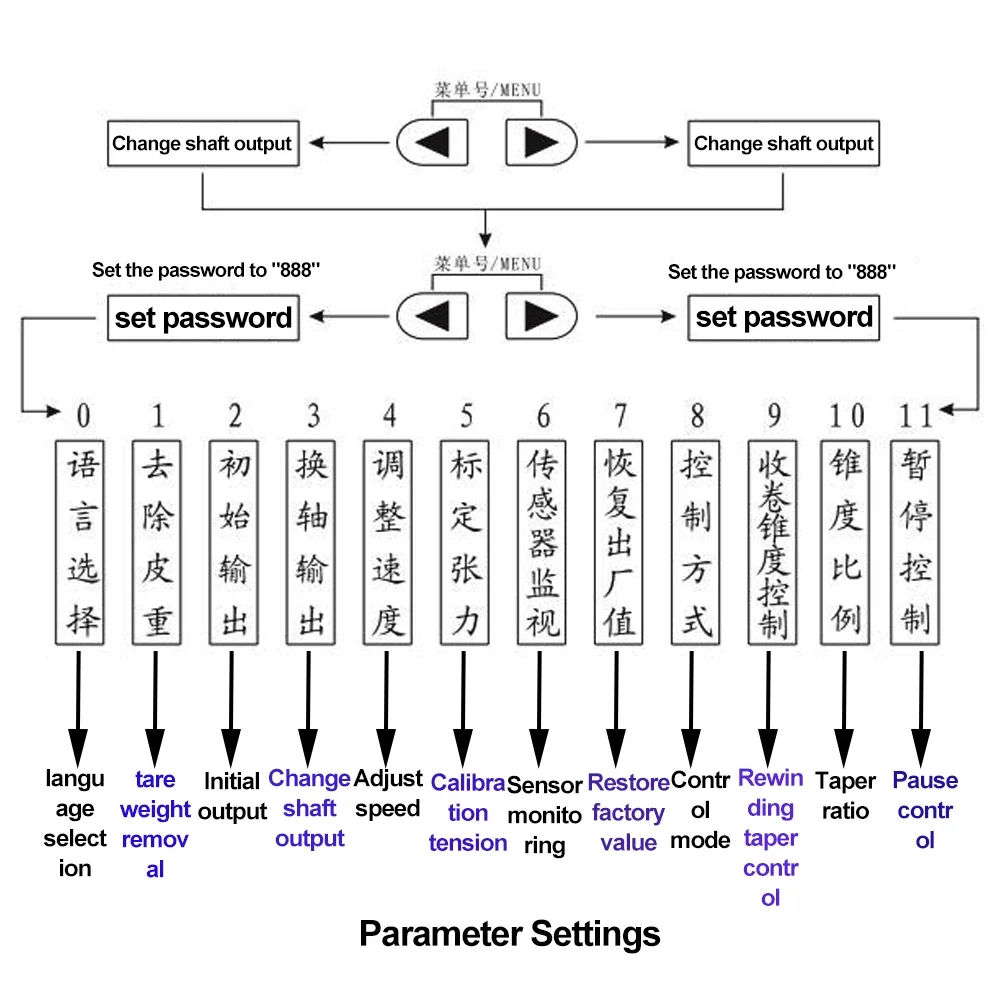

★ Convenient parameter settings.
★ With double station axis output function.
Measuring range:0-1000N
Measurement accuracy:less than 1N
Sampling speed:100 milliseconds
Main output mode:DC 0-2A constant current output (adapted load impedance 8-12Ω)

Auxiliary output: DC 0-5V (MAX 10MA) analog signal output

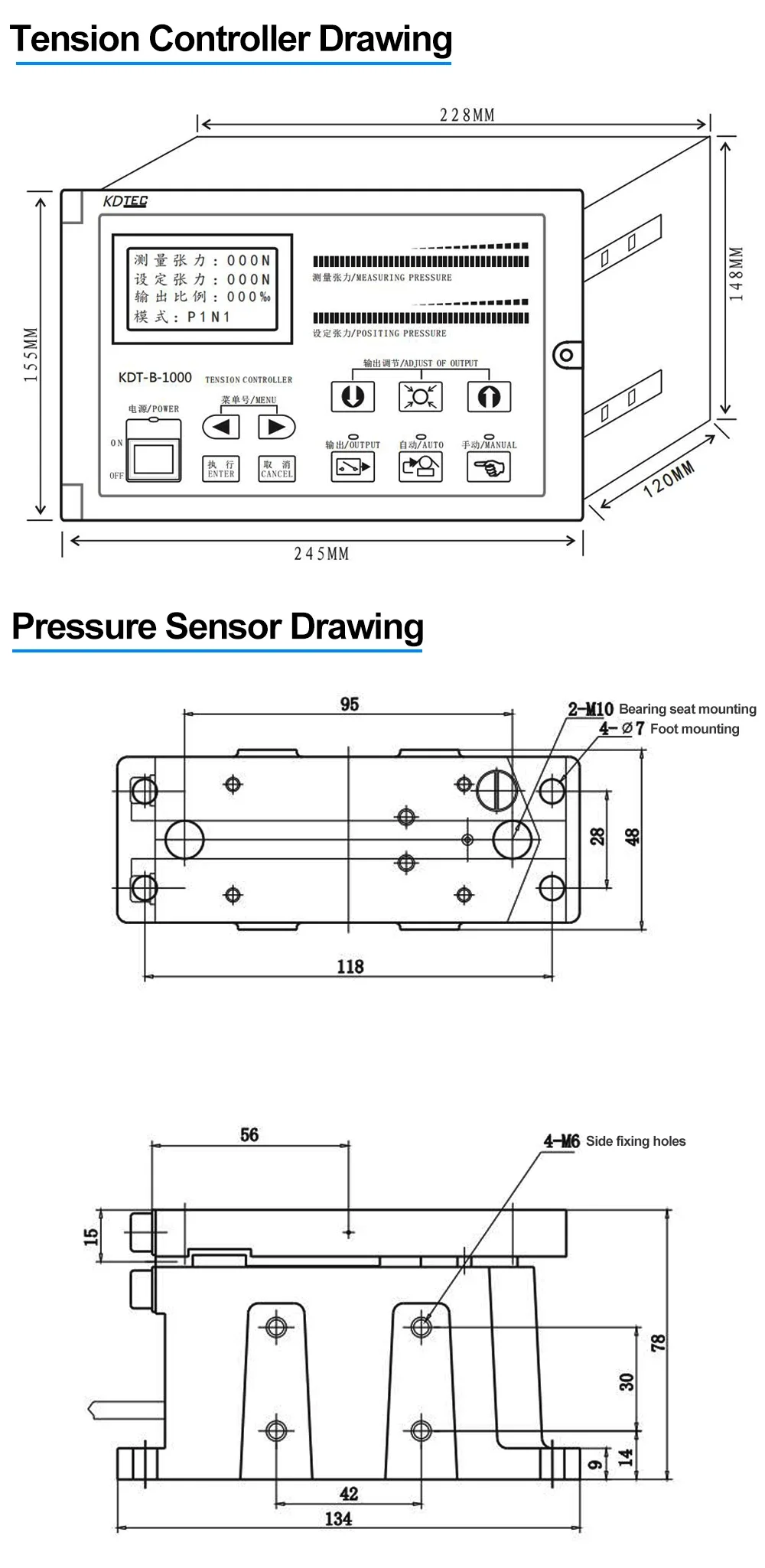

Dimensions: 245*155*140mm

Installation size: 230*150*120mm
Power source:AC 180-245V 50/60Hz
Manual:Please click here to open
