Magnetic Flip Level Gauge Magnetic Float Level Indicator Liquid Level Sensor Magnetic Flap Level Gauge for Tanks and Liquids
The default flange connection standard is DIN/EN1092-1-2018 (German/European standard). Please refer to the dimension chart on the product details page for specific flange sizes.
If you require customized flanges in other standards such as ANSI/ASME (American standard), JIS (Japanese standard), BS (British standard), or GOST (Russian standard), please contact us.
1. NOTE
Since magnetic level indicators are fully customizable products, we strive to standardize them as much as possible. However, to ensure seamless use and optimal configuration, we strongly recommend discussing the parameter details with you directly. If convenient, please feel free to contact us via WhatsApp or other communication platforms!

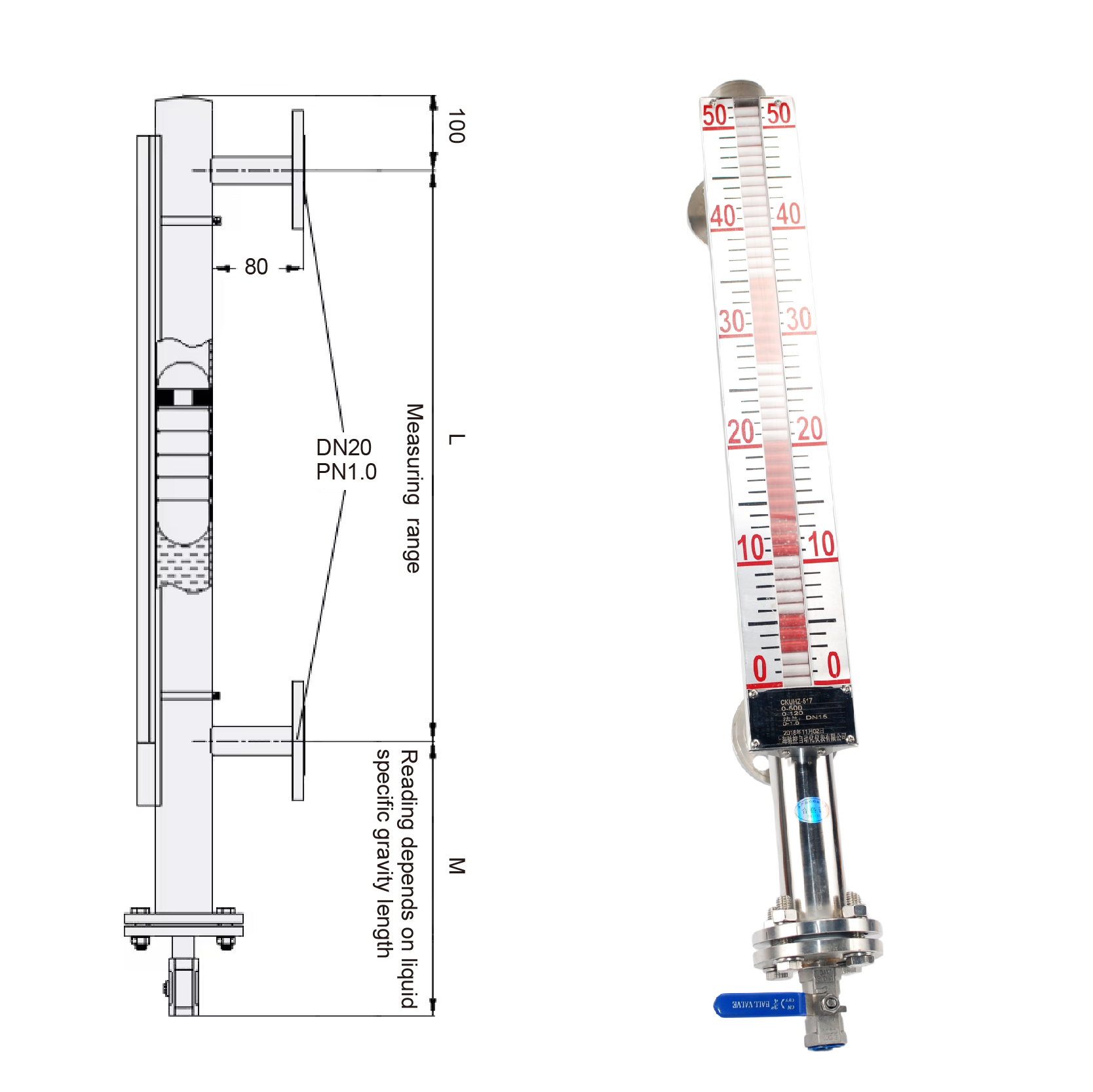

The selection options listed on the webpage correspond to the standard side-mounted magnetic level indicators, which are designed for installation on the side of tanks. The specified measuring range reflects the actual liquid level range you intend to monitor. Please note that due to the presence of a drain valve, an additional 35 cm should be added to the bottom of the specified range to determine the approximate total length of the level indicator.
Our default parameters are as follows:
·Material: Body made of 304 stainless steel
·Connection: DN25 flange
·Float Compatibility: Default float is suitable for water with a density of 1
·Temperature Resistance: Up to 80°C
·Pressure Resistance: Up to 1.6 MPa
Factors Affecting the Price Include:
·Body Material: Options such as 316L stainless steel or PTFE
·Connection Type: Customized options available
·Pressure Rating: Higher pressure requirements
·Temperature Requirements: Low or high-temperature specifications
If the default configuration does not meet your actual usage needs, please be sure to contact us. Thank you
Applicable Medium:
·Suitable for a wide range of liquids, including water, oil, acids, and alkalis.
·Commonly used in chemical, petrochemical, water treatment, and industrial applications.
Connection Method:
·Standard options include flanged or threaded connections.
·Fully customizable based on system requirements.
Material Selection:
·Tailored to specific needs with options like stainless steel, PVC, or PTFE for corrosive environments.
·Floats are designed to match the density of the liquid for precise readings.
Signal Output (Optional):
·Magnetic flip panels for local indication.
·Optional remote monitoring with 4-20mA, limit switches, or digital communication modules.
Customization and Installation Requirements:

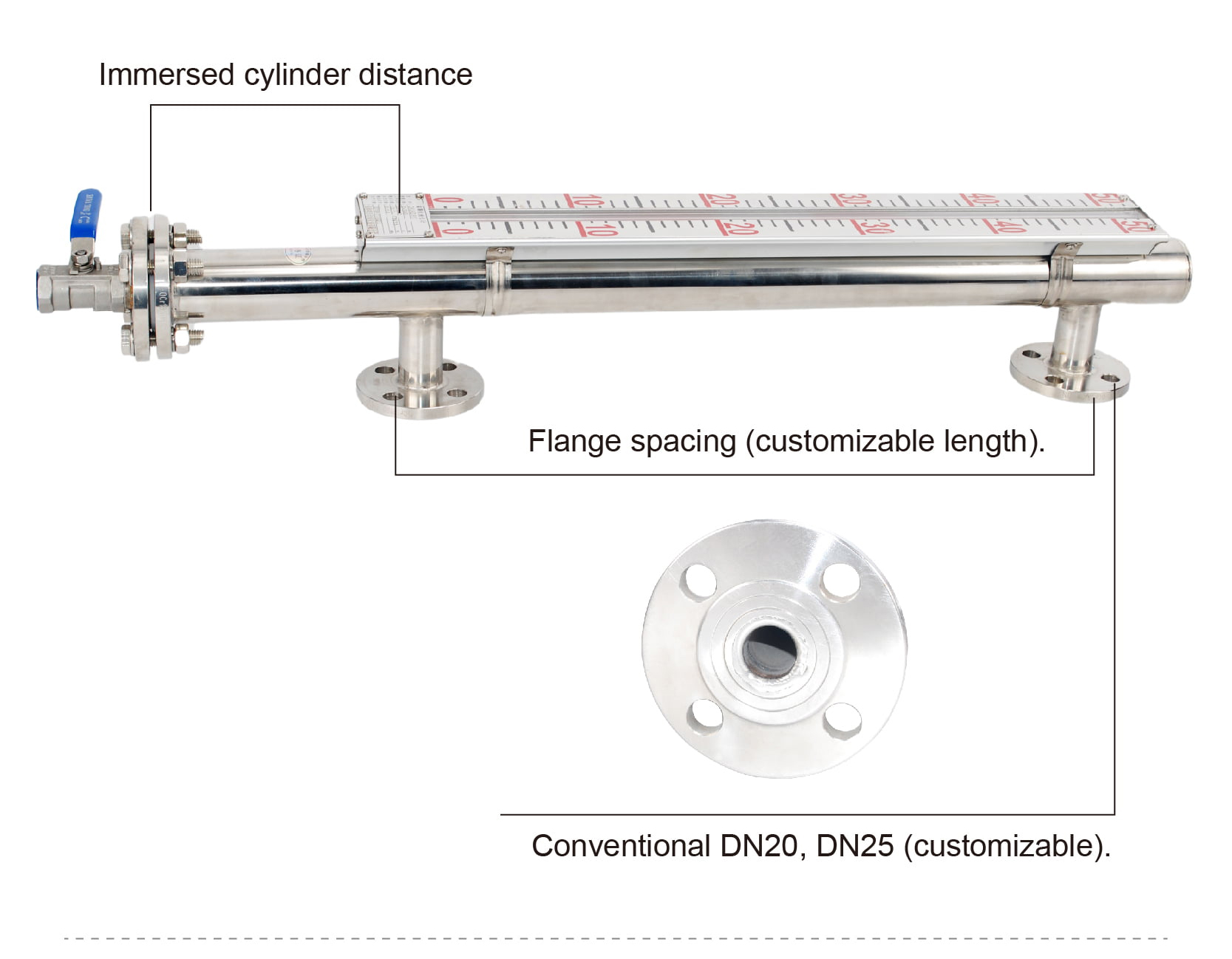

·Highly customizable: flange center distance, flange standard, operating pressure, and temperature are fully configurable.
·Vertical installation is required, with proper support to prevent ·vibration or misalignment.
Shipping Note:
·Due to the product's volume and specific configurations, shipping costs will vary. Contact us for real-time freight calculations based on your order and destination.
Conclusion:
We are a professional supplier of industrial instruments and offer fully tailored solutions to meet your specific needs. Contact us today for technical support or to discuss your requirements.
2. PARAMETERS
Product Brand | CERTEON |
Model | CK-UHZ-517 |
Material | SS304/316L/ PP/ PCV/PTFE |
Output | None / 4-20mA / Switch |

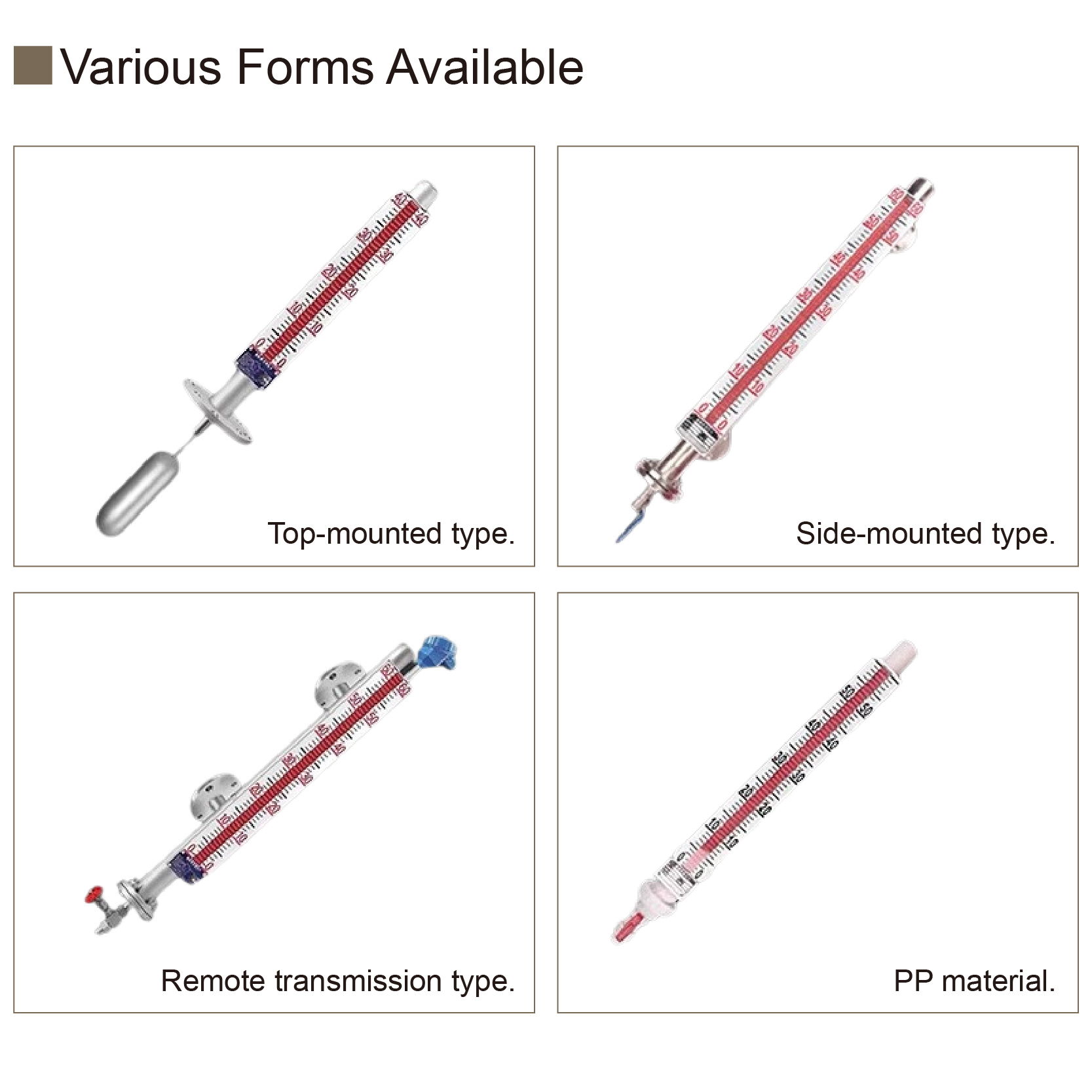

Installation | Side-mounted/Top-mounted |
Temperature | 80℃（max 350°C ） |
Pressure | 1.6MPA（max 28MPA ） |
Flange size chart
DN | Outer Diameter (D) | Bolt Circle Diameter (K) | Number of Bolt Holes - Diameter (n-φL) | Flange Thickness (C) | Raised Face Height (f) |
10 | 90 | 60 | 4-φ14 | 14 | 2 |
15 | 95 | 65 | 4-φ14 | 14 | 2 |
20 | 105 | 75 | 4-φ14 | 16 | 2 |
25 | 115 | 85 | 4-φ14 | 16 | 2 |
32 | 140 | 100 | 4-φ18 | 18 | 2 |
40 | 150 | 110 | 4-φ18 | 18 | 3 |
50 | 165 | 125 | 4-φ18 | 20 | 3 |
65 | 185 | 145 | 8-φ18 | 20 | 3 |
80 | 200 | 160 | 8-φ18 | 22 | 3 |
100 | 220 | 180 | 8-φ18 | 24 | 3 |
Note: The above dimensions apply only to flanges of PN16 rating.
3. APPLICATION
Suitable for aquaculture, sewage treatment, medical machinery, and power industry applications.
Ideal for high-temperature, high-pressure, and corrosive environments.
Customizable for precise liquid level monitoring in complex conditions.
4. FEATURES
·Sealed and Durable: Fully isolated from the measured medium, ensuring no leakage. Suitable for high-pressure, high-temperature, and corrosive conditions.
·Clear and Reliable: Intuitive design with a wide measurement range and no blind spots.
·Customizable Design: High-quality 304 stainless steel flange (standard DN20/DN25), customizable in other materials.
·Low Maintenance: Simple structure, corrosion-resistant, and designed for long-term stability in demanding environments.
5. FAQ
Q1: What parameters should I confirm before purchasing?
A1: You need to confirm the measured medium (name, density, temperature), measurement range (flange distance), and flange size (default: DN20/DN25).
Q2: Can this product handle high temperatures and corrosive environments?
A2: Yes, the product is designed for high-temperature, high-pressure, and anti-corrosion applications using materials such as stainless steel and PTFE.
Q3: How do I ensure proper installation?
A3: Ensure the connection flange aligns, install vertically, and avoid magnetic materials nearby to prevent interference. Follow the provided calibration and safety instructions.
