Overview:
K12 is an LED display receiving card that supports both synchronous control system and asynchronous control system. It does not require an adapter board. It has 12 standard HUB75E interfaces on the board and has good stability. It supports 24 sets of RGB parallel data.

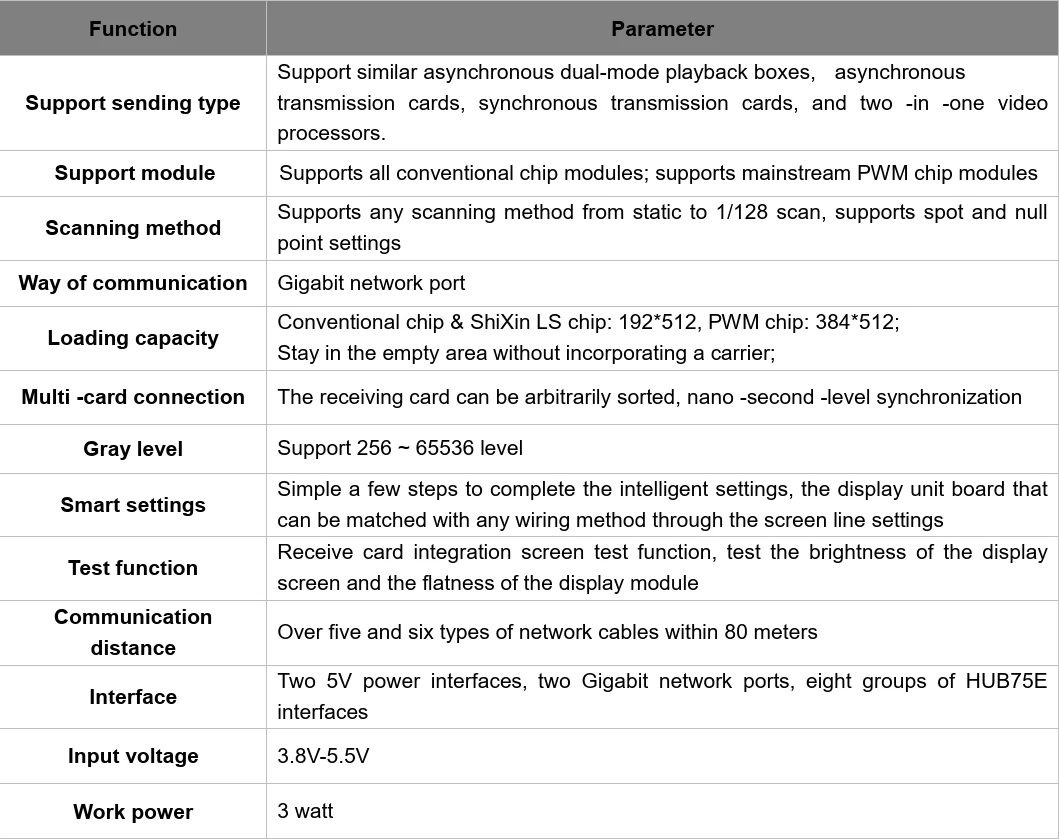

Parameters:
Connection Method:

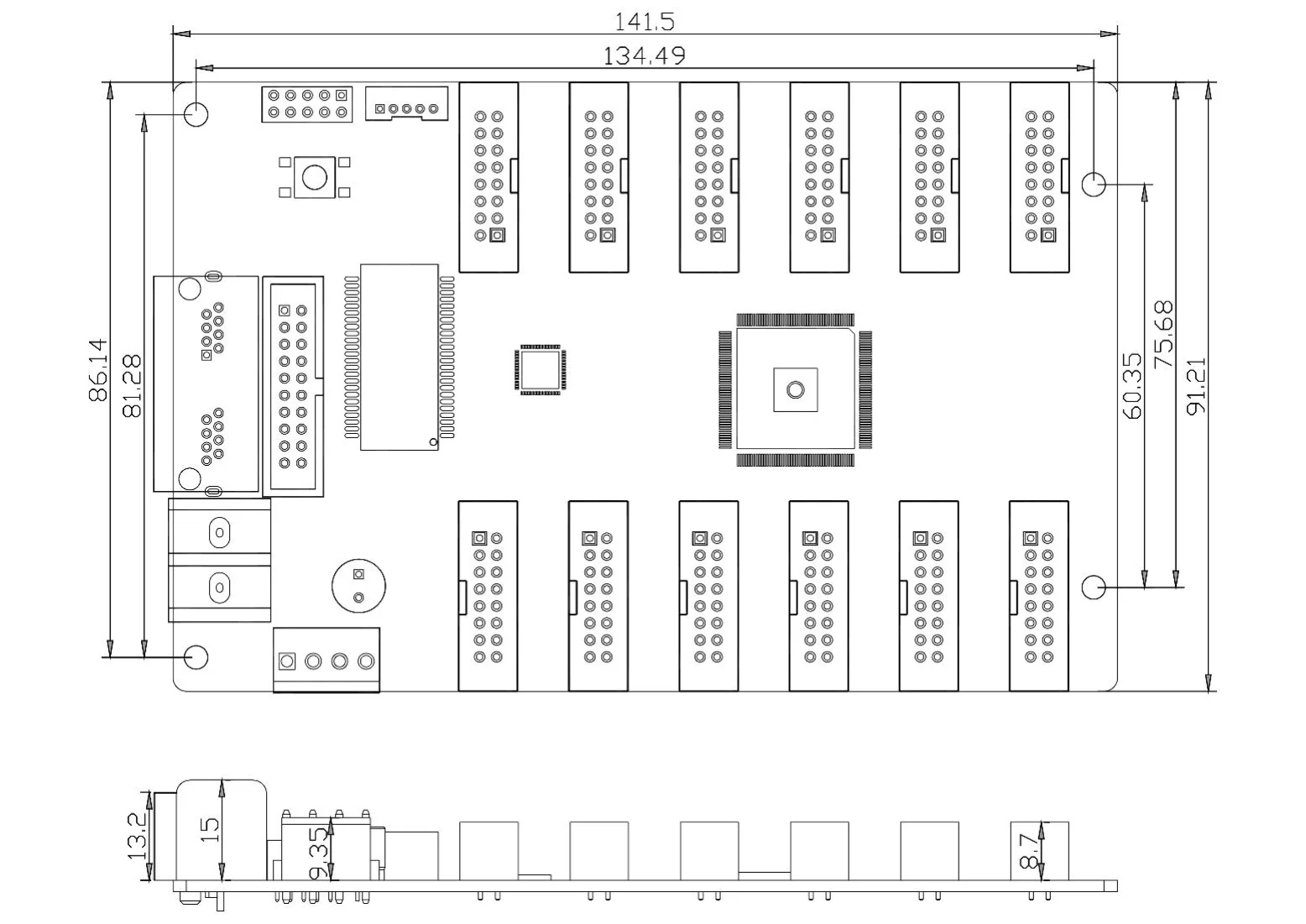

Dimensions:

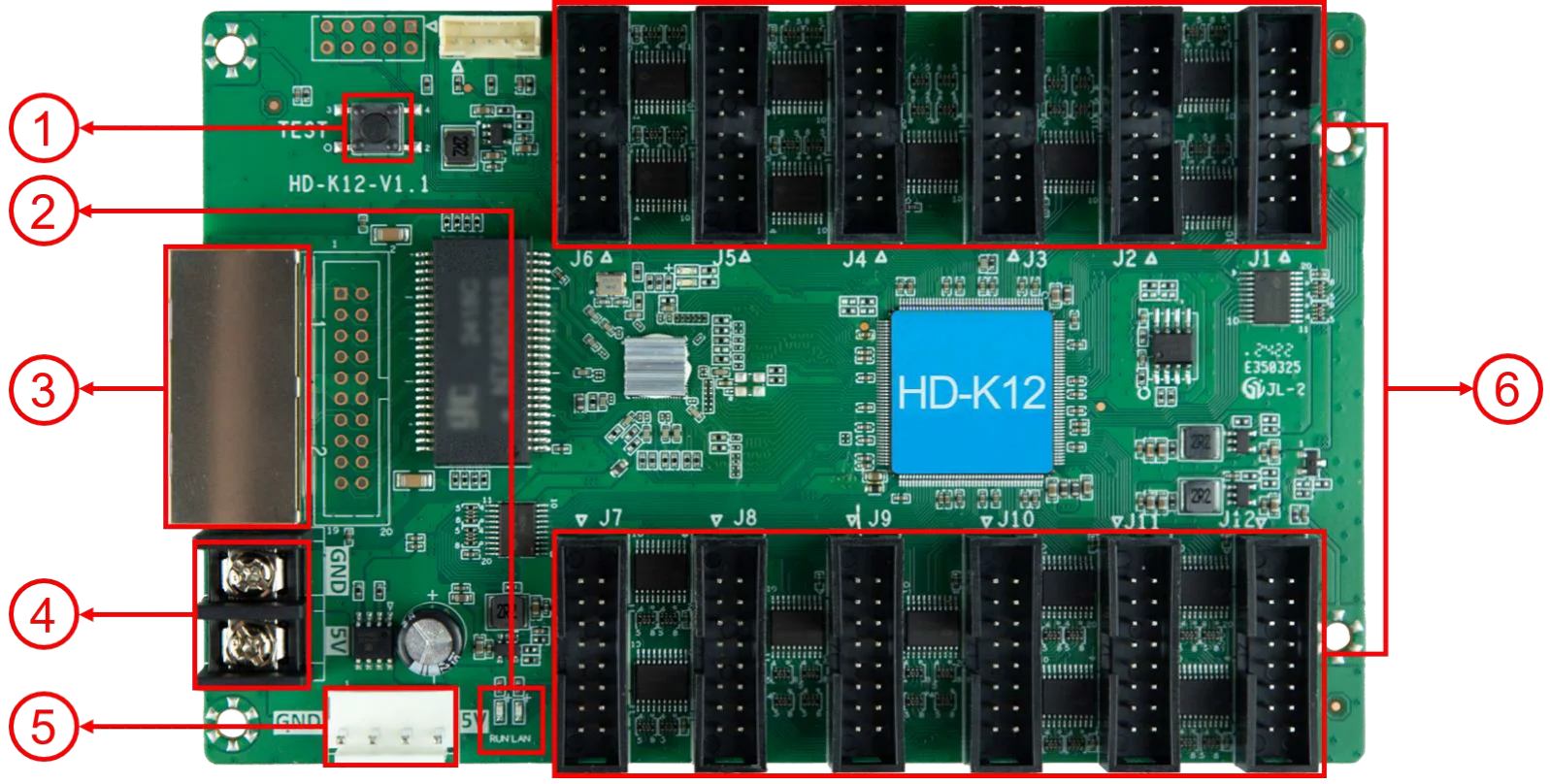

Appearance Description:
Interface | Description |
1.Test key | Used to test the brightness uniformity of the display screen and the flatness |
2.Work indicator light | RUN light flashes to indicate that the control card is operating normally; LAN light flashes quickly to indicate that Gigabit has been recognized and data is being received. |
3.Gigabit network port | Connect the sending card or receiving card regardless of the input/ output interface. |
4.Power input interface 1 | Binding post type power input interface. |
5.Power input interface 2 | Fool-proof power input interface. |
6.Cable interface | 12 sets of HUB75E interfaces are connected to the module through cables. |
