Brushless Generator Brushless Power Motor For Renewable Energy Projects Stable Performance Sturdy And Practical

Features:
* Brand new and high quality
* Made of high-quality materials, sturdy and practical
* Built and tested to strict quality control standards.
* Stable performance and high reliability. .

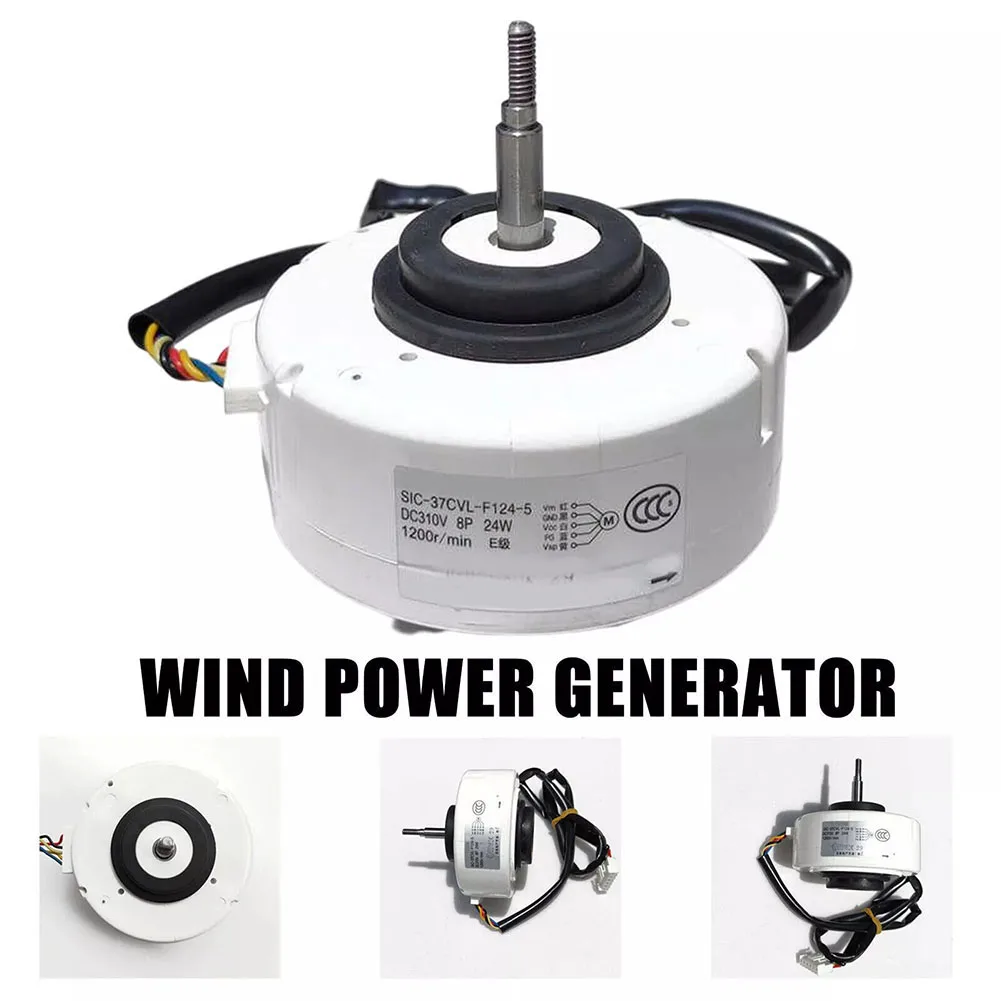

* Brushless generator DIY power generation experiment Brushless wind generator Hand-cranked hydroelectric generator

Specification:

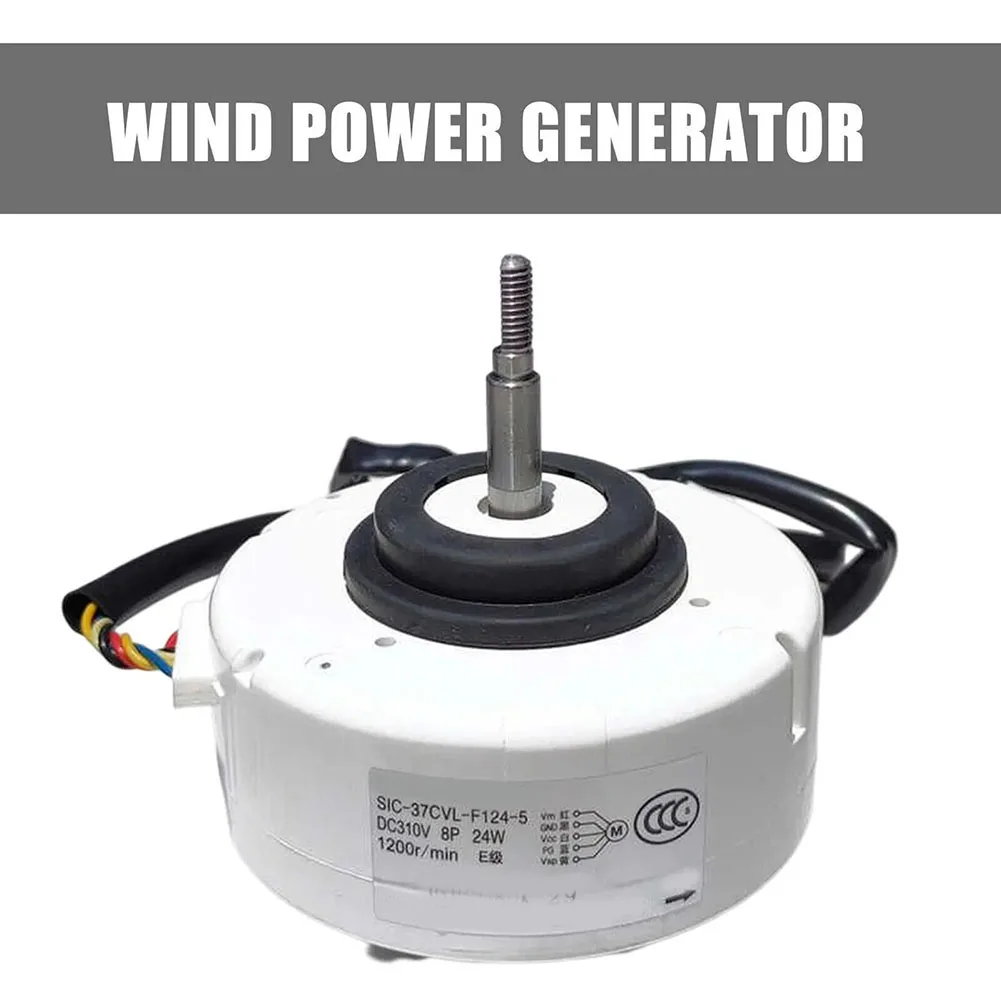

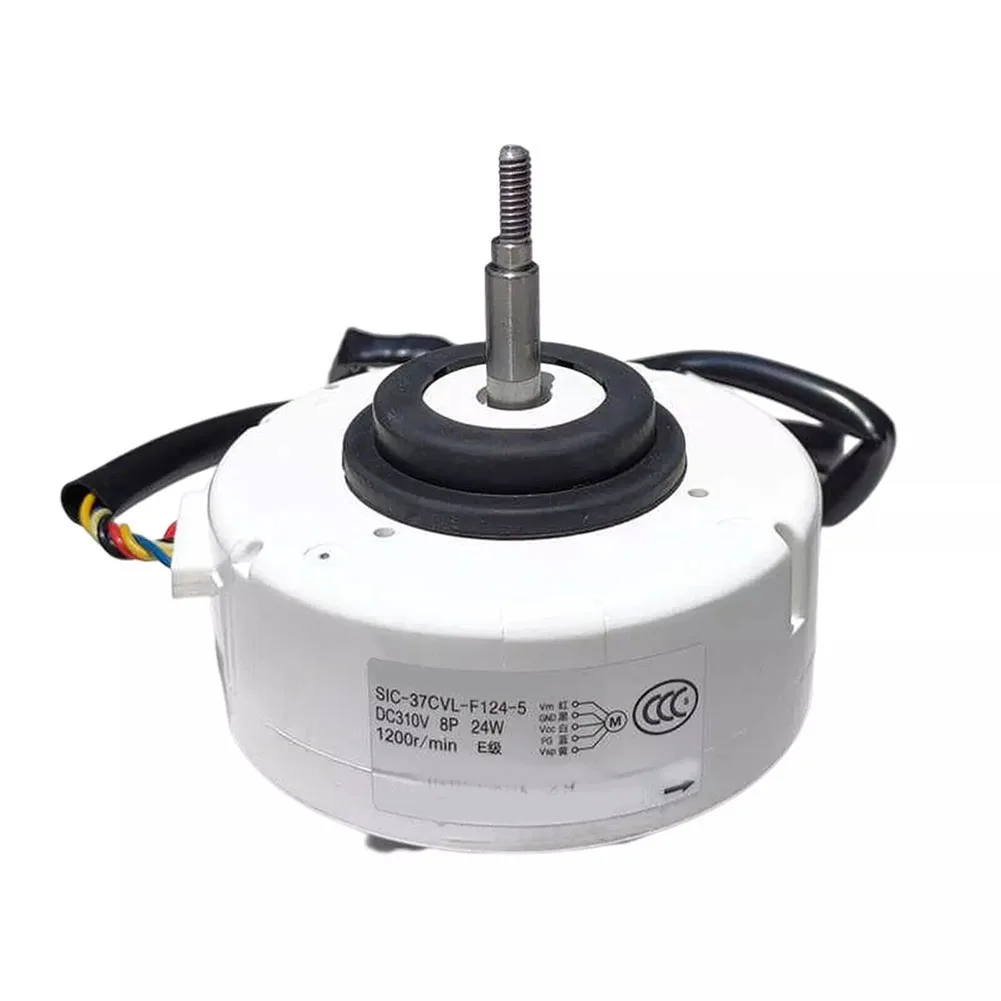

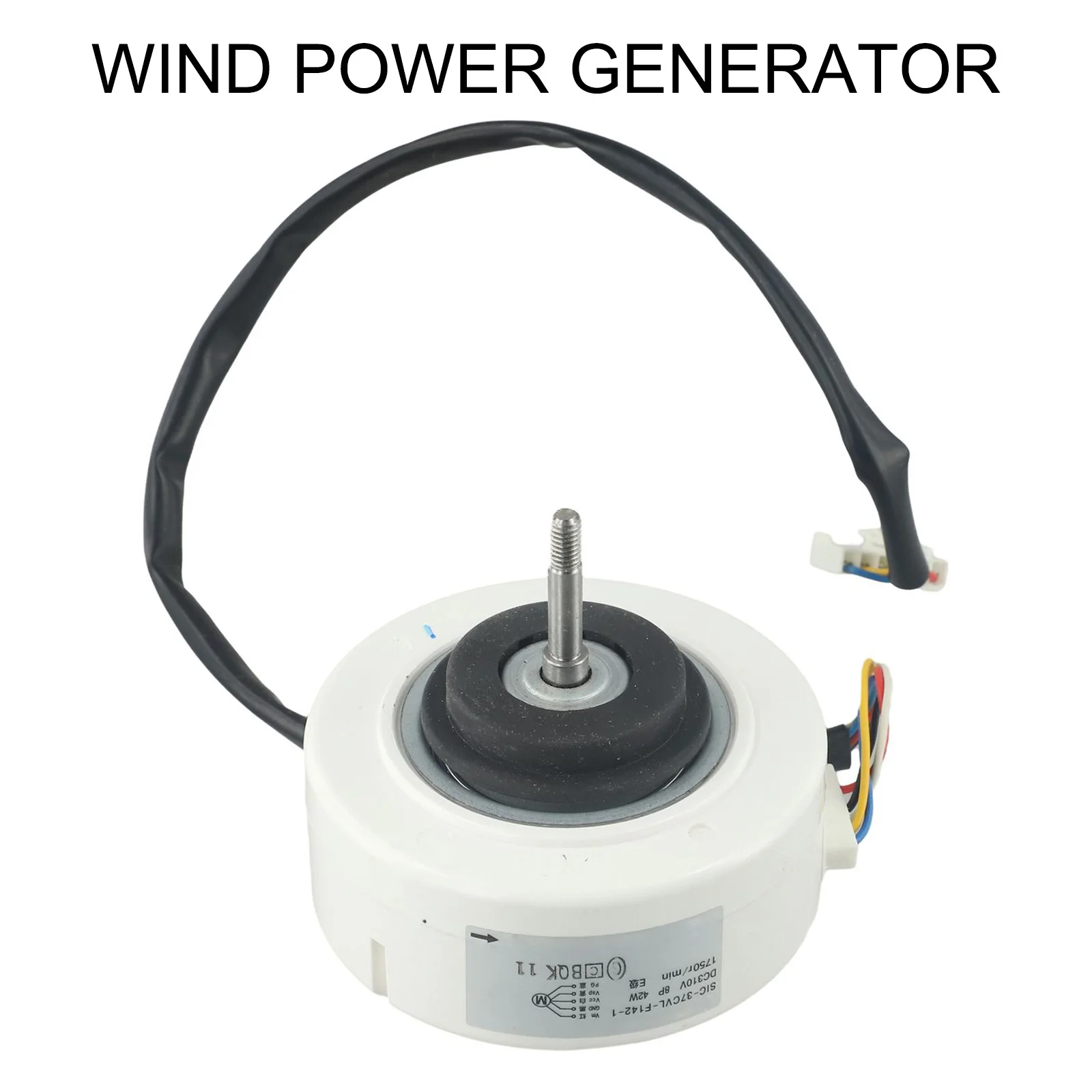

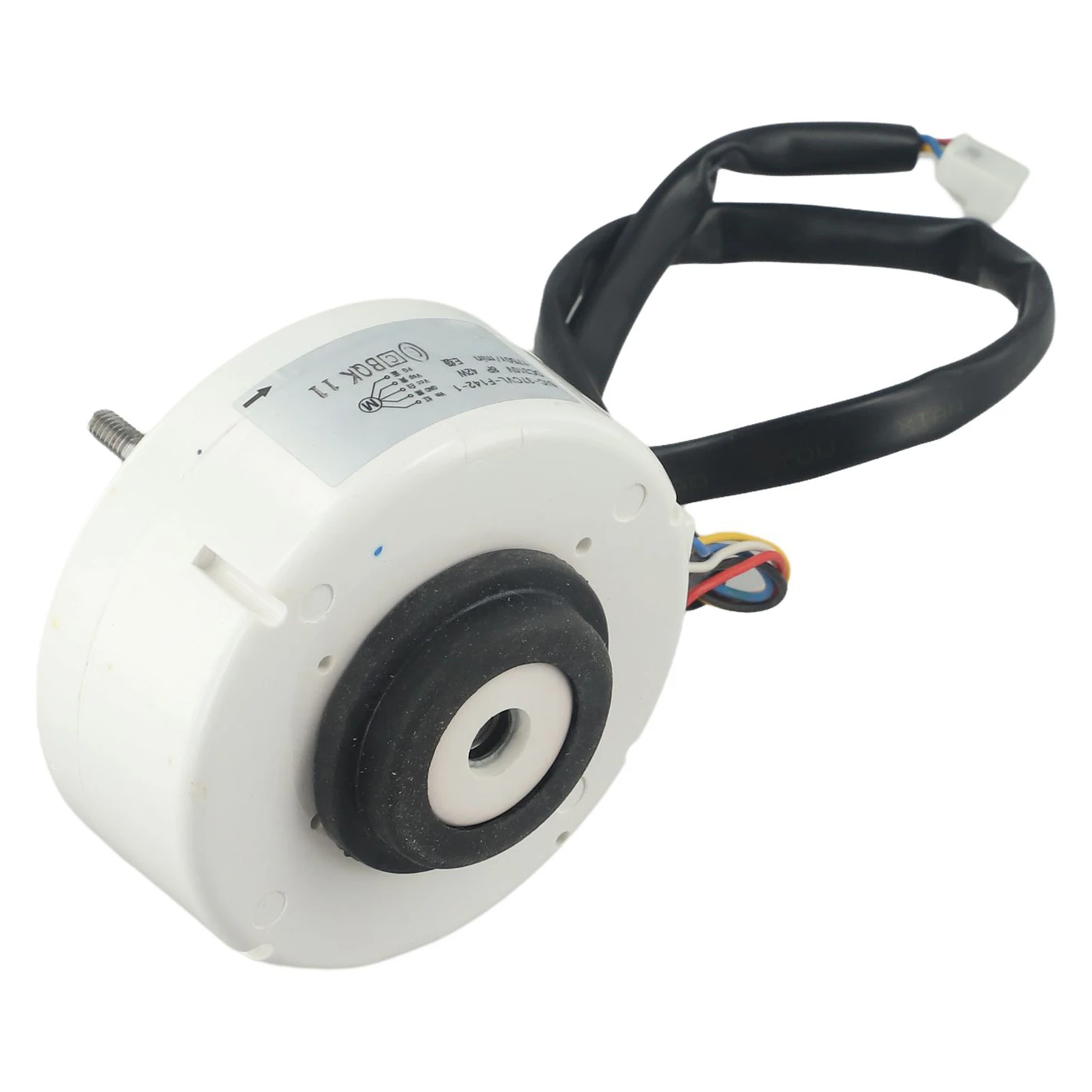

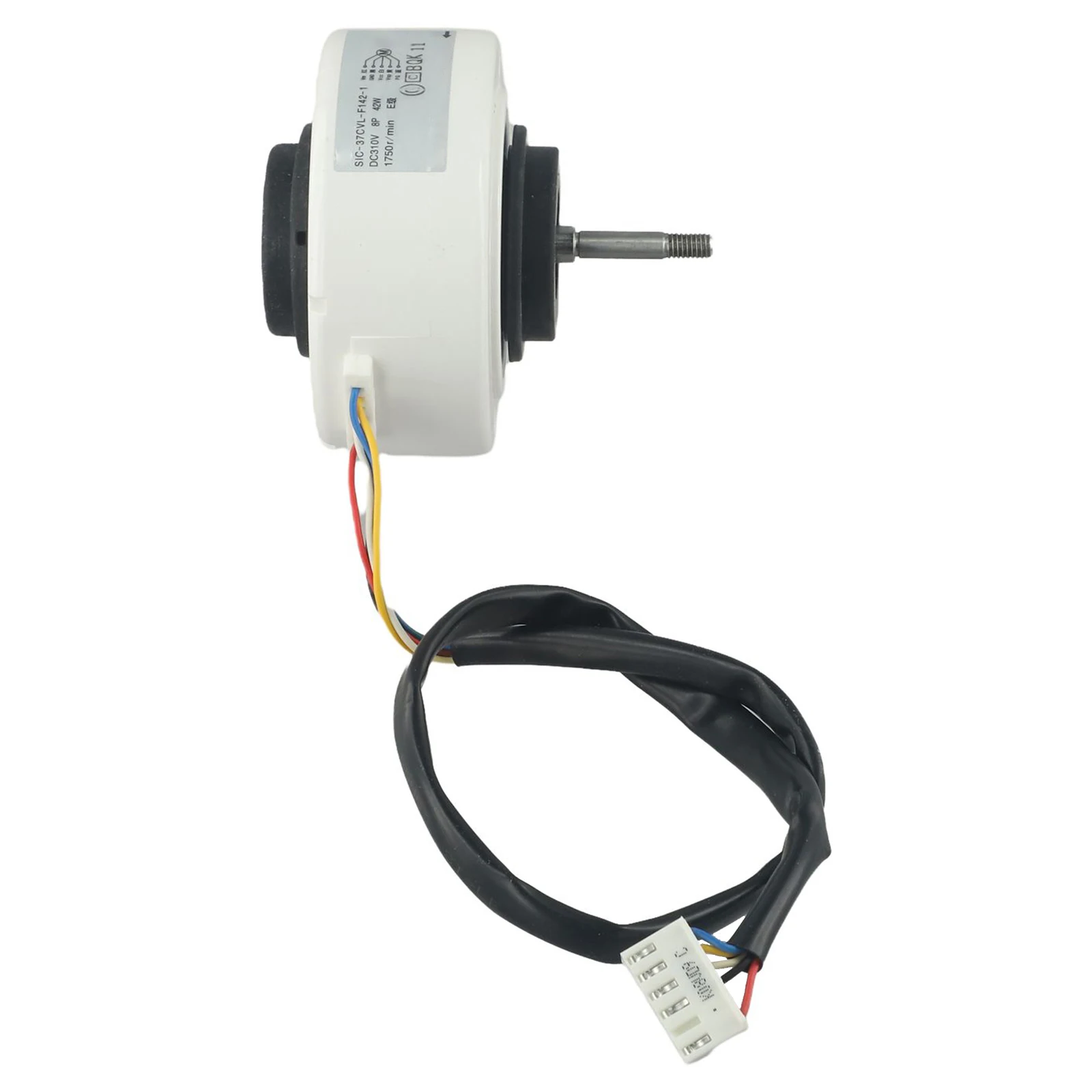

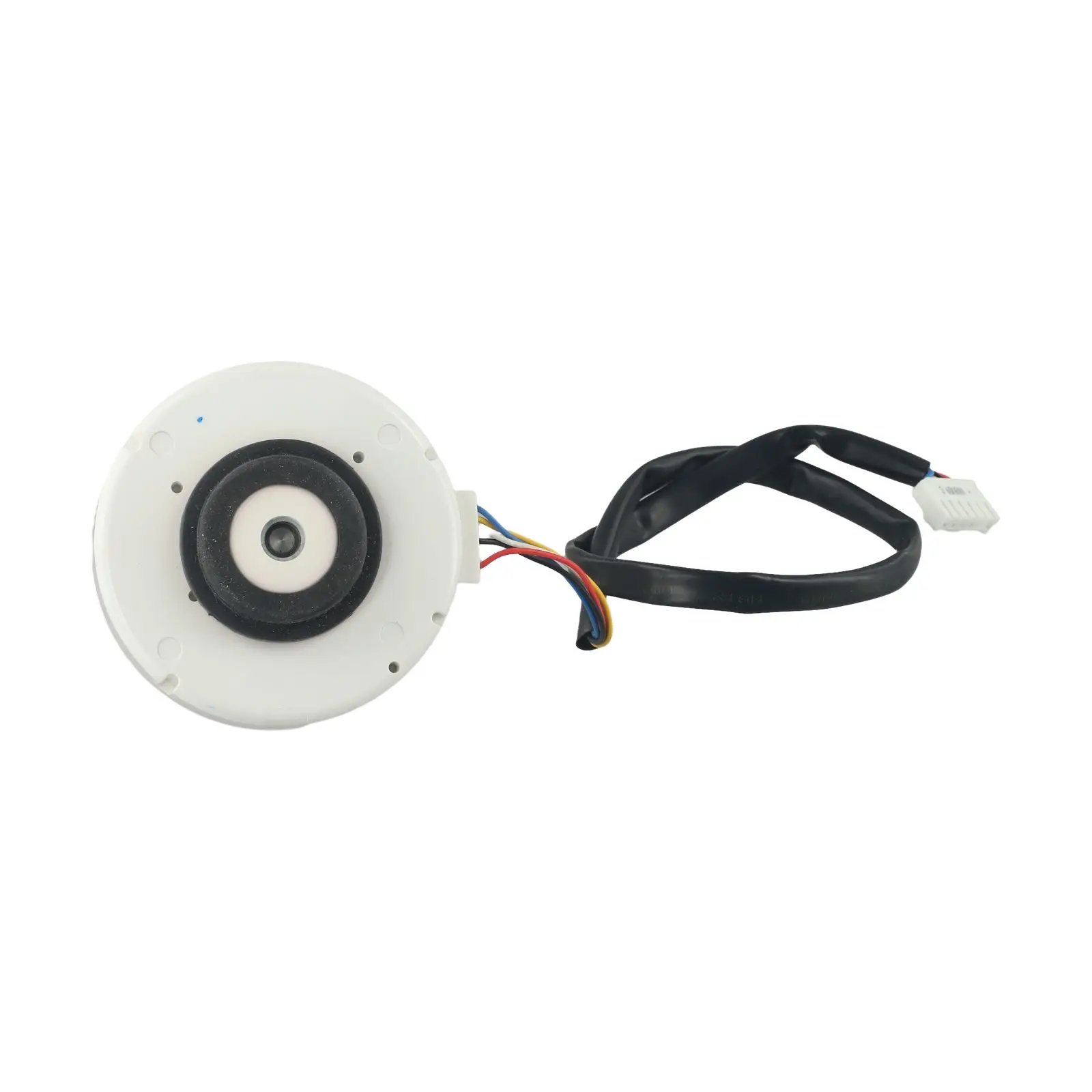

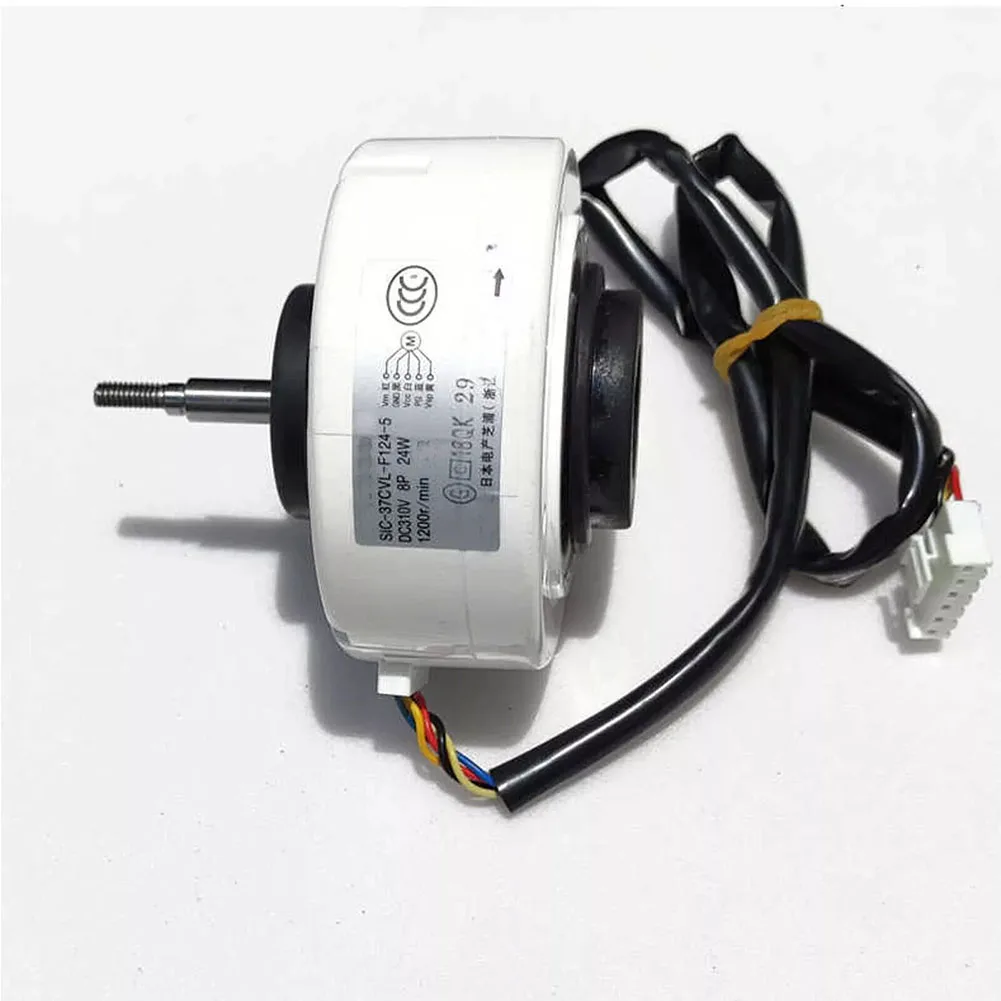

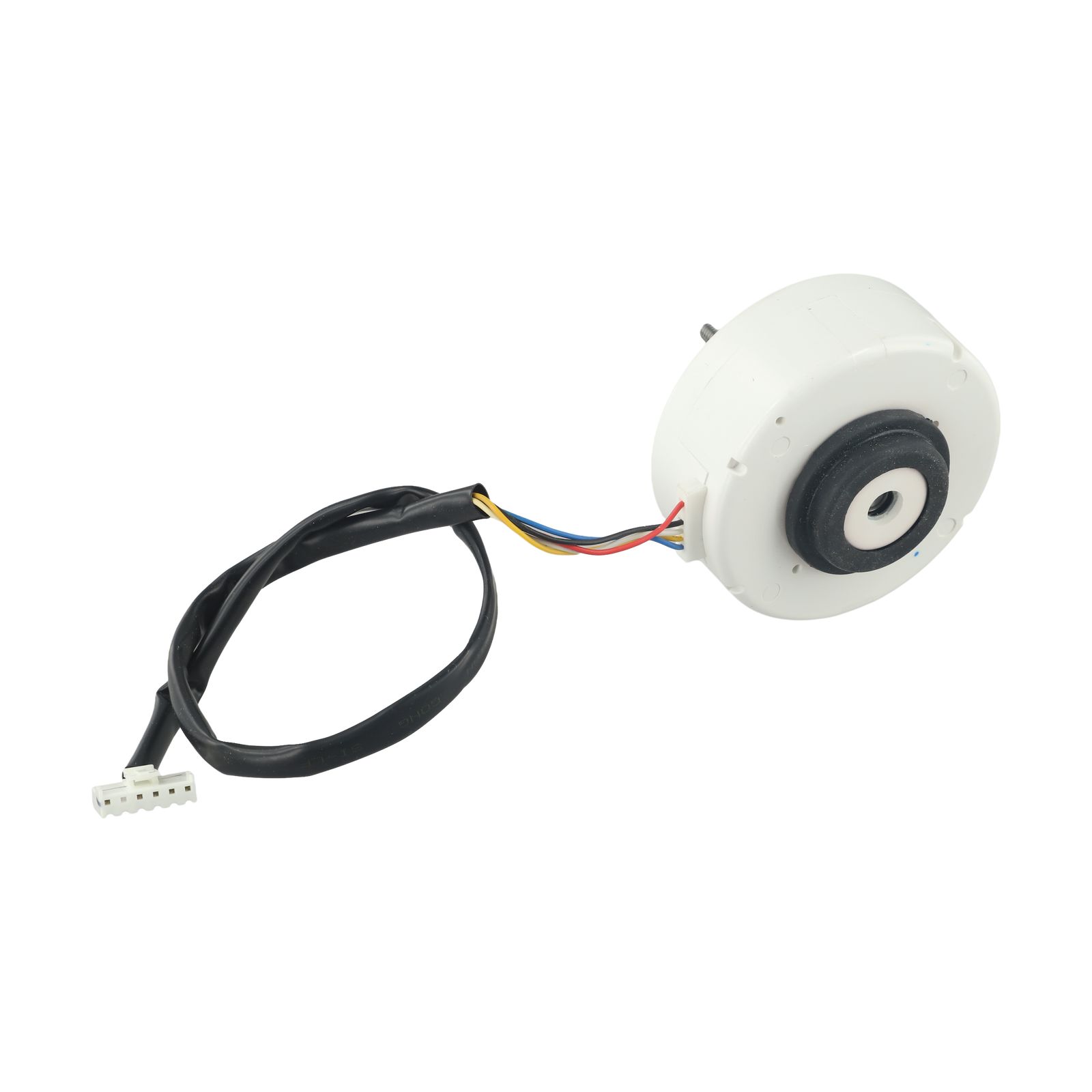

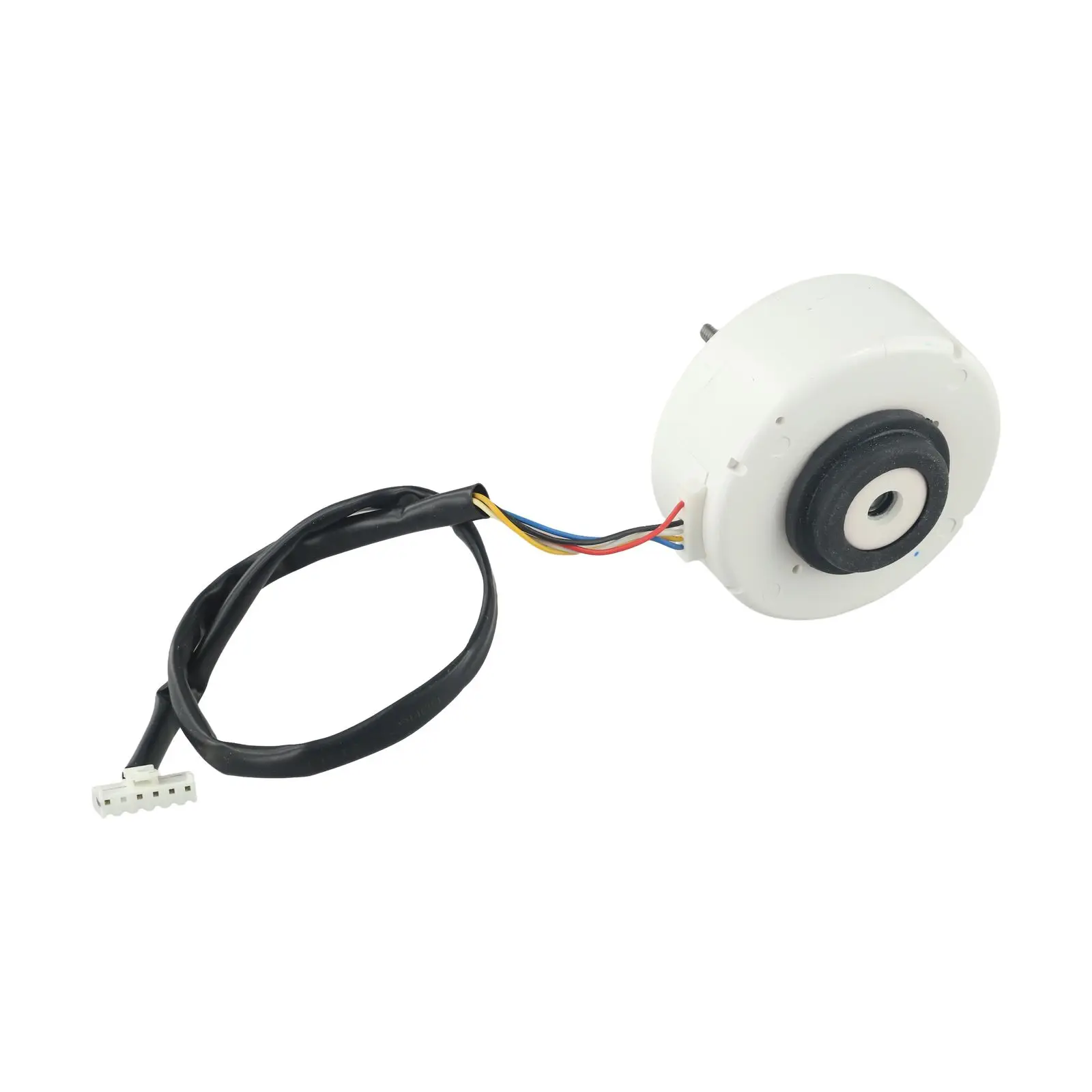

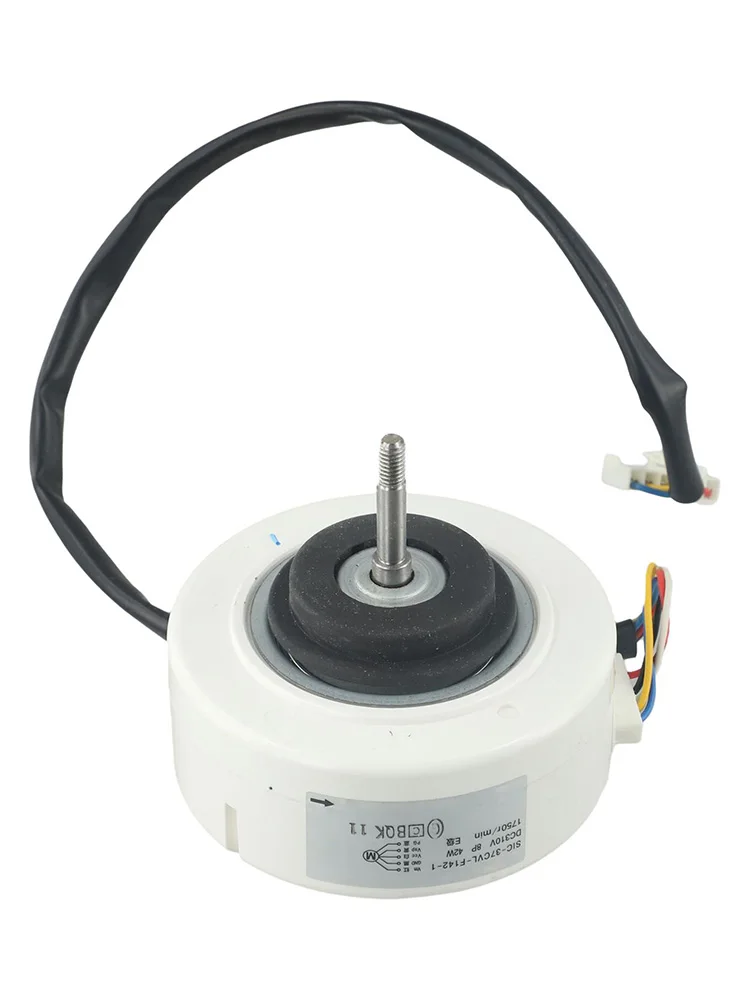

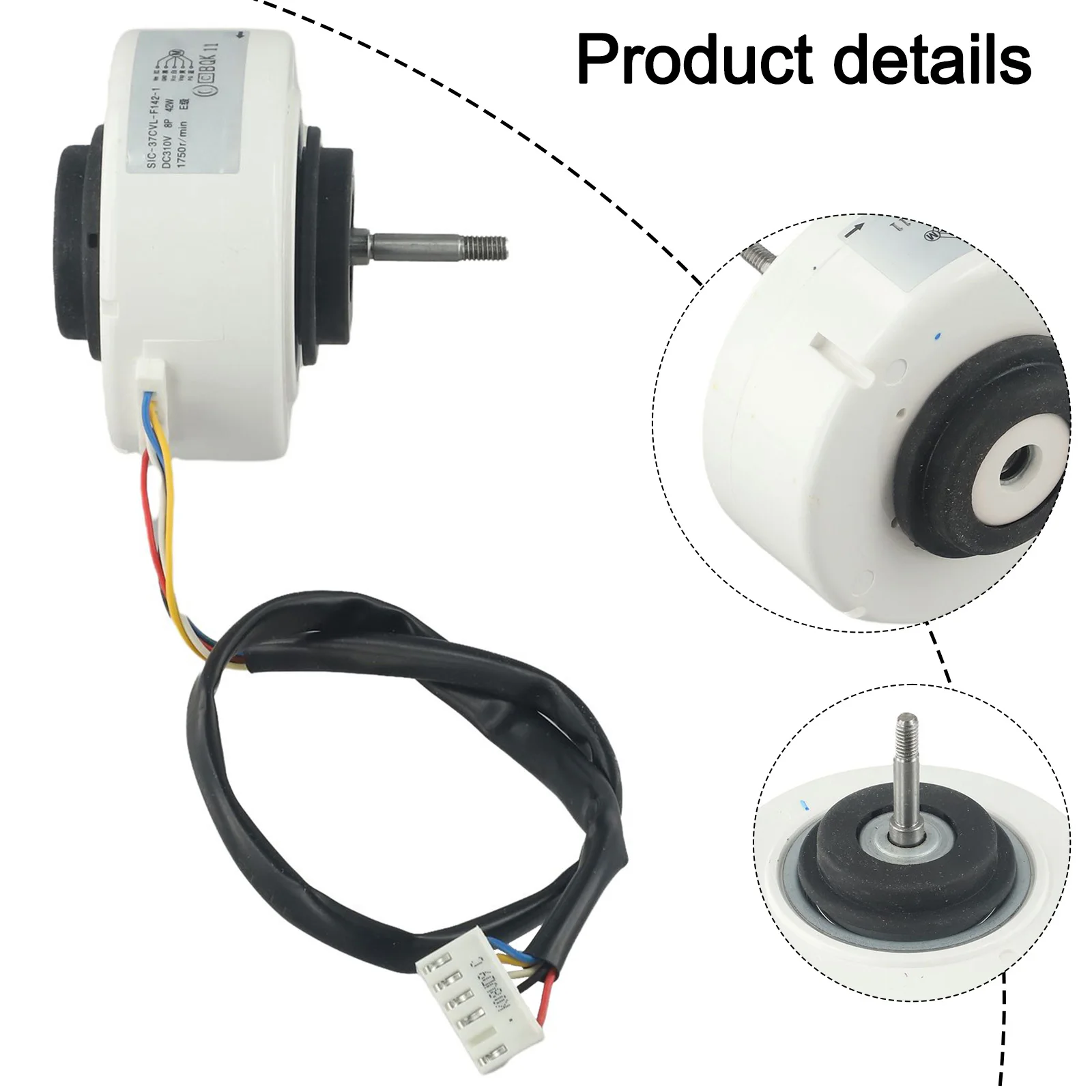

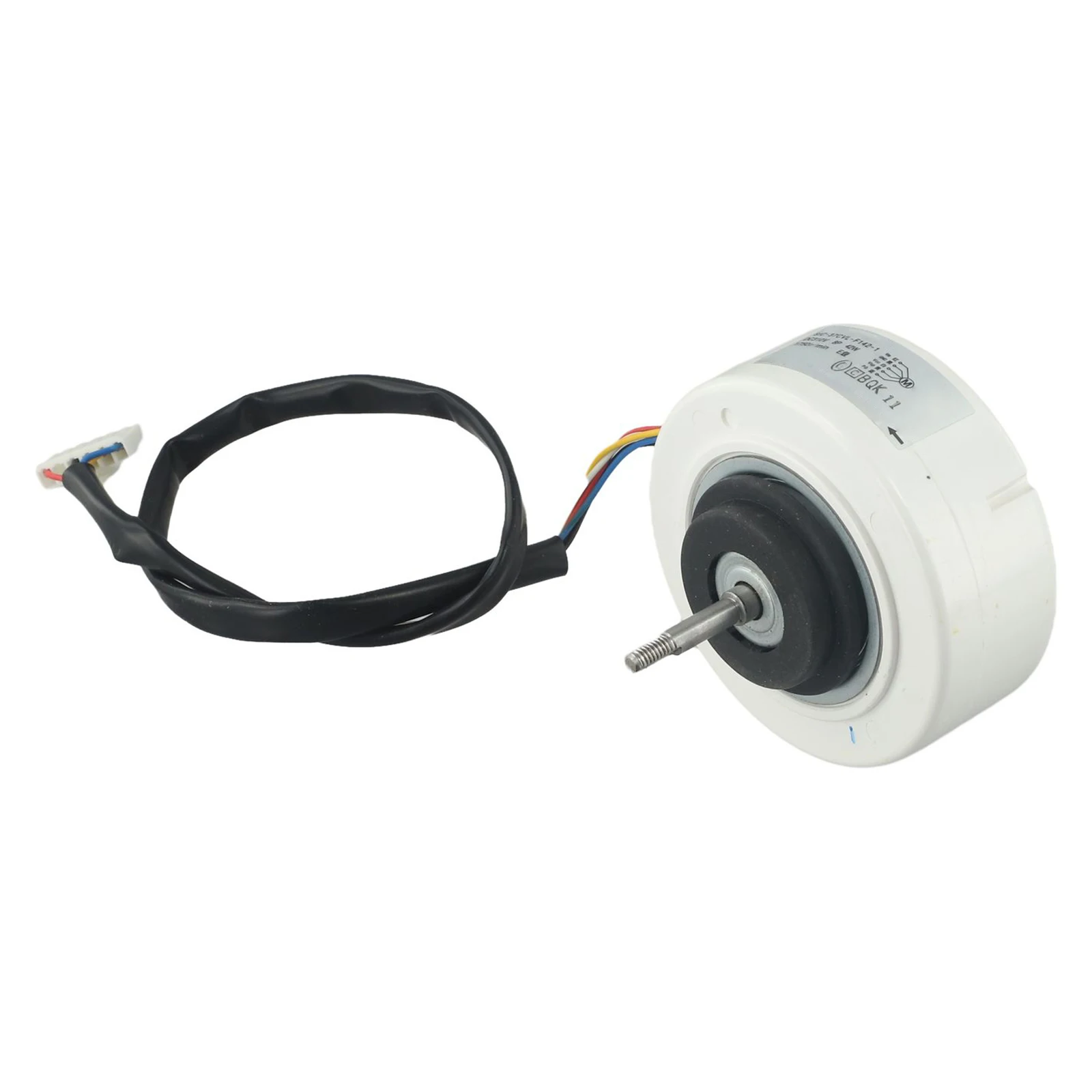

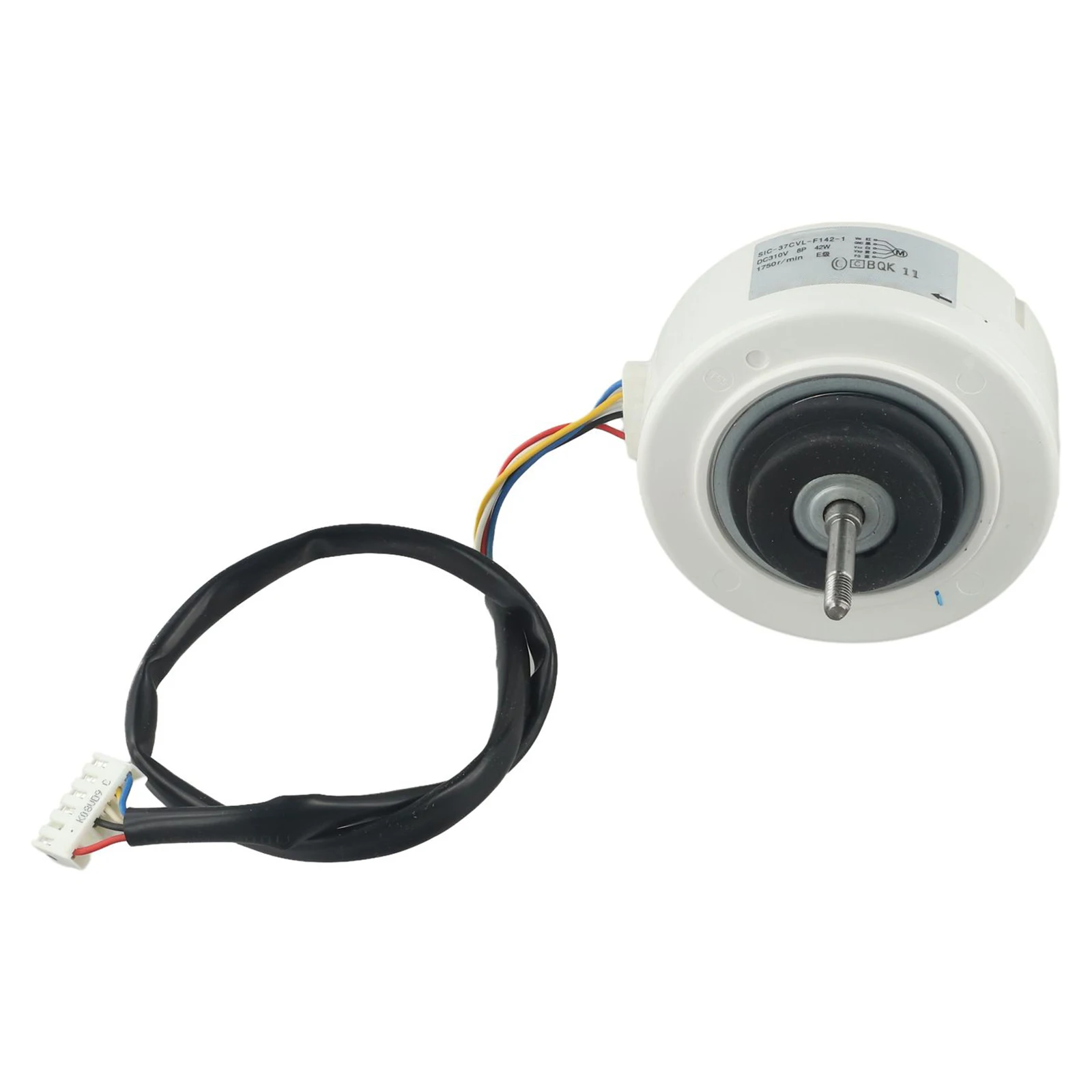

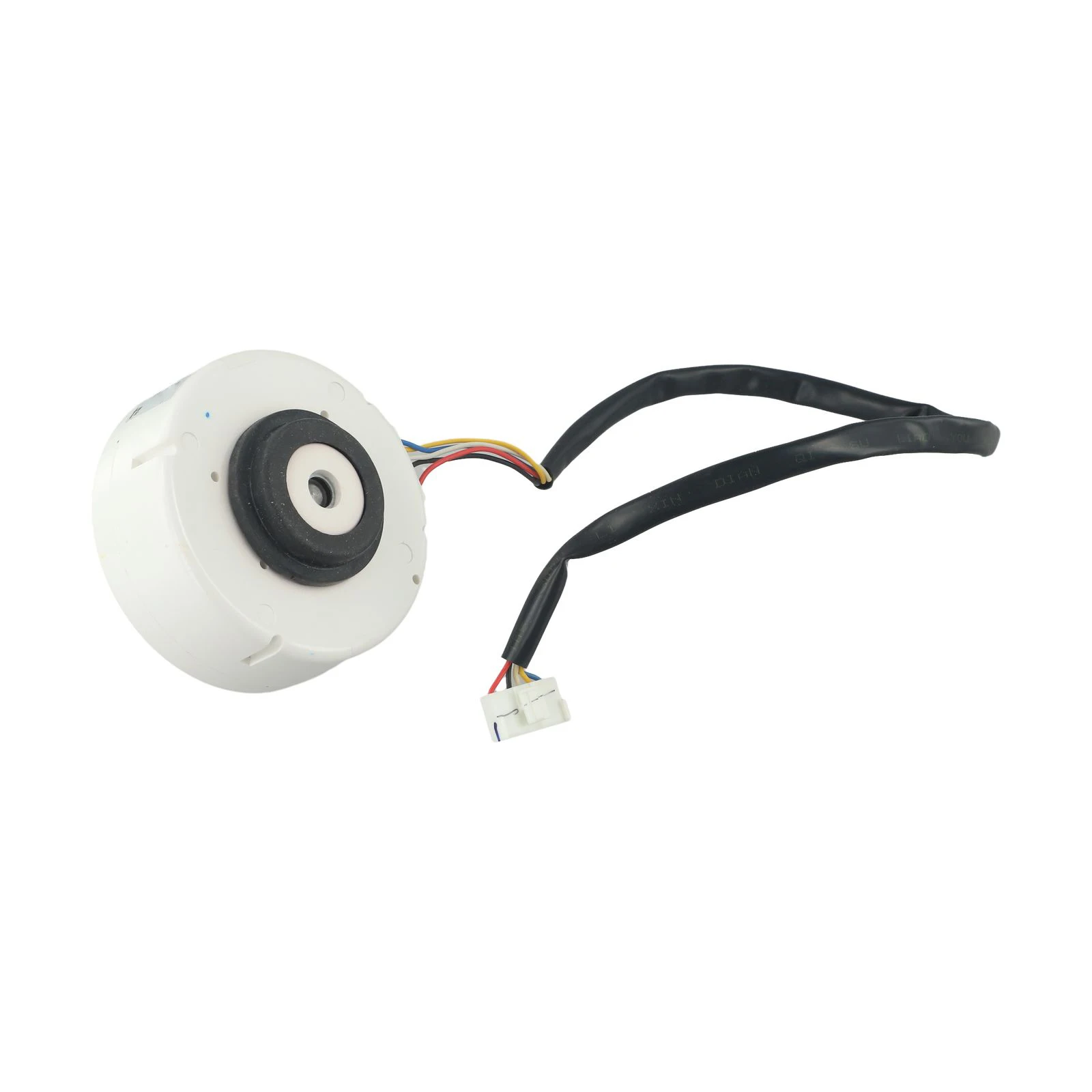

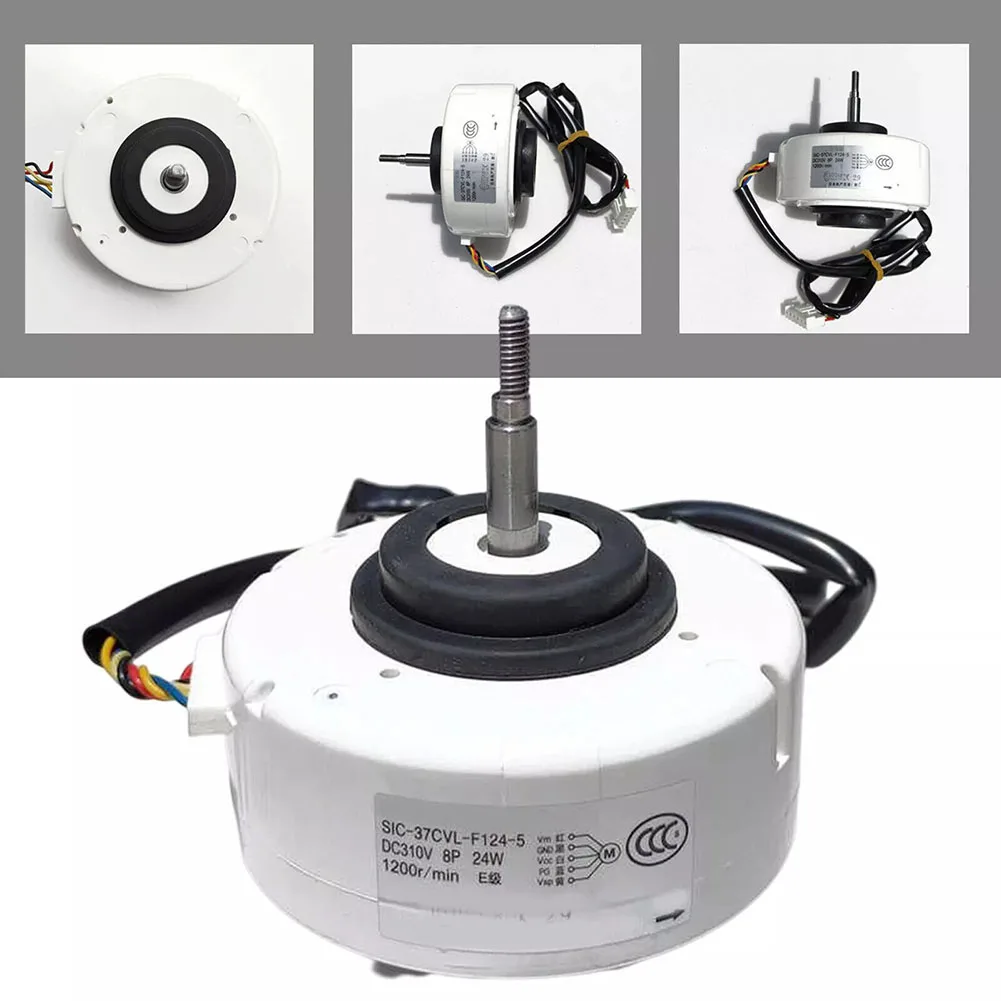

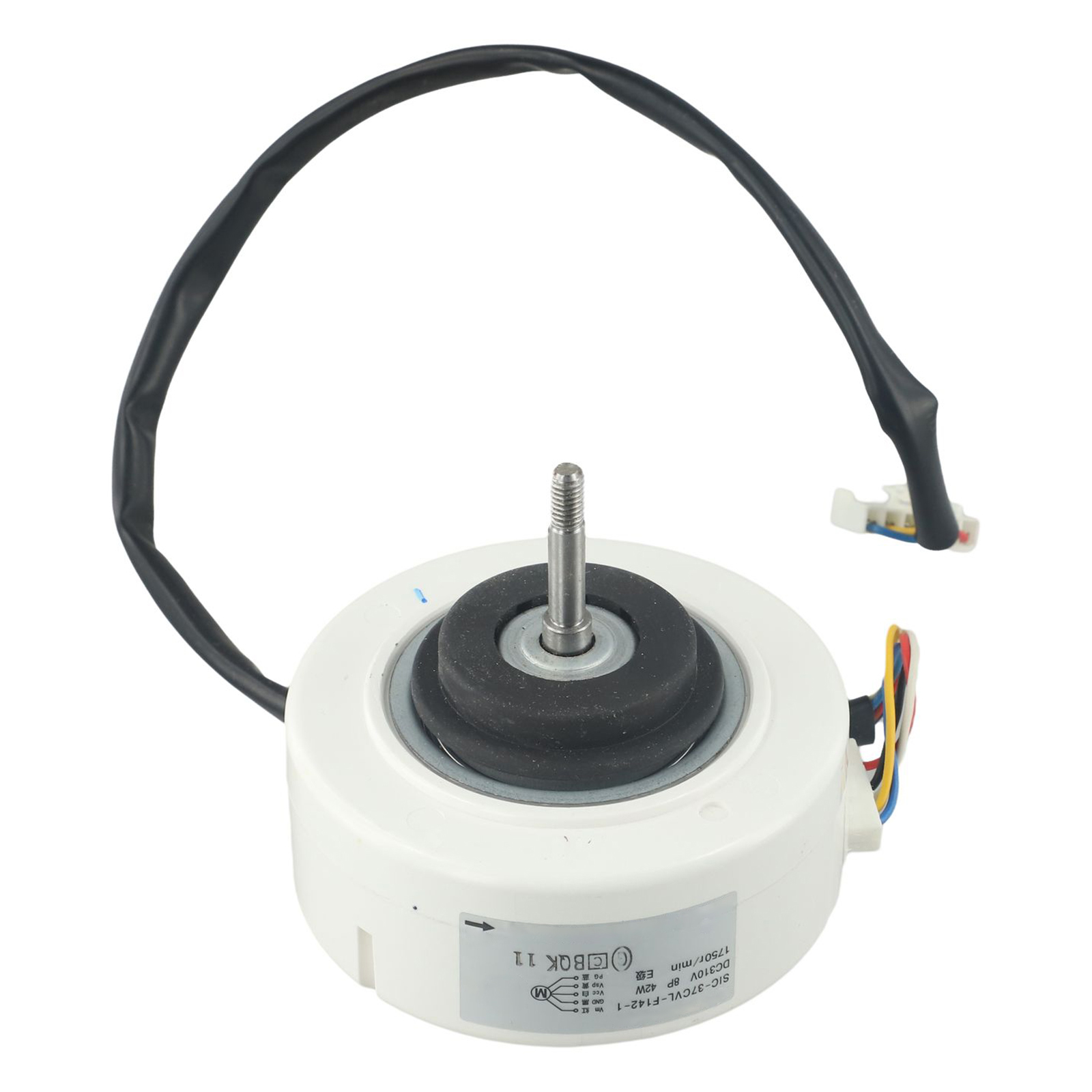

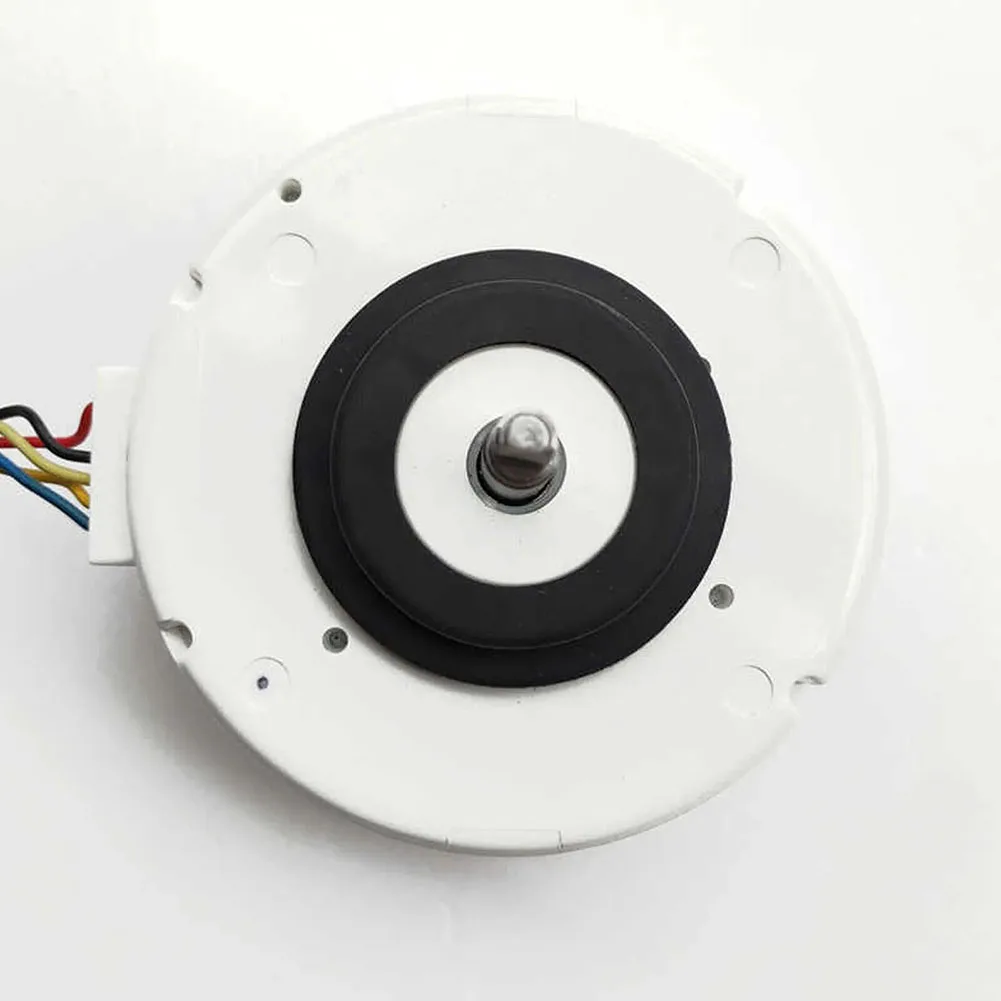

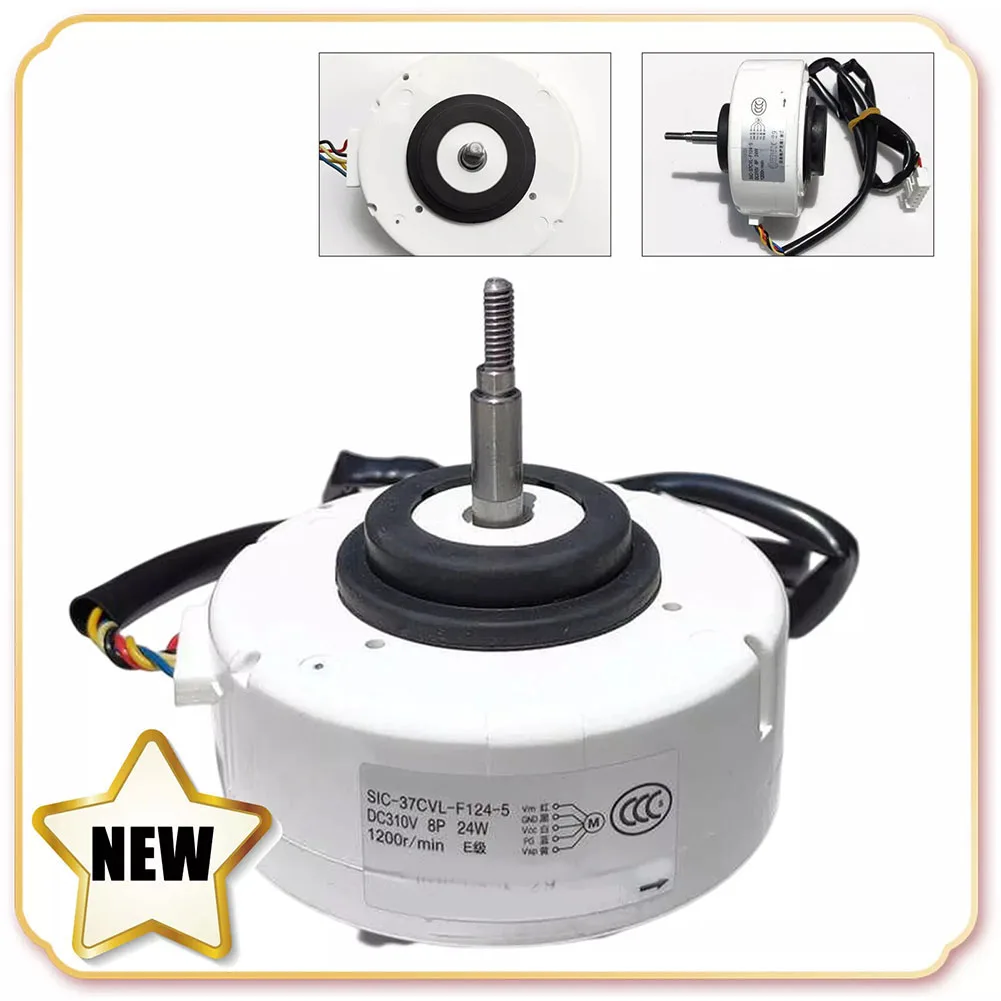

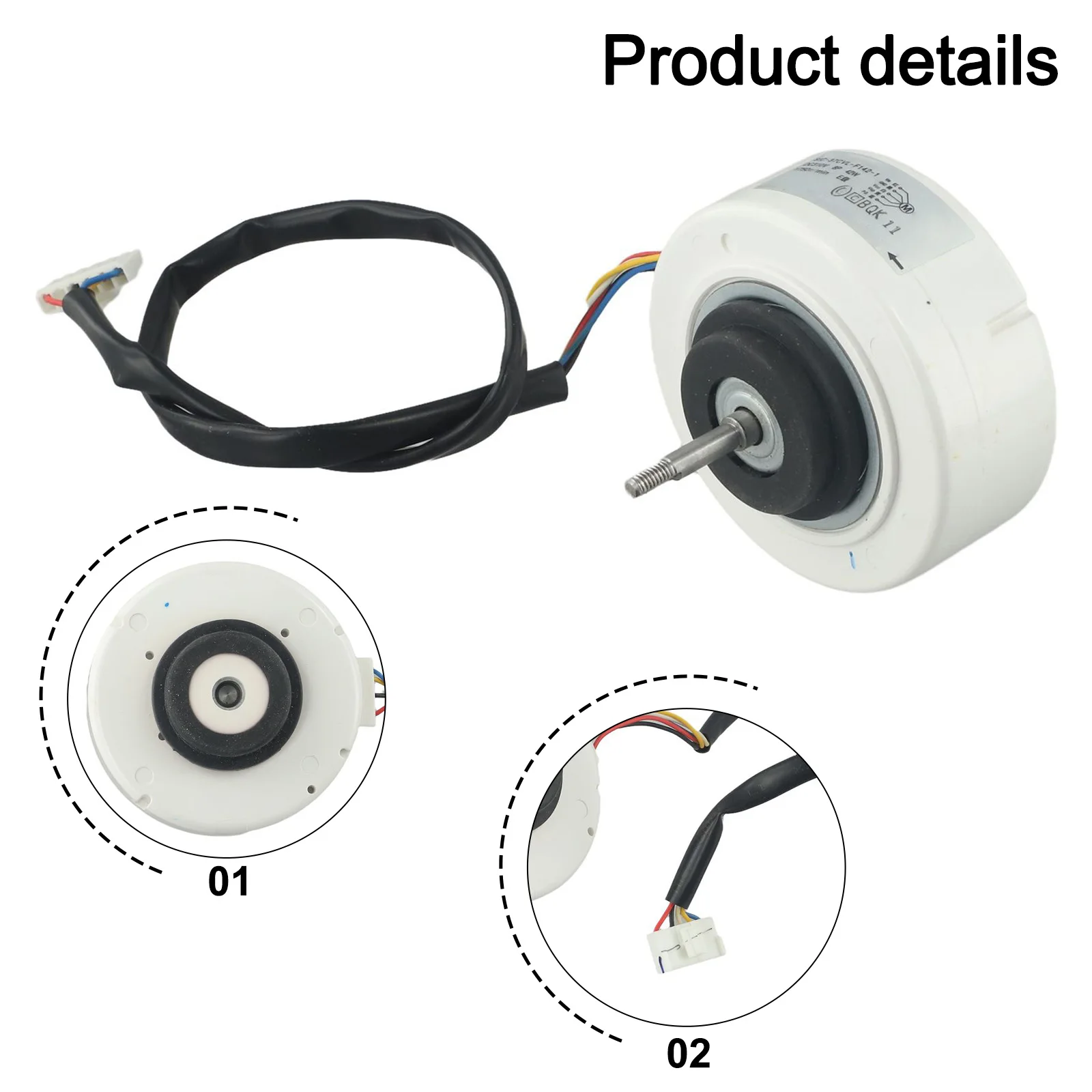

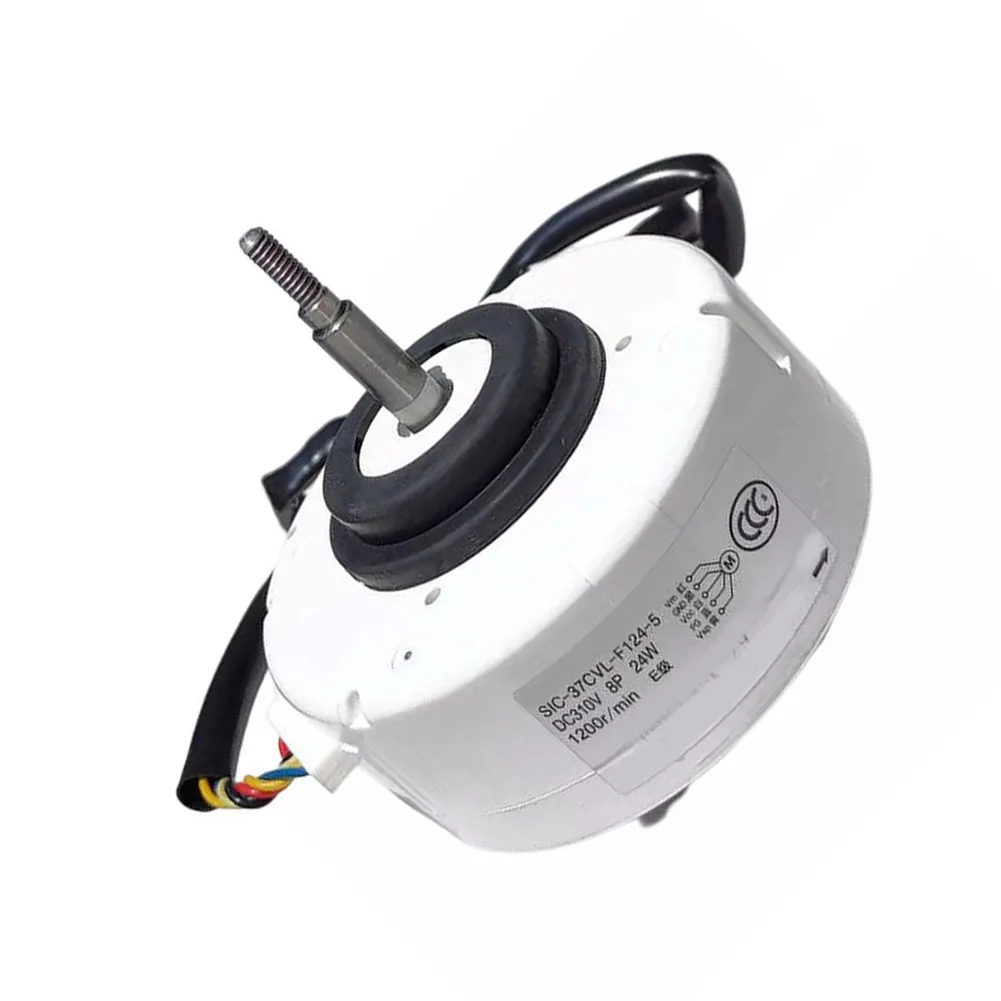

Part name: Brushless motor
Material: ABS+metal

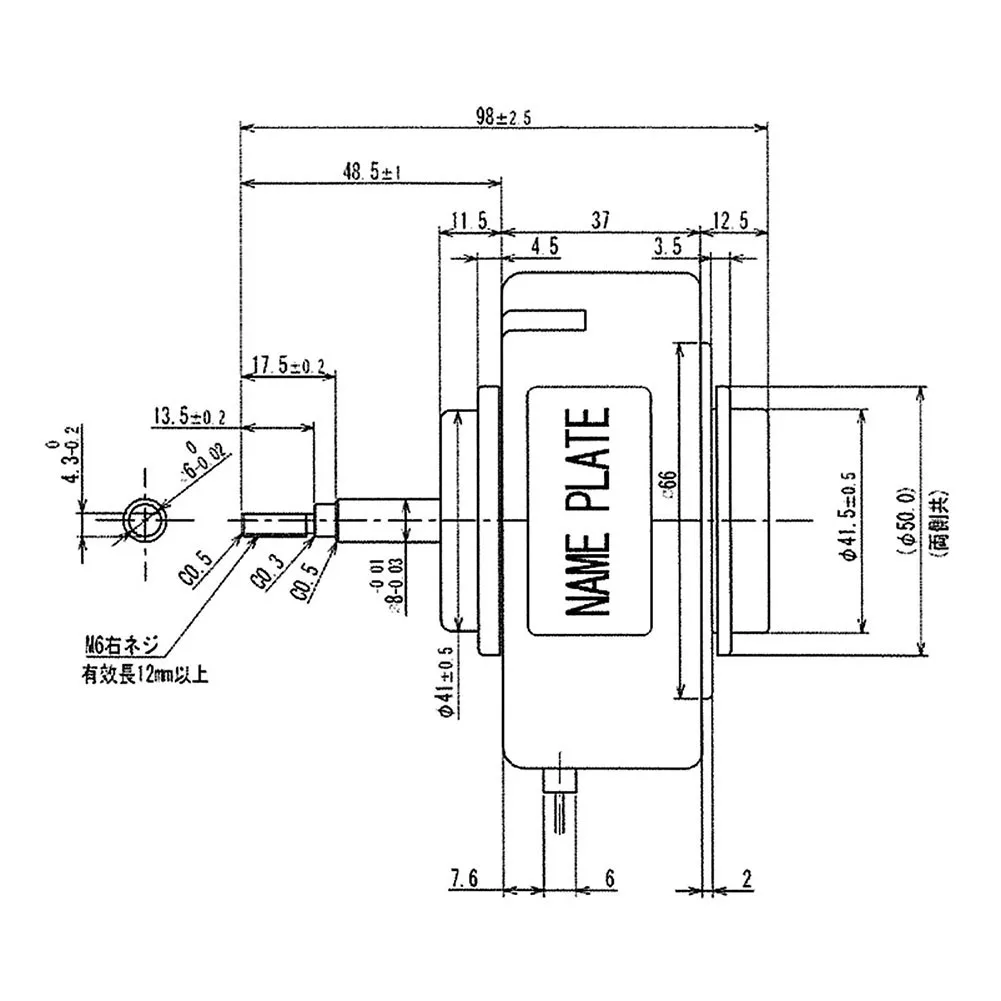

Size: as shown in the picture
Color: White
[vS] Red line, driving voltage, DC +310V (220V AC connected to the rectifier bridge is 310V DC, it is best to add a 100uf/400V filter capacitor). At this time, the wide voltage of the motor is DC176V-375V, that is, with an AC 110V-220V rectifier.
[GND] Black wire, connected to the negative side of all power supplies.
【Vcc】White wire, working voltage, DC14-16V
[Vsp] Yellow line, speed regulation, 0-6.5VPWM speed regulation, the lower the voltage, the slower the speed.
The lower the voltage, the slower the speed, fully adjustable stop
FG】Blue line, speed
Note]: This motor is a 220V motor.  No 220V electricity is provided.

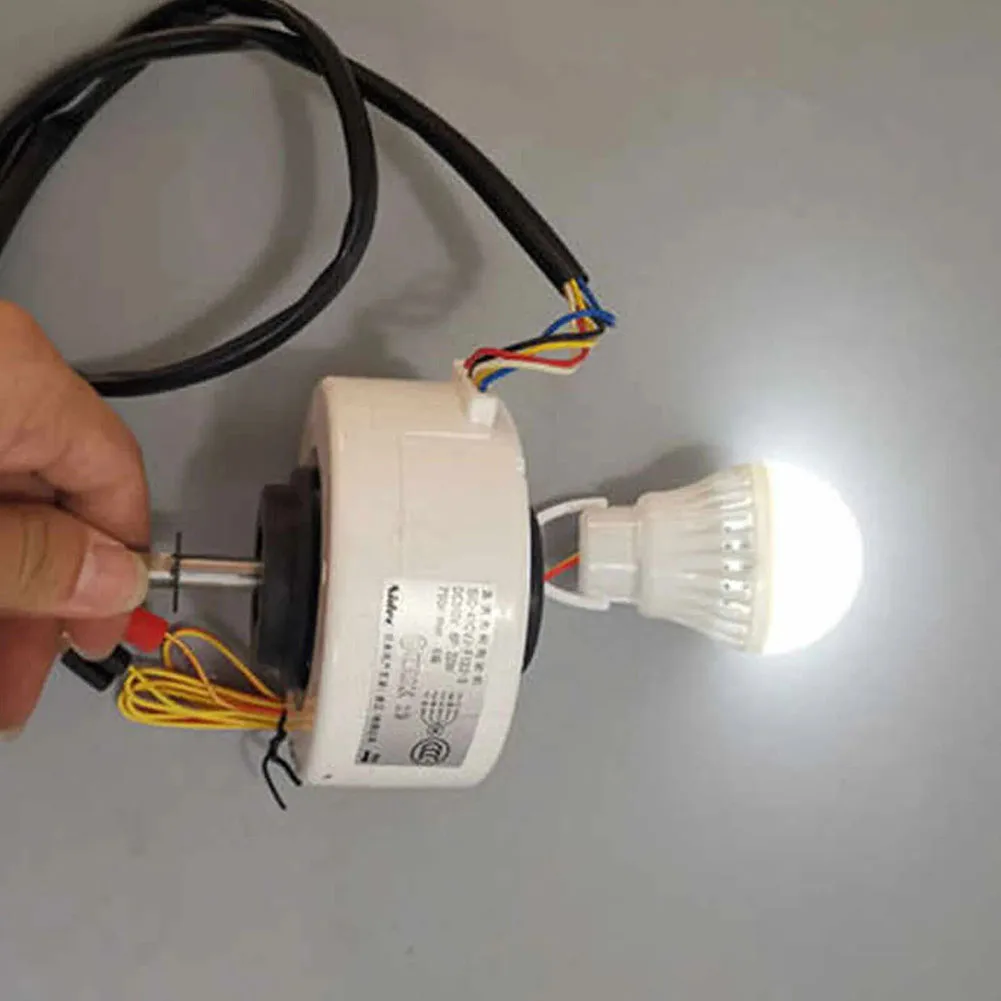

Easier to use: Connect the red and black wires.
It can generate electricity in both forward and reverse directions.
To generate electricity is to send direct current.
Approximate parameters of power generation
120 rpm: 9v
240 rpm: 18V
480 rpm: 36V
960 rpm: 72V

Package Contents:
1 x brushless motor

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
