SEETEC 4K215-9HSD-192-CO 21.5 Inch IPS FHD 1920x1080 Carry-on Broadcast Monitor with 3G-SDI 4K-HDMI In/Output Director Suitcase
Seetec 4K215-9HSD-192-CO 21.5 inch IPS Full HD 1920x1080 Carry-on Broadcast Monitor with 3G-SDI HDMI AV YPbPr Director Suitcase
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!
Now it's easy to get perfect focus and framing!
SEETEC monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/ videos.
With the 4K215-9HSD-192-CO's 21.5-inch 1920×1080 IPS Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The 4K215-9HSD-192-CO's Full HD Panel is the tool of choice for high quality color reproduction.
True Color . Professional Color Calibration
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

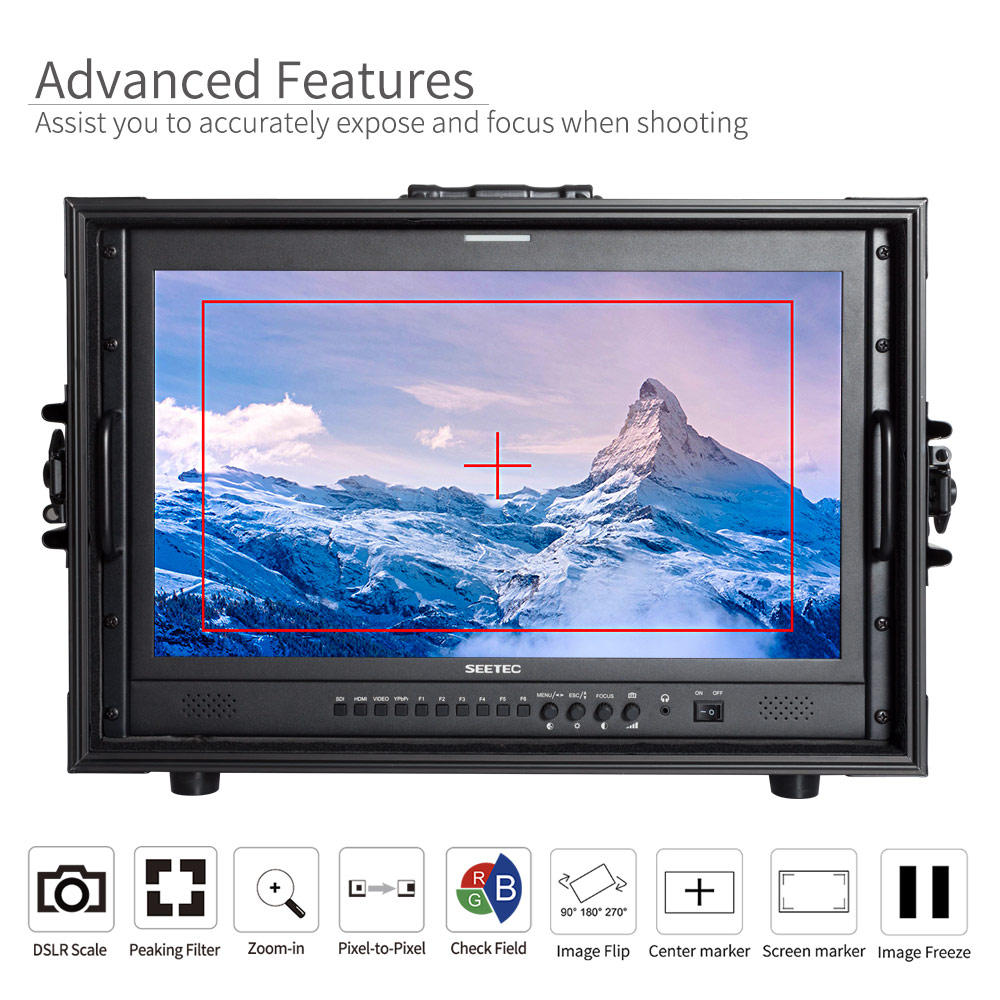

4K215-9HSD-192-CO not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
Both front and rear side
4K215-9HSD-192-CO monitors feature clear LCD screens with tally so it's the perfect solution for live broadcasts. Unlike a simple tally light, 4K215-9HSD-192-COincludes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.
Monitoring anywhere you need it!
We've made it easy to power the monitor. 4K215-9HSD-192-CO can be powered in two ways: with an DC adapter or lithium batteries. The 4K215-9HSD-192-CO has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.
Field production often uses DC power. The 4K215-9HSD-192-CO's V-Mount battery plate is compatible with 14.4v Broadcast Lithium-Batteries and can continuously operate for over 6 hours when using a 130Wh Broadcast Lithium-Battery (Optional). And have Panasonic Anton Battery Plate for you choice.
.Assembled with a portable aluminum case that can effectively protect the monitor and facilitate the transportation and carrying.

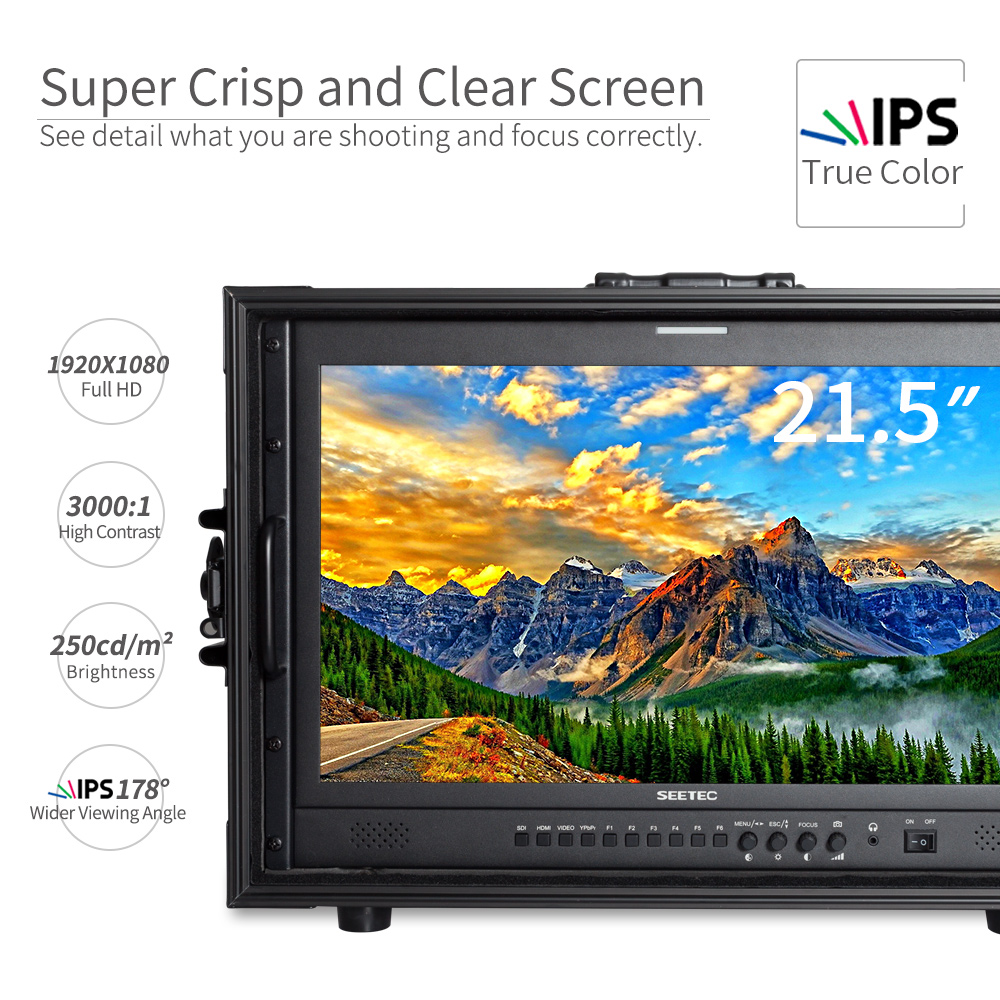

.4K215-9HSD-192-CO is 21.5'' full HD resolution 1920x1080 monitor, IPS panel wide viewing angle and super-thin full Aluminum case, which is specially suitable for field shooting and post production.
.Broadcast quality design, two-channel stereo headphone jack for director easy monitoring.

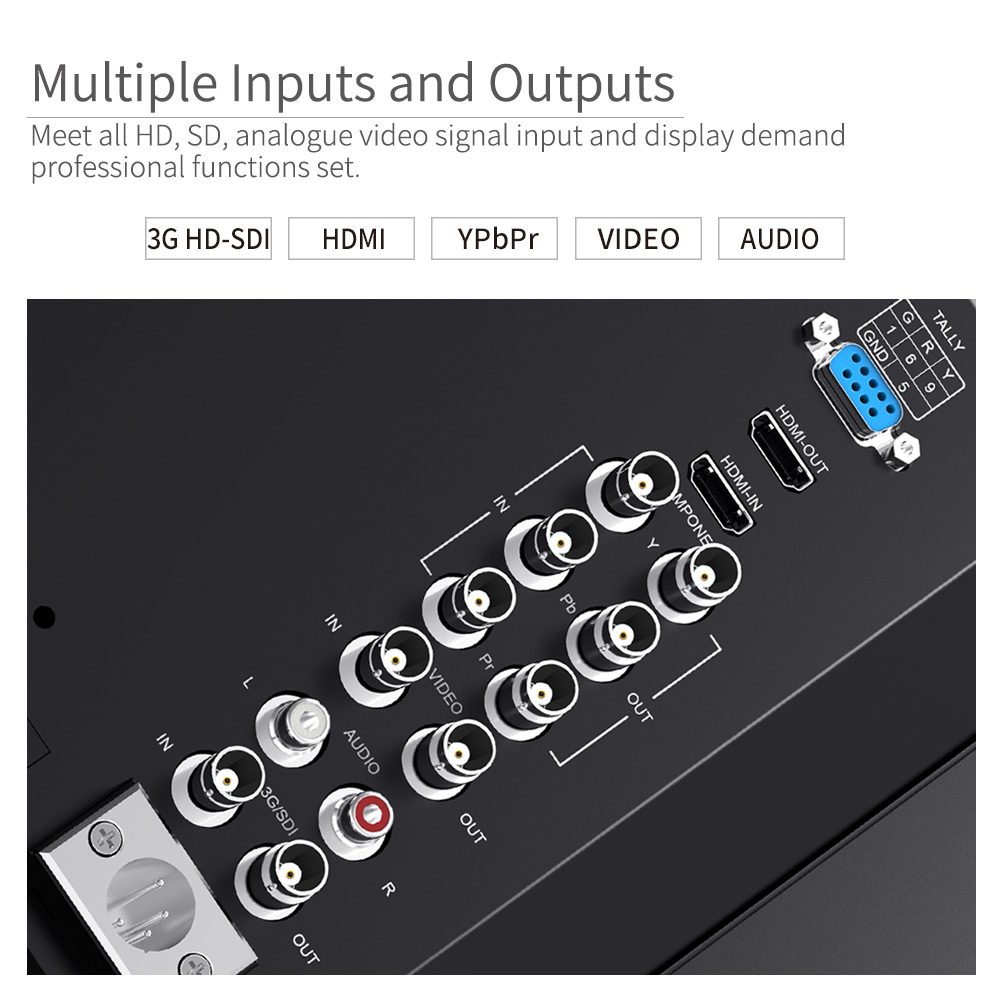

.HDMI, SDI HD signal input and output functions.

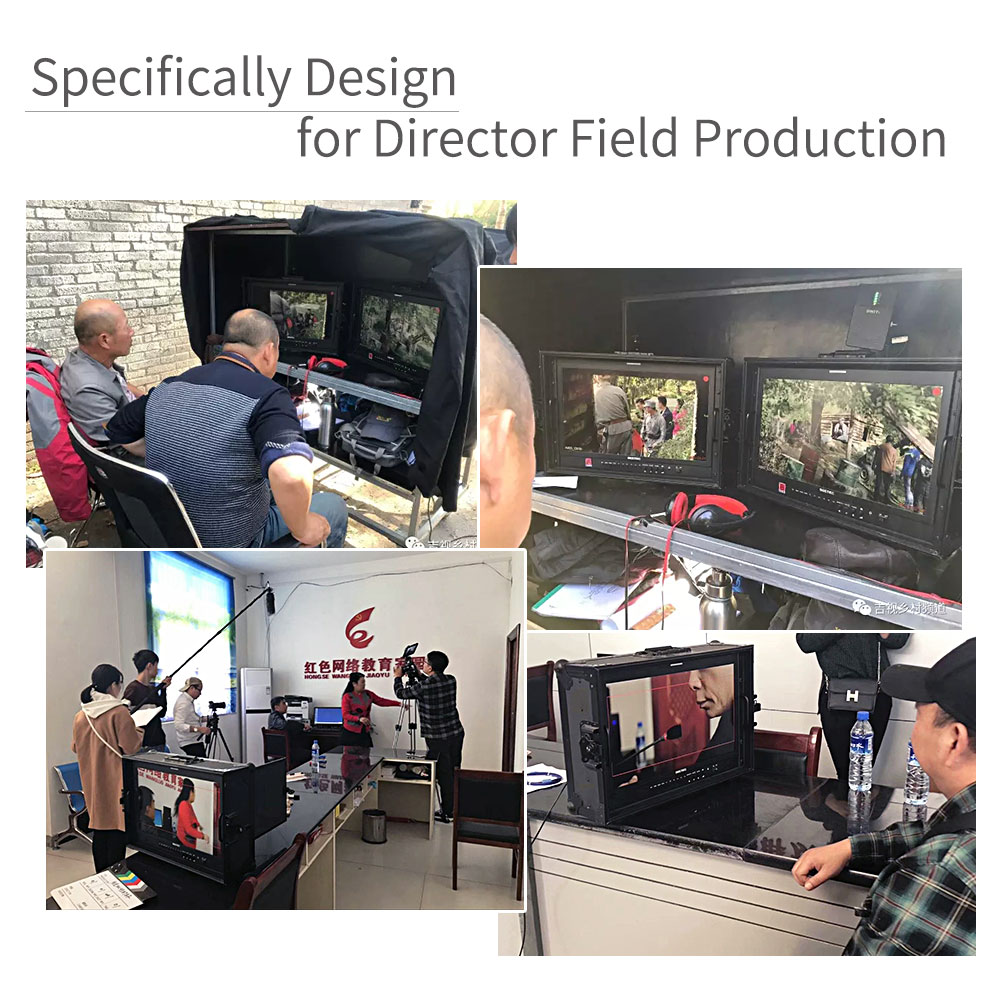

Suitable for the strict location shooting
.Carry-on Aluminium Case (hand-held for easy carry);
.Easy for disassemble (front and rear cover disassemble easy for screen image monitoring and signal connection).
.Front and rear covers for quick assemble and disassemble, speed the frequent switch between scenes, save the time of preparation the photographic equipments, so that get into work fastly!
Unique Design for High Efficency
New extended screen hood, to acquire the ideal visual effect in almost all environments
|
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
Input Voltage | DC9～24V |
Power Consumption | ≤15W |
Working Temperature | -10°C~50°C |
Storage Temperature | -20°C~60°C |
Unit Size | 511.6Lx355.5Hx41.87D (mm)/ 590Lx410Hx260D(mm) (with suitcase) |
Unit Weight | 14.5kg(with suitcase) |
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
* Center Marker |
* Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
* Image Freeze |
* Image Flip (H, V, H/V) |
* Camera Mode |
* Pixel-to-Pixel |
* Check Field (Red,Green,Blue,Mono) |
* Zoom All (Nonsupport in 4K input) |
* U/D & L/R Zoom (Nonsupport in 4K input) |
* Aspect Ratio (Nonsupport in 4K input) |
* Custom Color Temperature |
* Built-in LED tally indicators |

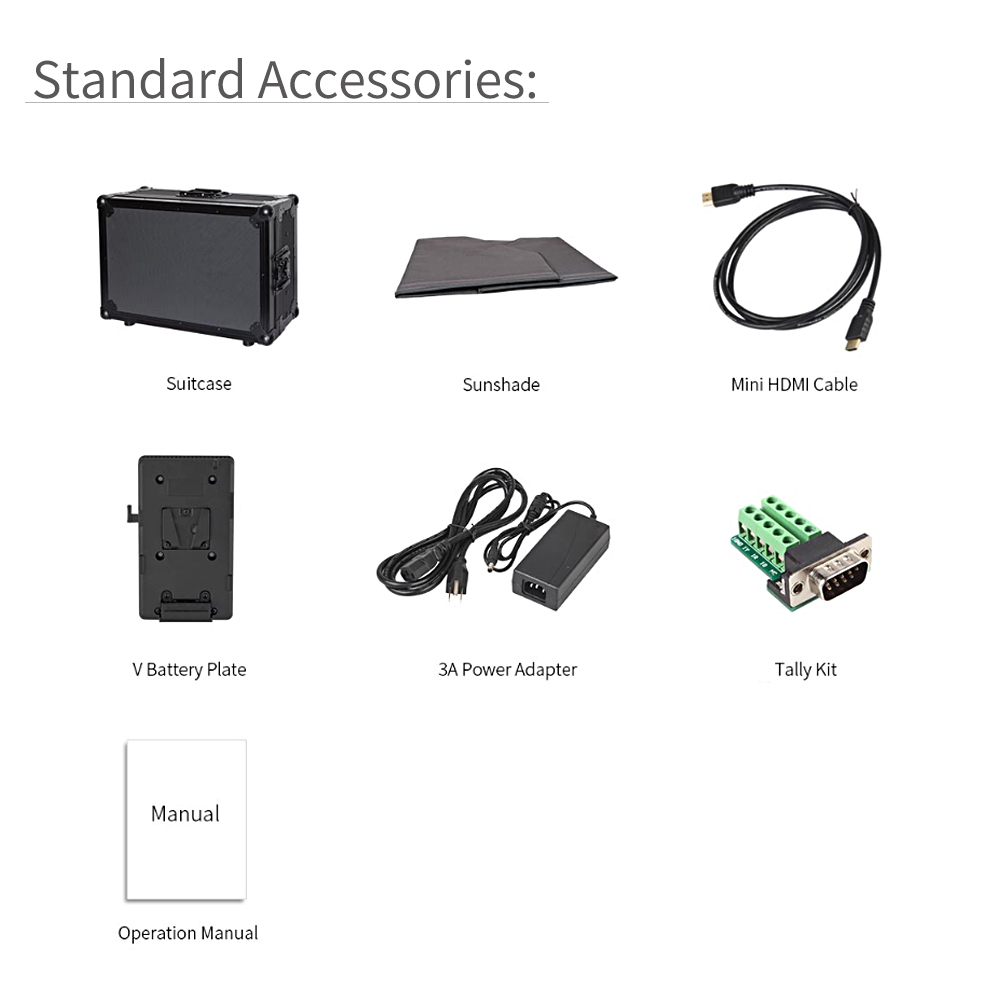

Standard Accessories:
1× Mini HDMI Cable
1× V Battey Plate
1× 3A Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
