GigE Color Global Shutter Camera

GigE Series Features:

1) Support 100 meters transmission or POE (optional).

2) Compatible with gige vision standard.

3) With hardware image processing acceleration.

4) Support multiple cameras to work at the same time.

5) Data packet retransmission technology to ensure reliable data transmission;

6) Provide SDK, easy to use and convenient.

7) Support external trigger and flash.

8) SDK supports Windows and Linux systems.

9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:

1) Camera parameter archive is saved as a file.

2) Camera name can be modified to easily distinguish multiple cameras.

3) With a maximum of 16K bytes of data storage.

4) Support 8bit, 24bit, 32bit image format output.

5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package Incluede:

1 x GigE Camera (No Include Lens)

1 x 6pin Line

Industrial Camera Parameters：

Model	Pixel	Resolution	Frame Rate	Shutter Type	Sensor	Pixel Size	Bit Depth	Color
HT-GE33GC	0.3MP	640X480	380 FPS	Global Shutter	1/5.6" OEM	4.0μm	8 bit	Color
HT-GE33GM	0.3MP	640X480	380 FPS	Global Shutter	1/5.6" OEM	4.0μm	8 bit	Monochrome
HT-GE34GC	0.3MP	640X480	387 FPS	Global Shutter	1/4" PYTHON	4.8μm	10 bit	Color
HT-GE34GM	0.3MP	640X480	387 FPS	Global Shutter	1/4" PYTHON	4.8μm	10 bit	Monochrome
HT-GE40GC	0.4MP	720X540	298 FPS	Global Shutter	1/2.9" IMX287	6.9μm	8 bit	Color
HT-GE40GM	0.4MP	720X540	298 FPS	Global Shutter	1/2.9" IMX287	6.9μm	8 bit	Monochrome
HT-GE50GC	0.5MP	800X600	119 FPS	Global Shutter	1/3.6" PYTHON480	4.8μm	10 bit	Color
HT-GE50GM	0.5MP	800X600	119 FPS	Global Shutter	1/3.6" PYTHON480	4.8μm	10 bit	Monochrome
HT-GE134GC	1.3MP	1280X1024	91 FPS	Global Shutter	1/2" PYTHON1300	4.8μm	8 bit	Color
HT-GE134GM	1.3MP	1280X1024	91 FPS	Global Shutter	1/2" PYTHON1300	4.8μm	8 bit	Monochrome
HT-GE232GC	2.3MP	1920X1200	52 FPS	Global Shutter	1/2.6" AR0234	3.0μm	8 bit	Color
HT-GE232GM	2.3MP	1920X1200	52 FPS	Global Shutter	1/2.6" AR0234	3.0μm	8 bit	Monochrome
HT-GE202GC	2.3MP	1920X1200	51 FPS	Global Shutter	2/3" PYTHON2000	4.8μm	10 bit	Color
HT-GE202GM	2.3MP	1920X1200	51 FPS	Global Shutter	2/3" PYTHON2000	4.8μm	10 bit	Monochrome
HT-GE231GC	2.3MP	1920X1200	40 FPS	Global Shutter	1/1.2" IMX249	5.86μm	12 bit	Color
HT-GE231GM	2.3MP	1920X1200	40 FPS	Global Shutter	1/1.2" IMX249	5.86μm	12 bit	Monochrome
HT-GE232GC	2.3MP	1920X1200	52 FPS	Global Shutter	1/2.6" AR0234	3.0μm	8 bit	Color
HT-GE232GM	2.3MP	1920X1200	52 FPS	Global Shutter	1/2.6" AR0234	3.0μm	8 bit	Monochrome
HT-GE300GC	3.0MP	2048X1536	38 FPS	Global Shutter	1/1.8" IMX265	3.45μm	12 bit	Color
HT-GE300GM	3.0MP	2048X1536	38 FPS	Global Shutter	1/1.8" IMX265	3.45μm	12 bit	Monochrome
HT-GE501GC	5.0MP	2448X2048	24 FPS	Global Shutter	2/3" IMX264	3.45μm	12 bit	Color
HT-GE501GM	5.0MP	2448X2048	24 FPS	Global Shutter	2/3" IMX264	3.45μm	12 bit	Monochrome
HT-GE505GC	5.3MP	2592X2048	22 FPS	Global Shutter	2/3" XGS5000	3.2μm	8 bit	Color
HT-GE505GM	5.3MP	2592X2048	22 FPS	Global Shutter	2/3" XGS5000	3.2μm	8 bit	Monochrome
Data Interface		GigE
Synchronization		Via free run Via software trigger Via hardware trigger

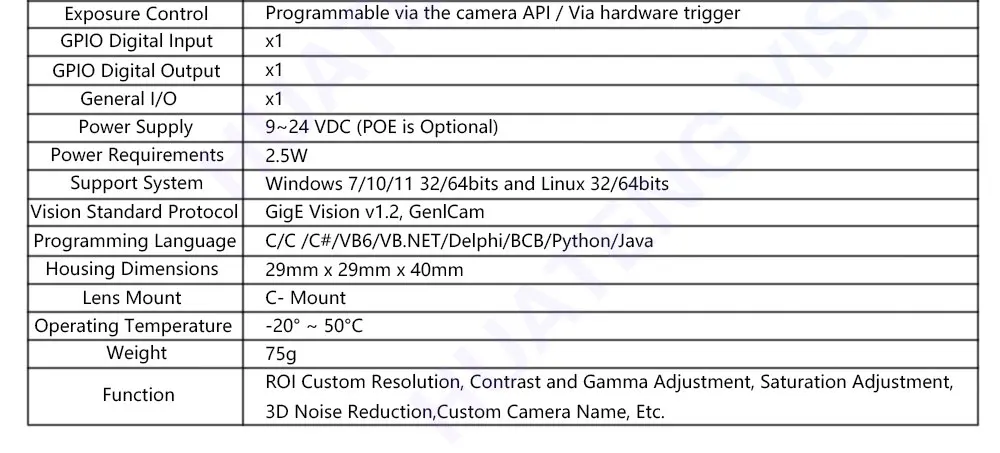

Exposure Control		Programmable via the camera API Via hardware trigger
GPIO Digital Input		x1
GPIO Digital Output		x1
General I/O		x1
Power Supply		9~24 VDC (POE is Optional)
Power Requirements		2.5W
Support System		Windows 7/10/11 32/64bits and Linux 32/64bits
Vision Standard Protocol		GigE Vision v1.2, GenlCam
Programming Language		C/C /C#/VB6/VB.NET/Delphi/BCB/Python/Java
Housing Dimensions		29mm x 29mm x 40mm
Lens Mount		C- Mount
Operating Temperature		0 - 50°C
Weight		75g
Function		ROI Custom Resolution, Contrast and Gamma Adjustment, Saturation Adjustment,3D Noise Reduction, Custom Camera Name, Etc.
