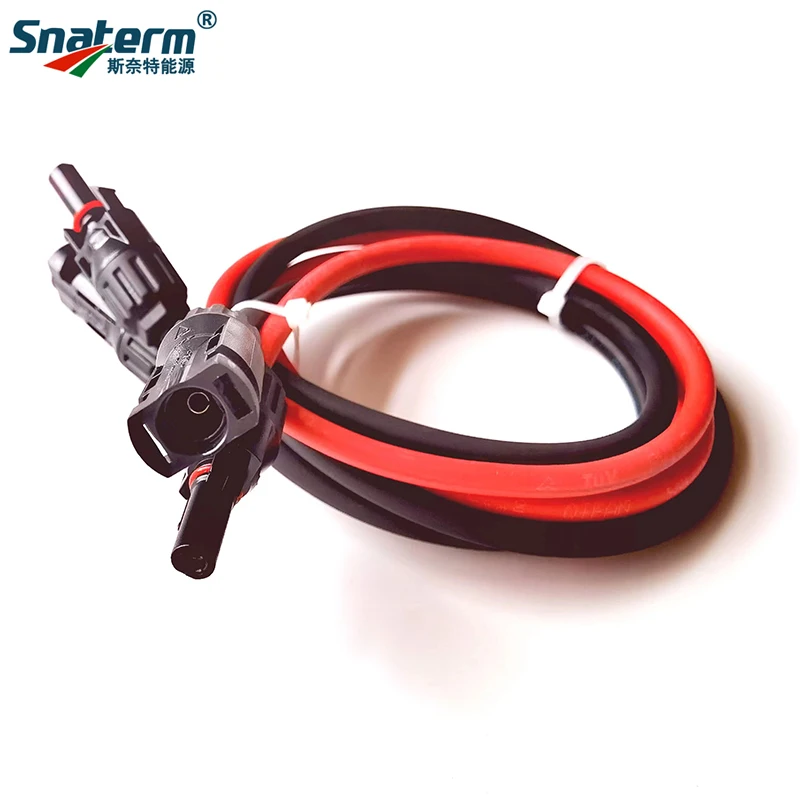

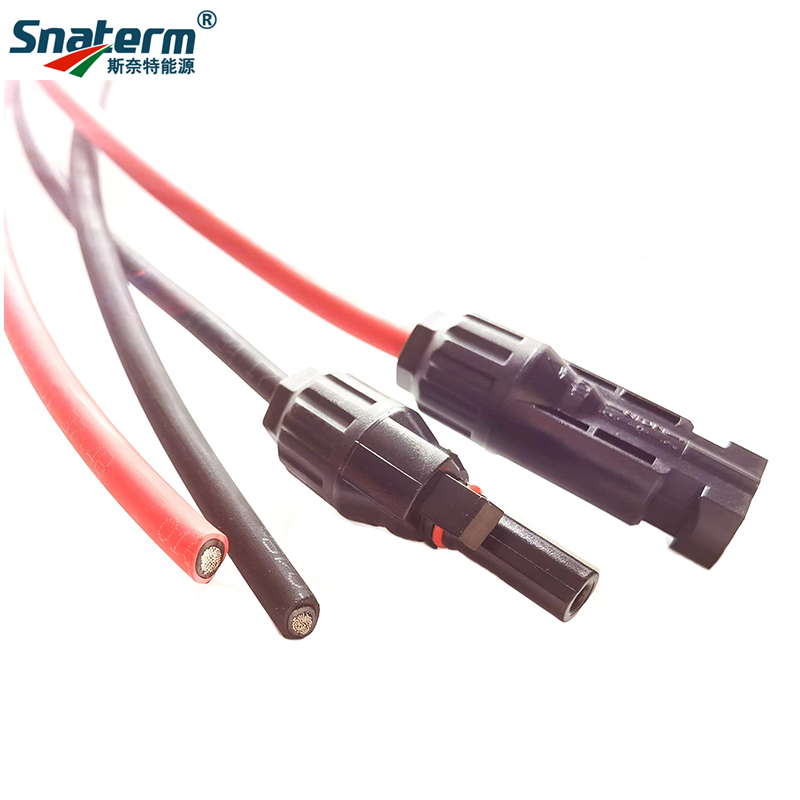

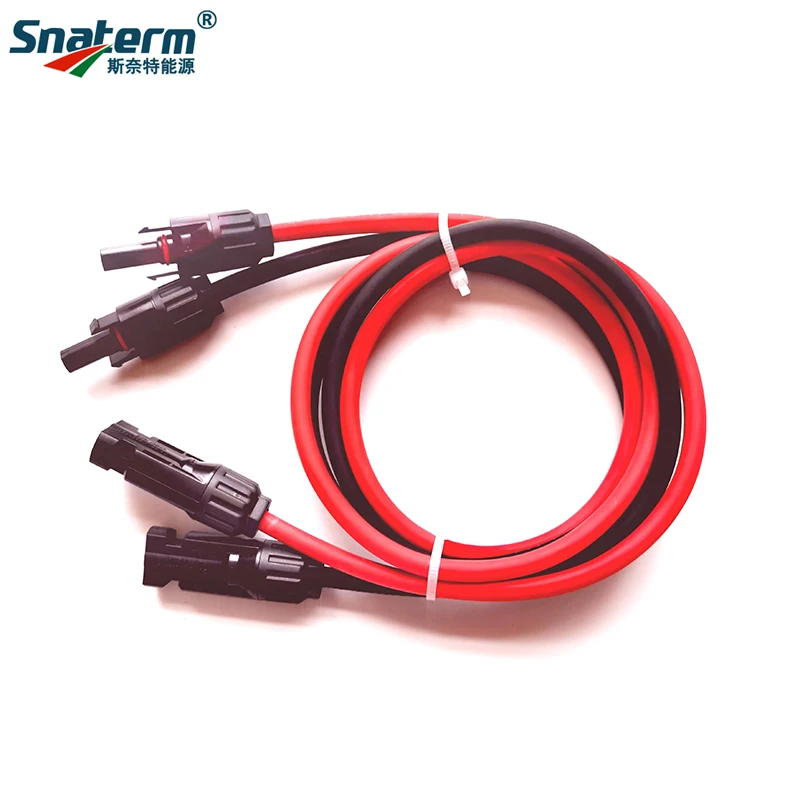

1/5/10/20/30/50Meters 16/14/12/10AWG PV Extension Cable Copper Double Sheathed Wire Solar Connectors Photovoltaic Extension Cord
Cable size range : 6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)/1.5mm2(16AWG)

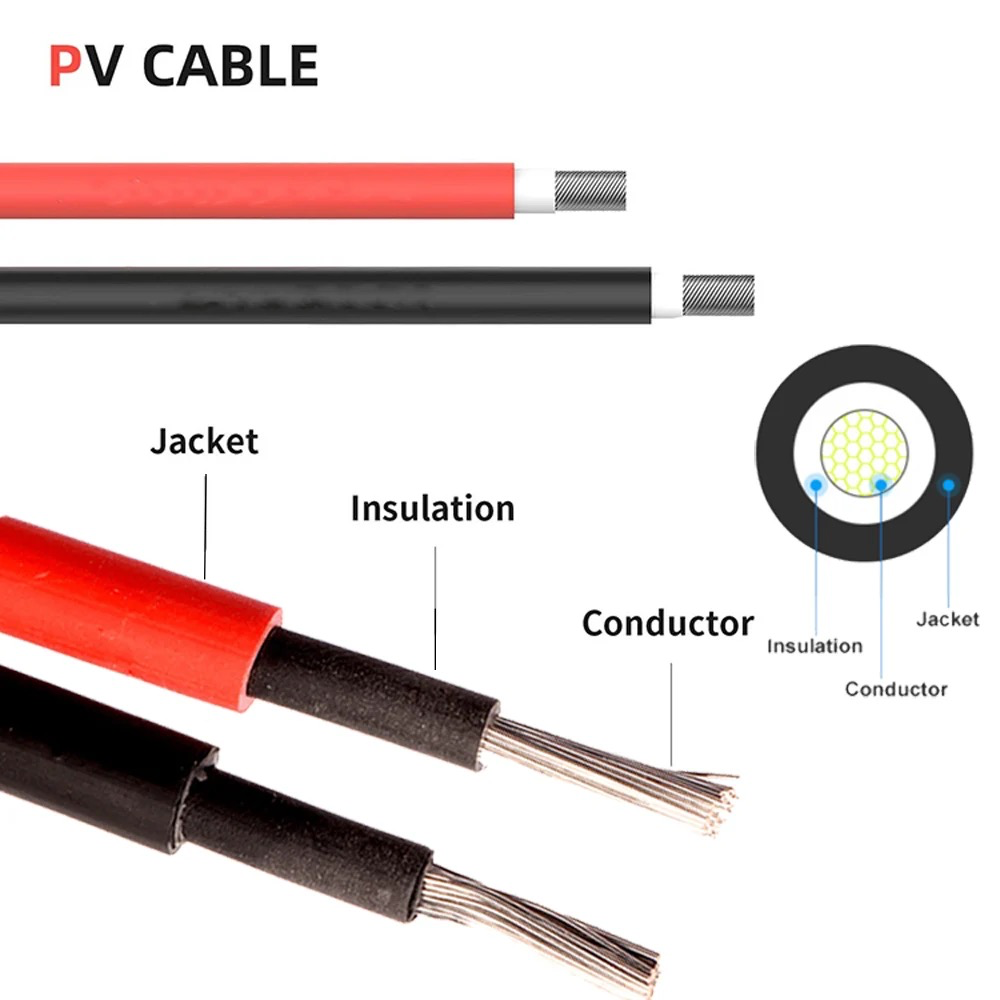

Solar Cable Structure :
INTRODUCTION
specifications:2.5/4/6/10mm²
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black

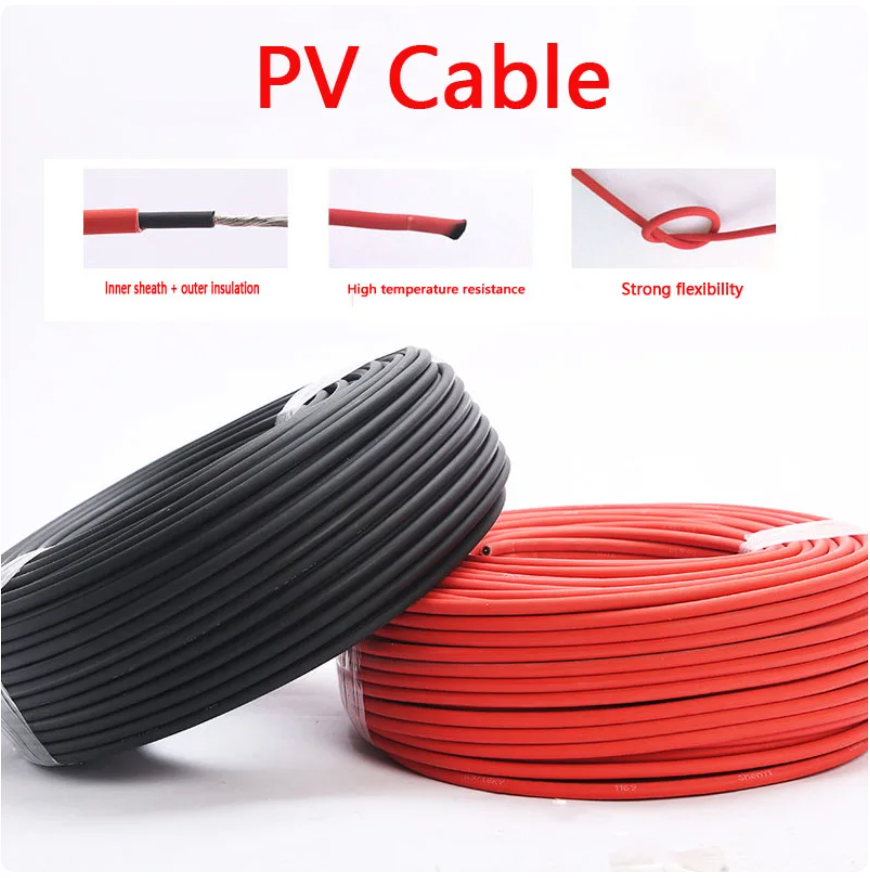

Feature: Double insulation cover,
Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)

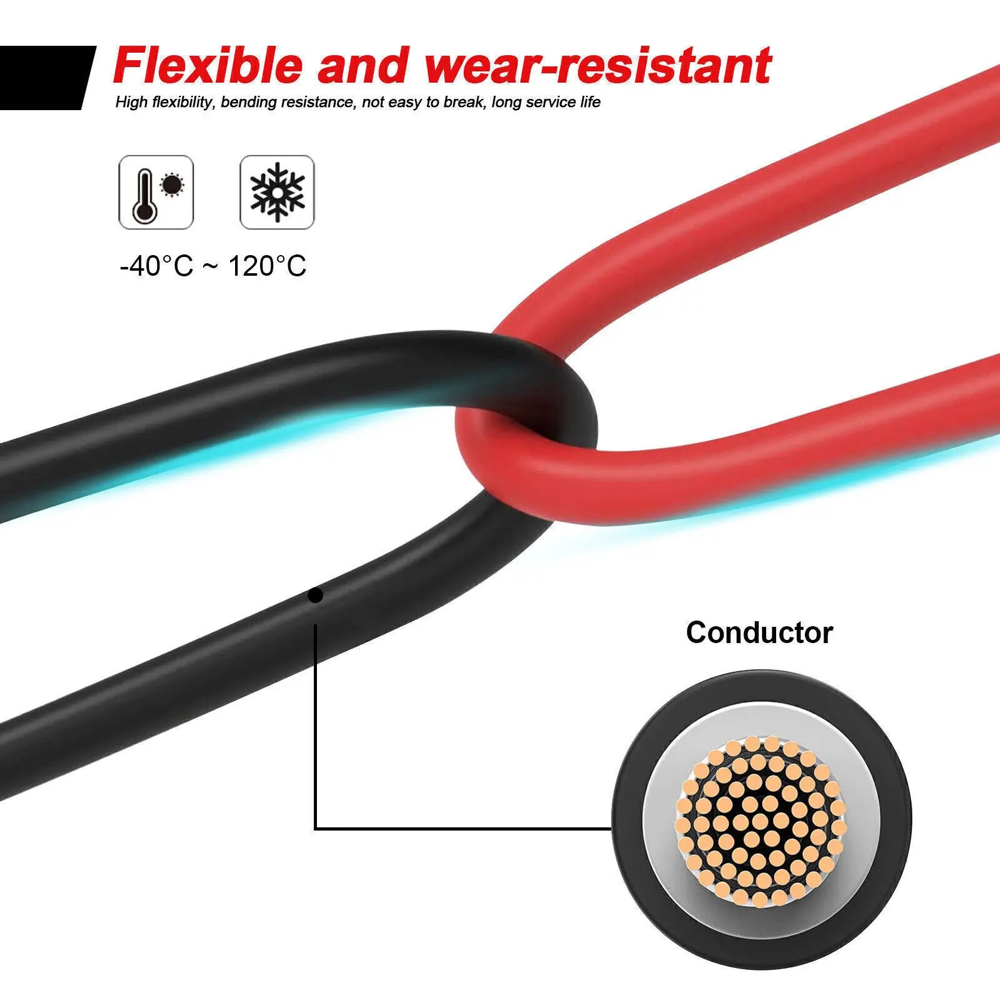

Service life:25 years (-40 ℃ -90 ℃)
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration: This item is double-sheathed cable, which is not as soft as single-sheathed cable and silicone cable, please pay attention to the distinction
TECHNICAL PARAMETERS
Model | Safe current(A) | Core diameter (mm) | Conductor cross section(mm²) |
16 AWG | 19 | 30*0.25 | 1.5 |
14 AWG | 28 | 35*0.3 | 2.5 |
12 AWG | 36 | 56*0.3 | 4 |
10 AWG | 48 | 84*0.3 | 6 |
8 AWG | 65 | 142*0.3 | 10 |
6 AWG | 95 | 227*0.3 | 16 |
4 AWG | 120 | 190*0.4 | 25 |
Conductor:Tin-plated high-purity oxygen-free copper, electrical performance and structure meet the requirements of ASTMB33 or ASTMB172
Insulation:Thermosetting environmental protection insulation material, generally black
Sheath:Thermosetting radiation-crosslinked polyvinyl chloride environmental protection UV-resistant sheath material
ADVANTAGES
