RC 3650 3660 3670 3100KV/3900KV/4300KV/5200KV Brushless Motor with Heat Heatsink for 1/8 1/10 RC Car Truck
価格:
$5.18
/Pc
払い戻し:
シェア:
売れ筋商品

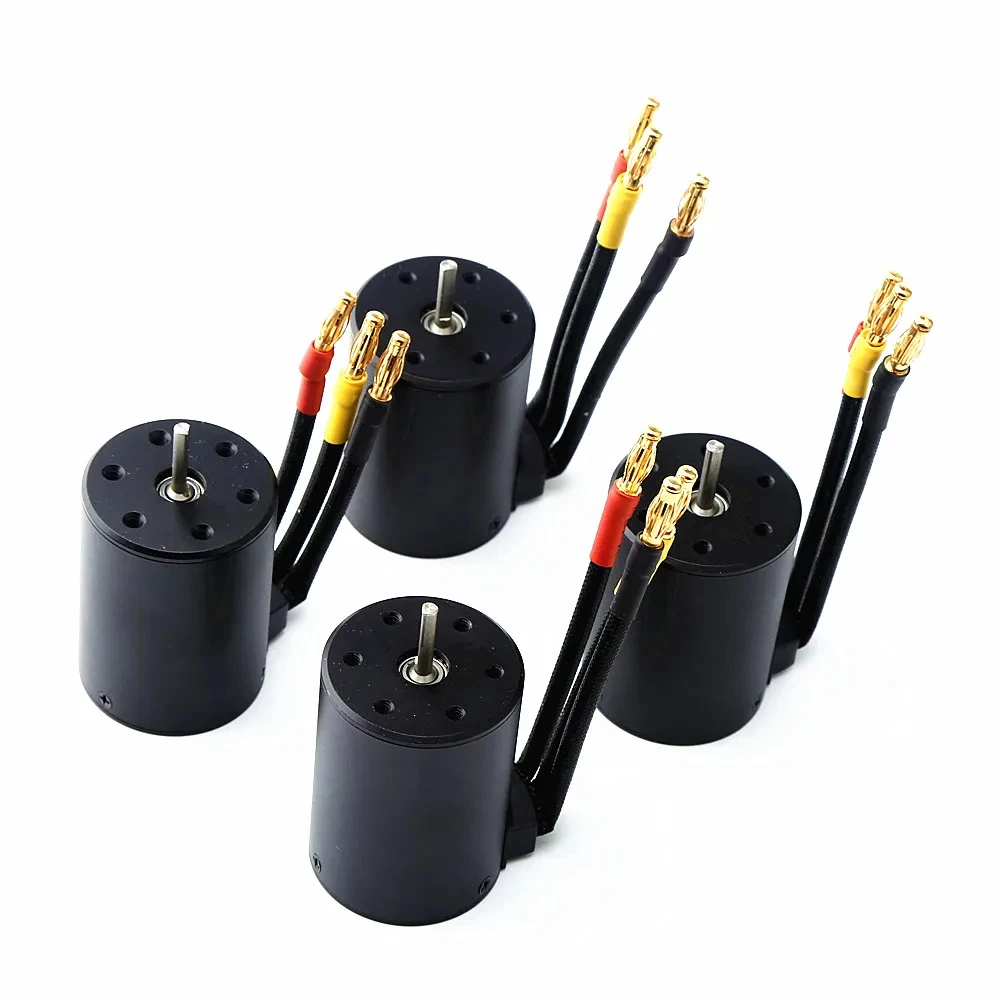

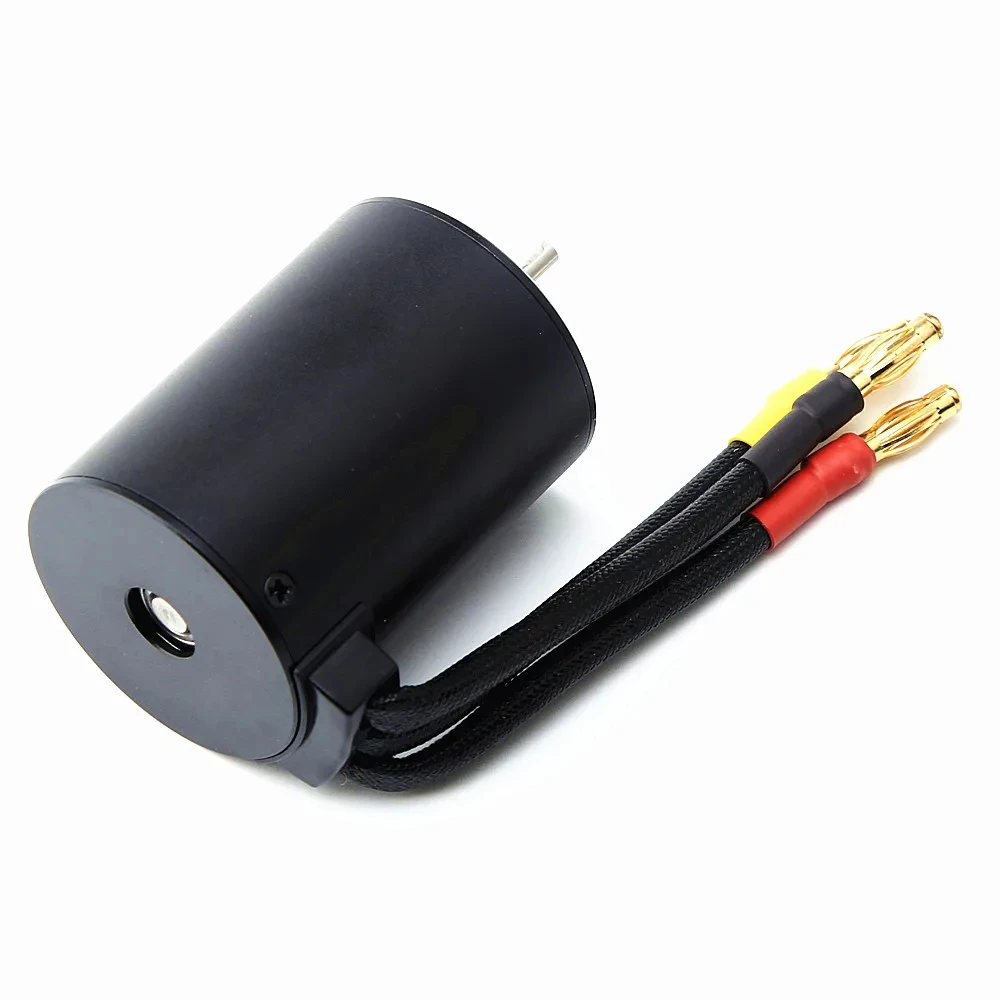

3650 3900kv / 4300kv / 3100kv / 5200kv motor used for 1/10 Car
4 pole 12 slot high-torque motor design
3.175mm /5mm shaft diameter
High purity copper windings maximizes efficiency
Precision engineered for maximum energy conversion
Precision balanced rotor,smoothness for best reliability and maximum RPM
Suit for 1/10 1/8 scale RC car

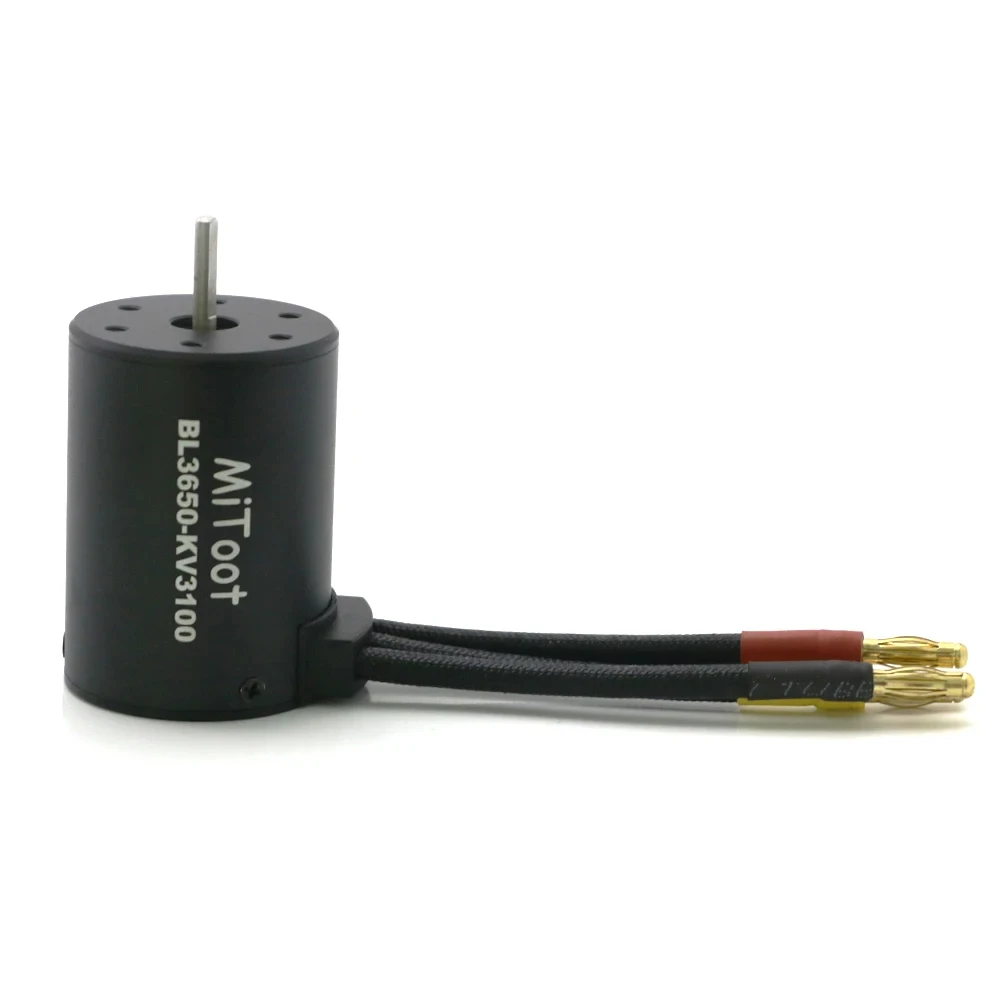

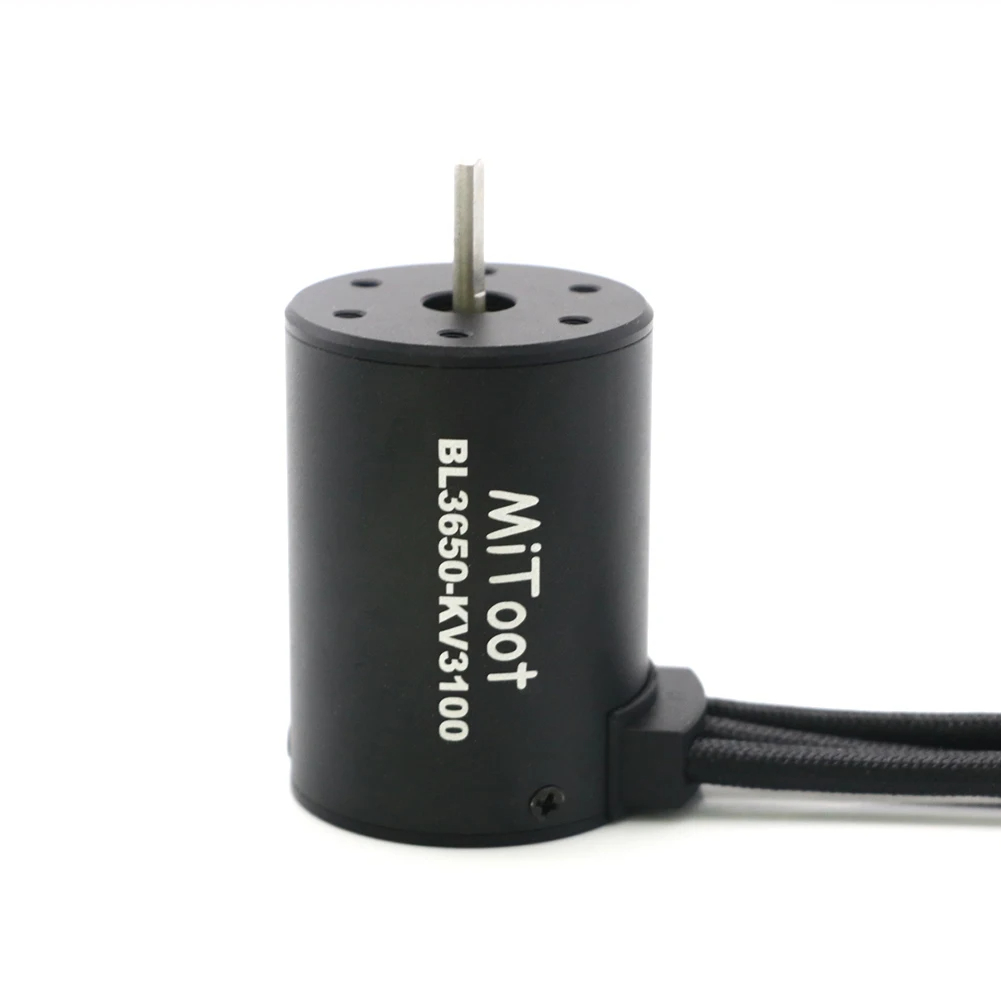

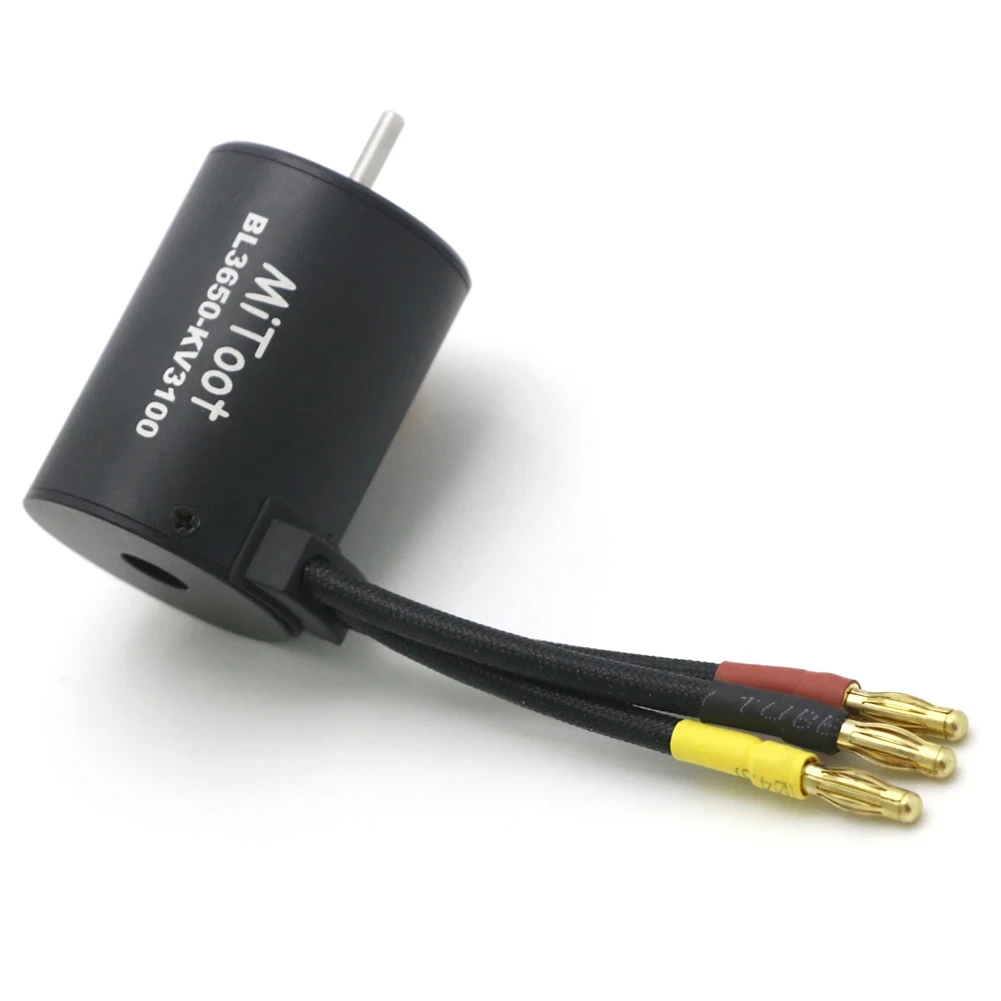

3650 3100KV Waterproof Brushless Motor for 1/10 Car
Watts: 900W
Max voltage: <16V
Max Amps: 56A
KV(RPM/Volt): 3100KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
3650 3900KV Waterproof Brushless Motor for 1/10 Car
Specifications:
Brand name: Queen Hobby
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 3900KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Outer Shaft diameter: 3.175mm
Inner Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug
3650 4300kv Waterproof Brushless Motor for 1/10 Car
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 4300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Outer Shaft diameter: 3.175mm
Inner Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug
3650 5200KV Waterproof Brushless Motor for 1/10 Car
Watts: 900W
Max Voltage: <9.6V
Max Amps: 94A
Rotor Poles: 4
KV(RPM/Volt): 5200KV
Max RPM: 50000
Length: 50mm
Diameters: 36mm with fins
Shaft diameter: 3.175mm
Length of Extend Shaft: 15mm
Plug Type: 4mm golden banana plug

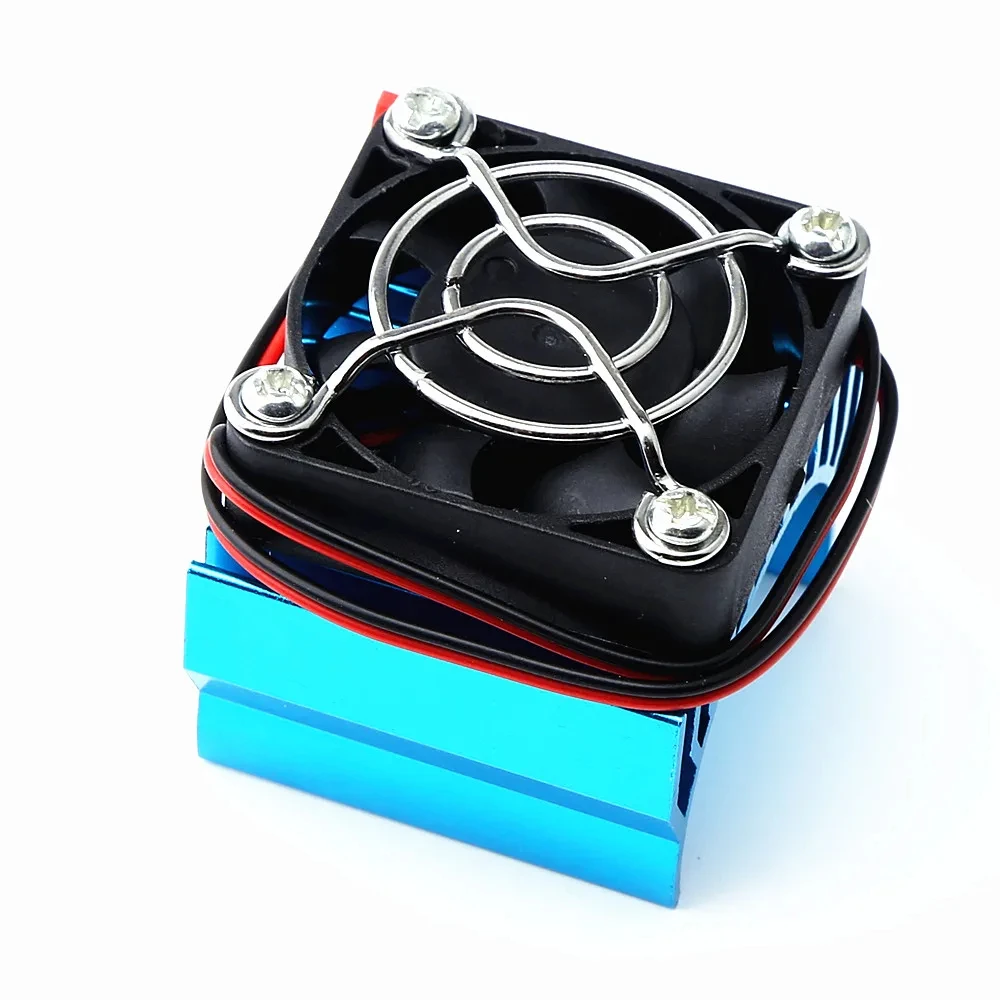

540 3650 3660 3670 Motor Heat Sink Cover w/ Cooling Fan Heatsink RC Parts Brushless Aluminum Electric 1/10 For HSP Himoto Redcat
It is made of Aluminum Alloy and Plastic combined,with fan cooling and stainless steel protecting net cover
A replacement for RC 1:10 Car 540 3650 3660 3670 Motor Heatsink
motor outdiameter is 36MM can be suitable
Color: Purple,Black,Red,Silver,Blue,Gold ( defualt color is Blue, please leave a message to us if you prefer other color. )
Material: Aluminum Alloy, Plastic
Dimension: 46x40x40mm / 1.81x1.57x1.57"(LxWxH)
Cable length: 290mm
Weight: 48.6g
Note : the 36504300KV/5200KV motor , it is better to use 2s battery.

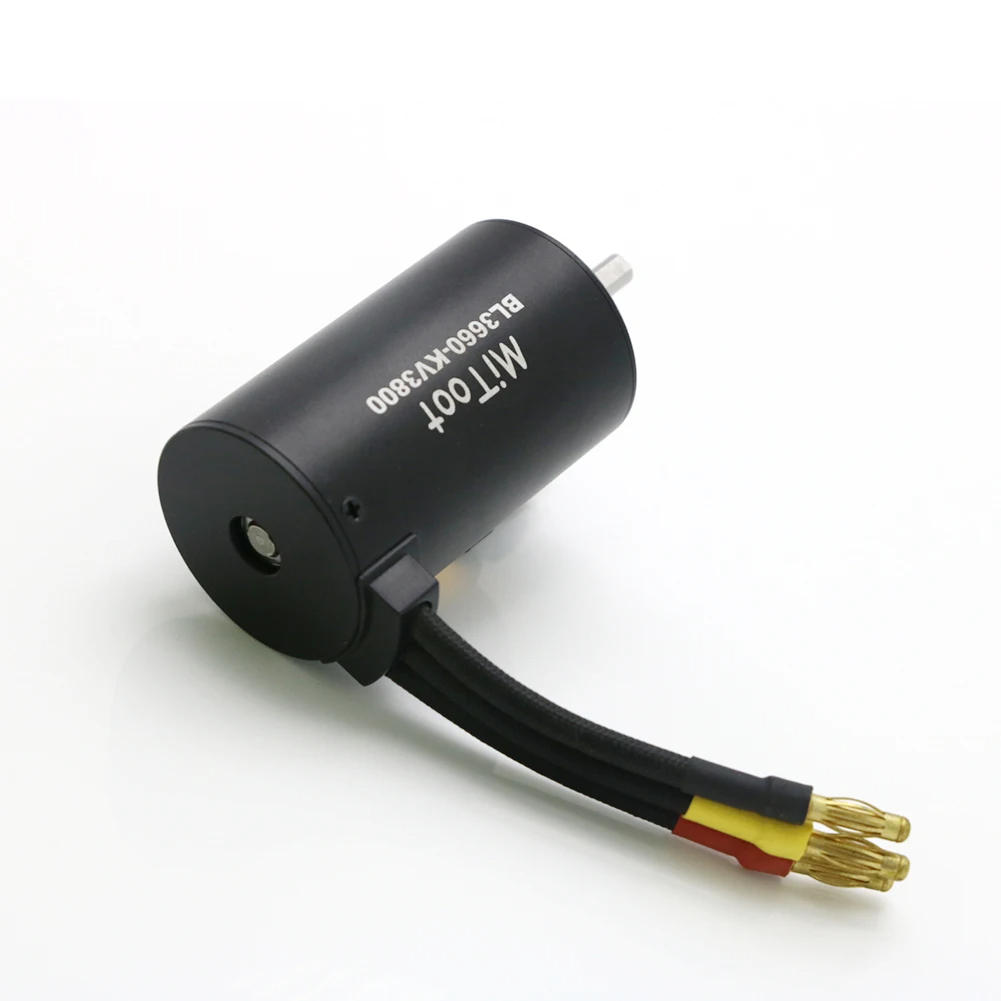

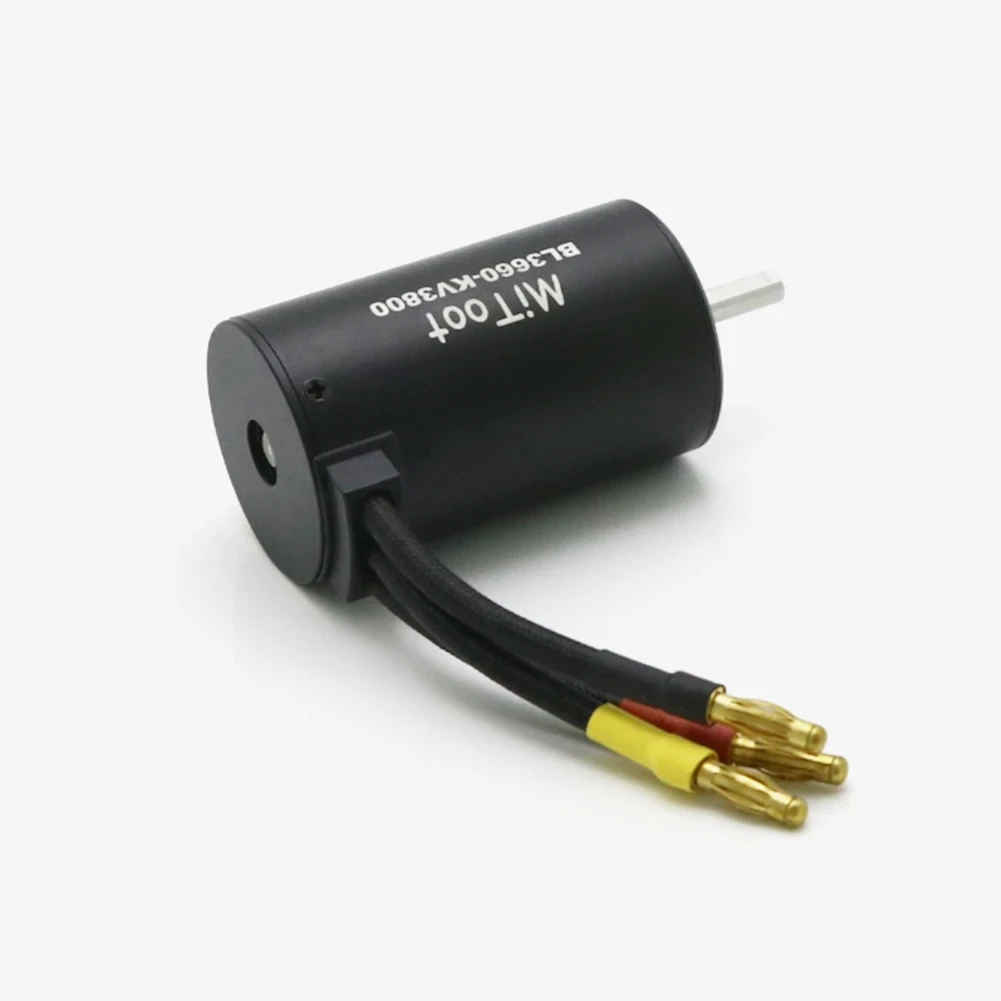

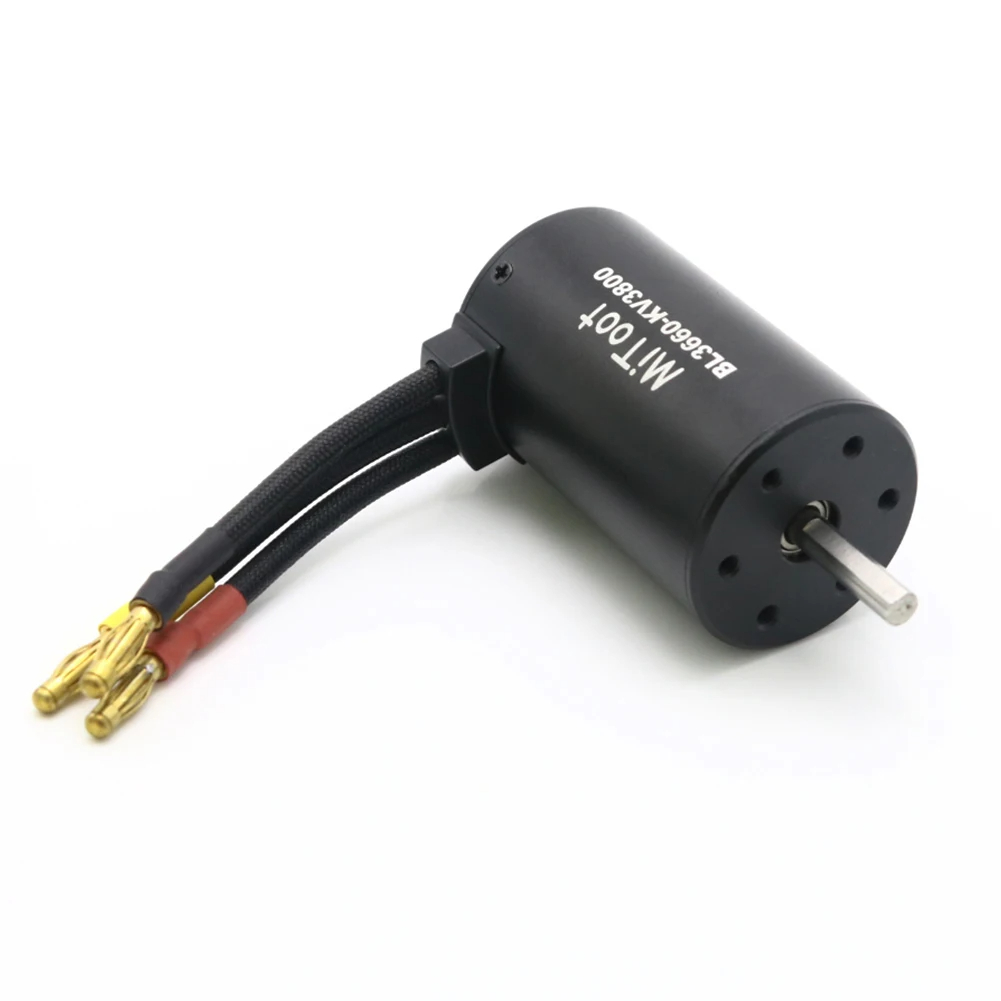

3660 3300KV / 3800KV Motor used For 1/10 Car
3660-3300KV Specifications:
Watts: 1200W
Max voltage: <15V
Max Amps: 80A
KV(RPM/Volt): 3300KV
Max RPM: 50000
Diameter: 36mm
Length: 60mm
Shaft length: 17mm
Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug

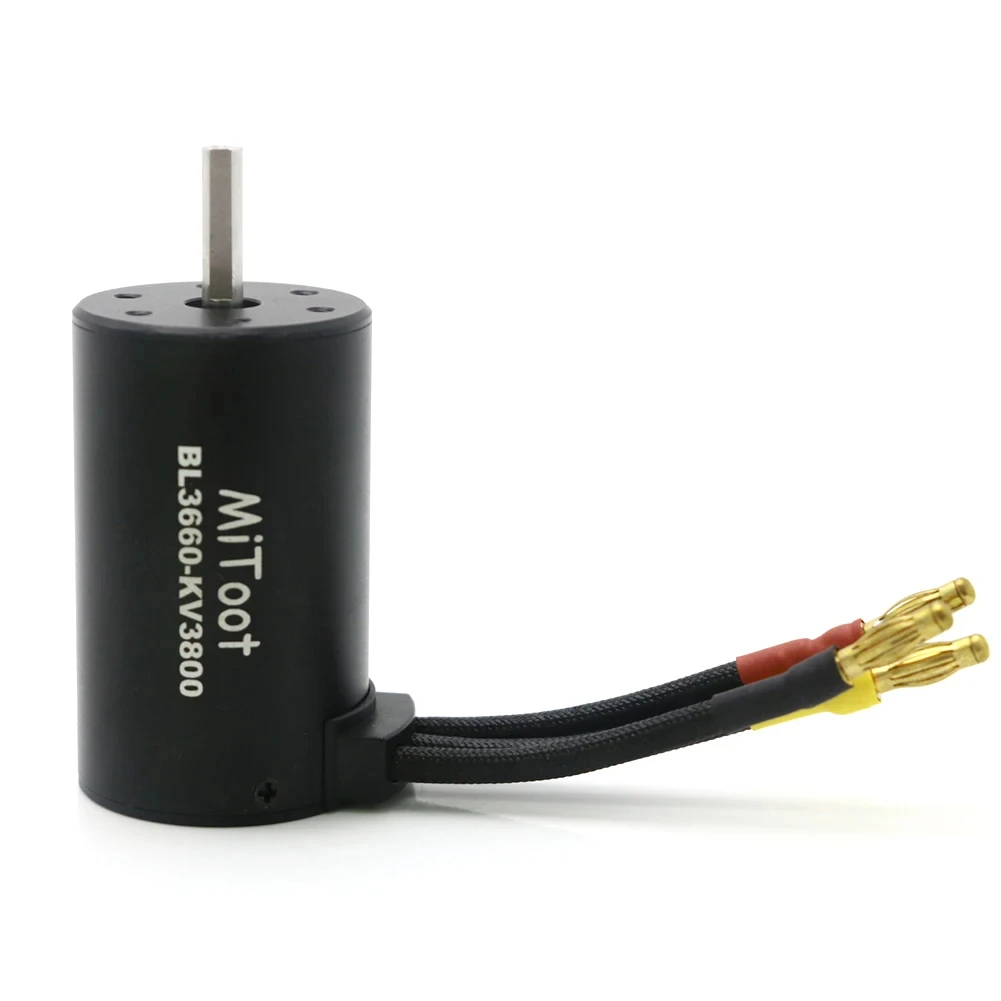

3660-3800KV Specifications:
Watts: 1200W
Max voltage: <13V
Max Amps: 92A
KV(RPM/Volt): 3800KV
Max RPM: 50000
Diameter: 36mm
Length: 60mm
Shaft length: 17mm
Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug
3670 2050KV / 2650kv Motor Used for 1/8 Car
3670-2050KV Specifications:
Item No.: 3670
KV(RPM/Volt): 2050KV
RPM: 50000
Watt: 1600W
Max current: 70A
Max voltage: <23V
Ressistance: 0.0121
Diameter: 36mm
Length: 70mm
Shaft length: 17mm
Shaft diameter: 5.00mm
Weight:262g
Connector: 4mm golden banana connector

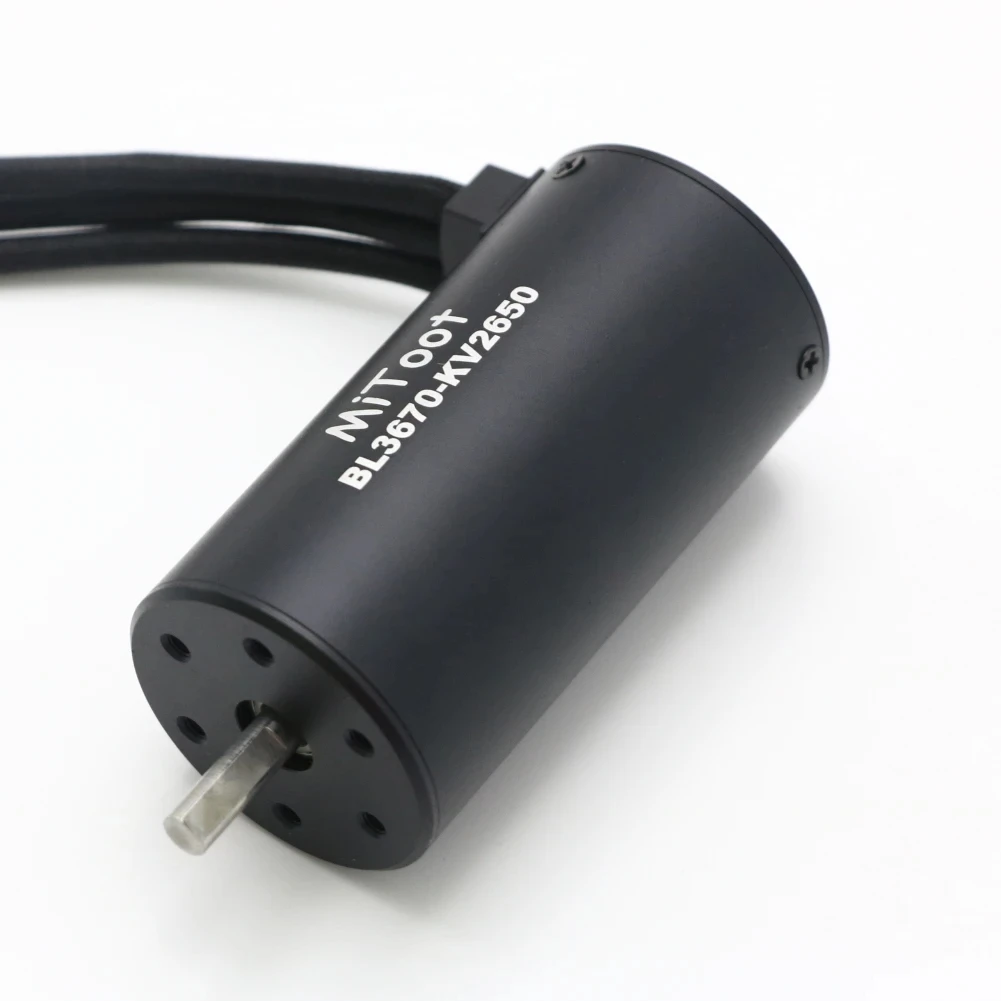

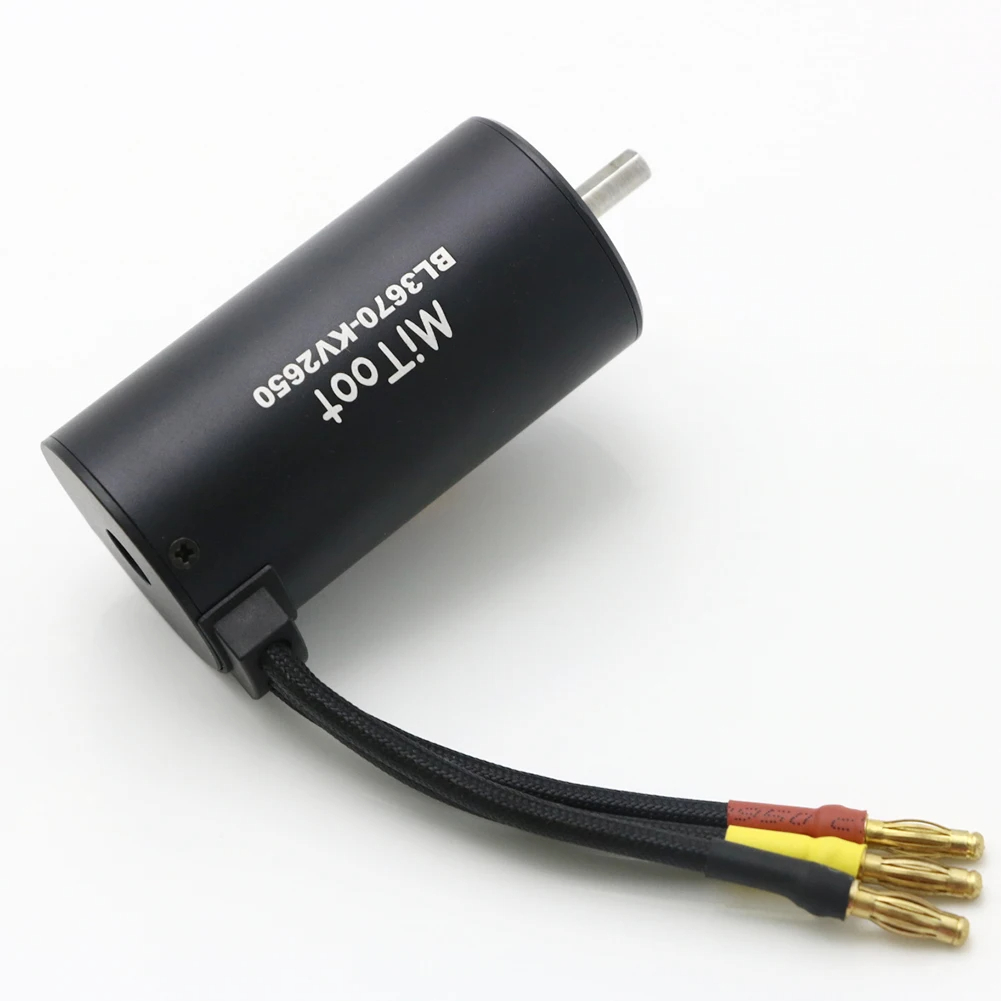

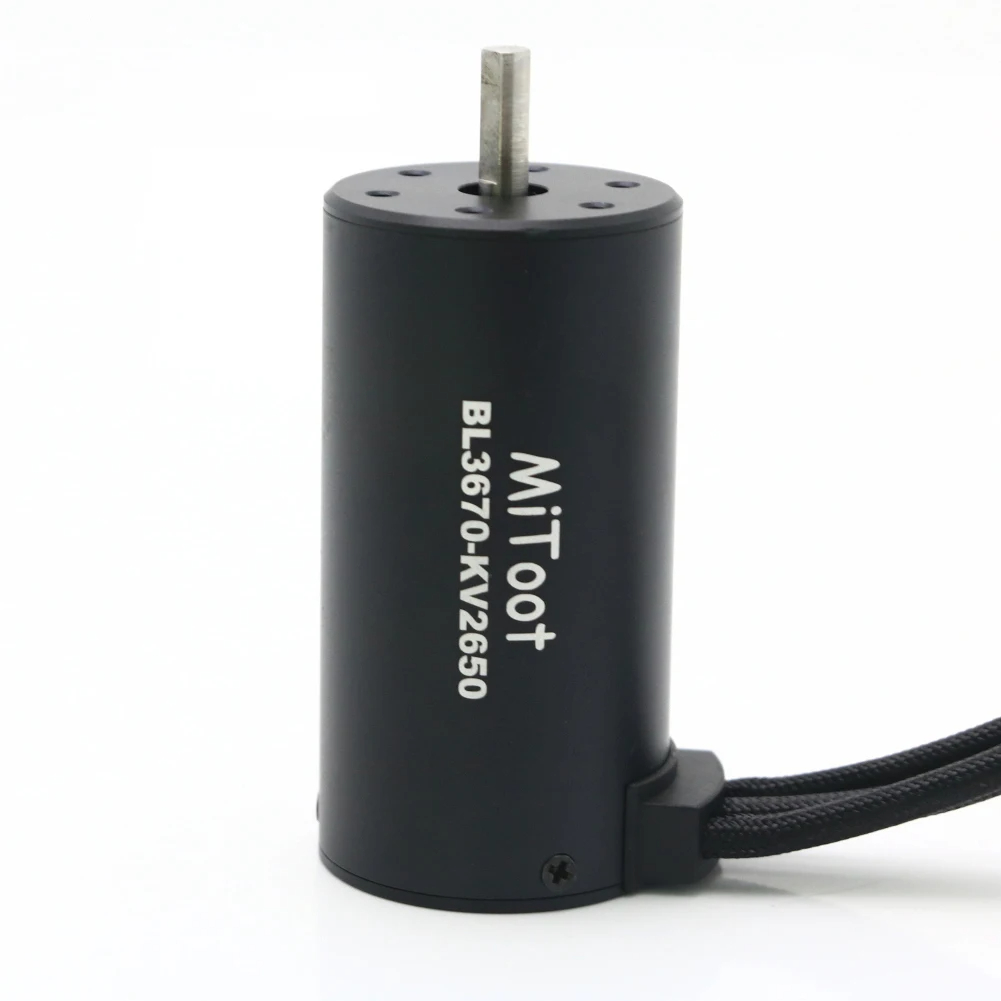

3670-2650KV Specifications:
Item No.: 3670
KV(RPM/Volt): 2650KV
RPM: 50000
Watt: 1600W
Max current: 86A
Max voltage: <18.5V
Ressistance: 0.0069
Diameter: 36mm
Length: 70mm
Shaft length: 17mm
Shaft diameter: 5.00mm
Weight: 272g
Connector: 4mm golden banana connector
