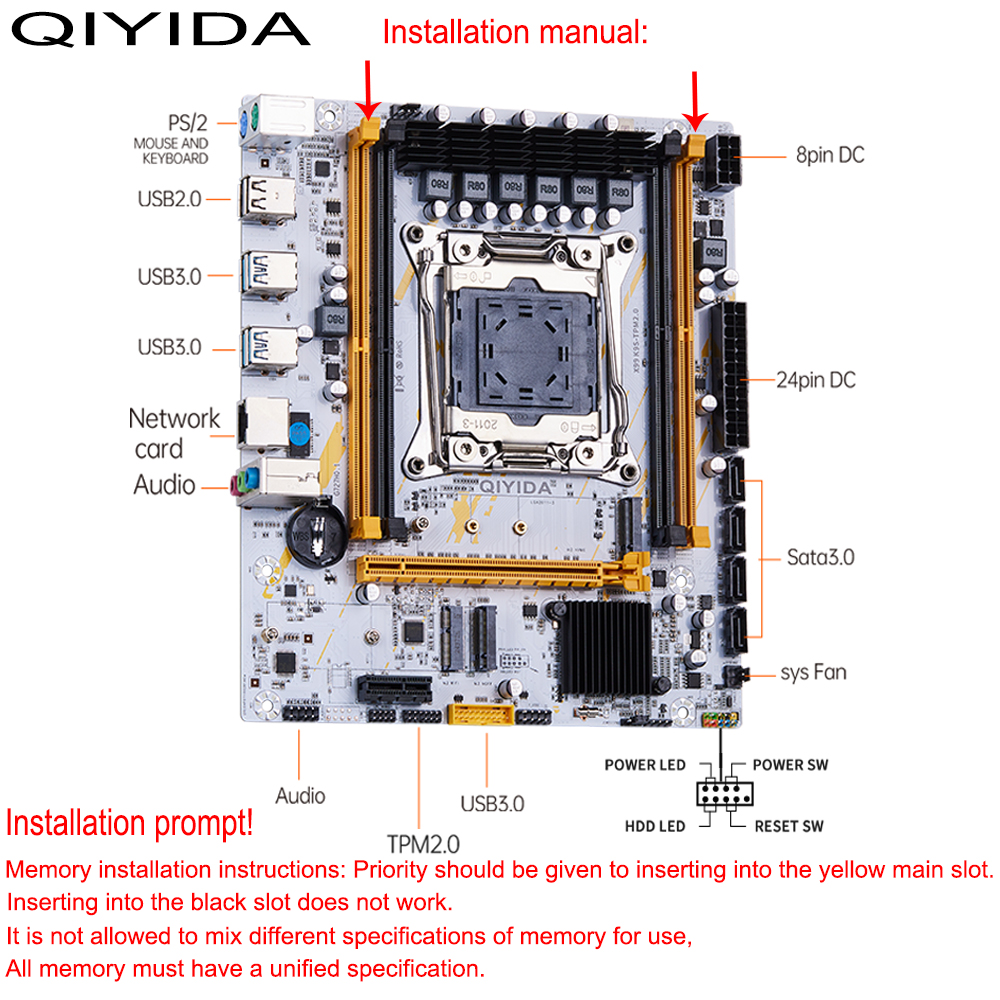

Installation prompt!

Memory installation instructions: Priority should be given to inserting into the yellow main slot.

Inserting into the black slot does not work.

It is not allowed to mix different specifications of memory for use,

All memory must have a unified specification.

Note ：

Due to different production batch, motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc. Our aim is to gradually make it more powerful.

We will not make any further notice..

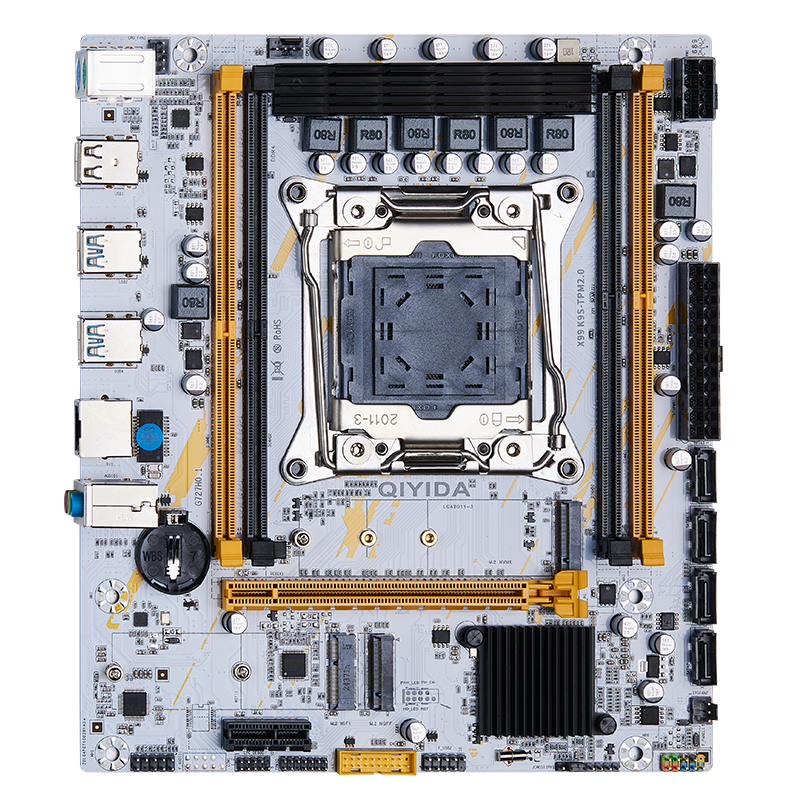

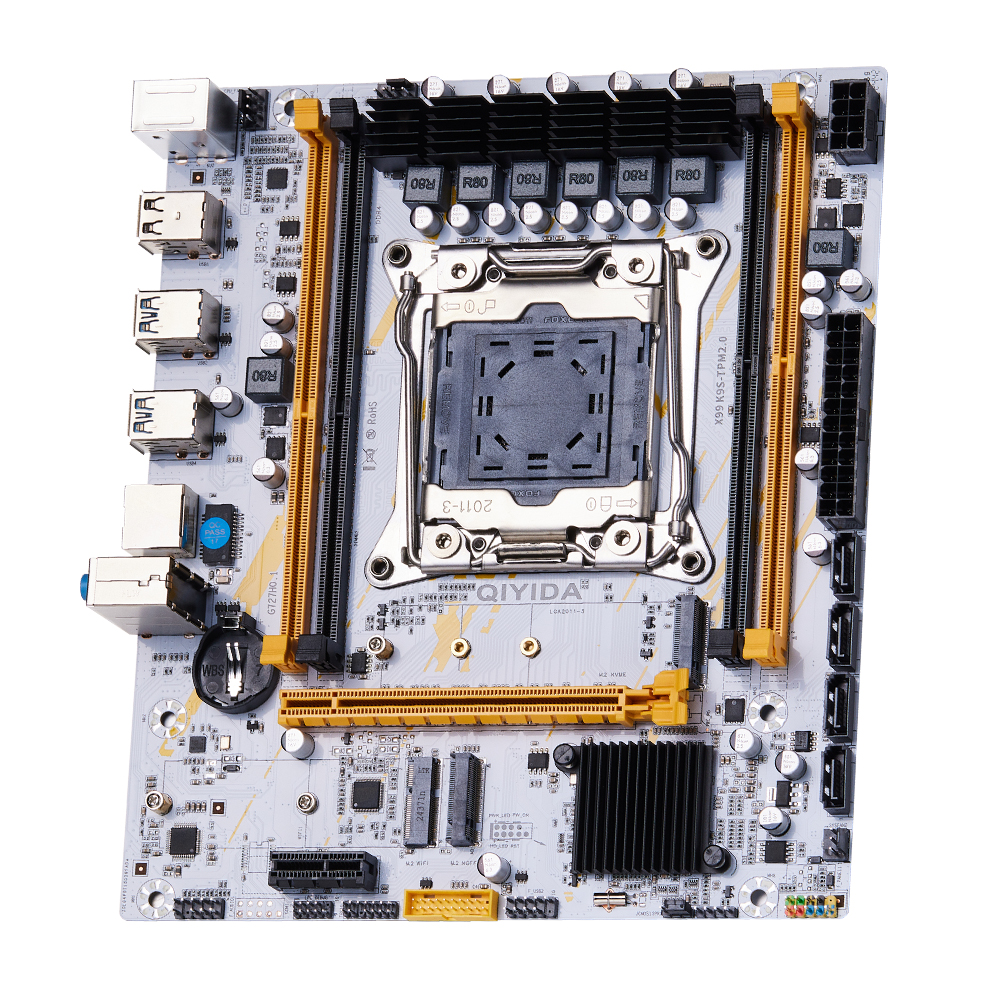

Model:QIYIDA X99 LGA2011-3

Condition: Full new

CPU sockets: LGA 2011-3

Structure: M-ATX

VGA socket: PCI-E X 16

Power port: 24Pin+8pin

CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)

Memory socket: 4* DDR4

Max memory capacity: 4* 16G DDR4 2133/2400MHz/2666MHz/3200MHz

Memory type supported: non-ecc/reg ecc/ecc

Integrated video card: No

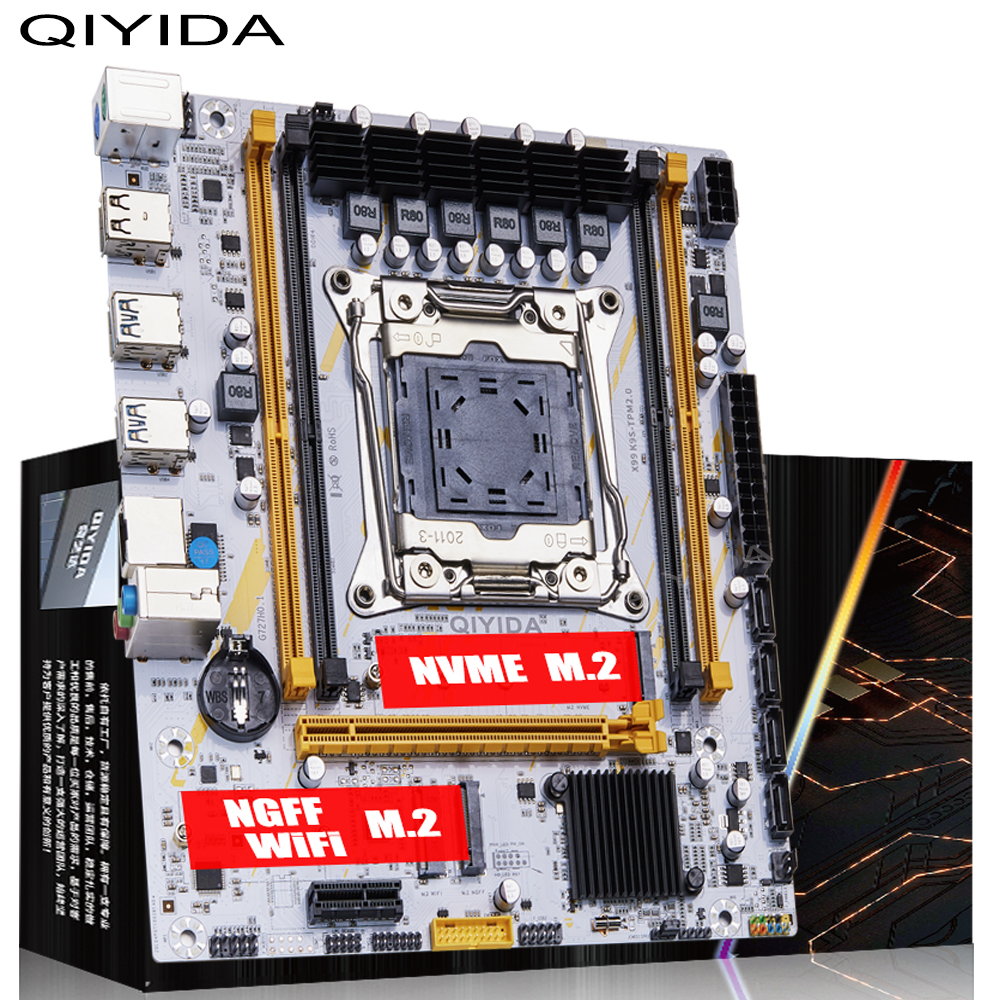

Support NVME/NGFF M.2.

Motherboard dimension: 215cm*18.6cm

The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50°.

Please notice that:E5-2650V4 only top to support DDR4 2400Mhz. It means it will only shown 2400Mhz when install 3200Mhz. Please don’t place order if you mind.You can read 3200mhz on CPU-Z.

Notice for motherboard combine RAM

ALL RAM needs to install in slot#1and slot#4(black slot)priority

when 1RAM+motherbard (ram needs to install slot#1or #4.)

when 2RAM+motherbard (ram needs to install slot#1and #4.)

when 3RAM+motherbard (ram needs to install slot#1and #4.and#2or#3.)

when 4RAM+motherbard (install all slots)

The black ram slot of motherboard can't works alone.The memory needs to be inserted into the yellow main slot first.
