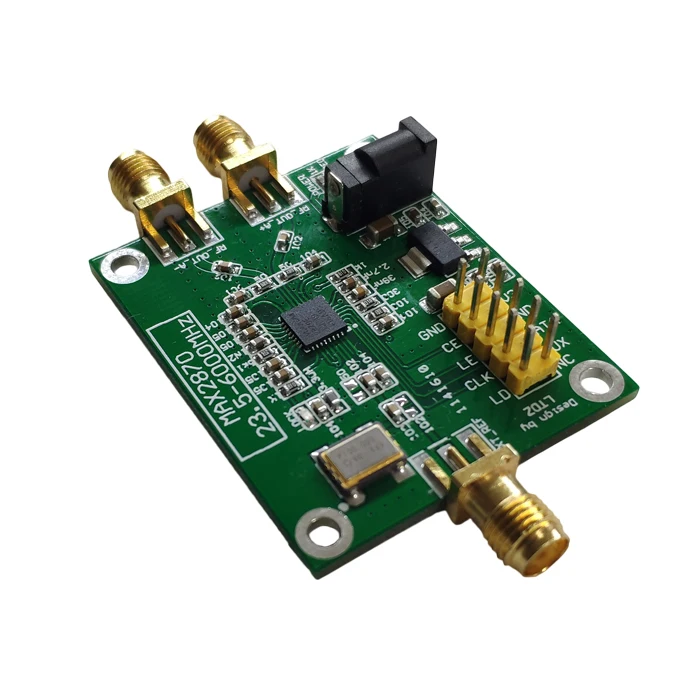

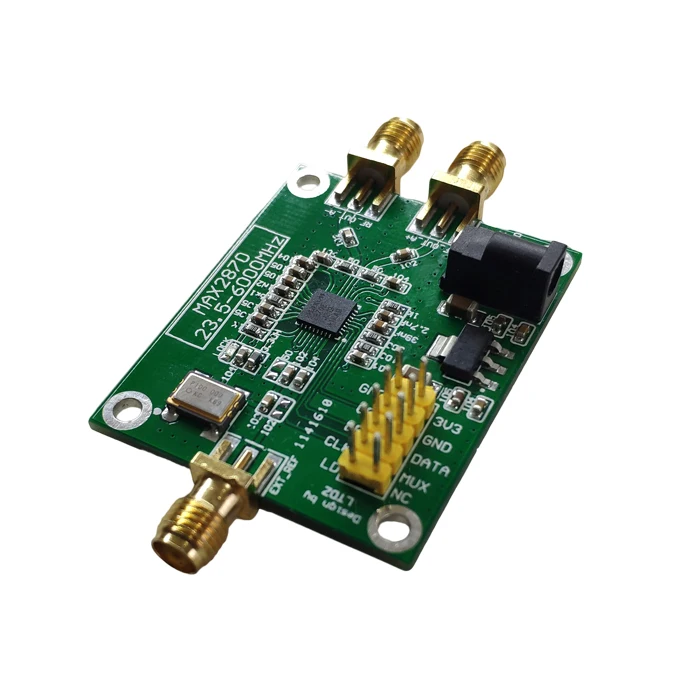

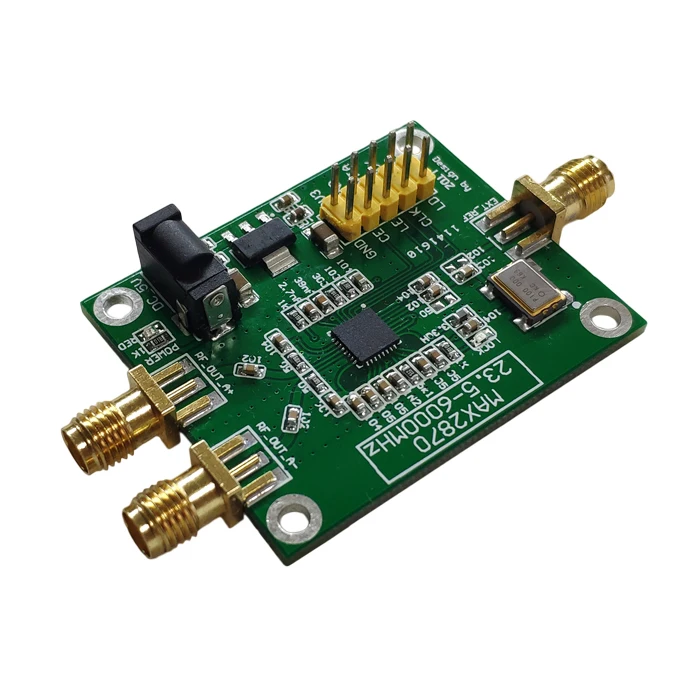

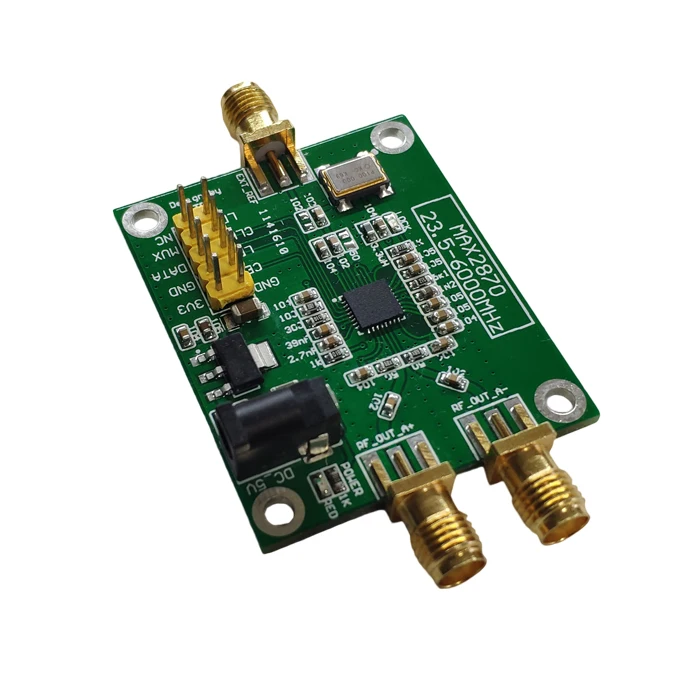

3.3V DC 5V LTDZ MAX2870 23.5-6000Mhz Spectrum Signal Source Spectrum Analyzer RF Frequency Domain Analysis Tool
価格:
$53.31
/Pc
払い戻し:
シェア:
売れ筋商品
MAX2870 23.5-6000Mhz Spectrum Signal Source Spectrum Analyzer USB 5V Powered RF Frequency Domain Analysis Too
1. Chip Introduction
(1) Ultra-wideband phase-locked loop (PLL); integrated voltage controlled oscillator (VCO),
(2) Signal output in the frequency range from 23.5MHz to 6.0GHz.
(3) And can maintain excellent phase noise and spurious indicators.
(4) The device provides a dual-channel differential output driver, which can be set to provide an output power of -4dBm to +5dBm, respectively.
2. Product parameters
(1) 65mm*37mm*12mm
(2) 20g
(3) SPI three-wire control
(4) 3.3V pin power supply or DC5V (onboard 3.3V voltage regulator ic)
(5) Onboard 100Mhz reference clock frequency
3. Shipping list
(1) LTDZ MA2870 23.5-6000Mhz RF signal source
