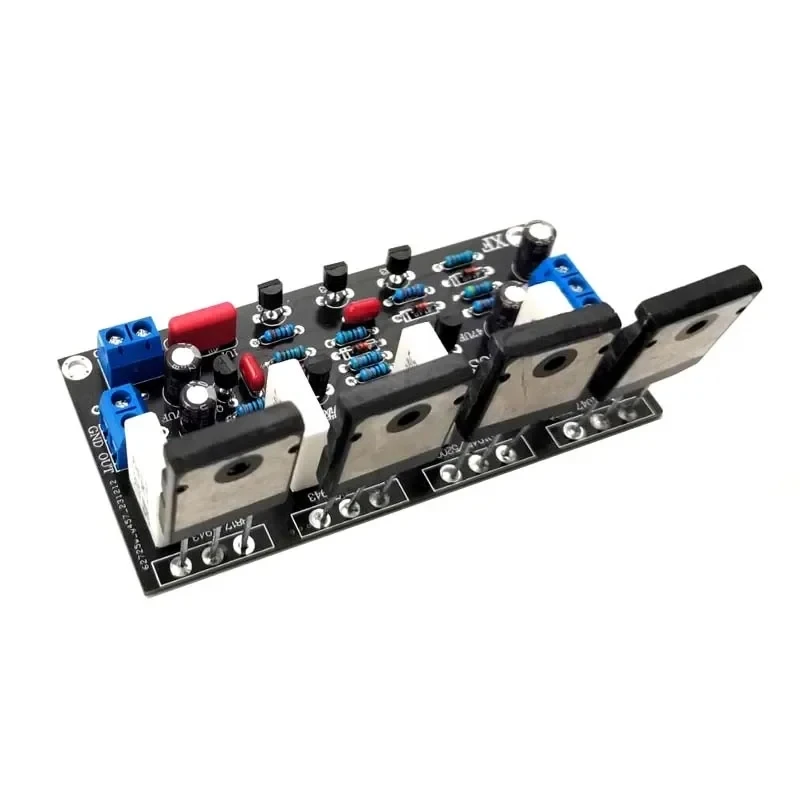

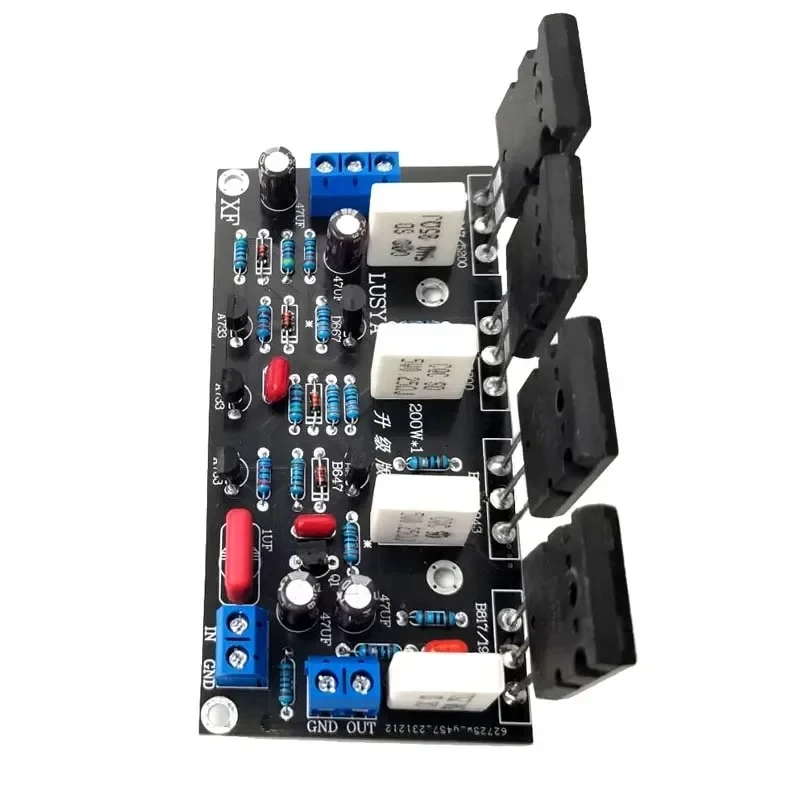

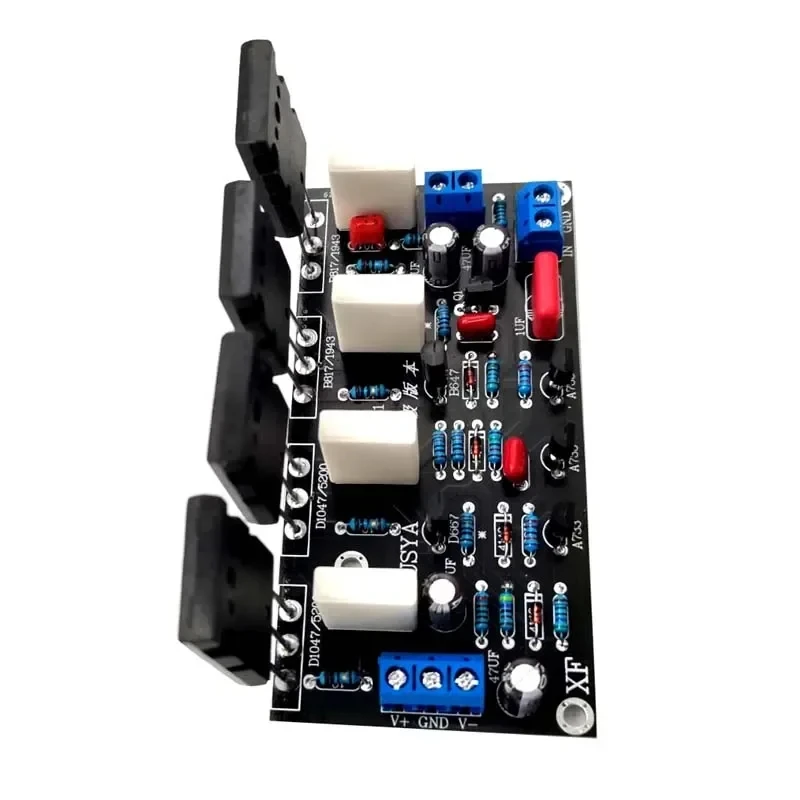

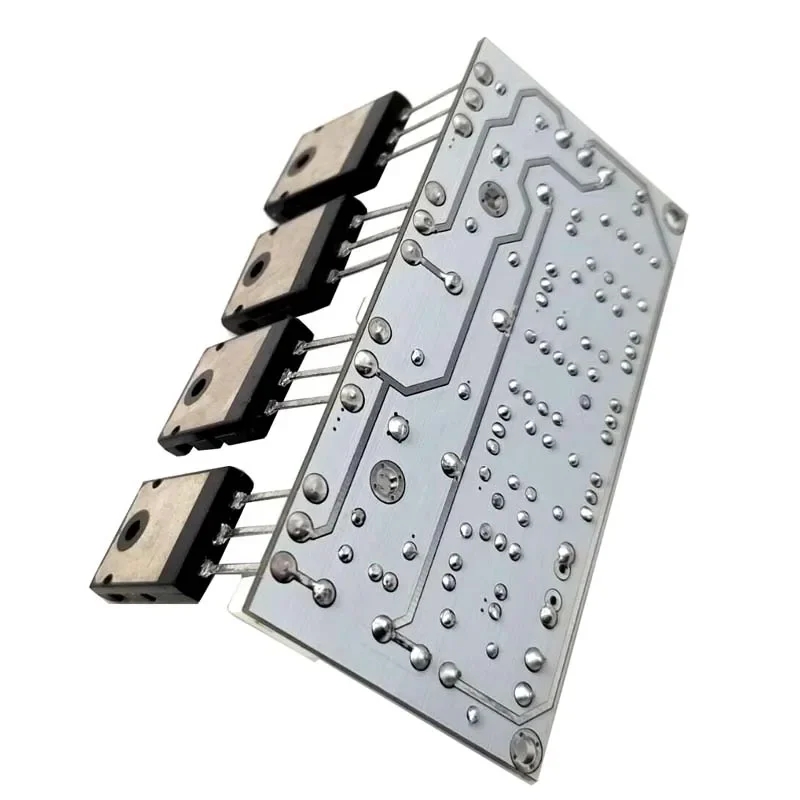

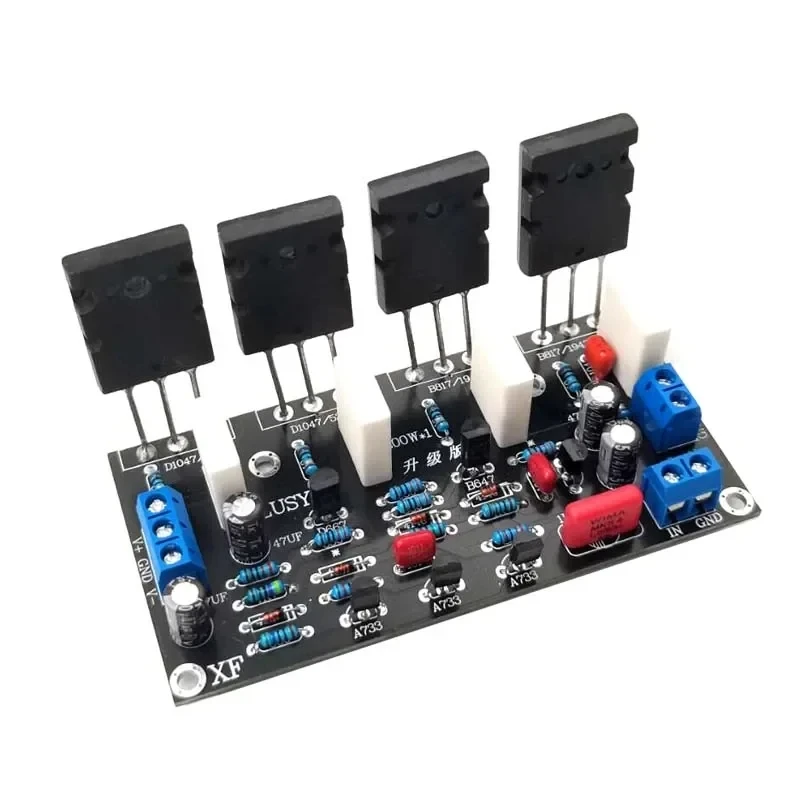

200W DC 10 - 45V Tube Power Amplifiers 2SC5200+2SA1943 5200 + 1943 HIFI Audio Amplifier Board
価格:
$17.07
/Pc
払い戻し:
シェア:
売れ筋商品
Features:
1. The noise of the switch is small and will not have too much impact on the speaker. It is recommended to add a horn protection circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier switch machine, but also avoid the output DC burning the horn when the power amplifier is damaged.
2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift voltage will generally not exceed 50mv, and is relatively stable.
3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging, beginners also have a very high success rate.
Note:
1.2SC5200 + ZSA1943 are disassemble parts,but in good condition.
2.The PCB board has change to black, but the function is same.
2SC5200 + ZSA1943 are disassemble parts,but in good condition.

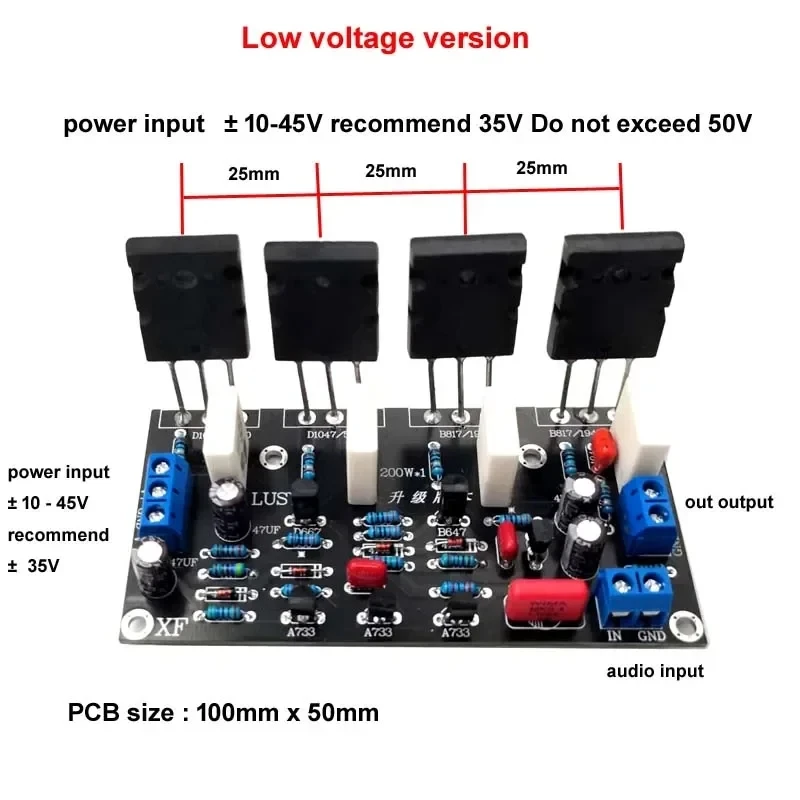

Operating voltage: Dual DC 10 - 45V recommended Dual DC 35V
Rated output power: 200W(4 Ohm ± 35V)
Maximum output power: 300W (4 Ohm ± 45V) enormous heat, is not recommended
PCB size: 80 x 50 x 35mm
Pitch: 5.08mm
Hole distance between two power tube: 47mm
Package Included:
1pcs monoaudio amplifierboard
