Thin Magnetic Powder Brake Tension Controller Kit 1500rpm Hollow Shaft Unwinding 3/6/12/25/50/100Nm 0.3-10kg DC24V Bag Machine

Only Brake

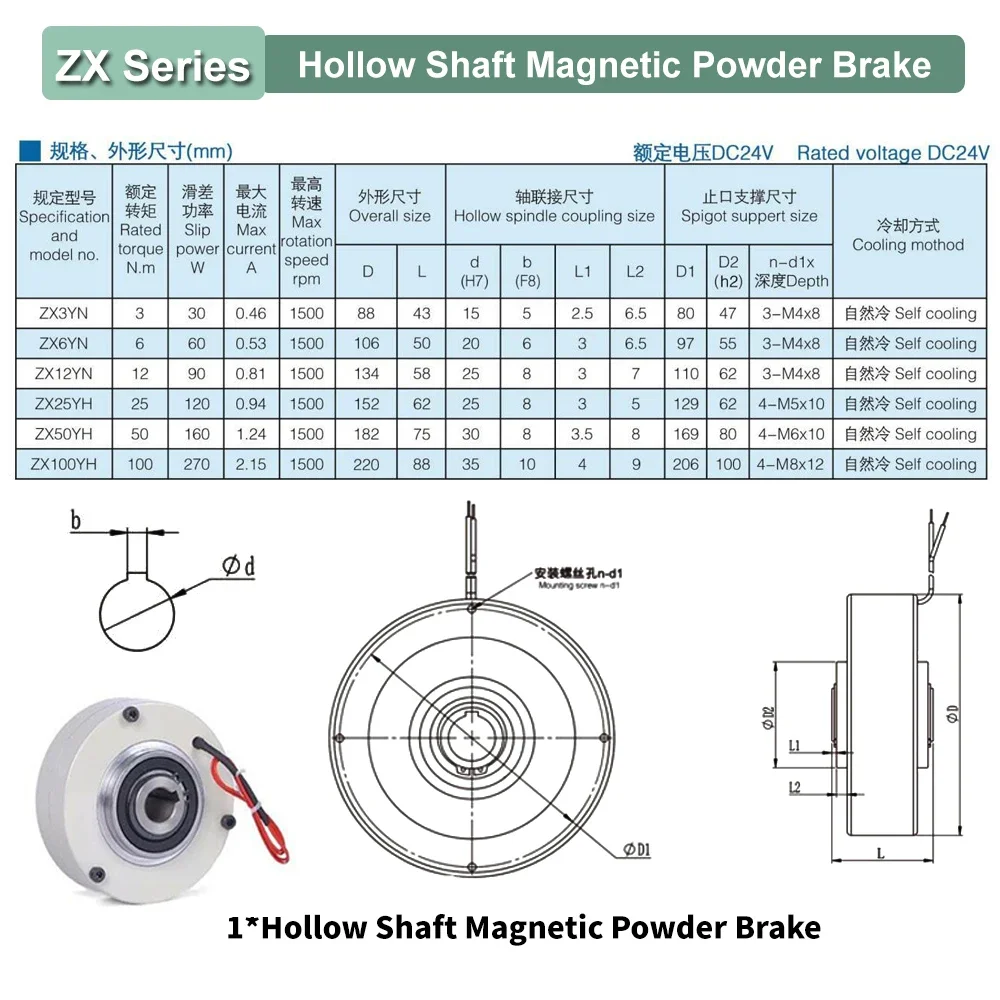

1* Hollow Shaft Magnetic Powder Brake
Brake with SJ-180A / TB-200S
1* Hollow Shaft Magnetic Powder Brake
1* Manual Tension Controller

Brake with KTC-812
1* Hollow Shaft Magnetic Powder Brake
1* Manual/Automatic Tension Controller
1* Hall Sensor
Brake with KDT-B-1000
1* Hollow Shaft Magnetic Powder Brake
1* Automatic Tension Controller
1* Hall switch
2* Pressure Sensor
★This is a free shipping link for some countries. If you need to pay very high shipping fees, please provide your city name and zip code, and we can recalculate the shipping fees for you :)
The maximum load that the product can withstand

3N.m (0.3kg): maximum load 12kg

6N.m (0.6kg): maximum load 25kg

12N.m(1.2kg): maximum load 45kg

25N.m(2.5kg): maximum load 80kg

50N.m(5kg): maximum load 15kg

100N.m(10kg): maximum load 300kg

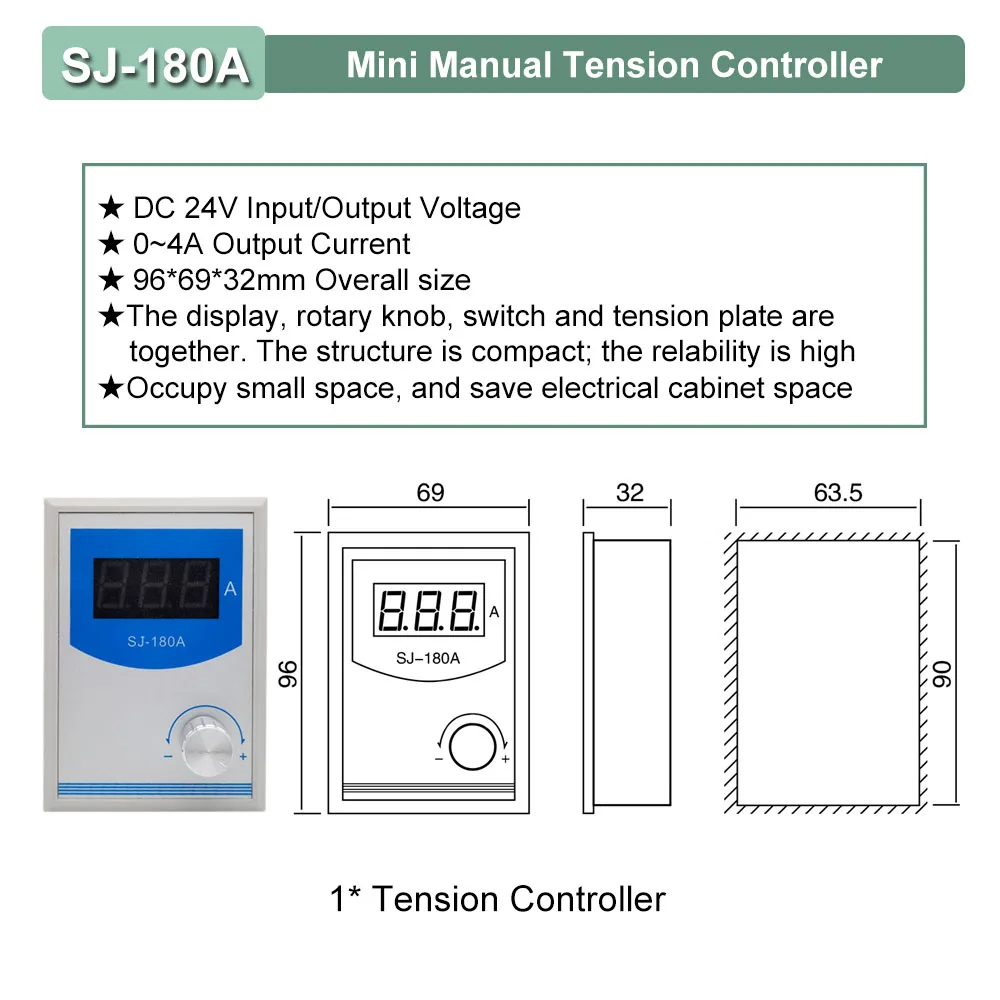

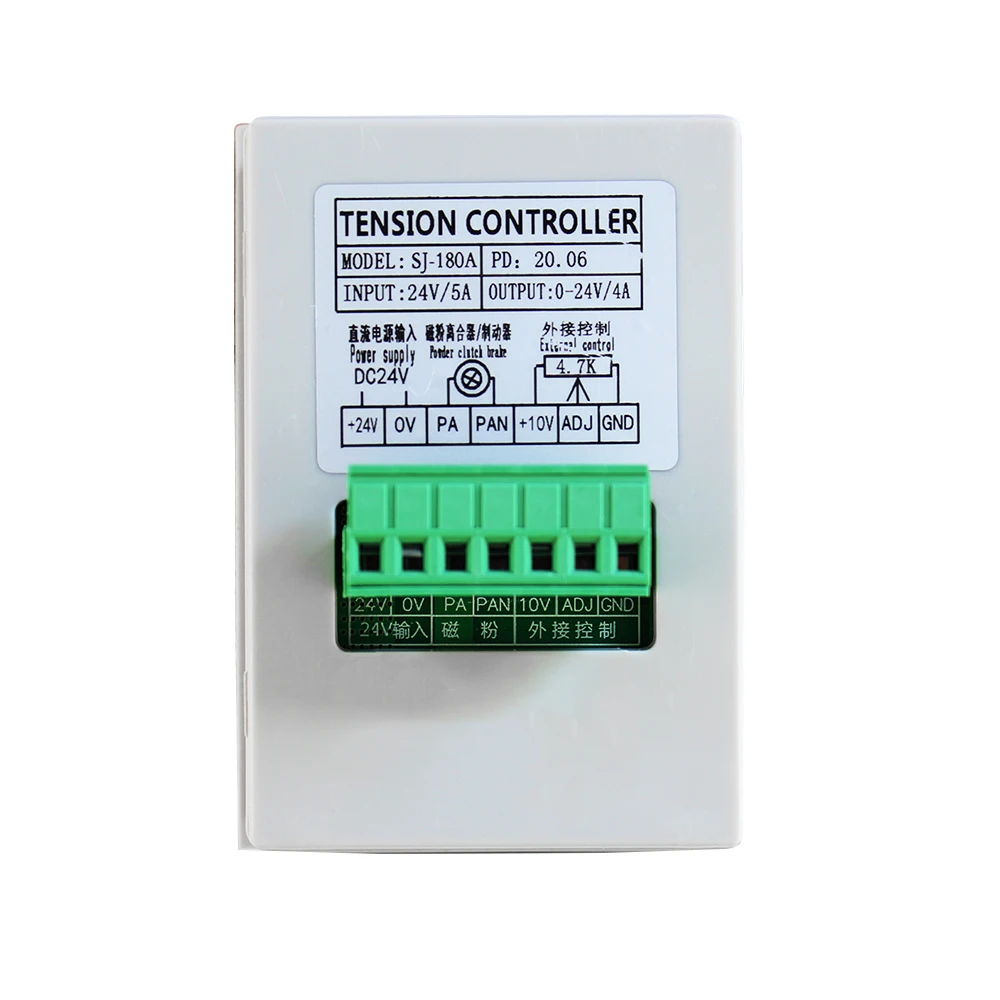

SJ-180A---Mini Manual Tension Controller
Input Voltage: DC 24V


Output Voltage: DC 24V


Output Current: 0~4A
Overall size: 96*69*32MM

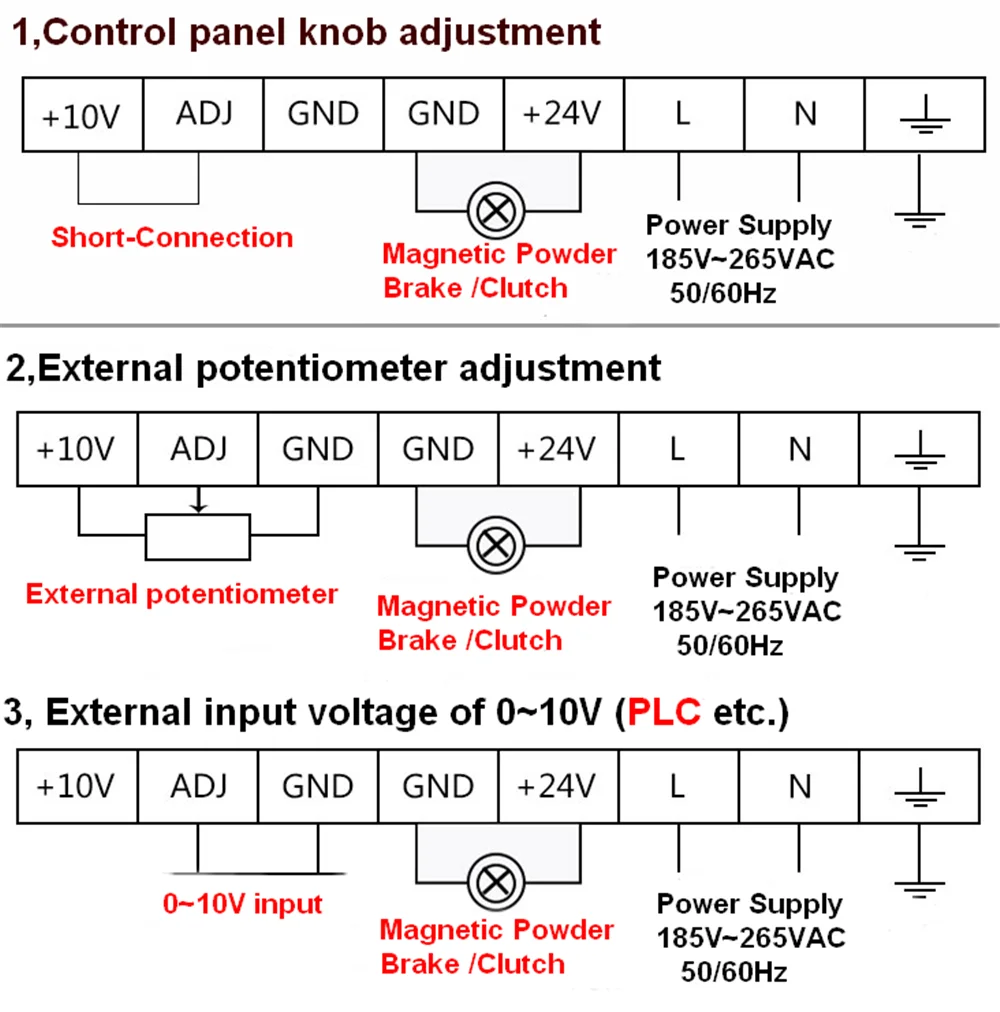

Type: Manual controller / PLC / Potentiometer

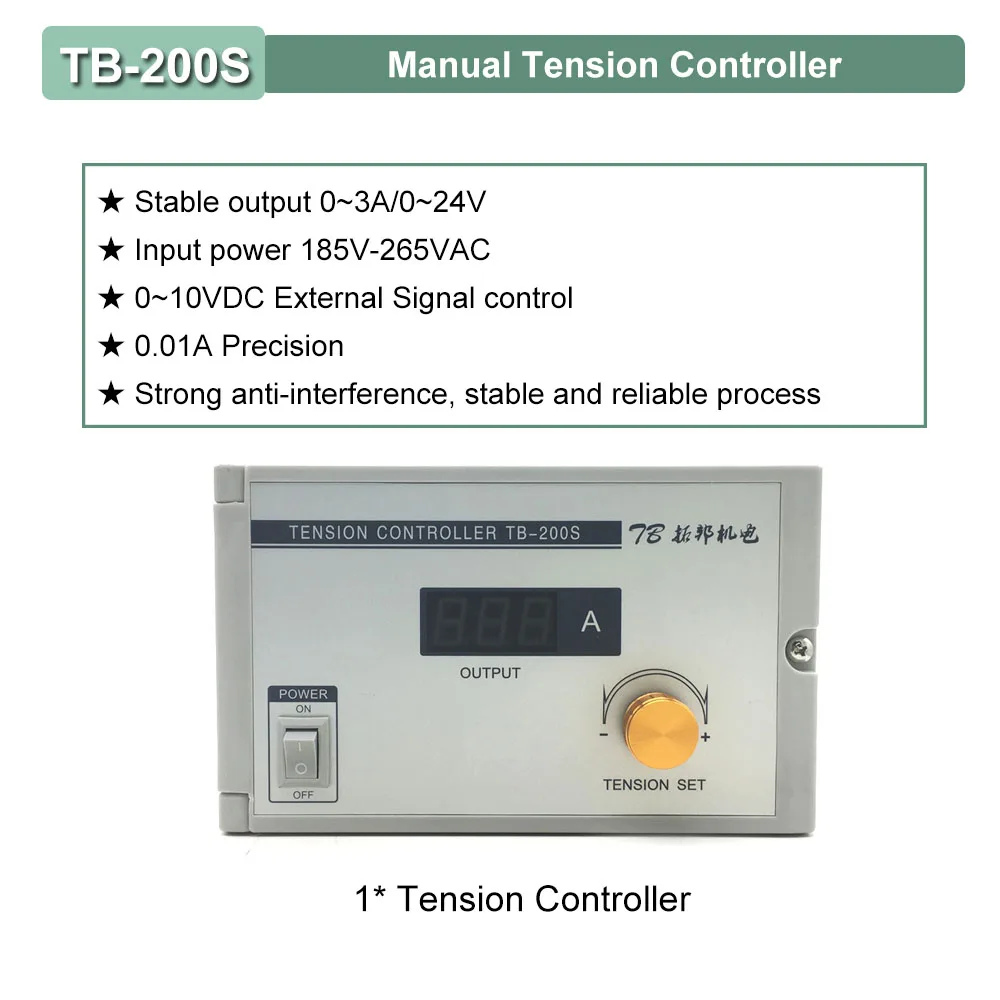

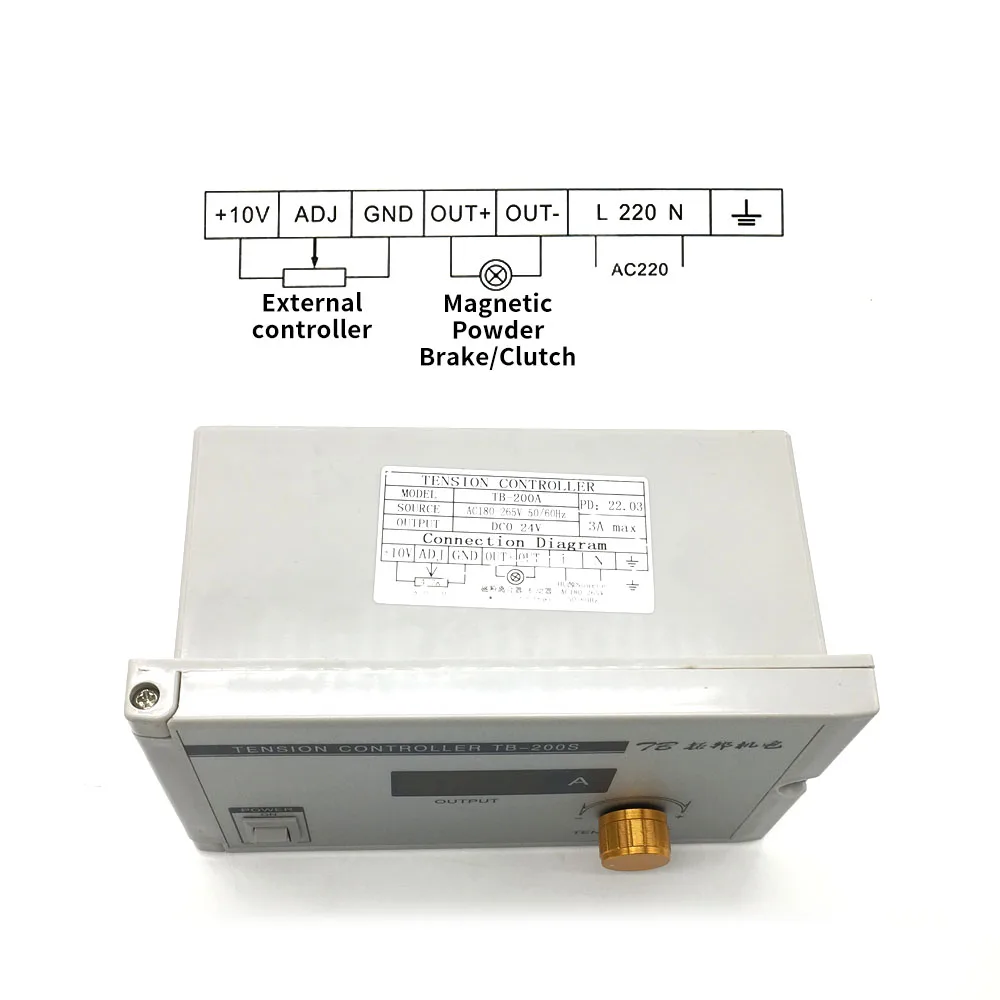

TB-200S---Manual Tension Controller


Power Supply: 185V-265VAC 50/60Hz


Output Voltage: 0~24VDC(0-3A)


External Signal control: 0~10VDC


Precision: 0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
Overall size: 160*100*70MM
Mounting size: 163*103*70MM

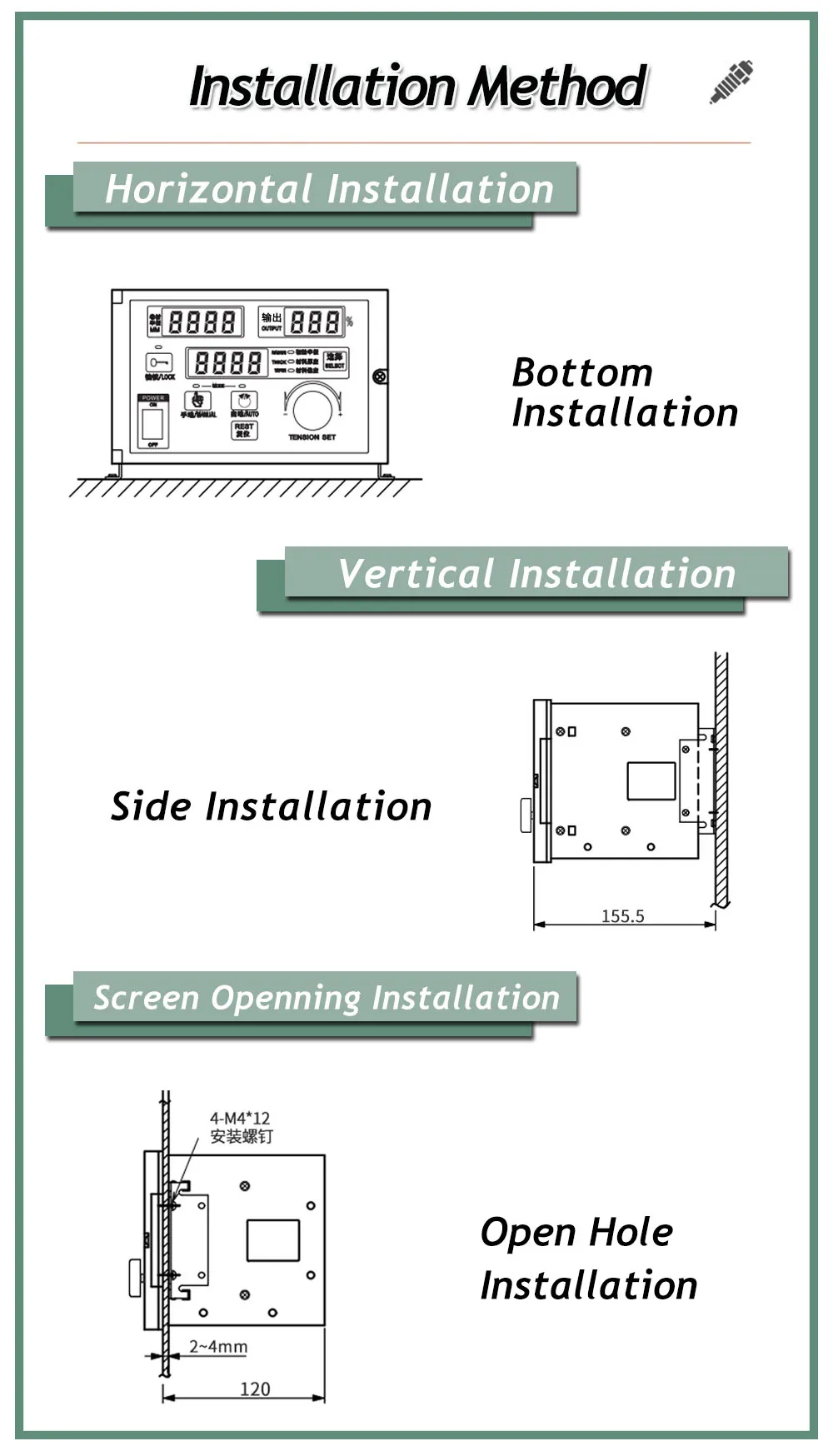

Installation: wall-mounted, floor-mounted, embedded

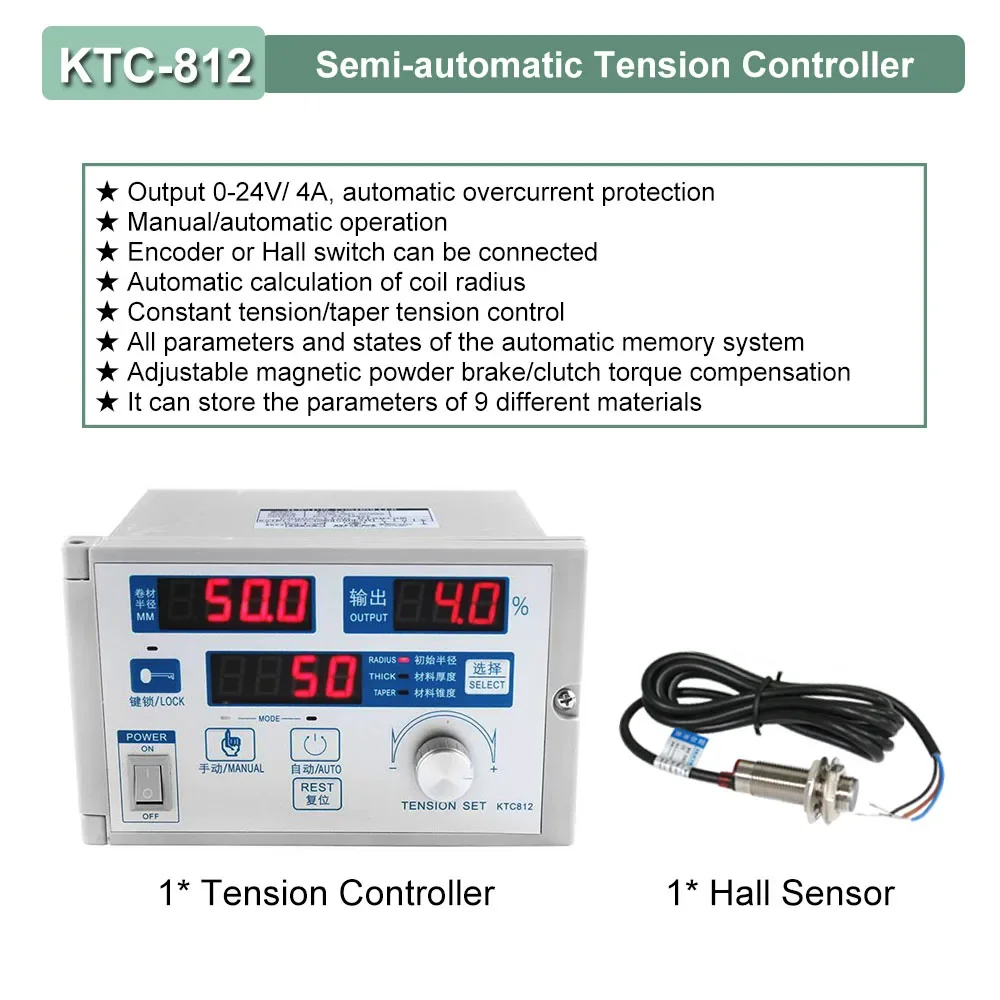

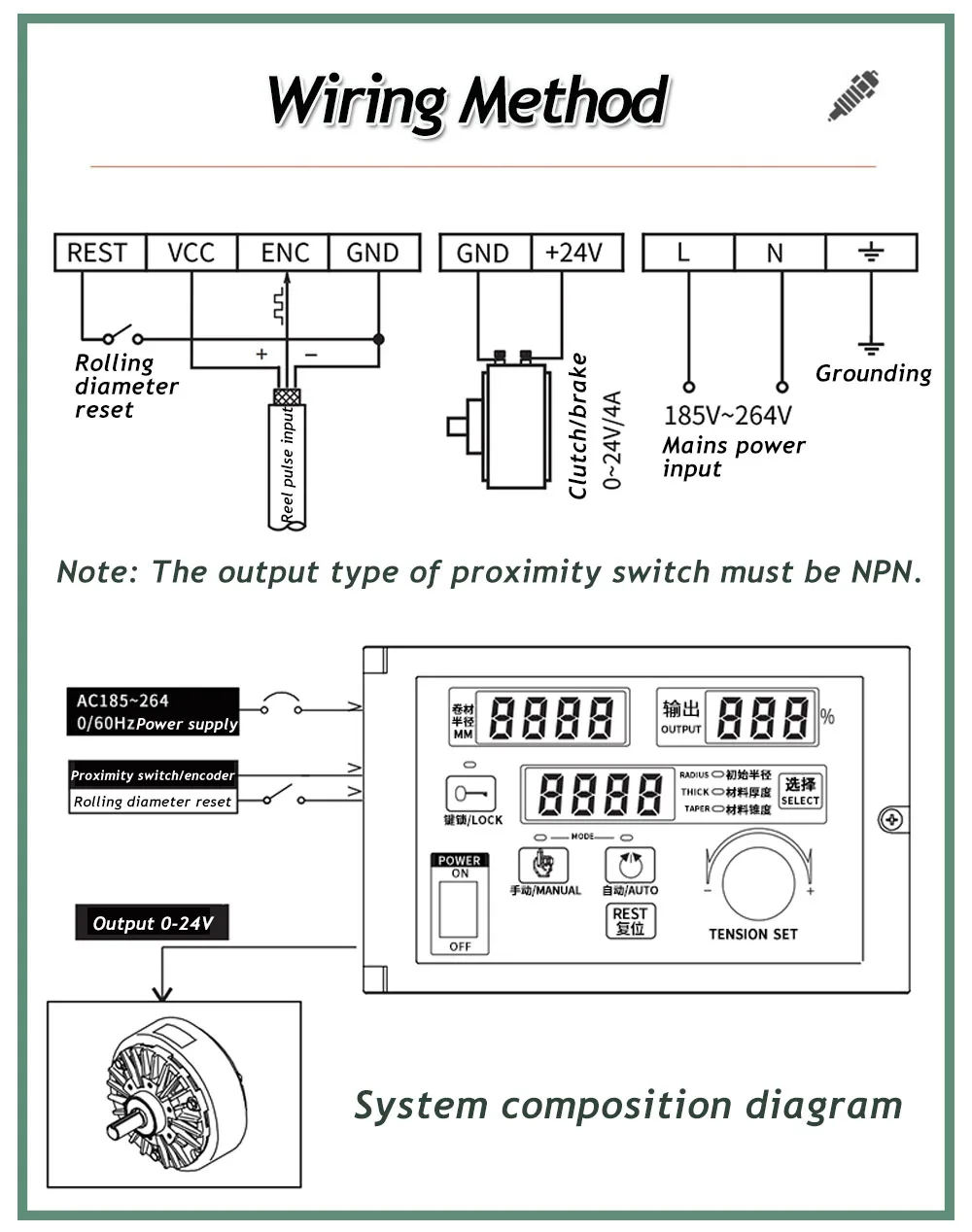

KTC-812---Semi-automaticTension Controller
Features:
★ Manual/automatic operation
★ Encoder or Hall switch can be connected
★ Automatic calculation of coil radius
★ It can store the parameters of 9 different materials
★ Constant tension/taper tension control
★ Output 0 - 2 4 V/4 A, automatic overcurrent protection
★ All parameters and states of the automatic memory system
★ Adjustable magnetic powder brake/clutch torque compensation


Power Supply: 185V-265VAC 50/60Hz


Output Voltage: 0~24VDC


Output current: 0-4A


External Signal control: 0~10VDC


Precision: 0.01A
Overall size: 181*110*120MM
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade

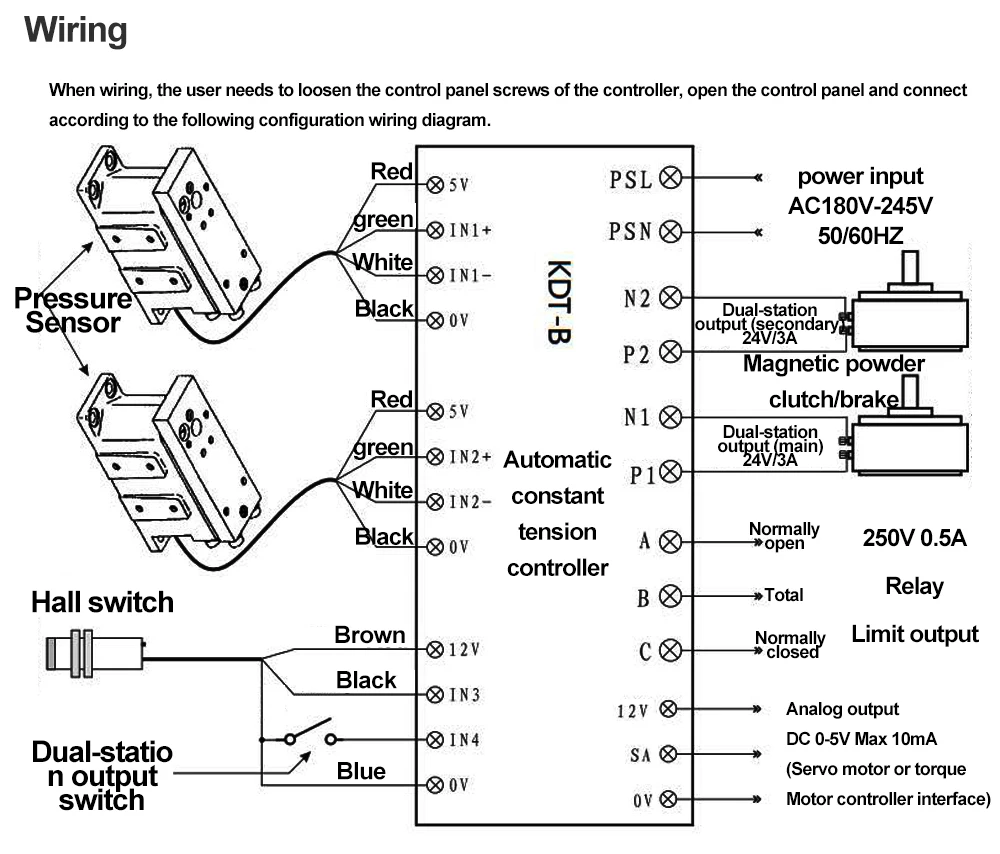

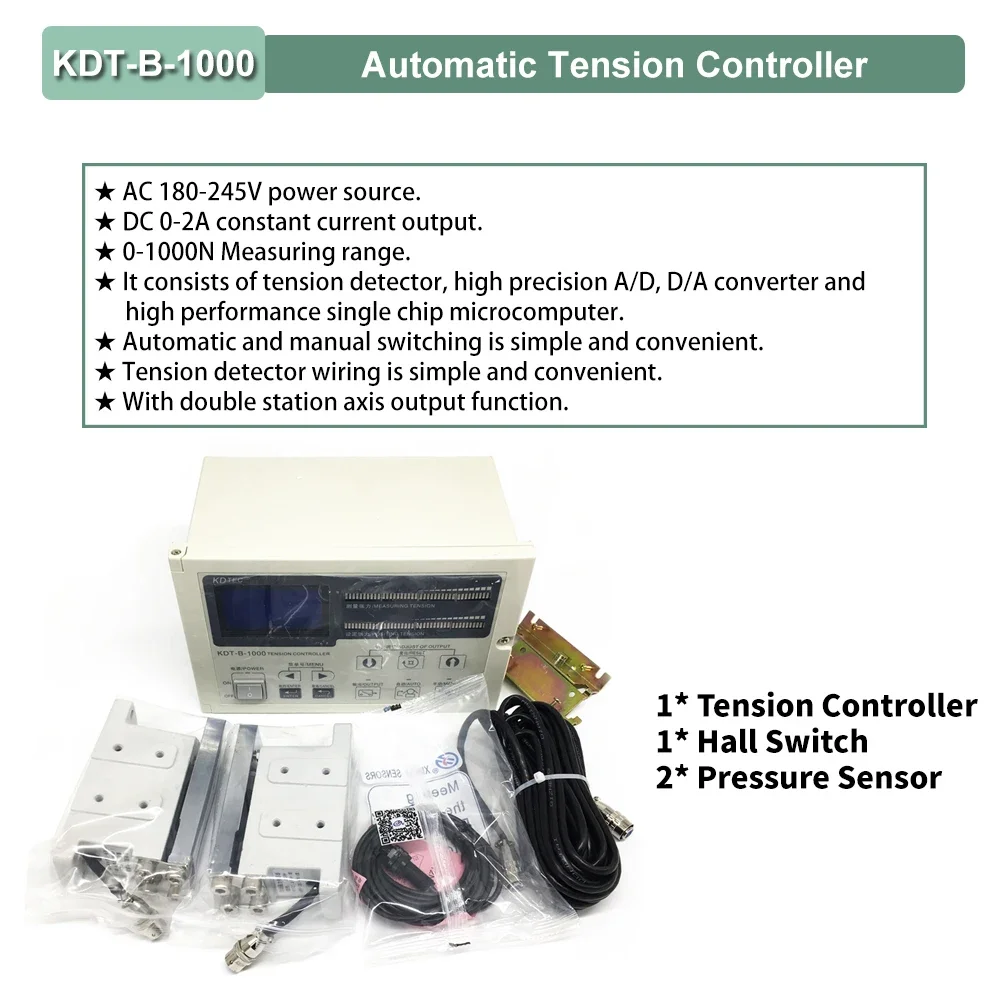

KDT-B-1000---Semi-automaticTension Controller
Features:
★ It consists of tension detector, high precision A/D, D/A converter and high performance single chip microcomputer.
★ It can be widely used in various occasions where precision measurement and control is required. It has flexible use and wide applicability.
★ LCD display can be displayed in Chinese or English.
★ Automatic and manual switching is simple and convenient.
★ Tension detector wiring is simple and convenient.

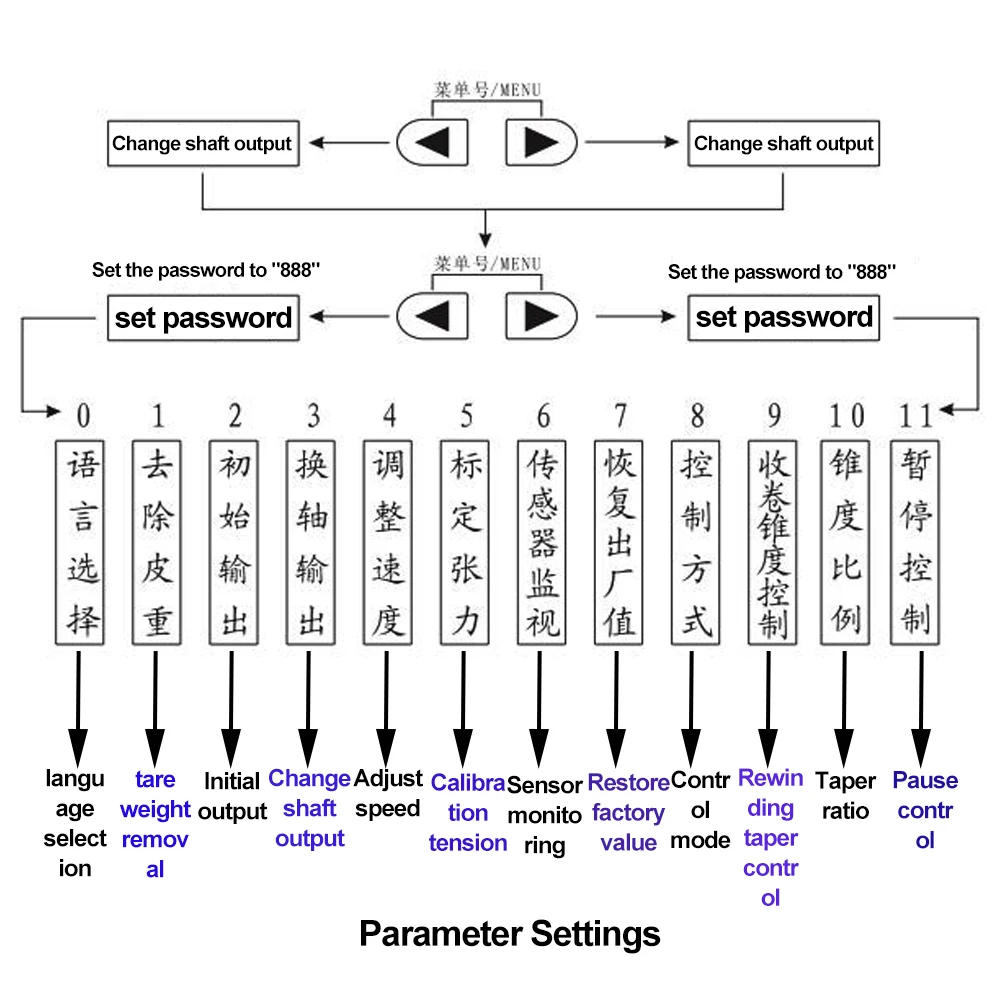

★ Convenient parameter settings.
★ With double station axis output function.
Measuring range:0-1000N
Measurement accuracy:less than 1N
Sampling speed:100 milliseconds


Main output mode: DC 0-2A constant current output (adapted load impedance 8-12Ω)


Auxiliary output: DC 0-5V (MAX 10MA) analog signal output

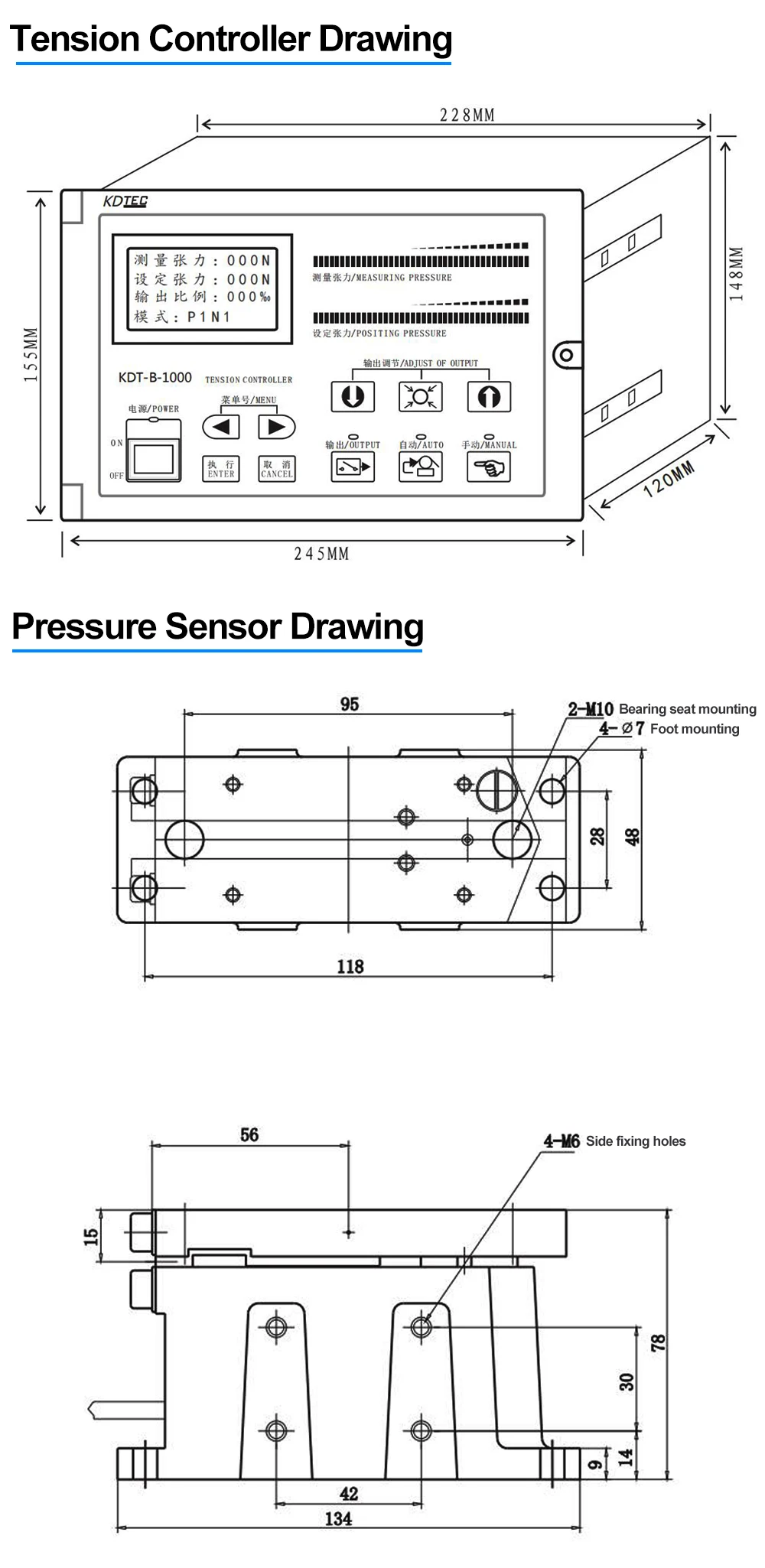

Dimensions: 245*155*140mm


Installation size: 230*150*120mm


Power source: AC 180-245V 50/60Hz
Manual: Please click here to open
