Superiority of Heating Film Heating System:

Infra red heating is one of the healthiest and most modern method of heating, which uses a similar thermal properties as the sun itself. Infra red rays directly heat people, walls and objects, and then the air is heated from them. In traditional radiator heating it leads to heating and drying the air. Warm air flows up and first heats the top of the room and then low-lying objects, people and so on.



- Infra panels have an efficiency of 98%, an average energy saving is 30%

- Infra heating does not cause dust dispersion

- It creates a healthy environment, destroys bacteria

- Ensures uniform temperature in whole room

- Clean, noiseless, maintenance-free operation and space-saving

- Easy control and operation with thermostats

- Easy installation, no need to rework the floor or walls



When using infra red heating, the air temperature is usually lower by 3-4 ° C, as in a room with traditional heating it to achieve a comparable feeling of warmth. Lowering the air temperature by 1 ° C can save up to 5-6% of energy.

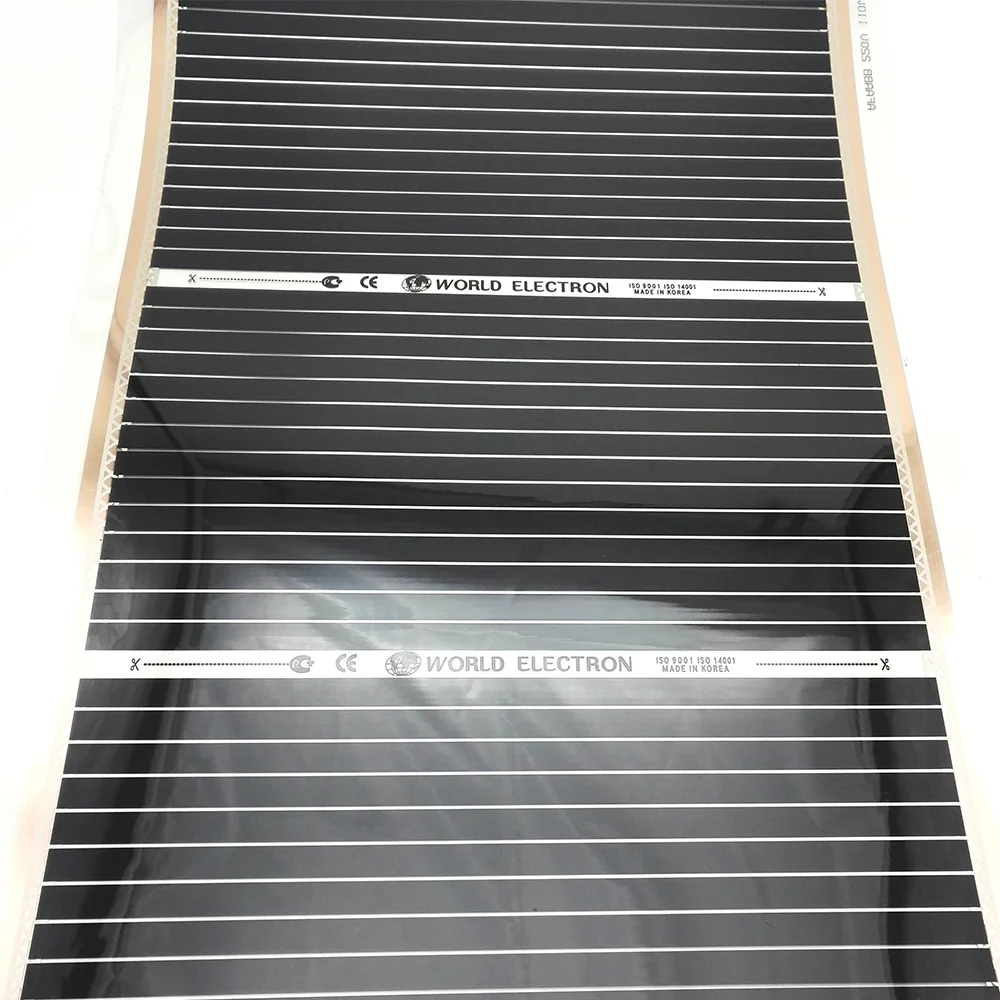

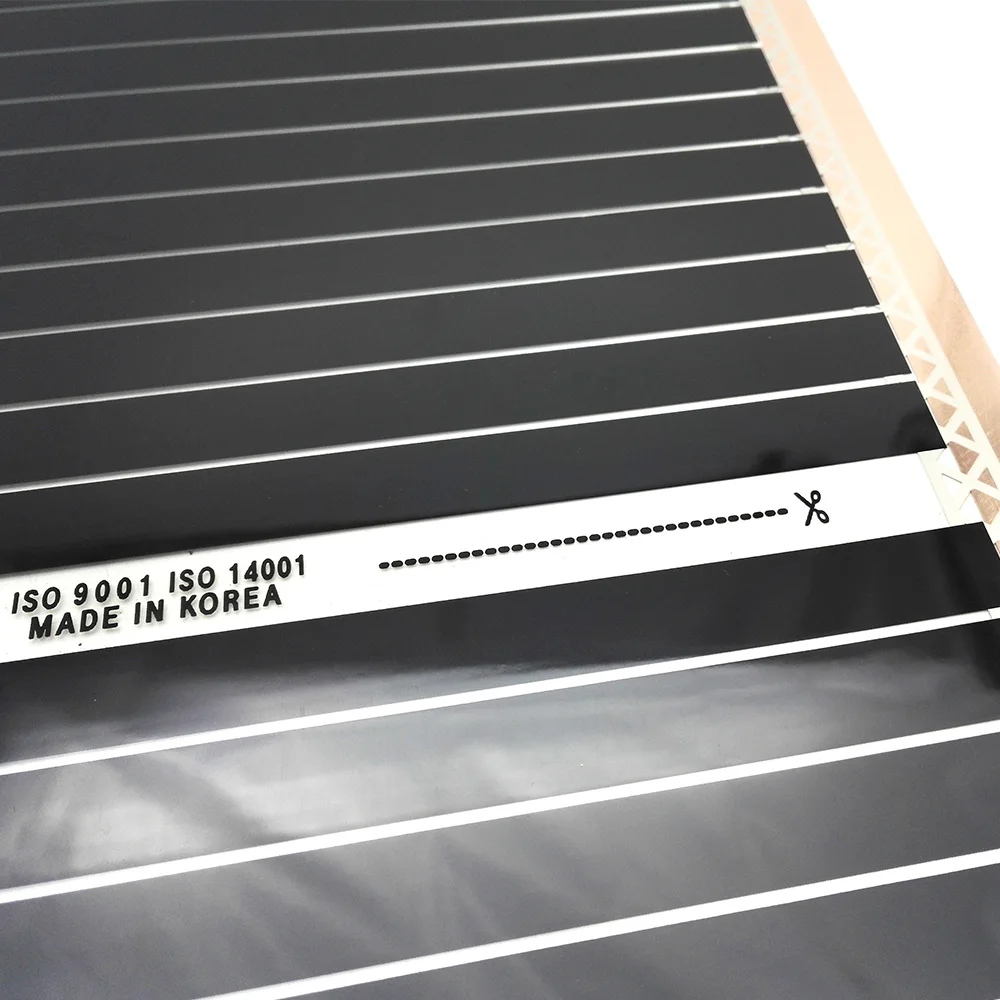

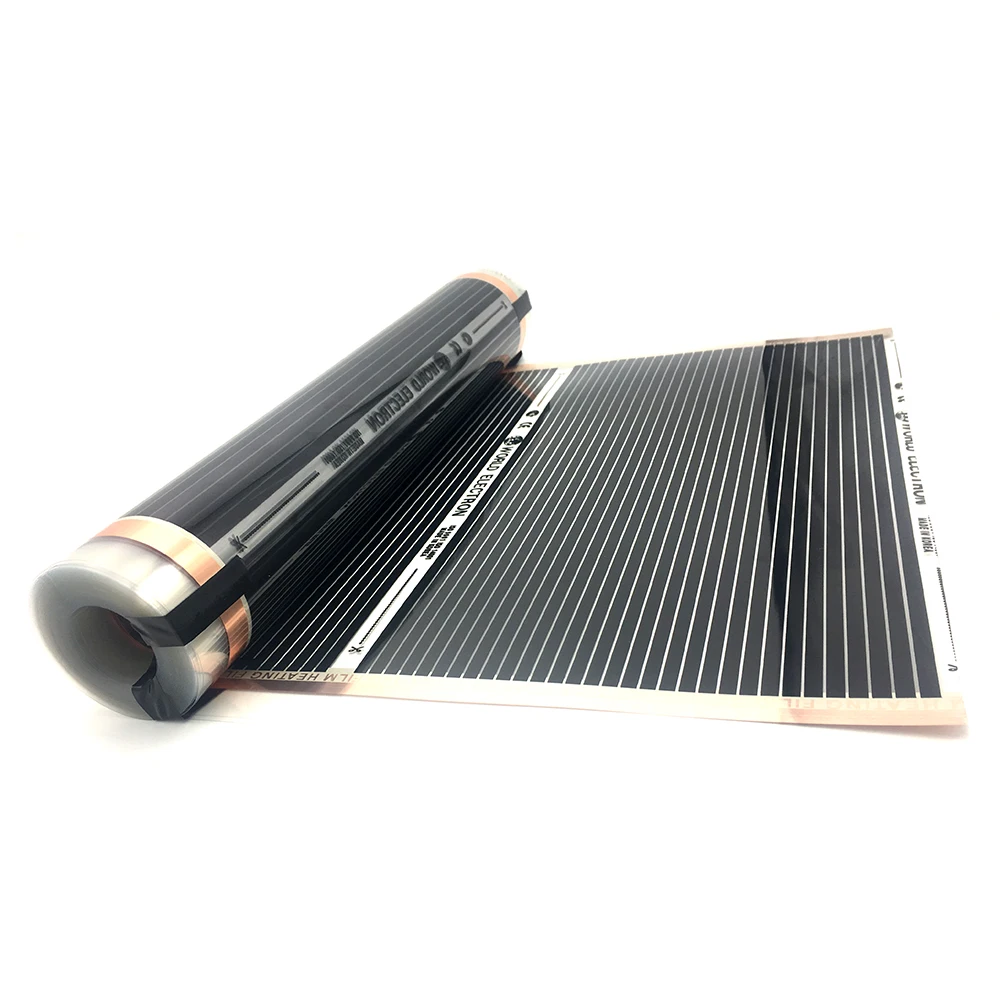

Real Photos of Products:

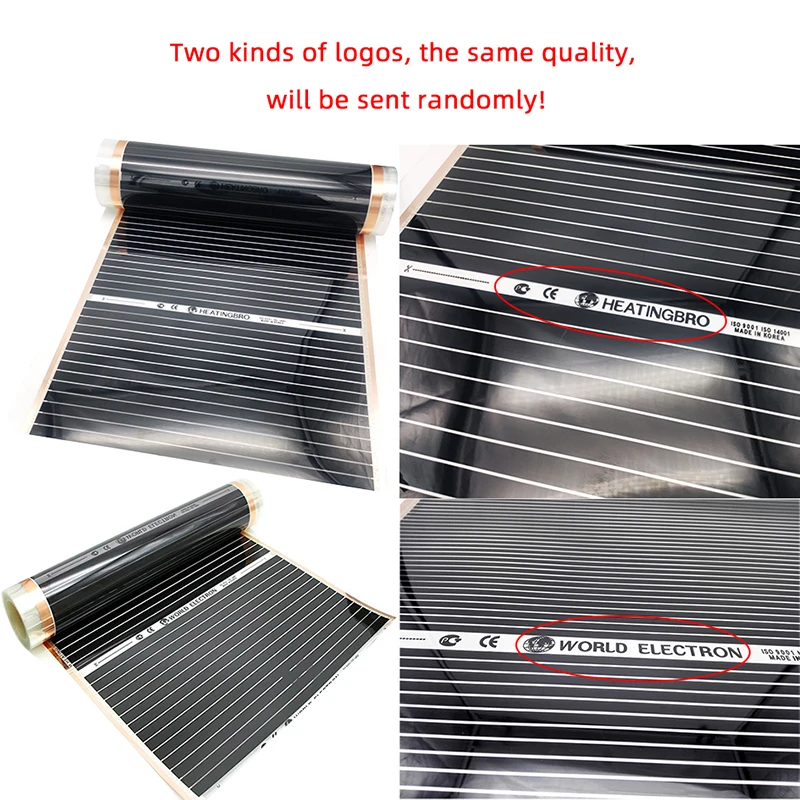

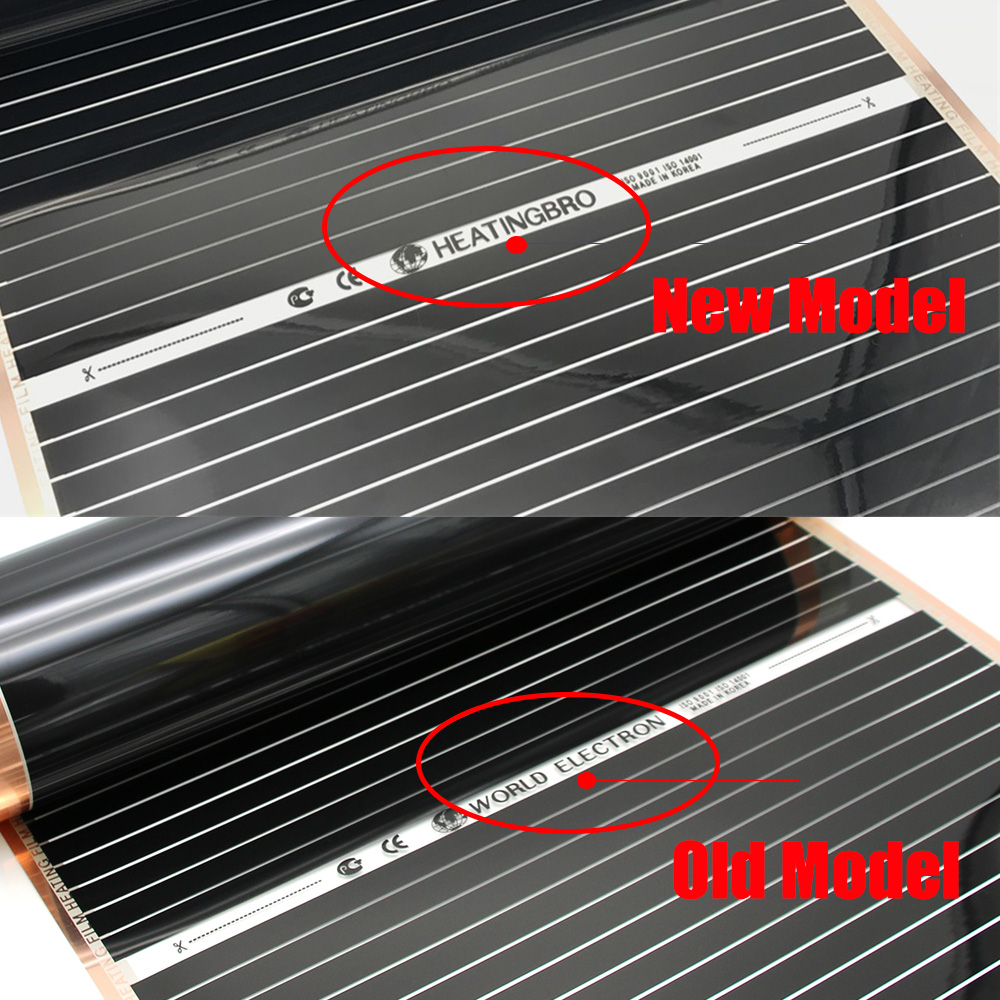

Notice: The Newly Produced label on the film is "HEATINGBRO" now, the old label "WORLD ELECTRON" and new label "HEATINGBRO" will send at randon. The specifications of the films are exactly same, only the label difference. Thank you for your concern : )









Make Connections:

Make Connections:

General Installation Steps

Accessories for installing heating film:

1.clamps

2.insulation paste

3.insulation tape

4.crimp plier

5.reflecting film

6.electrical wire

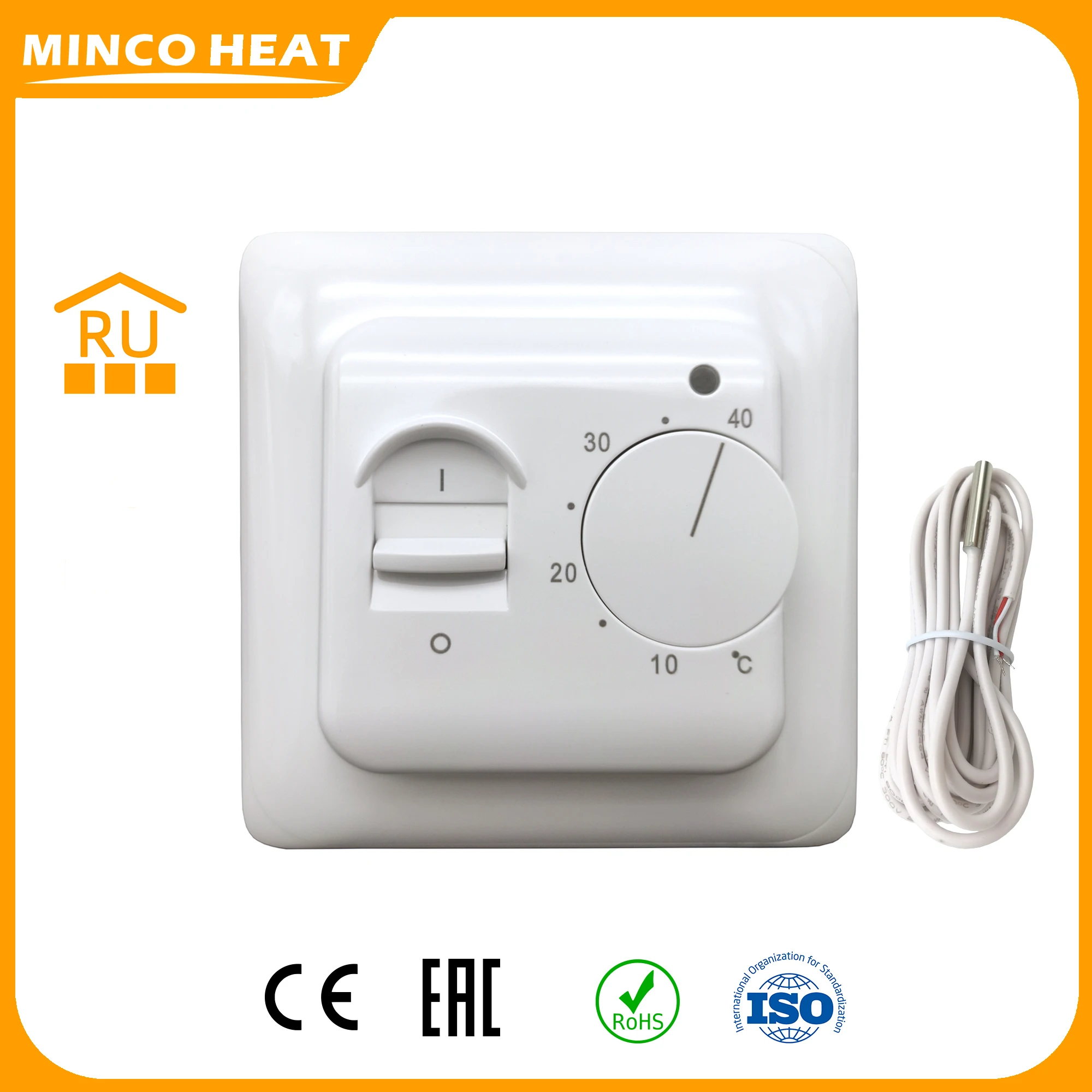

7.electric heating thermostat

Notice: Clamps and insulation pastes need to buy seperately

• Temperature control range: 5~40 degree centigrade

• Temperature limit range:  25~55 degree centigrade

• Power save mode temperature: 5 degree centigrade

• Temperature deviation: ±0.5K

• Ambient temperature: -5~50 degree centigrade

• Degree of protection provided by enclosure: IP20

• Outer sensor: Length of cable: 3M

Specifications

- Power Supply: 95 ~ 240VAC, 50 ~60Hz
- Set Temp. Range: 5-60℃ (max 95℃)
- Limite Temp. Range: 60℃ (factory setting 35℃)
- Accuracy: ±0.5℃
- Sensor: NTC
- Power Consumption: < 1.5W
- Timing Error:<1％
- Shell material: PC+ABS (flame retardant)
- Ambient Temp.: 0-45℃, 5-95％RH(Non-condensing)
- Storage Temp: -5-55℃
- Installation Hole distance: 60mm
- Dimension: 86x86x40mm

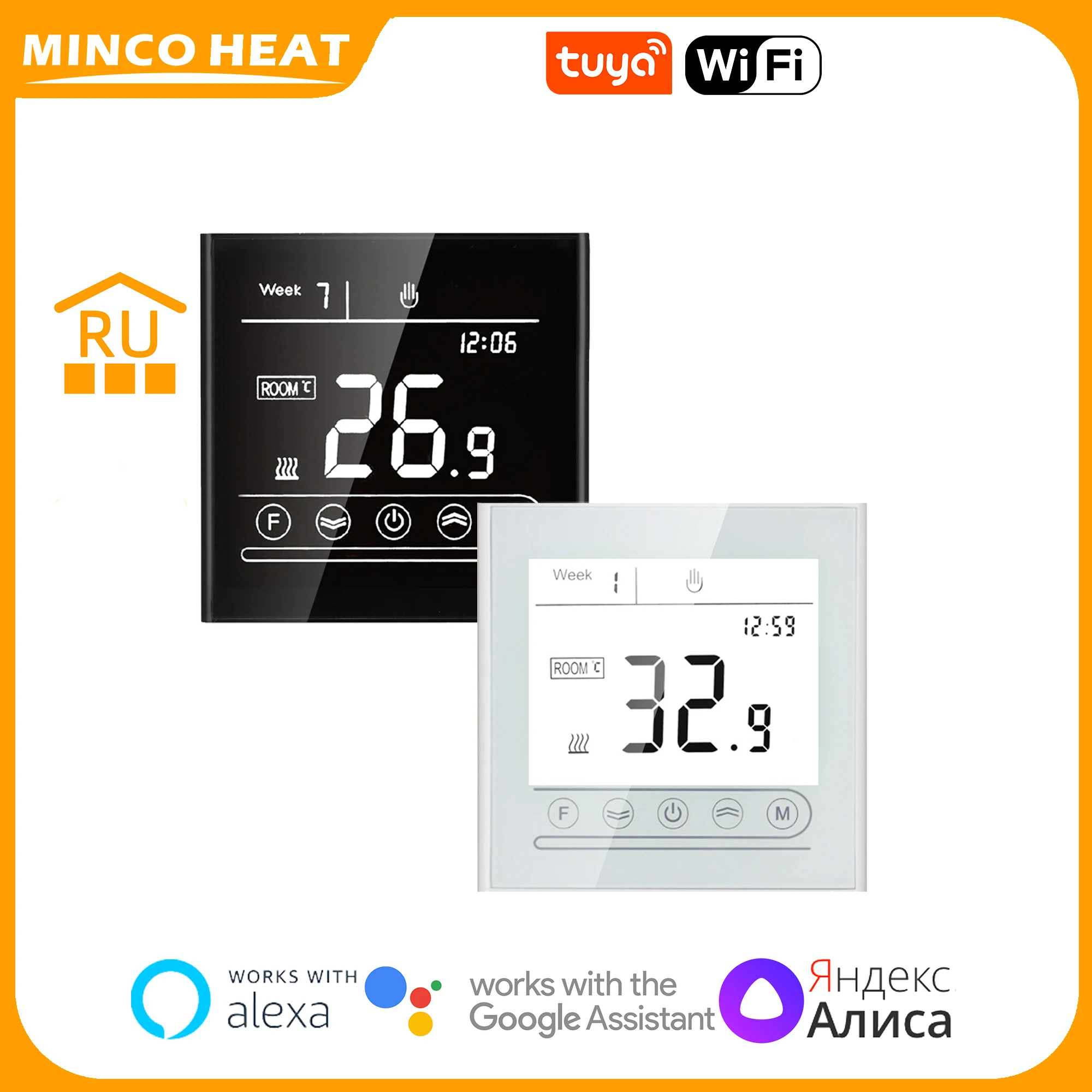

Functions

 1. Memory Function
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
2. Programmable Function
Support 5+2, 6+1 days Weekly Programmable, six periods programmable controlling temperature setting.
3. Elegant chrome arc frame, feather touch control panel.
4. 12/24 hour system is switchable.
5 Children lock to avoid misoperation.
6. Wifi function
The wifi thermostat can be controlled by Mobile APP wherever you are.
7. Support to be voice control by Alexa.
8. APP support most of Popular languages.
9. Backlight can turn off.



Specifications

- Power Supply: 90 ~ 240VAC, 50 ~60Hz
- Set temperature range: 5~95°C
- Accuracy: ±0.5℃
- Sensor: NTC 10K
- Power Consumption: < 1.5W
- Color: White
- Shell material: PC+ABS (flame retardant)
- Ambient Temp.: 0-45℃, 5-95％RH(Non-condensing)
- Storage Temp: -5-55℃
- Installation Hole distance: 60mm (suit for Europe standard size mounting box)
- Dimension: 86x86x40mm

Functions

1. Memory Function
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
2. Programmable Function
Support 5+2, 6+1 or 7 days Weekly Programmable, six periods programmable controlling temperature setting.
3. Children lock to avoid misoperation.
4. Wifi function
The wifi thermostat can be controlled by Mobile APP wherever you are.
5. Support to be voice control by Alexa.
6. APP support most of Popular languages.

Specifications



1. Color: Black/White

2. Product specifications: Type 86 concealed

3. Input Voltage:95-240V AC

4. Max Current:16A

5. Selection:

- Support WIFI Control, APP Control, Voice Control

6. Temperature setting: 5~60C

7. Temperature Accuracy: 0.5 ℃

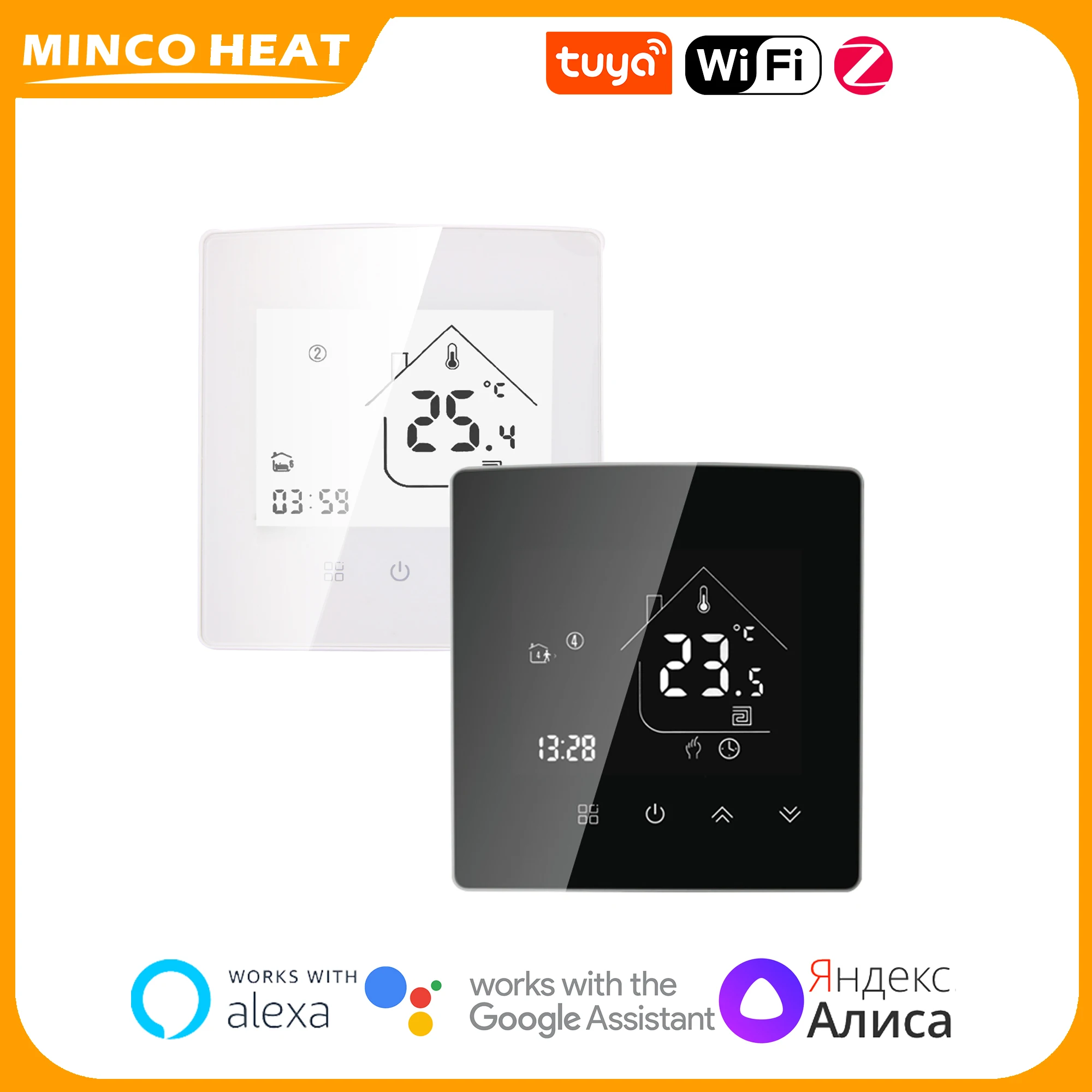

Thermostat Functions


1. LCD Display
Elegant appearance, one face design, anti-scratch. Large LCD touch screen display with back light, easy to read.

2. Manual/ Auto Mode
Free to choose manual mode or auto mode for different purposes.

Manual mode:control the thermostat by touch button

Auto mode :control the thermostat by Tuya APP

3. Accurate Temperature
Automatically obtain the temperature, 0.5°C accuracy.

4. Sensor

- X5H-GB 16A: Internal sensor and floor sensor, automatically obtain perceptive ambient temperature and the floor's temperature.


5. Weekly Programmable
The thermostat supports different temperature setting in working days and rest days.

6. Memory Function
No need to worry about power off, data will memory when power is off.

7. Children Lock
Children Locking function is designed to prevent children from operating it by mistake.

8.Voice Control
Compatible with Alexa and Google Assistant, you can use the voice control to turn it on/off.


9. APP Remote Control
Tuya or smart life APP can be used to remotely turn on/off the device. You can check the working state of the device in APP anywhere and anytime.


 Technical Datas

-Type:Electric floor heating

- Working voltage: AC85~240V 50/60Hz

- Accuracy:±1℃

- Probe sensor: NTC (10K) ±1% @25℃

- Max load: 16A

- Working environment temperature: 0~70℃

- Range of temperature adjustment:5~50℃

- Button: Touch key

- Output: Switch relay

- Running program: Set per 1 week as a cycle

- Installation: Wall mounted

- Size(mm): 85*85*16

Thermostat Functions

1. Memory Function
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
2. Programmable Function
Six periods programmable controlling temperature setting, 5+2 or 6+1 programmable.
3. Insert and external two sensors. 3m external sensor cable is included.
4. Children Lock Function
Lock the thermostat to avoid misoperating by Children.
5. Suit for various kinds of electric heating system
The thermostat is suitable for heating cable, heating mat, heating film and other electric heating devices.
6. LCD All Touch Black Bakc Ligth Screen.
7. Anti-freeze Function:
In the state of shutdown, the thermostat will turn on the heating device automatically when temperature is below 5C degrees, when the room temperature is above 7C degrees, the thermostat will turn off the heating device automatically. (can close this setting in advanced setting).
8. Support to switch to display Fahrenheit (Only WiFi model).



Description

- Probe sensor: NTC (10K) ±1% @25℃ (for electric 16A type)

- Contact capacity: 16A/250V (electric type);

- Temperature setting range: 0~90℃

- Limit temperature range: 5~99℃ (factory setting: 35℃)

- Protective housing: IP20

- Housing material: Flame retardant PC

- Installation: Wall mounted

- Length of external sensor: 3M

- Size(mm): 86*86*13


Thermostat Functions

 1. Memory Function
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
2. Programmable Function
Six periods programmable controlling temperature setting.
3. Insert and external two sensors. 3m external sensor cable is included for 16A type.
4. Suit for various kinds of electric heating system
The thermostat is suitable for heating cable, heating mat, heating film and other electric heating devices.
5. Wifi function
The wifi thermostat can be controlled by Mobile App wherever you are.
6. Support to be voice control by Alexa (Only wifi model)
Specifications:

Power Supply: 95~240VAC, 50~60HZ

Load Current: 16A (GB)/ 3A (GA,GC)

Color: white, black,all black (optional)

Display: LCD, touch screen

Display accuracy:±1℃

Sensor: NTC

Set temperature range: 5~60℃ (max 70℃)

Ambient temperature: 0~95℃

Power Consumption: <1w

Running program: Set per 1 week as a cycle( 5+2 or 6+1 or 7)

Installation Box: 86*86mm Square or European 60mm Round Box

Wire Terminals: Wire 2* 1.5mm2 or 1* 2.5mm2

Size: 86* 86*40mm / 3.4*3.4*1.6 in

Protection Class: IP20

Shell material: PC+ABS (flame retardant)

Functions:

1. Memory Function
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.

2. Programmable Function
Support 5+2 /6+1 / 7 days Weekly Programmable, six periods programmable controlling temperature setting.

3.Wifi support, APP Remote control by mobile phone. One mobile phone can control one device and also can control multiple devices.
With voice control function, compatible with Amazon Alexa and Google Home.

4. manual or automatic function

5.Touching keys, tempered glass surface

6. Child lock
Children lock to avoid misoperation.
