50V/100V/200V/300V/500V/1000V High Volatge Transducer DC Voltage Transmitter Factory Supply AC Voltage Sensor

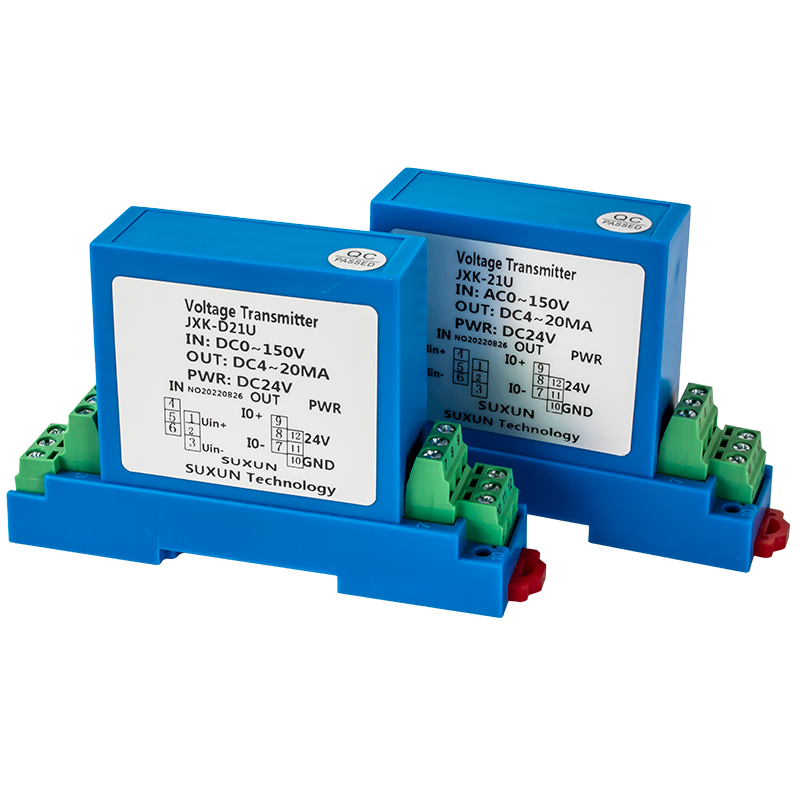

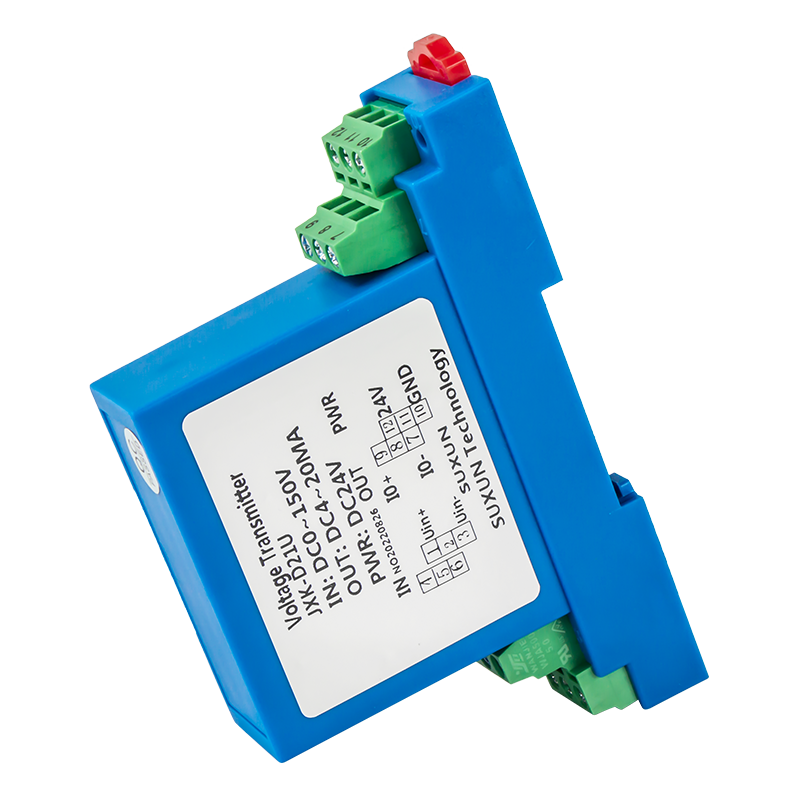

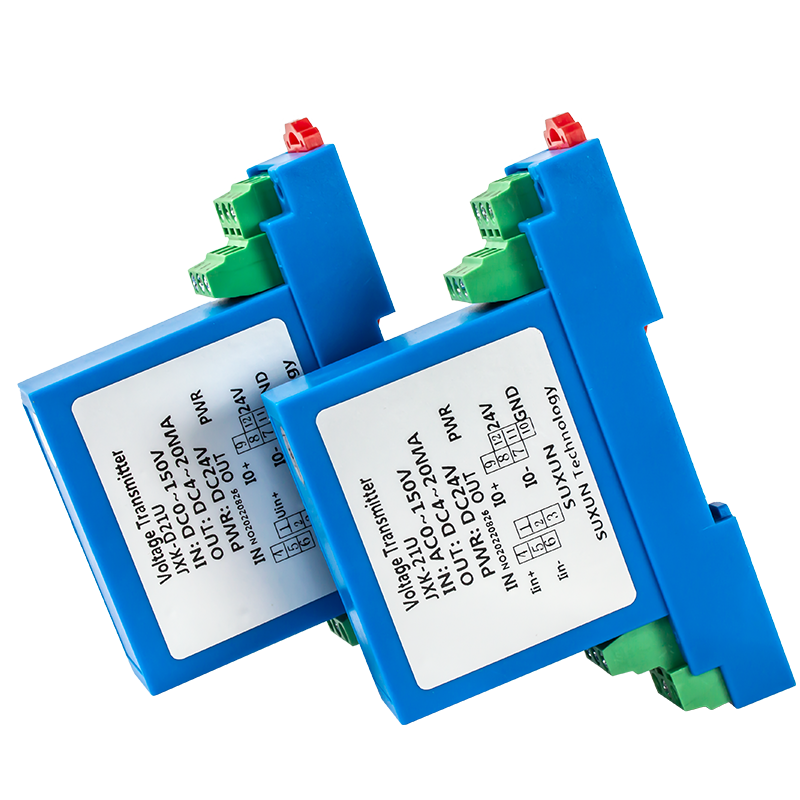

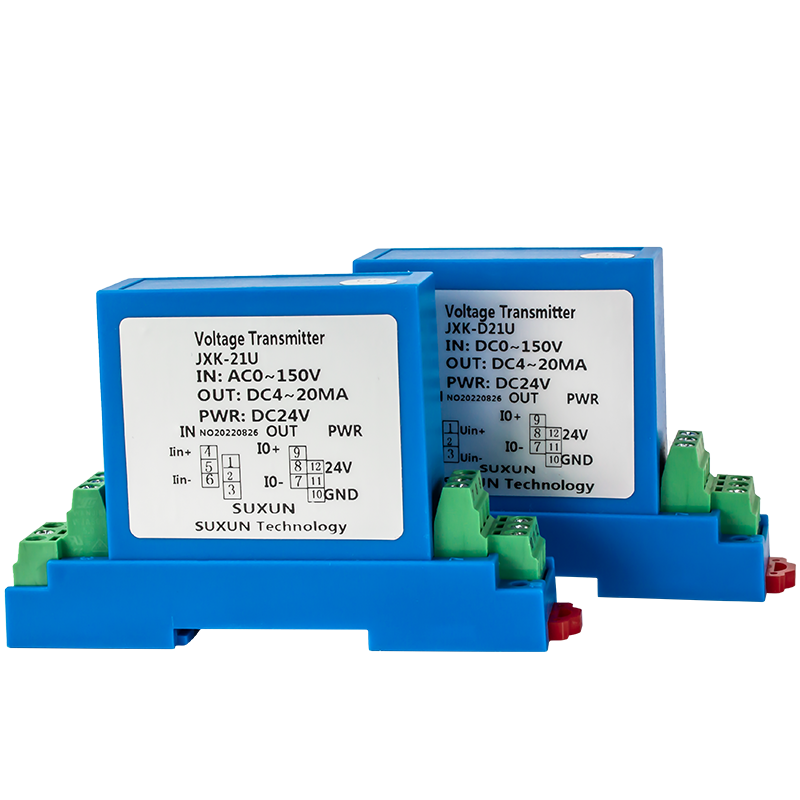

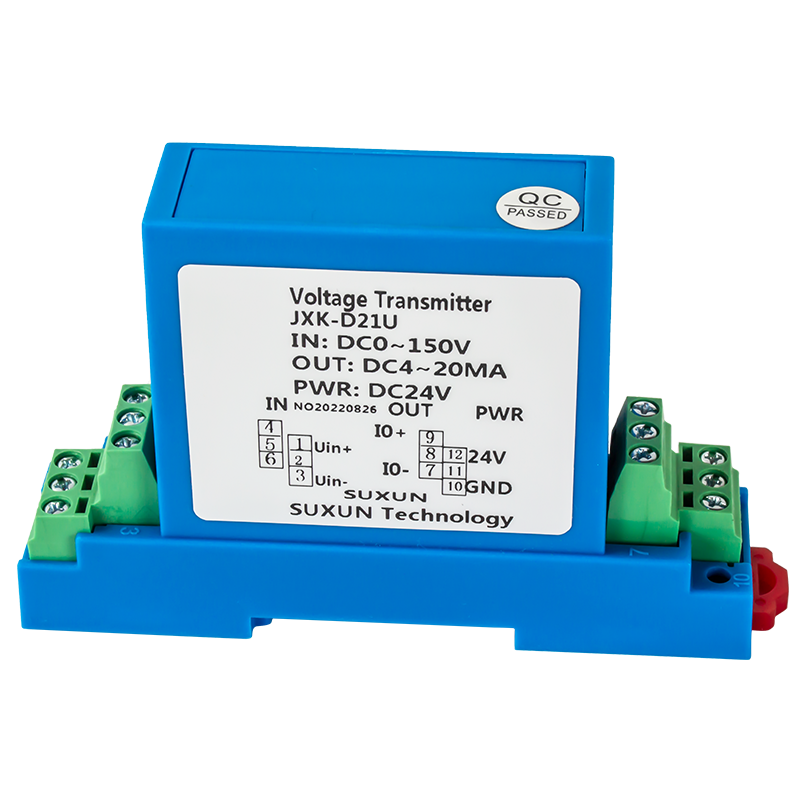

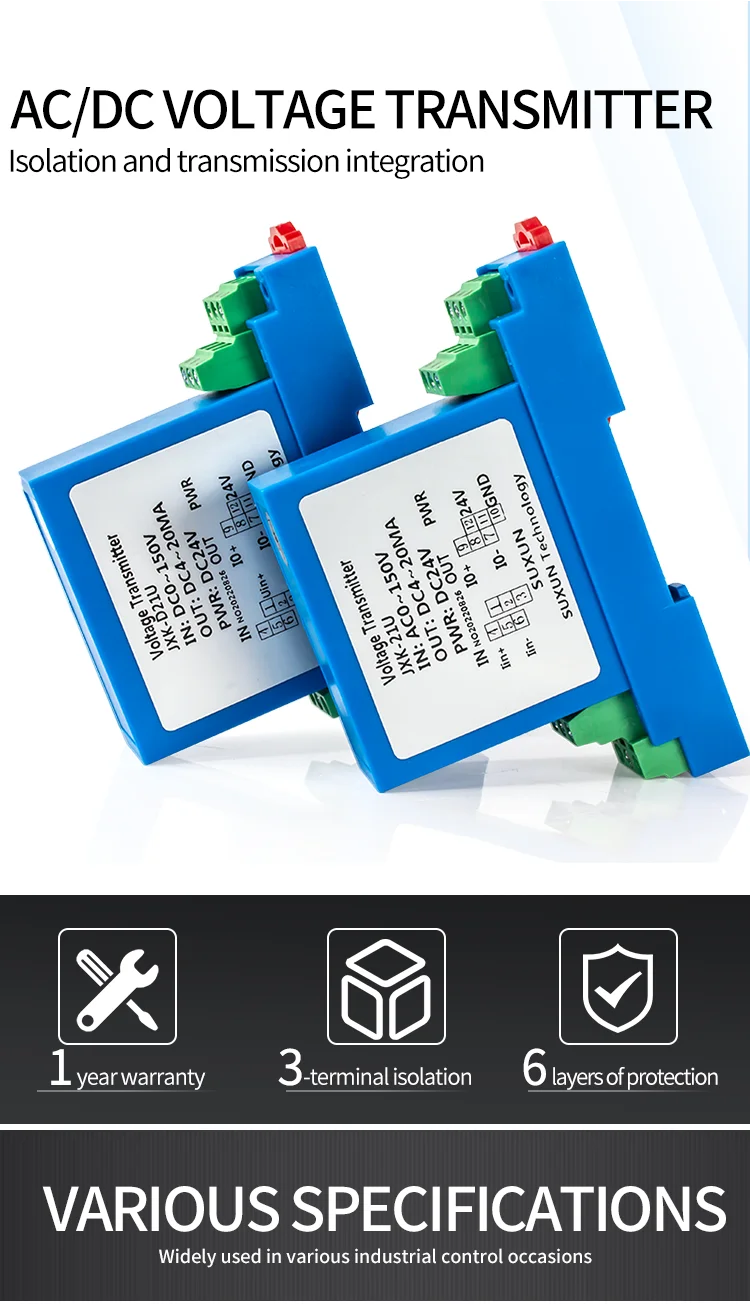

JXK21U AC DC Voltage Transmitter Voltage Sensor Input 75mV 1000V AC Voltage Transducer
Notes:
If you want to have the customization,please contact us.
Introduction
<1>. Working principle: Linear photoelectric isolation.
<2>. Usage: Special place for measuring input signal frequency variation and input waveform.AC DC universal.
<3>. Advantages: Better cost performance,fast response,high precision, good stability,small size, light weight,easy installation.
<4>. Application: Measurement of distortion waveforms such as triangular wave, trapezoidal wave and thyristor adjustable (true RMS output).

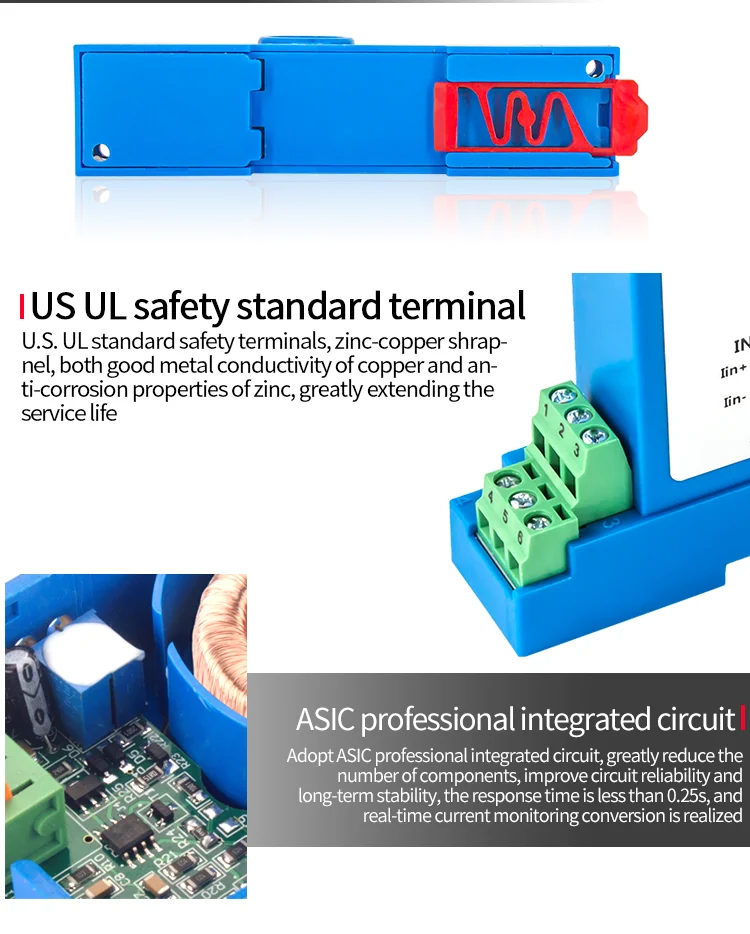

Imported components, high integration.The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability. Full channel configuration,Parameter customizable.

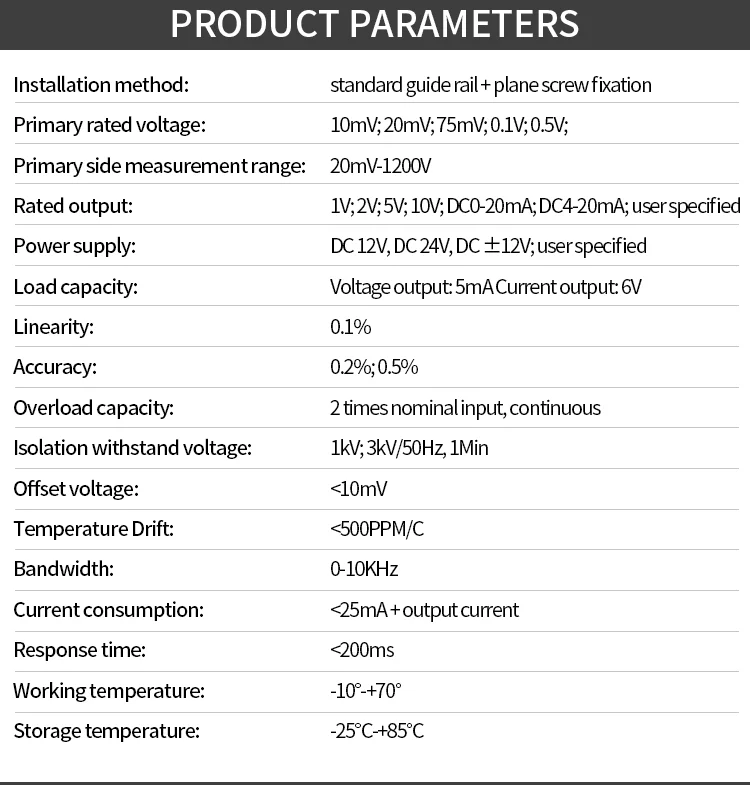

Specifications

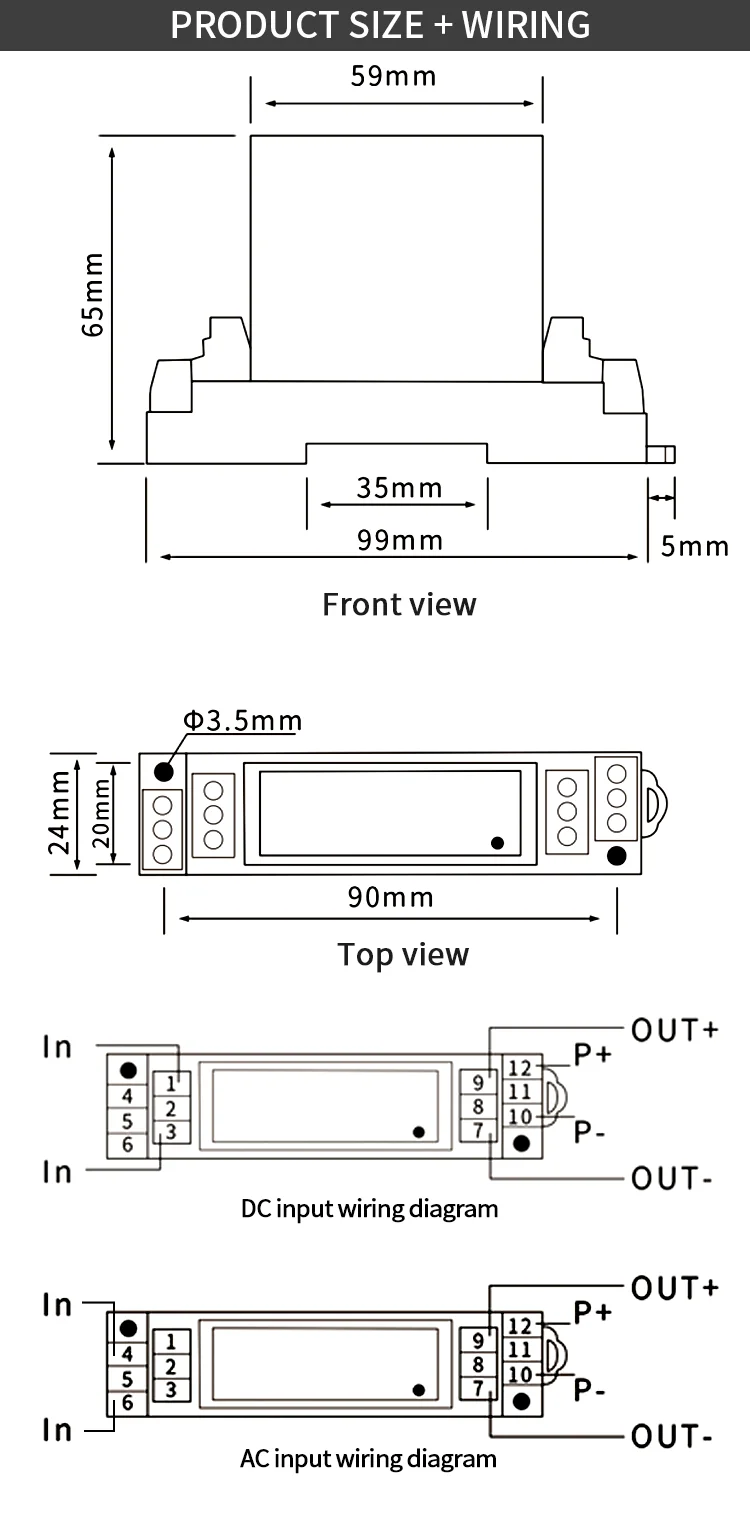

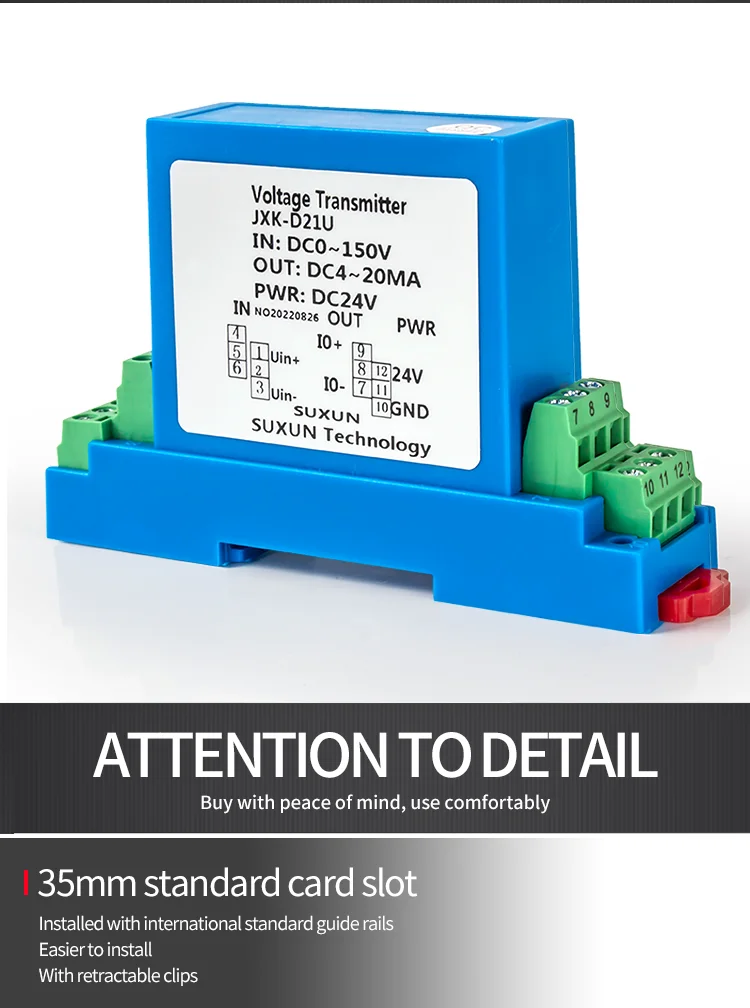

Parameters | Installation | Standard rail+Plane screw fixation |
Original side rated current | 10mV;20mV;75mV;0.1V;0.5V;1V;10V;50V;100V; 500V;800V;1000V | |
Original side measurement range | 20mV-1200V | |
Rated output | 4-20mA;0-20mA;0-5V; 0-10V | |
Auxiliary power supply | DC24V; AC220V | |
Load capacity | Voltage output:5mA; current output:6V | |
Linearity | 0.1% | |
Accuracy | 0.5% | |
Overload capacity | Double nominal input,sustainable | |
Temperature drift | ≤500PPM/℃ | |
Band width | DC | |
Consumption of current | <25mA+output current | |
Working temperature | -10℃~+70℃ | |
Storage temperature | -25℃~+85℃ | |
Response time | <200mS | |
Isolation pressure resistance | 1kV;3kV/50Hz,1Min | |
Offset Voltage | ≤10mV |
