Mini GPS Tracker ZX908 4G Chip Module LTE CAT-1 Tracking PCBA GPS Module Board Anti-Lost GPS Tracker ZX905 2G+4G
Mini GPS Tracker Module Chip LTE CAT-1 Tracking PCBA Module Board Anti-Lost for Personal Kid Use Pet Cat Dog ZX908 ZX905

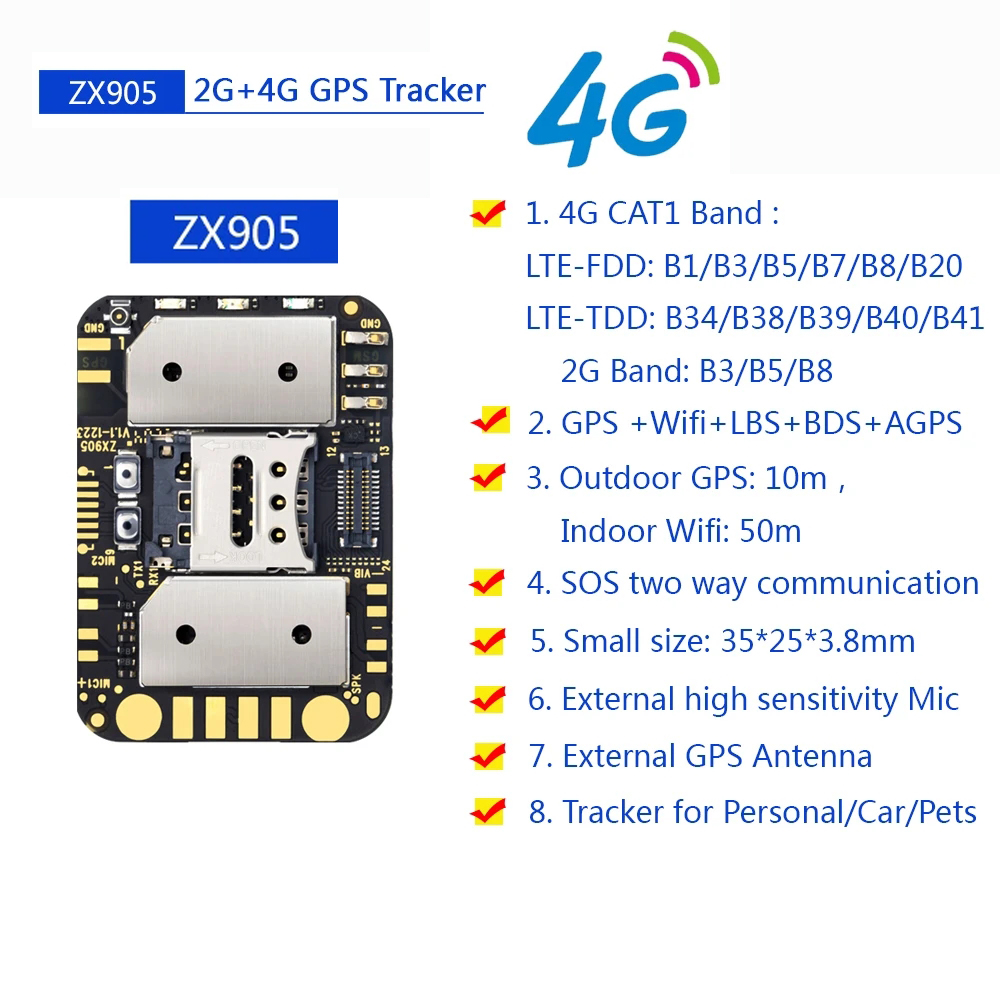

ZX905:
Main specification:
Function | Realtime GPS/AGPS/Wifi/4G Cat 1/ LBS Positioning, SOS, Voice, Call Family Numbers, Geo Fence Alarm Reminder, historical track, Alarm Clock, Class Mode, Power Save |
CPU | Topin |
PCB Size | 35*25*3.8mm (thickness include PCBA and GPS antenna) |
Working Temperature | -20℃ - +70℃ |
Network | 4G: LTE-FDD:B1/B3/B5/B7/B8/B20 , LTE-TDD:B34/B38/B39/B40/B41 2G GSM Bands: B3 / B5 / B8 |
Wifi | WiFi 802.11b/g/n |
GPS | Support external active GPS antenna support GPS+AGPS+Wifi+LBS+BeiDou |
SIM slot | Support NANO sim card |
GPS Positioning Accuracy | Within 10 meter outdoor |
GPS Motion Accuracy | 0.1 meter/second |
GPS Positioning Time | Cold Boot-38s(Open field), Warm Boot-2s(Open field),The specific time is affected by the environment |
WIFI Positioning Accuracy | Within 50 meters |
GSM/4G Positioning Accuracy | 50-200 meters(Depending on the network) |
Battery | Support rechargeable 3.7V Li-polymer battery(optional different capacity batteries upon different struction design) |
Charging port | Type C port |
Charging Current: | DC 5V/0.5A-1A(depend on your battery capacity) |
MIC | external High-Definition Silicon microphone |
Sensor | Build-in 3D G-sensor |
Attention:
1.Note: This is 2G + 4G GPS tracker --
4G Bands : LTE-FDD:B1/B3/B5//B7/B8/B20 , LTE-TDD:B34/B38/B39/B40/B41
2G Bands: B3 / B5 / B8
Have tested in Europe and Asia, working successfully. Other Continents , please confirm with your country telecom operator, support the 2G/4G bands above or not, if include our 2G/ 4G bands yes work too.
2.The Topin Official Service platform: www.365gps.net
Android application: 365gps
iOS application: 365gps
Login ID:IMEI number,Default Password: last 6digits of imei
3. QR code scanning access

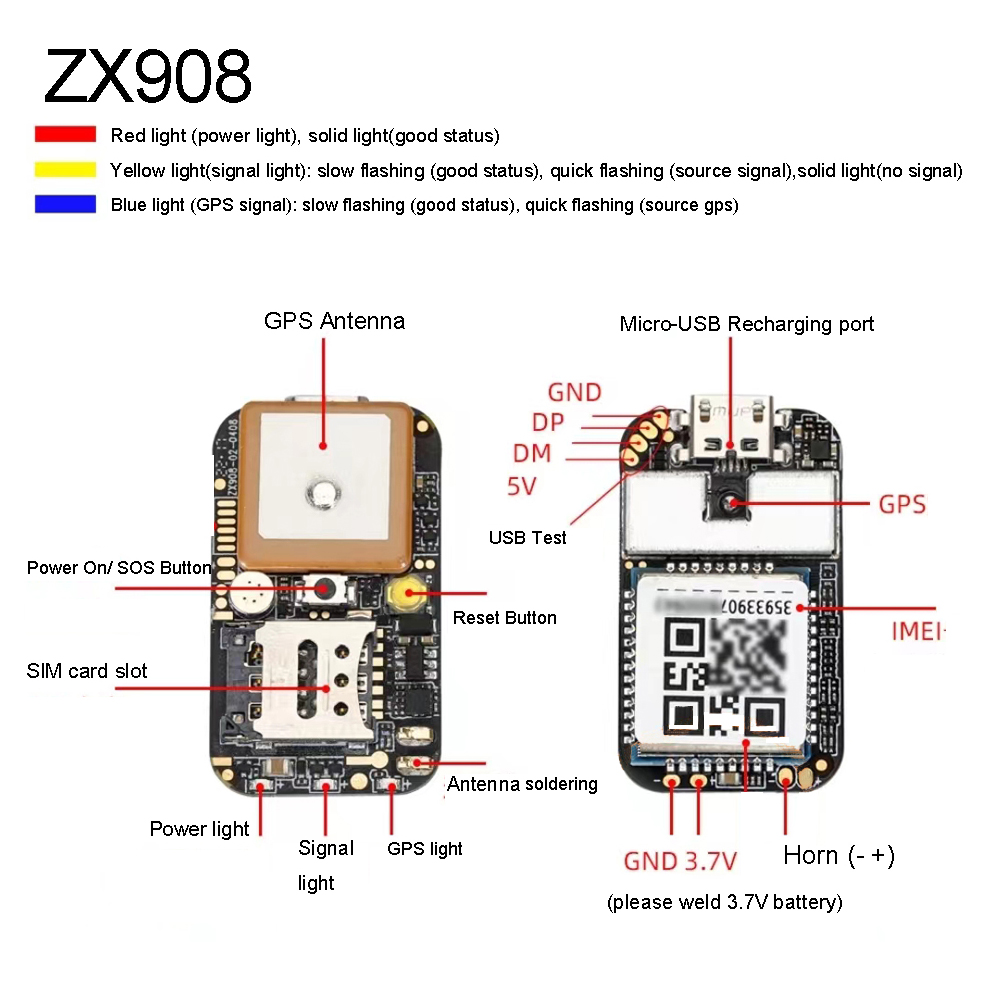

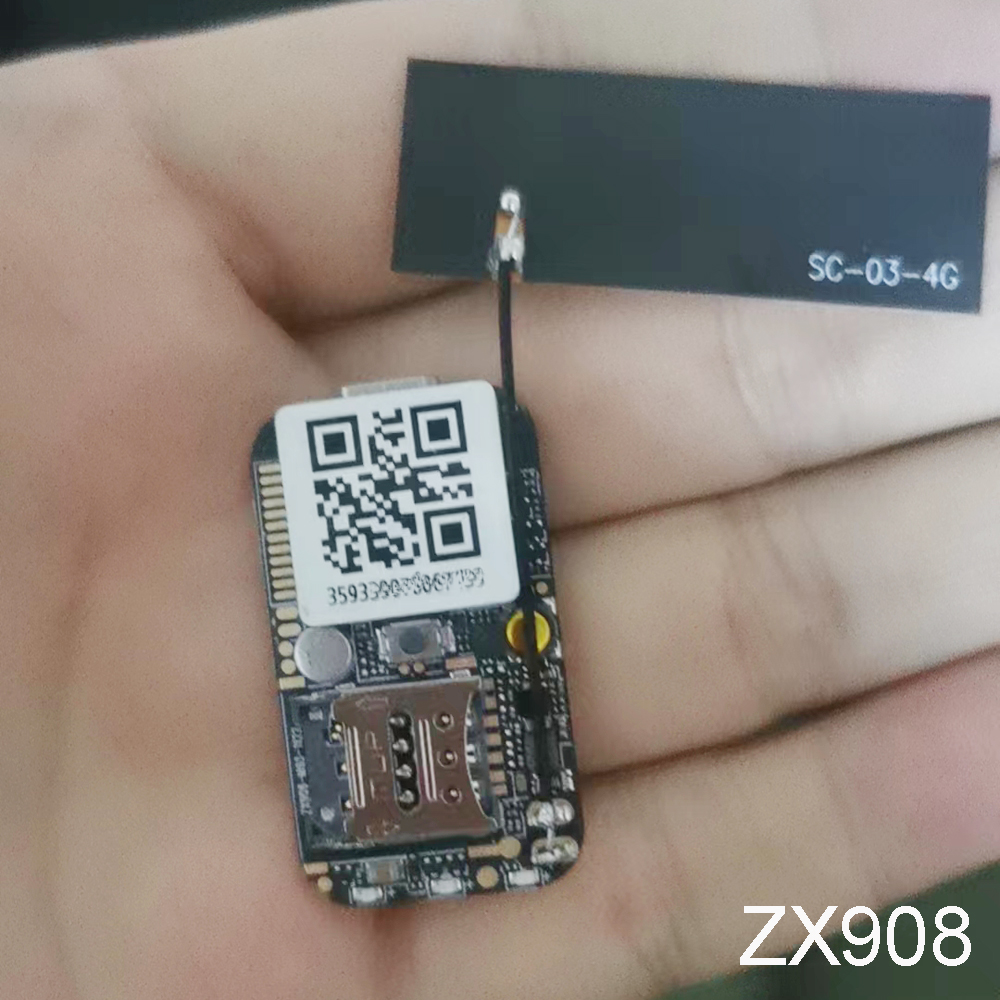

ZX908:
