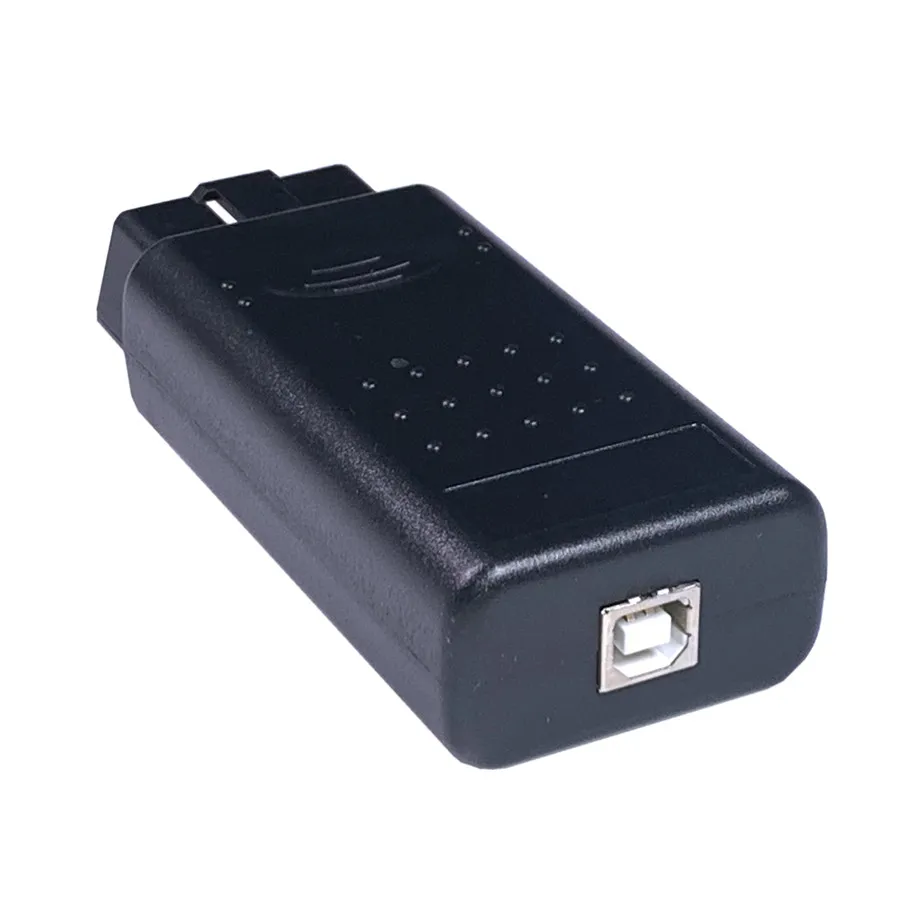

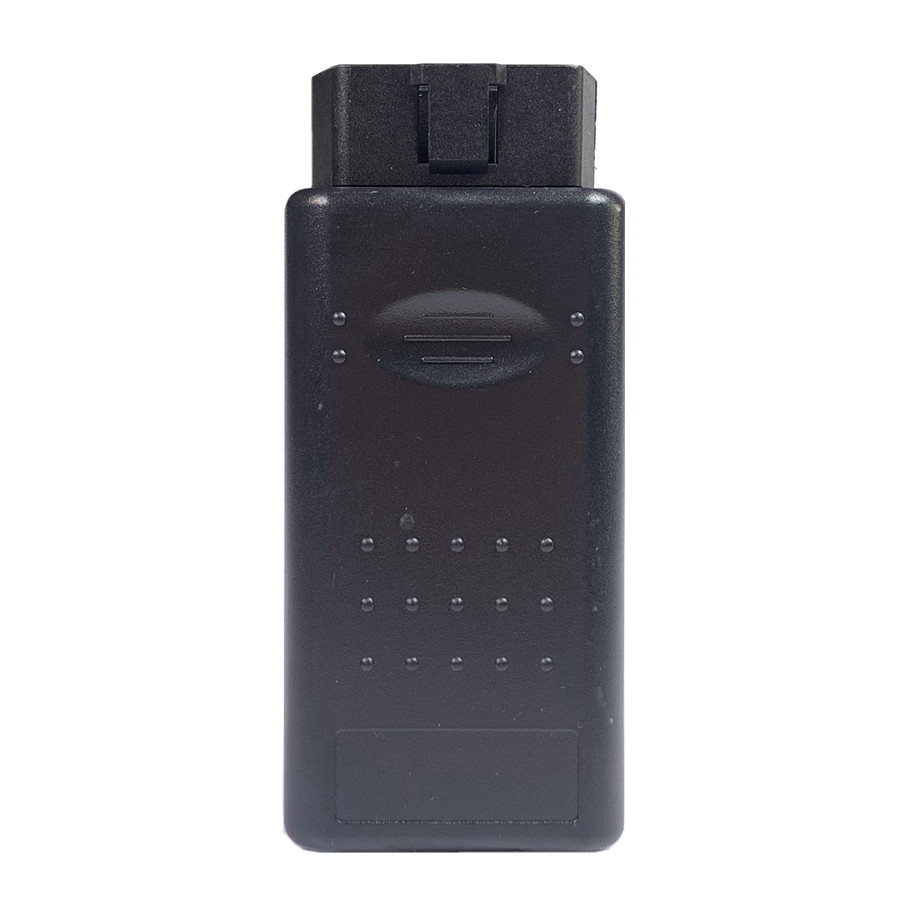

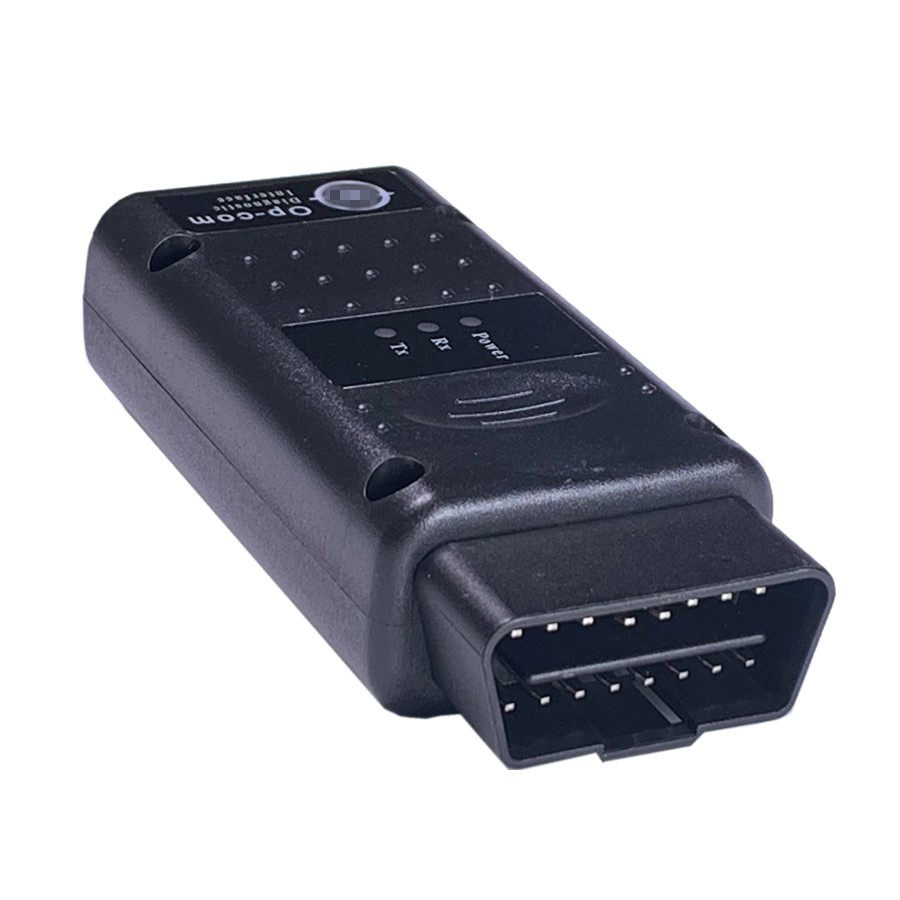

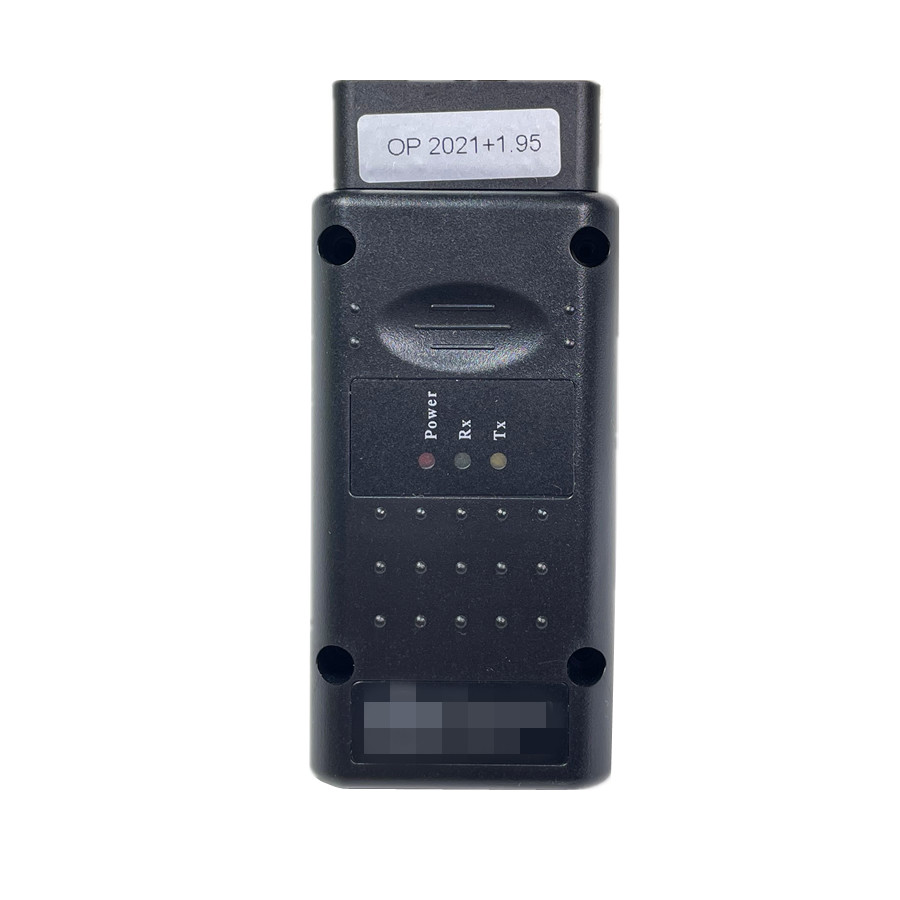

OPCOM 2021 PIC18F458 FTDI FT232RQ Chip For O-p-el Car Diagnostic Scanner OP-COM V2021 For Cars Till 2021
価格:
$47.61
/Pc
払い戻し:
シェア:
売れ筋商品
Note:If buyer received unreadbale or damaged CD,please ask me to send you
download link .Do not open dispute or leave negative feedback . THANKS !
Newest opcom 2021 Highlights :
newest software professional 200603a. can support cars to 2021.
NOTE: the better use in WIN 7
Language: english
OPCOM V2014VSOPCOM V2018VSOCPOM V2021:
1.
OPCOM V2014 works for o-pel cars untill 2014
OPCOM V2018 works for o-pel cars untill 2018
OPCOM V2018 works for o-pel cars untill 2021
2.
OPCOM V2014 supports win XP / WIN7
OPCOM V2018 supports win xp / win7 / win10
OPCOM V2021 supports win xp / win7

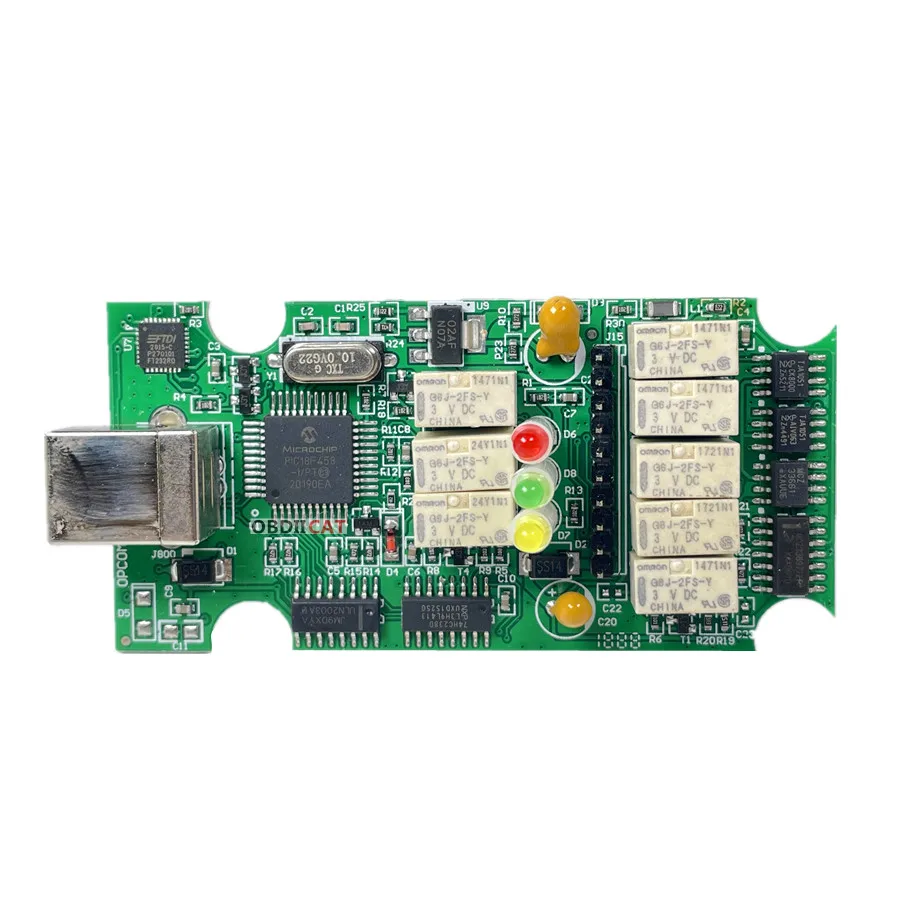

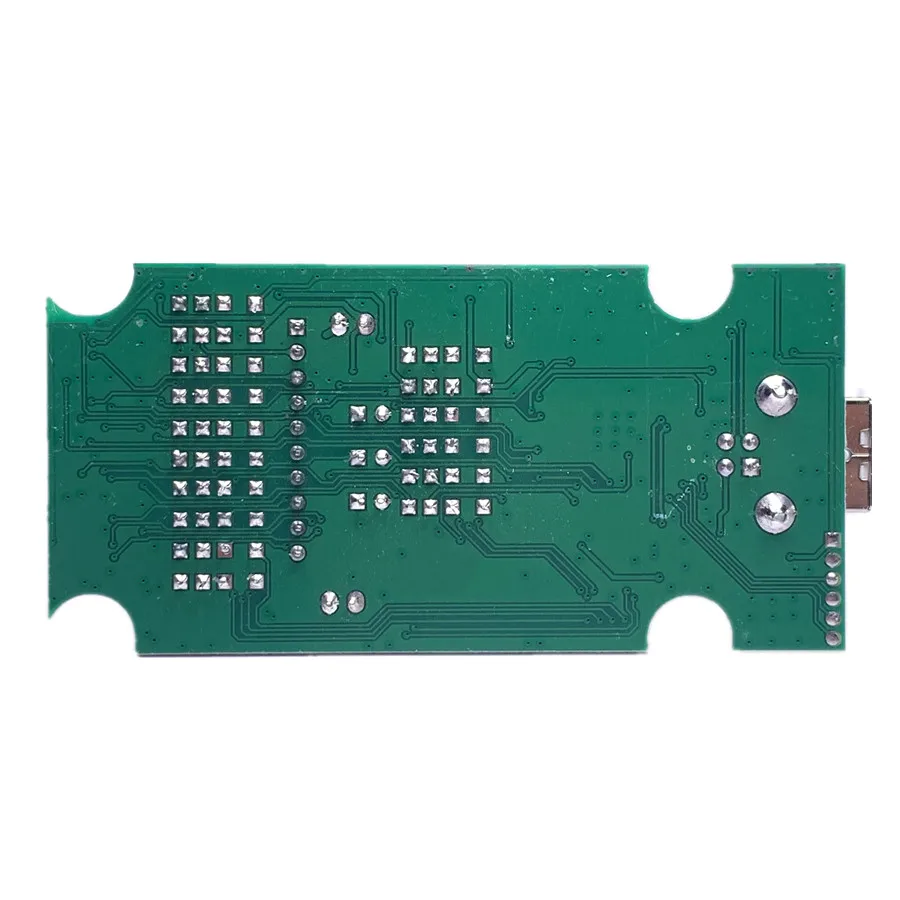

3.All Versions PCB are Original PIC18F458 Full chips & FTDI FT232RQ which can flash FW Update.
4. V2014 and V2018 and V2021 Versions can only support English .
Functions :
1. It covers almost all for O-pel cars, even new cars with CAN-BUS based diagnostic, such as V-ectra-C, A-stra-H, Z-afira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test
3.
The program supports many control units, like Engine, Automatic
Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster,
Electronic Climate Control, Body Control Unit, just to name a few
examples.
The program supports many control units, like Engine, Automatic
Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster,
Electronic Climate Control, Body Control Unit, just to name a few
examples.
4.Since
For O-pel uses many pin in the OBD connector, the diagnostic interface
works as a multiplexer, and selects the appropriate pin for
communication.
For O-pel uses many pin in the OBD connector, the diagnostic interface
works as a multiplexer, and selects the appropriate pin for
communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information:
Full fault code text description
Full status information (Present, Not present, Intermittent)
6.
You can print out, save, or copy the fault codes to any other
application.From the fault codes window, you can go directly to the
measuring blocks window.
You can print out, save, or copy the fault codes to any other
application.From the fault codes window, you can go directly to the
measuring blocks window.
7. The program shows you measuring block information on many control module, you can choose anything from the list on your own.
8.
The program is capable of showing 8 measuring block parameter
simultaneously. The sample rate is depends mostly on the communication
protocol. For example, older system, like Omega-B X 25 DT Engine
(ISO-9141-2) can be very slow, during communication, while newer Multec,
or B-osch units are faster (using KWP-2000), and the newest CAN based
control units are very fast!
The program is capable of showing 8 measuring block parameter
simultaneously. The sample rate is depends mostly on the communication
protocol. For example, older system, like Omega-B X 25 DT Engine
(ISO-9141-2) can be very slow, during communication, while newer Multec,
or B-osch units are faster (using KWP-2000), and the newest CAN based
control units are very fast!
You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps
9.
You will get a feedback on the state of the activated output. This will
helps you to find the failed.components more easily.With OP-COM, you
can learn keys to immobiliser, and remote keys to the central door
locking.
You will get a feedback on the state of the activated output. This will
helps you to find the failed.components more easily.With OP-COM, you
can learn keys to immobiliser, and remote keys to the central door
locking.
10. You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.
You will need the vehicle security code, which can be found on the CAR-PASS.
You can also reset, and program the Service interval reminder on Astra-G, Zafira, Corsa-C, Meriva
You can code SAB6, and SAB8 airbags with the software.
(BUT not all car models can support all of these functions.)
Package Including:
1.OP-COM Interface
2.USB Cable
3.CD
OPCOM 2021 NO dongle:
