Nema23 Motor Planetary Gearbox Helical Gear Reducer Step-down Gearbox 200W/400W/600W 60 Flange Servo Motor Speed Reducer

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$135.26 /Pc

量:

(1320 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

1* Planetary reducer
1* Key
4* Install screw

PLG060 Series 3D CAD: Click here to open

Model: PLG060

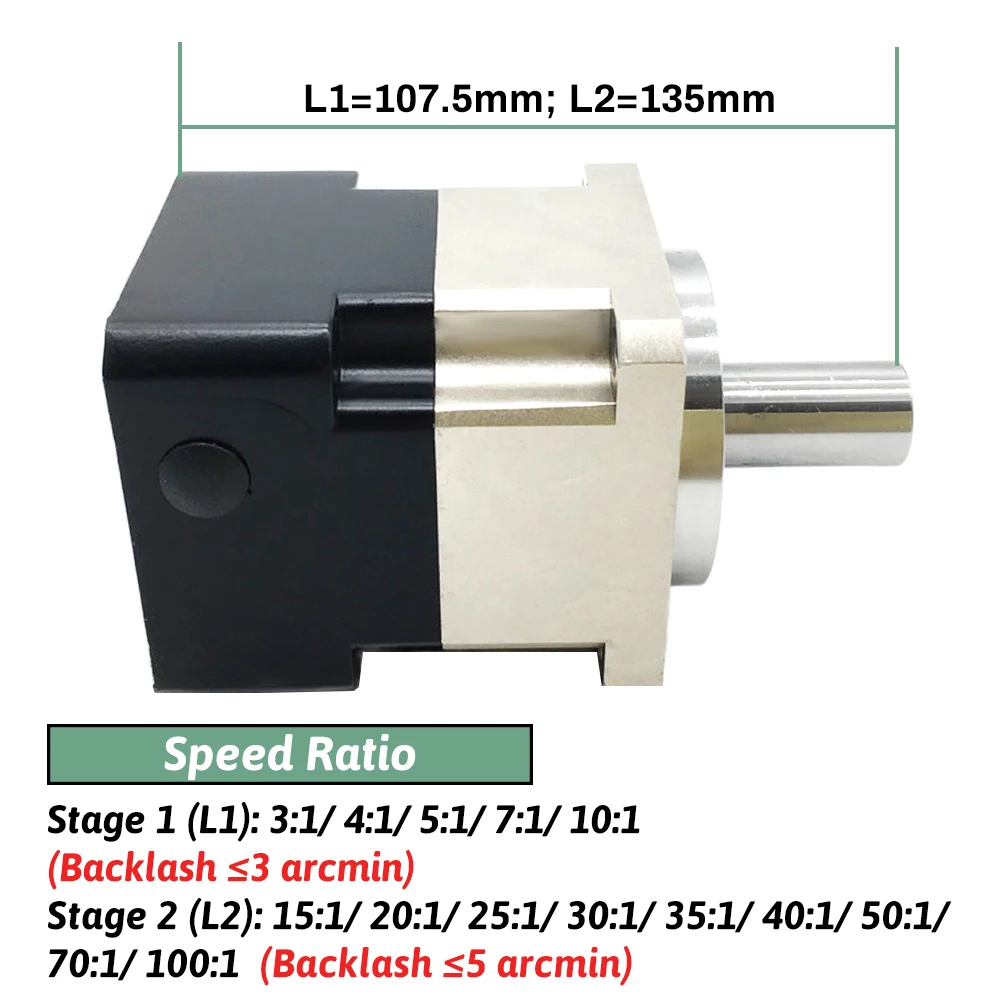

Speed Ratio:
Stage 1 (L1): 3:1/ 4:1/ 5:1/ 7:1/ 10:1
Stage 2 (L2): 15:1/ 20:1/ 25:1/ 30:1/ 35:1/ 40:1/ 50:1/ 70:1/ 100:1

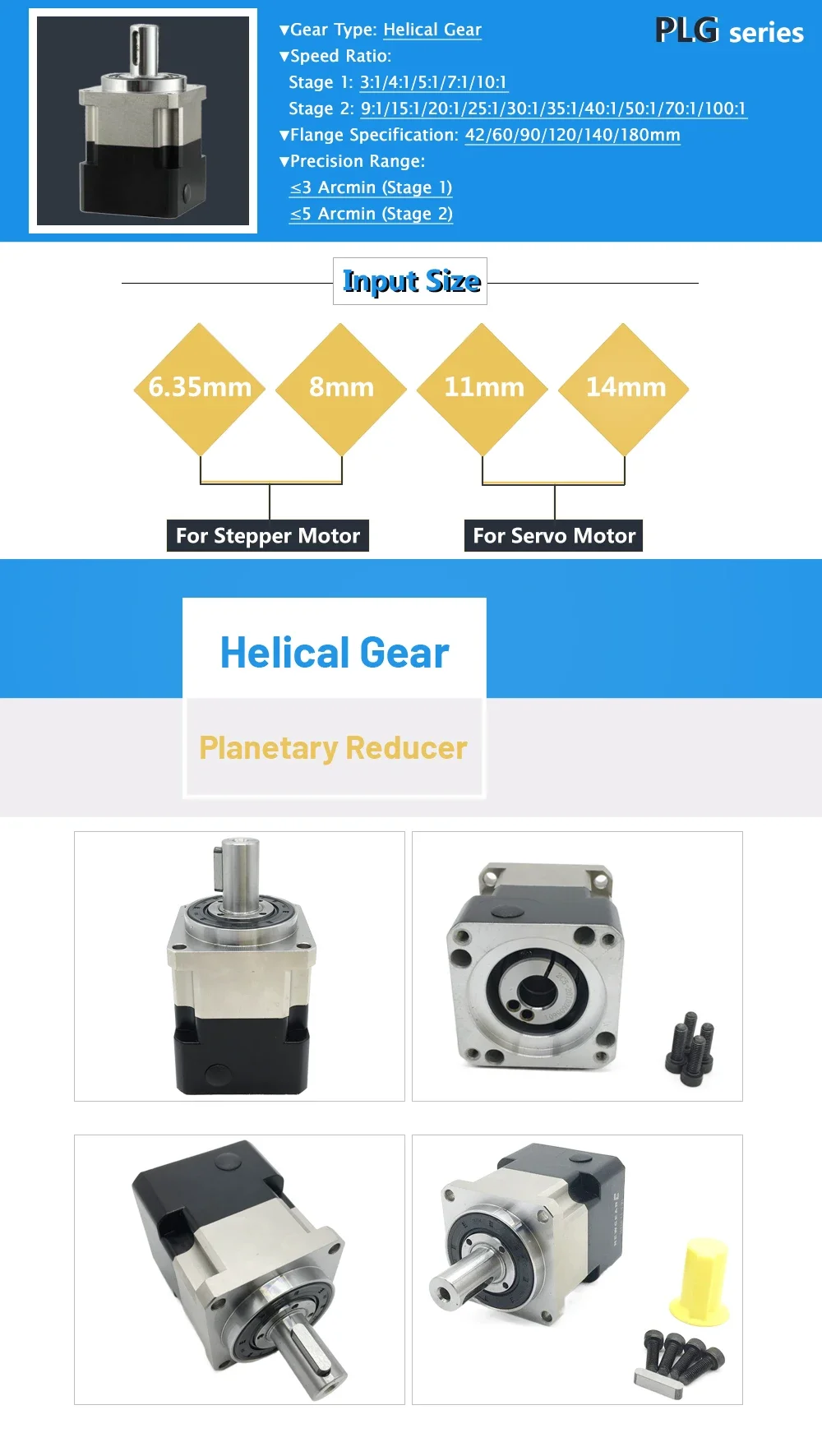

Product type: Helical Gear Planetary Reducer

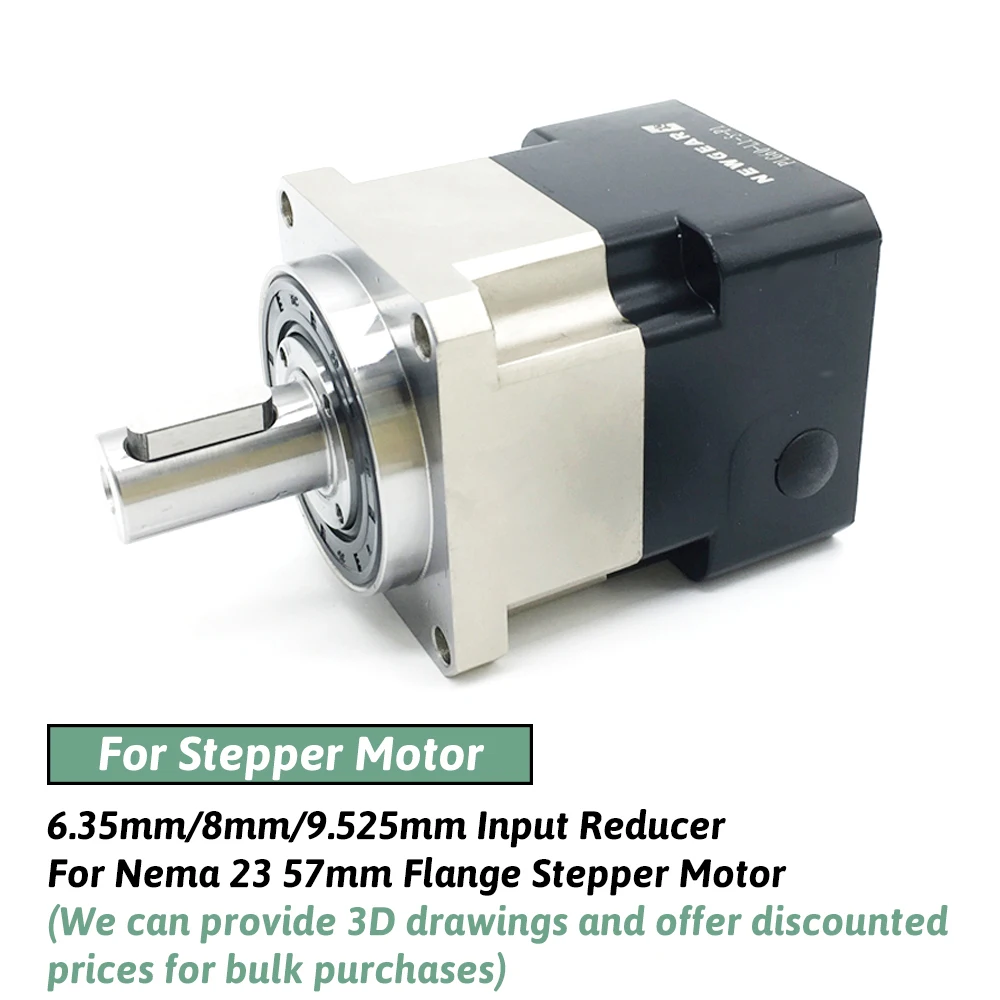

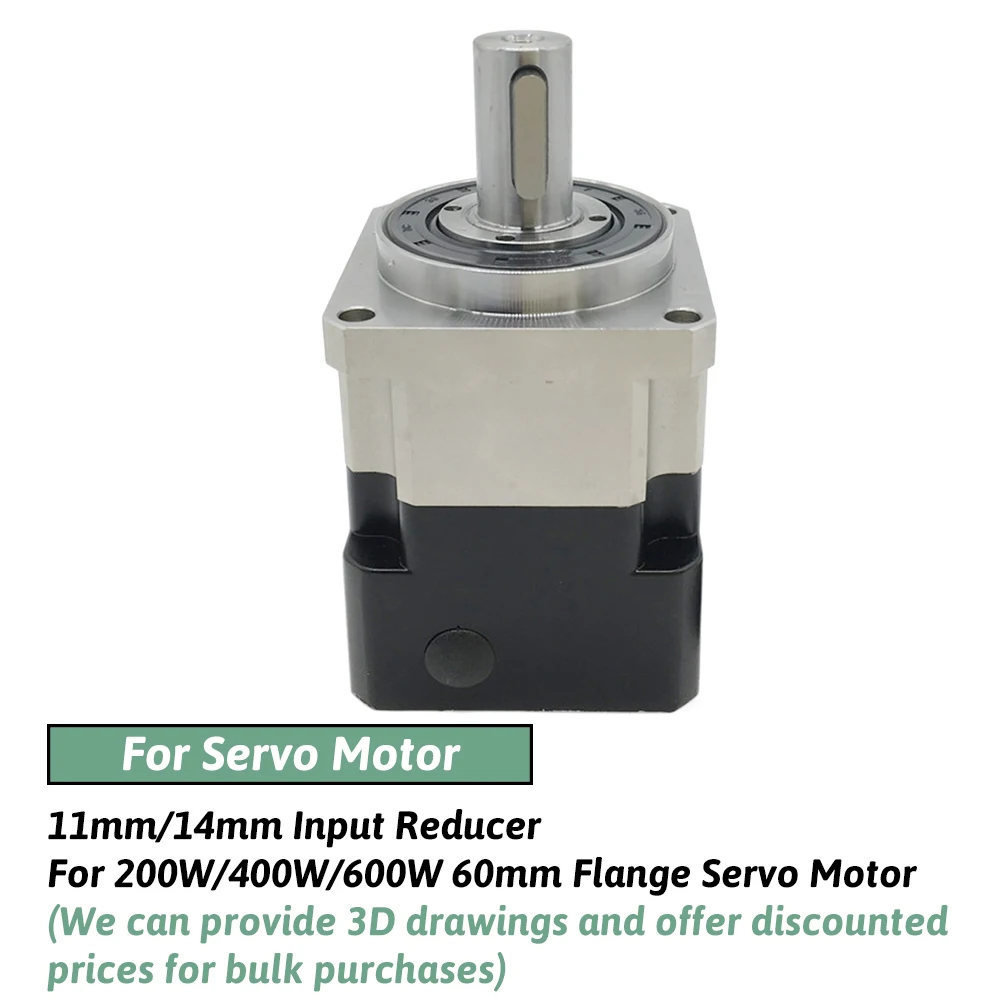

Input size: 6.35mm/8mm/11mm/14mm

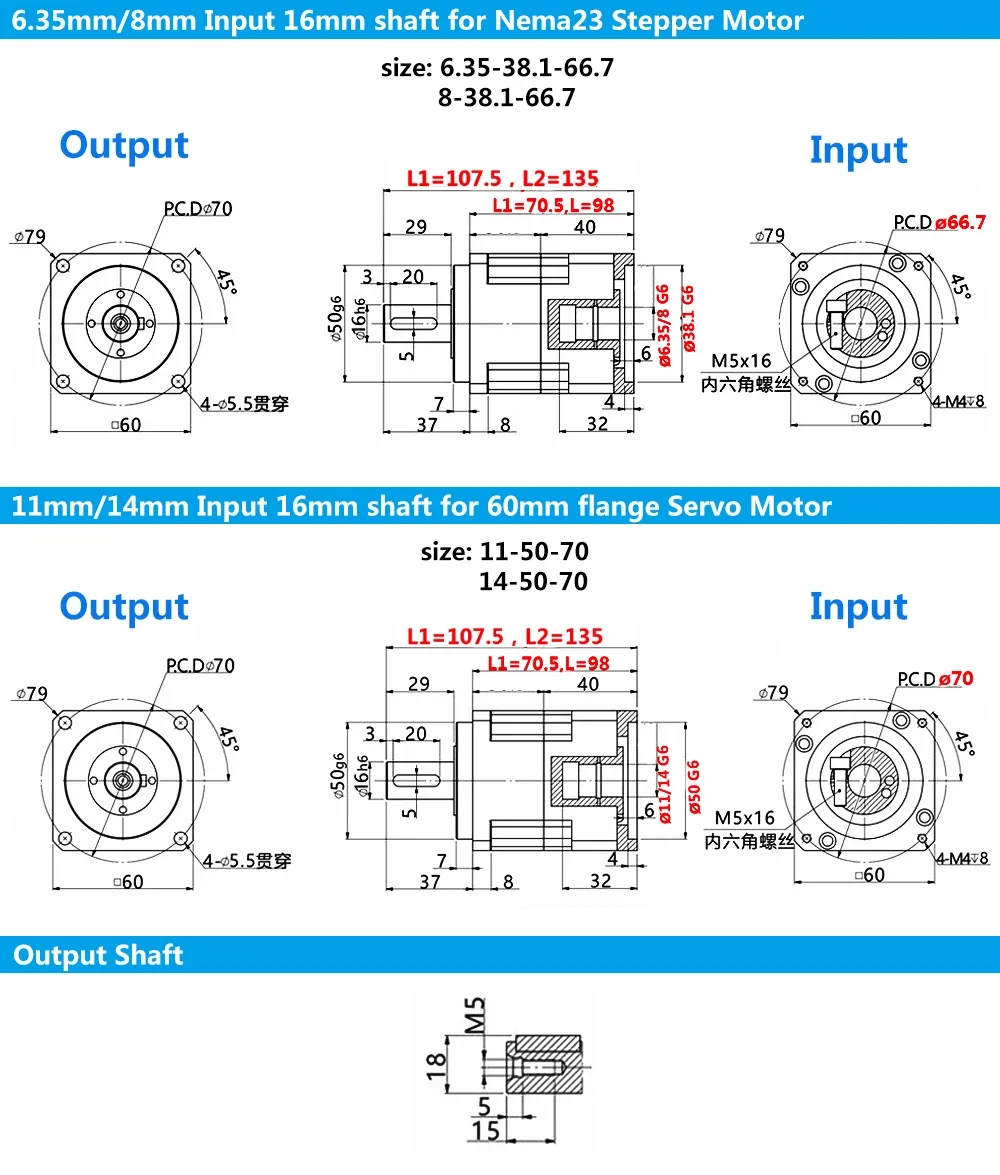

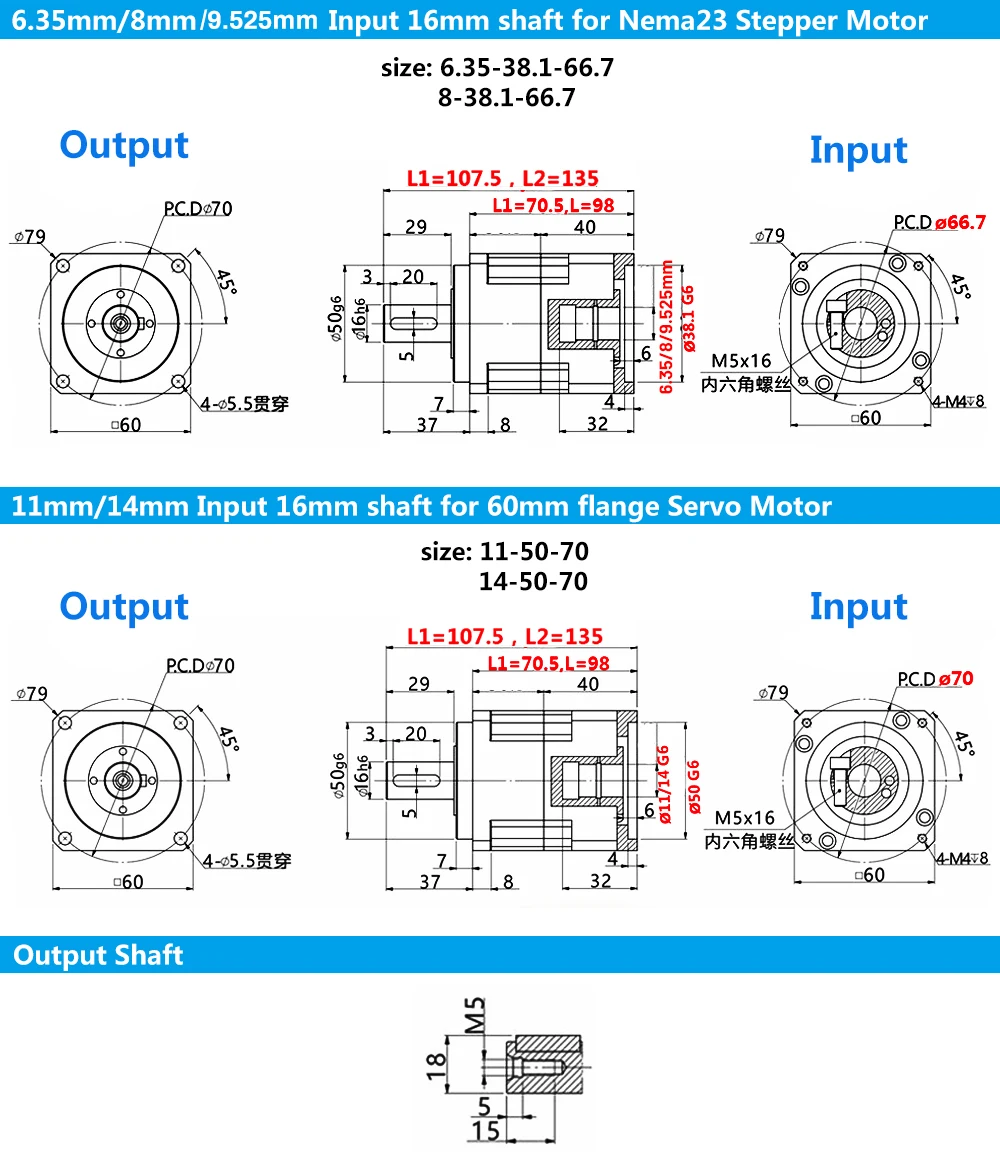

Body length: 70.5(L1) / 98mm (L2)
Backlash Precision: Less than 3 Arcmin (L1) / Less than 5 Arcmin (L2)
Gear type: Helical Gear
Rated torque:
45Nm(4:1/ 5:1/ 7:1/ 20:1/ 25:1/ 35:1/ 40:1/ 50:1/ 70:1) ;
40Nm (3:1/ 30:1);
30Nm (10:1 / 100:1)
Maximum torque: 2* Rated torque
Emergency braking torque: 3* Rated torque
Max radial force: 1530N
Max axial force : 630N
Max input speed: 8000rpm
Rated input speed: 5000rpm
Torsional Stiffness: 6Nm/arcmin
Transmission efficiency: More than 95% (L1) / More than 90% (L2)
Noise: Less than 58dB
Protection level: IP65

Model				PLG042	PLG060	PLG090	PLG120	PLG140
Input Flange			mm	42.6	60	90	130	176
Input Size			mm	5/8	6.35/8/9.525 /11/14	12.7/14/ 16/18	19/22/24	35
Max. Output Torque			Nm	2 Times Rated Output Torque
Instant Braking Torque			Nm	3 Times Rated Output Torque
Max Radial Torque			N	780	1530	3250	6700	9400
Max Axis Torque			N	390	630	1300	3000	4700
Torsional Stiffness			Nm/arcmin	2.5	6	12	23	47
Max Input Speed			rpm	8000	8000	8000	8000	6000
Rated Input Speed			rpm	4000	5000	4000	4000	3000
Noise			dB	≤56	≤58	≤60	≤65	≤68
Life time			h	20000
Full Load Efficiency			%	L1≥95%, L2≥90%
Backlash	PO	Stage 1	arcmin	≤3	≤3	≤3	≤3	≤3
Backlash	PO	Stage 2	arcmin	≤5	≤5	≤5	≤5	≤5
Parameter	Stage	Ratio		PLG042	PLG060	PLG090	PLG120	PLG140
Rated Output Torque (Nm)	Stage 1	3:1		19	40	105	165	360
		4:1		19	45	130	230	480
		5:1		17	45	130	230	480
		7:1		14	45	100	220	480
		10:1		11	30	75	175	360
	Stage 2	15:1		19	40	105	165	360
		20:1		19	45	110	230	480
		25:1		17	45	110	230	480
		30:1		19	40	105	165	360
		35:1		17	45	110	230	480
		40:1		19	45	110	230	480
		50:1		17	45	110	230	480
		70:1		14	45	100	220	480
		100:1		11	30	75	175	360
IP Degree		IP65
Operating Temp		-10℃~90℃
