HBM Z6FC3 Load Cell Bending Beam Weighing Sensor for Hopper Scale Belt Scale Checkweigher Process Weighing Light Industry
Product Description
Type | Z6(F/G)D1 | Z6(F/G)C3 | Z6FC4 | Z6FC6 | ||
Accuracy class to OIML R 60 | D1 | C3 | C4 | C6 | ||
Number of load cell verification intervals | nLC | 1000 | 3000 | 4000 | 6000 | |
Maximum capacity | Emax | Kg | 5; 10; 20; 30; 50; | 10; 20; 30; 50; 100; | 20; 30; 50; | 20; 30; 50; |
t | 1 | 1 | - | - | ||
Minimum load cell verification interval | Vmin | % of | 0.036 | 0.009 | 0.0066 | 0.0066 |
Y value | Y | 2778 | 11111 | 15000 | 15000 | |
Accuracy class to NTEP IIIM | ||||||
Number of load cell verification intervals | nLC | 5000 | ||||
Maximum capacity | Emax | kg | 20; 30; 50; 100; 200 | |||
Minimum load cell verification interval | vmin | % of | Emax/11111 | |||
General specifications | ||||||
Nominal (rated) output | Cn | mV/V | 2 | |||

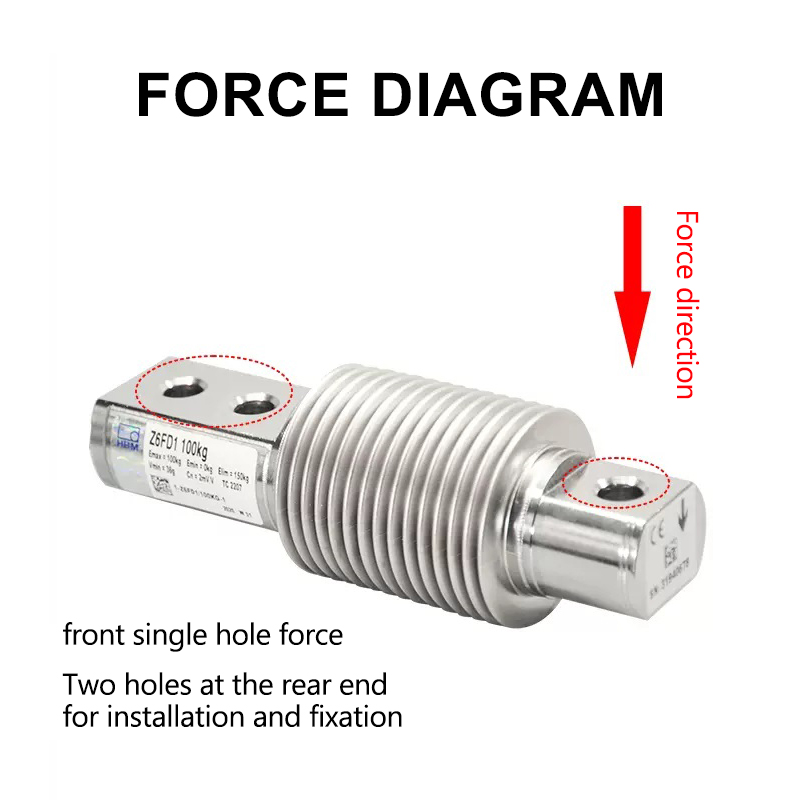

Rated output tolerance with load appl. in stated direction | % | +(1;-0.1) | ±0.052 | |||
Temperature coefficient of rated output | TCs | % of Cn | ±0.0500 | ±0.0080 | ±0.0070 | ±0.0040 |
Temperature coefficient of zero signal | TC0 | ±0.0500 | ±0.0125 | ±0.0093 | ±0.0093 | |
Relative reversibility error | dhy | % of Cn | ±0.0500 | ±0.0170 | ±0.0130 | ±0.0080 |
Non-linearity | dlin | ±0.0500 | ±0.0180 | ±0.0150 | ±0.0110 | |
Creep upon loading in 30 min. | dDR | ±0.0490 | ±0.0166 | ±0.0125 | ±0.0083 | |
Input resistance | RLC | Ω | 300 - 480 | |||
Output resistance | R0 | 356 ±0.2 | 356 ±0.12 | |||
Reference voltage | Uref | V | 5 | |||
Nominal (rated) range of the excitation voltage | BU | 0.5-12 | ||||
Insulation resistance | Ris | GΩ | >5 | |||
Nominal (rated) range of the ambient temperature | BT | °C | -10 - +40 | |||
Operating temperature range | Btu | -30 - +70 | ||||
Storage temperature range | Btl | -50 - +85 | ||||
Limit load | EL | % of | 150 | |||
Breaking load | Ed | ≥300 | ||||
Features: |

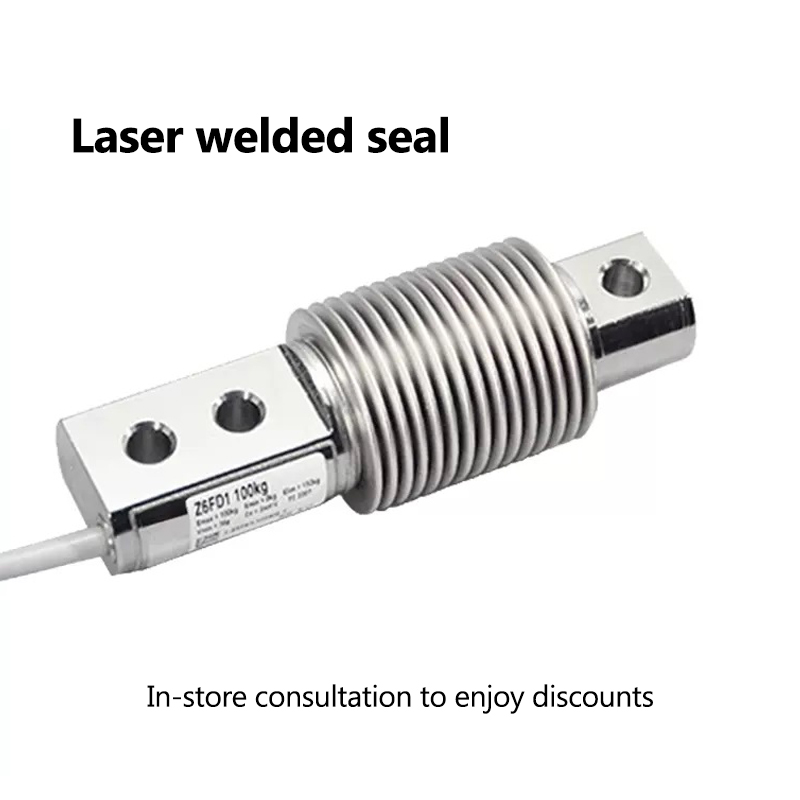

Welded-on metal bellows
Maximum capacities: 5 kg … 1 t

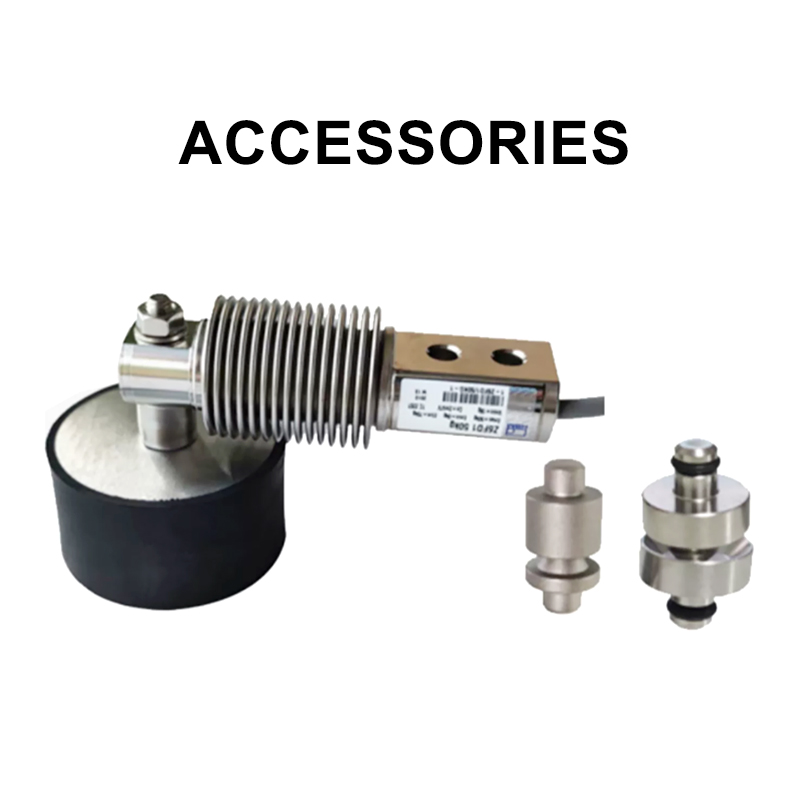

Load cells and mounting aids made of rust-resistant materials
Legal for trade up to 6000 parts, test report to OIML R60
Approval as per NTEP III M5000

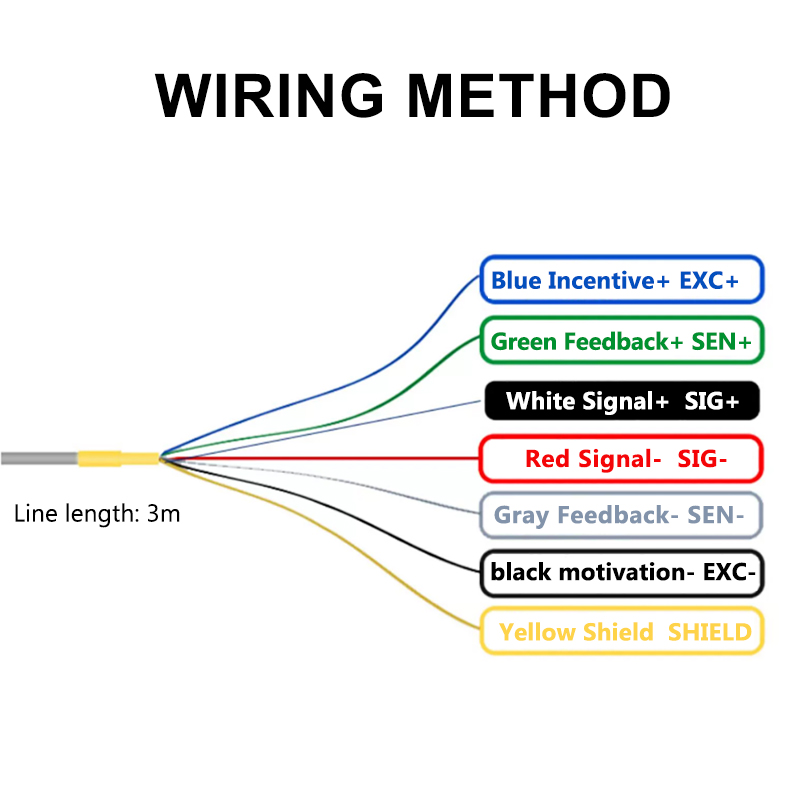

Six-wire configuration
Optimized for parallel connection
Options: Explosion protection versions as per ATEX,
IECEx and FM (US/CA)
