Acrel ADW210 DI/DO Max 4-Channel 3-Phase Kwh Power Monitoring Smart Energy Meter Rs485 Modbus-RTU Paired External Cts Dil Rail

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$186.20 /Pc

量:

(1326 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

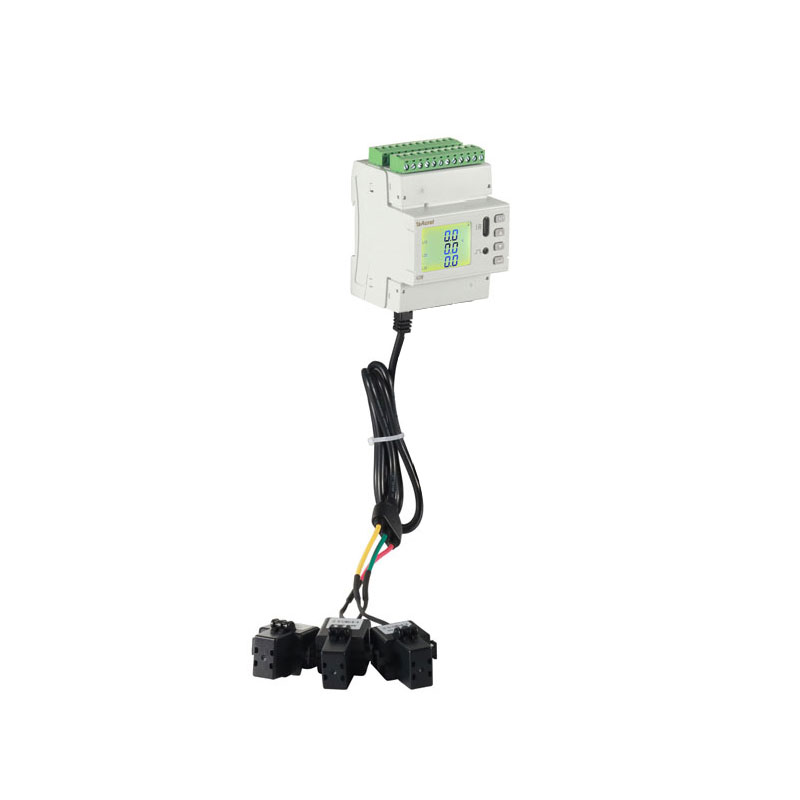

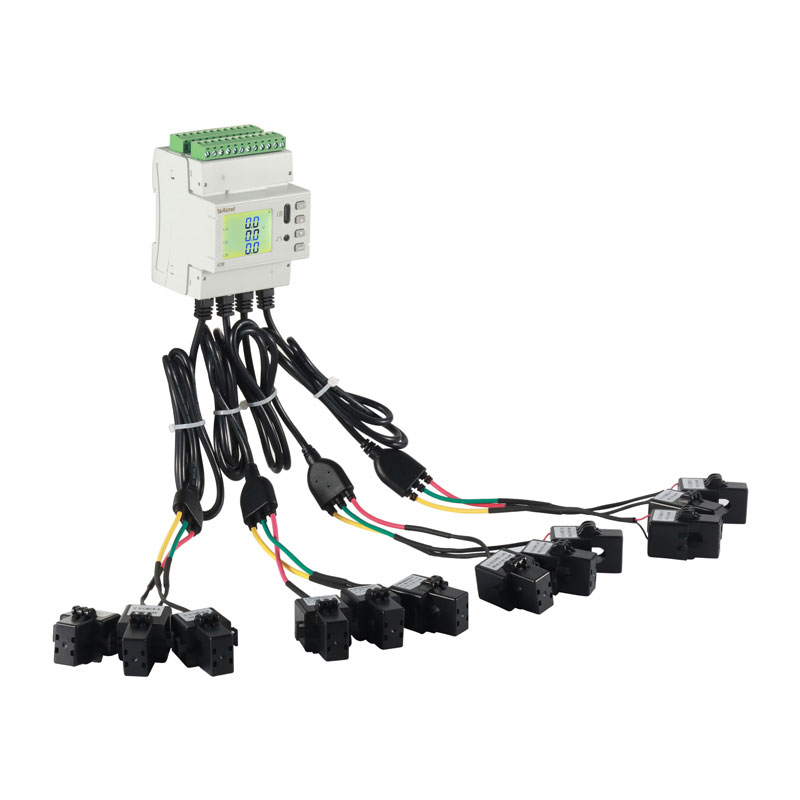

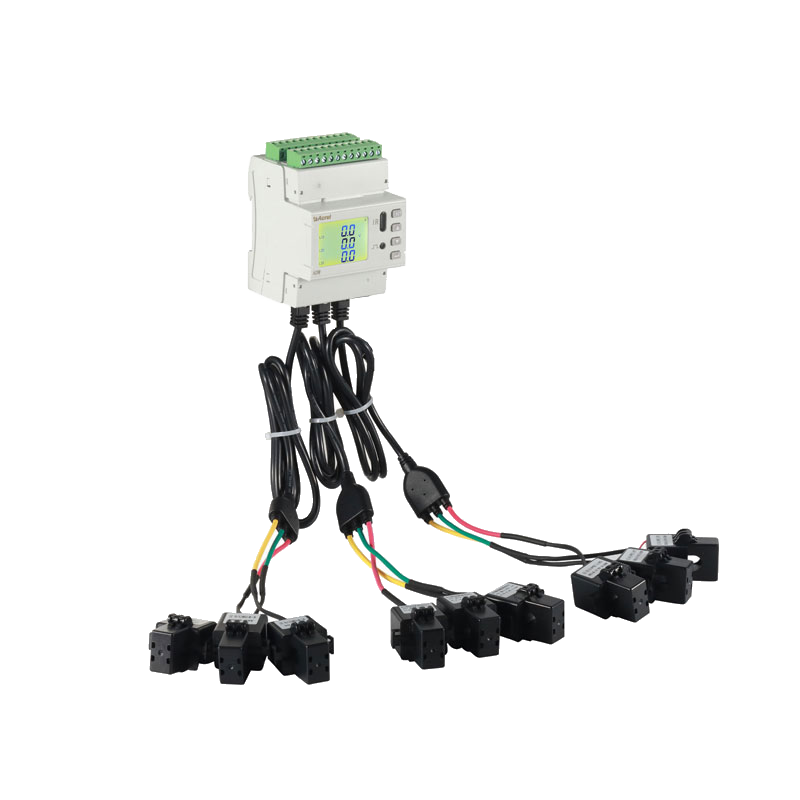

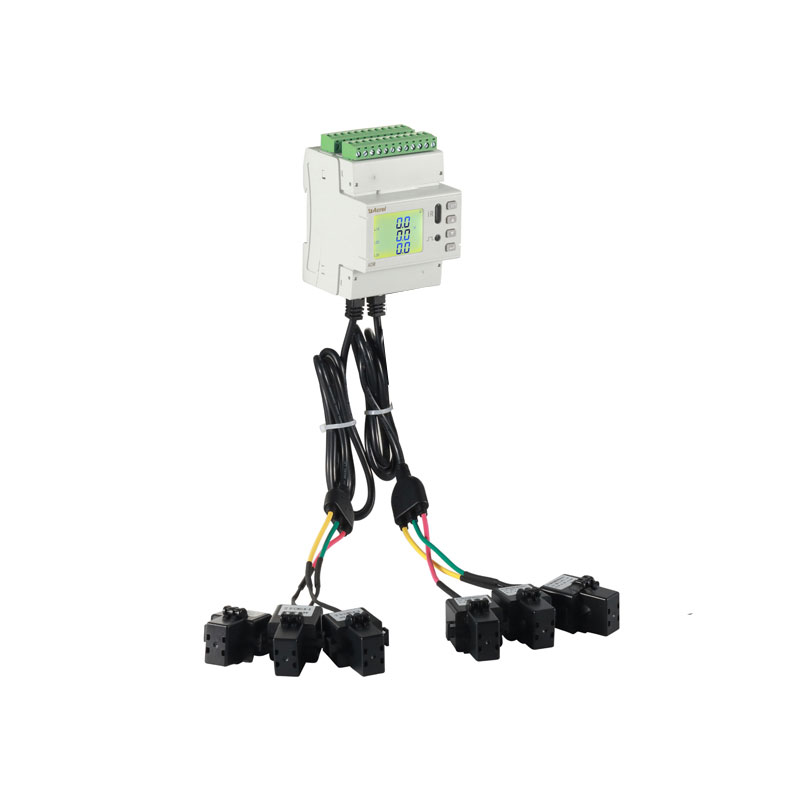

RS485 Modbus-RTU LCD Display ADW210 Multi-Function Max 4-Channel 3-Phase Kwh Monitoring Smart Energy Meter Paired with External Cts

ADW210 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit.Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current transformer, easy to install on site, and realize remote wireless communication through wireless communication module.


Specification

Optional

● Measurement: Up to 4-channel 3-phase kWh, kVarh, Current, Power, 2~31st Harmonic and etc

● Voltage Rating: 3x220V/380V AC (3P4W)

● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)

● Frequency: 45~65Hz

● Communication: RS485 (MODBUS-RTU)

●Switching: 2DI/2DO

● Display: LCD

● Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body

● Wiring: 3-phase 4-wire Connection

● Installation: 35mm DIN Rail

● Standard&Certificate: CE; LVD

● Expanded Communication: AWT100 Gateway Wireless Communication.

(Downlink: RS485;

Uplink: WiFi, 4G, 2G, NB, Lora, LoraWAN, Ethernet, GPS, Profibus)

●MTL:Cable Temperature&Residual Current Measurement

●MK:DO/DI Switch Extra Function Module

Function

Function	Description
Energy Measurement	kWh (positive and negative)
	kvarh (positive and negative)
	A,B,C three-phase positive kWh
Electric Parameter	U, I, P, Q, S, PF, Hz
Harmonic	2-31st voltage and current harmonic
Communication	RS485 (MODBUS-RTU); baud rate 1200~38400
Key Programming	4 keypads to set communication and parameters
Display	LCD display, 8 digits
LED Alarm	Over-voltage, over-current, interruption phase
Data Log	Maximum demanded kWh and the time it happened.
SOE	up to 200 pcs, record on-off status of DO/DI
Pulse Output	Active optocoupler pulse output with open collector
Multi-rate/Tariff	4 time zones & 12 time periods

Technical Parameters (Main body)

Parameters	Description
Input	Voltage	AC 3×220V/380V
		Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s
		Power consumption:≤ 0.5VA
	Current	AC 5A,100A,400A,600A;(external open-type CT)
		Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s
		Power consumption:≤ 0.5VA
	Frequency	45~65Hz
Measuring Accuracy	Voltage&Current	Class 0.5
	Active Power	Class 1
	Reactive Power	Class 2
	Frequency	0.05Hz
	2~31st harmonic	± 1%
Auxiliary Power	AC/DC 85~265V;consumption≤10VA;
EMC	Better than grade 3
Safety	Withstand Voltage	>AC 2000V/1min
	Insulation Resistance	>100MΩ
Environment	Working Temperature	-20℃~+60℃
	Storage Temperature	-40℃~+70℃
	Humidity	≤95% (No condensation)
	Altitude	≤2500m

Technical Parameters (paired Current Transformer)

Paired CT	Primary Current	Secondary Current	Aperture(Hole size)	Accuracy Class
AKH-0.66/K-φ10N	5A	1.25mA	10mm	Class 0.5
AKH-0.66/K-φ16N	100A	20mA	16mm	Class 0.5
AKH-0.66/K-φ24N	400A	100mA	24mm	Class 0.5
AKH-0.66/K-φ36N	600A	100mA	36mm	Class 0.5
