Mini ZX905 2G + 4G GPS Tracker Chip LTE CAT-1 Tracking PCBA Module Board Anti-Lost WIFI Beidou Satellite For Kids Pets Cat Dog
Main specification:
Function | Realtime GPS/AGPS/Wifi/4G Cat 1/ LBS Positioning, SOS, Voice, Call Family Numbers, Geo Fence Alarm Reminder, historical track, Alarm Clock, Class Mode, Power Save |
CPU | 1 |

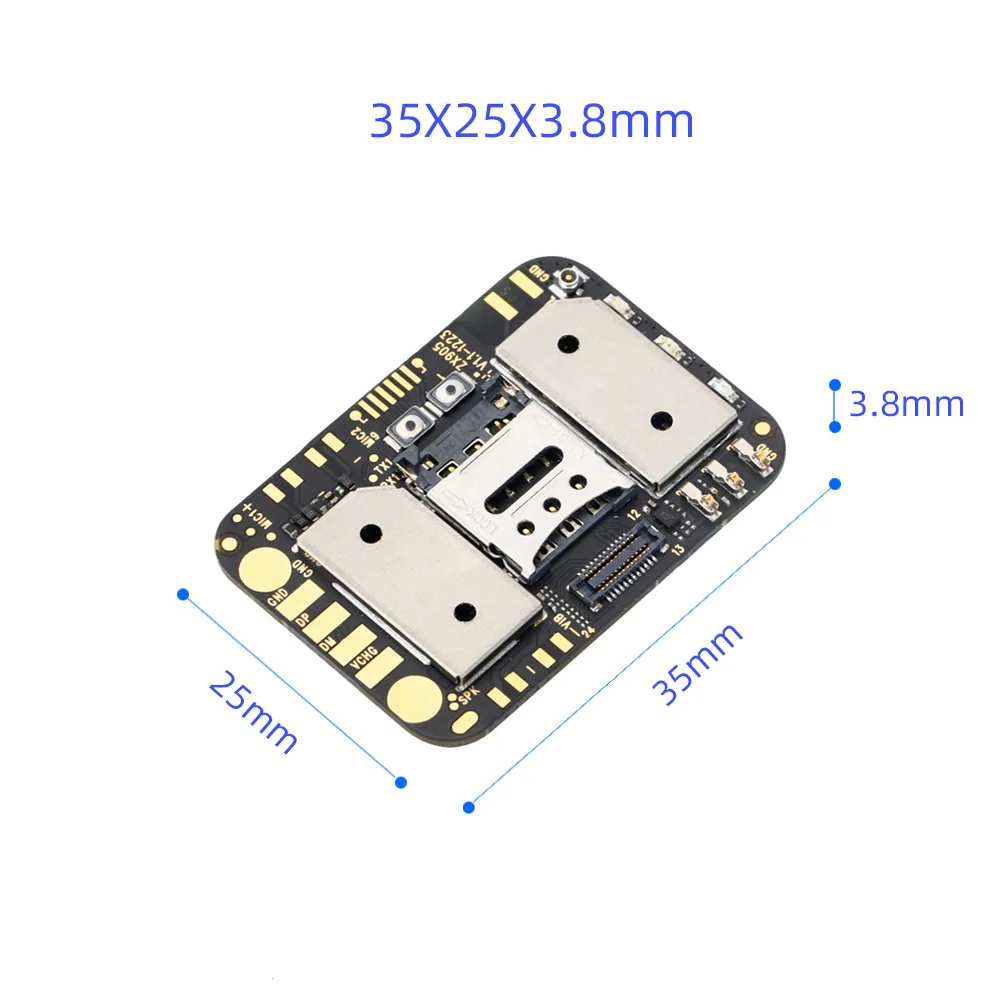

PCB Size | 35*25*3.8mm (thickness include PCBA and GPS antenna) |
Working Temperature | -20℃ - +70℃ |

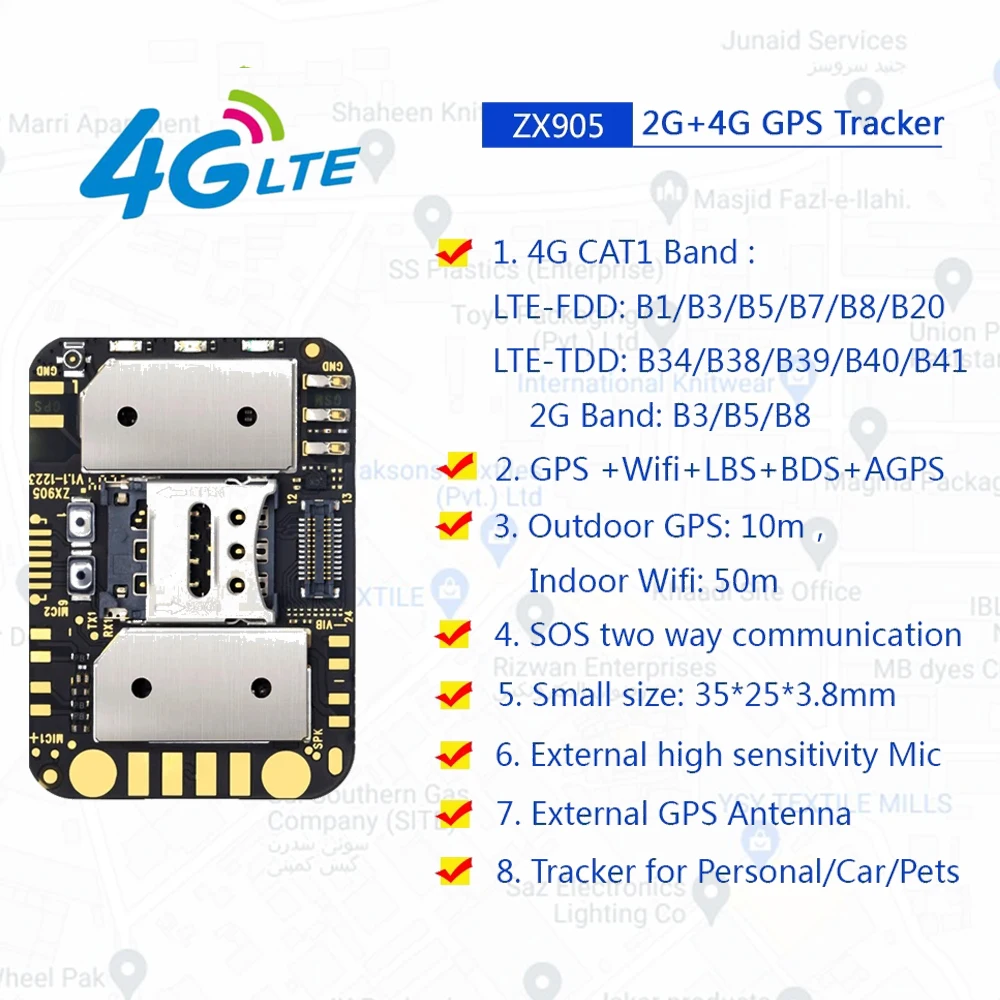

Network | 4G: LTE-FDD:B1/B3/B5/B7/B8/B20 , LTE-TDD:B34/B38/B39/B40/B41 2G GSM Bands: B3 / B5 / B8 |
Wifi | WiFi 802.11b/g/n |

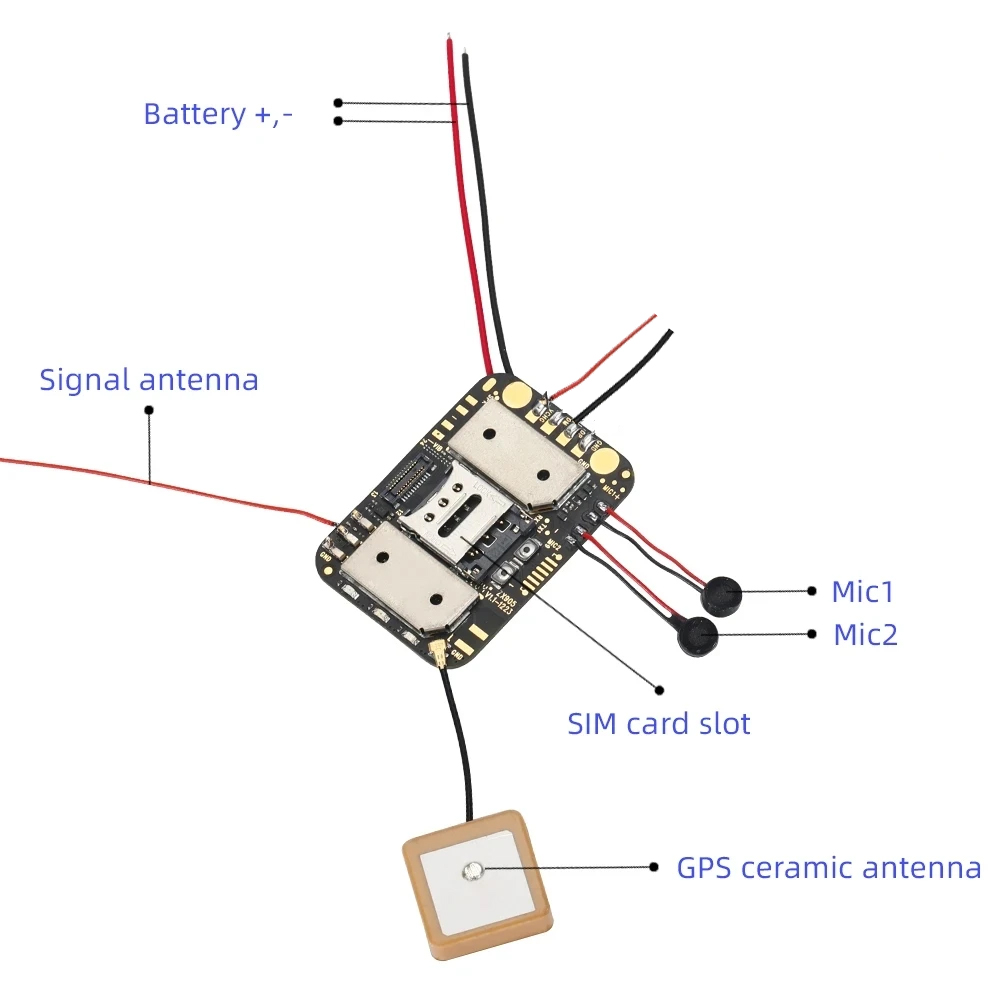

GPS | Support external active GPS antenna support GPS+AGPS+Wifi+LBS+BeiDou |
SIM slot | Support NANO sim card |
GPS Positioning Accuracy | Within 10 meter outdoor |
GPS Motion Accuracy | 0.1 meter/second |
GPS Positioning Time | Cold Boot-38s(Open field), Warm Boot-2s(Open field),The specific time is affected by the environment |
WIFI Positioning Accuracy | Within 50 meters |
GSM/4G Positioning Accuracy | 50-200 meters(Depending on the network) |

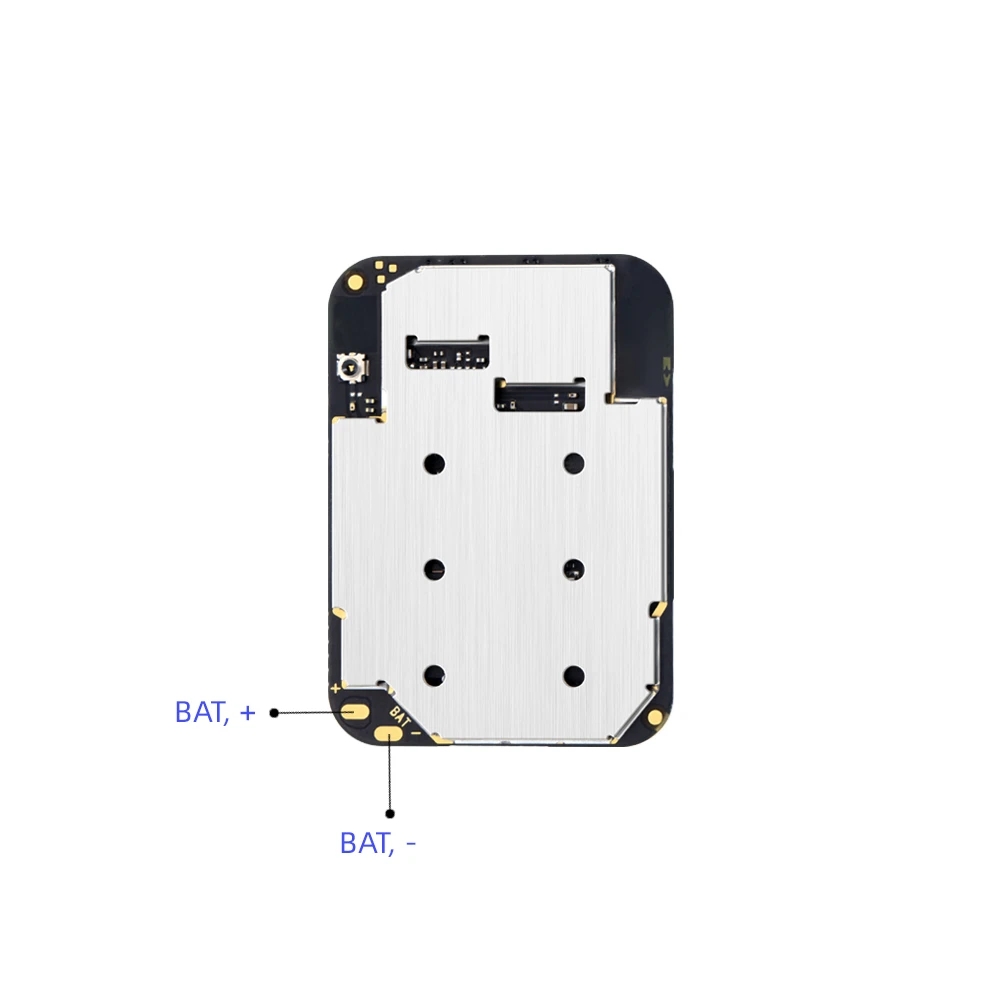

Battery | Support rechargeable 3.7V Li-polymer battery(optional different capacity batteries upon different struction design) |
Charging port | Type C port |
Charging Current: | DC 5V/0.5A-1A(depend on your battery capacity) |
MIC | external High-Definition Silicon microphone |
Sensor | Build-in 3D G-sensor |
Attention:
1.Note: This is 2G + 4G GPS tracker --
4G Bands : LTE-FDD:B1/B3/B5//B7/B8/B20 , LTE-TDD:B34/B38/B39/B40/B41
2G Bands: B3 / B5 / B8
Have tested in Europe and Asia, working successfully. Other Continents , please confirm with your country telecom operator, support the 2G/4G bands above or not, if include our 2G/ 4G bands yes work too.
2.The Topin Official Service platform: www.365gps.net
Android application: 365gps
iOS application: 365gps
Login ID:IMEI number,Default Password: last 6digits of imei
3. QR code scanning access
Please feel free to ask test ID experience our APP.
Please contact us to get test ID and password experience our APP, thanks.
1. IMEI query: IMEI#
2. Interval setting:
TIMER,X,Y# (X=GPS tracker moving status interval, Y=GPS tracker idle status
interval)
3. Interval query:
TIMER#
4. Sleeping time
setting: SENDS,X# (x=minutes, range 0-60)
5. Static time
setting: STATIC,X# (x=seconds, can not exceed the sleeping time)
6. Reboot: REST#
(Device will reboot after 5 seconds)
7. Power off:
POWEROFF# (can be power on manually or by recharging only)
8. Status query: STA#
9. APN setting:
APN,X,Y,Z# (X=SIM card apn parameter, Y=SIM card APN user name, Z= SIM card APN
password)
10. Factory restore:
FACTORY#
