Introduction:
1. FG- Tech 4 Master V54 BDM-Tri Core-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum, BDM-TRICORE-OBD.
2. FG-Tech 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone.
Specifictions:
Version:Firmware 0475, Software V2012.02
PC System:Windows xp , vista, Win7 32bit/64bit
Software Language:English, Spanish, French, Italian, German, Czech, Portuguese, Turkish
Function:
1.Version:FG TECH 4 Master V54
2.Supports Multi-Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
3. It is a famous chip tuning tool forcars (12V), trucks (24V), motorcycles, Marine, BDM MPCxx, BDM Boot Mode,checksum.
4. Unlock version, can use directly, no need to activate.
5. It has Add BDM Function/ OBD K-CAN
6. Supported Operating System: Windows XP or Windows 7 32bits.
Master Version :
Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time
Automatic Checksum:
All old protocols included from MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode With password Boch, Siemens
MOT MC68332 - MCYQQCU - MC68377, MC68376, MC68336, ZC439615, ZC439507
MOT Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM .
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM G-F
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,
FG-TECH 0475 Added New vehicle and ecu type than 0386 Version:
11/12
OBD driver SSang-yong Del-phy DCM3.7 Read/Write, Checksum
11/12
OBD driver for Fer-rari 458 Italia MED9.6 Ecu Master and ECU Slave Read/Write, Checksum
10/12
OBD driver for Fi-at/Al-fa/Lan-cia Twi-nair/Mult-iair 8GMF and 8GSF Read/Write, Checksum
10/12
OBD driver for Ma-zda 5, Ma-zda 6 2.0 Diesel ECU RF8x Read/Write, Checksum
10/12
OBD driver for Ma-zda 5, Ma-zda 6 2.0 Diesel ECU RF7x Read/Write, Checksum
09/12
OBD driver for Sim-os 10.xx VA-G 1.2 TSI Read/Write, Checksum
09/12
OBD driver for CRD 3.xx Merc-edes 2200 CDI Read/Write, Checksum
09/12
Simos PCR2.1 VA-G 1.6 TDI Unlock Boot Tool - Read/Write EEPROM
09/12
OBD driver Sim-os PCR2.1 VA-G 1.6 TDI Read/Write, Checksum
08/12
RSA recognition Peu-geot Bip-per
08/12
RSA recognition Citr-oen Ne-mo
08/12
OBD driver Driver for writing Bo-sch EDC16C34/5 Peu-geot Bip-per Read/Write, Checksum
08/12
OBD drive Driver for writing Bo-sch EDC16C34/5 Citr-oen Ne-mo Read/Write, Checksum
07/12
OBD driver Del-phi DCM3.5 for Ta-ta Sa-fari Read/Write, Checksum
07/12
Checksum recognition for DCM3.7 Ssan-gyong
07/12
Checksum recognition for DCM3.7 Op-el and Sa-ab
07/12
Checksum recognition for DCM3.7 Ki-a and Hyu-ndai
07/12
Boot Visteon ST10F275 RX-TX Mode
07/12
Boot ME7.9.10 ST10F275 RX-TX Mode
06/12
Checksum recognition for Denso Sub-aru Tri-beca
06/12
Boot Mitsu-bishi MH7203 Hyu-ndai
06/12
Checksum recognition for Denso Nis-san L200
06/12
Checksum recognition for Denso Nis-san X-Trail
06/12
OBD driver Op-el Simtec75 CAN Read/Write, Checksum
05/12
OBD driver Pors-che SDI3 CAN Read/Write, Checksum
05/12
Cor-vette Utility CAN for change VIN, Code Align, Erase Errors
05/12
Corette Utility VPN for change VIN, Code Align, Erase Errors
05/12
OBD driver Reault SID305 CAN Read/Write, Checksum
05/12
OBD driver Masrati ME9 CAN Read/Write, Checksum
04/12
Tool Boot Hitaci Phase 3
04/12
Tool Boot Hitaci Phase 2
04/12
OBD driver Fi-at ME17.31 CAN Read/Write, Checksum
04/12
Boot Mits-ubishi for L200 MH8102F
03/12
Boot Mitsu-bishi for Lan-cer EVO MH7202
03/12
Fi-at MJ8DF CAN Serial Injectors
03/12
Fi-at MJ8DF CAN Serial Injectors
02/12
OBD driver Fi-at MJ8DF CAN Read/Write, Checksum
02/12
OBD driver Fi-at MJ8DF K-line Read/Write, Checksum
02/12
OBD driver Merc-edes Del-phi CRD2.xx CAN Read/Write, Checksum
01/12
OBD driver Fo-rd Del-phi DCM3.5 CAN Read/Write, Checksum
01/12
OBD driver PS-A Delp-hi DCM3.5 CAN Read/Write, Checksum
01/12
OBD driver VA-G Sim-os 3xx Boot mode 29F400 C167 Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 9.1 Boot mode 29F400 C167 Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 7.1 Boot mode 29F400 C167 Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 33 K-line serial Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 32 K-line serial Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 3PG K-line serial Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 3PE K-line serial Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 3PD K-line serial Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 3PC K-line serial Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 3PA K-line serial Read/Write, Checksum
12/11
OBD driver VA-G Sim-os 9.1 K-line Read/Write, Checksum
11/11
JTAG MPC55xx
10/11
New password Triore Tprot V08-10
10/11
OBD driver Ren-ault Val-eo V40, Read/Write, Checksum
10/11
AUD Ren-esas
10/11
Boot Ren-esas
...
NEW for VAG SIMOS PCR2.1
NEW JTAG - BDM - MOTOROLA - FREESCALE -
NEW JTAG RENESAS
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2
Mair 8GMF New Delphy DCM3.5xx DCM3.7xx TRW.
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx - Rx Subaru - Mitsubischi - Hitachi - Denso ecu
NEW JTAG - BDM - MOT - FREESCALE :
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
MOT Free scale MPC 555/556/561/562/563/564/565
MOT MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 G-OPEL-SAAB
MOT MC 68376 Campi 01 Lambogini - Lotus
MOT MC 68336 MEMS D5
MOT ZC 439615 - ZC 439507 IAW FIT - V A G
New Line OBD protocols VPM Humer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Sbr - Mitsubischi - Hitachi - Denso ecu
All EDC17 MED17 is good always modify with Boot Mode .

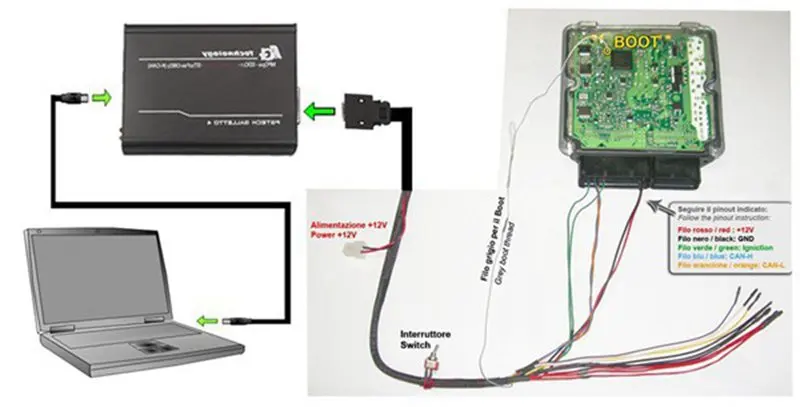

----- Boot Connection :

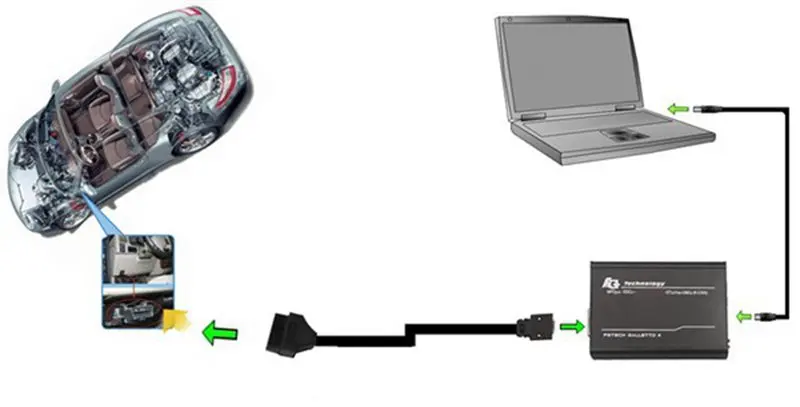

----- OBD2 Connection :

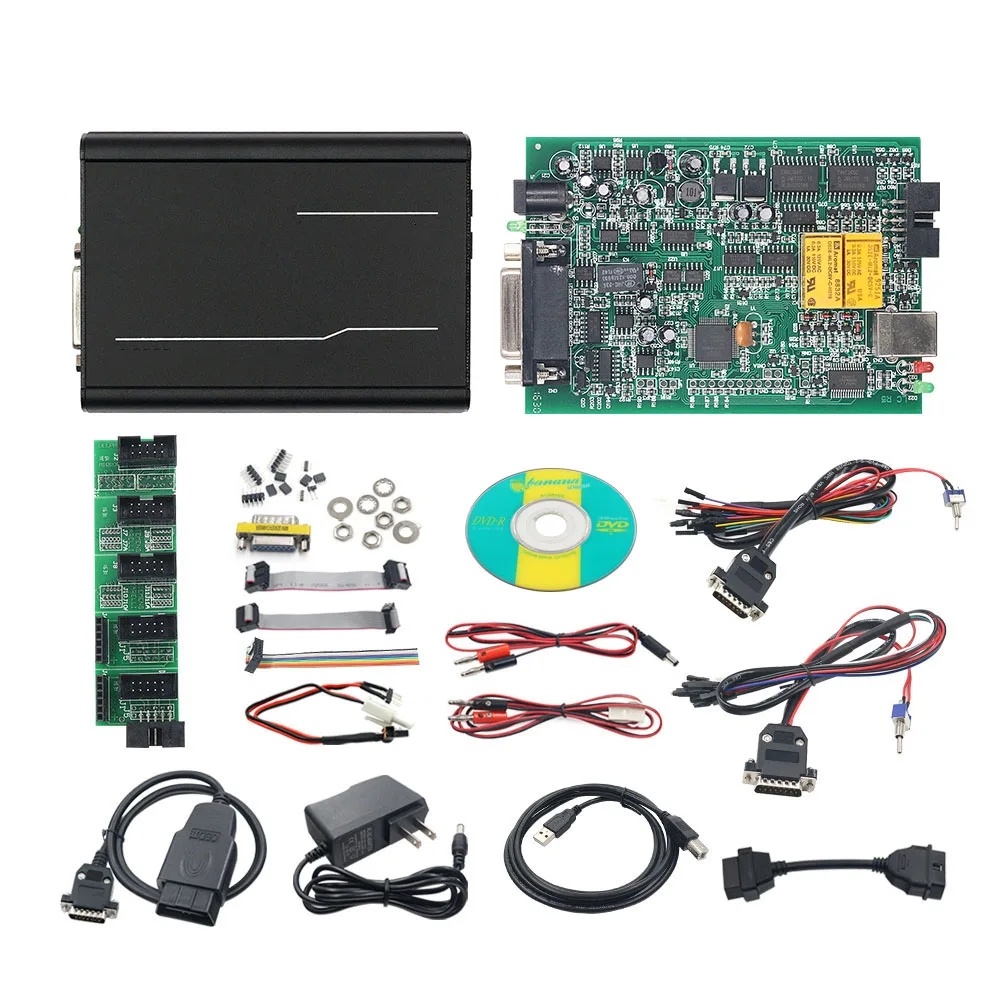

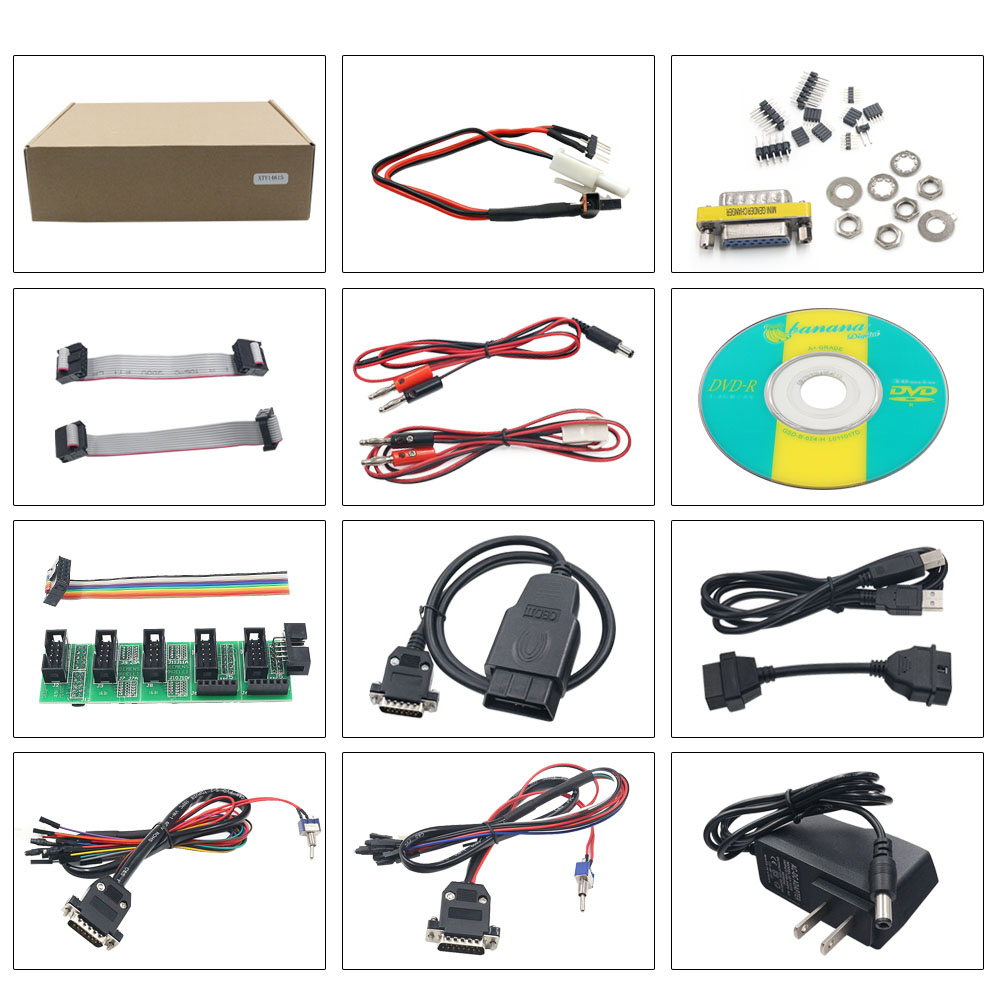

Packing List:
1* FG-TECH 4-Master V54 Main Unit
1* ECU cable for boot
1* Adapter for BDM to CMD with BDM cables
3* BDM adapters
6* BDM connectors
2* Power cable
1* OBD2 cable
1* USB cable (1.5meter)
1* CD
