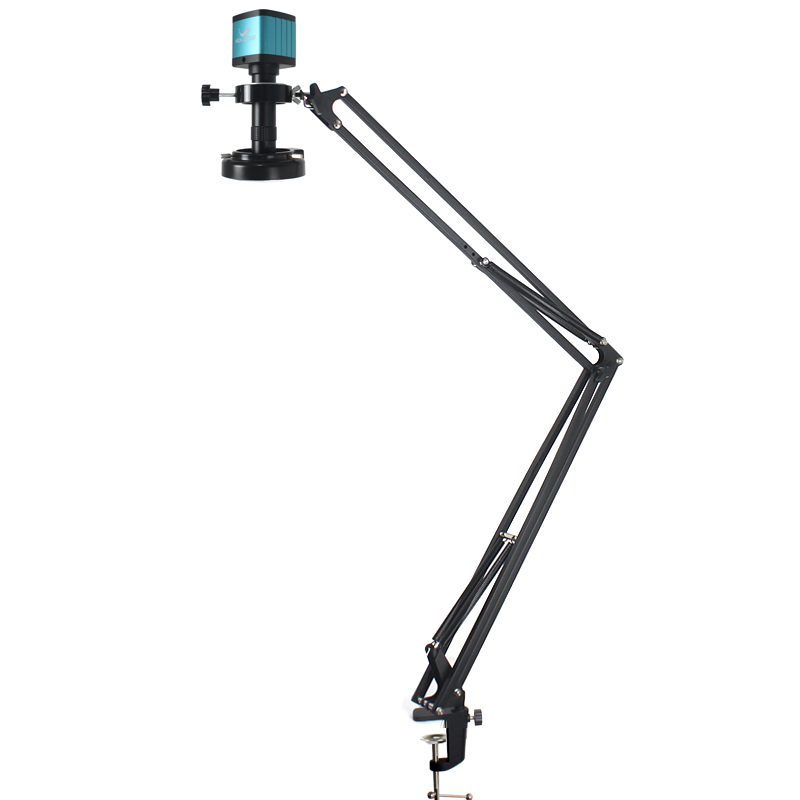

48MP 4K 1080P HDMI USB Industrial Video Digital Microscope Camera 130X Zoom C Mount Lens Cantilever stand For Repair Soldering

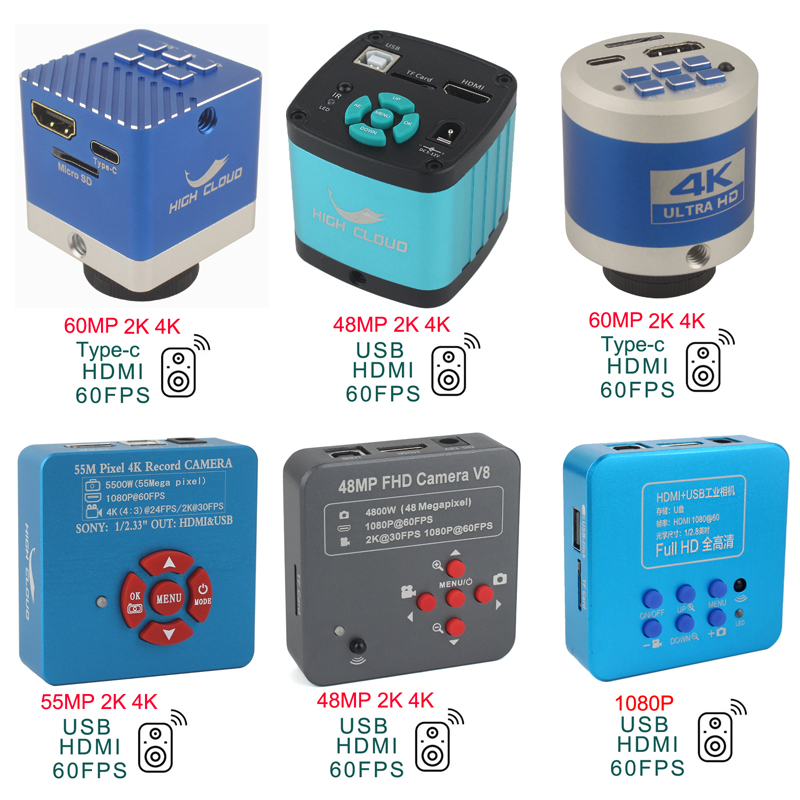

Note: Please select the product you need according to the SKU picture, you can choose to buy a package or a combination

Note: The SKU image shall prevail

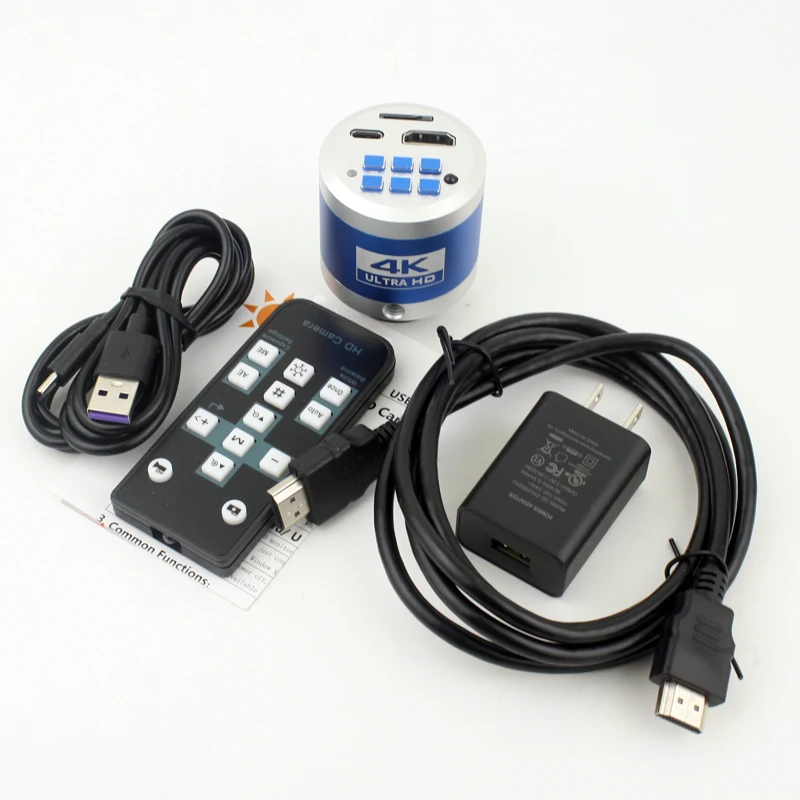

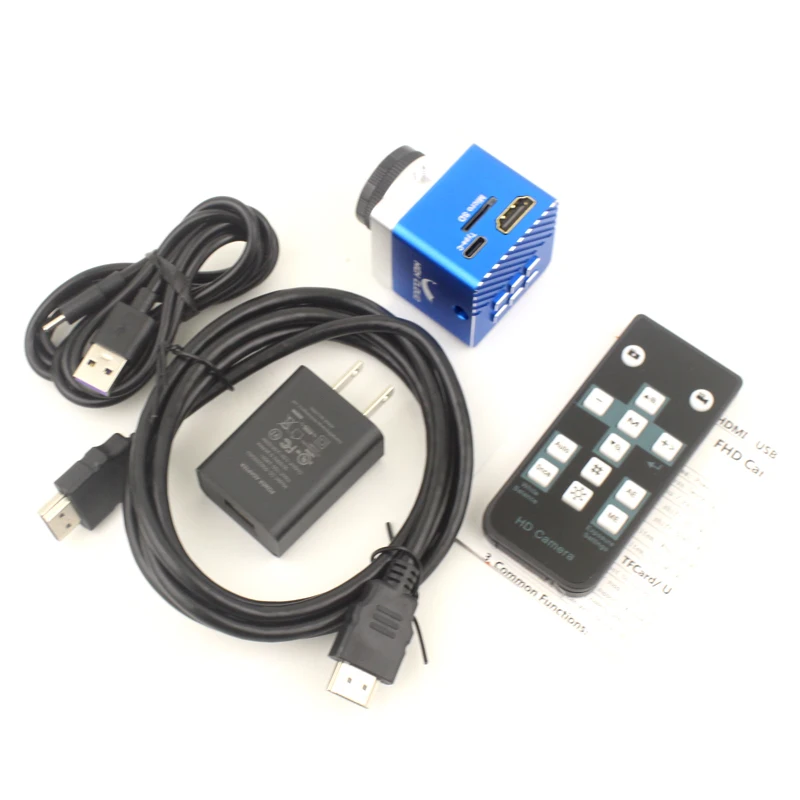

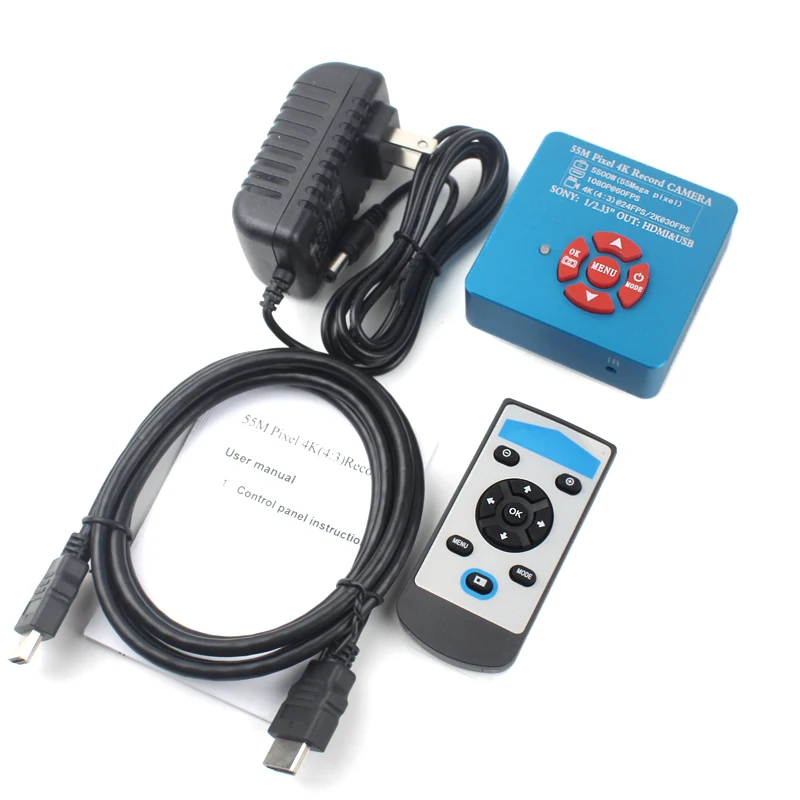

Package incluede:

1 x Microscope Camera (6 specifications)

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines

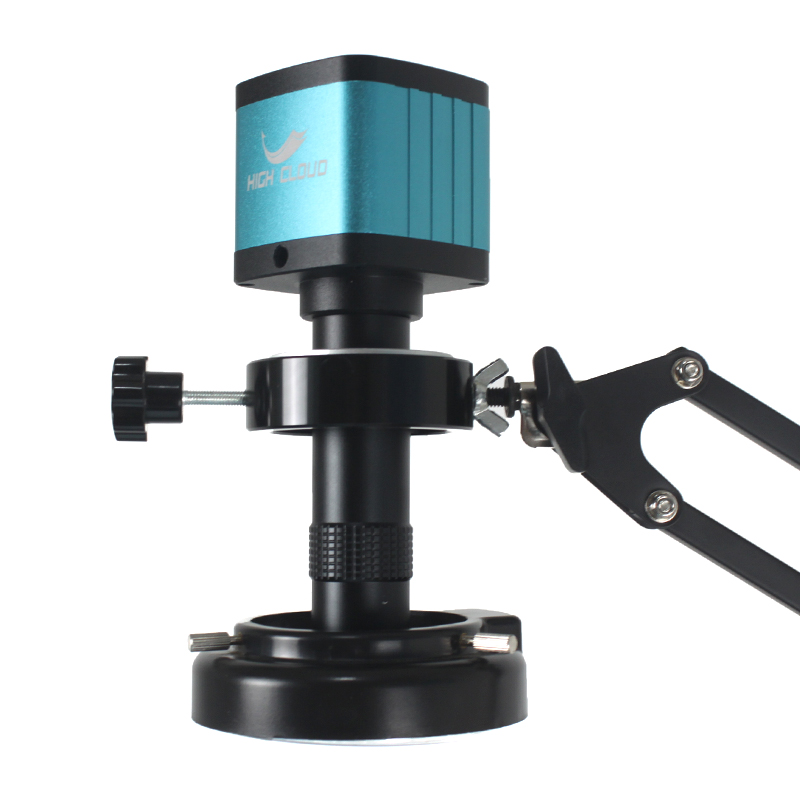

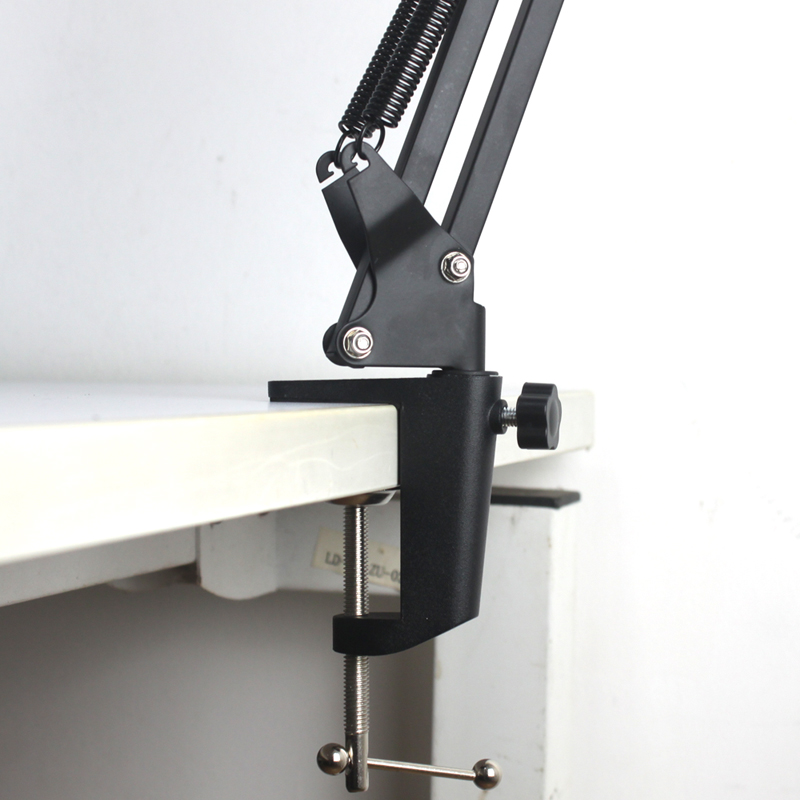

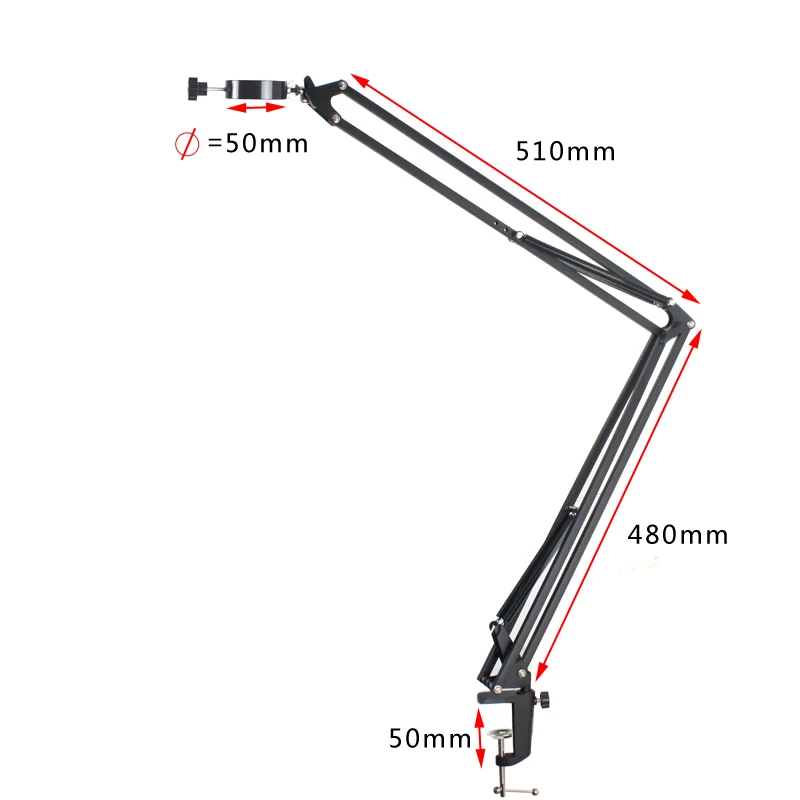

1 x Stand

1 x 130X lens

1 x 56 led ring light

It is recommended that the working distance exceeds 40cm, and a work desk lamp should be used to fill in the light.

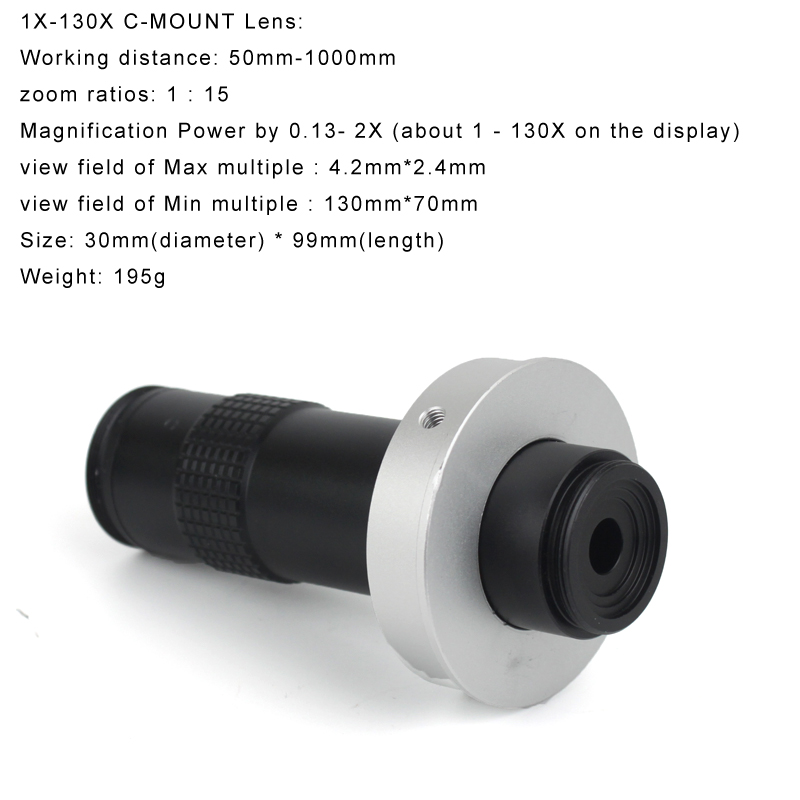

1X-130X C-MOUNT Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

Working distance:100mm

Sensor Panasonic:38 MegaPixel, 38 million pixels CMOS

Optical format:1/2.3 inch

pixel size:1.335μm x1.335μm

Interface:HDMI(Type A).USB(Type B).TF Card

Image resolution:21MegaPixel

Video record resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain:Support

Mono Negative:Support

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom:Support

IR remoter:Support

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W 12V,0.12A

Lens interface:C/CS口

Net weight:180g

Gross weight:400g

Camera size:74*74*35mm

Packaging size:160*100*80mm

Questions Solutions:

LCD no video or flicker

1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.

2.Check lens cover. Increase the lighting.

LCD have black bar Image warp

1.change resolution of LCD

2.change resolution of camera

Have dirty spot

1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

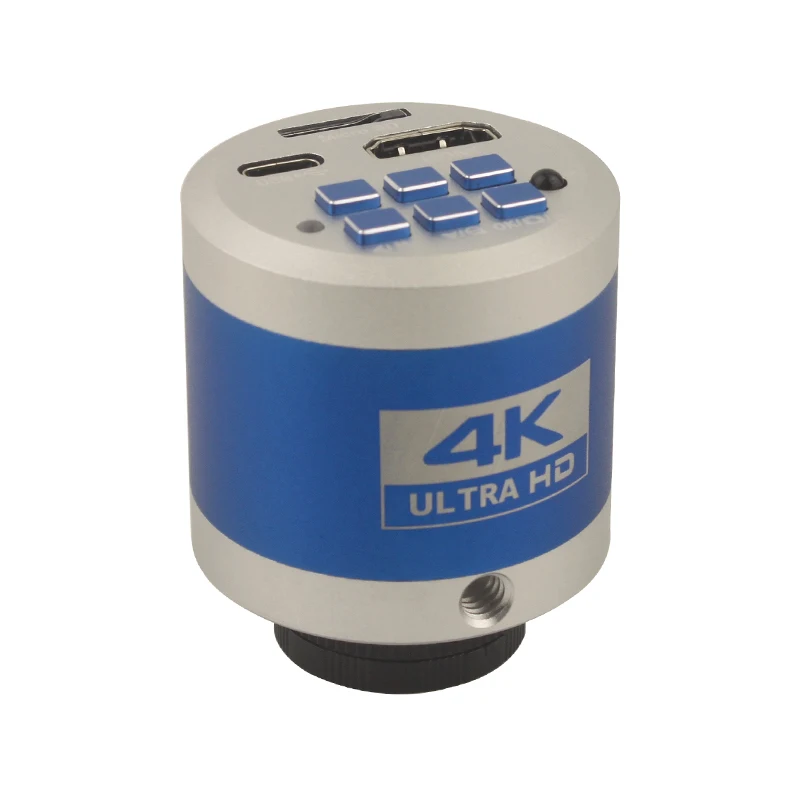

48MP 4K 60Fps HDMI USB◆ 48 million pixel imported Panasonic CMOS image sensor;

◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;

HDMI 1080P 60 frame image output;

◆USB2.0 driver free output 1080P 30 frame image output;

4K video recording;

◆48 million photos, JPG format, photo size 4608x3456;

One-click freezing/thawing function;

◆48 megapixel photography and 1080P video recording;

Electronic zoom function;

Support manual/automatic exposure, exposure compensation value adjustment;

Support manual/automatic white balance, red, green, blue adjustable;

◆ Provide 8 line drawing functions, line color, thickness, position adjustable;

Display/close center cross;

Support TF card storage, up to 64GB;

Support remote control operation, take photos without jitter image more clear;

◆ Support Chinese and English menu language (default English);

Support shutdown setting parameters save;

◆ Strong metal shell;

Camera specifications:

The sensor : 1/2.33 inch Panasonic 48 megapixel CMOS sensor

Pixel size : 1.335µm × 1.335µm

HDMI output : 1920*1080 60PFS

USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)

Camera interface : C/CS

Exposure : Automatic/manual

Exposure compensation : Support

White balance : Automatic/manual, RGB adjustable

Storage : Supports a maximum of 64GB

Input voltage : Dc 5v-12v

line : Supports 8 straight lines with adjustable color, thickness and position

Center line : Support

Menu language : English/Chinese

Remote control : Support remote control operation

Net weight : 250g

Rough weight : 450g

Product size : 66*66*49mm

Packing size : 145*130*70mm

13MP 60Fps HDMI USBFeature:

The sensor: gc2053

Overall dimension: 20*70*70mm

Video Interface:HDMI VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3"

Pixel size:2.8um*2.8um

Pixel array:13MP

TV Lines:1200TVLine

FPS of max image:30FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)

56LED Adjustable Compact Microscope Ring Light:

Provides intense and focused shadow-free illumination

56 Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)
