BaseX is a special base compatible with LEGO EV3 motor. The structure design is similar to base26, supporting multiple ways of fixation, and an additional LEGO connection base is provided. When building the LEGO structure, Basex can be easily embedded in the work. Basex can be connected to 4-way (RJ11) LEGO motor at the same time, supporting angle / speed reading and control, and perfectly compatible with the original motor functions. In addition, the base provides two servo interfaces, which can directly control the rotation angle of the servo.There is a motherboard PDM microphone for sound collection. In order to adapt to different use scenarios, a UART interface (16 / 17) and a GPIO interface (26 / 36) are provided to make access to various sensors more flexible. A 950mAh battery is built in the base, which can be charged through the usb-c interface of m5core to extend the endurance. In order to improve the driving ability of the interface, the base is equipped with a DC power socket, which can be powered by an external 9-12v power supply to provide a stable power supply for the motor.
Product Features

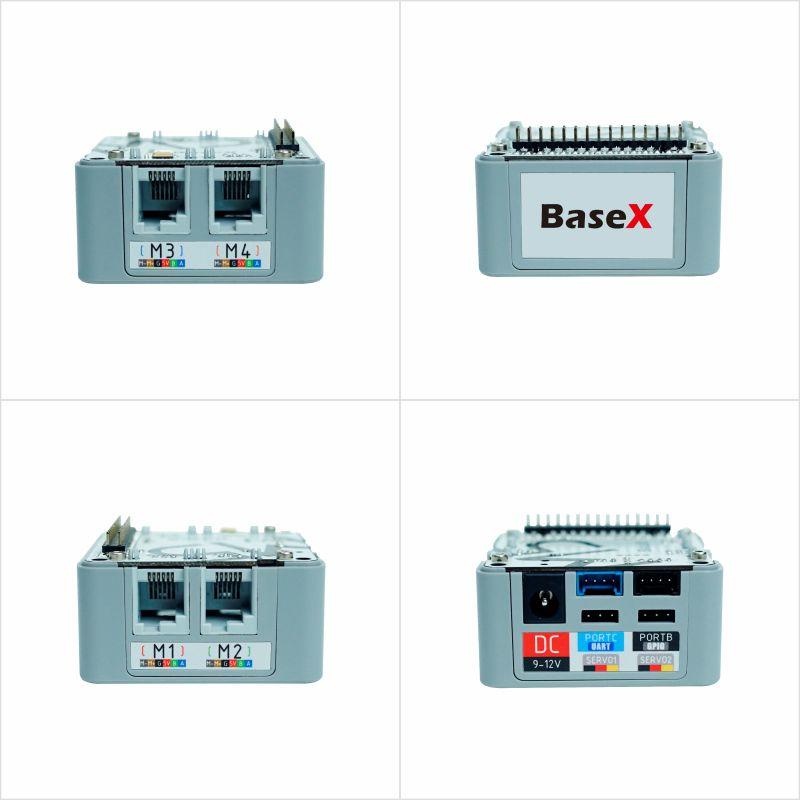

1.4-way RJ12 LEGO motor interface (total maximum output current 2A)
2.2-way servo interface (total maximum output current 2A)
3.1-way UART
4.1-way GPIO
5.On board PDM microphone (GOIO 34)
6.On board DC-DC conversion (9 ~ 12V,independent power supply for the motor only)
7.Built in 950mAh battery

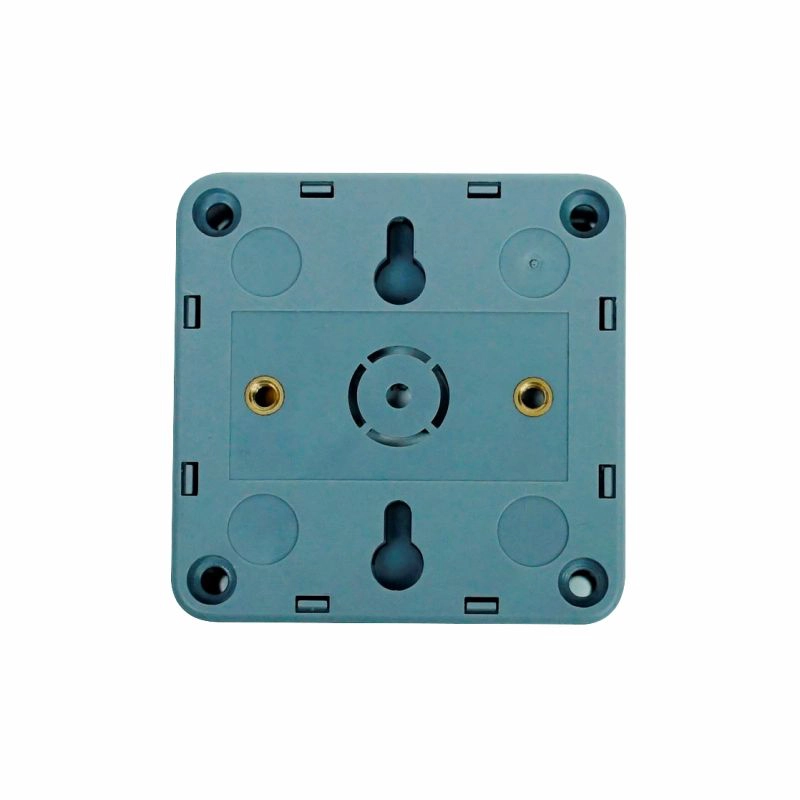

8.Multiple fixing methods / LEGO hole connection support
Application

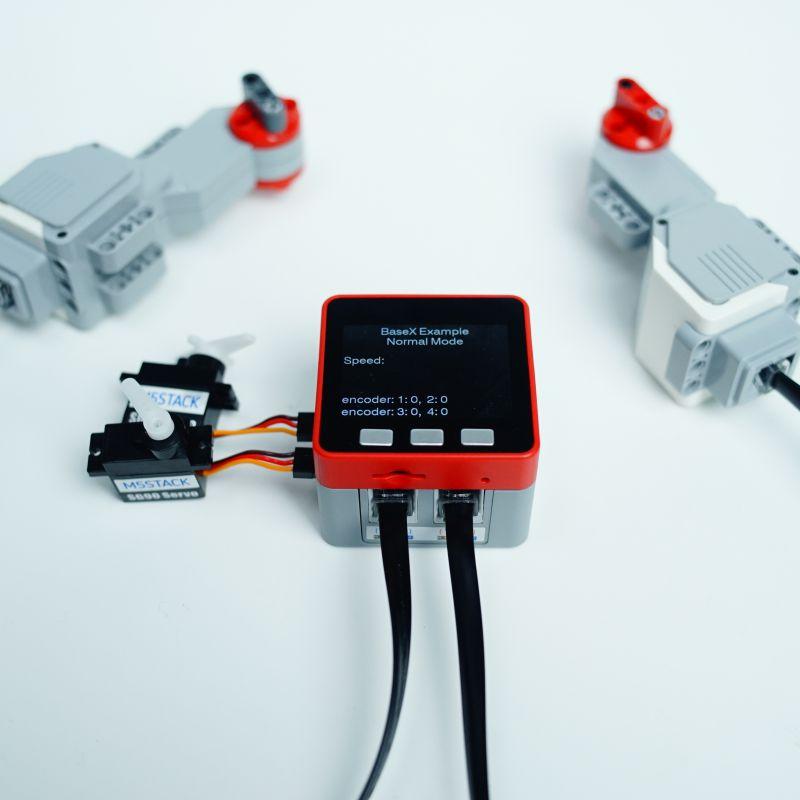

Encoder motor / servo controller
LEGO DIY intelligent control
Include
1x BaseX

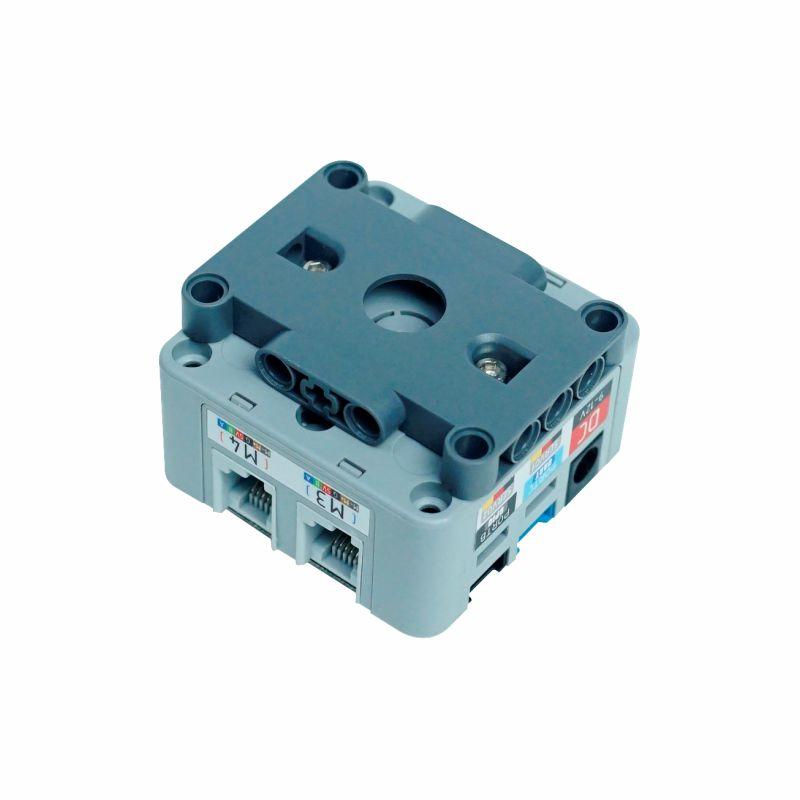

1x LEGO base
2x M3 * 5mm 304 Stainless steel hexagon socket bolt
2x M3 * 32mm 304 Stainless steel hexagon socket bolt
1x HEX KEY
