Solar Cable 10mm2/6mm2/4mm2/ 2.5mm2 8/10/12/14AWG Black or Red Solar PVC Insulated Electrical Connector Cables PV Panel Connect
If you are a wholesaler or retailer,please contact us directly.
We will offer you an attractive discount!!
1 pcs solar cable red or black 10mm/6mm/4mm/2.5mm/1.5mm(8AWG/10AWG/12AWG/14AWG/16AWG)
Cable size range : 10mm2(8AWG)/6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)/1.5mm2(16AWG)
1 Meters (3.28ft) / 2 Meters (6.56ft) / 3 Meters (9.84ft) / 5 Meters (16.4ft) / 10 Meters (32.8ft)

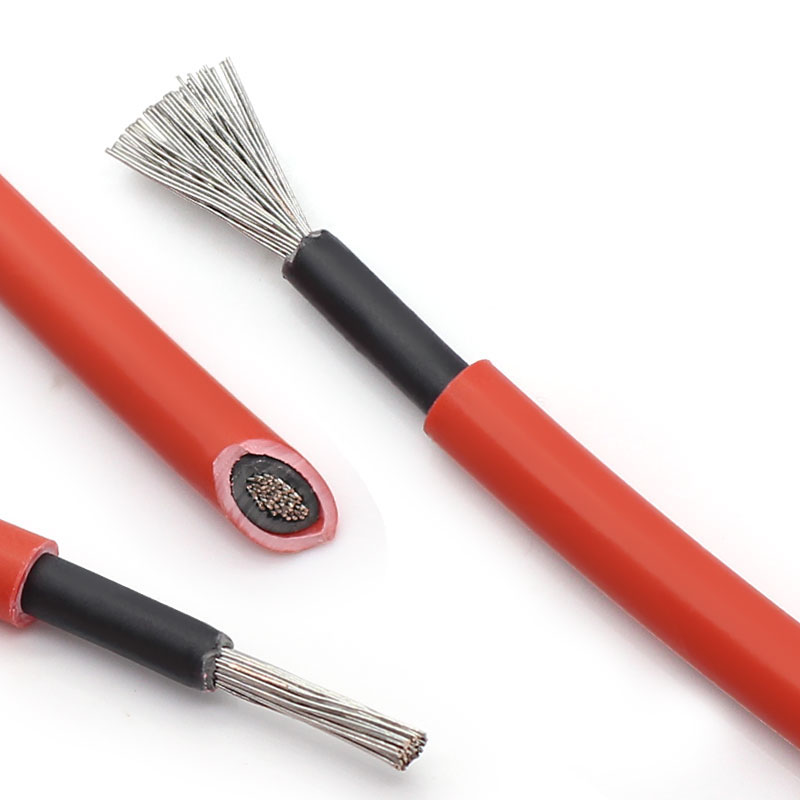

Solar Cable Structure :
|
INTRODUCTION
specifications:2.5/4/6/10mm²
Rated voltage: AC 0.6/1KV,DC1.5KV

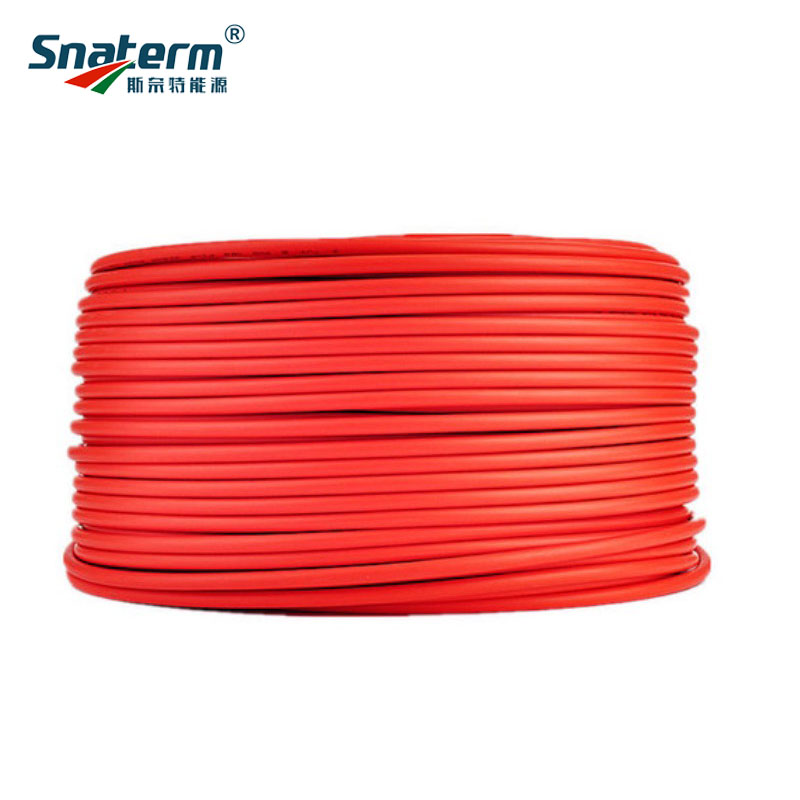

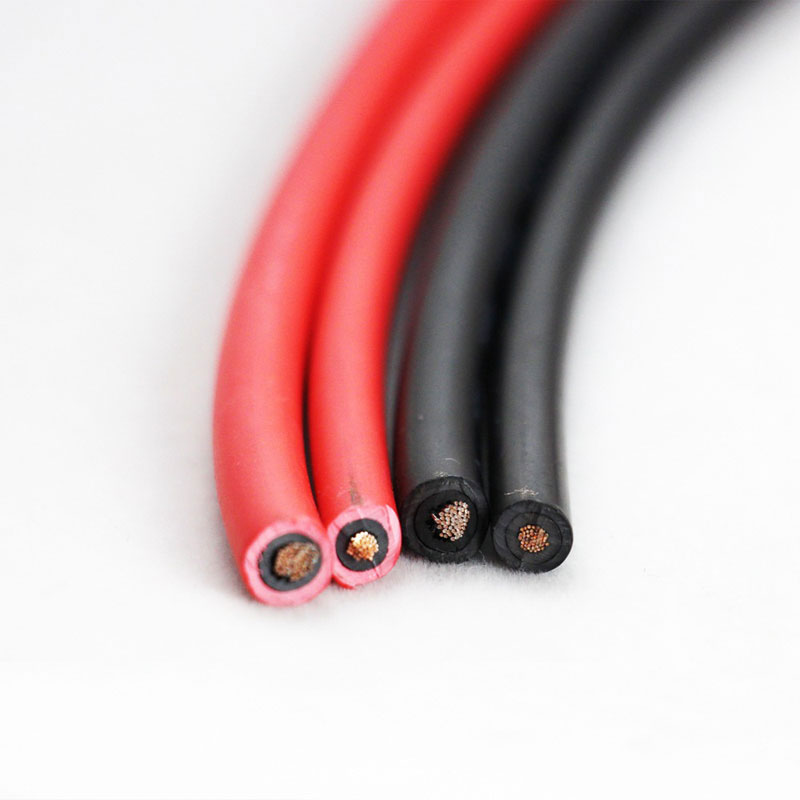

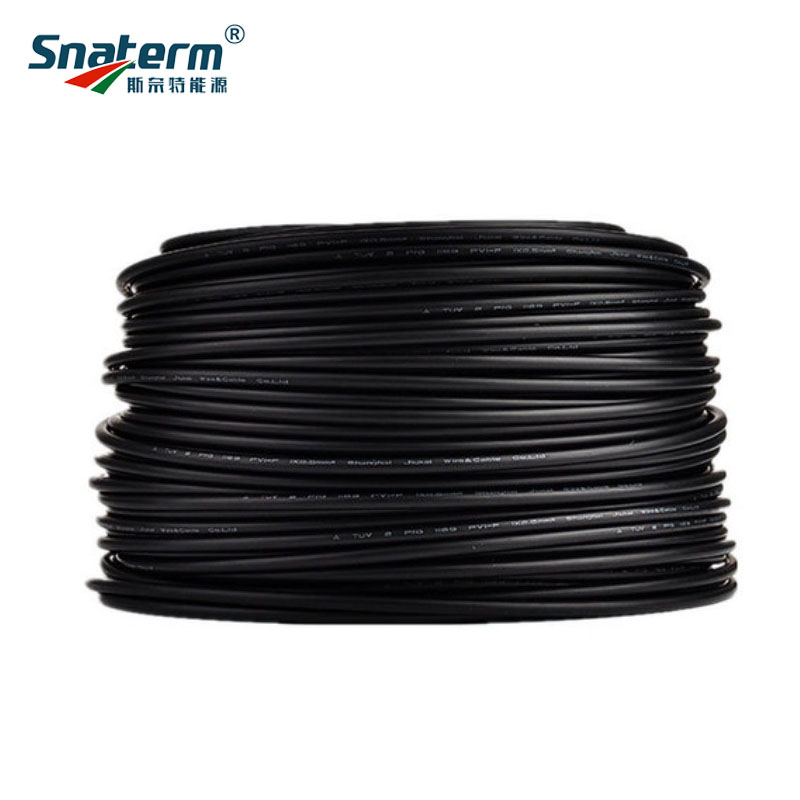

Color: Red / Black

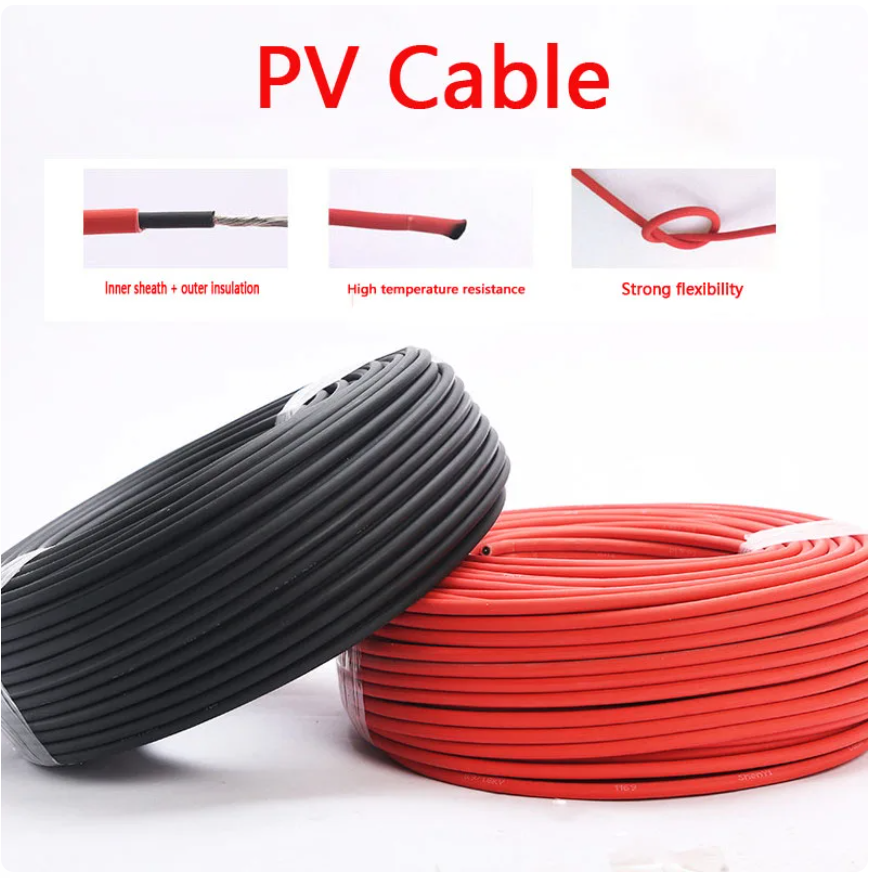

Feature: Double insulation cover,
Conductor material: stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath: Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation: Halogen-free low-smoke polyolefin(XLPO)
Service life: 25 years (-40 ℃ -90 ℃)
Application: Indoor and outdoor solar installations
Fire rating: UL94-V0
Seller declaration: This item is double-sheathed cable, which is not as soft as single-sheathed cable and silicone cable, please pay attention to the distinction
TECHNICAL PARAMETERS
Model | Safe current(A) | Core diameter (mm) | Conductor cross section(mm²) |
16 AWG | 19 | 30*0.25 | 1.5 |
14 AWG | 28 | 35*0.3 | 2.5 |
12 AWG | 36 | 56*0.3 | 4 |
10 AWG | 48 | 84*0.3 | 6 |
8 AWG | 65 | 142*0.3 | 10 |
6 AWG | 95 | 227*0.3 | 16 |
4 AWG | 120 | 190*0.4 | 25 |
Conductor: Tin-plated high-purity oxygen-free copper, electrical performance and structure meet the requirements of ASTMB33 or ASTMB172
Insulation: Thermosetting environmental protection insulation material, generally black
Sheath: Thermosetting radiation-crosslinked polyvinyl chloride environmental protection UV-resistant sheath material
ADVANTAGES
